Installation Procedure

Fig 1: Oiling Male Pipe Ends (Metal Collar)

Courtesy of GENERAL MOTORS CORP.

WARNING: In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

Apply a few drops of clean engine oil to the male pipe end.

Fig 2: Pushing Fittings Together

Courtesy of GENERAL MOTORS CORP.

Push both sides of the fitting together in order to snap the retaining tabs into place.

Fig 3: Ensuring Connection (Metal Collar) Is Secure

Courtesy of GENERAL MOTORS CORP.

Once installed, pull on both sides of the fitting in order to make sure the connection is secure.

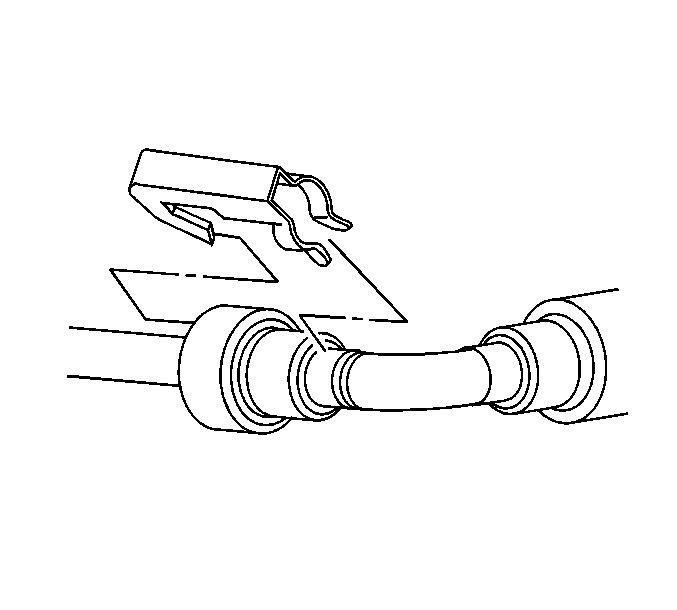

Fig 4: View Of Quick-Connect Fitting Retainer (Metal Collar)

Courtesy of GENERAL MOTORS CORP.

Install the retainer to the quick connect fitting.
