Front Side Door Window Regulator Motor Replacement

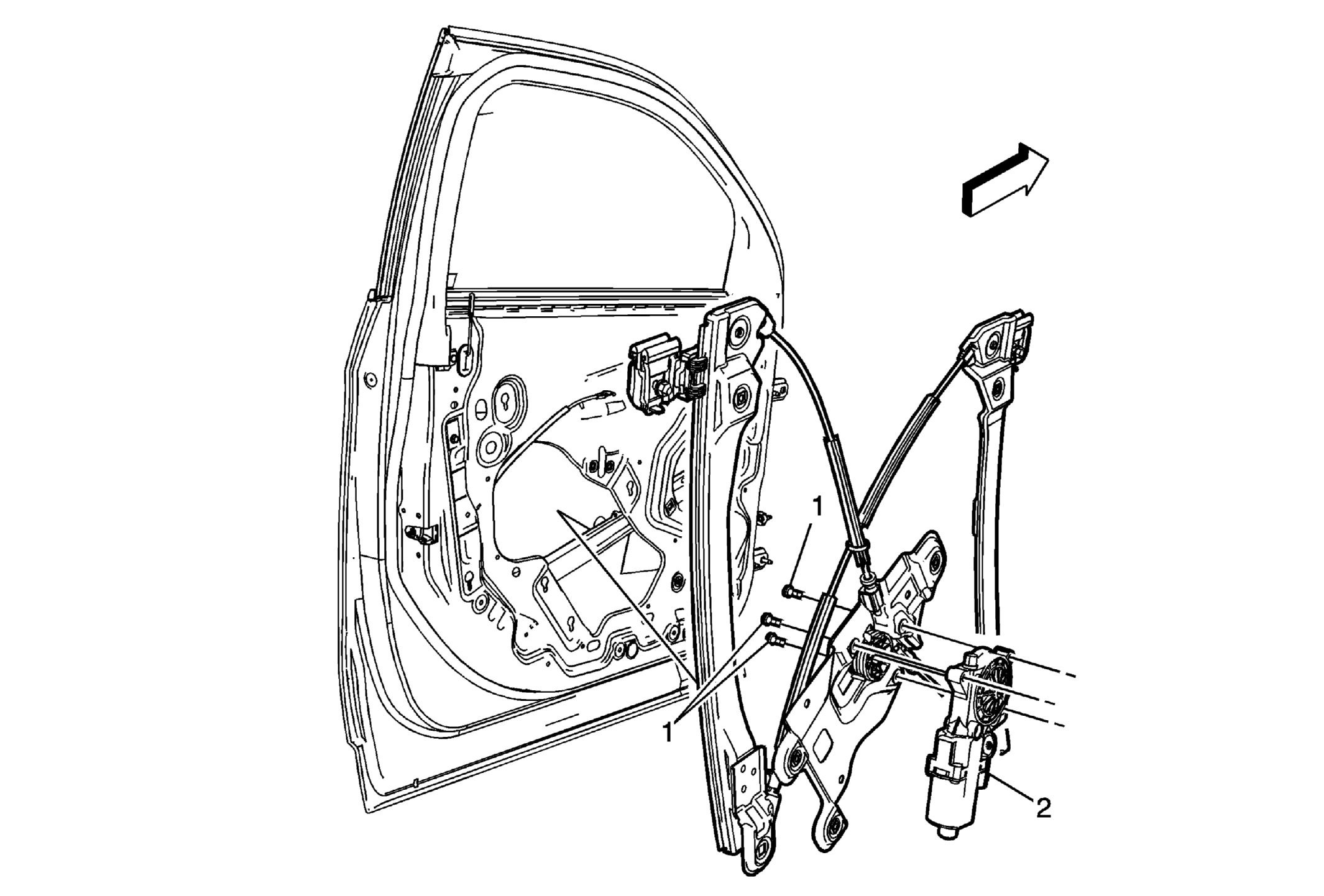

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement |
|
| 1 | Front Side Door Window Regulator Motor Bolt (Qty: 3)
WARNING:
Refer to Glass and Sheet Metal Handling Warning
.
CAUTION:
Refer to Fastener Caution
.
Tighten: 8 N.m (71 lb in) |
| 2 | Front Side Door Window Regulator Motor Procedure: Inspect the operation of the window before installing the door trim panel. |
