Camshaft Position Sensor Replacement - Exhaust

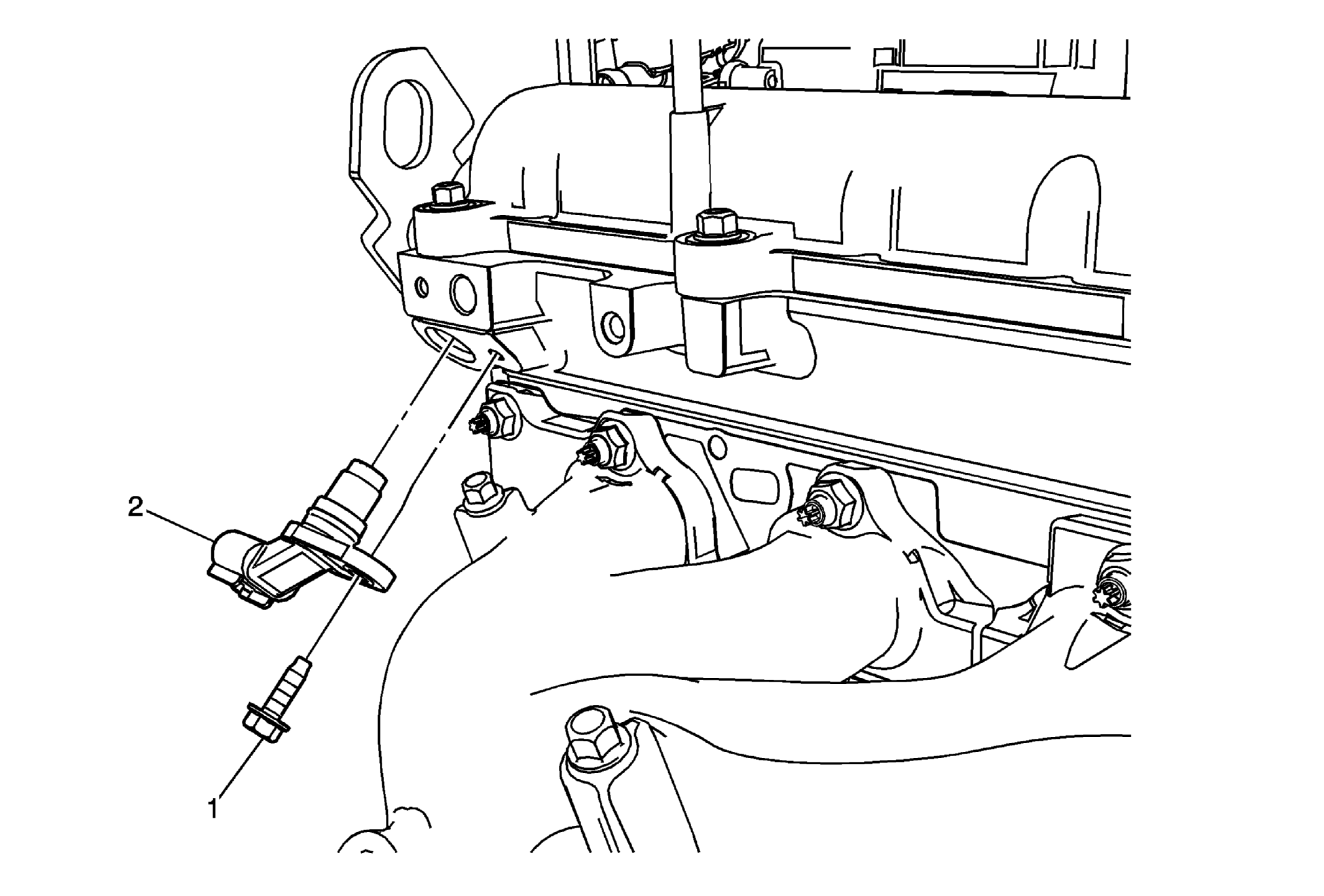

Fig 1: Camshaft Position Sensor - Exhaust

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten: 10 N.m(89 lb in)
2	Camshaft Position Sensor - Exhaust Procedure Lube the O-ring with clean engine oil. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

Camshaft Position Sensor Fastener

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m(89 lb in)

Camshaft Position Sensor - Exhaust

Procedure
