Sierra 2500 HD, 2D Pickup, 6.0 K, RWD
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Electrical Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

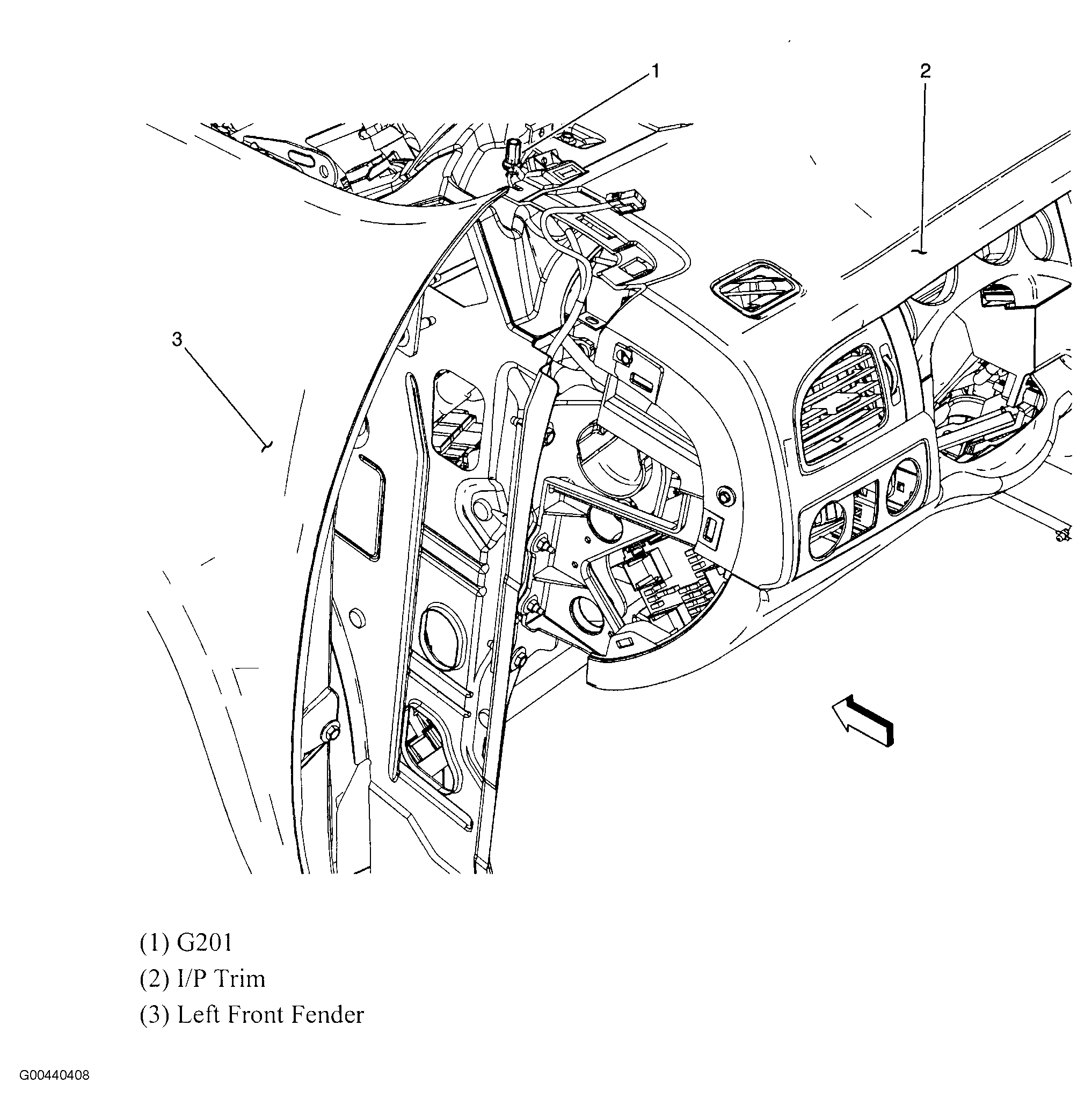

Fig 1: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

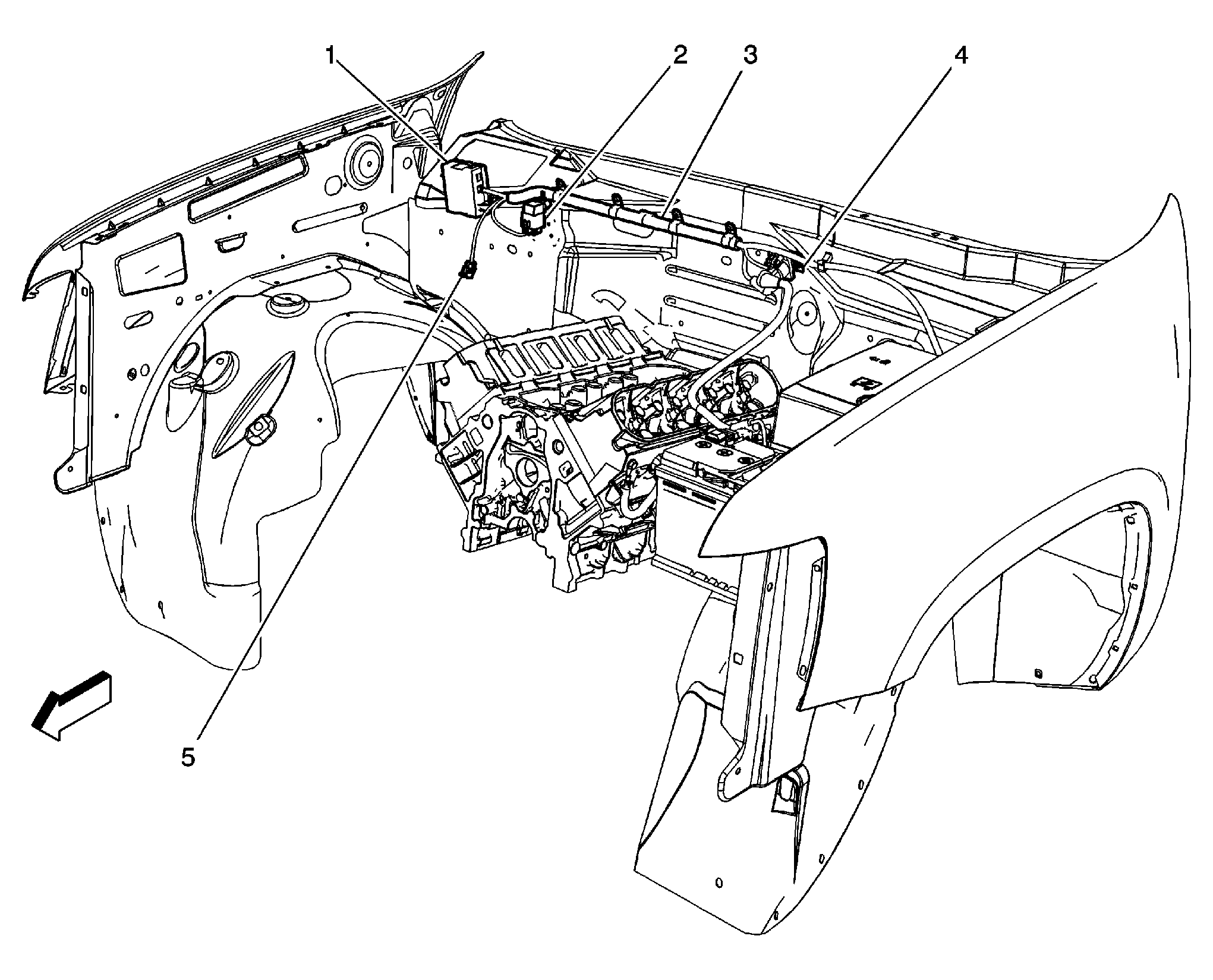

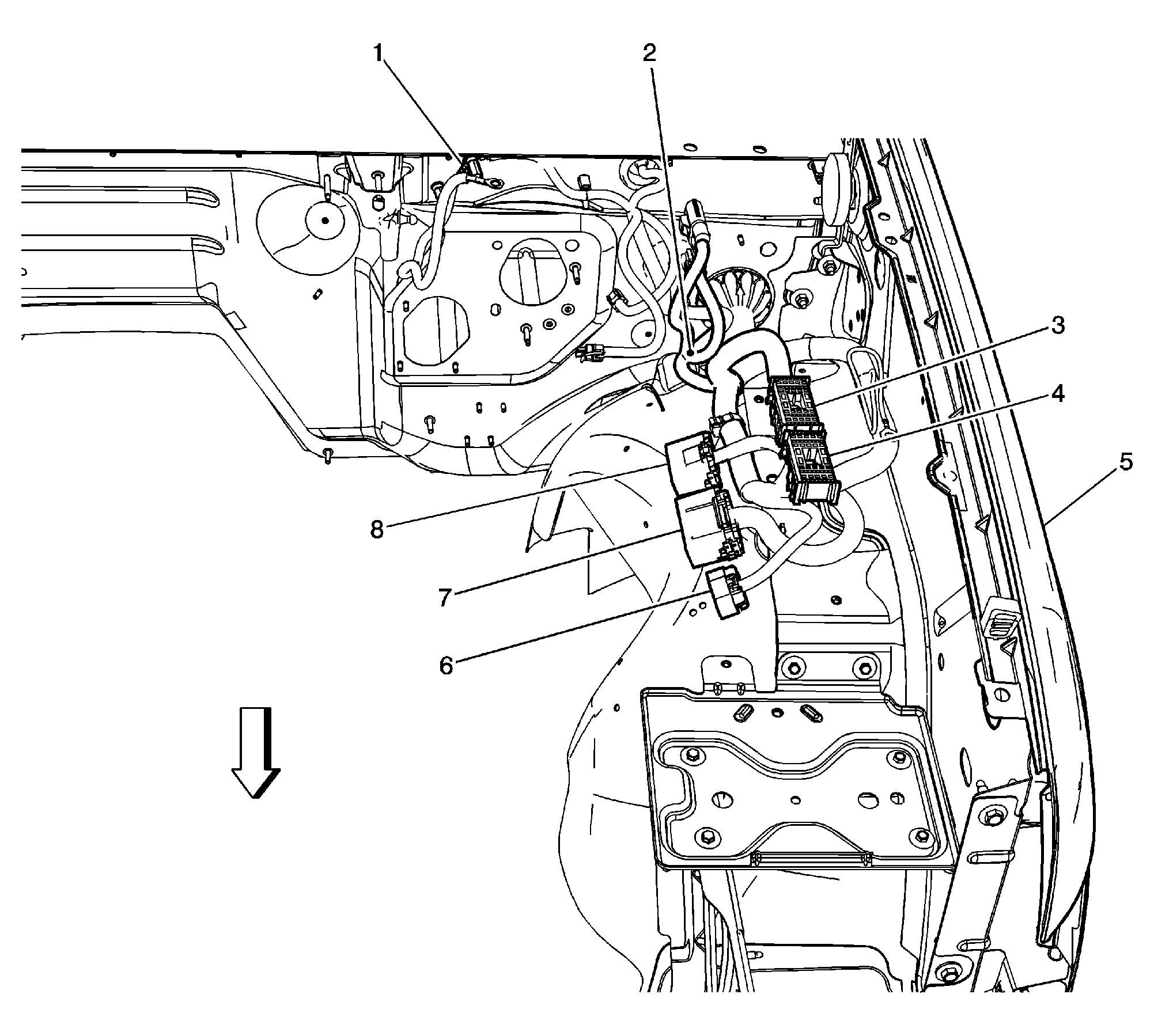

Fig 2: Left Side Of Engine Compartment (Except Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 4: Under Front Seats
Courtesy of GENERAL MOTORS CORP.

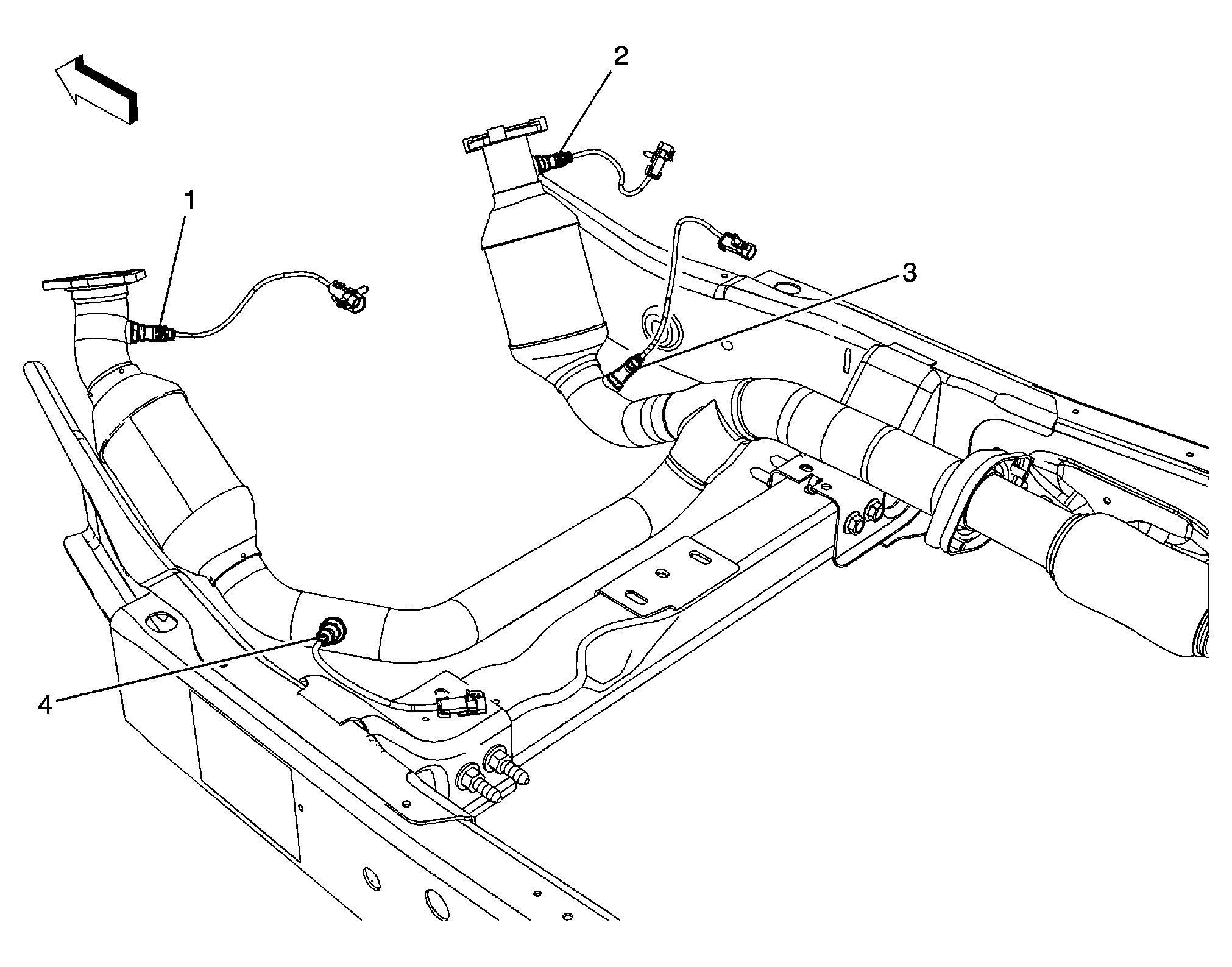

Fig 5: Under Left Side Of Vehicle
Courtesy of GENERAL MOTORS CORP.

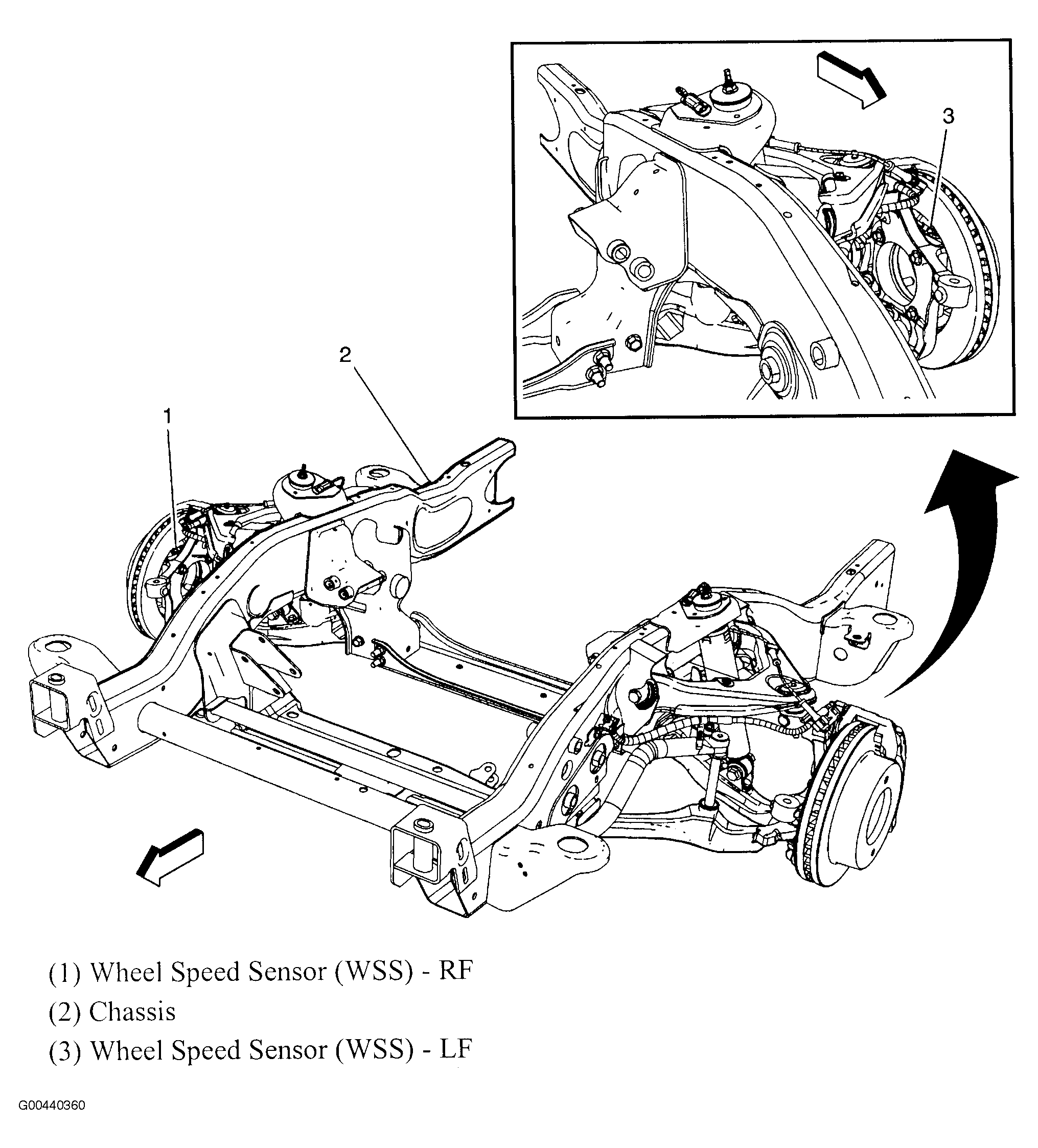

Fig 6: Front Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

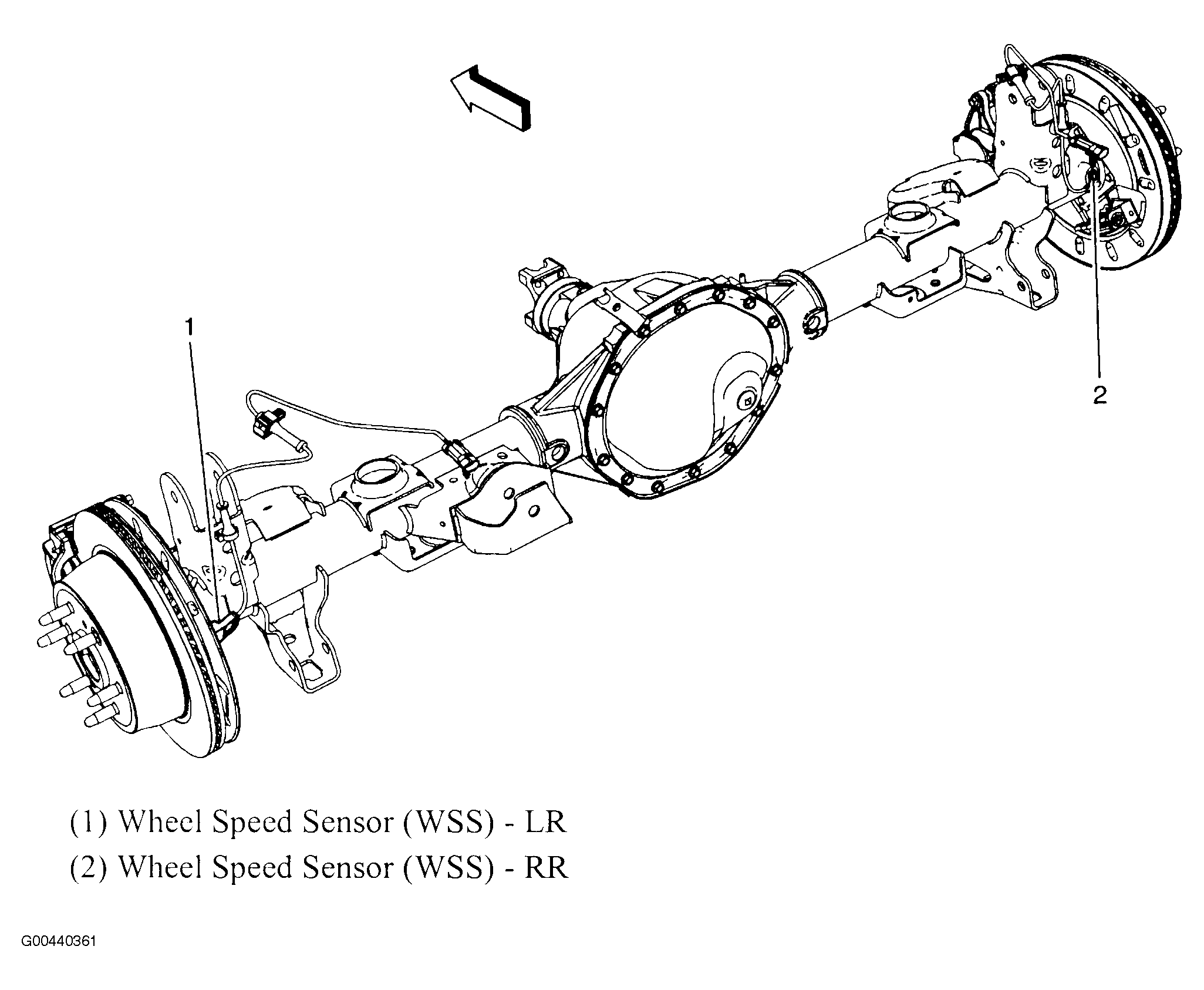

Fig 7: Rear Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

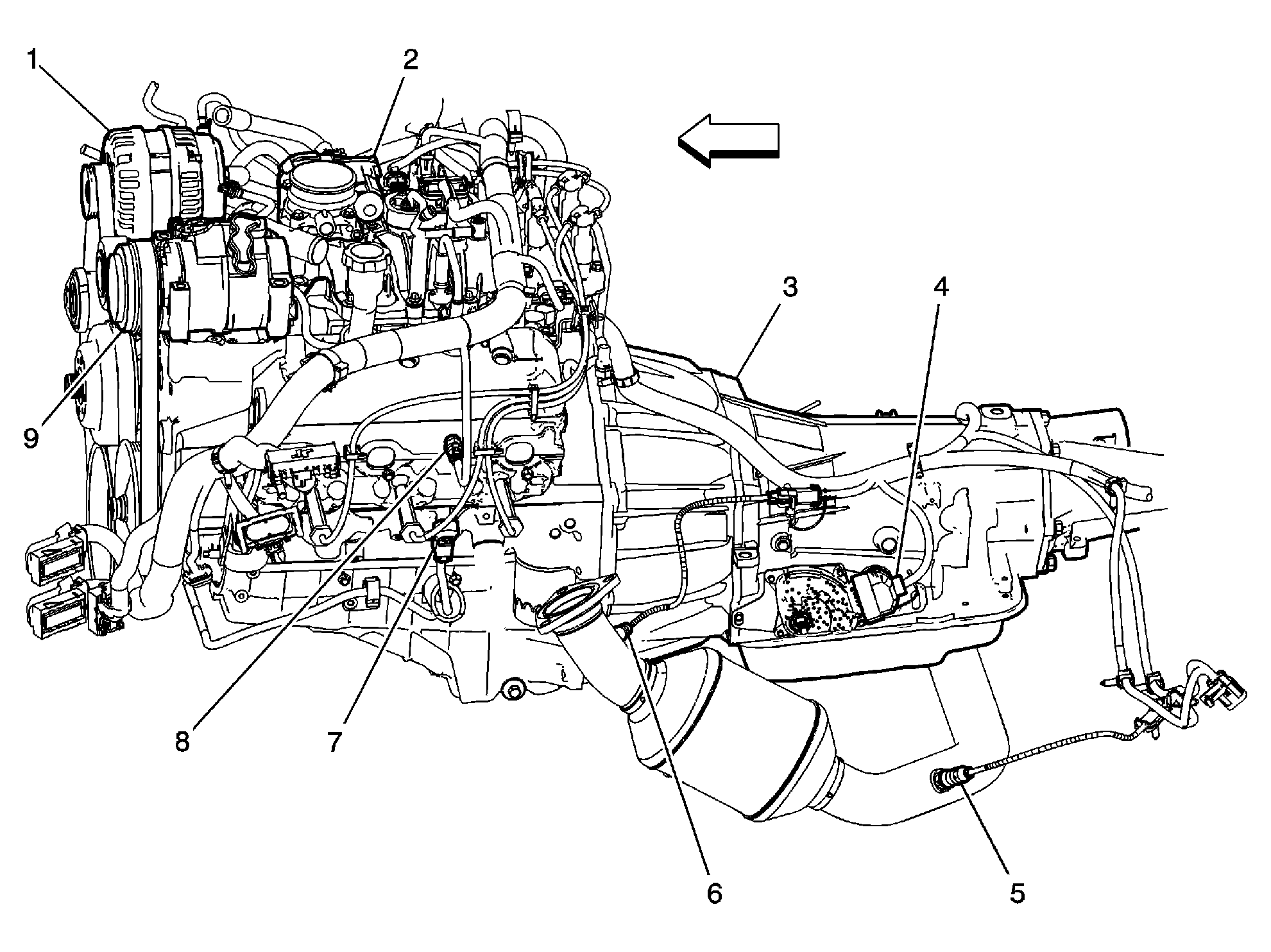

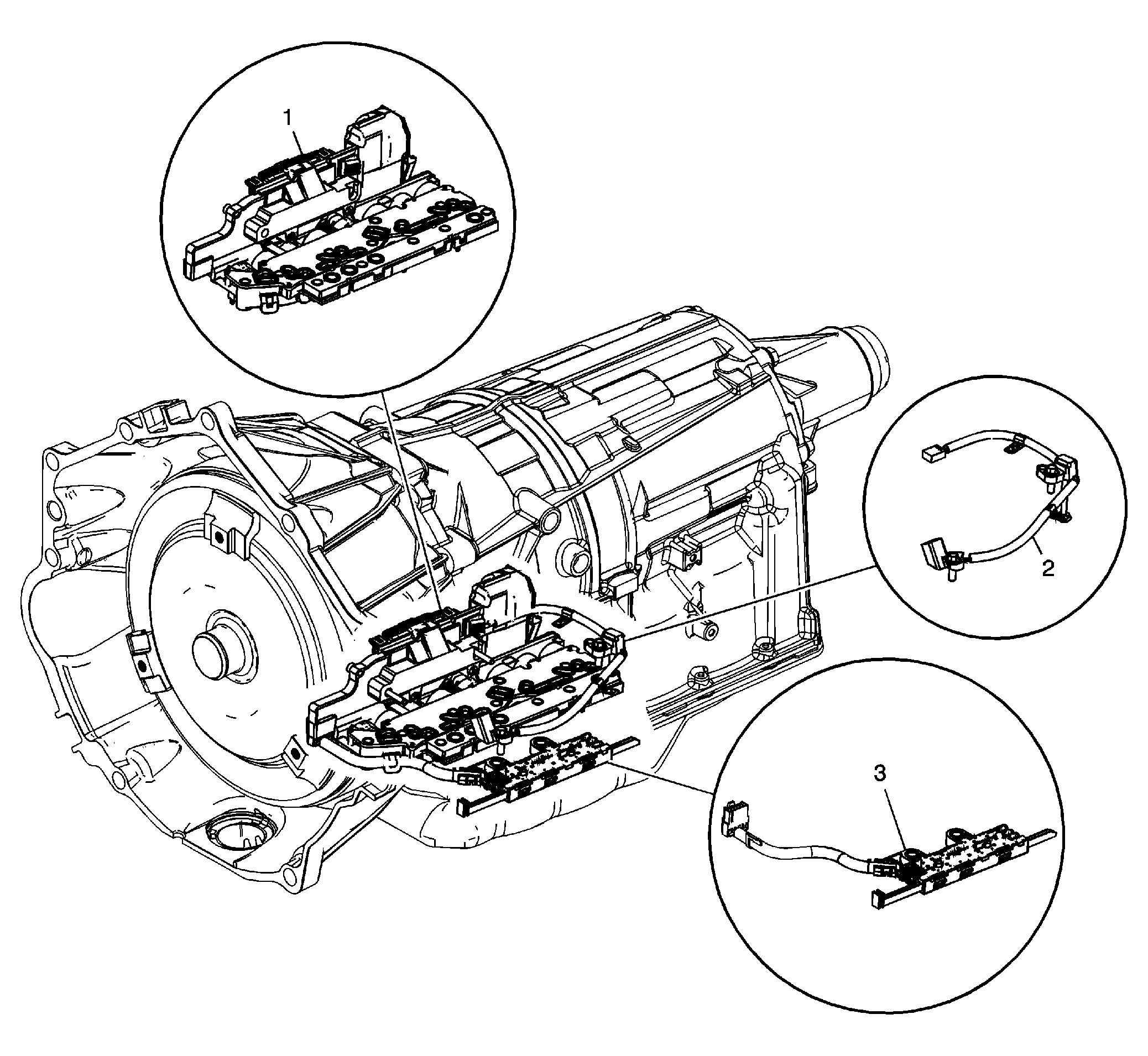

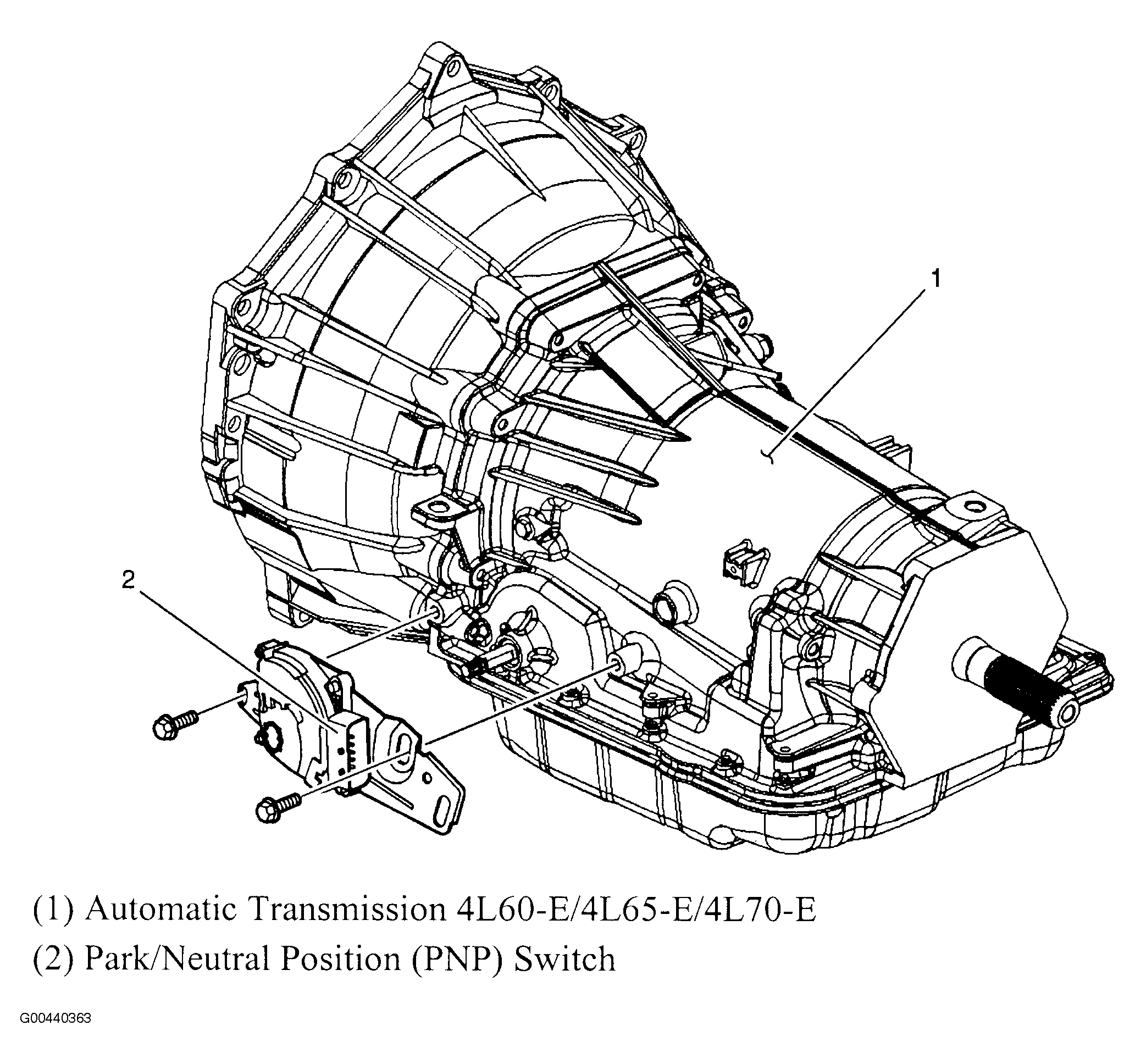

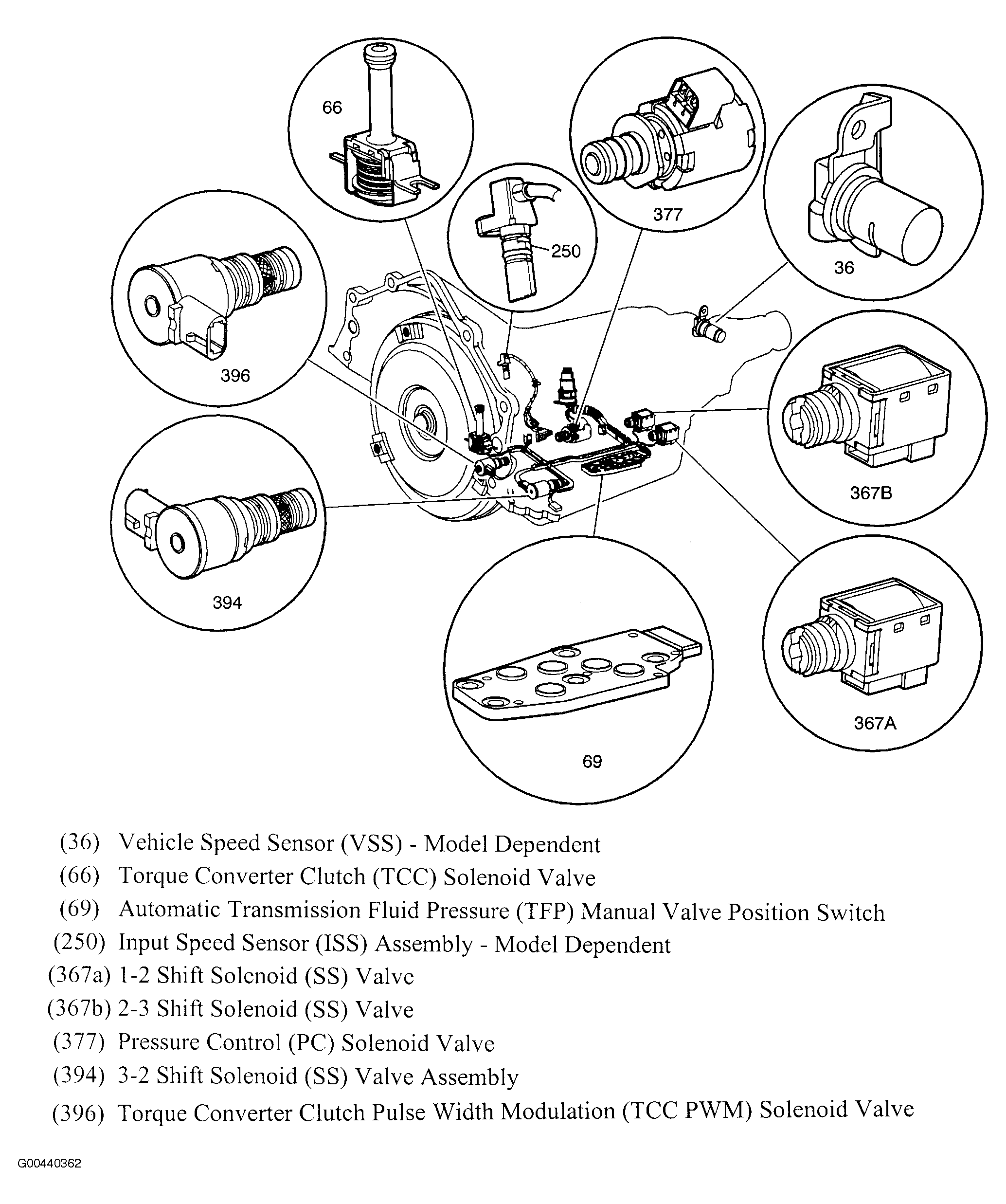

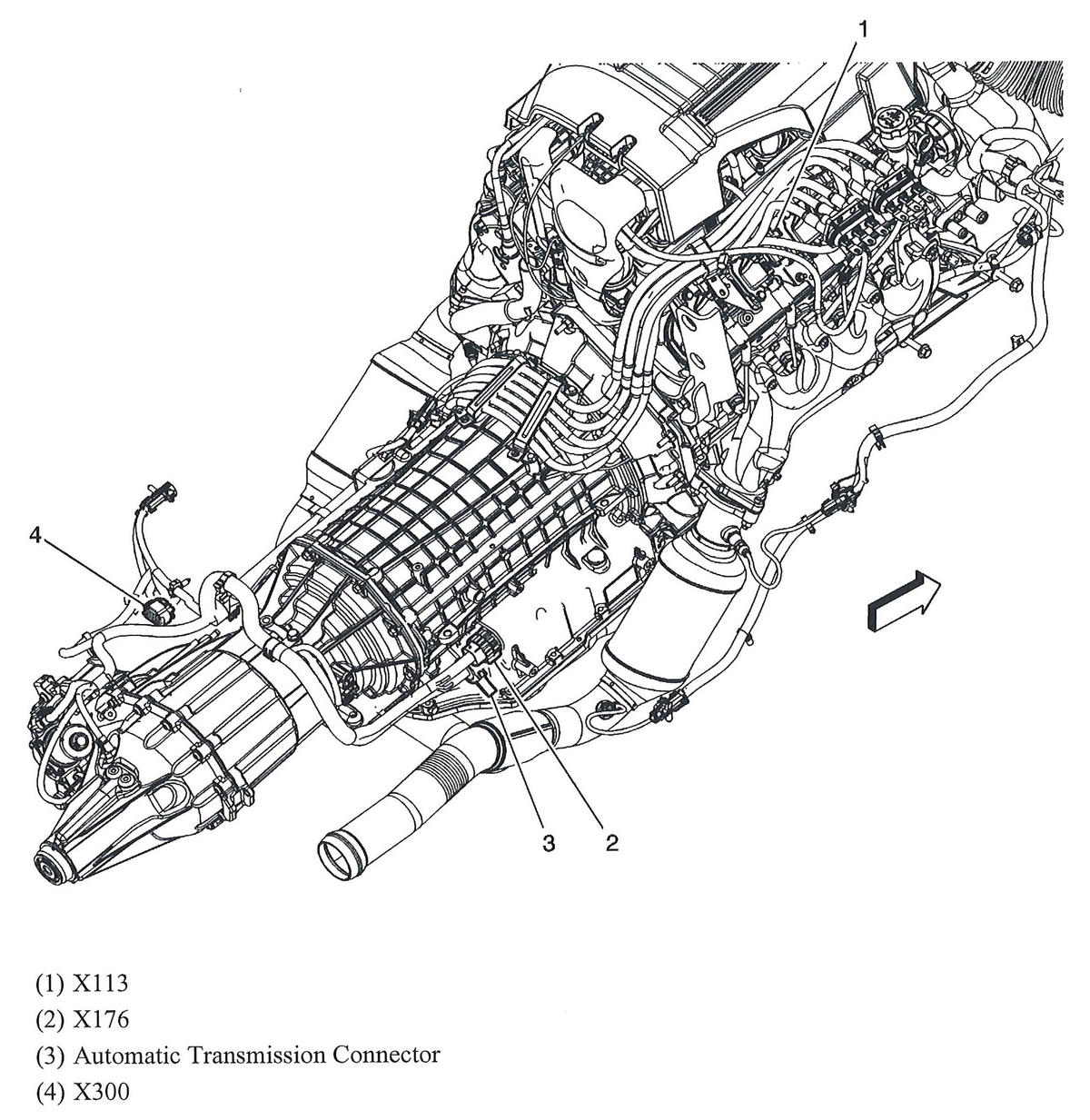

Fig 8: Automatic Transmission (4L60-E)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Transmission (4L60-E)
Courtesy of GENERAL MOTORS CORP.

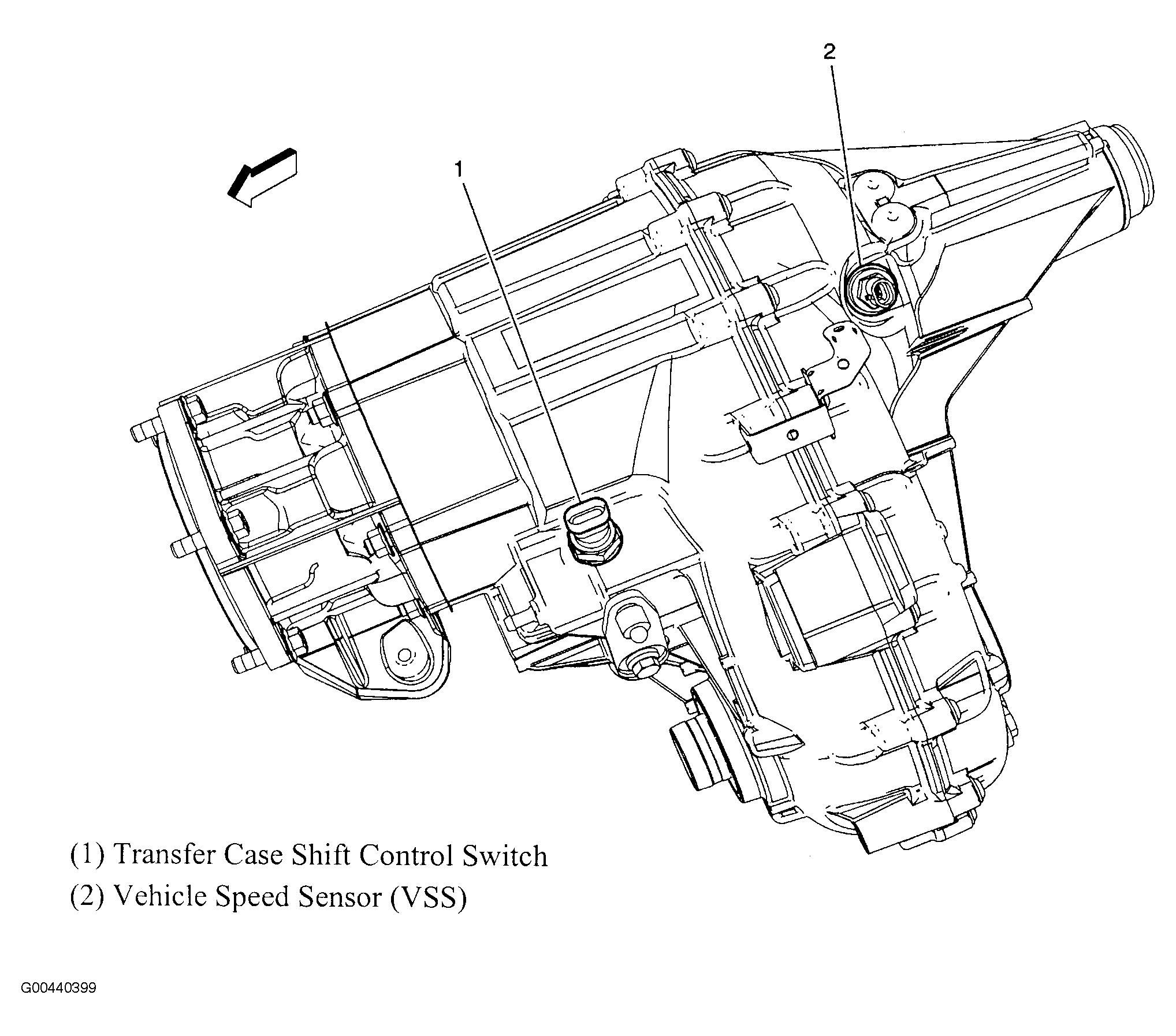

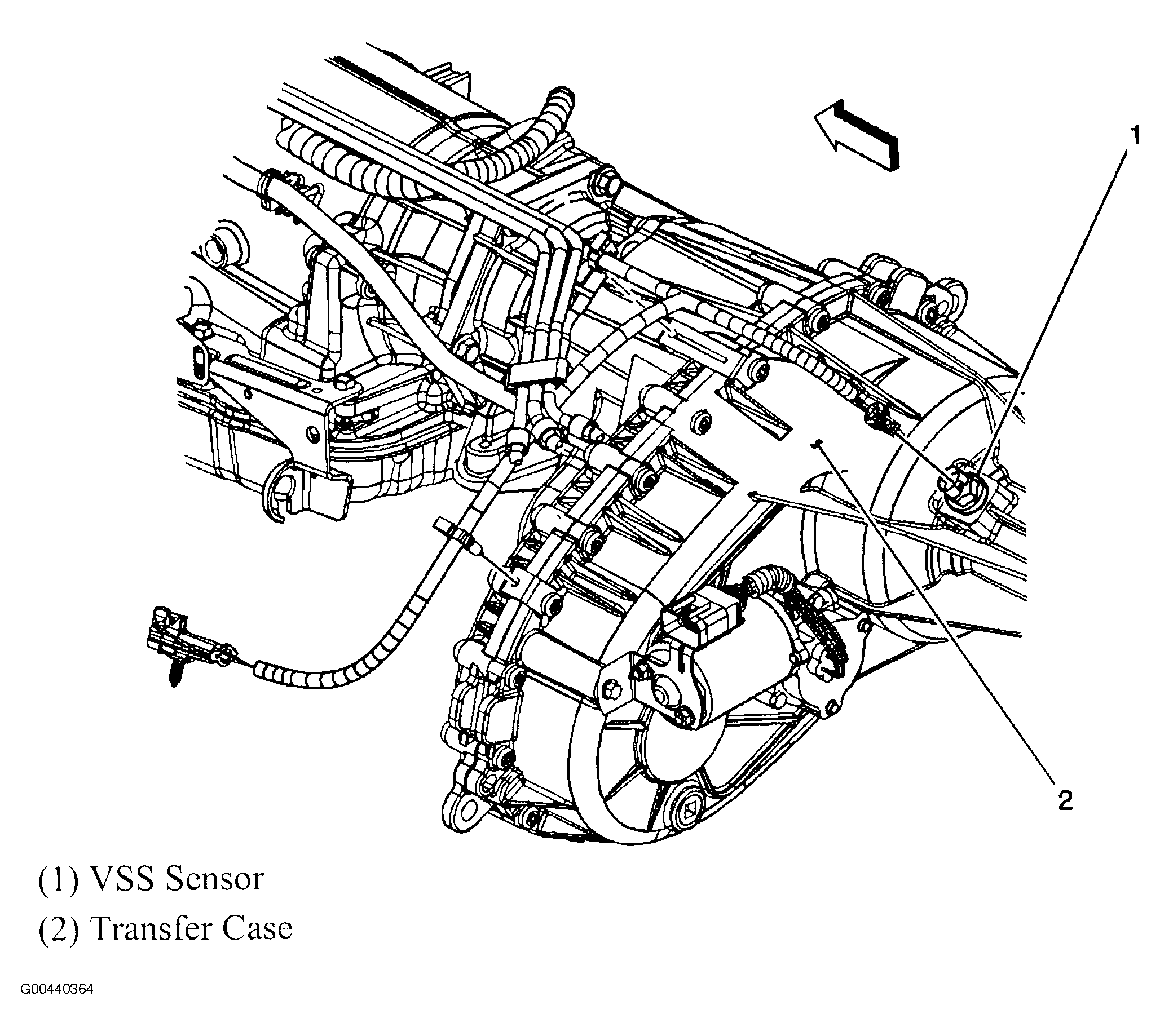

Fig 10: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 11: Transmission Control Module (Allison)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Front Headliner
Courtesy of GENERAL MOTORS CORP.

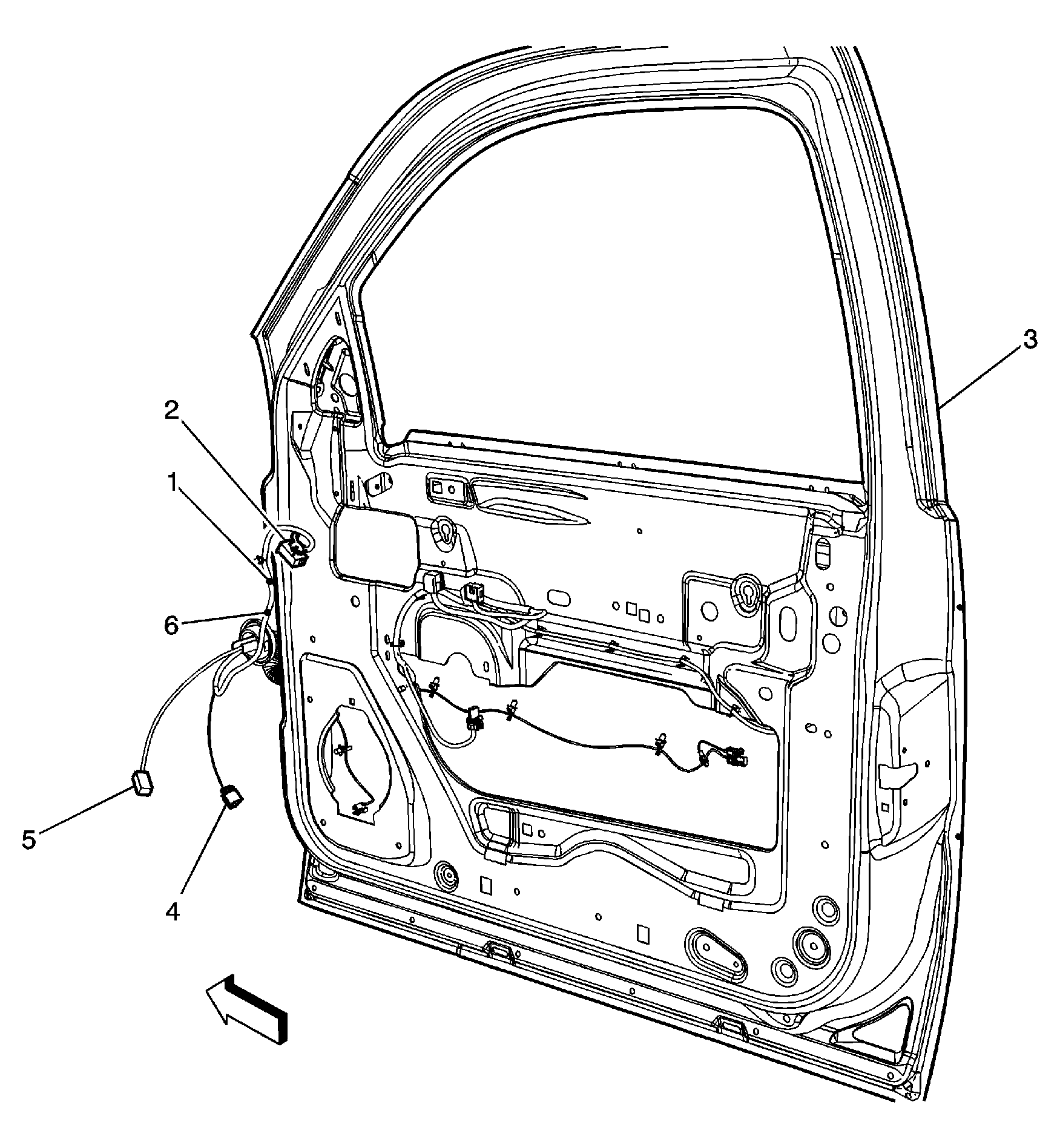

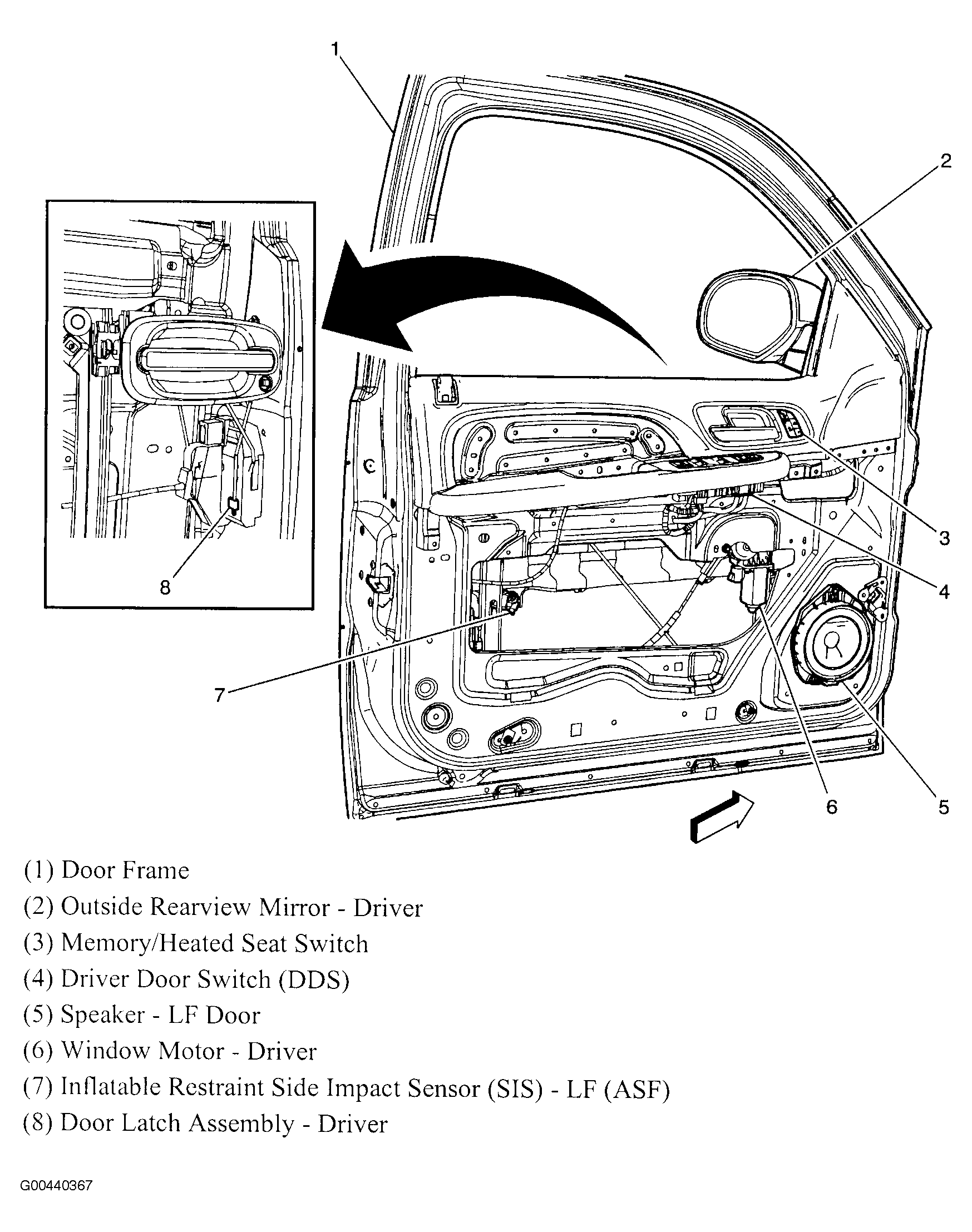

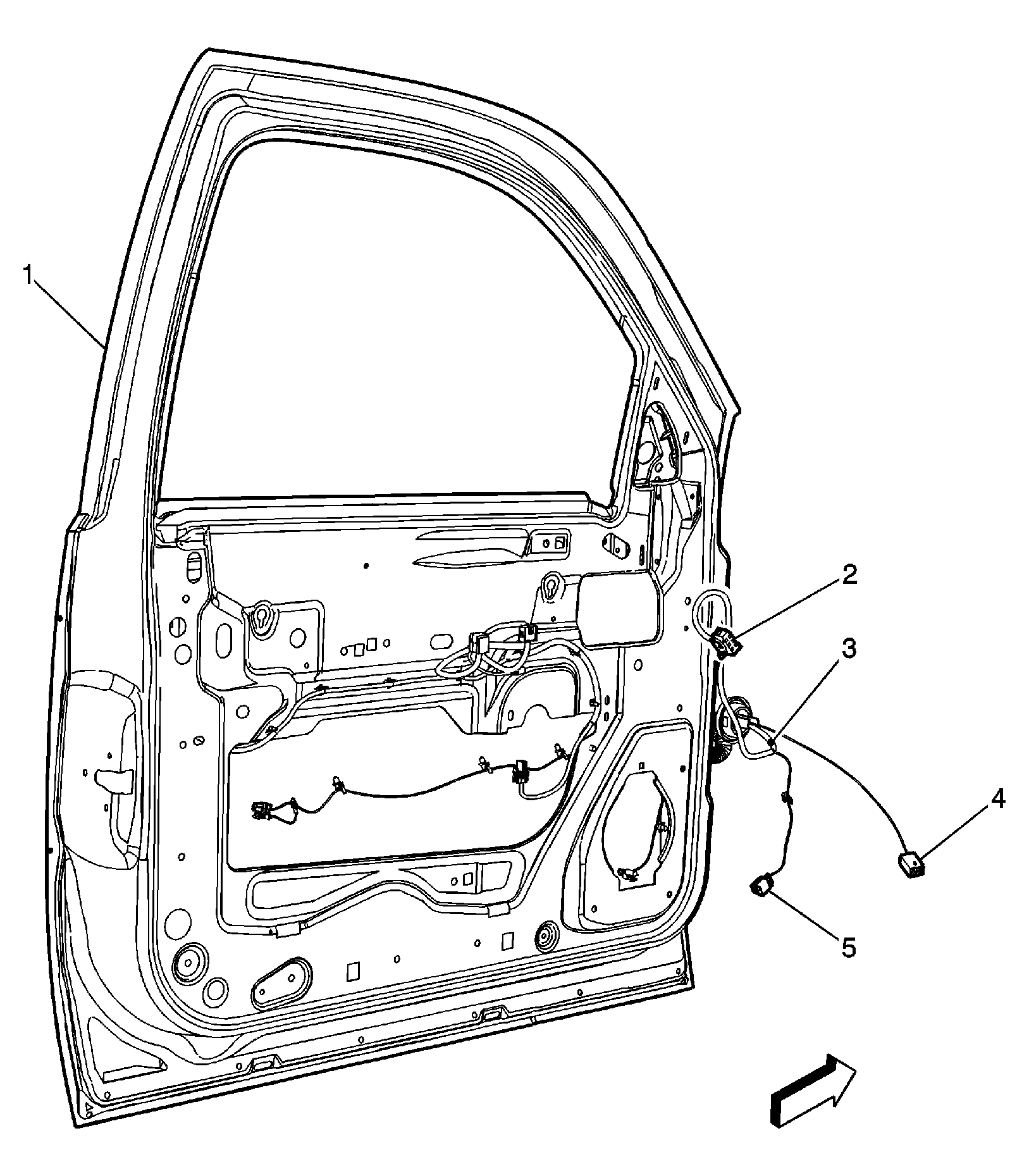

Fig 13: Driver Door
Courtesy of GENERAL MOTORS CORP.

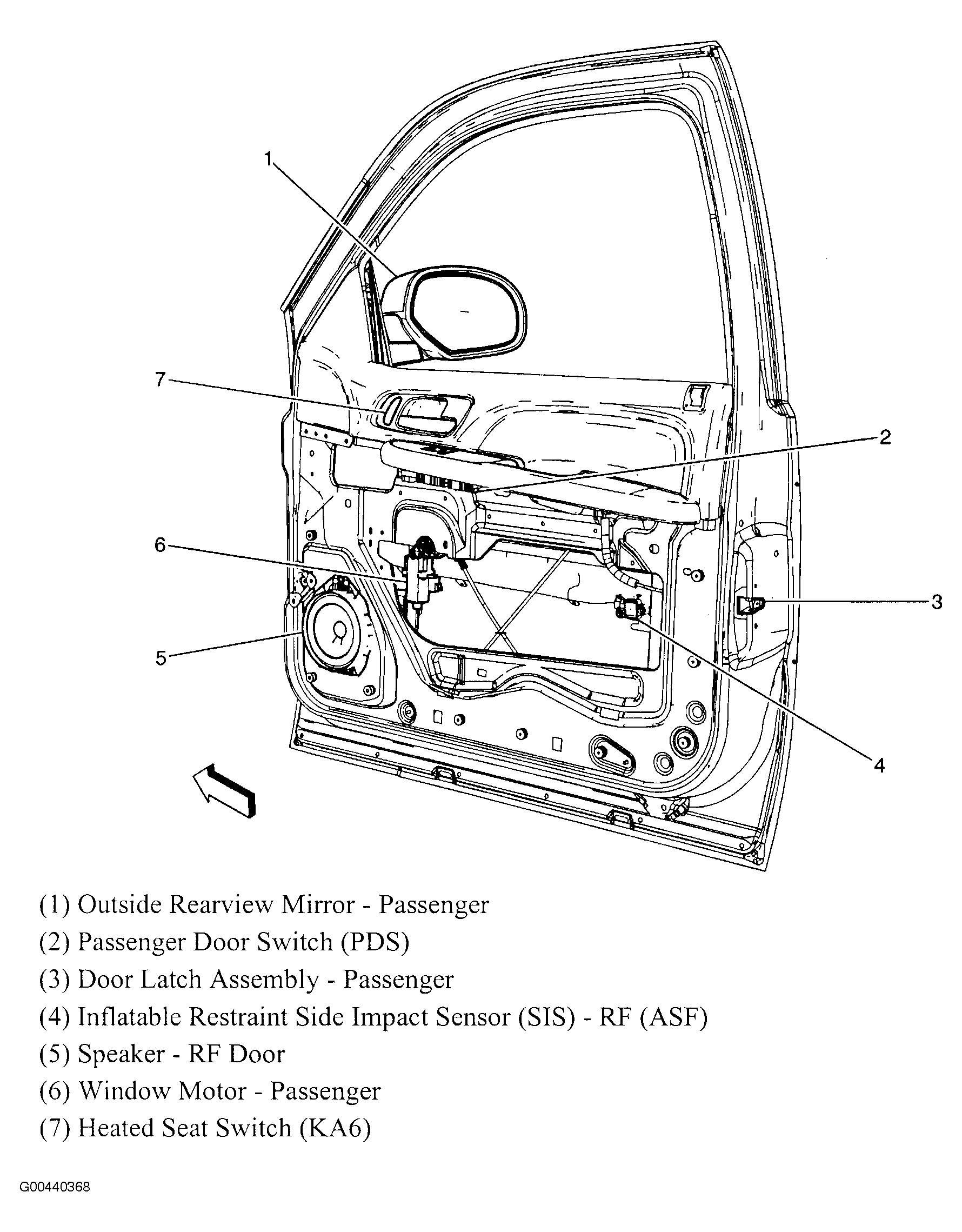

Fig 14: Passenger Door
Courtesy of GENERAL MOTORS CORP.

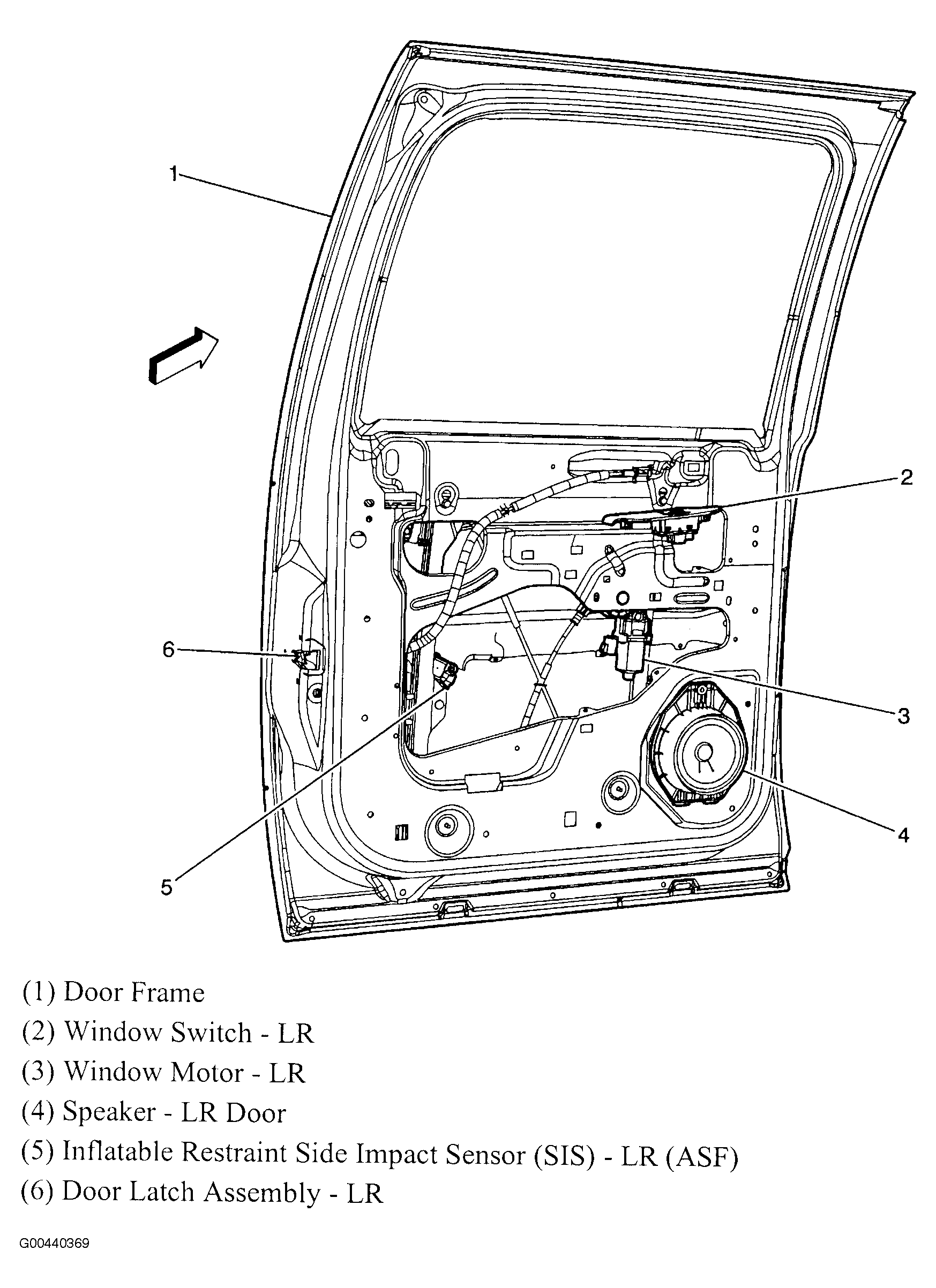

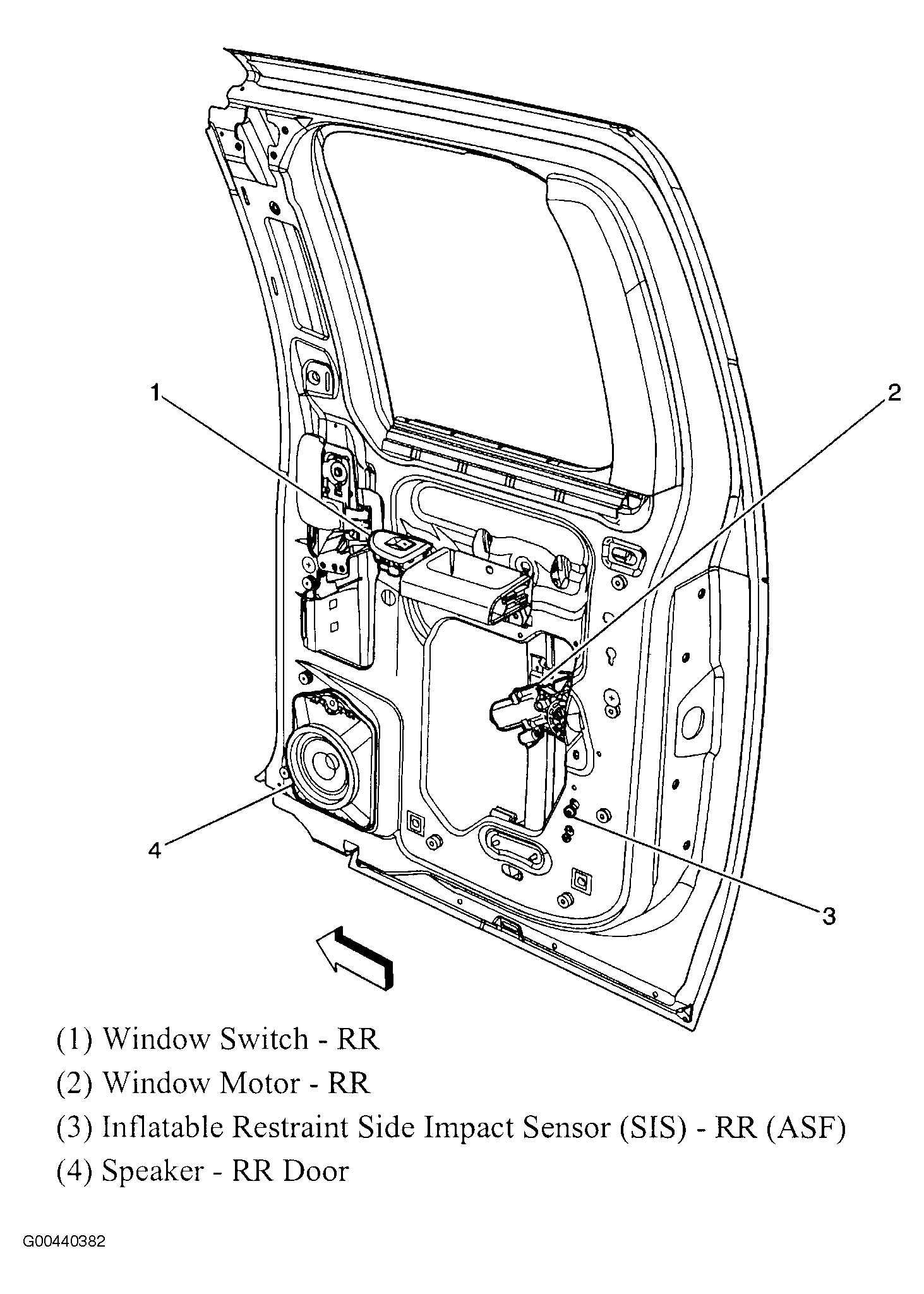

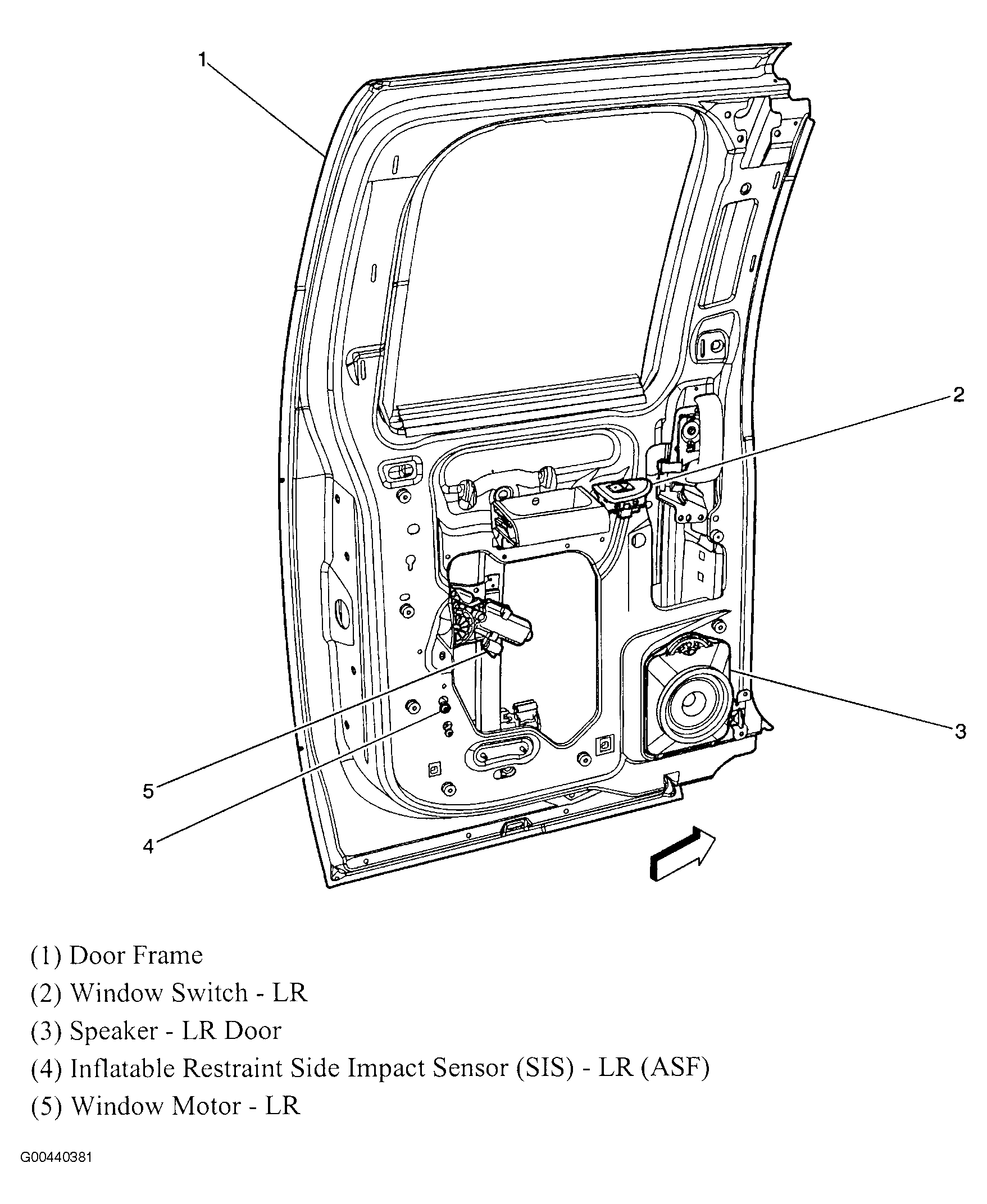

Fig 15: Left Rear Door (Crew Cab)
Courtesy of GENERAL MOTORS CORP.

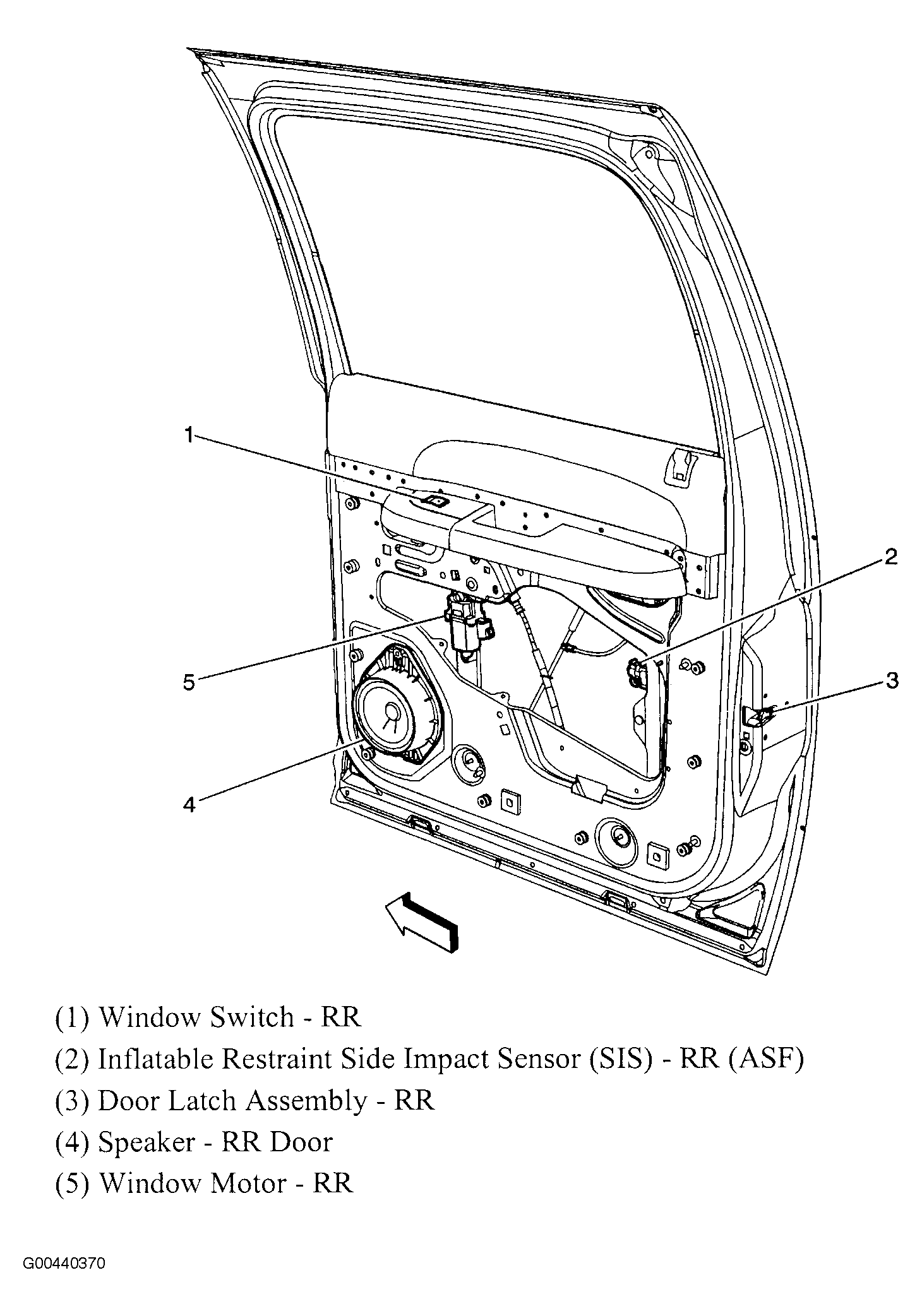

Fig 16: Right Rear Door (Crew Cab)
Courtesy of GENERAL MOTORS CORP.

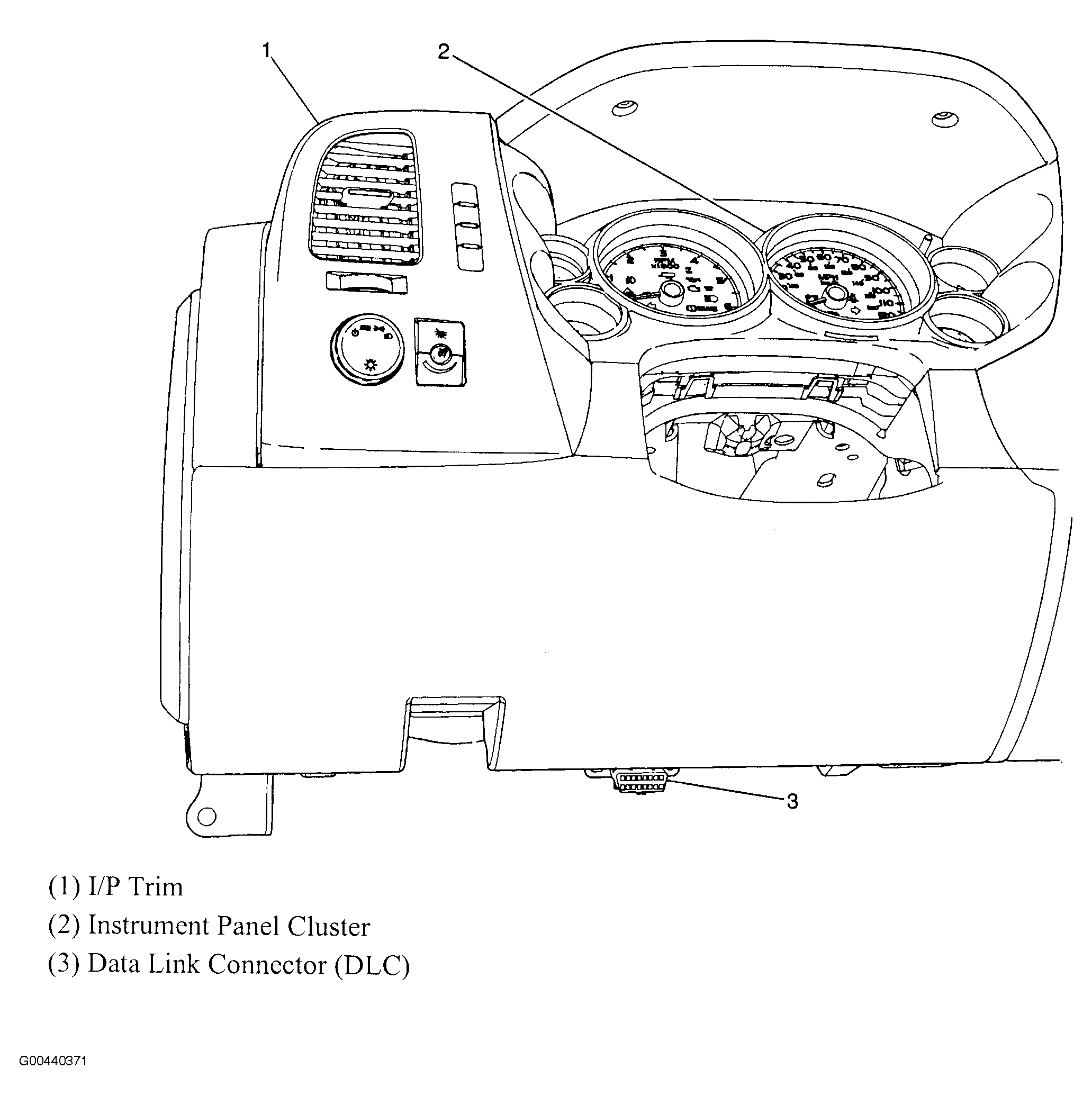

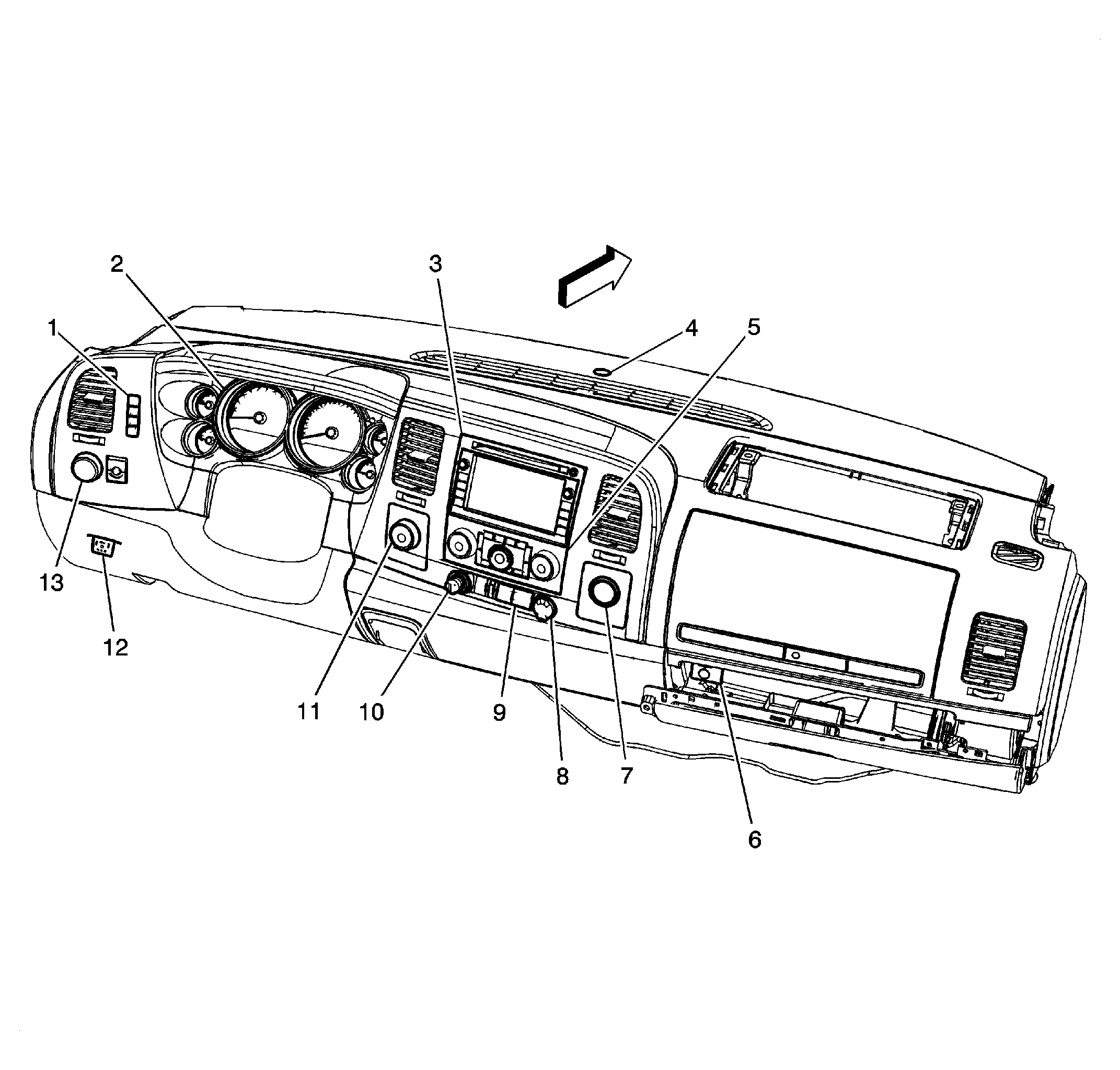

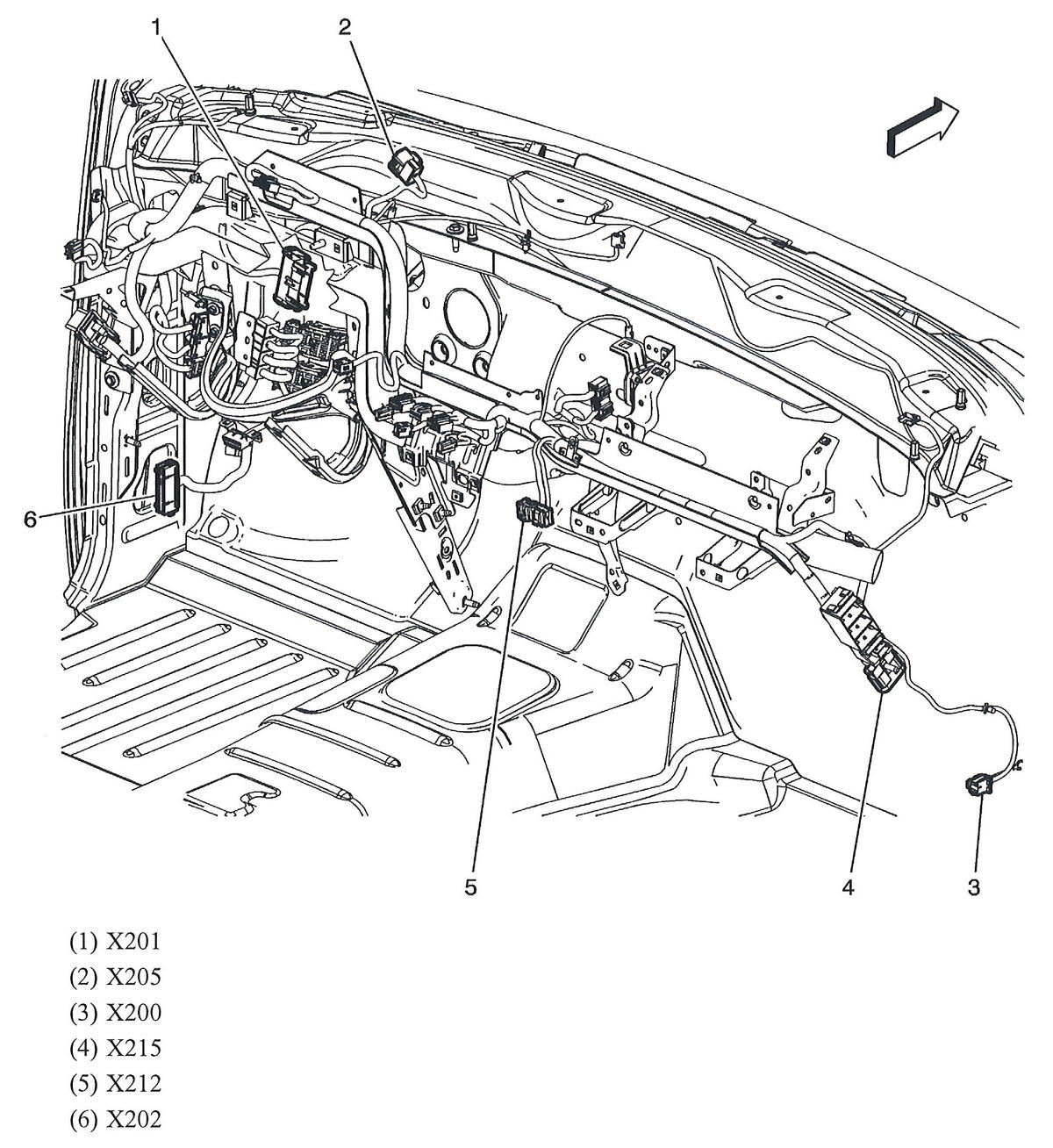

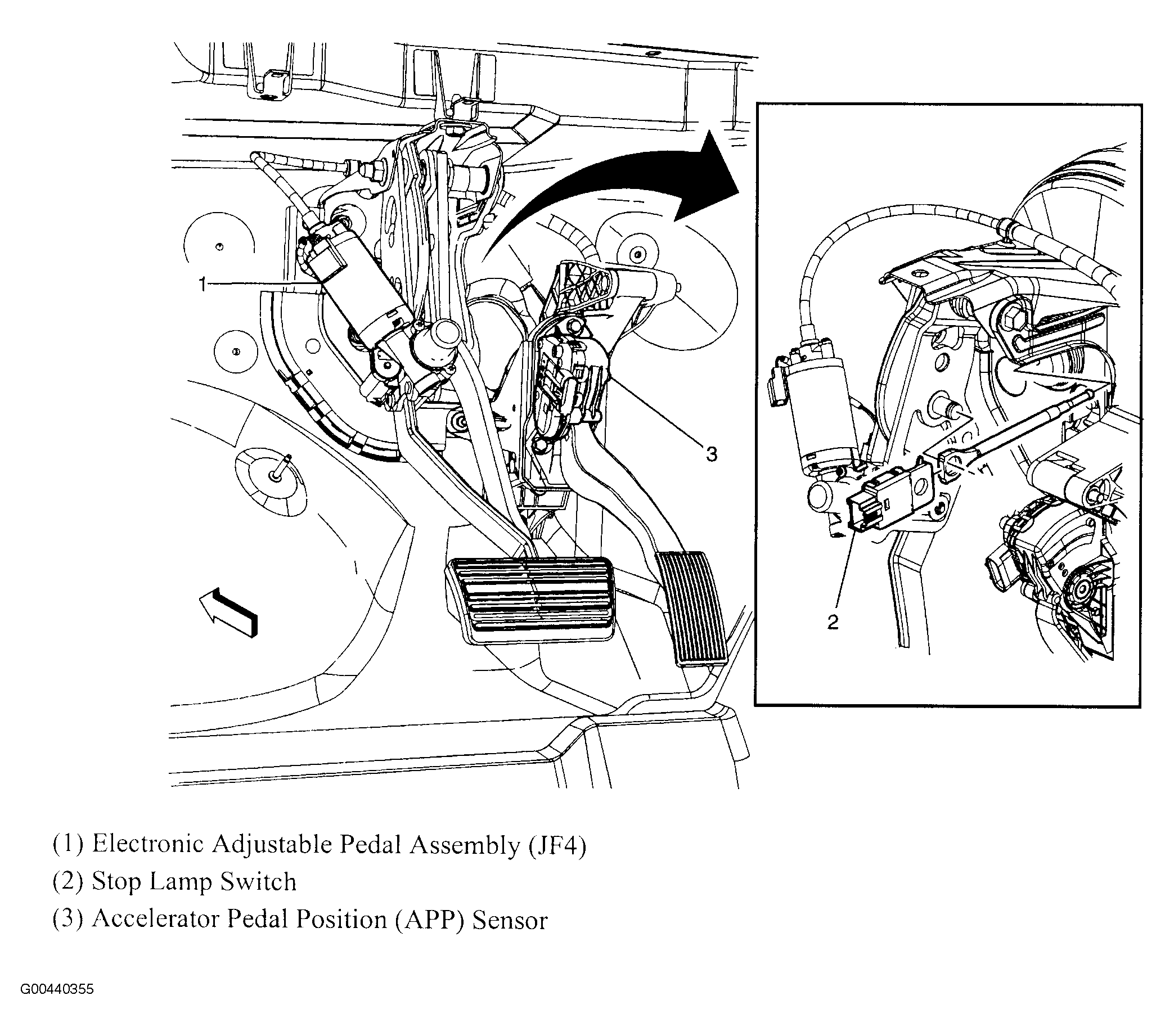

Fig 17: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

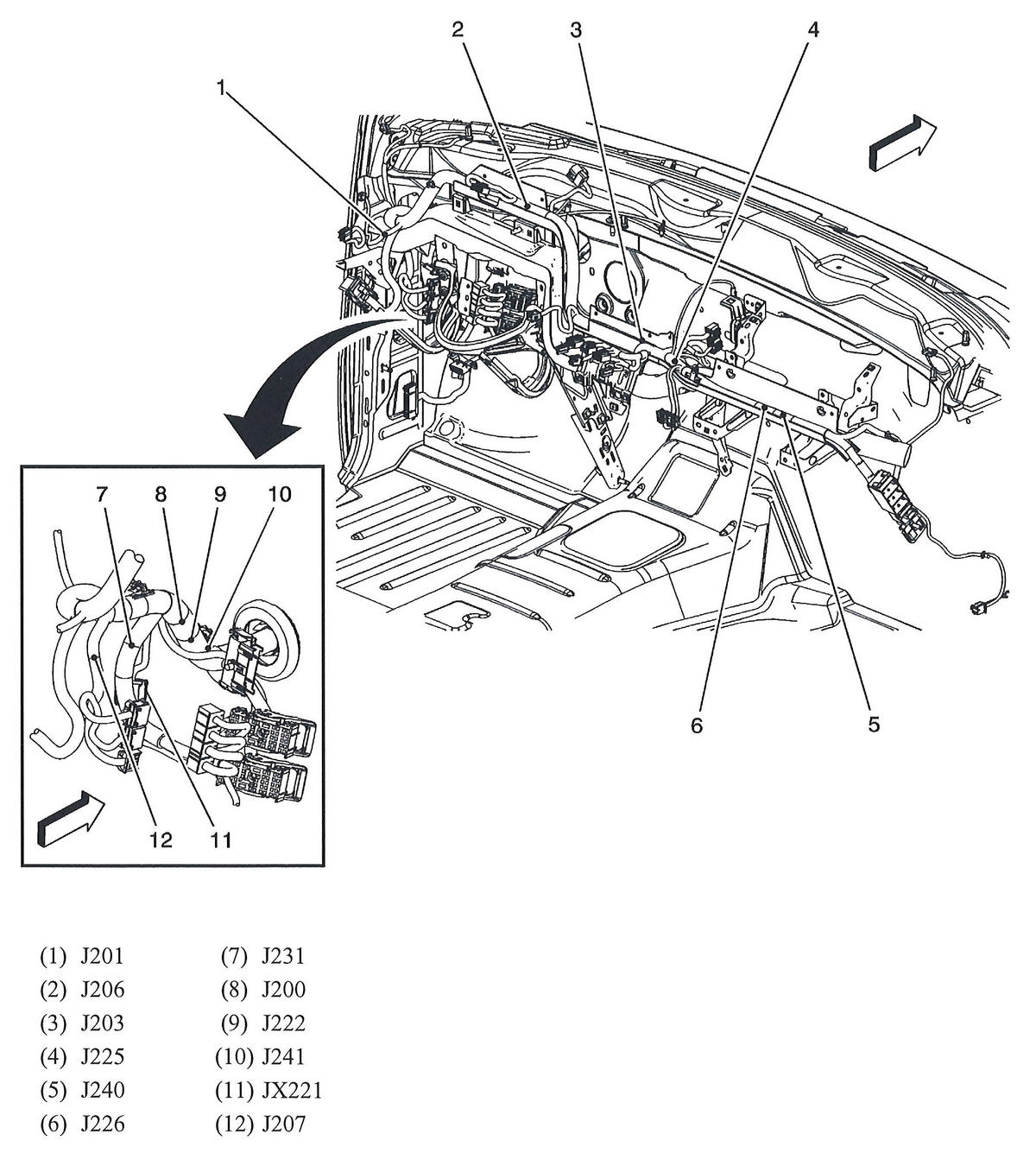

Fig 18: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

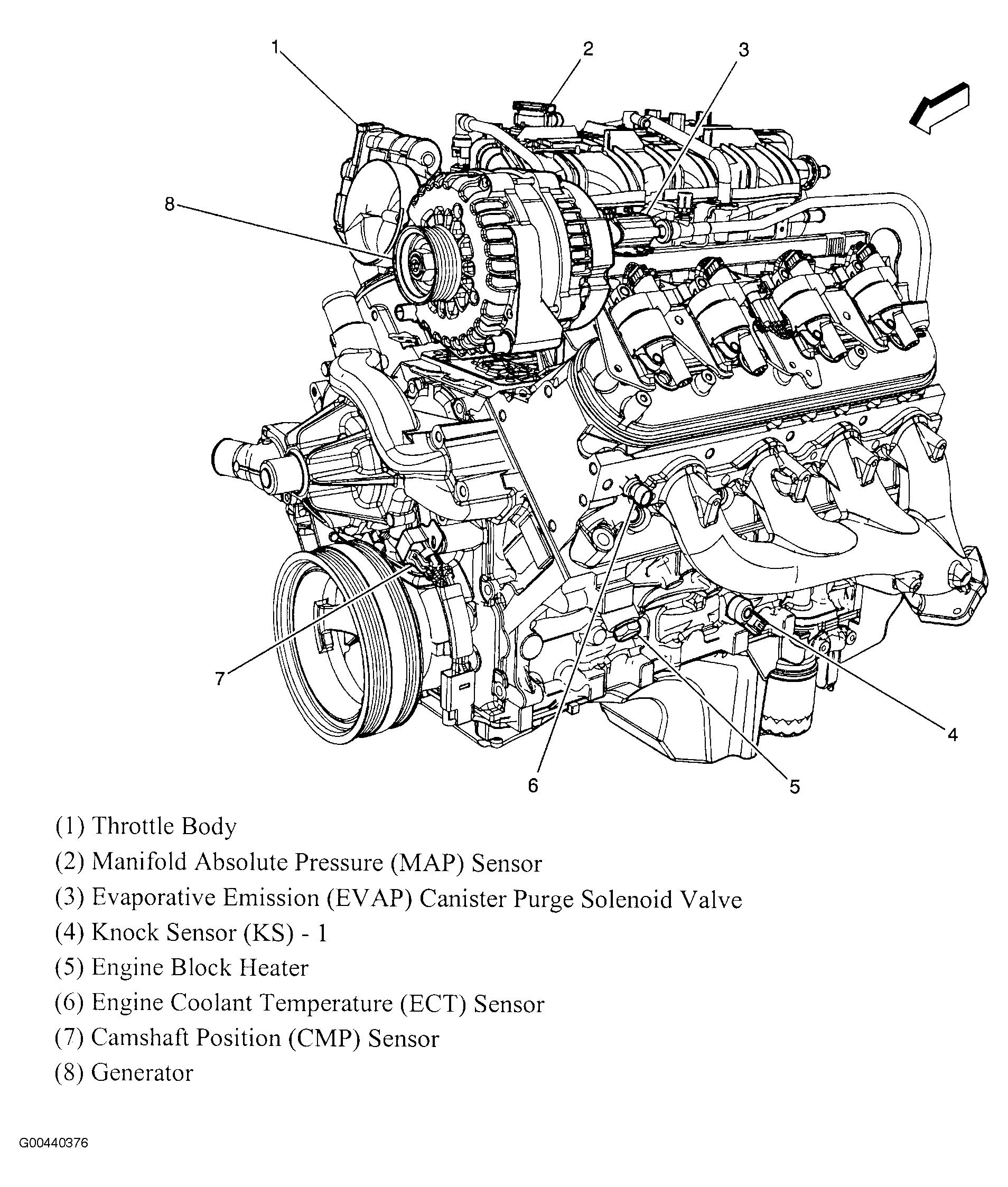

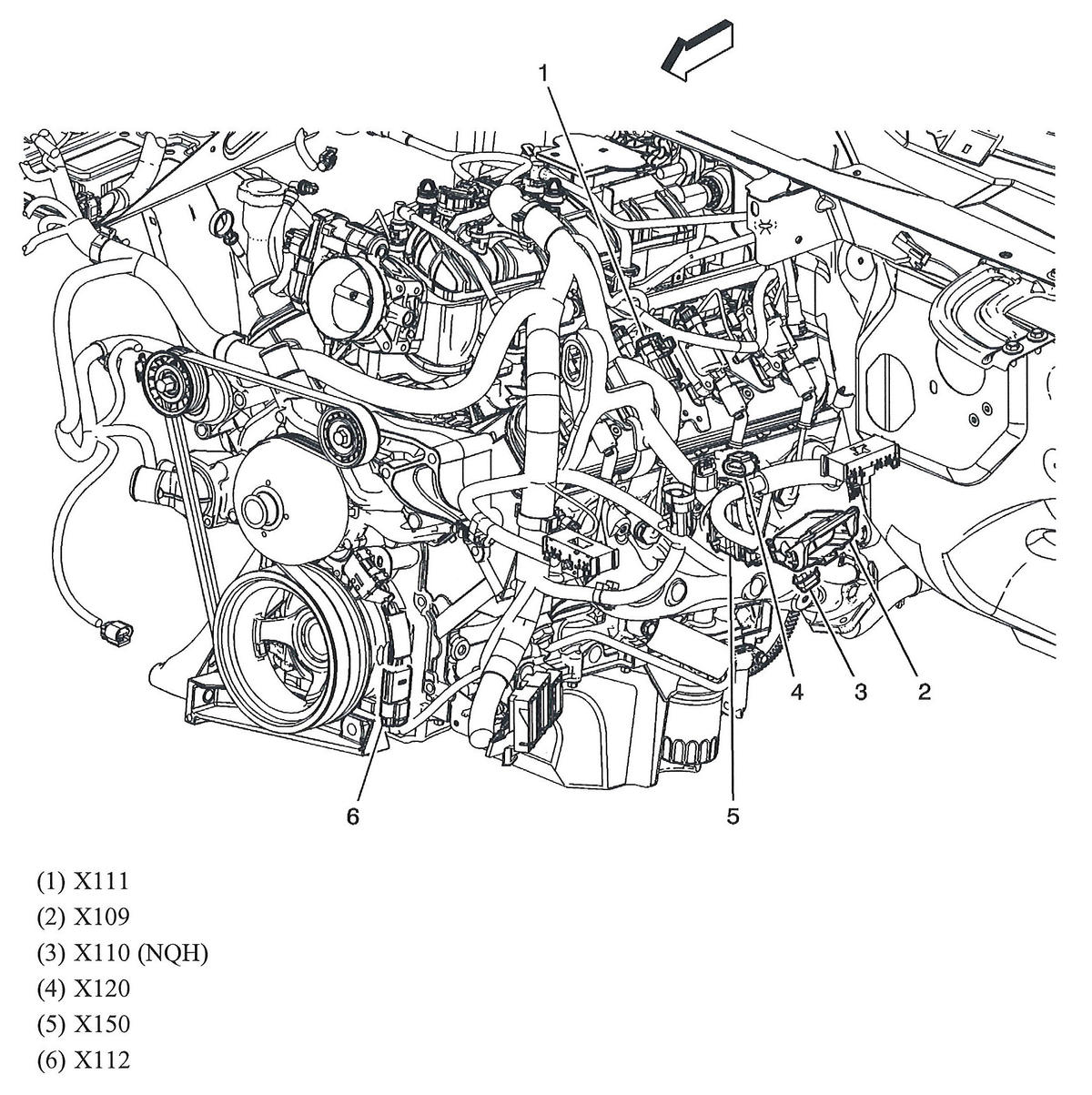

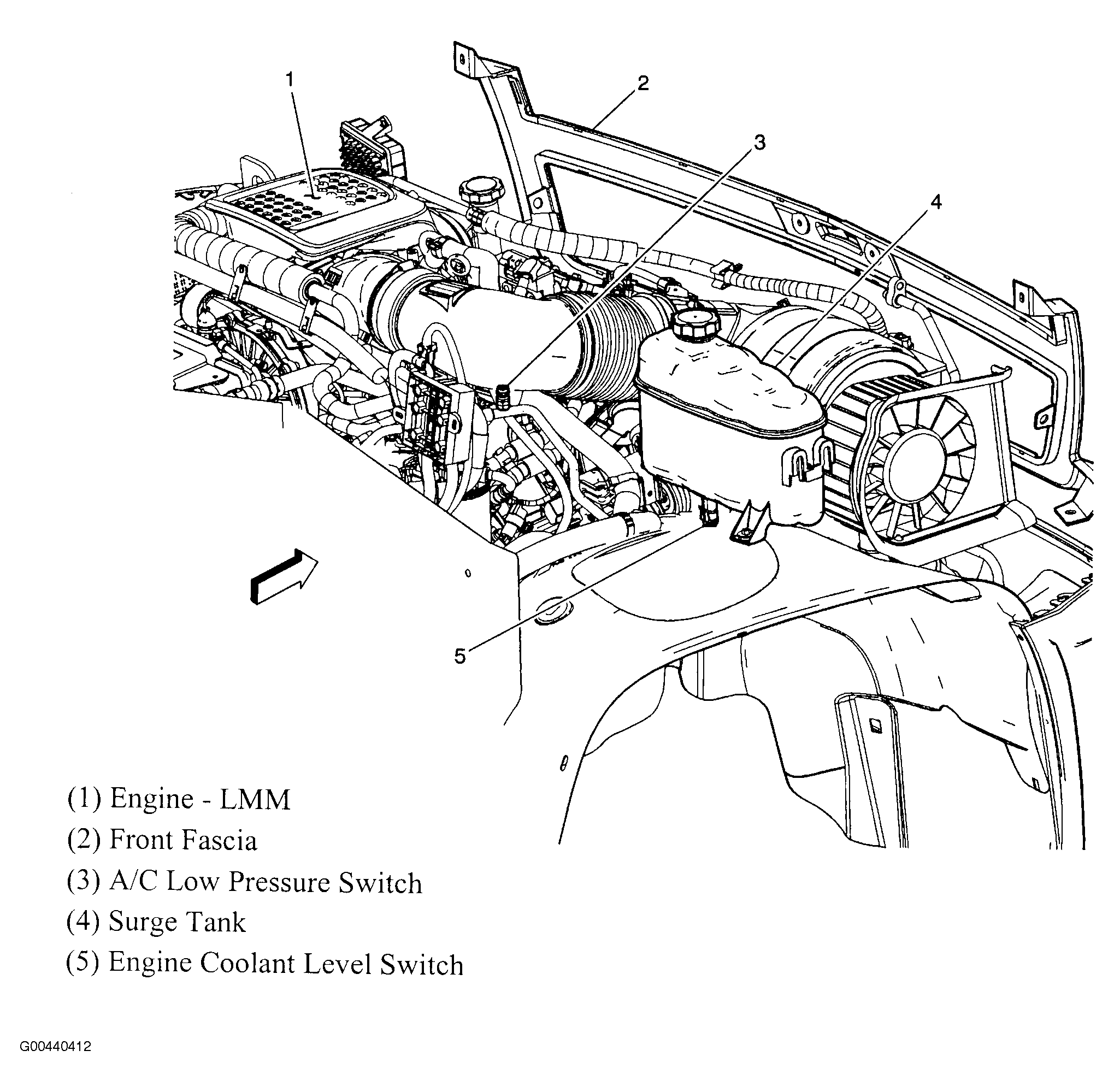

Fig 20: Right Side Of Engine (4.8L, 5.3L, 6.0L & 6.2L)
Courtesy of GENERAL MOTORS CORP.

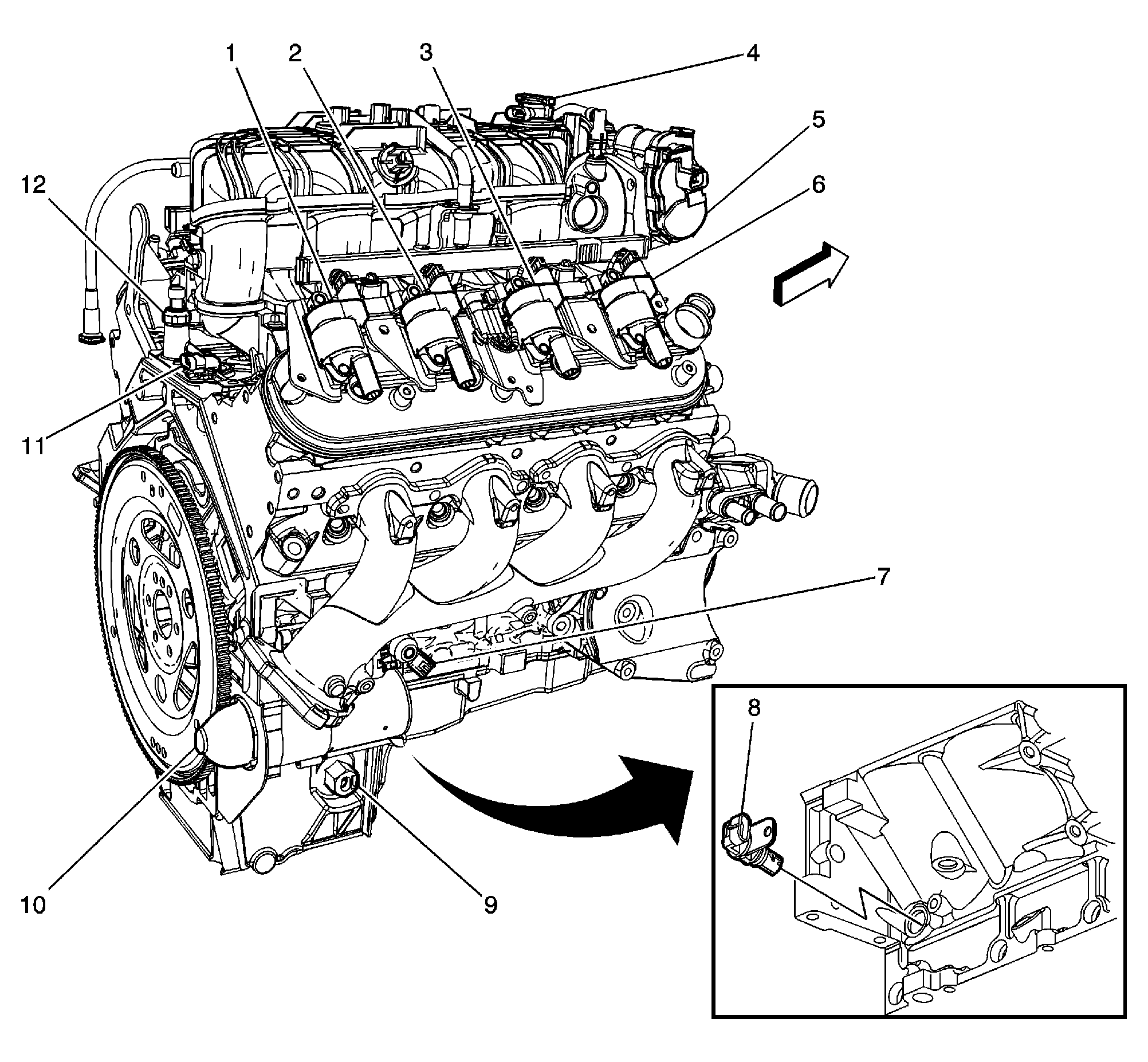

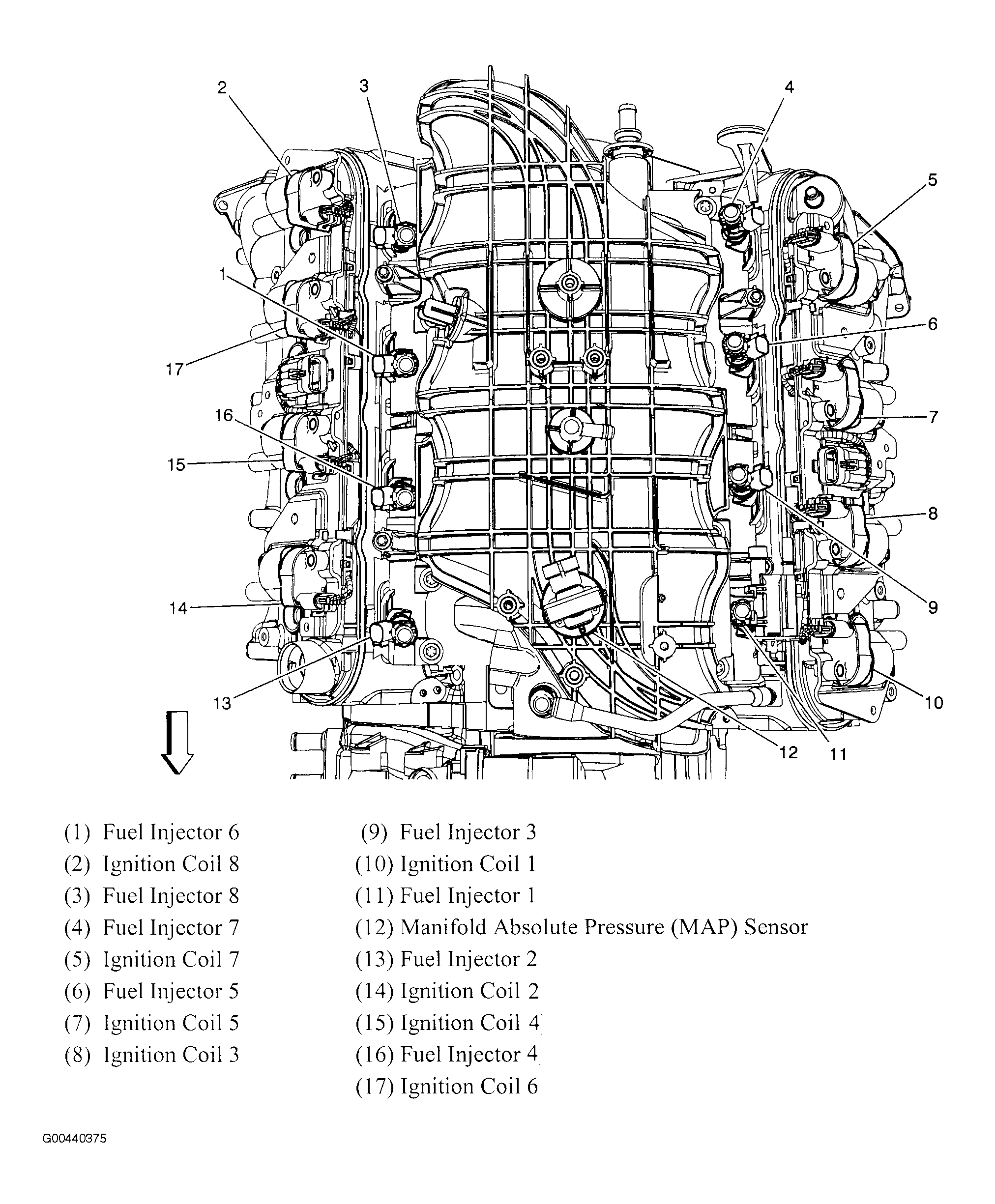

Fig 21: Top Of Engine (4.8L, 5.3L, 6.0L & 6.2L)
Courtesy of GENERAL MOTORS CORP.

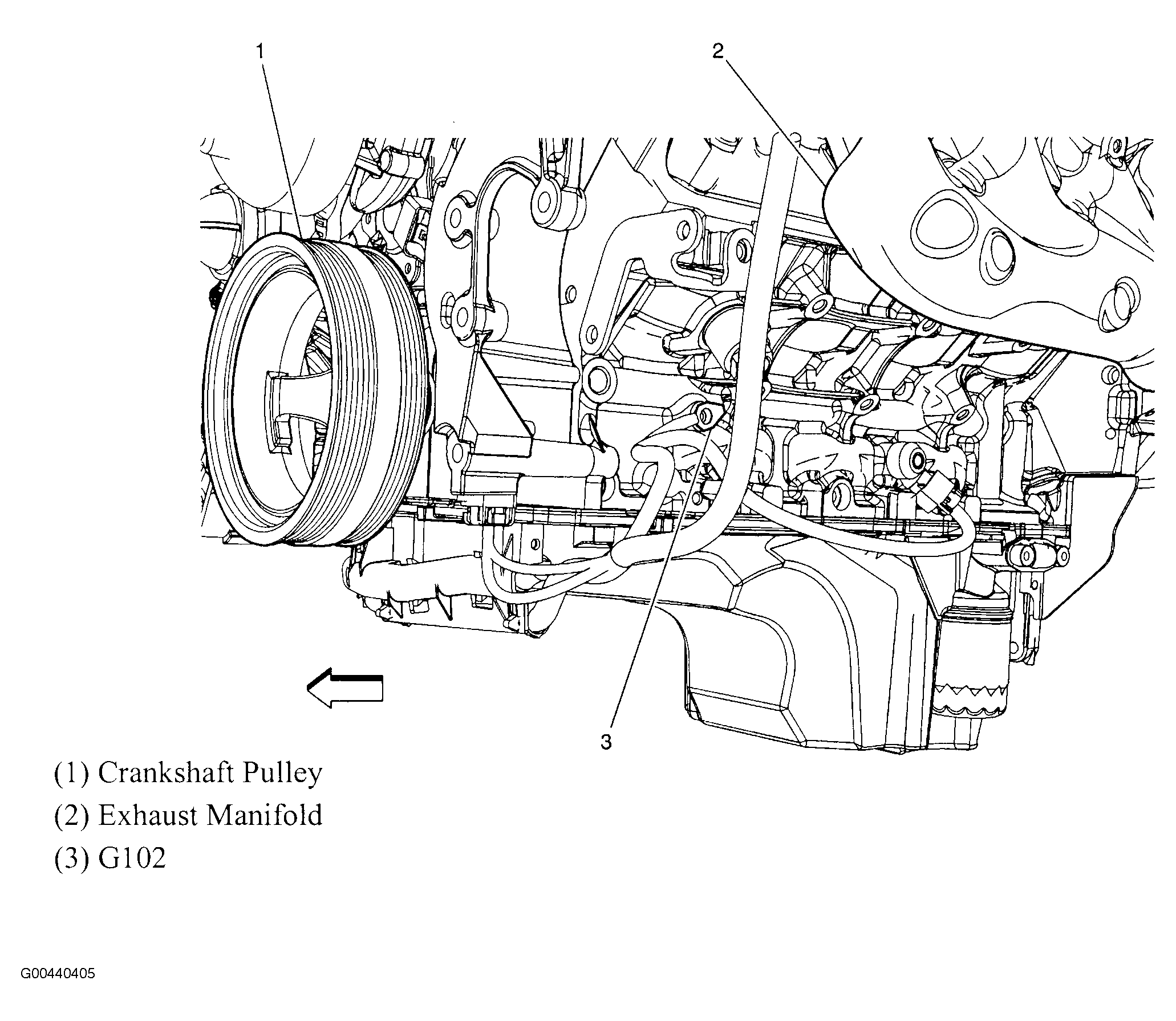

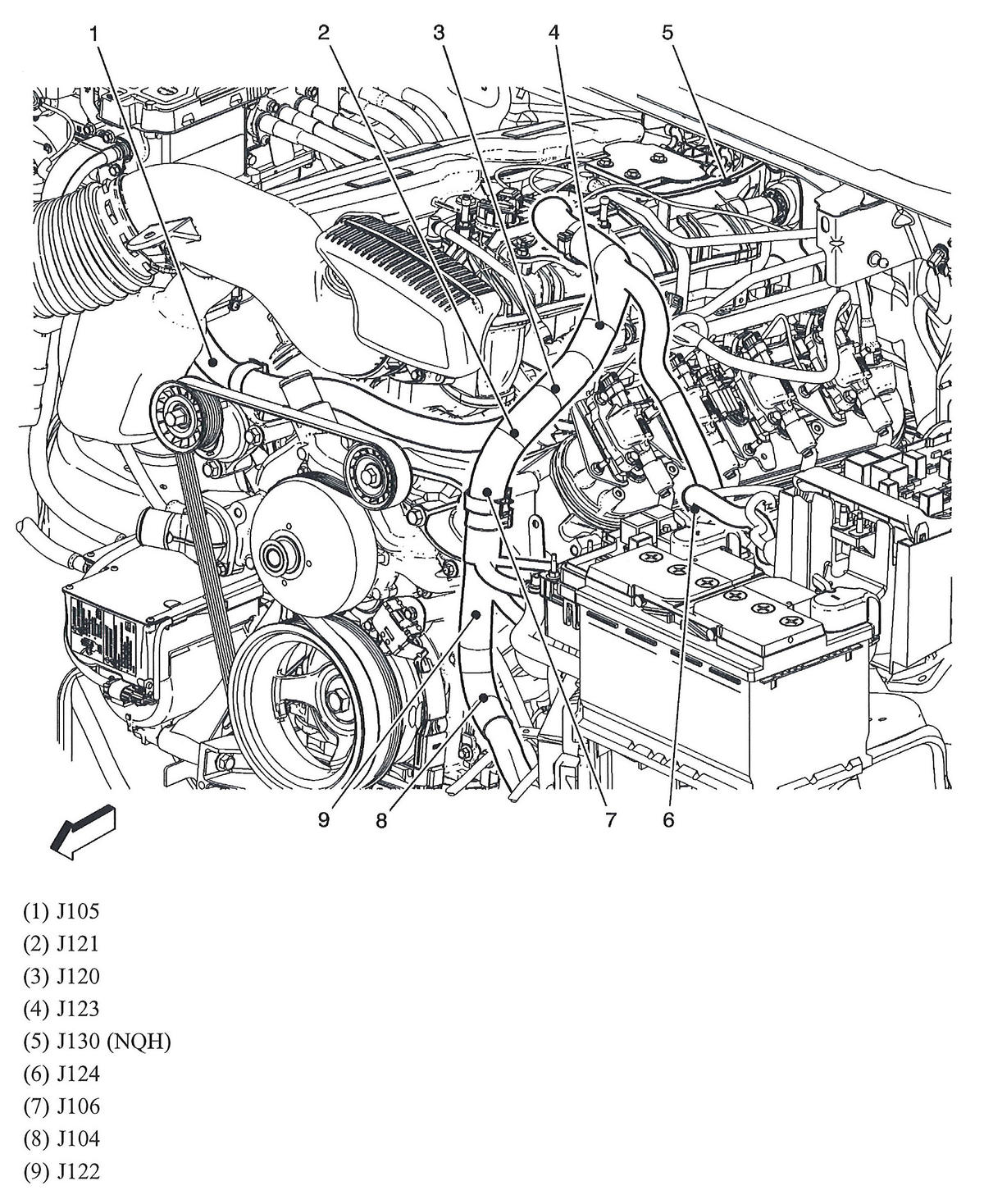

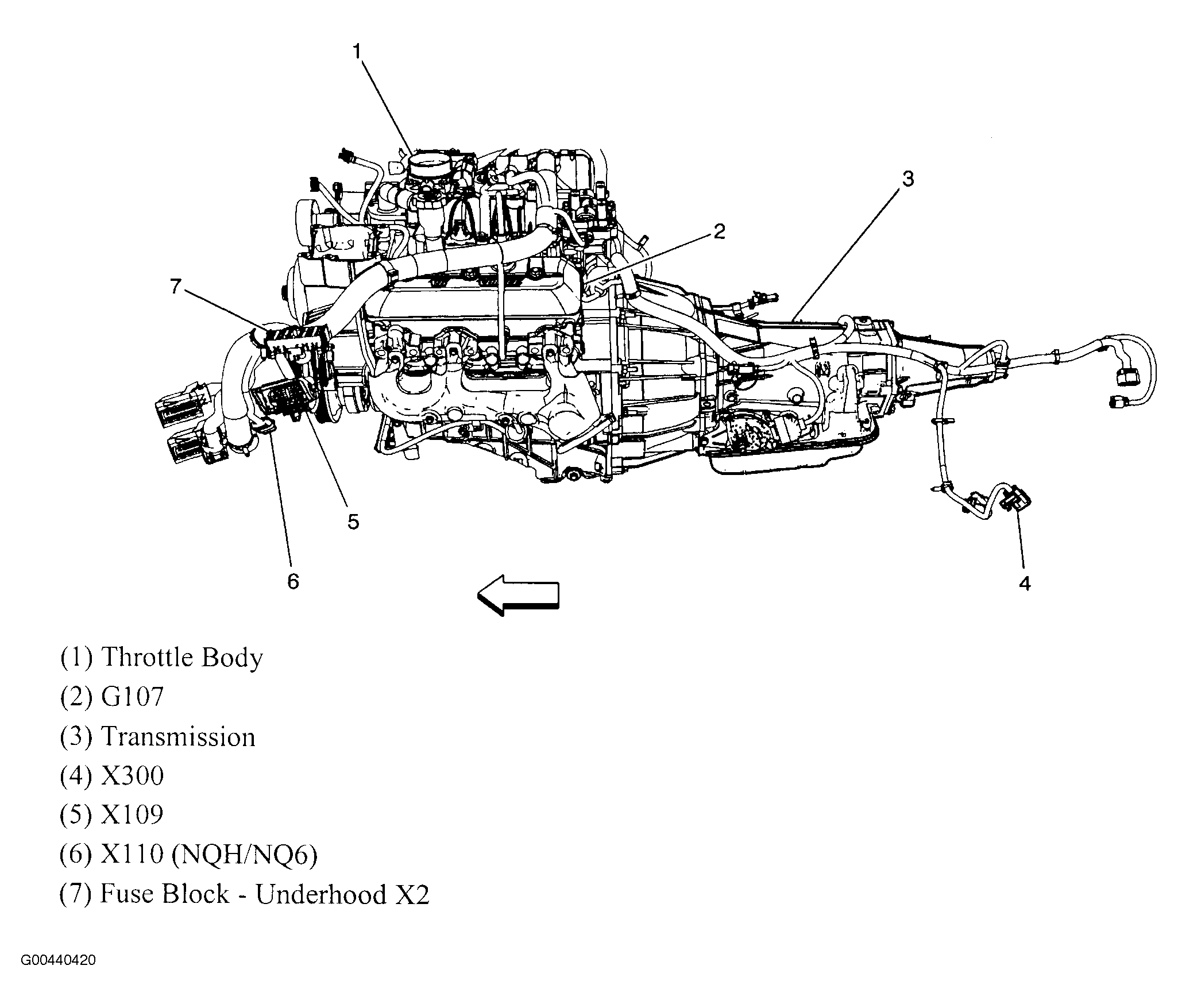

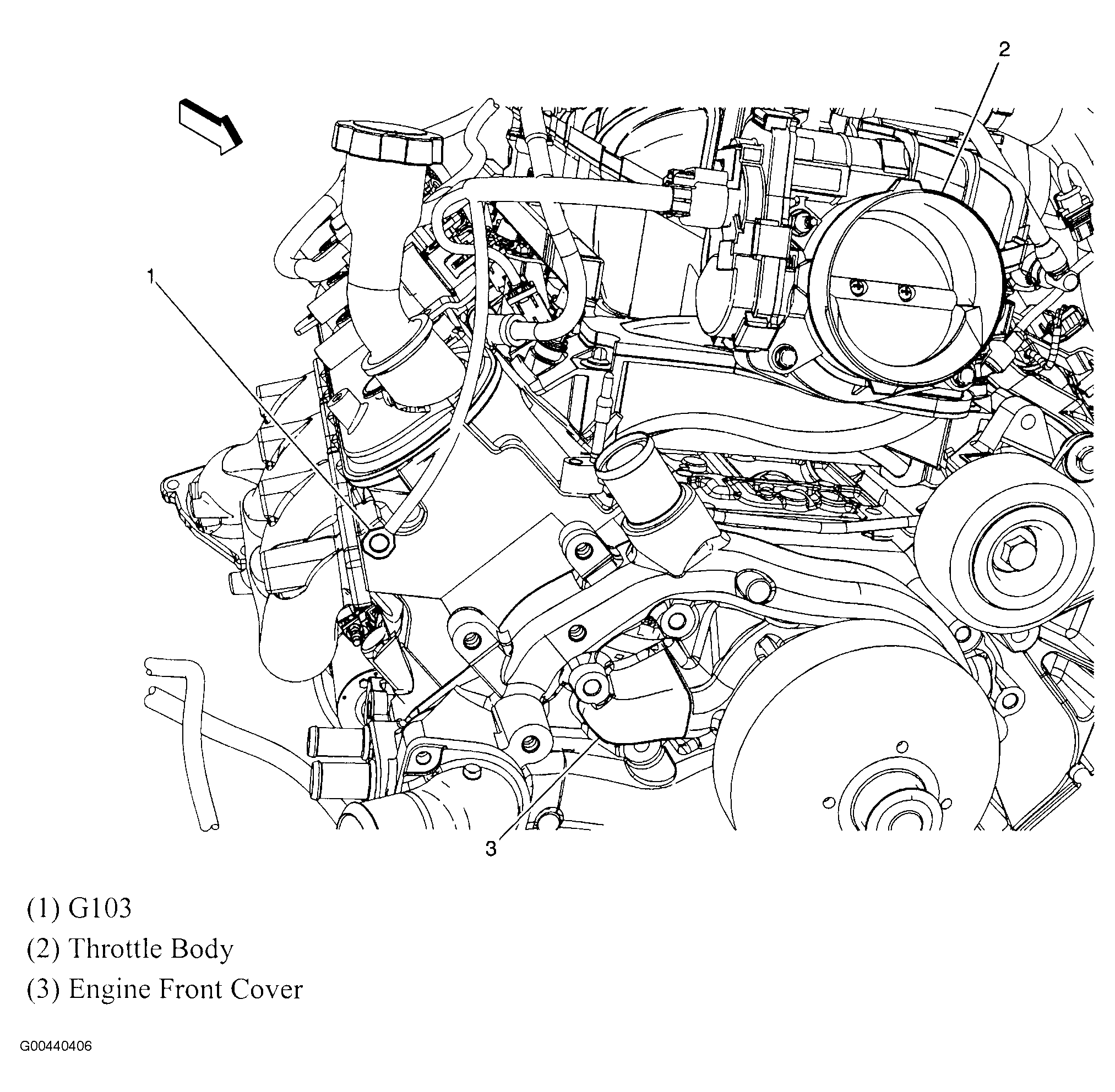

Fig 22: Front Of Engine (4.8L, 5.3L, 6.0L & 6.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Engine Compartment (4.8L, 5.3L, 6.0L & 6.2L)
Courtesy of GENERAL MOTORS CORP.

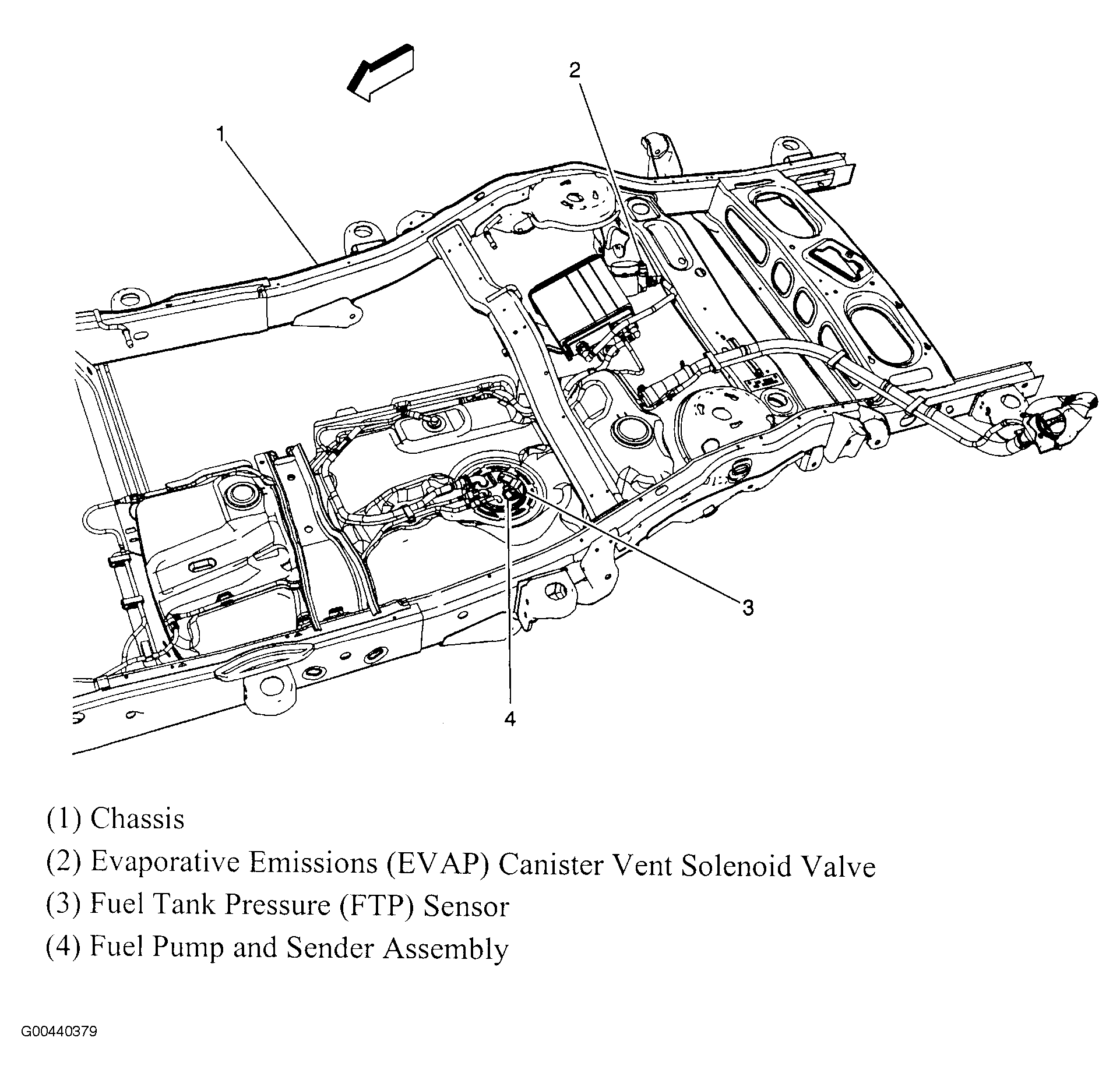

Fig 24: Under Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 25: Under Rear Of Vehicle (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.

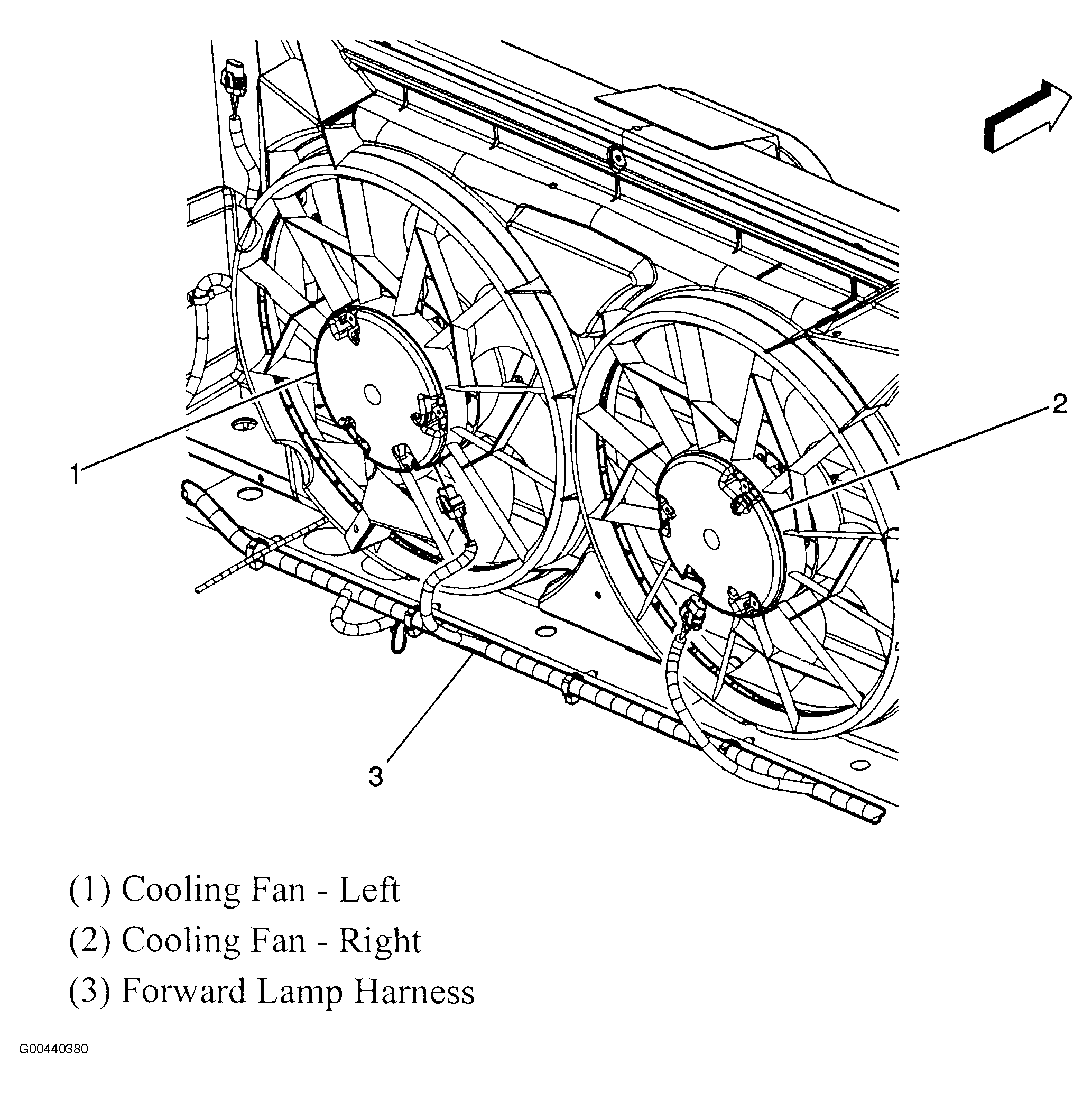

Fig 26: Engine Cooling Fans (10 Series)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Left Rear Door (Extended Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Right Rear Door (Extended Cab)
Courtesy of GENERAL MOTORS CORP.

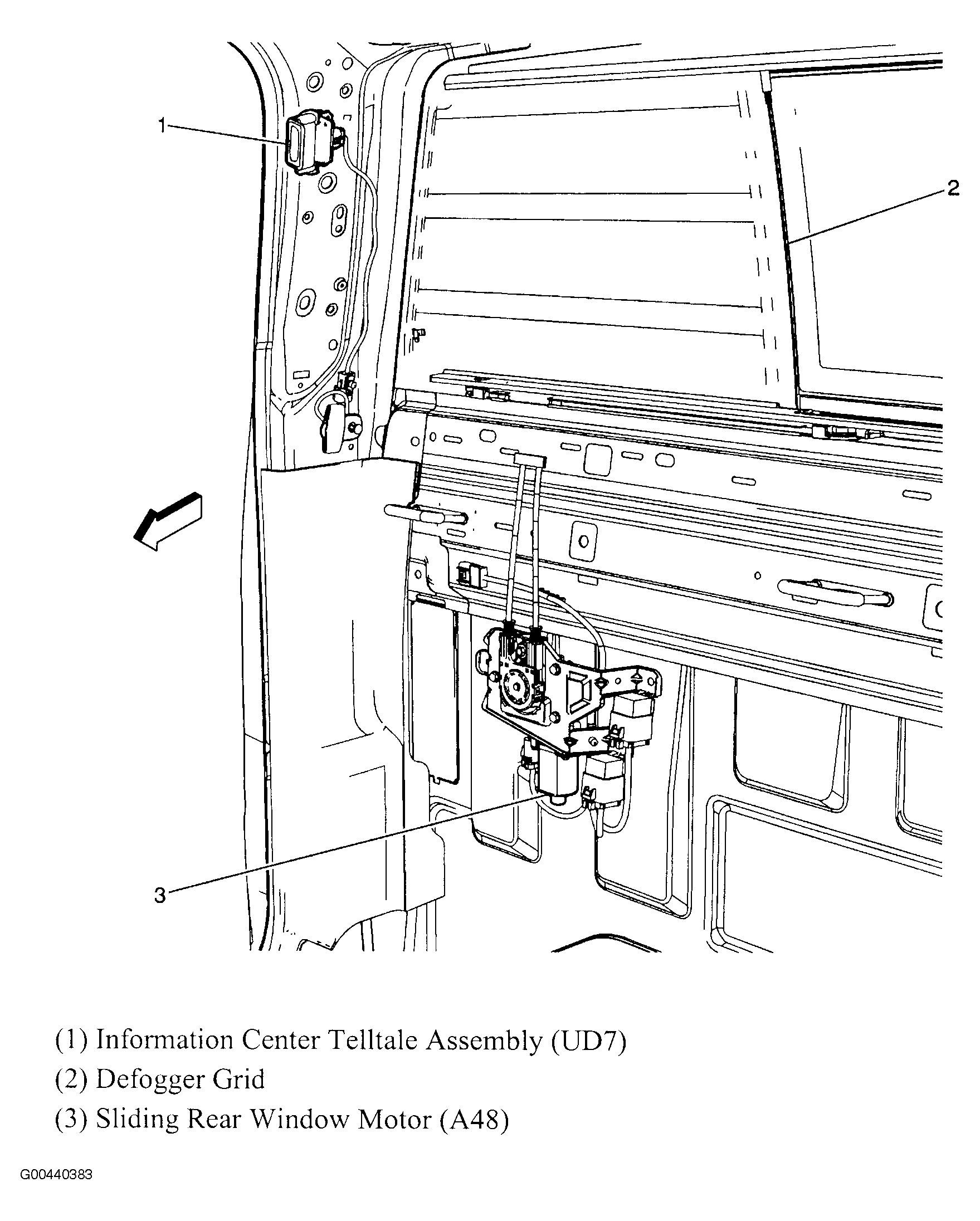

Fig 29: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

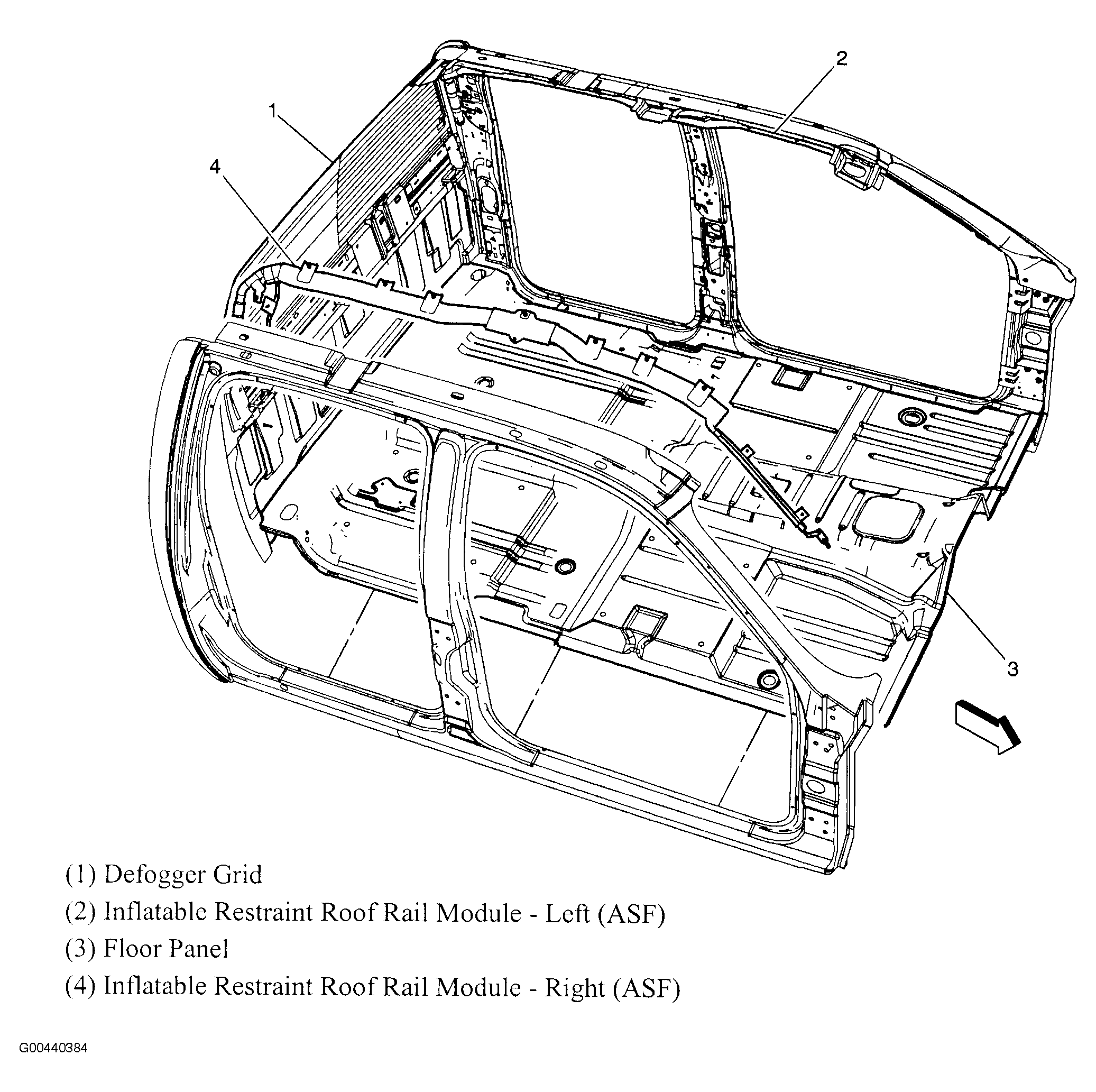

Fig 30: Roof Rail Air Bags (Extended Cab & Crew Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 31: HVAC Module (Auto Temperature Control)
Courtesy of GENERAL MOTORS CORP.
Fig 32: HVAC Module (Electronic Control)
Courtesy of GENERAL MOTORS CORP.

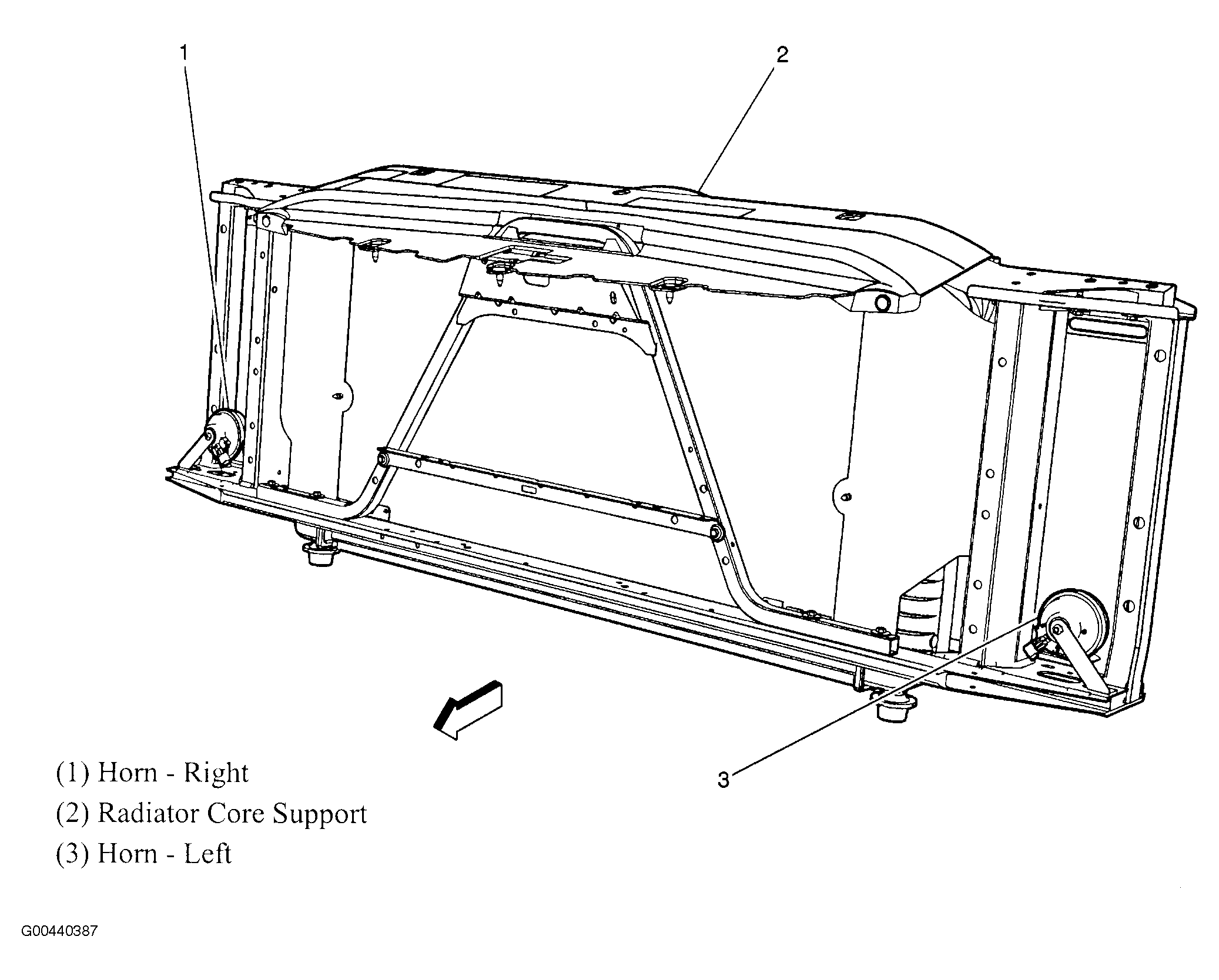

Fig 33: Horns
Courtesy of GENERAL MOTORS CORP.

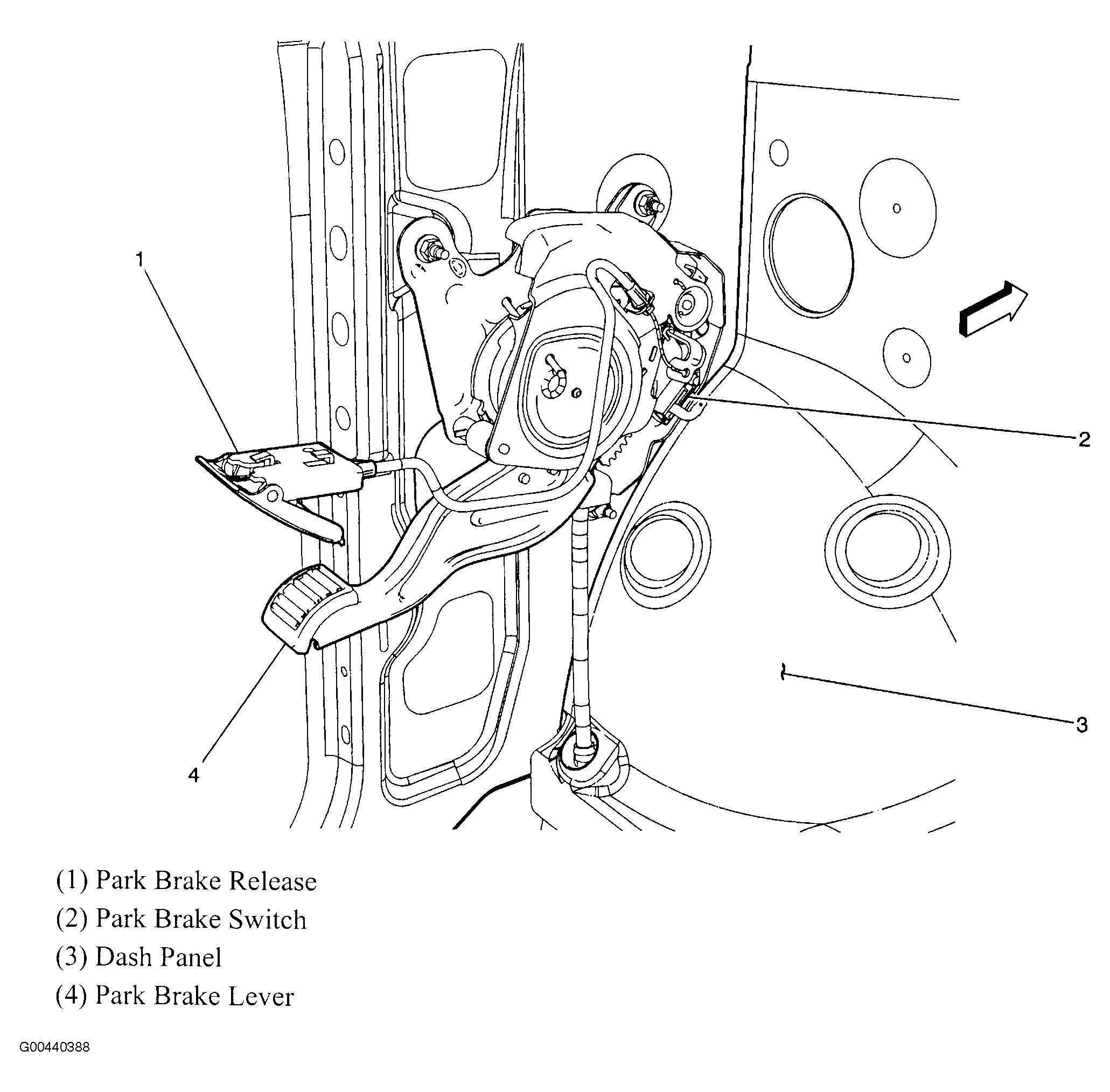

Fig 34: Park Brake Assembly
Courtesy of GENERAL MOTORS CORP.

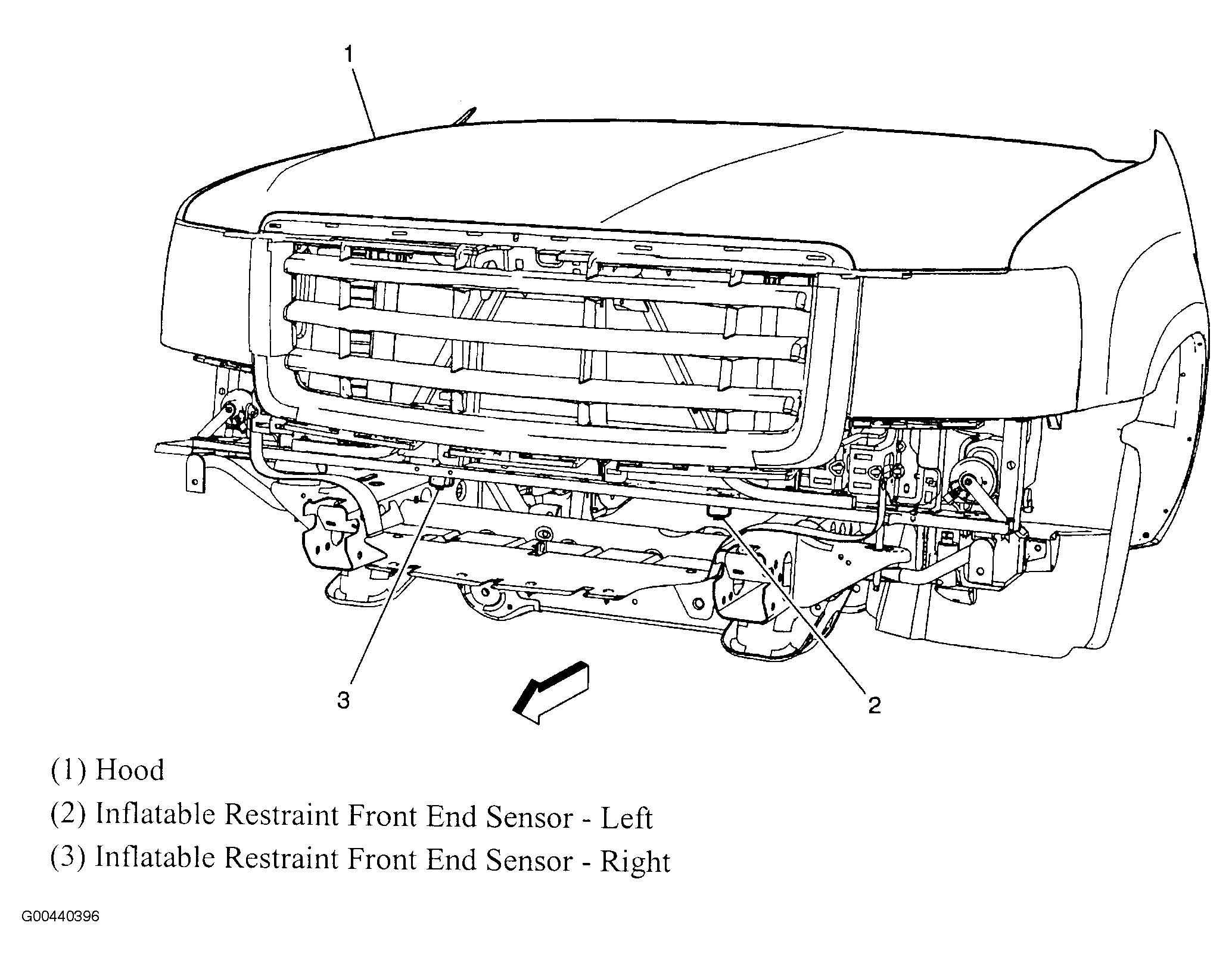

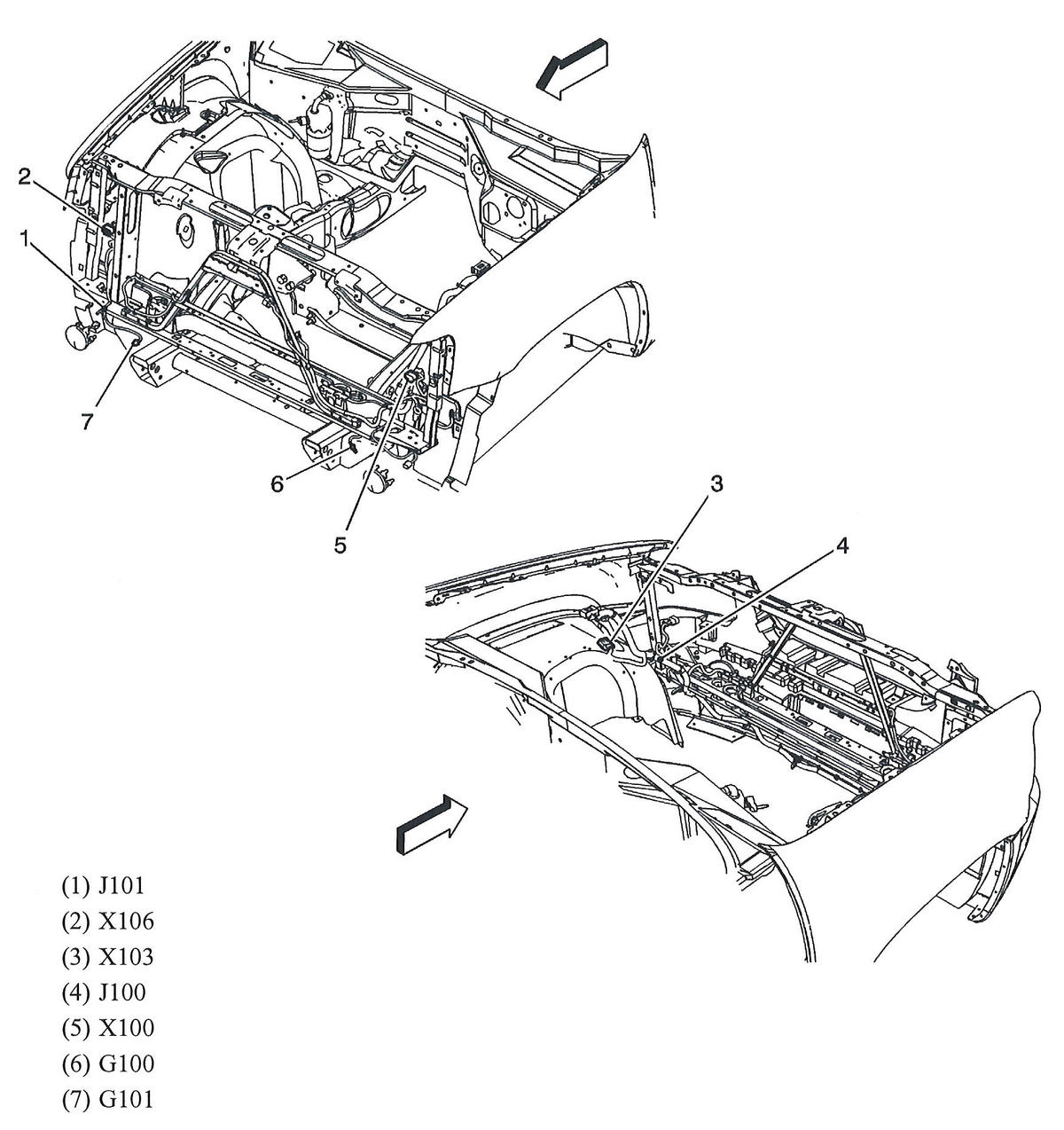

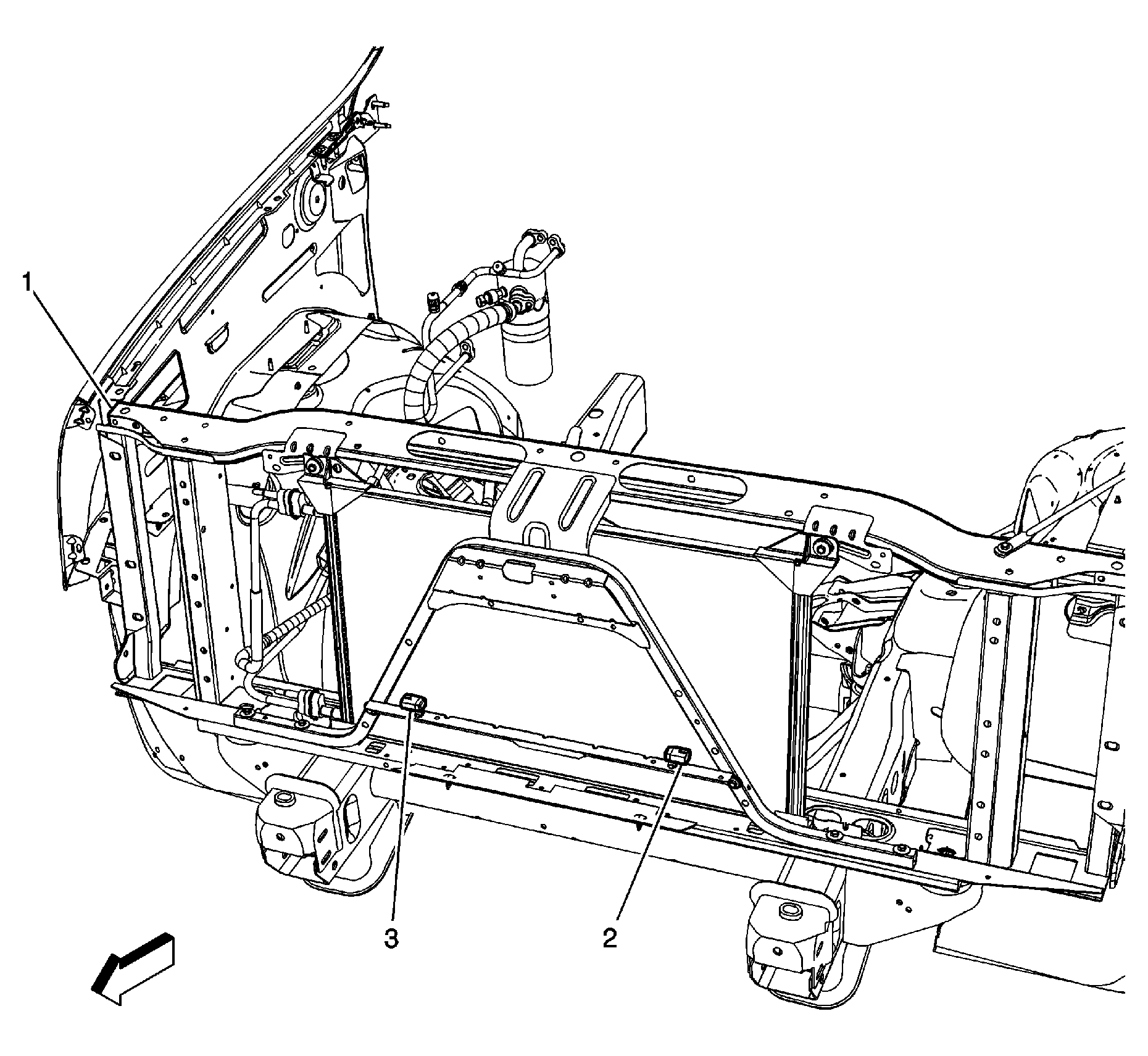

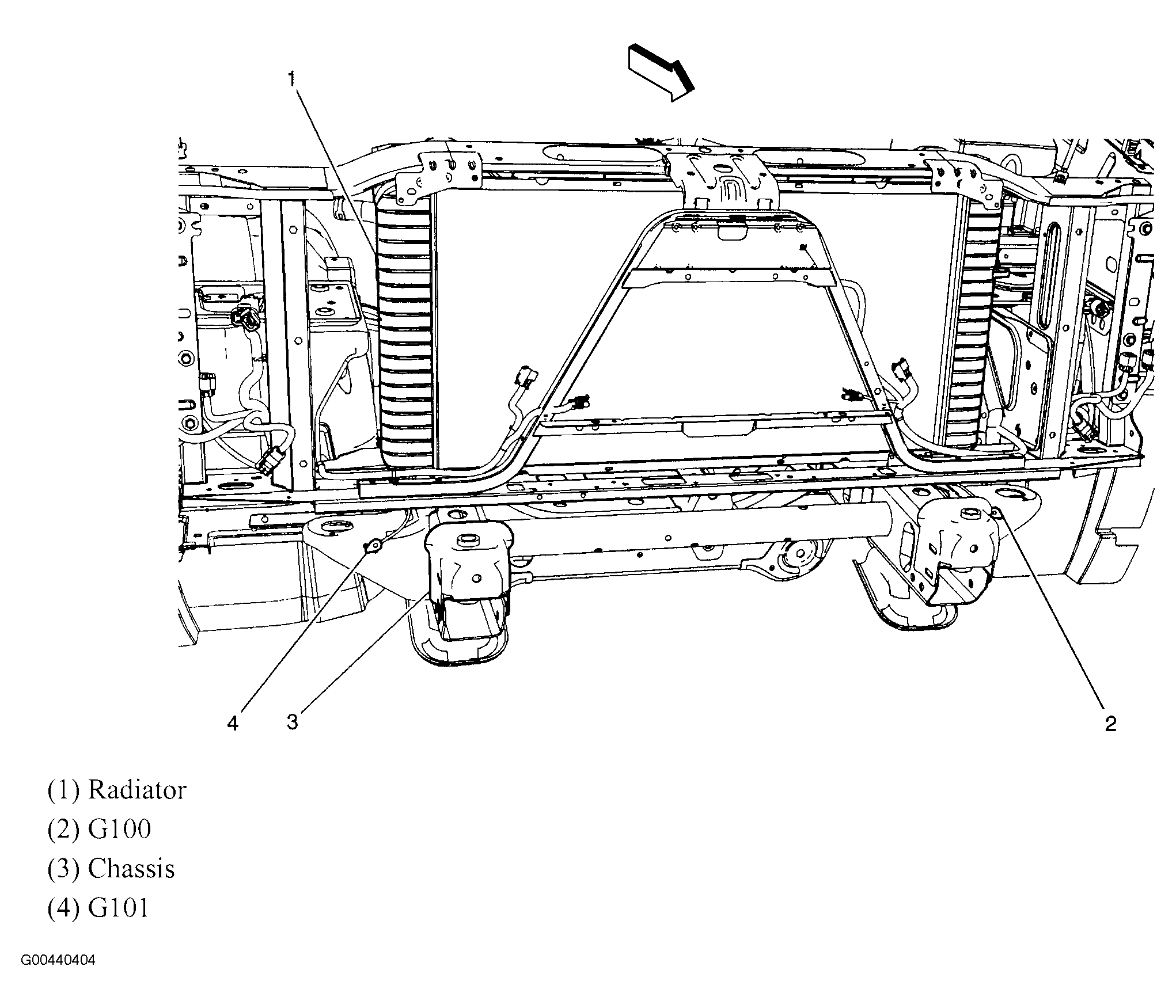

Fig 35: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

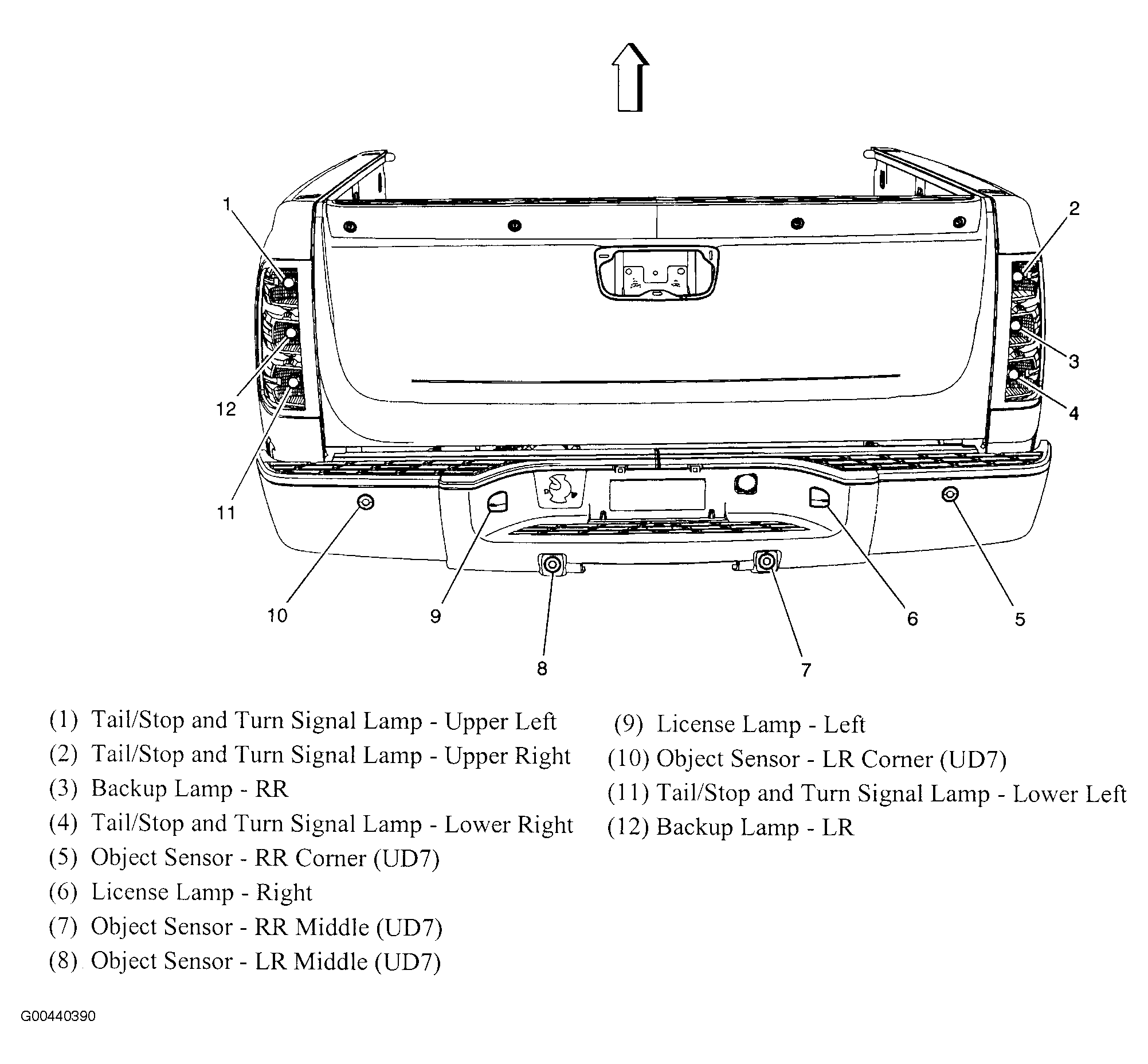

Fig 36: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

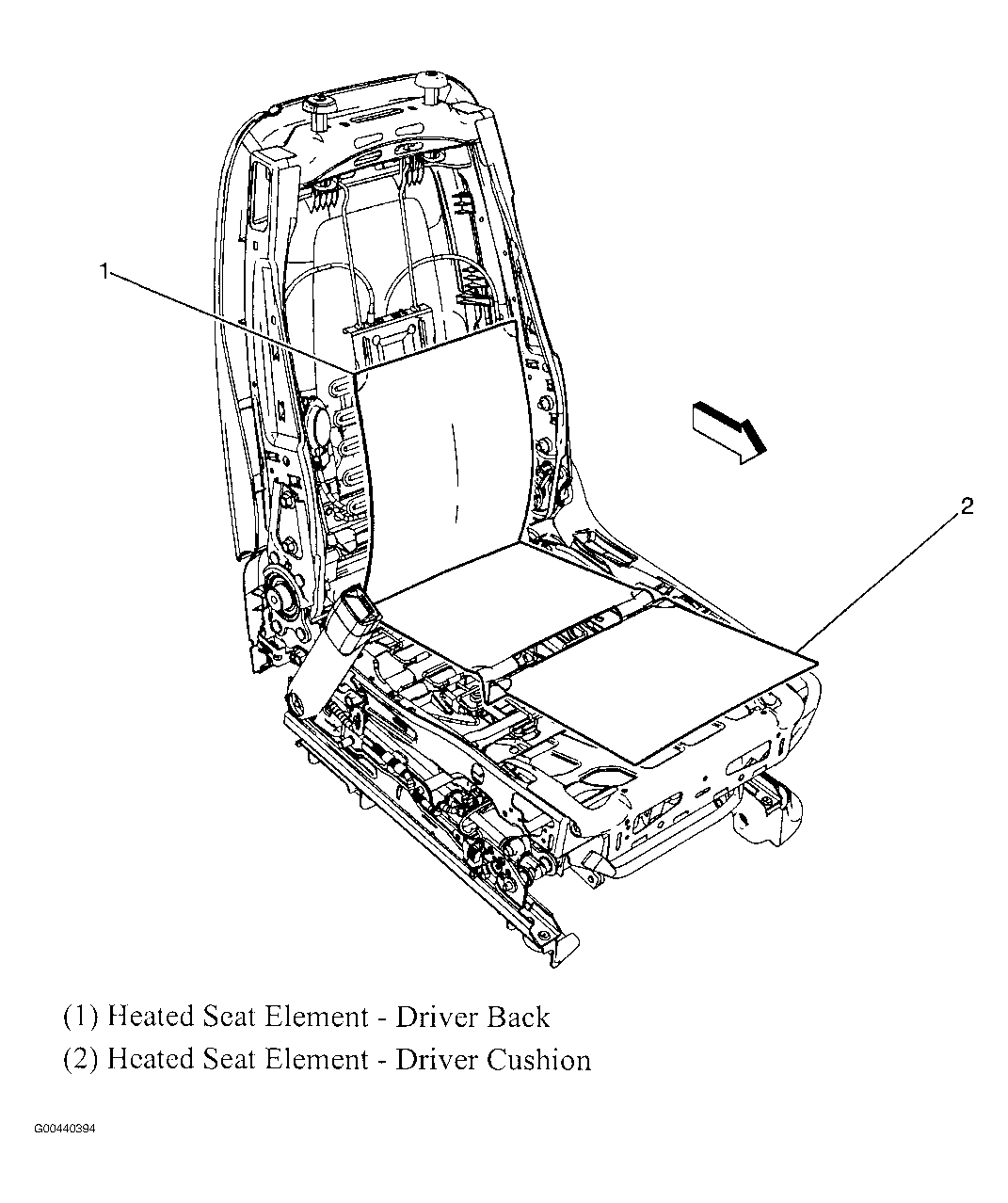

Fig 37: Driver Seat
Courtesy of GENERAL MOTORS CORP.

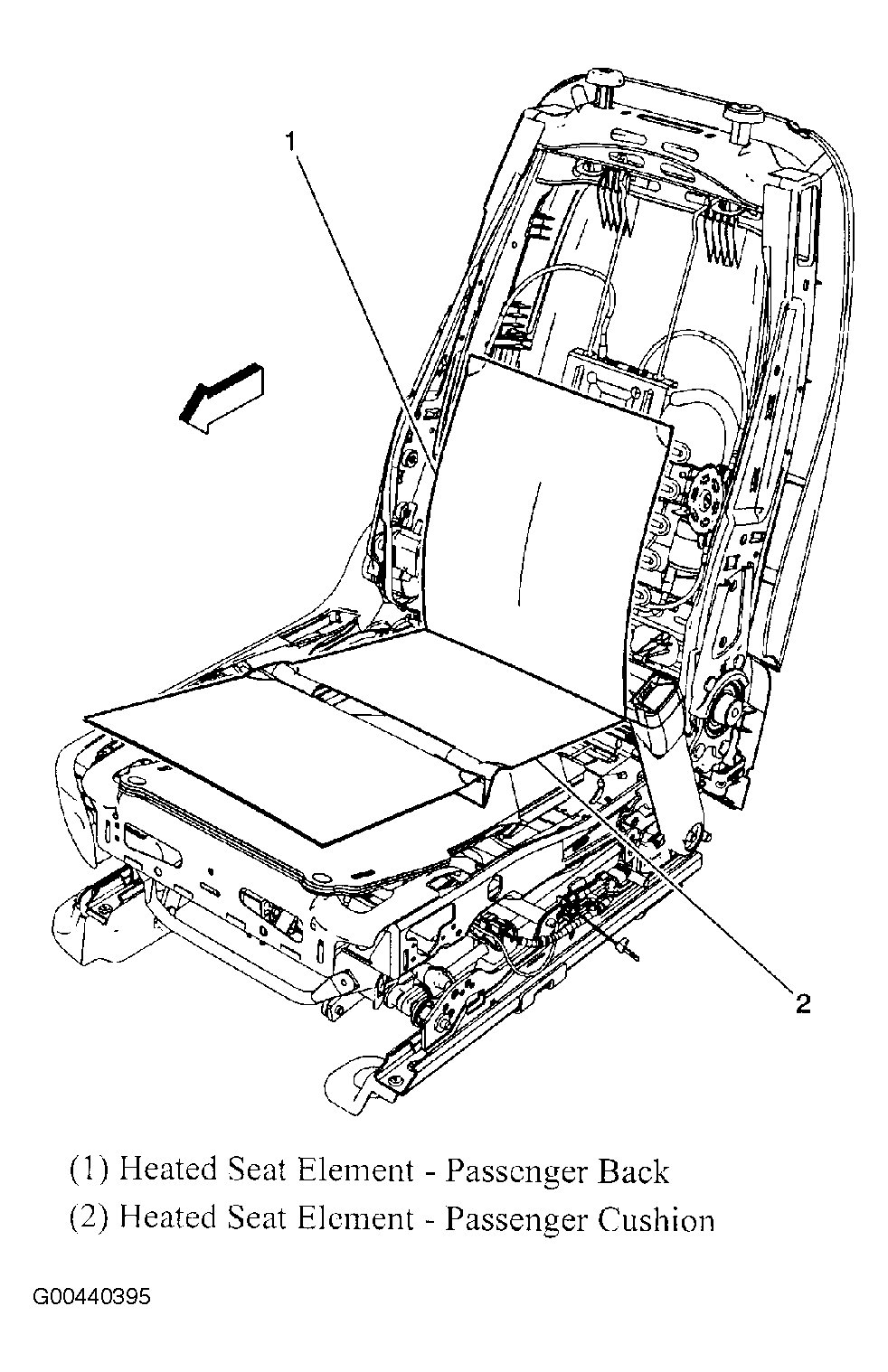

Fig 38: Passenger Seat
Courtesy of GENERAL MOTORS CORP.

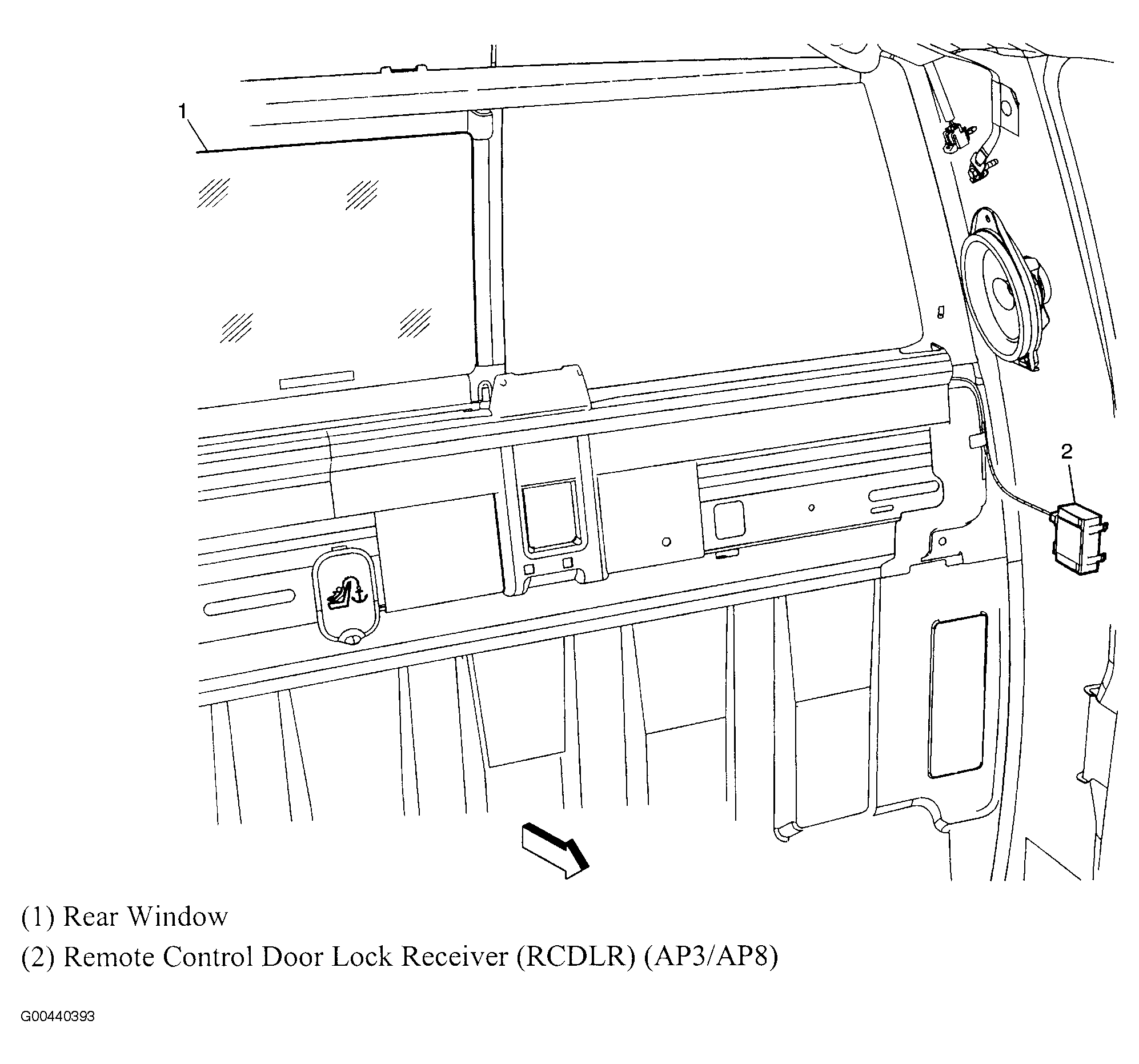

Fig 39: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 40: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 41: Passenger Seat
Courtesy of GENERAL MOTORS CORP.

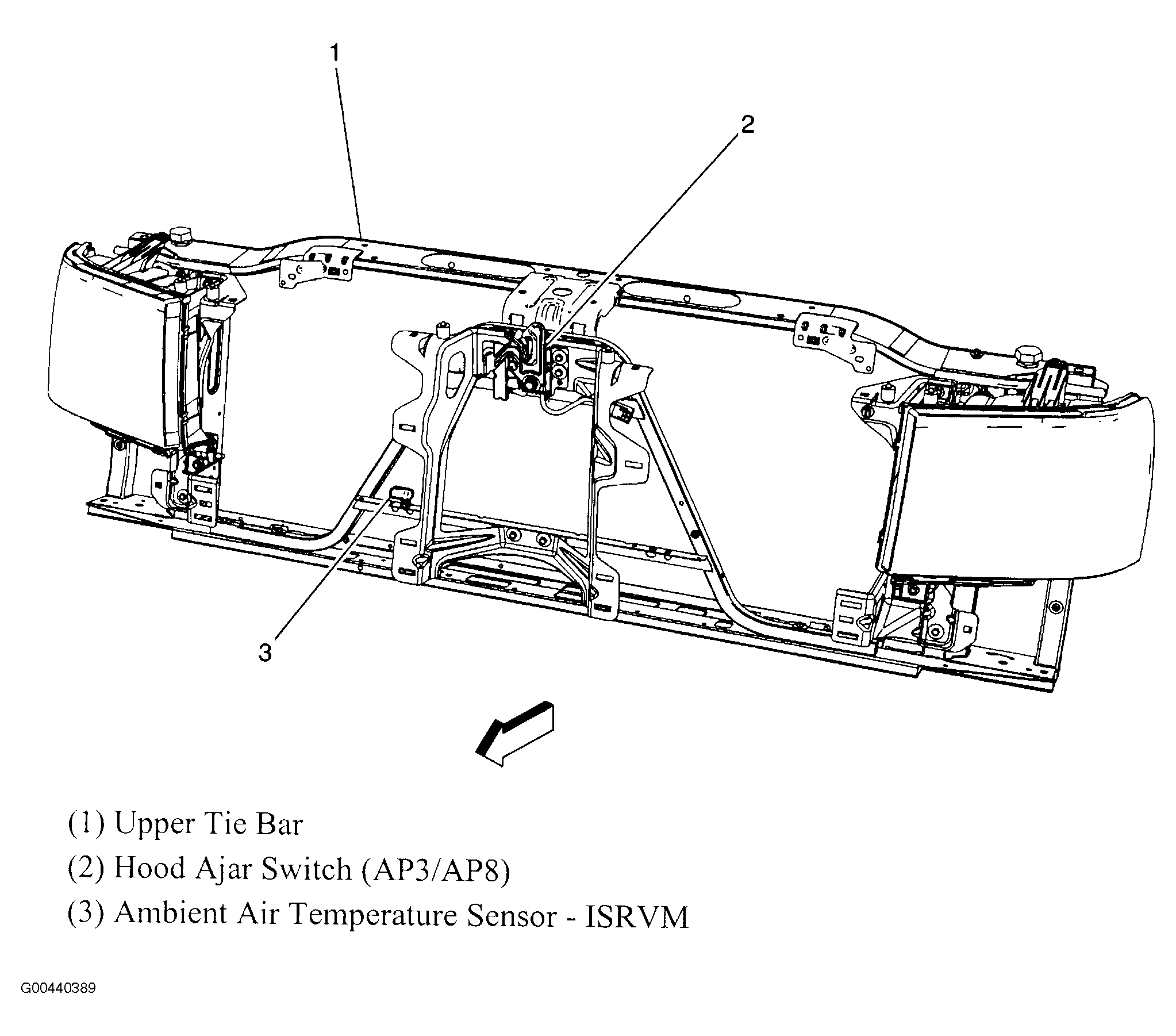

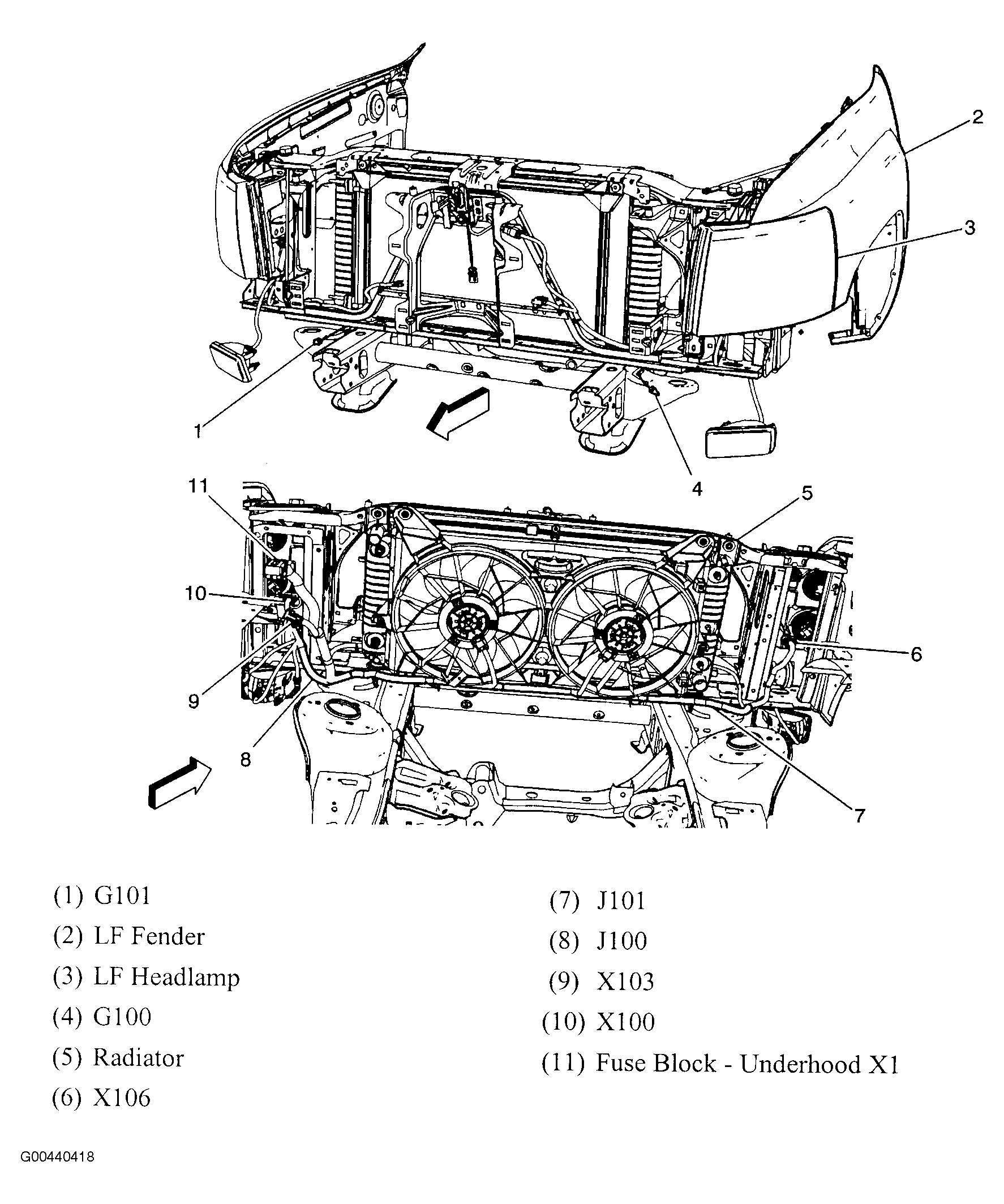

Fig 42: Front Of Vehicle (10 Series)
Courtesy of GENERAL MOTORS CORP.

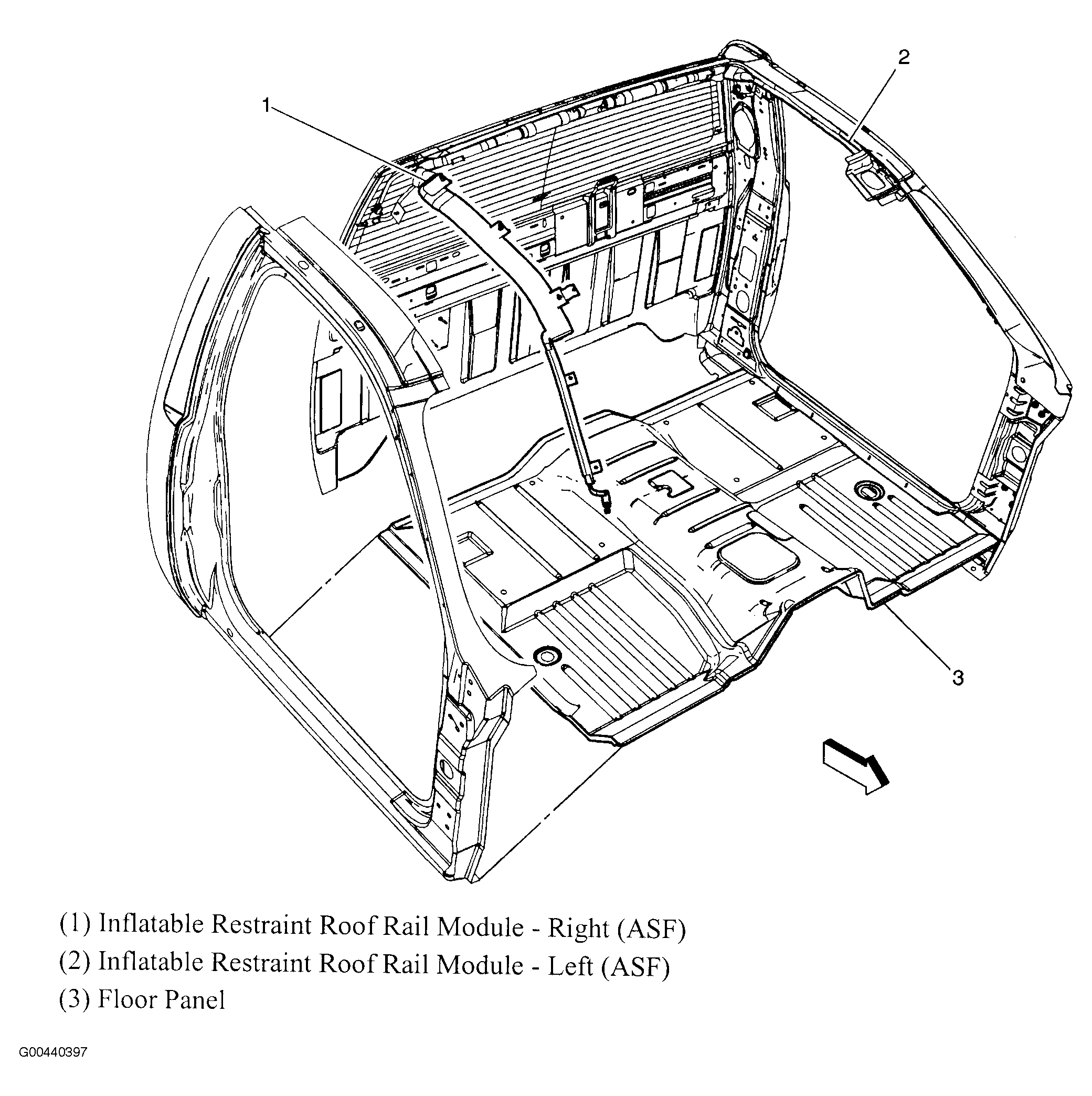

Fig 43: Roof Rail Air Bags (Regular Cab)
Courtesy of GENERAL MOTORS CORP.

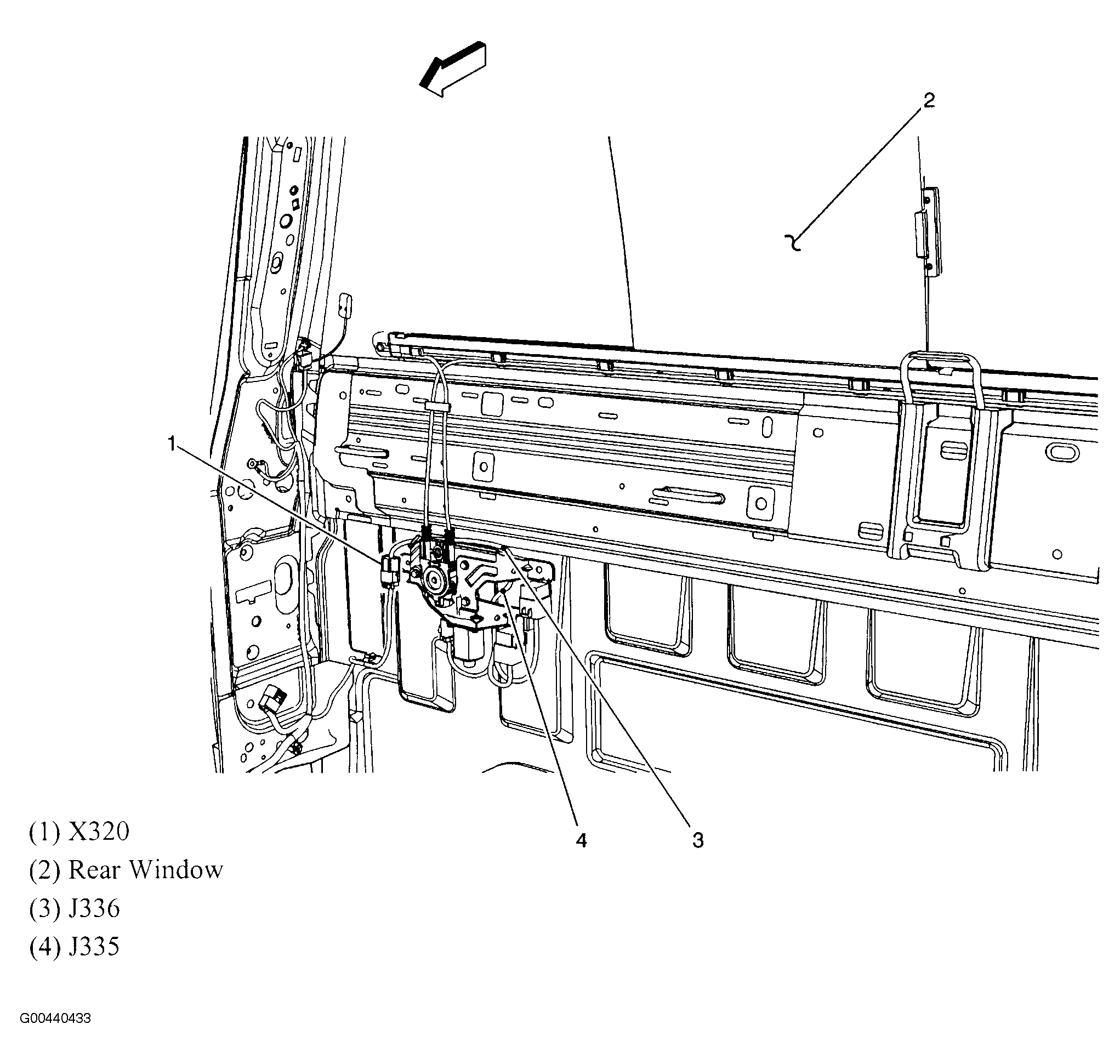

Fig 44: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 45: Transfer Case (NQG)
Courtesy of GENERAL MOTORS CORP.

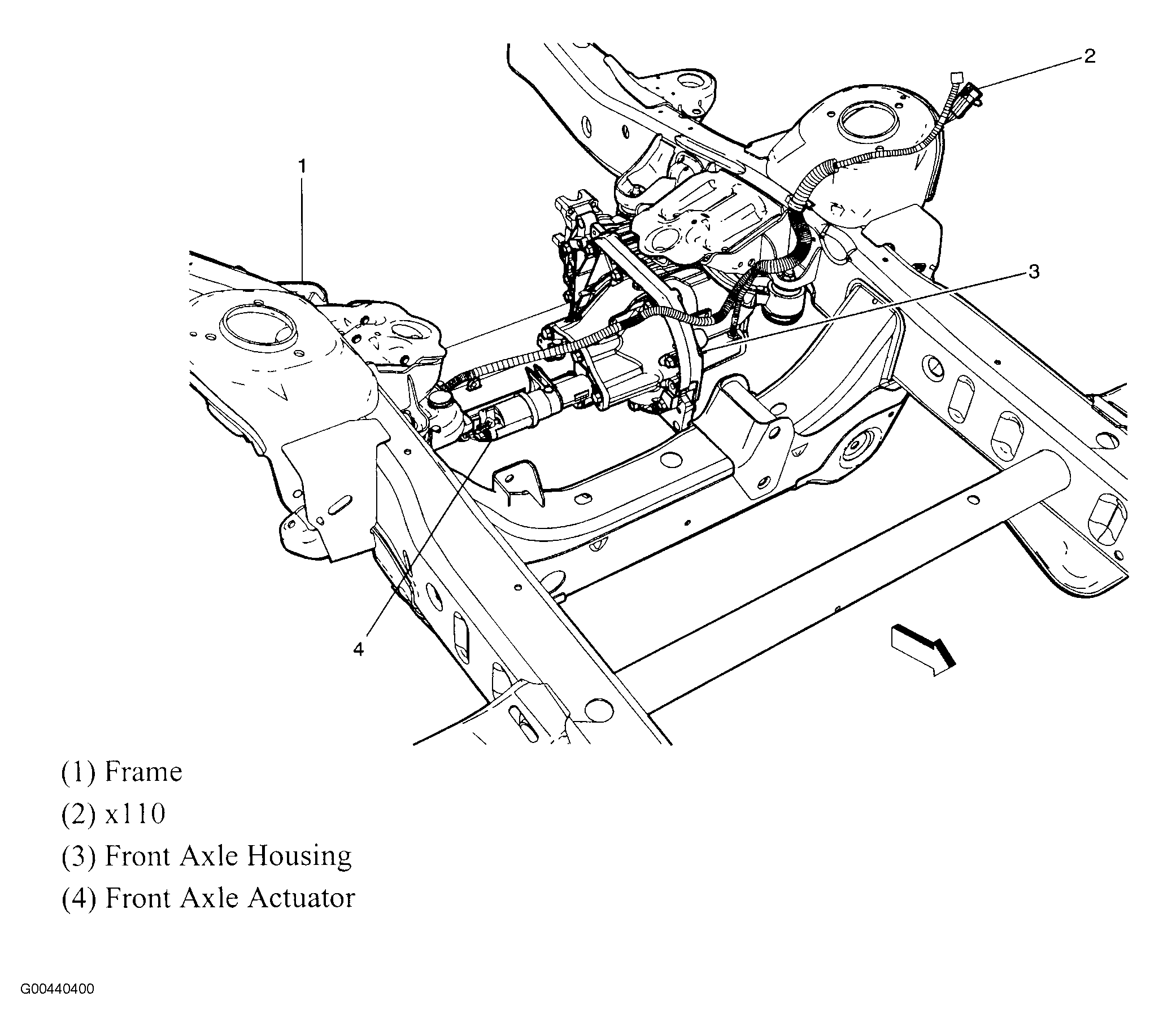

Fig 46: Front Axle
Courtesy of GENERAL MOTORS CORP.

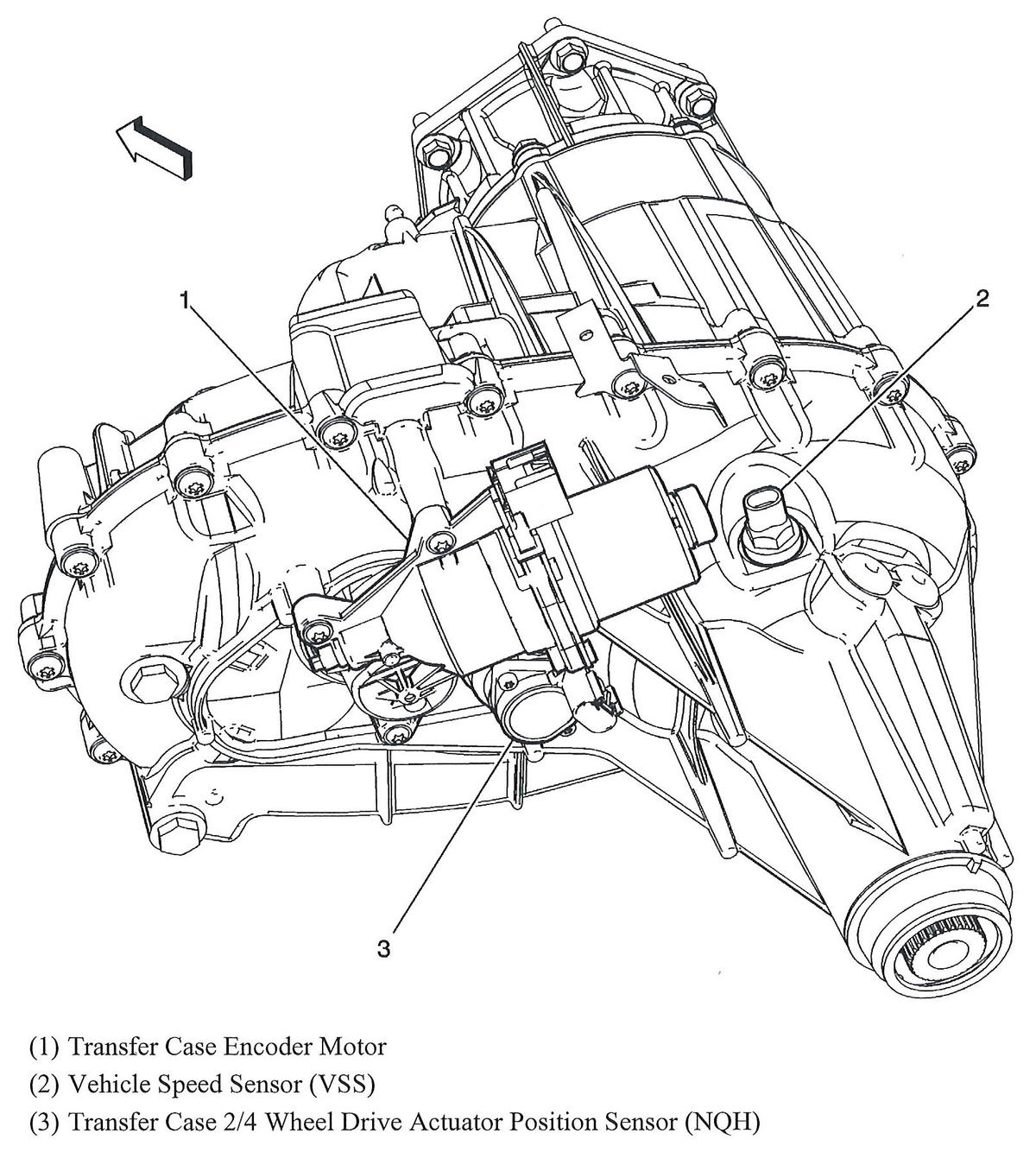

Fig 47: Transfer Case (NQH)
Courtesy of GENERAL MOTORS CORP.

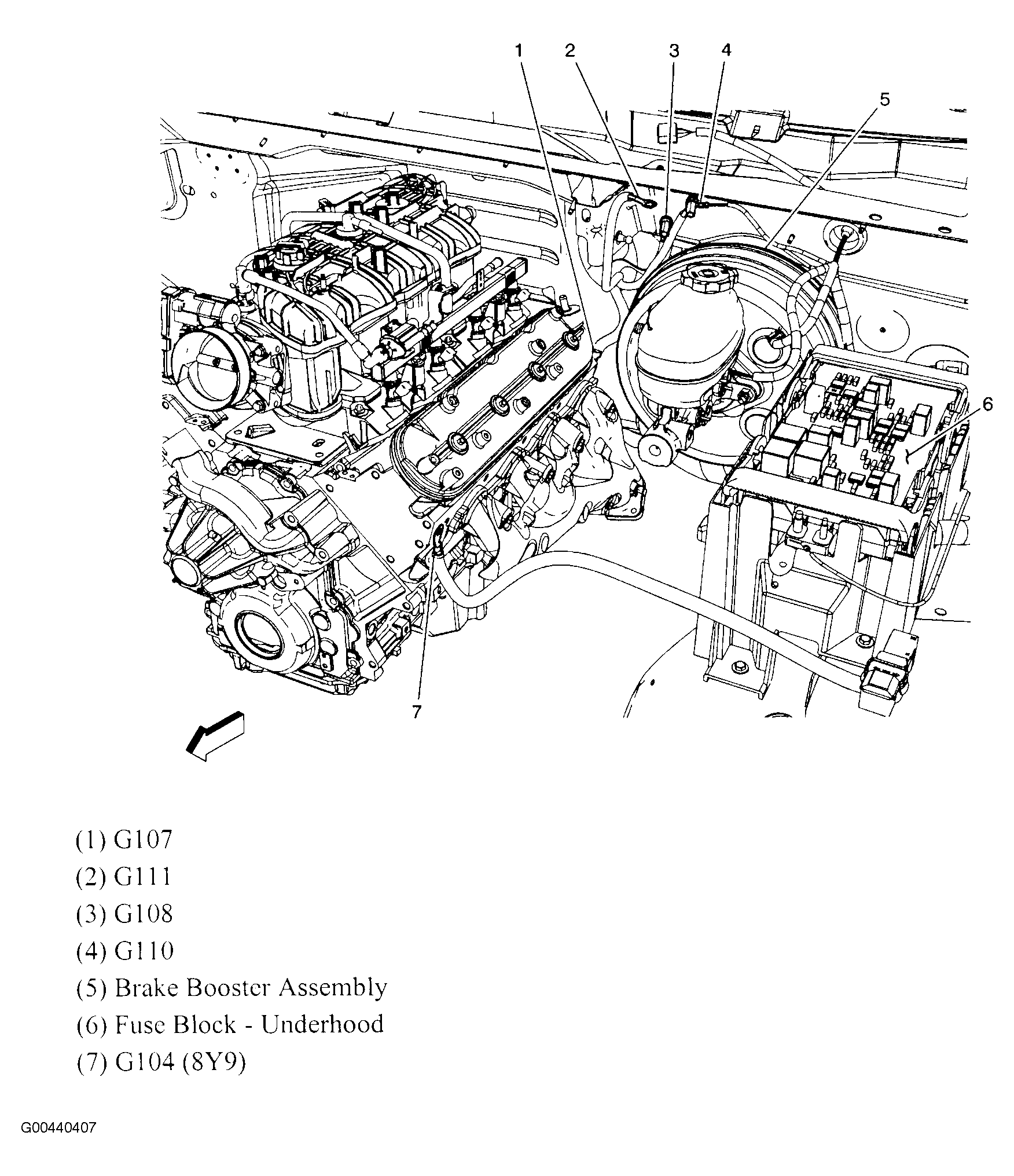

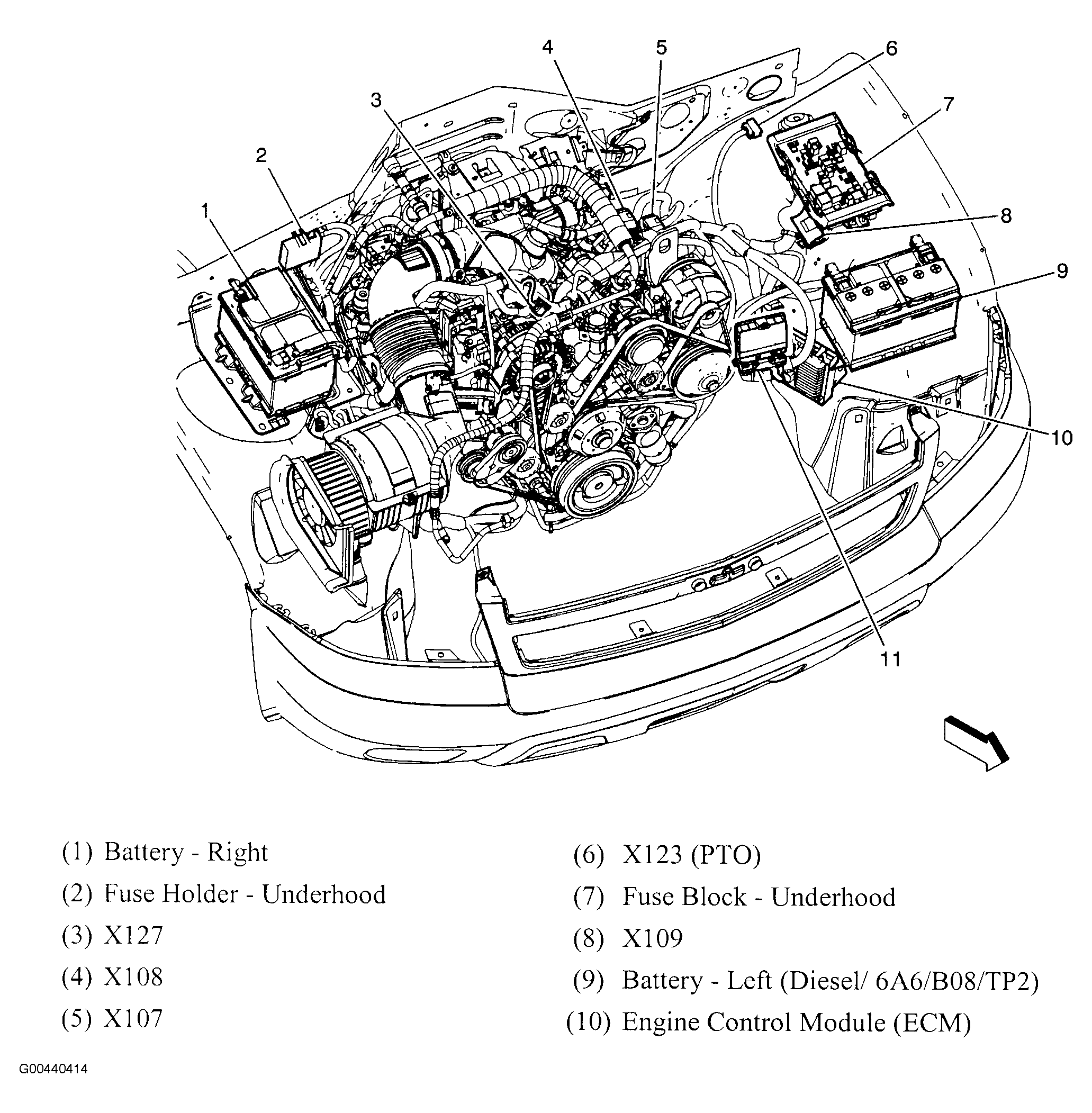

Fig 48: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

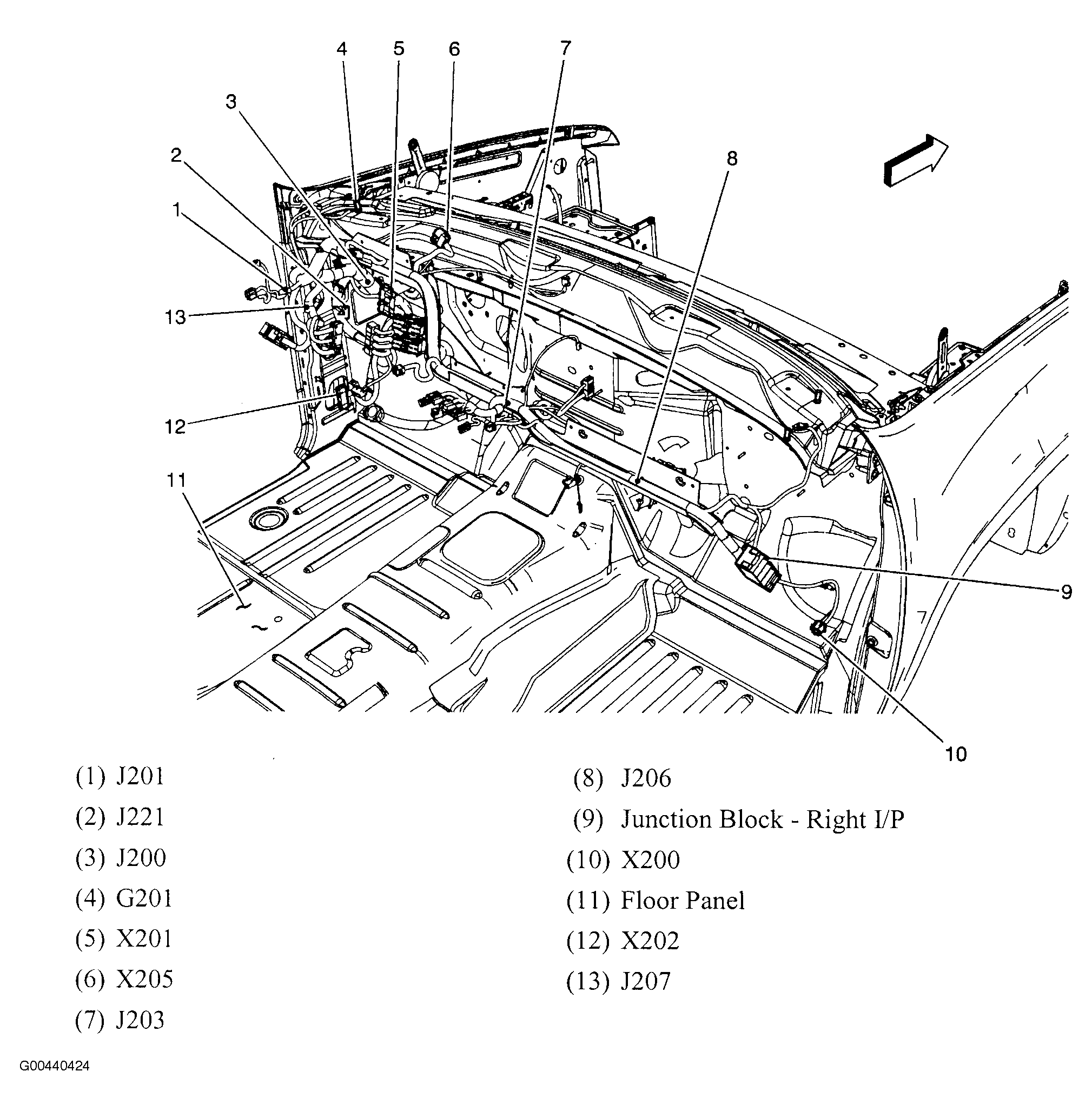

Fig 49: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

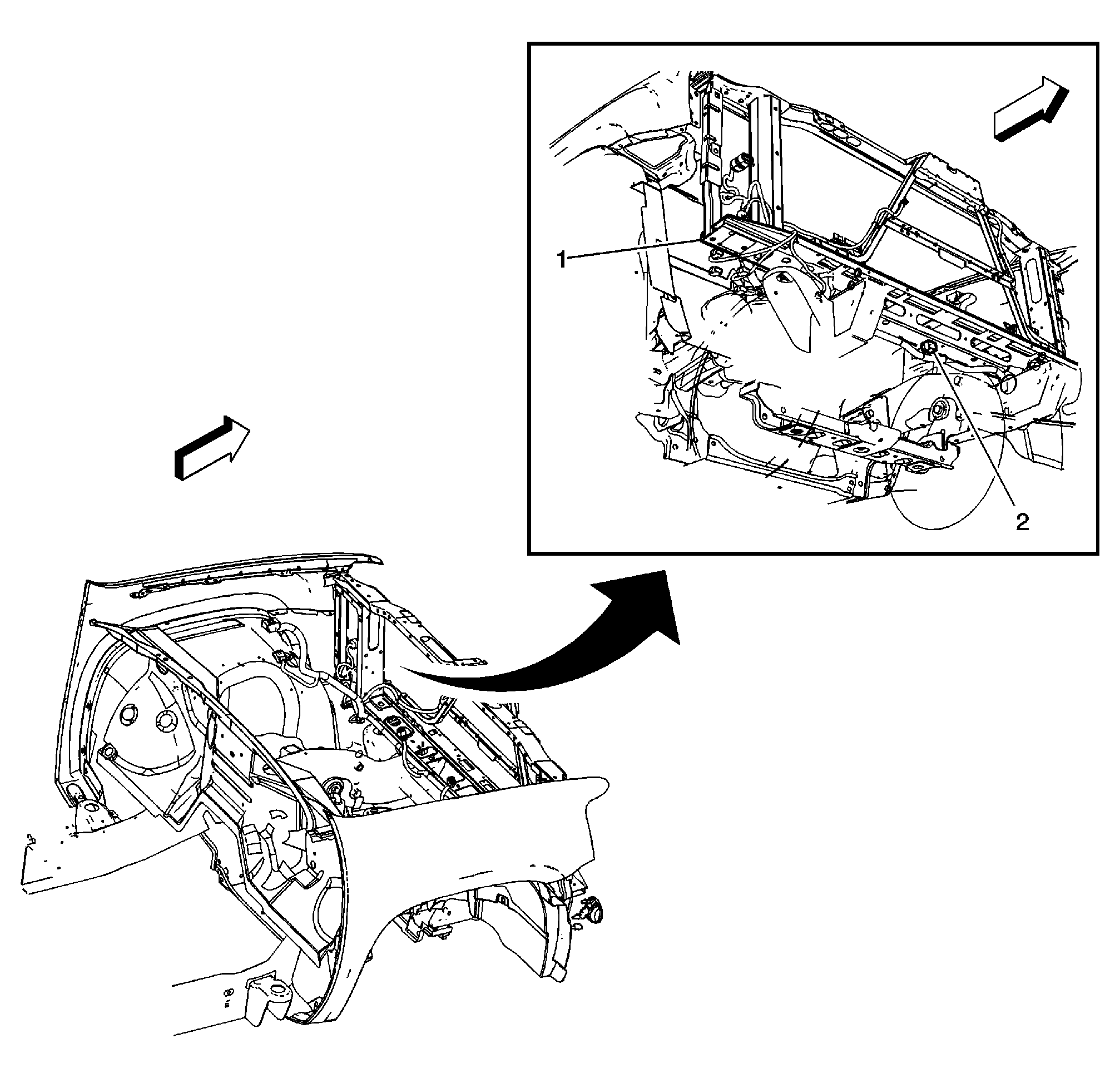

Fig 50: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

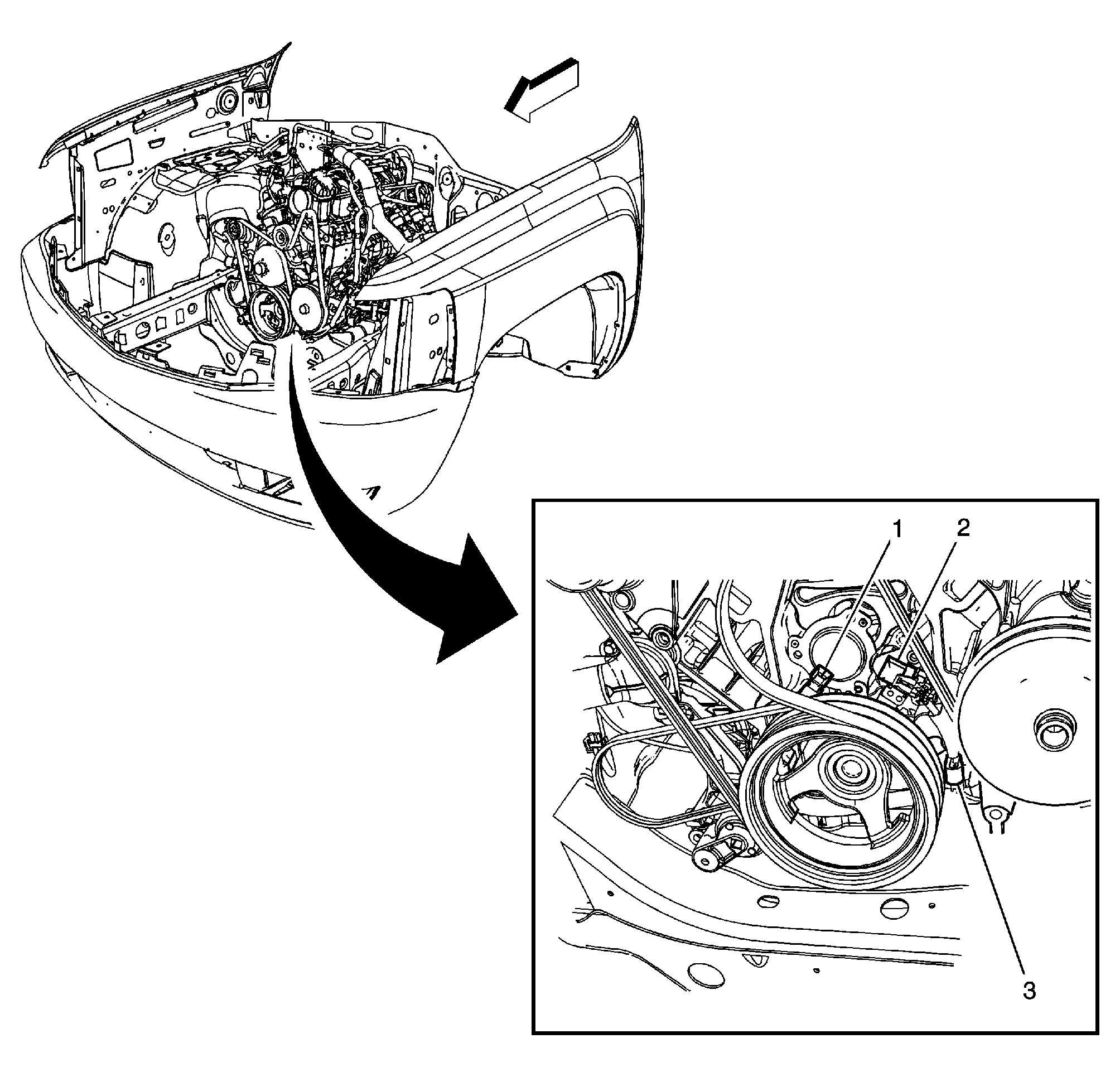

Fig 51: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 52: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

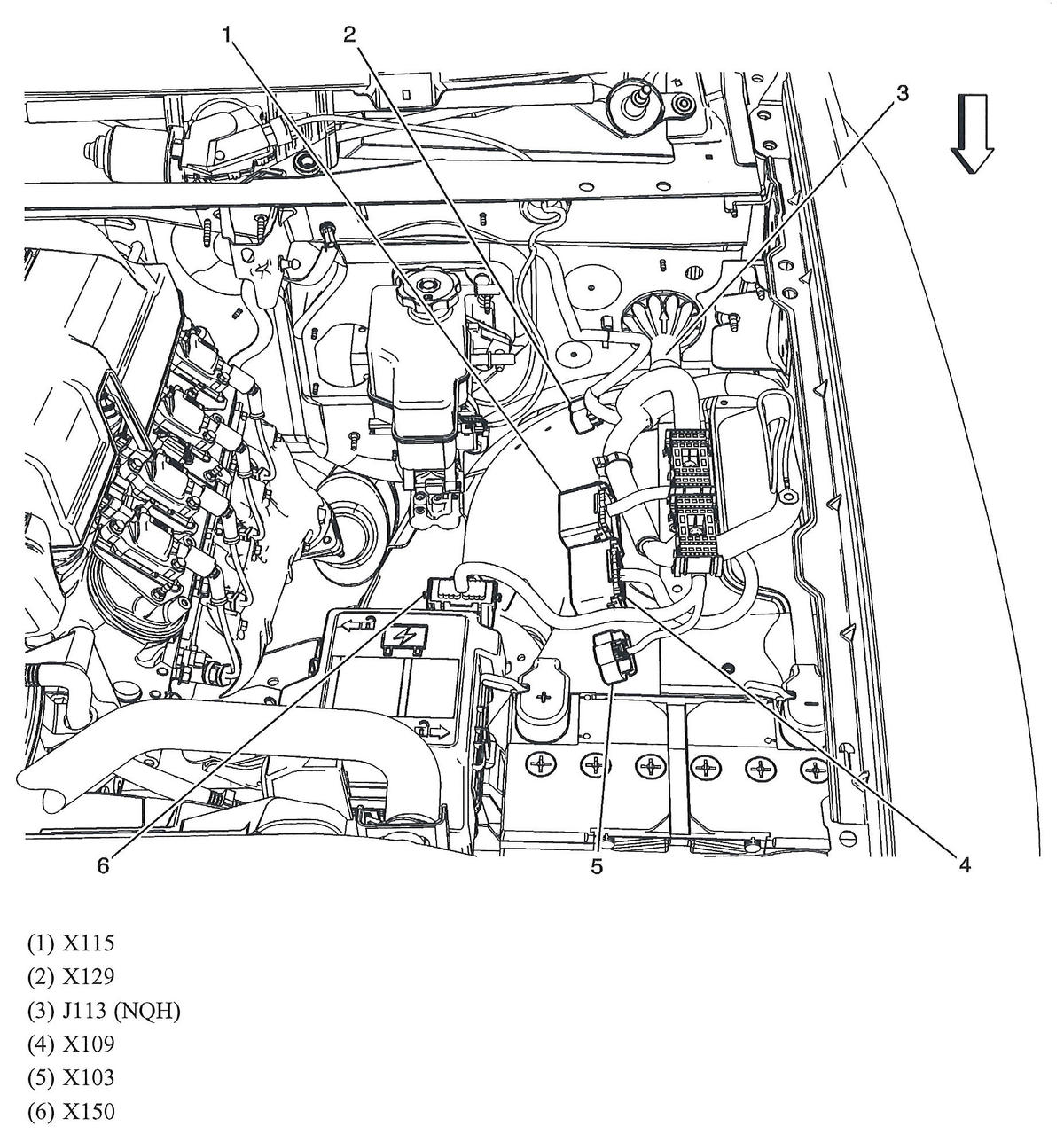

Fig 53: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 54: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 55: Under Left Side Of Vehicle
Courtesy of GENERAL MOTORS CORP.

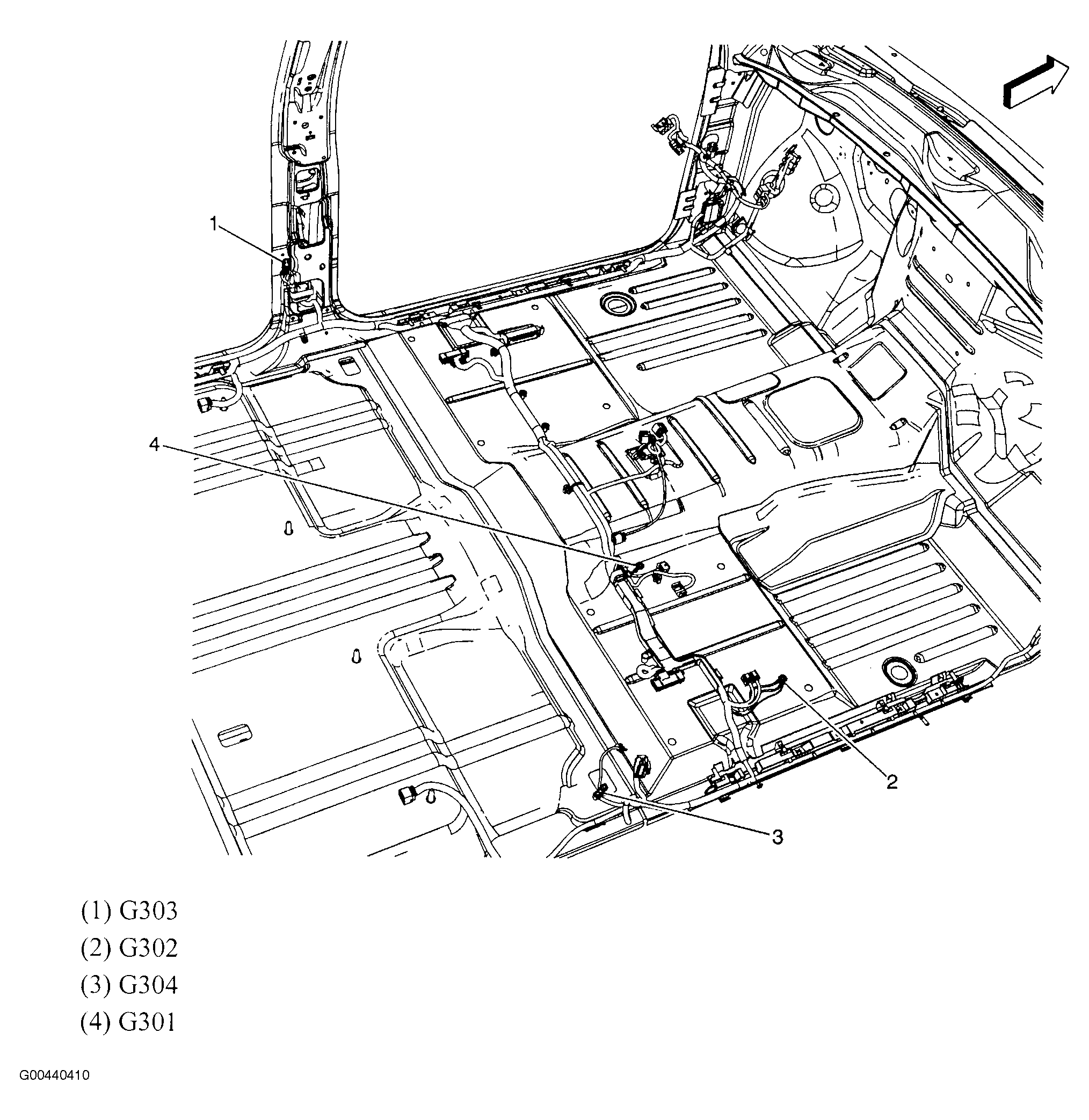

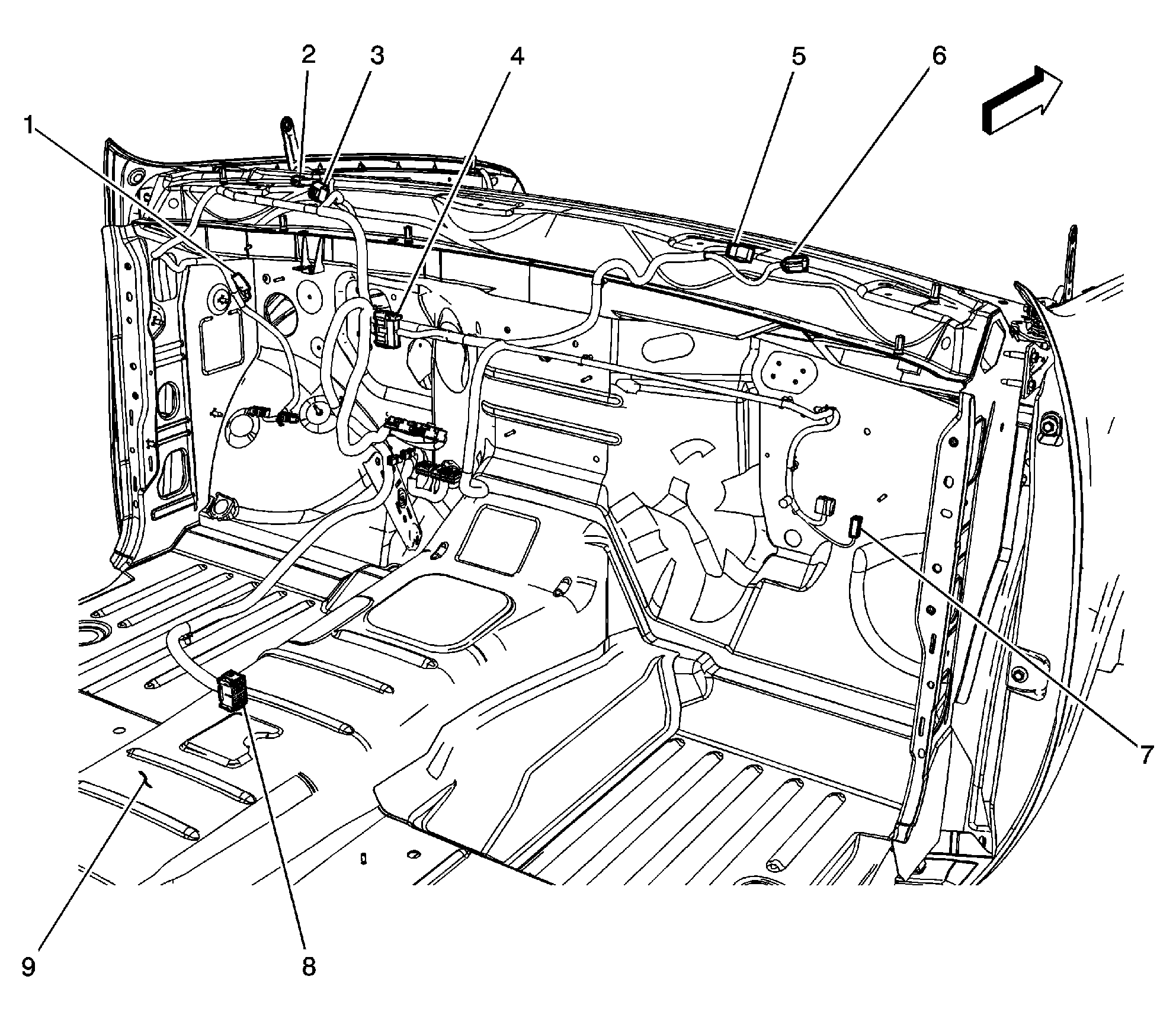

Fig 56: Passenger Compartment Floor
Courtesy of GENERAL MOTORS CORP.

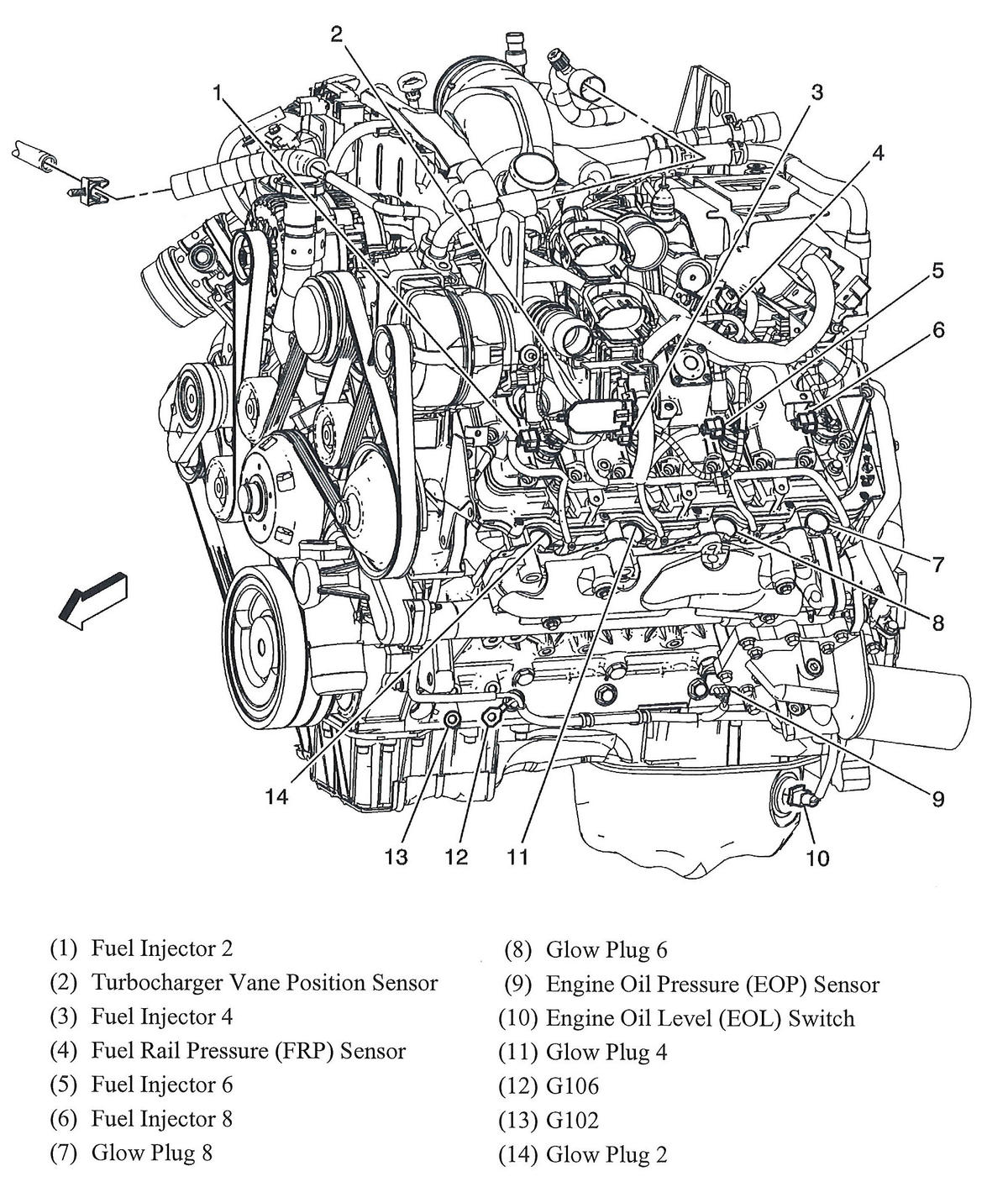

Fig 57: Front Of Engine Compartment (Diesel)
Courtesy of GENERAL MOTORS CORP.

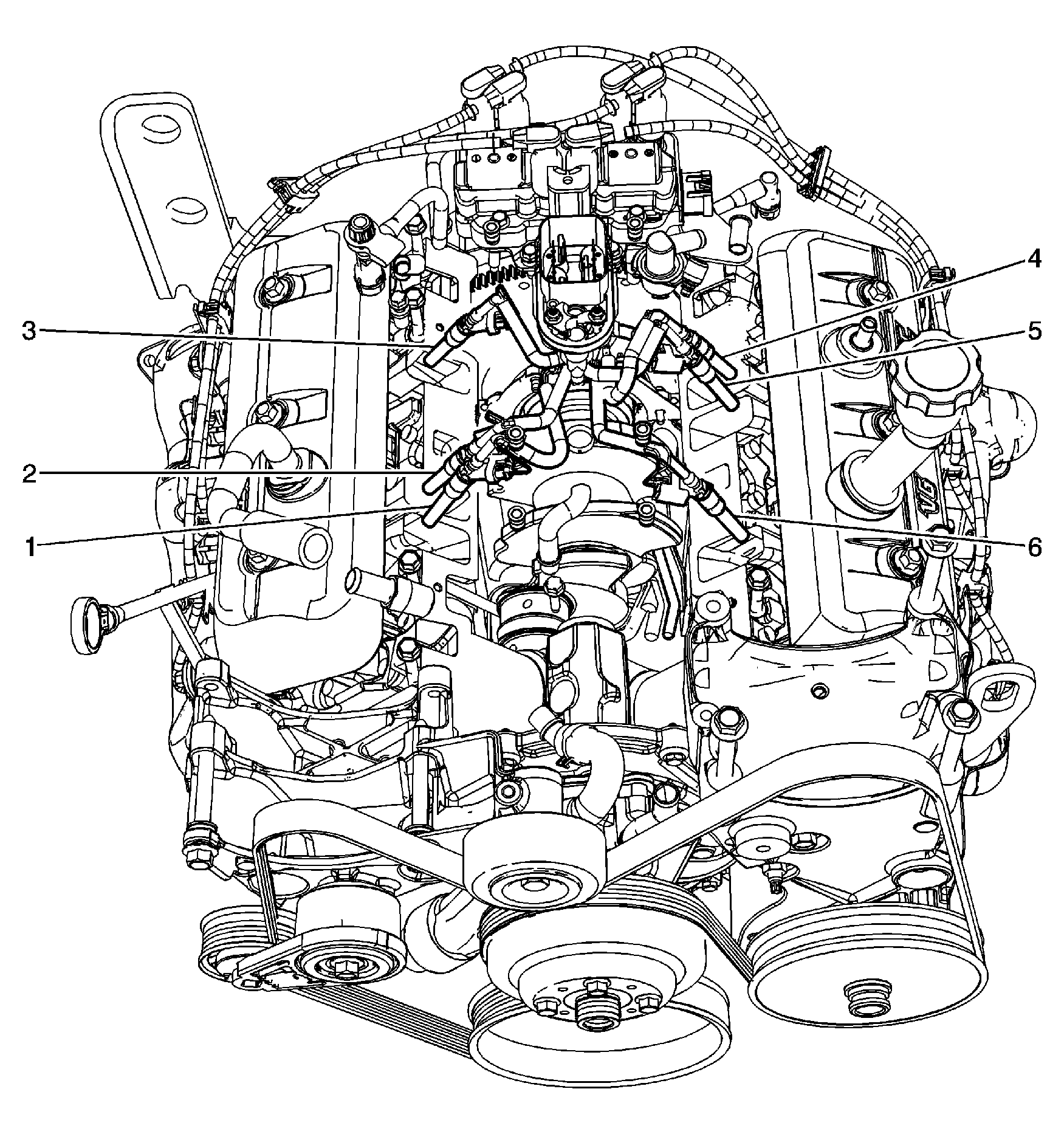

Fig 58: Top Of Engine (Diesel)
Courtesy of GENERAL MOTORS CORP.

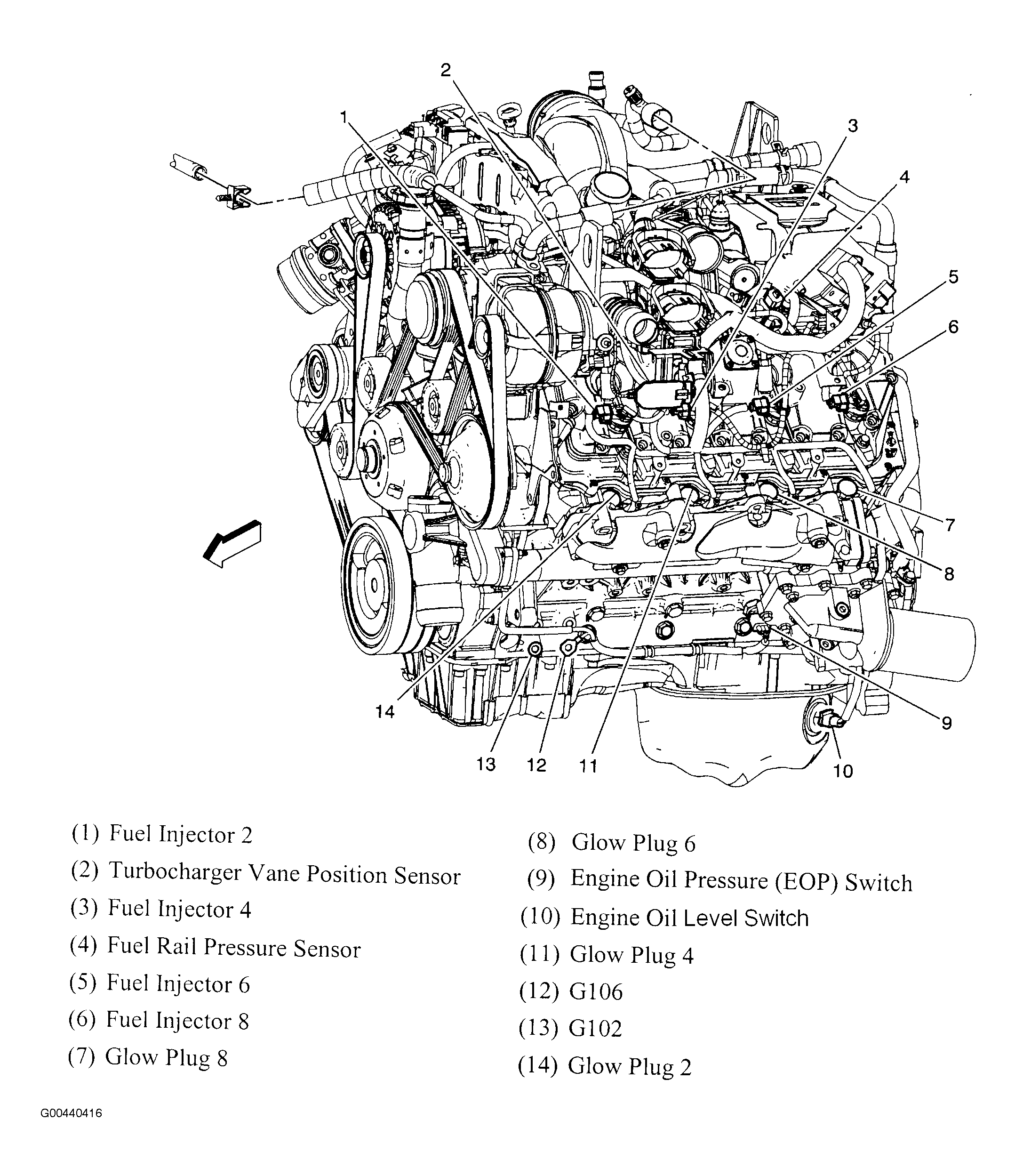

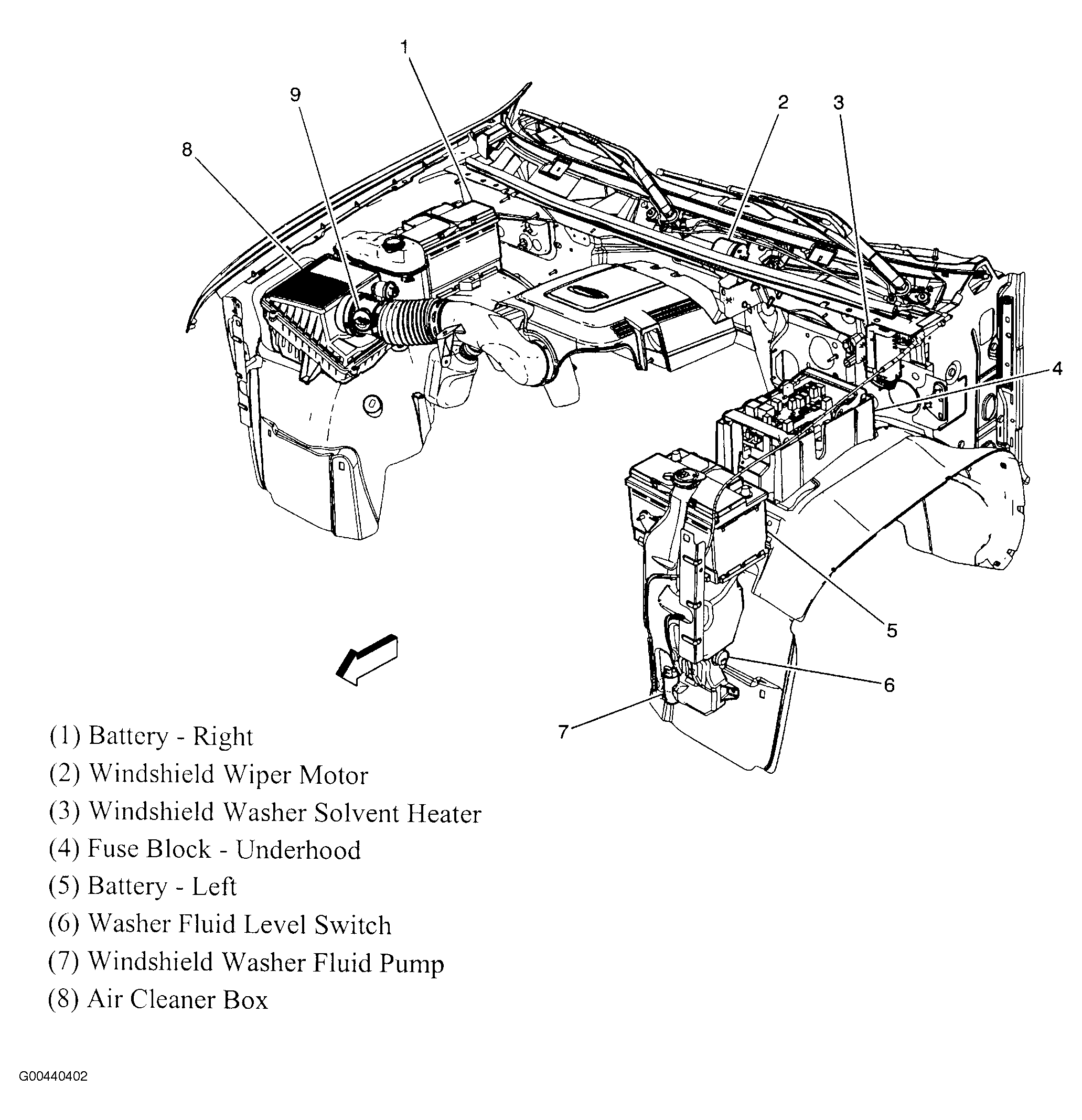

Fig 59: Engine Compartment (Diesel)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Right Side Of Engine (Diesel)
Courtesy of GENERAL MOTORS CORP.
Fig 61: Left Side Of Engine (Diesel)
Courtesy of GENERAL MOTORS CORP.

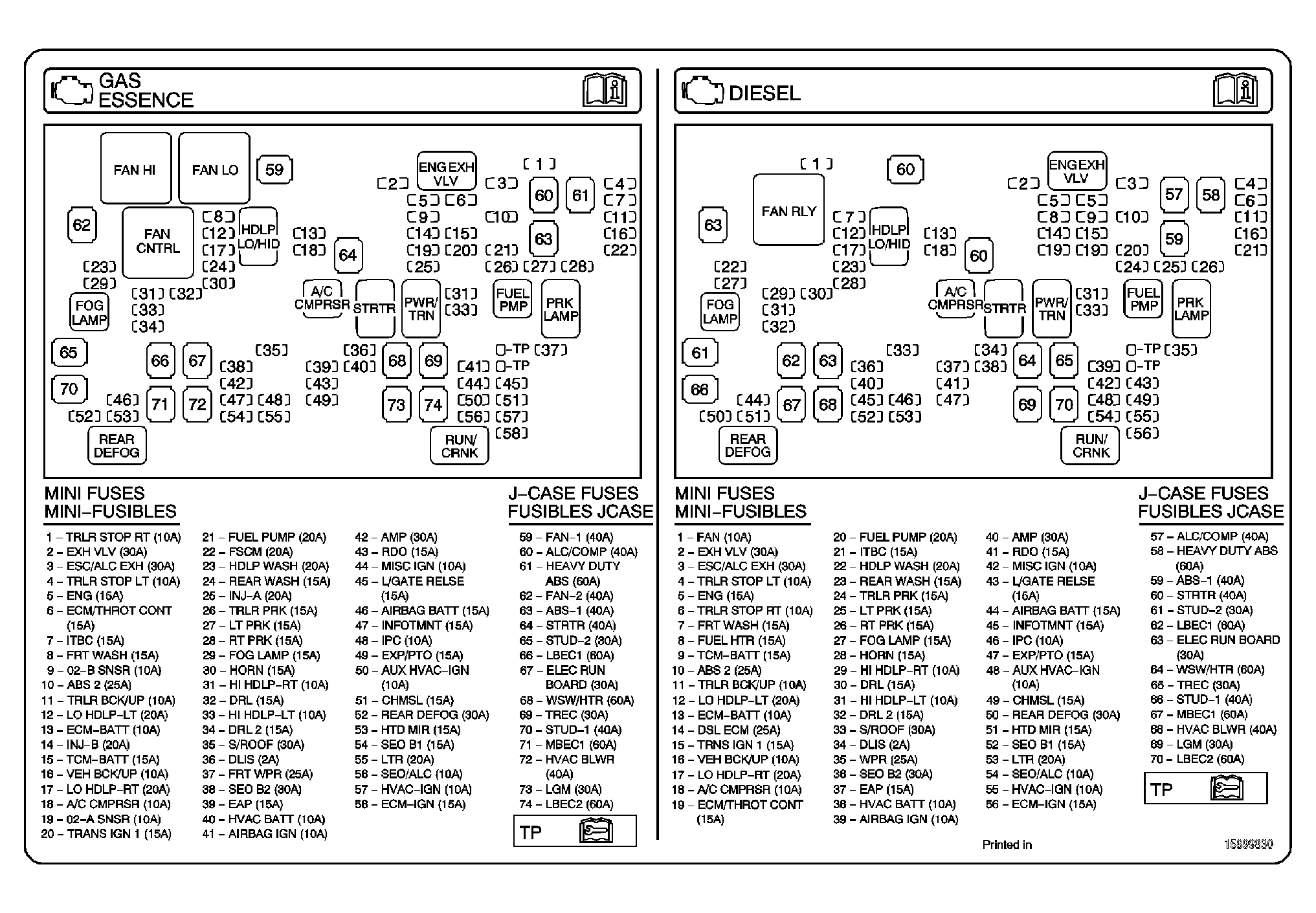

Fig 62: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 63: Front Of Vehicle (Except Diesel)
Courtesy of GENERAL MOTORS CORP.

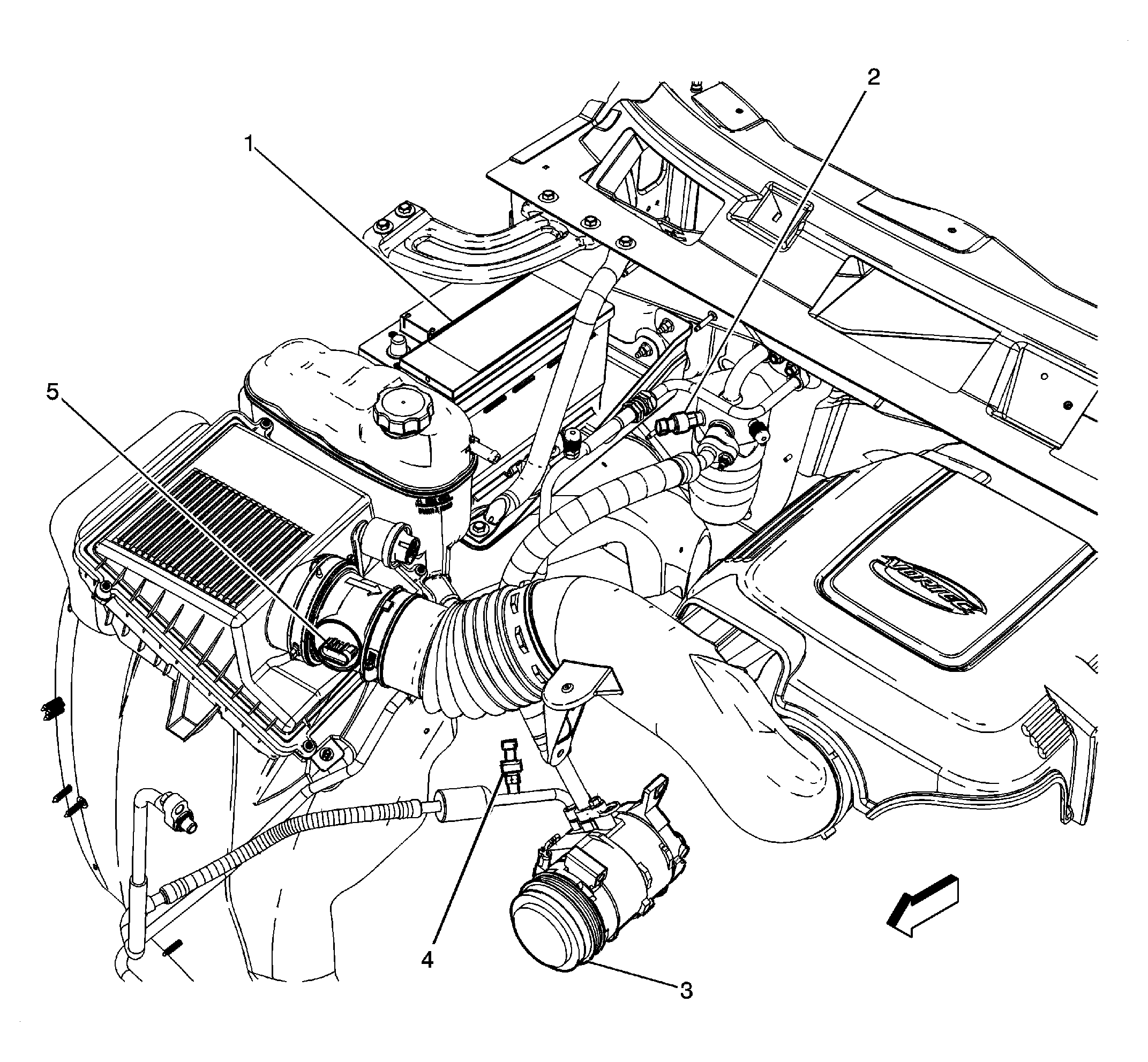

Fig 64: Top Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 65: Left Side Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.

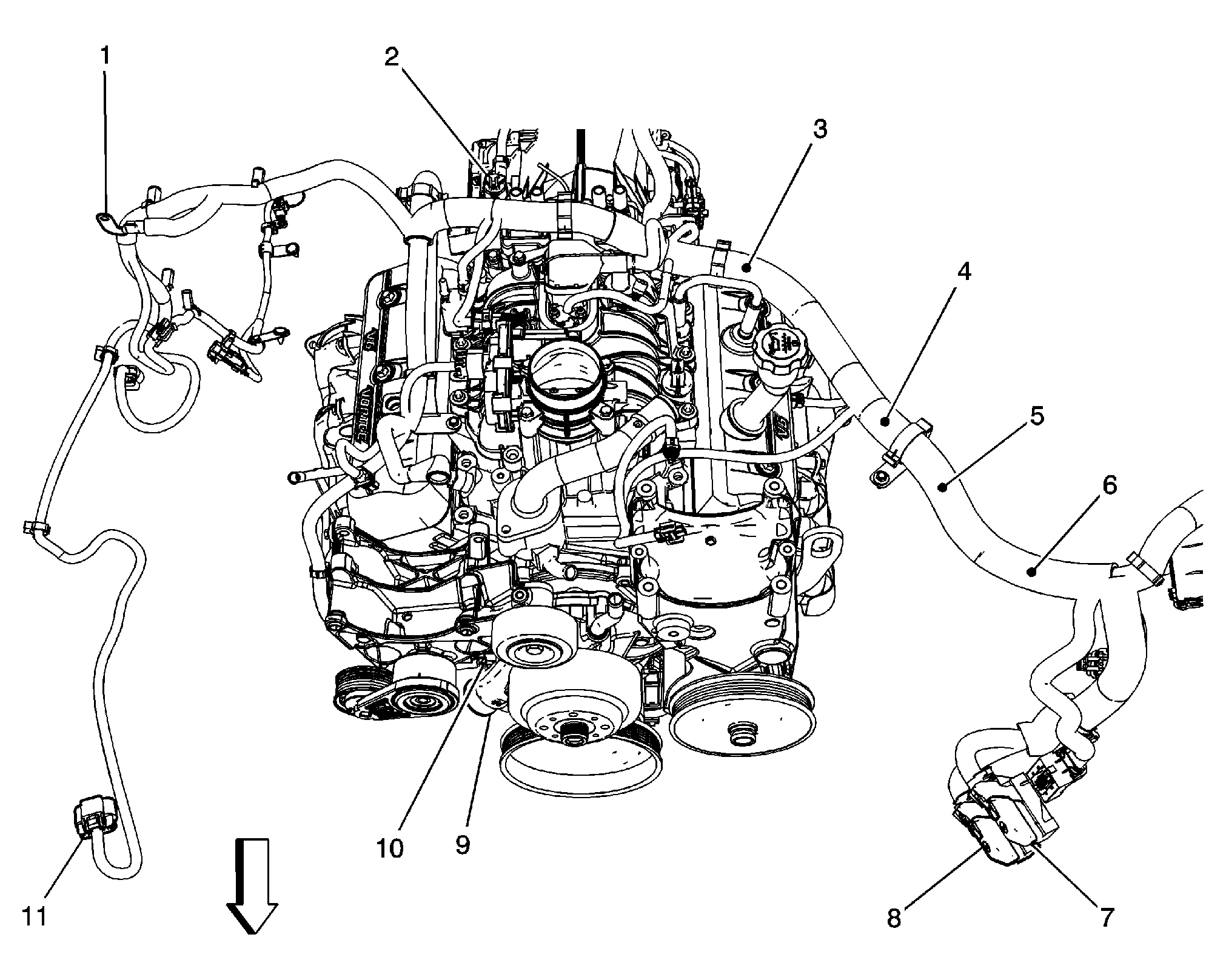

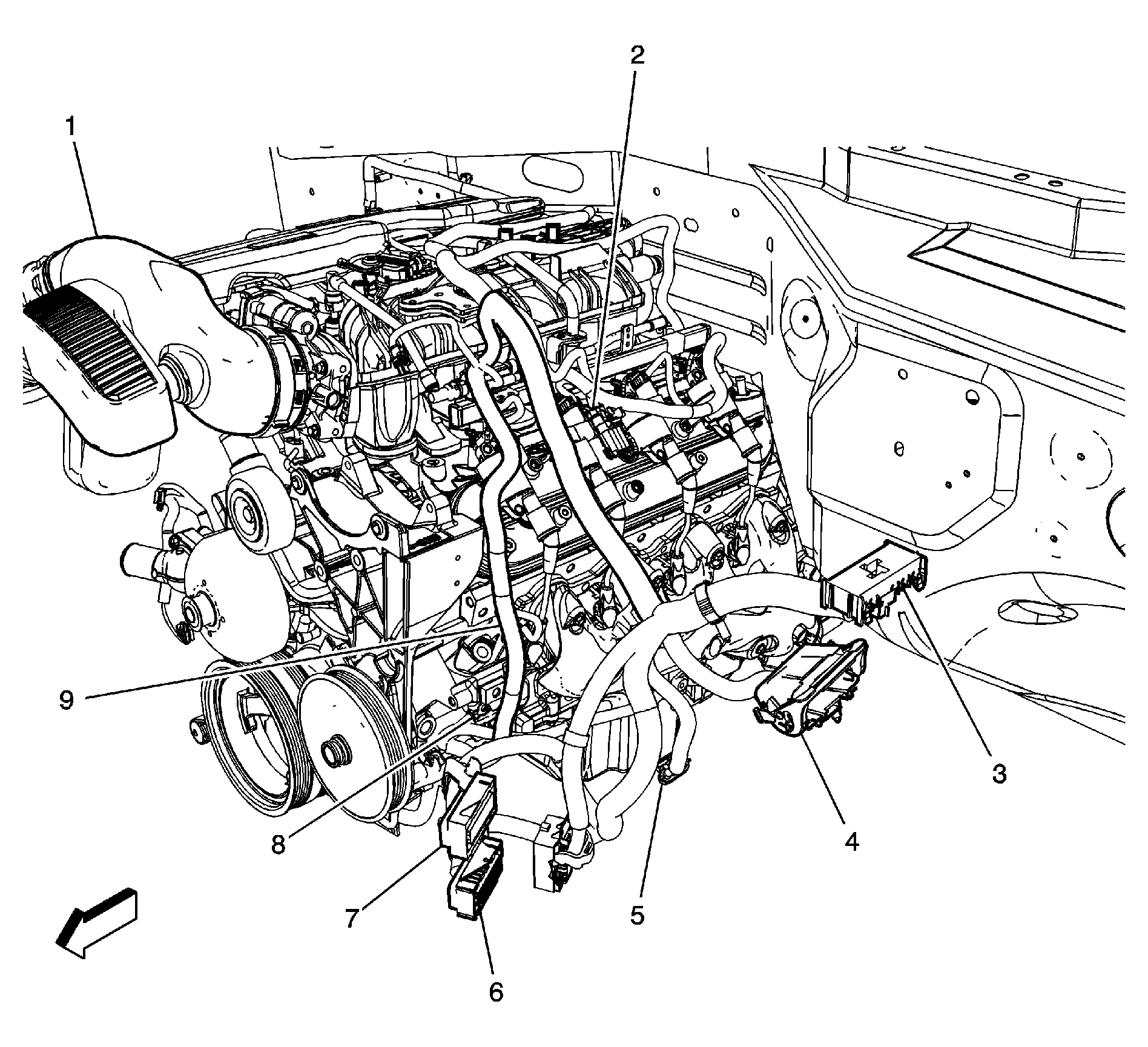

Fig 66: Engine (4.8L, 5.3L, 6.0L & 6.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 67: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 68: Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 69: Front Of Passenger Compartment (Base)
Courtesy of GENERAL MOTORS CORP.

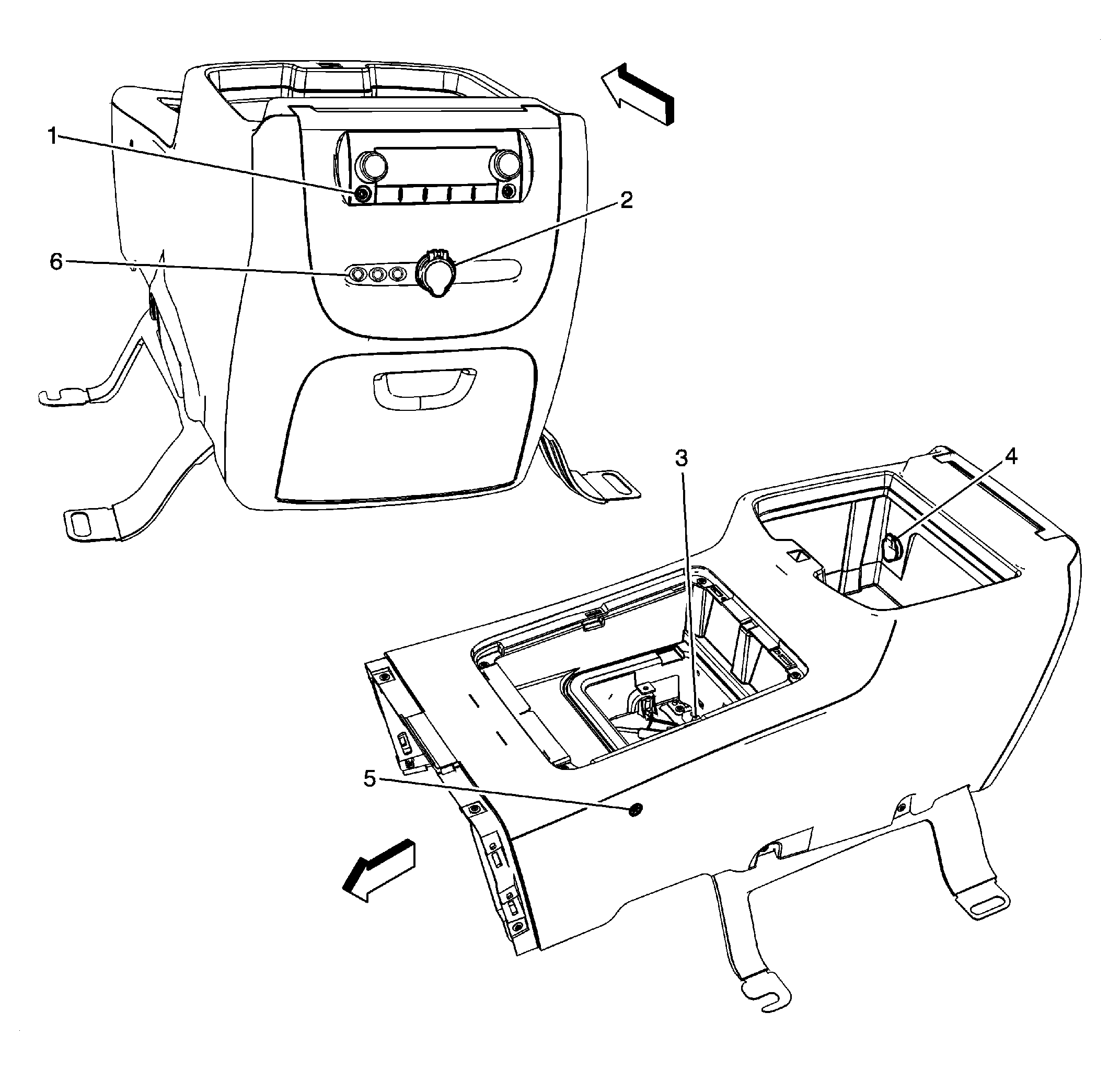

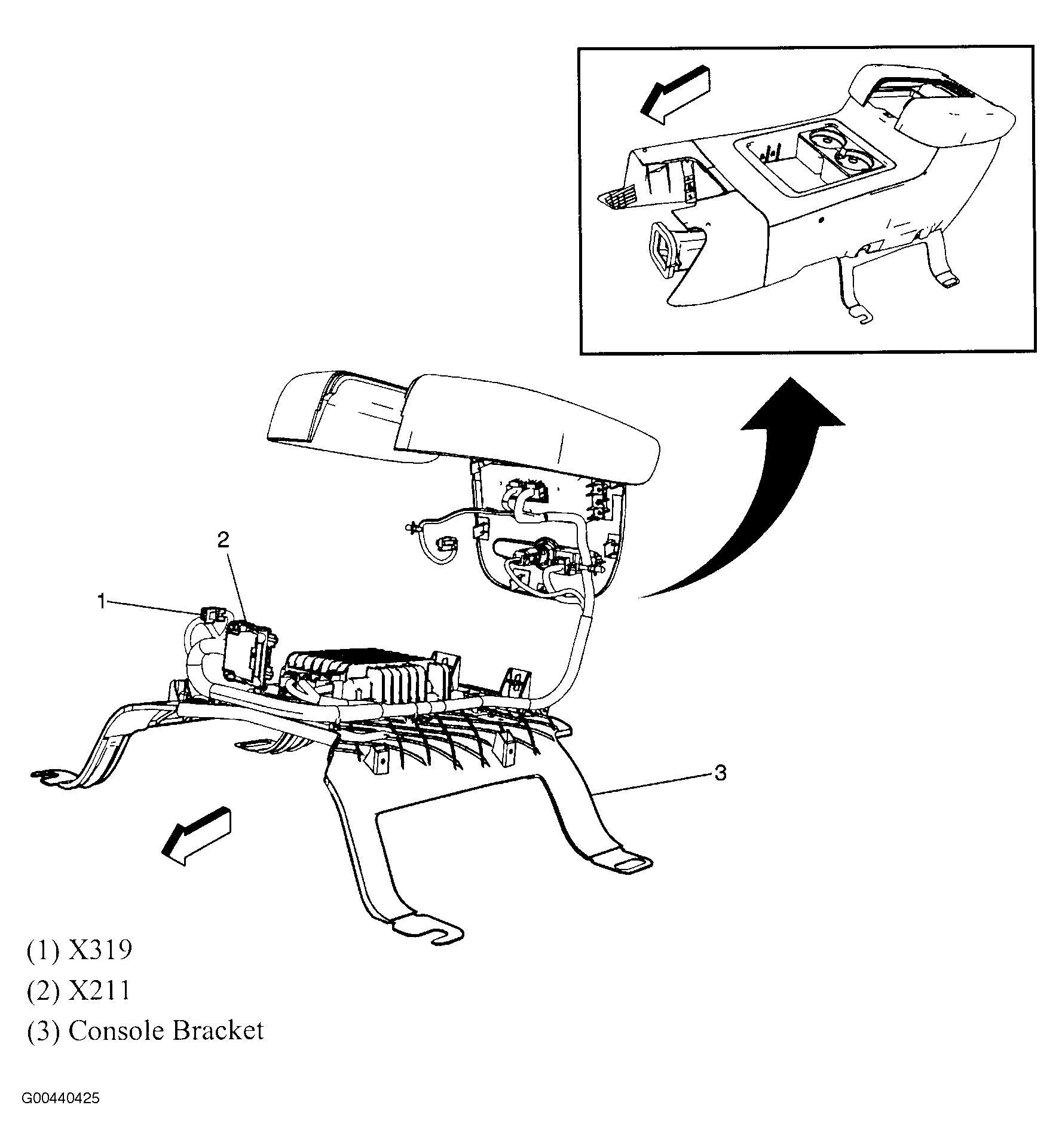

Fig 70: Console
Courtesy of GENERAL MOTORS CORP.

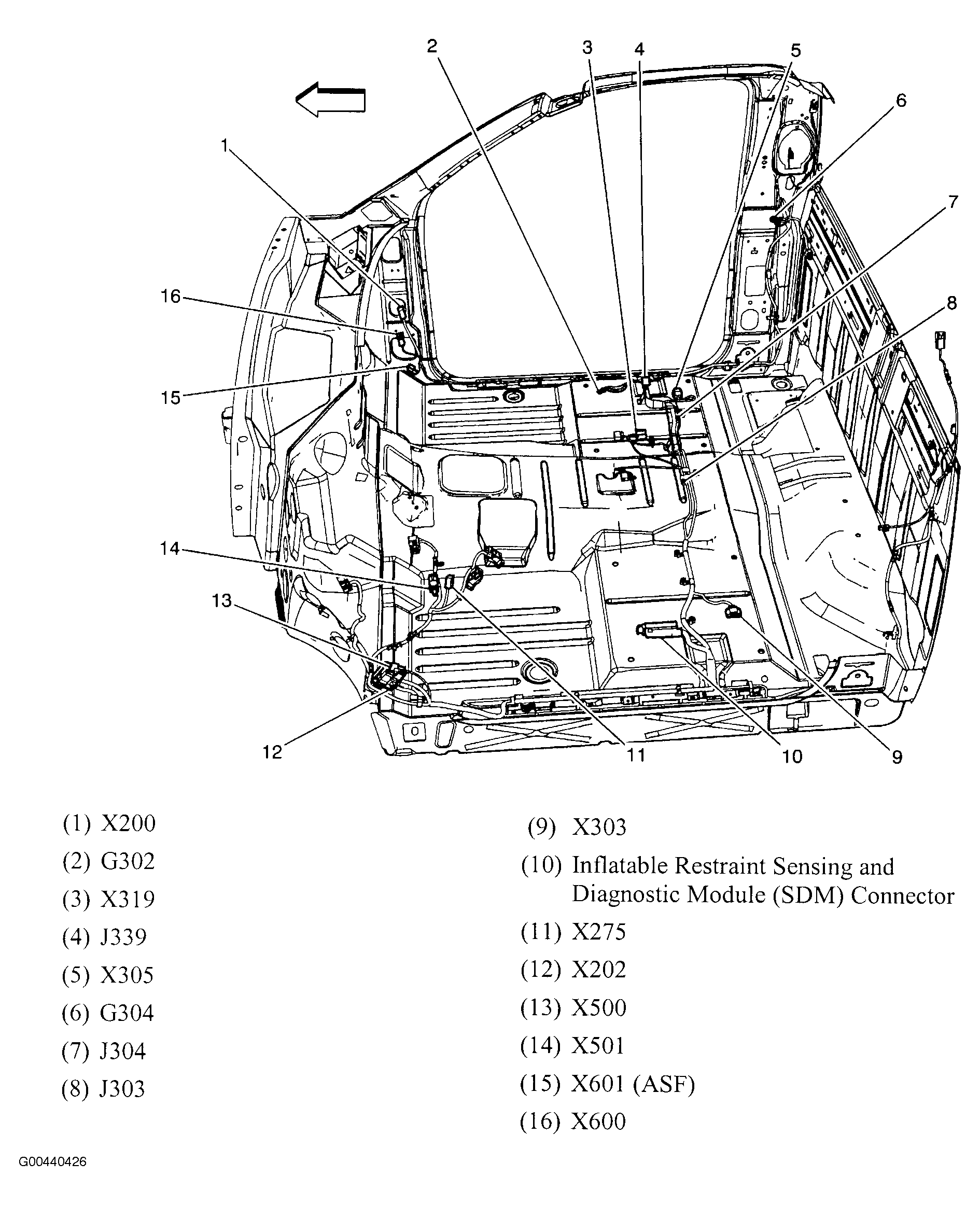

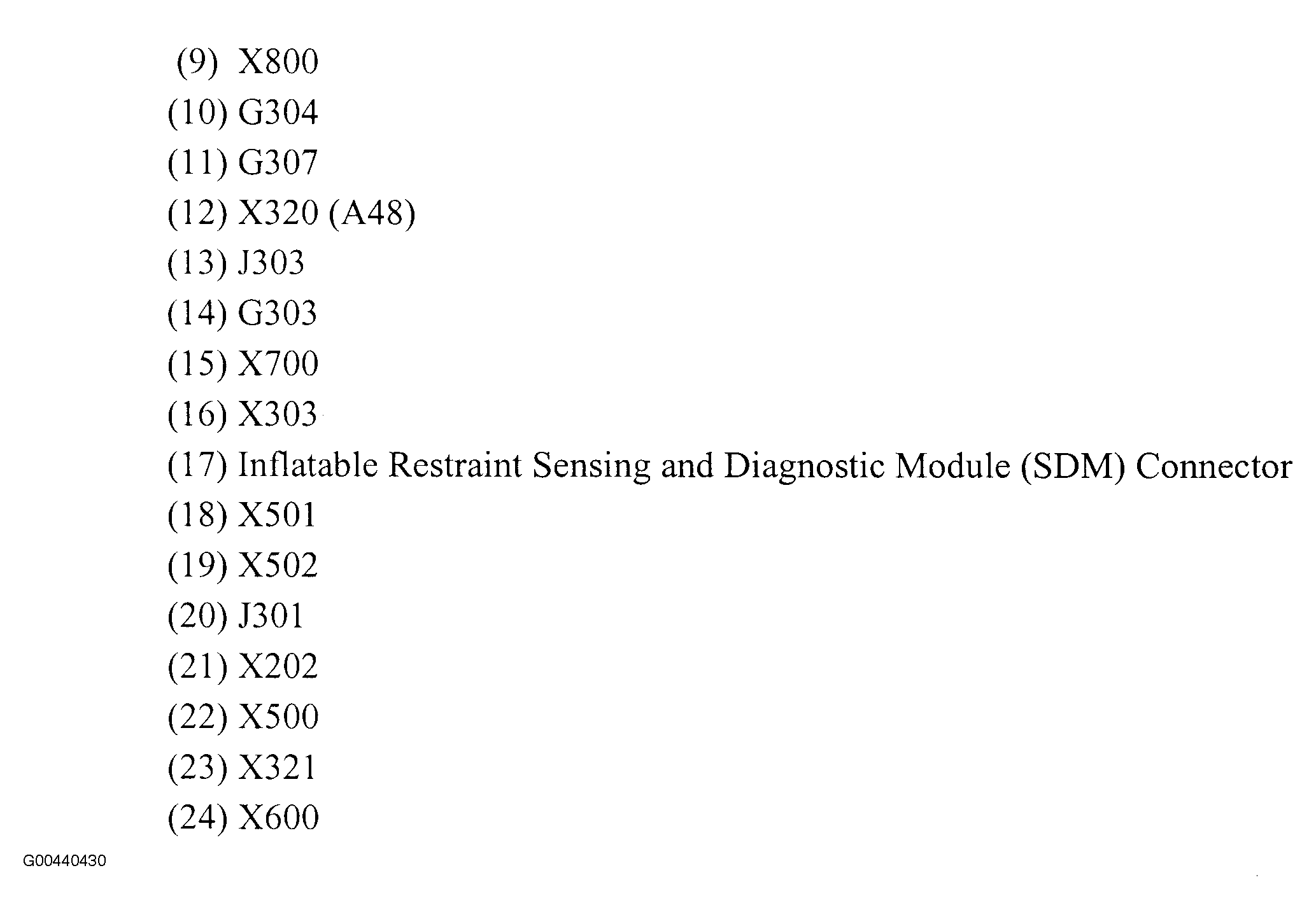

Fig 71: Passenger Compartment (Regular Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Passenger Compartment (Extended Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 73: Passenger Compartment (Extended Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

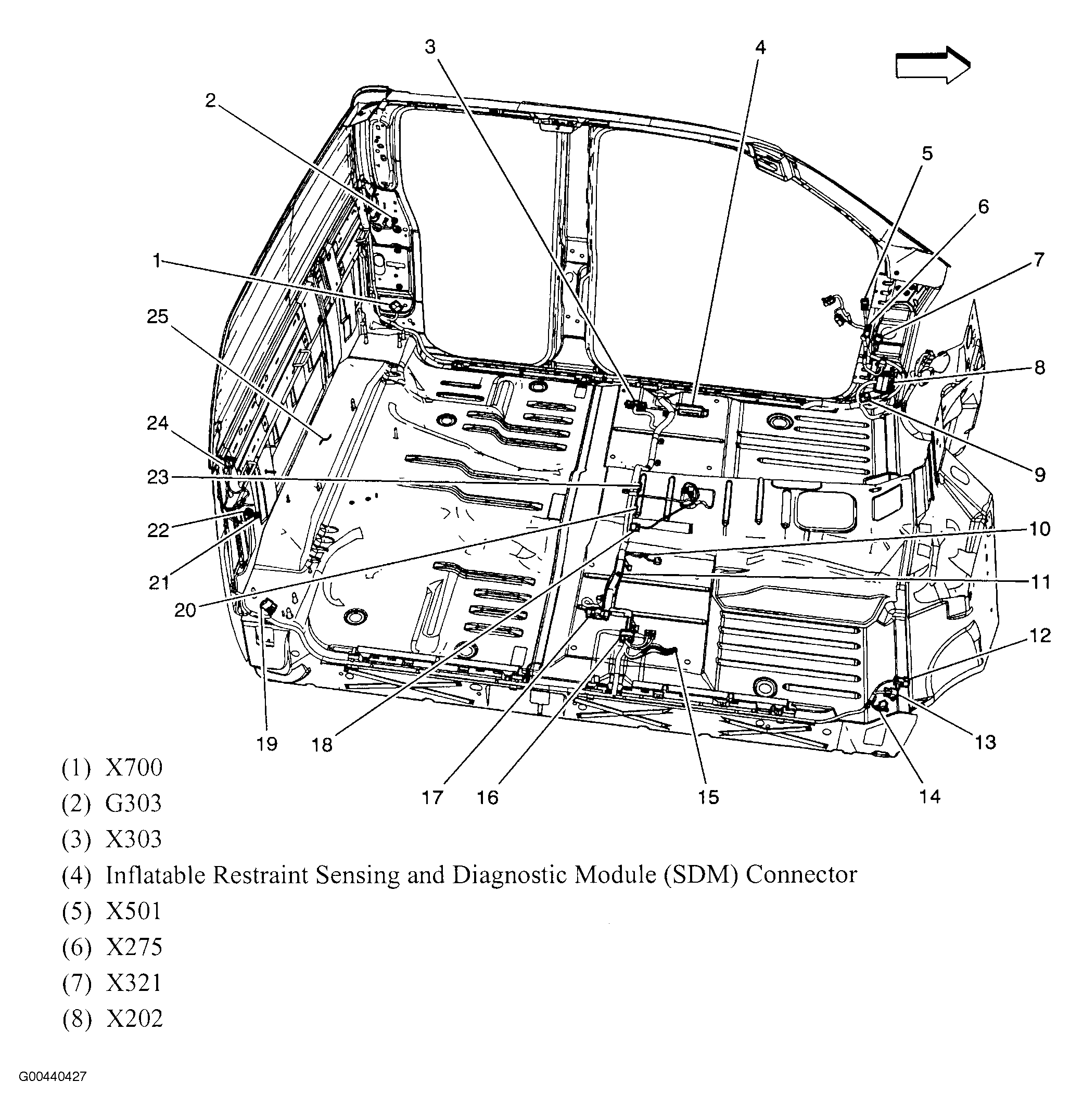

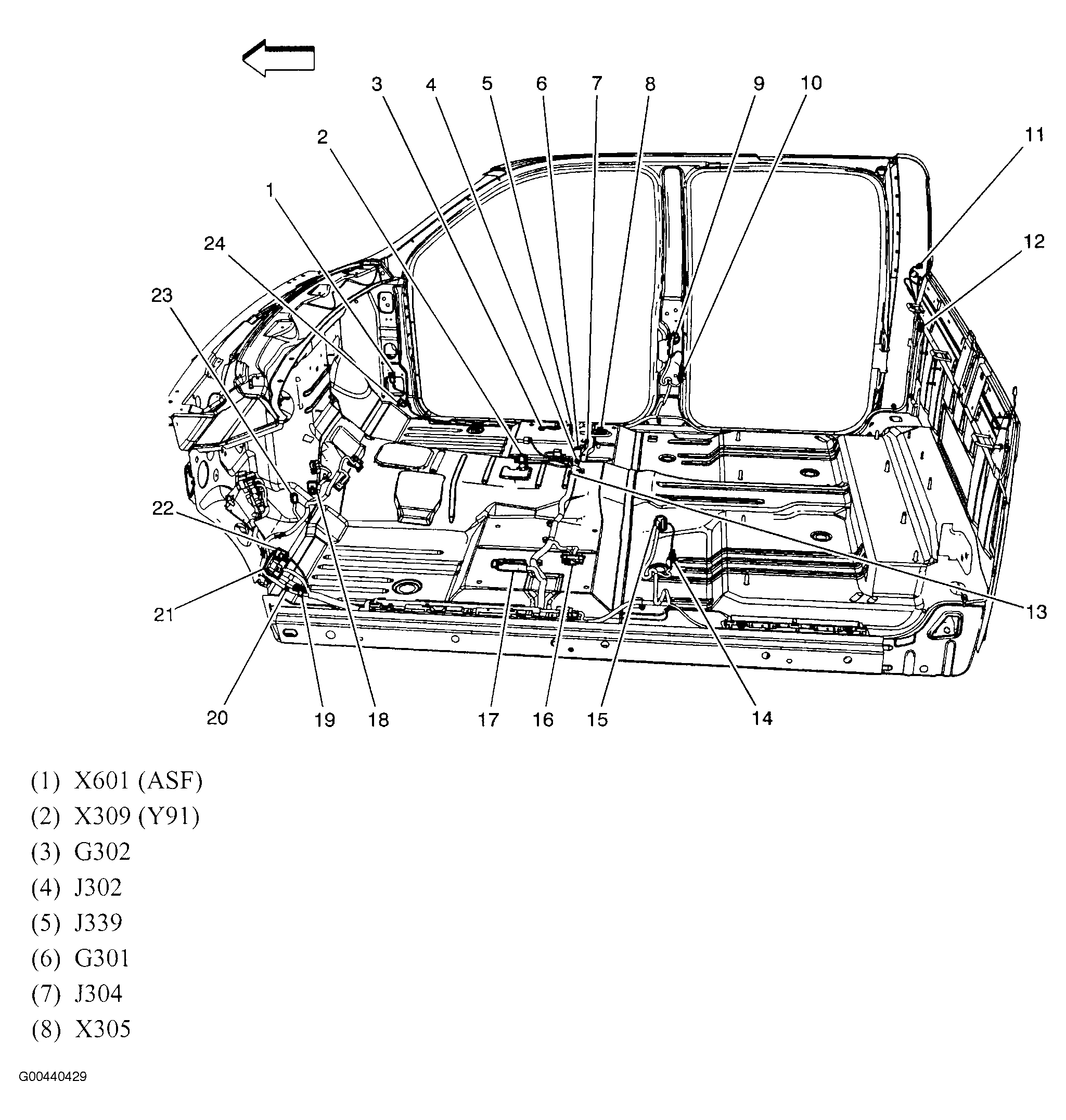

Fig 74: Passenger Compartment (Crew Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 75: Passenger Compartment (Crew Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Crew Cab Headliner (Extended Cab/Regular Cab Similar)
Courtesy of GENERAL MOTORS CORP.

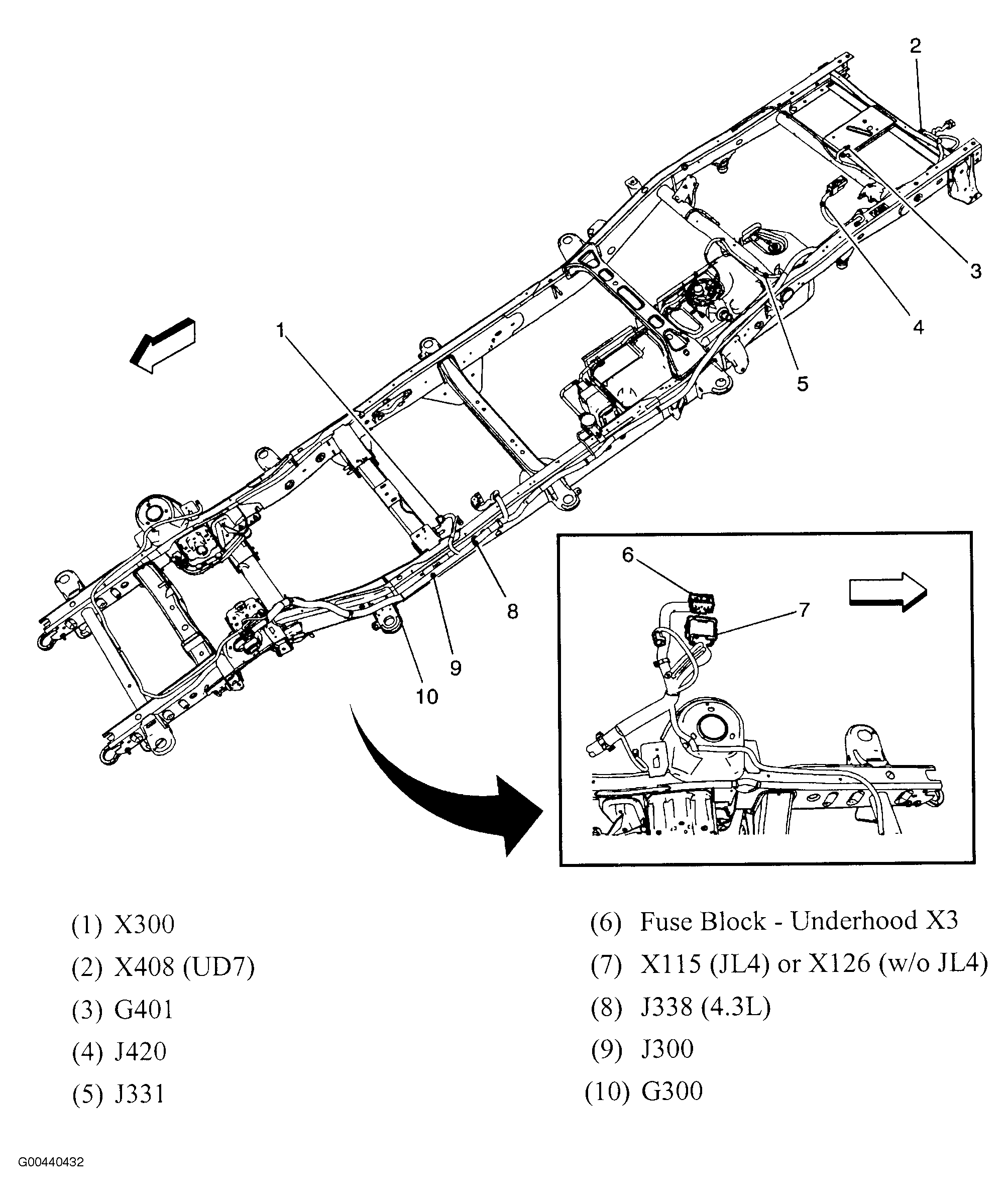

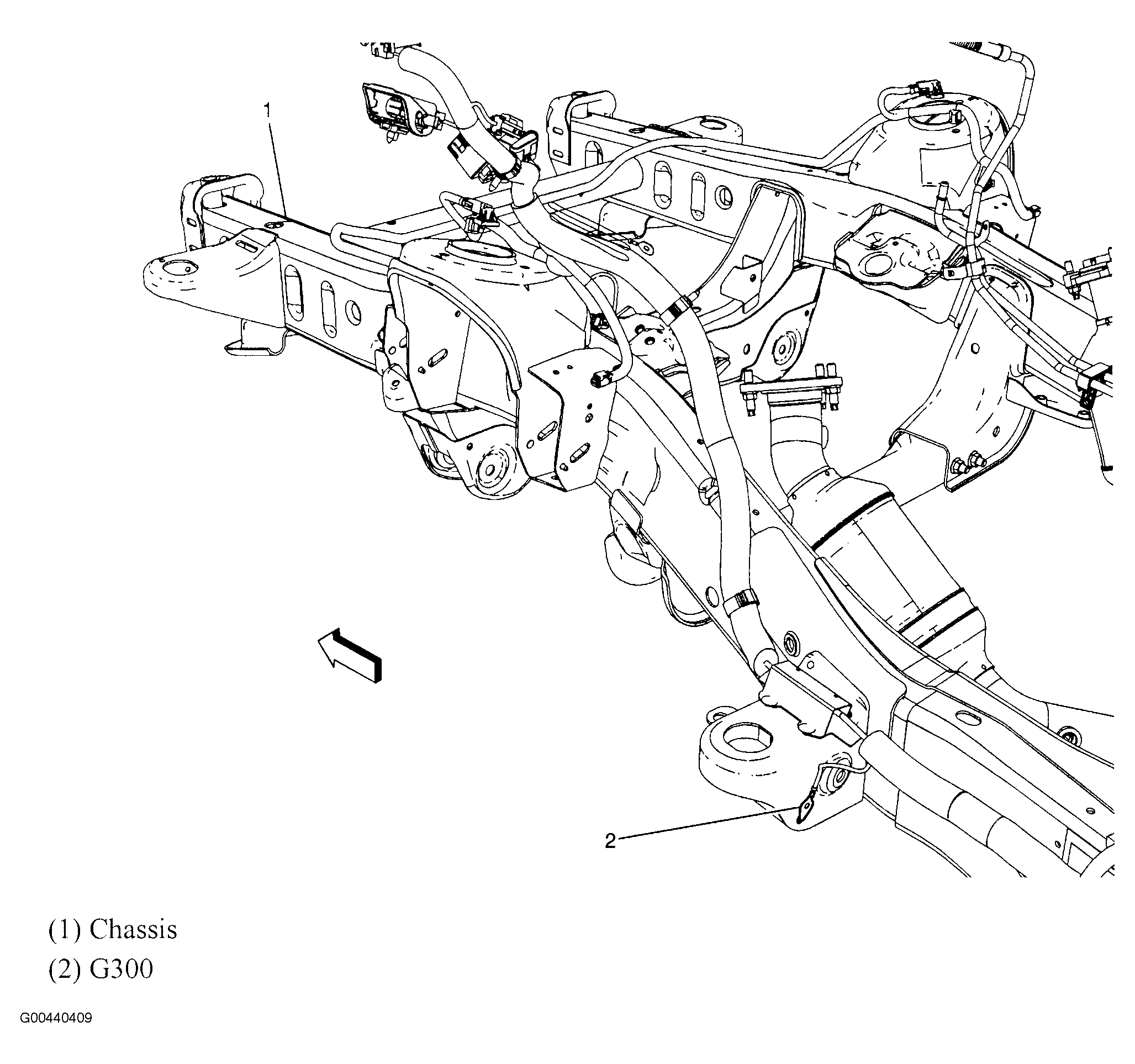

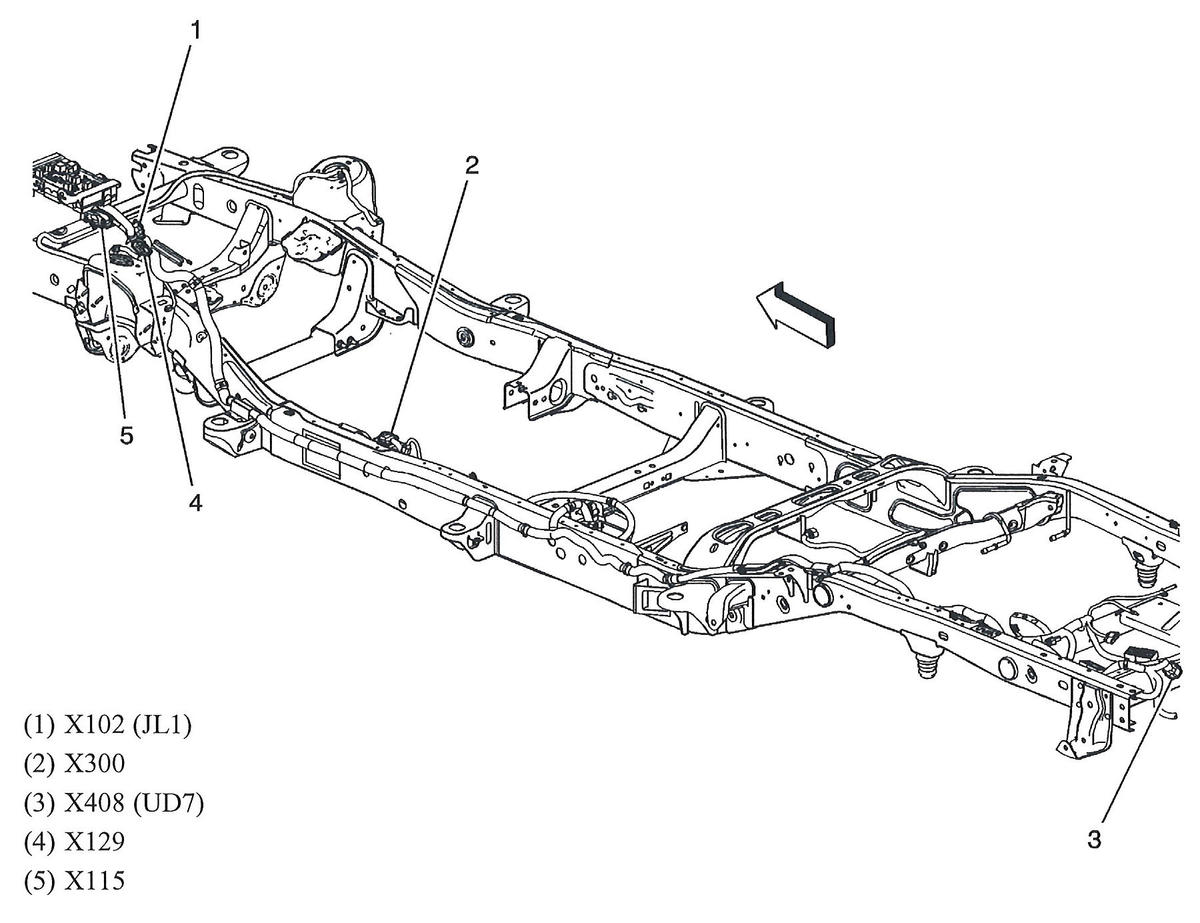

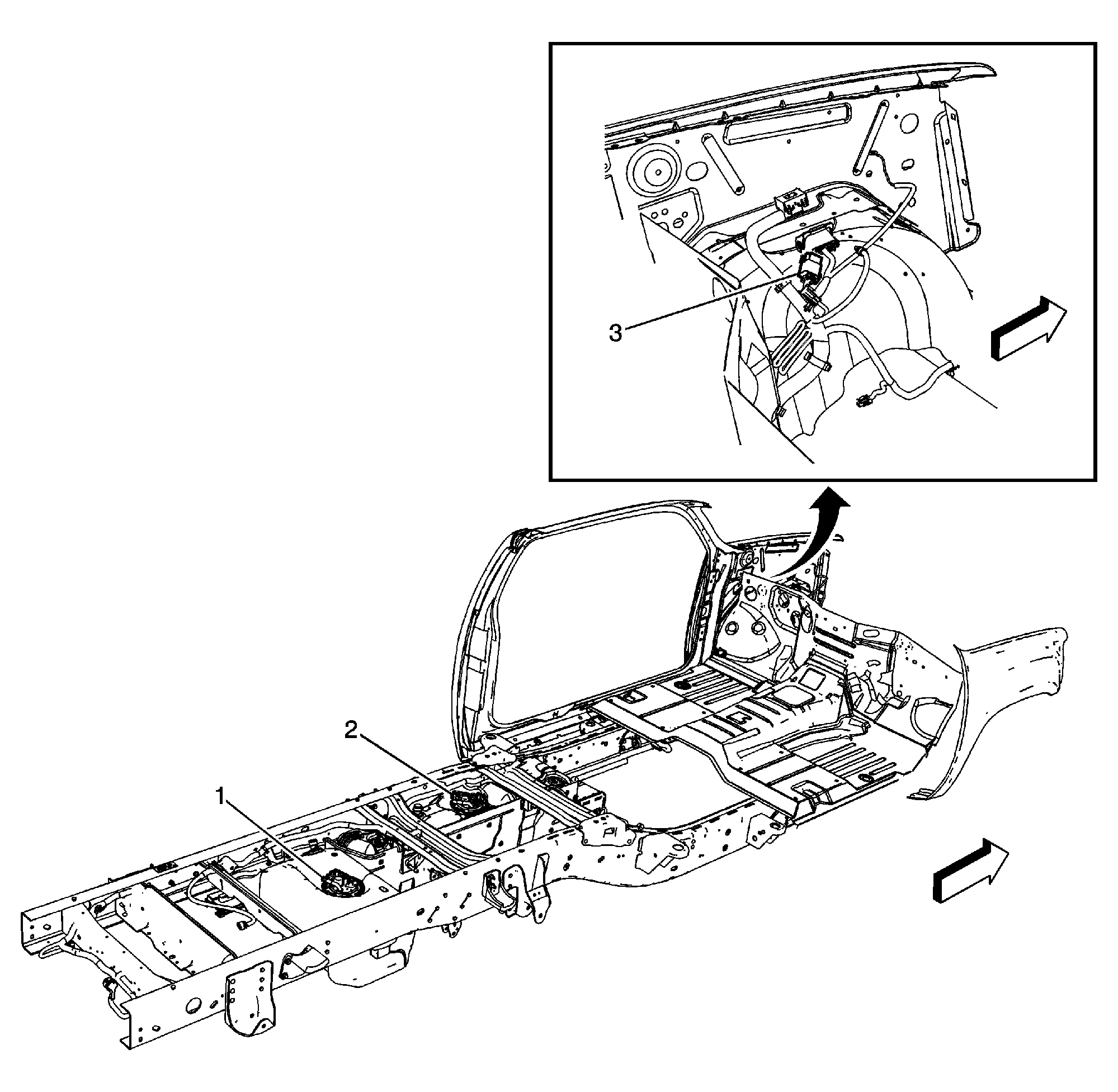

Fig 77: Chassis (Crew Cab Shown, Regular & Extended Cab Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

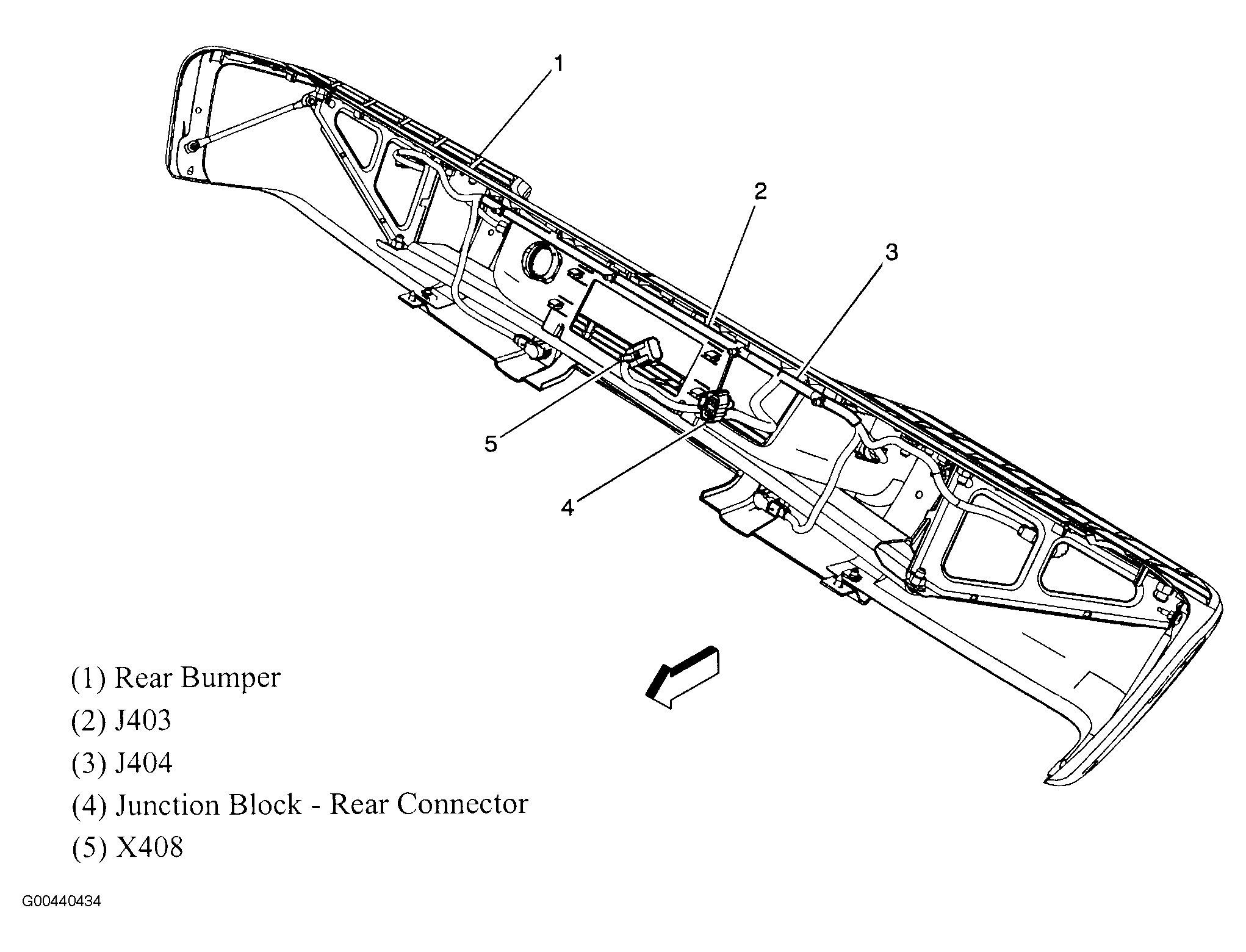

Fig 79: Rear Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 80: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 81: Left Side Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 82: Top Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Right Side Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 84: Top Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 85: Front Of Engine (4.8L, 5.3L, 6.0L & 6.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 86: Lower Rear Of Engine Compartment (4.8L, 5.3L, 6.0L & 6.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 87: Transmission (Diesel)
Courtesy of GENERAL MOTORS CORP.
Fig 88: Transmission (MYC/MYD)
Courtesy of GENERAL MOTORS CORP.
Fig 89: Front Of Vehicle (10 Series)
Courtesy of GENERAL MOTORS CORP.
Fig 90: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 91: Rear Of Engine Compartment (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 92: Rear Of Engine Compartment (Diesel)
Courtesy of GENERAL MOTORS CORP.
Fig 93: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 94: Dash
Courtesy of GENERAL MOTORS CORP.

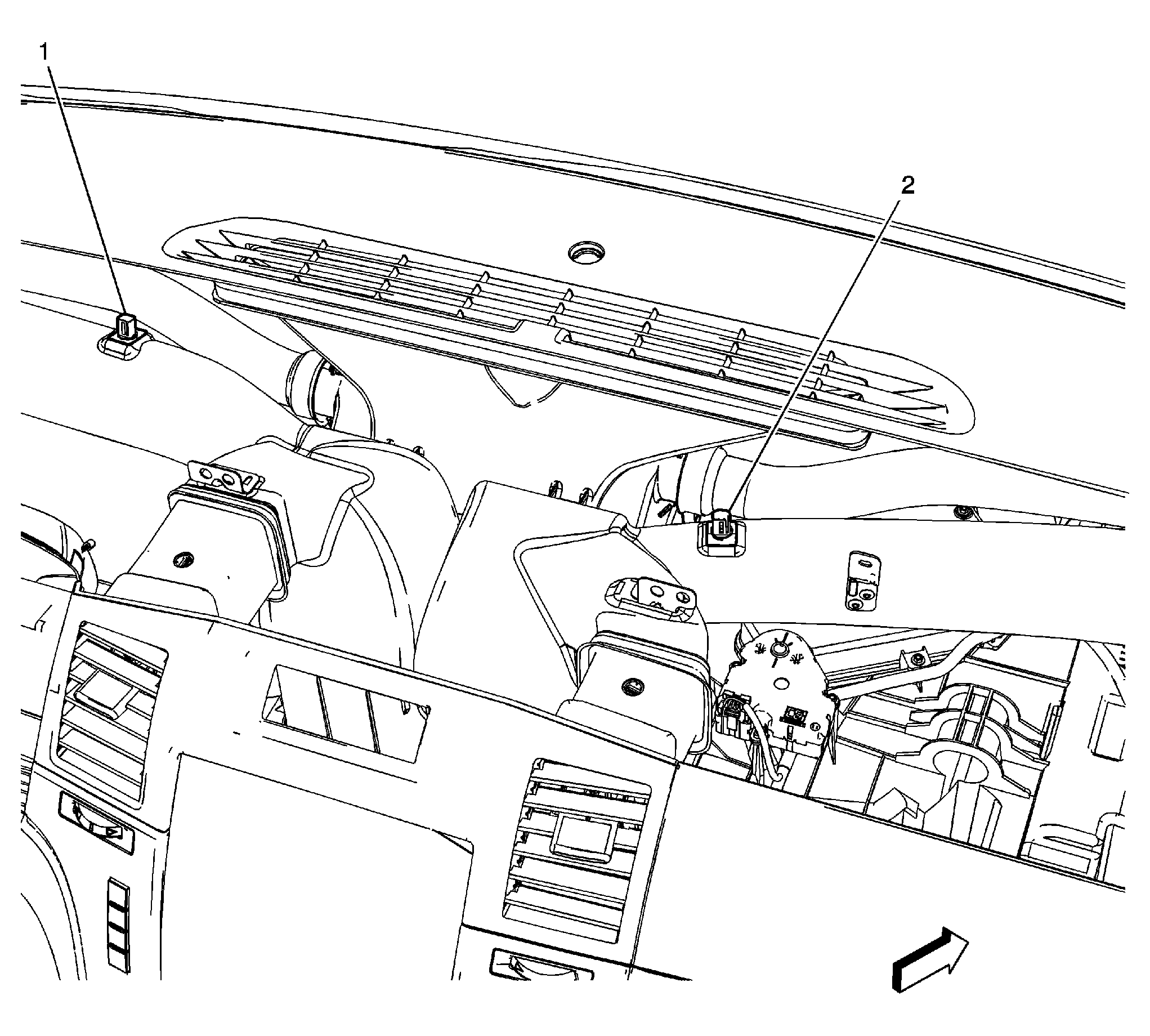

Fig 95: Under Top Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 96: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 97: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 98: Left Front Of Roof
Courtesy of GENERAL MOTORS CORP.

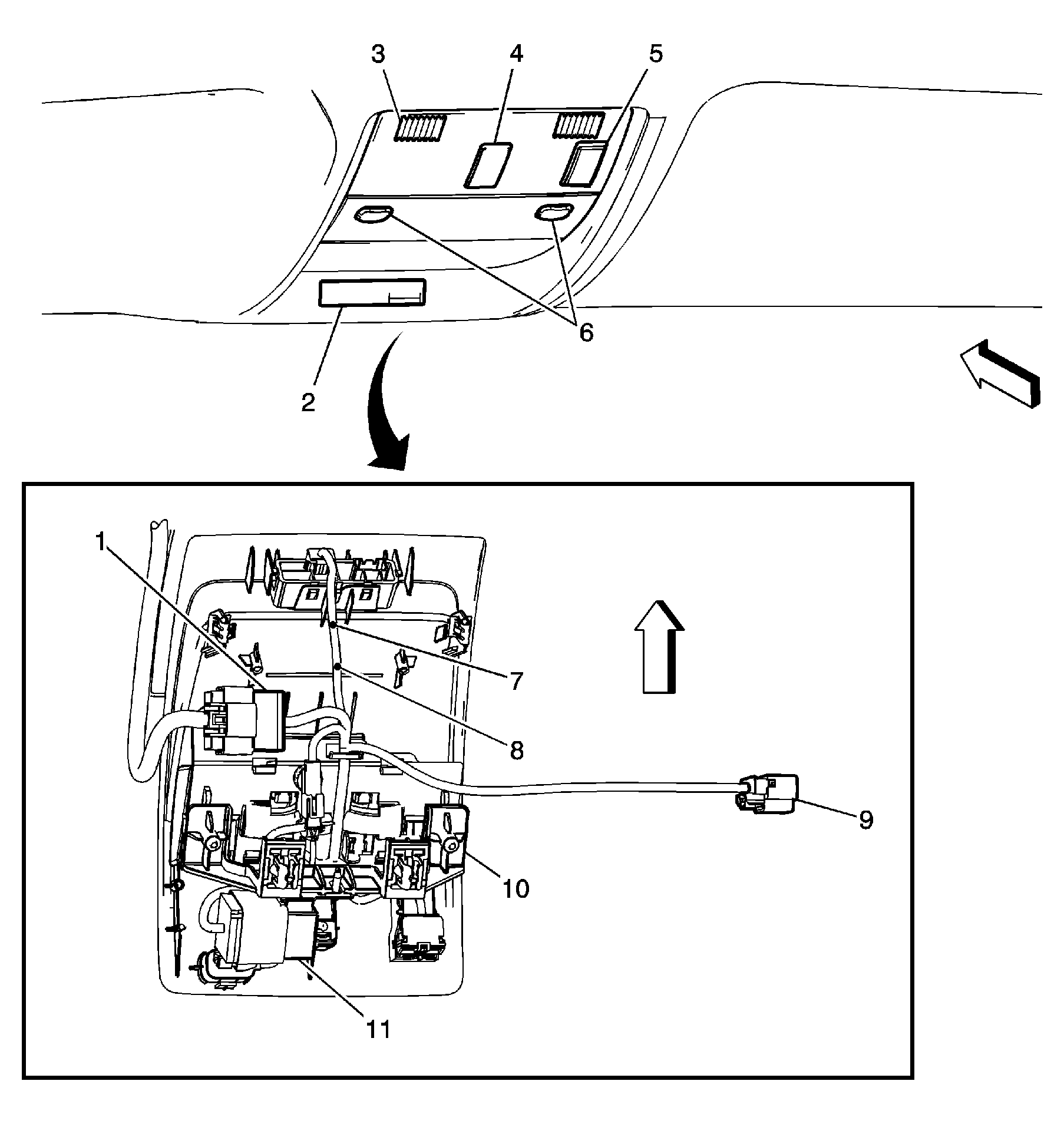

Fig 99: Overhead Console
Courtesy of GENERAL MOTORS CORP.

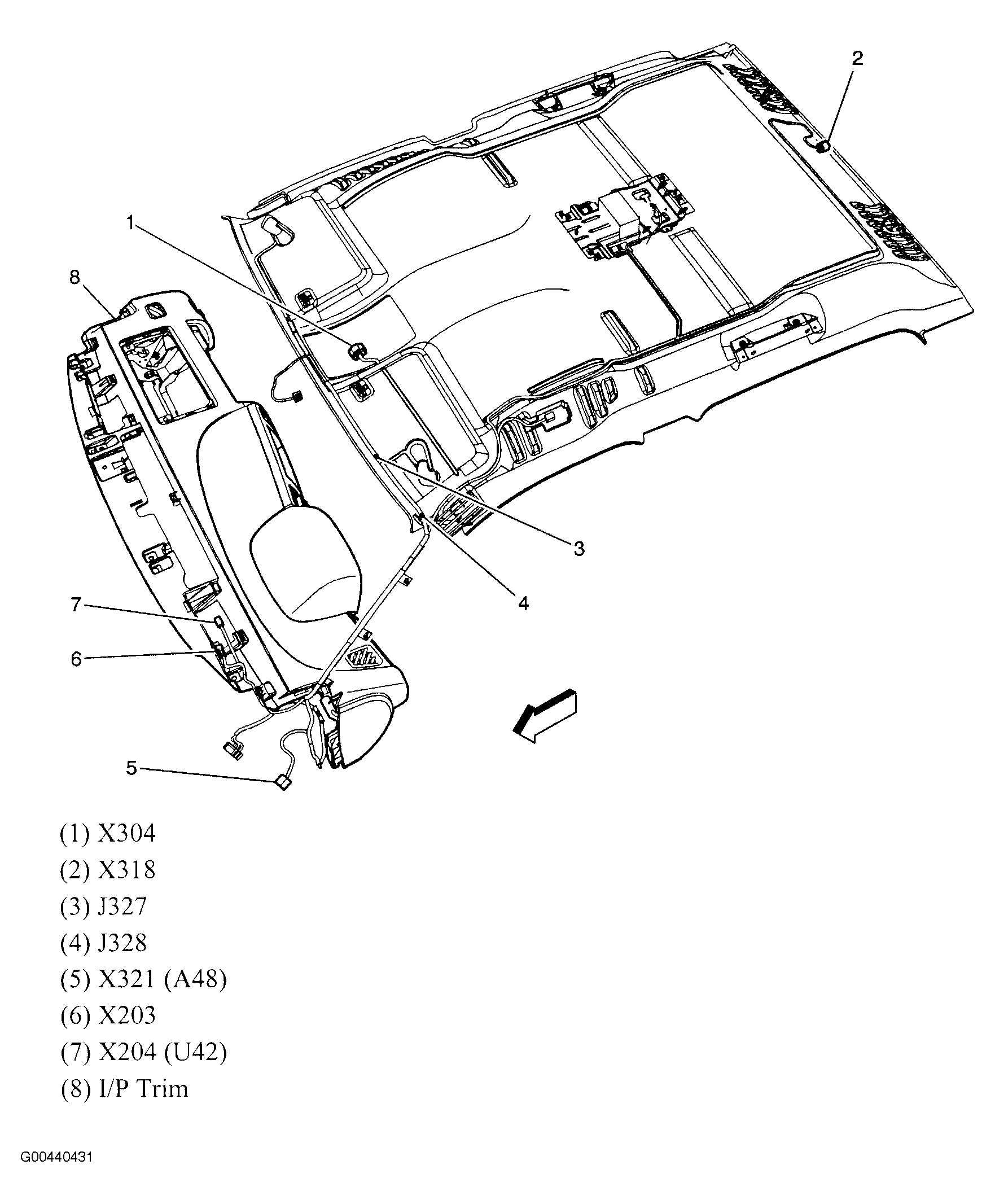

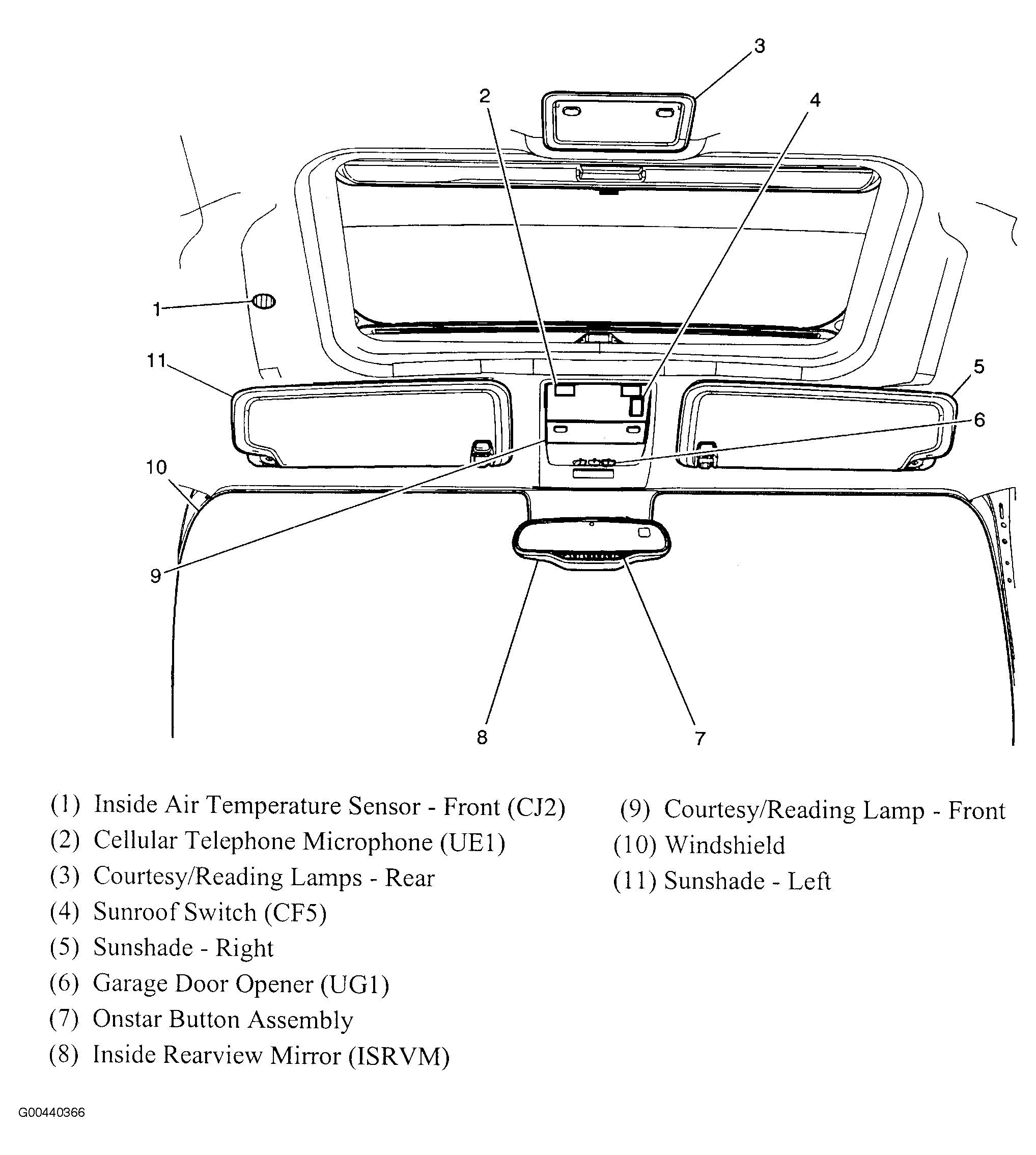

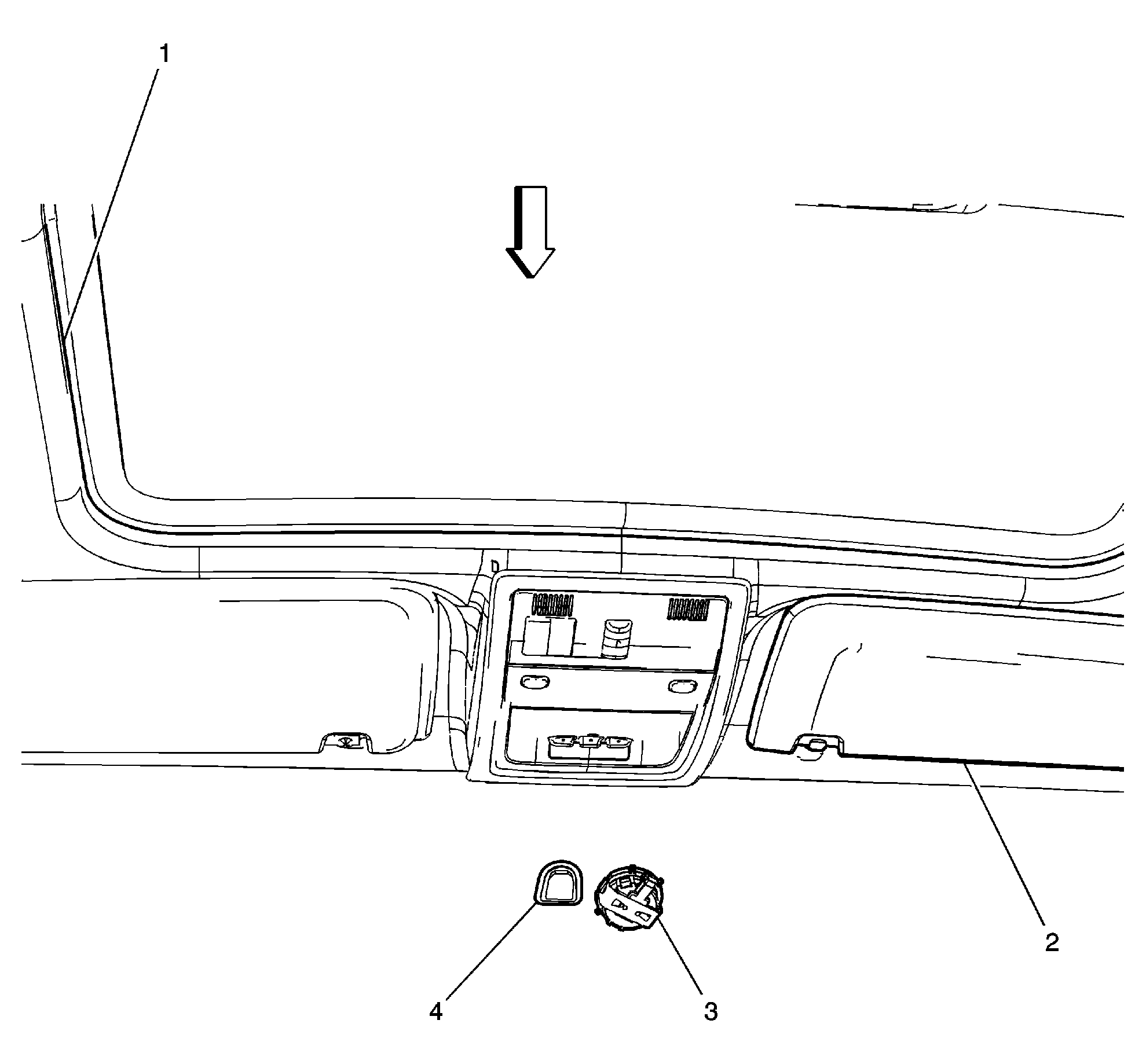

Fig 100: Overhead Console & Headliner (U42/5Y0)
Courtesy of GENERAL MOTORS CORP.

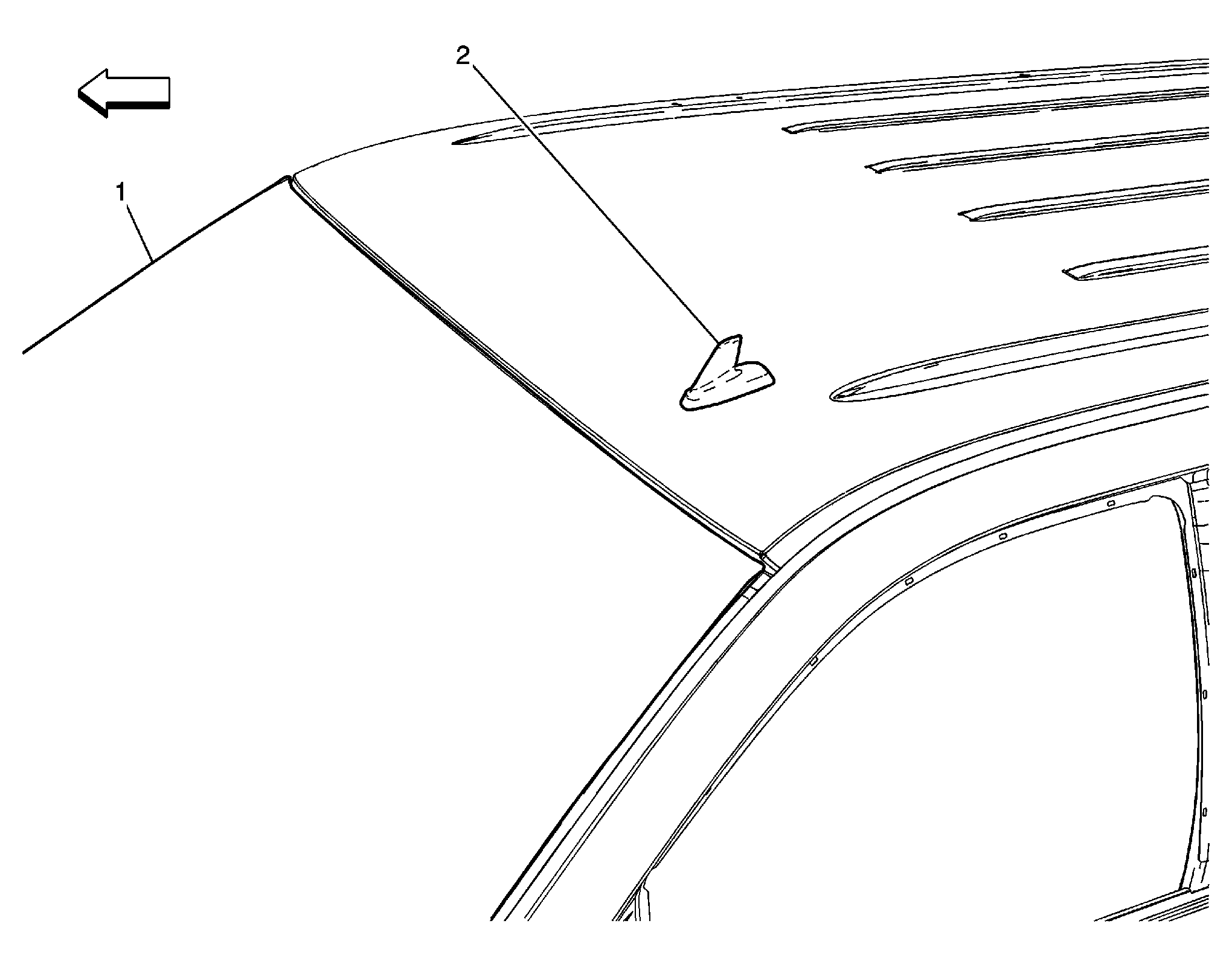

Fig 101: Windshield
Courtesy of GENERAL MOTORS CORP.

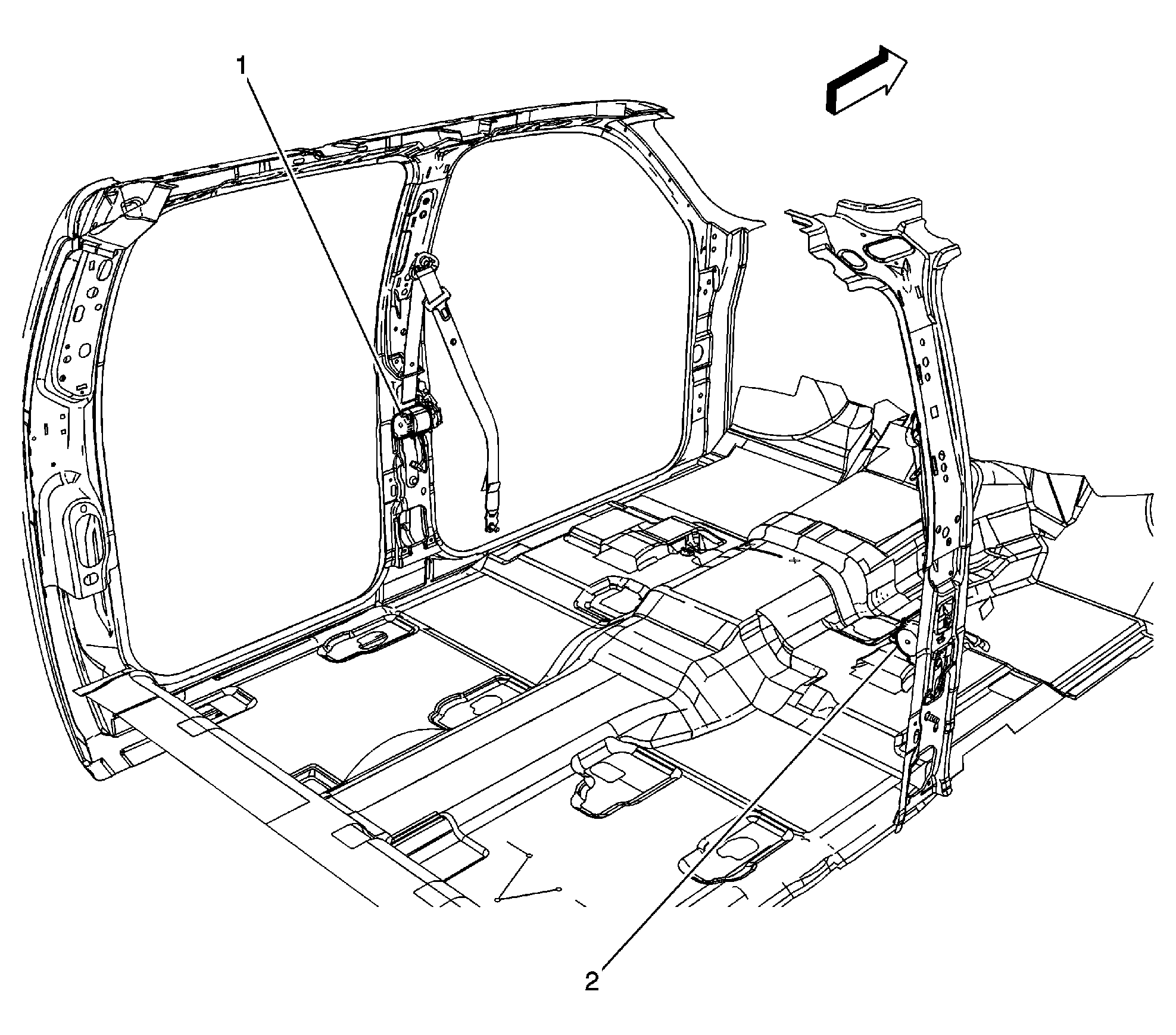

Fig 102: Left/Right "B" Pillars (Extended & Crew Cab)
Courtesy of GENERAL MOTORS CORP.

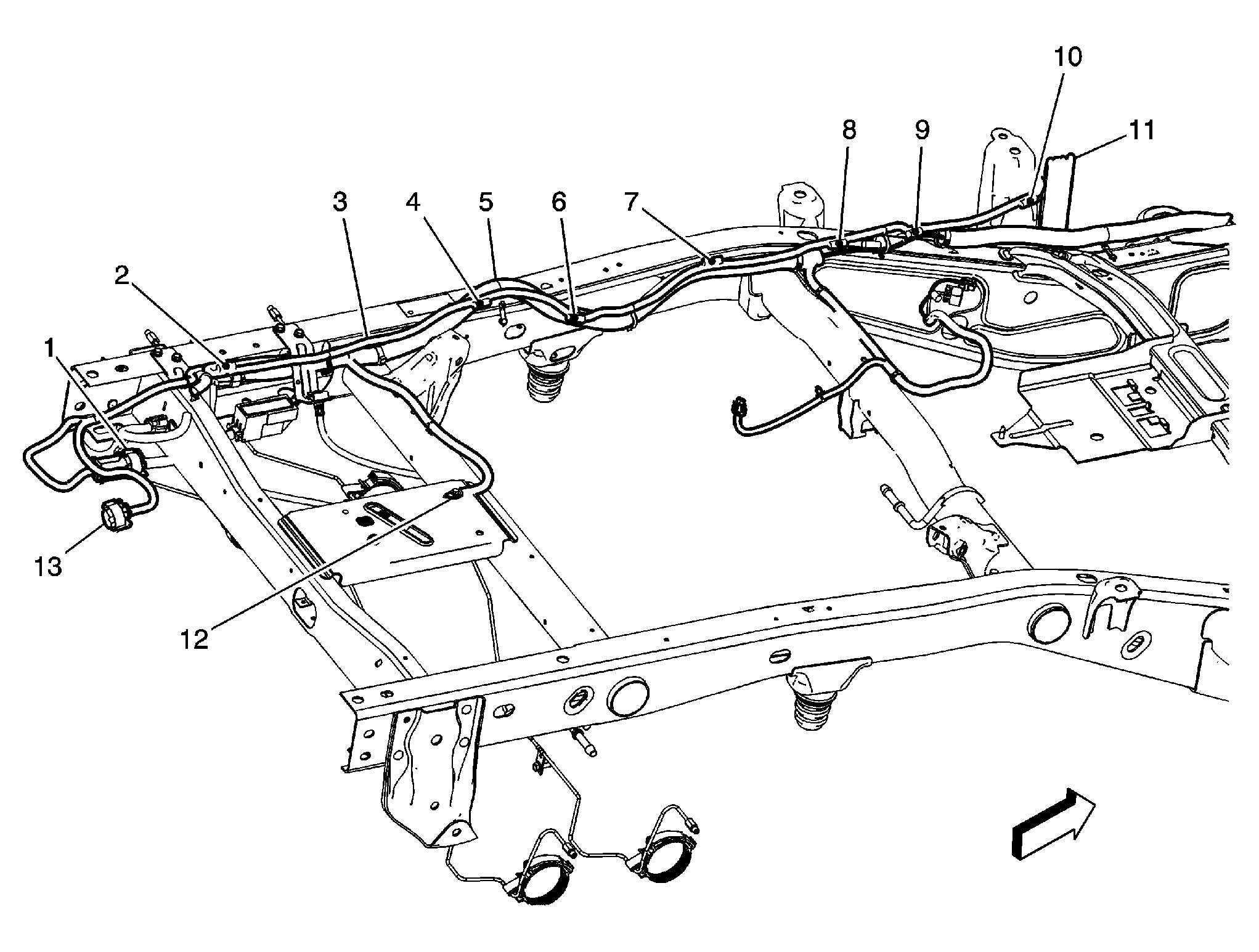

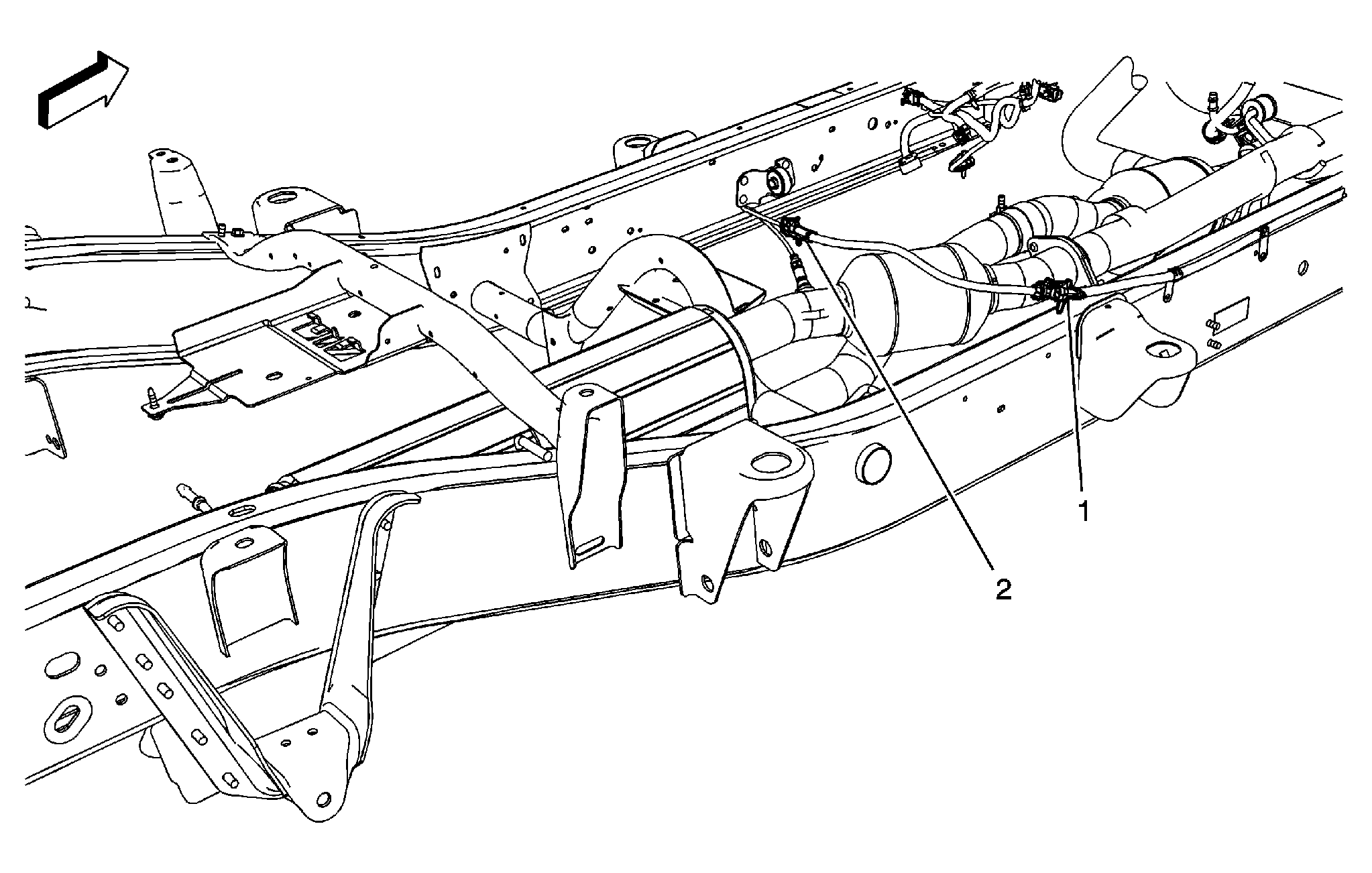

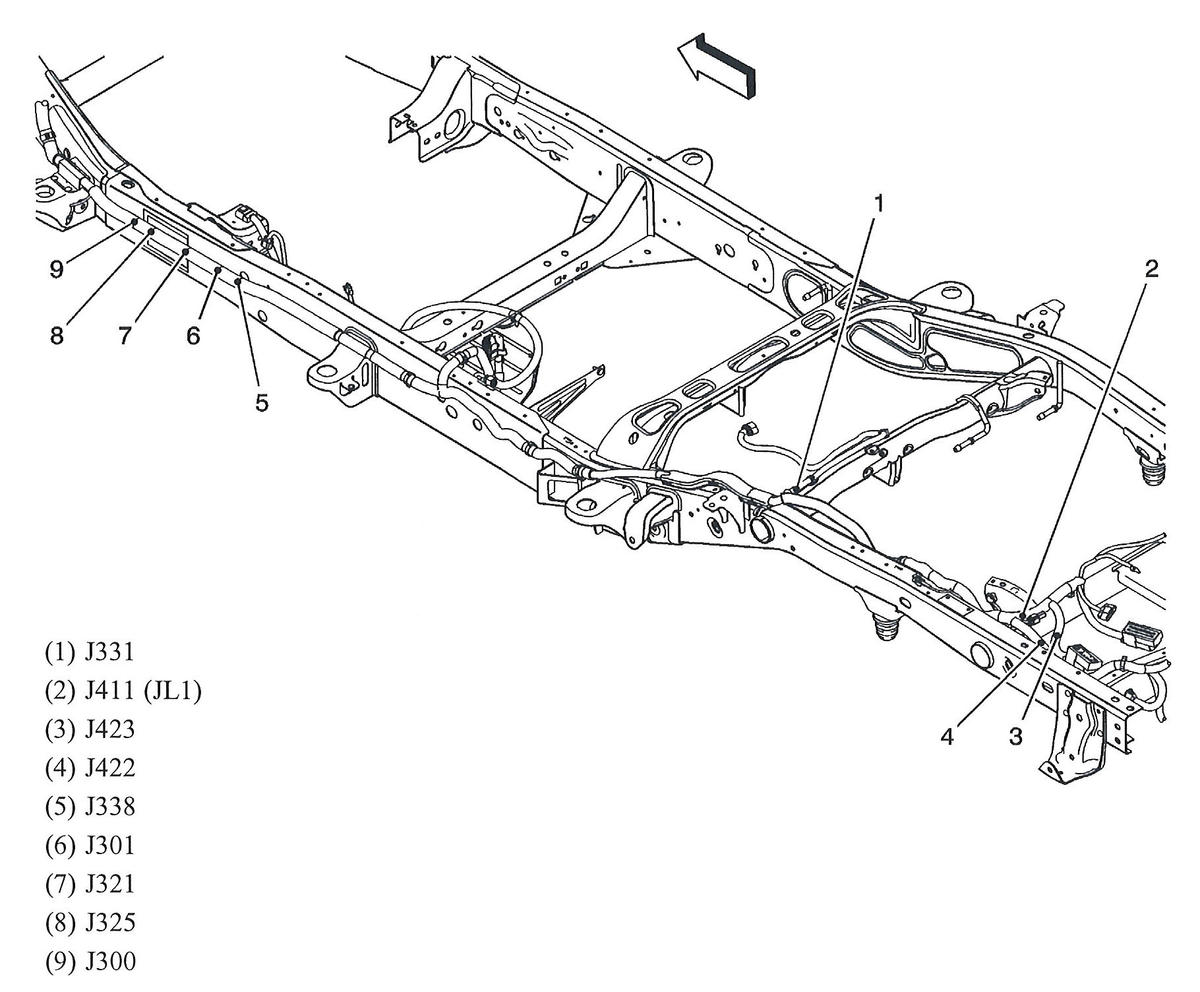

Fig 103: Left Side Frame & Underbody
Courtesy of GENERAL MOTORS CORP.
Fig 104: Left Side Frame & Underbody (Diesel)
Courtesy of GENERAL MOTORS CORP.
Fig 105: Right Side Frame & Underbody (Diesel)
Courtesy of GENERAL MOTORS CORP.
Fig 106: Left Rear Frame & Underbody
Courtesy of GENERAL MOTORS CORP.
Fig 107: Left Rear Frame & Underbody (20/30 Series)
Courtesy of GENERAL MOTORS CORP.
Fig 108: Left Rear Frame & Underbody (31 Series)
Courtesy of GENERAL MOTORS CORP.

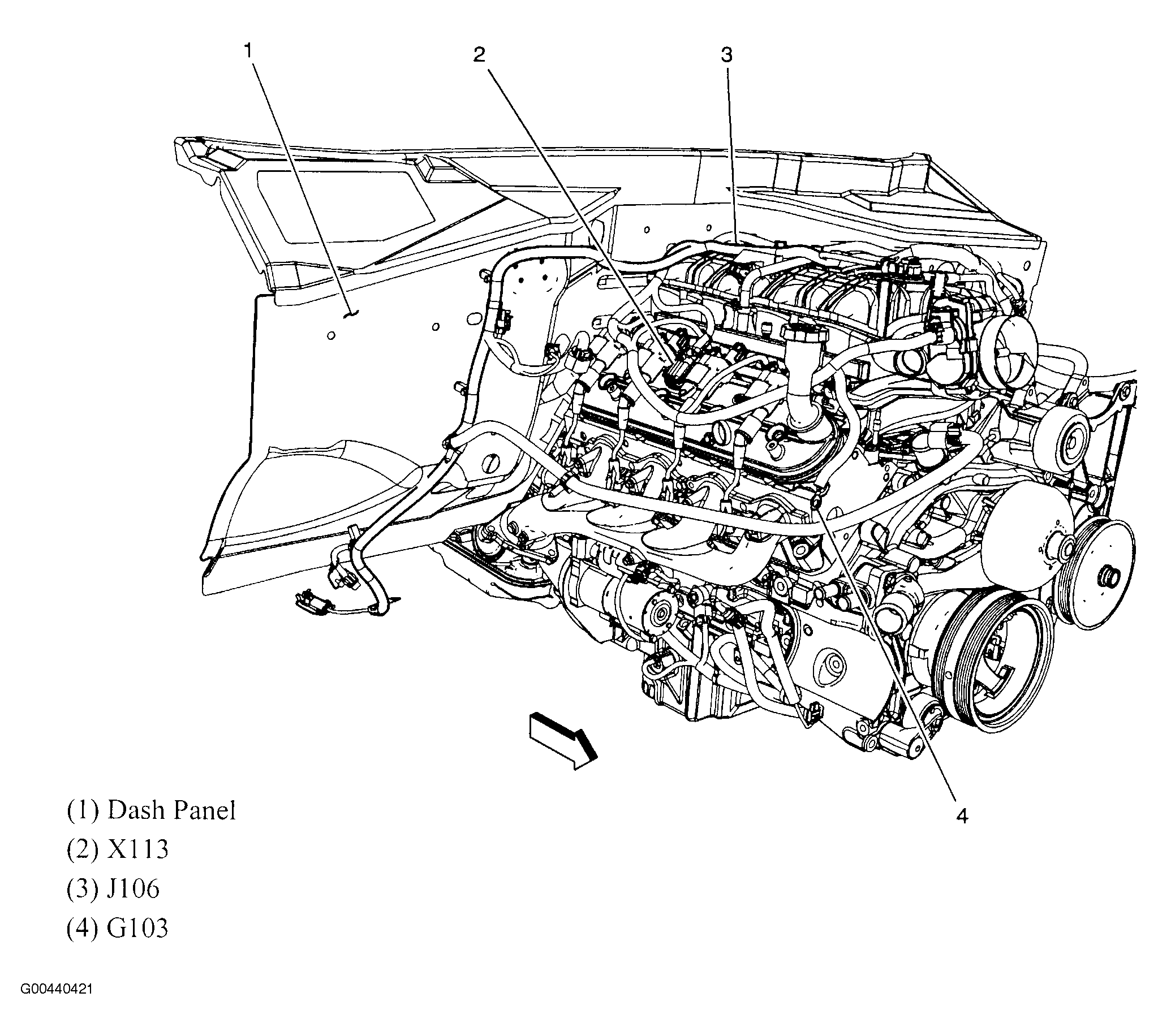

Fig 109: Left Side Of Engine Compartment (4.8L, 5.3L, 6.0L & 6.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 110: Front Chassis Frame Rails (31 Series & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 111: Top Left Side Of Engine (Diesel)
Courtesy of GENERAL MOTORS CORP.
Fig 112: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 113: Steering Column
Courtesy of GENERAL MOTORS CORP.

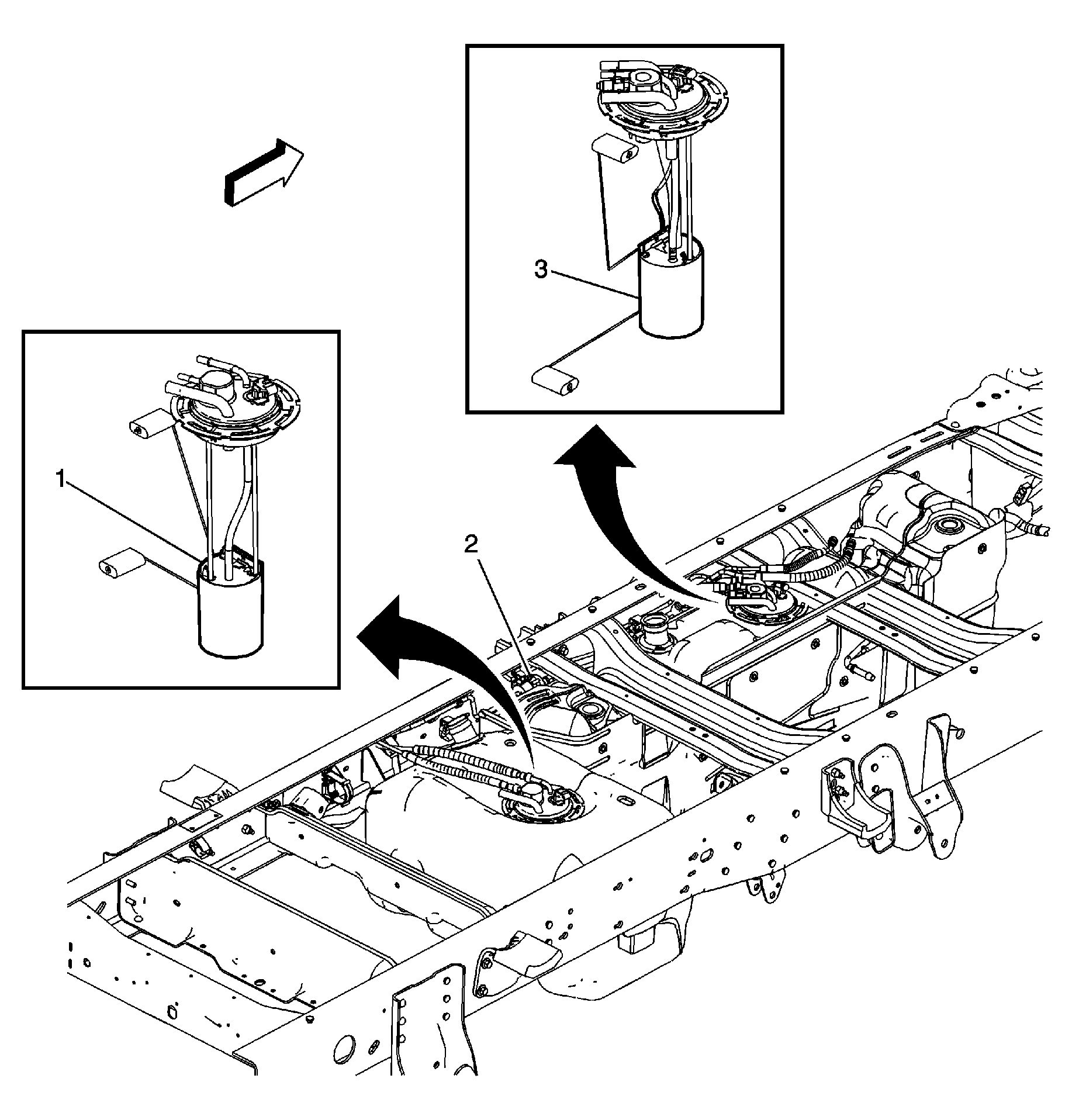

Fig 114: Chassis (Regular Cab & Extended Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 115: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 116: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

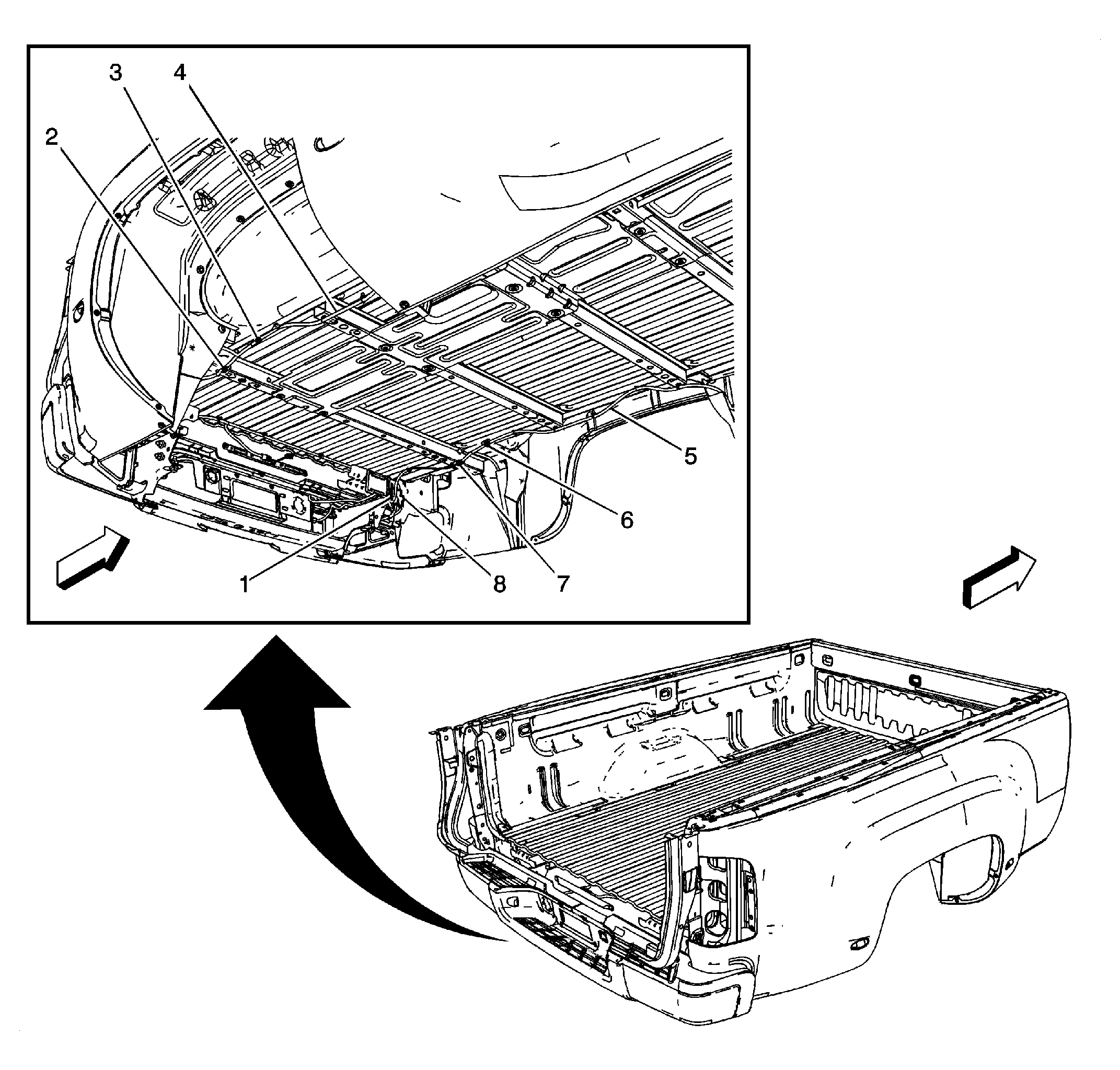

Fig 117: Underside Of Cargo Box
Courtesy of GENERAL MOTORS CORP.

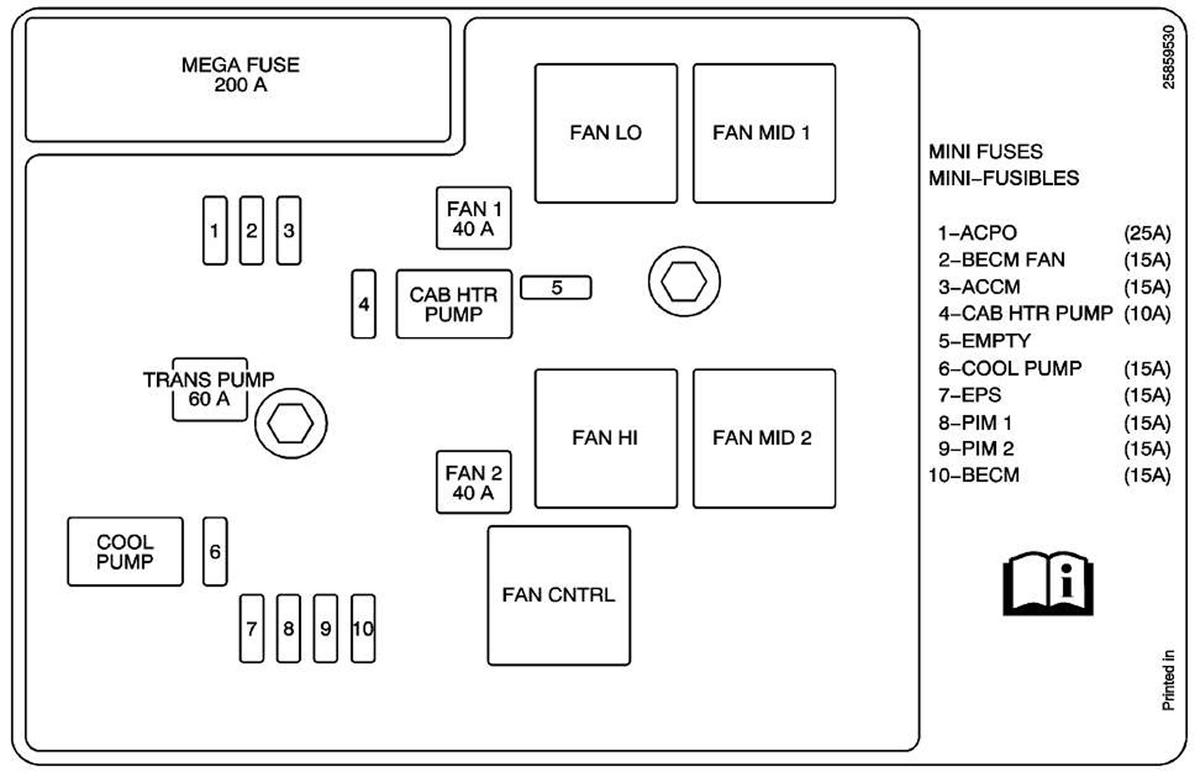

Fig 118: Auxiliary Fuse Block (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 119: Left Side Of Engine (Diesel)
Courtesy of GENERAL MOTORS CORP.
Fig 120: Engine Compartment (Diesel)
Courtesy of GENERAL MOTORS CORP.
Fig 121: Left Rear Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 122: Right Rear Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 123: Overview Of Hybrid Components
Courtesy of GENERAL MOTORS CORP.

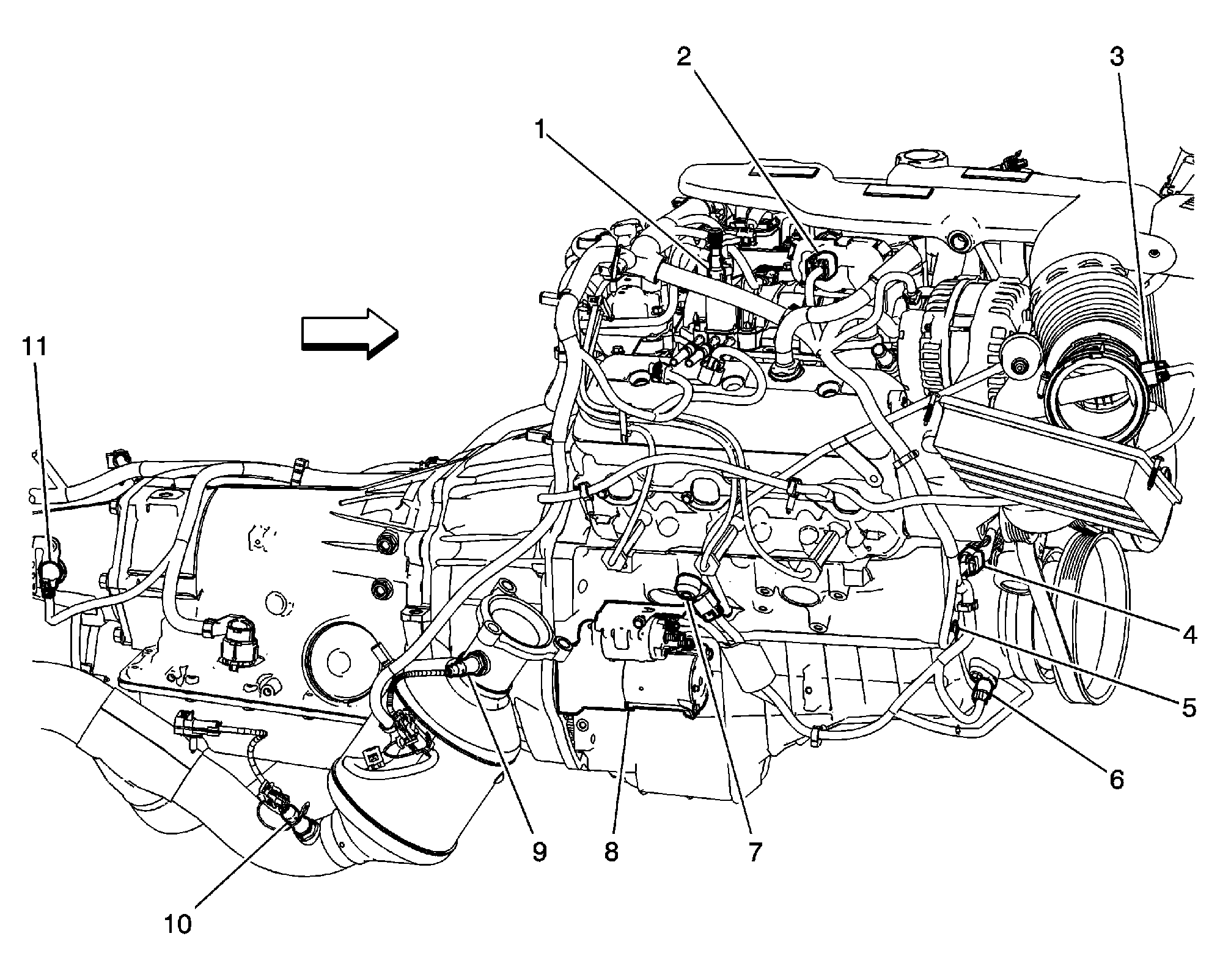

Fig 124: Left Side Of Engine (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 125: Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 126: Transmission (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 127: Left Side Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.

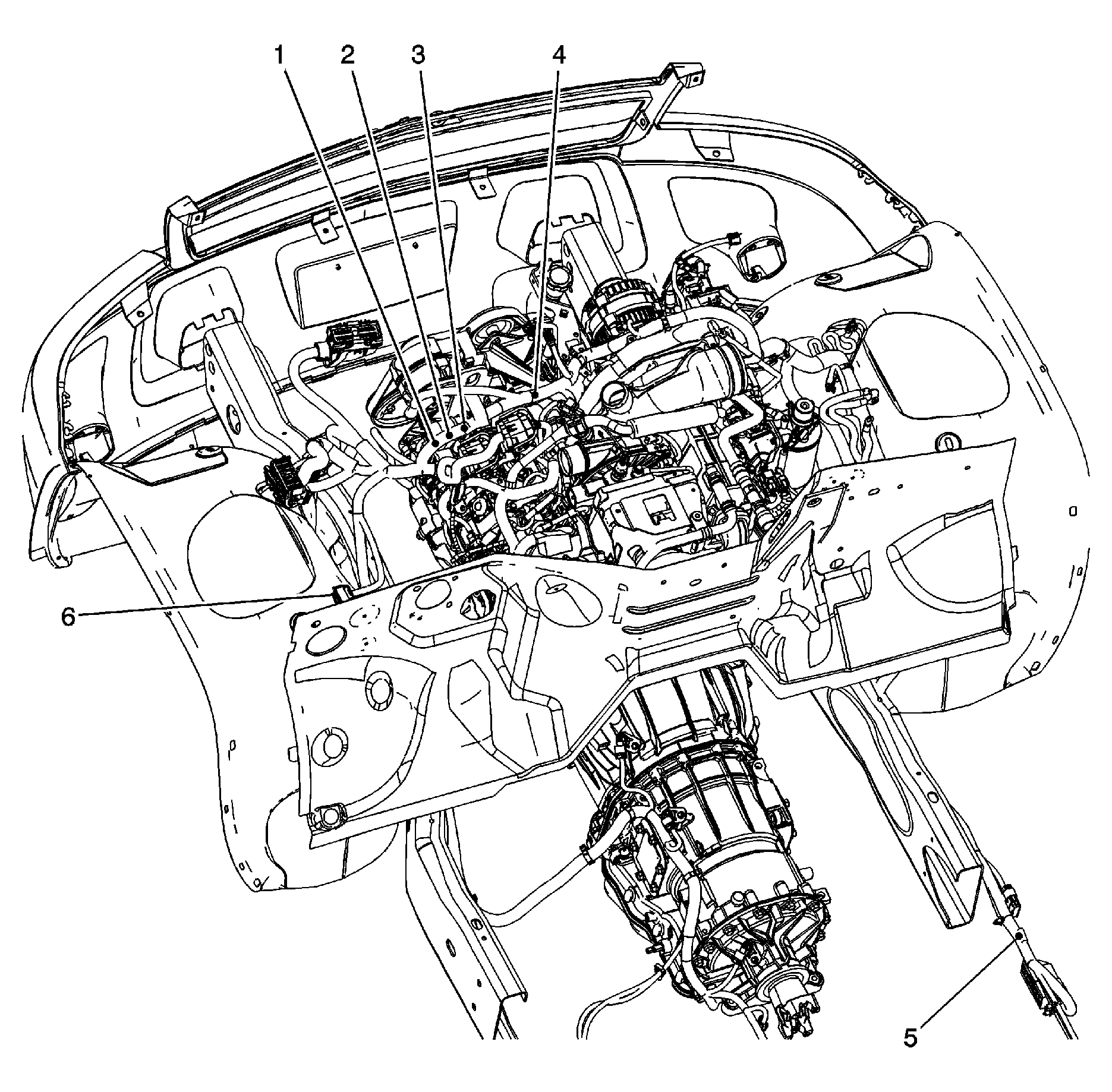

Fig 128: Dash (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 129: Dash (Hybrid)
Courtesy of GENERAL MOTORS CORP.

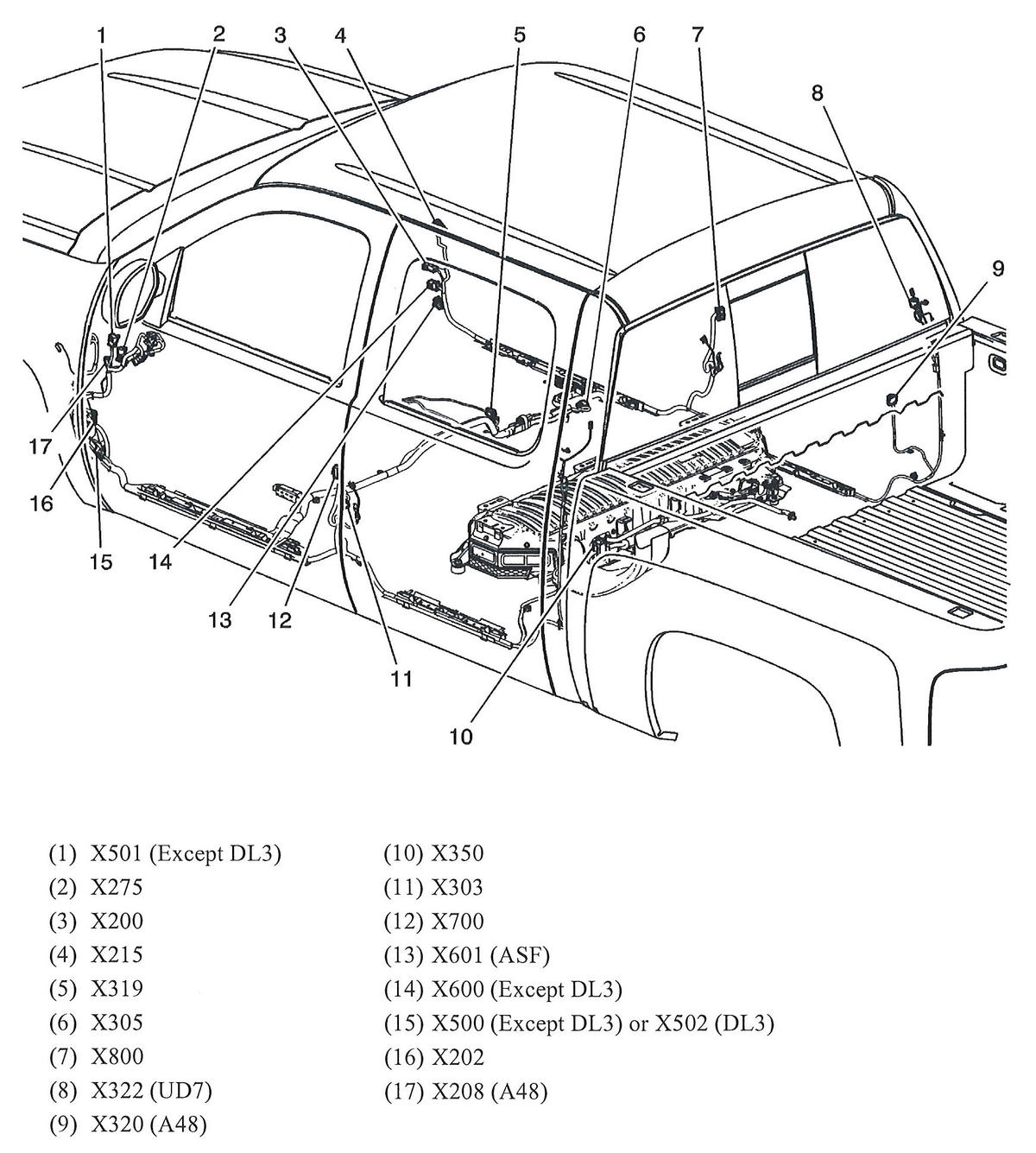

Fig 130: Crew Cab (Hybrid)
Courtesy of GENERAL MOTORS CORP.

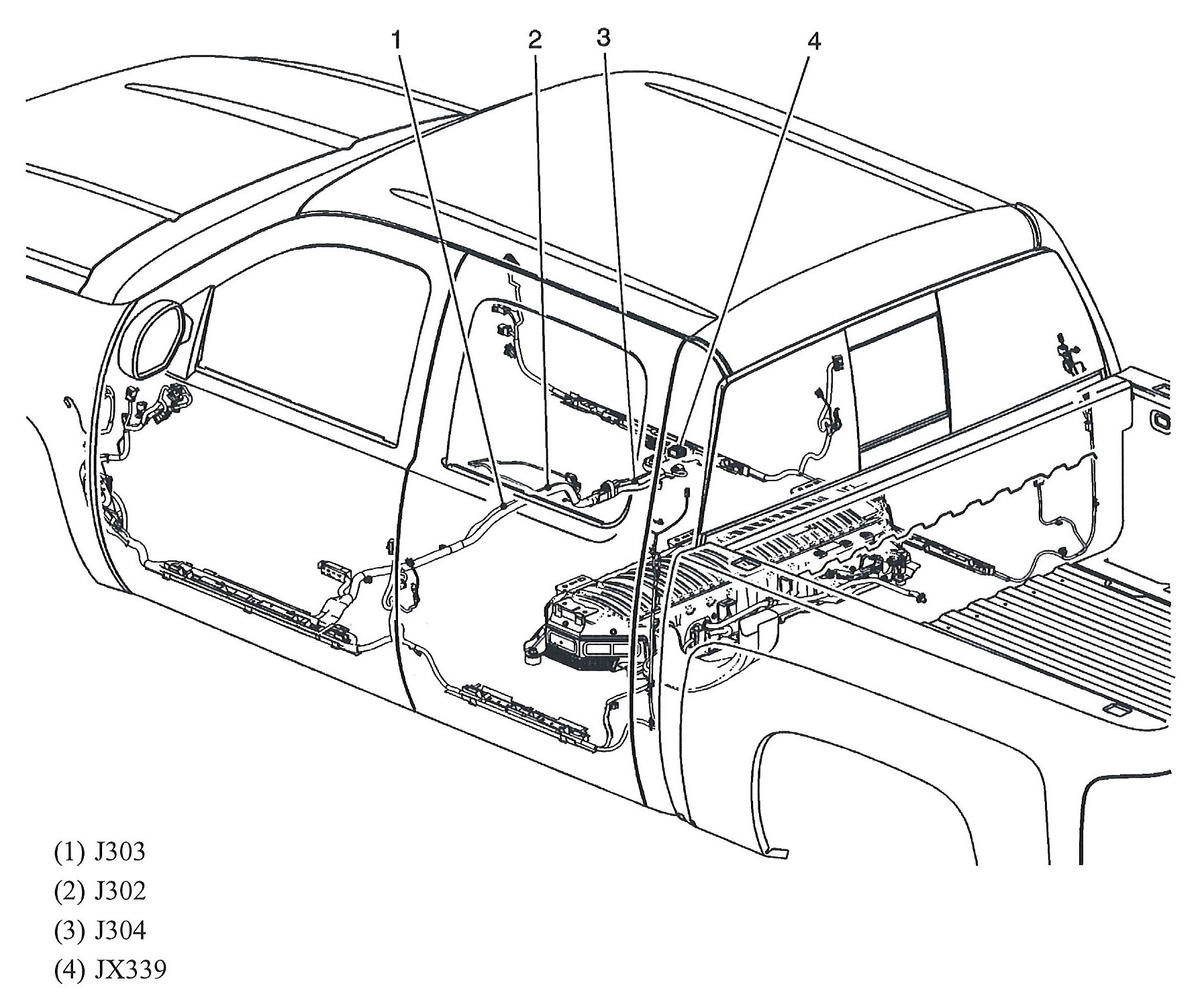

Fig 131: Crew Cab (Hybrid)
Courtesy of GENERAL MOTORS CORP.

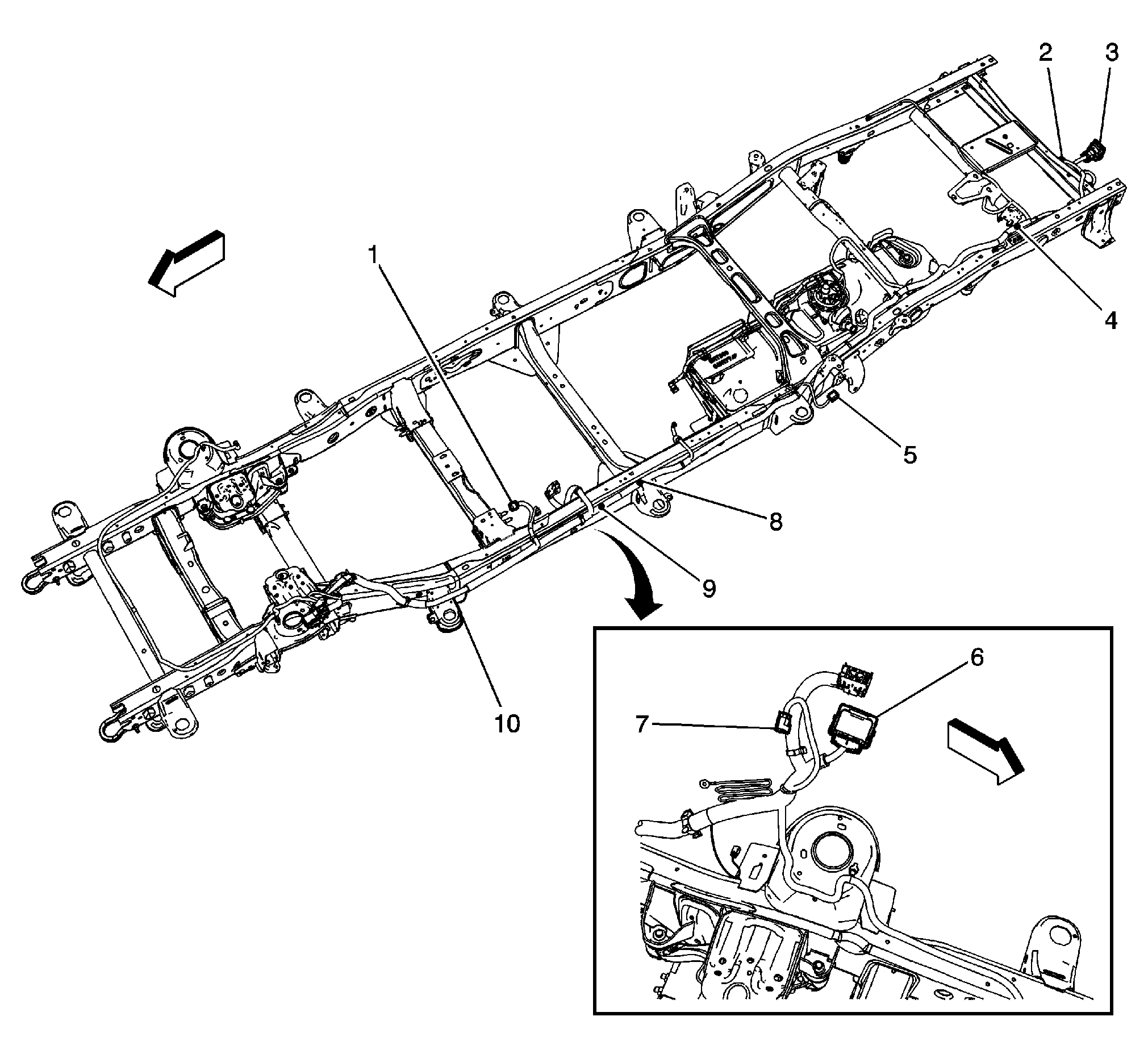

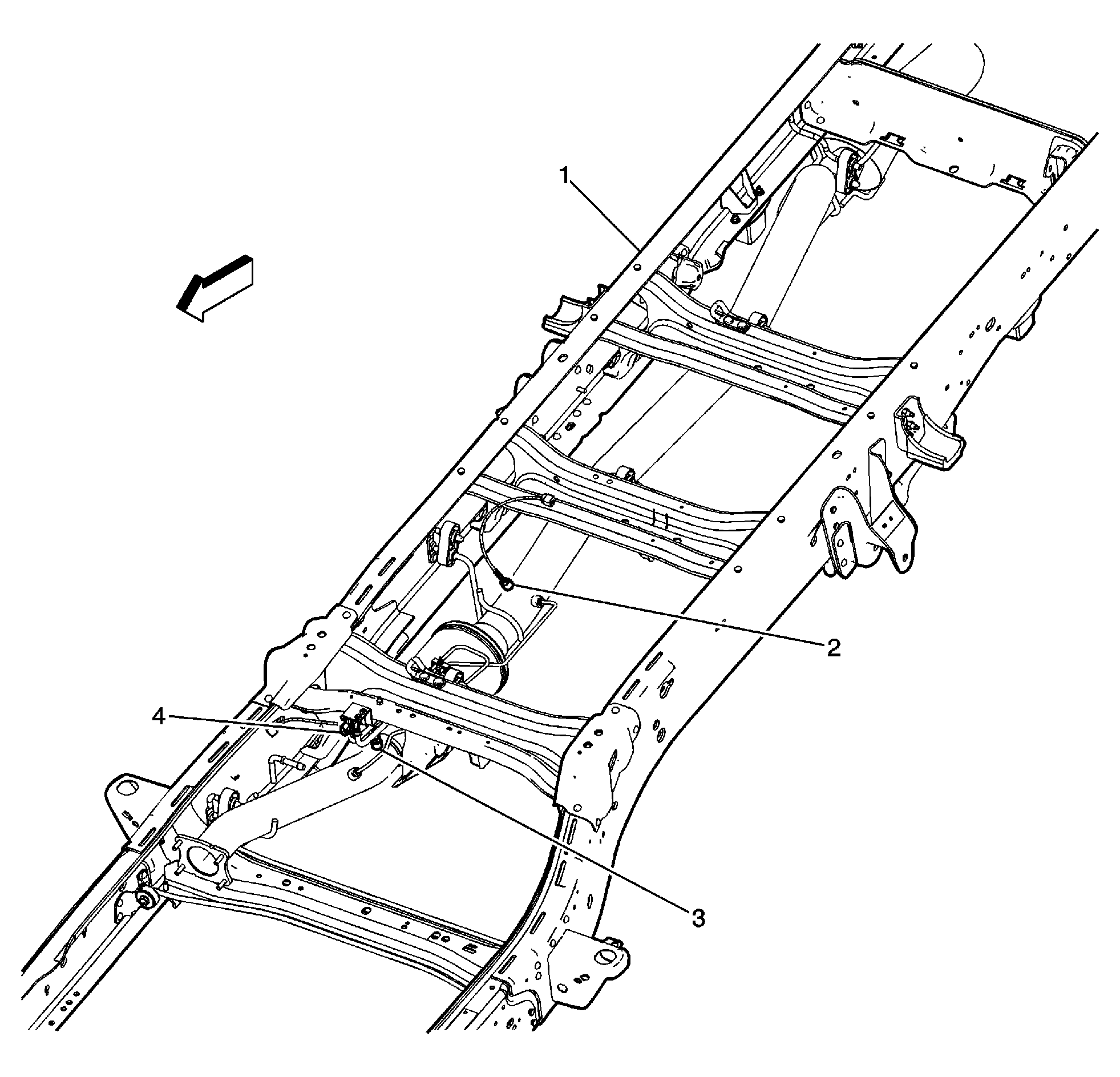

Fig 132: Chassis (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 133: Chassis (Hybrid)
Courtesy of GENERAL MOTORS CORP.
