Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION

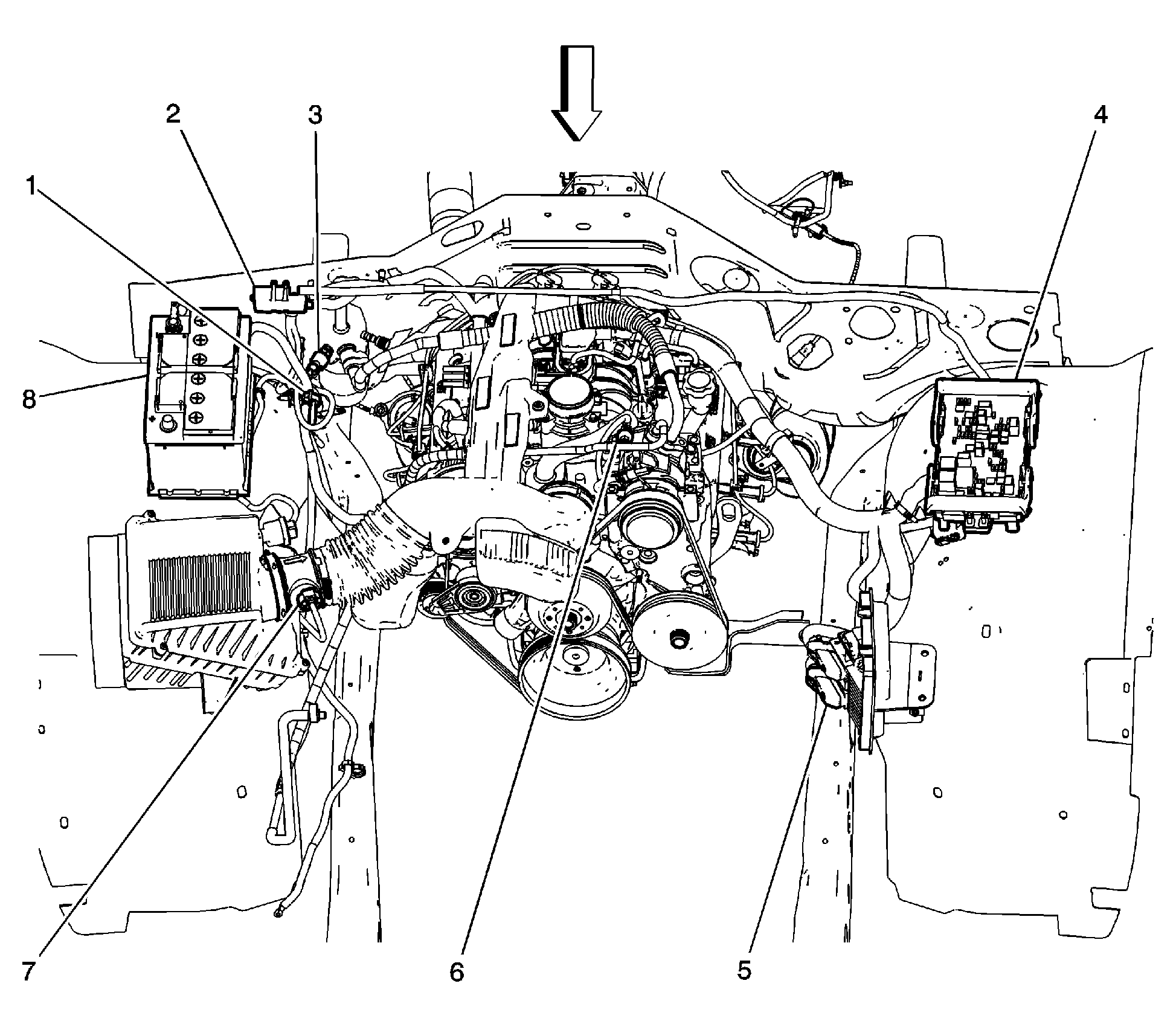

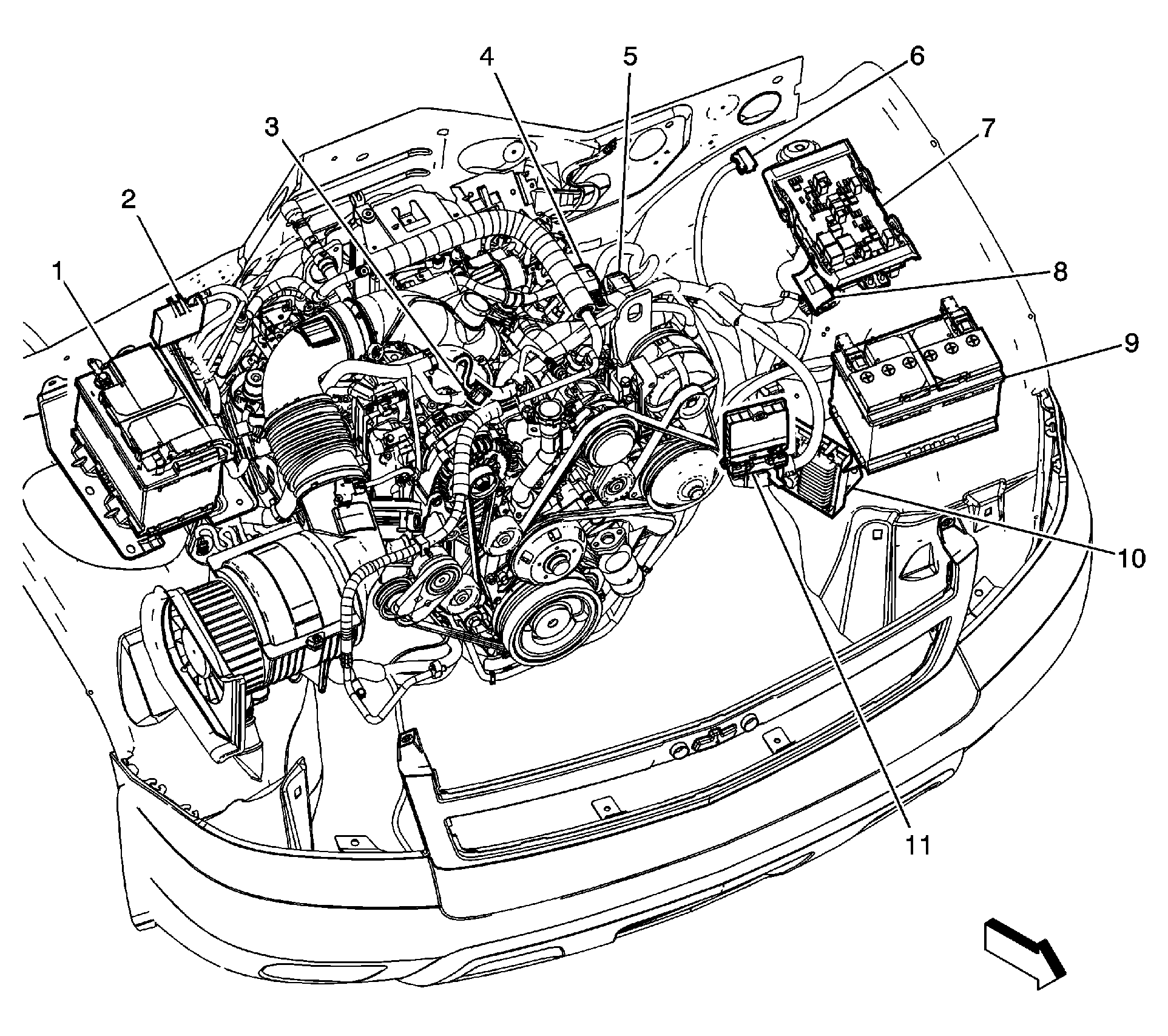

| Component | Location |
|---|---|
| Fuse Block - Auxiliary | Left side of engine compartment. See Figure. |
| Fuse Block (I/P) | Left side of dash. See Figure. |
| Fuse Block (Mobile Radio) (1) | Behind right side of dash. See Figure. |
| Fuse Block - Underhood (Except Hybrid) (4) | Left side of engine compartment. See Figure. |
| Fuse Block - Underhood (Hybrid) | Left side of engine compartment. See Figure. |
| Fuse Holder (Underhood) (Diesel) (2) | Right side of firewall. See Figure. |

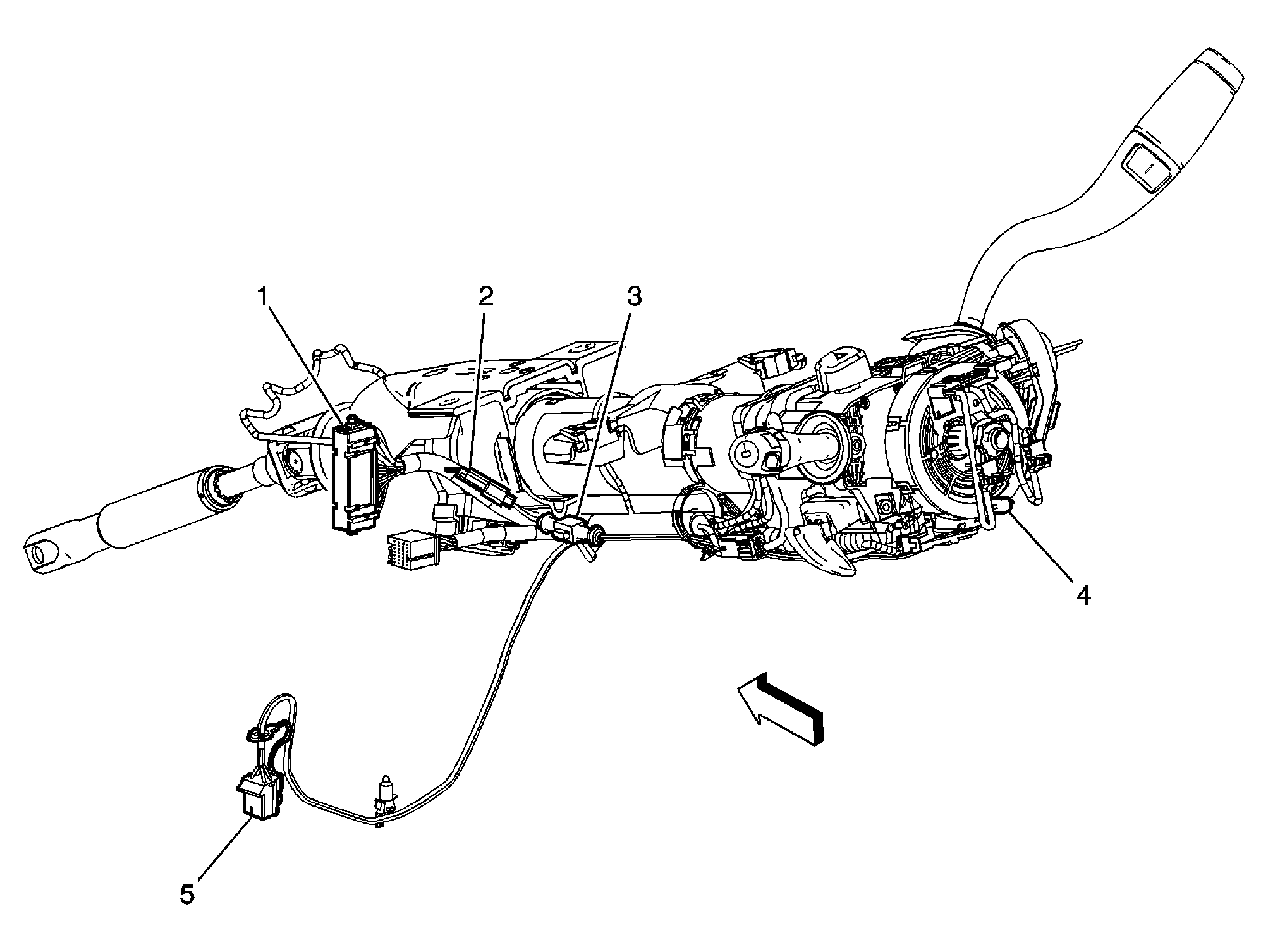

| Heated Steering Fuse Holder (3) | On steering column. See Figure. |

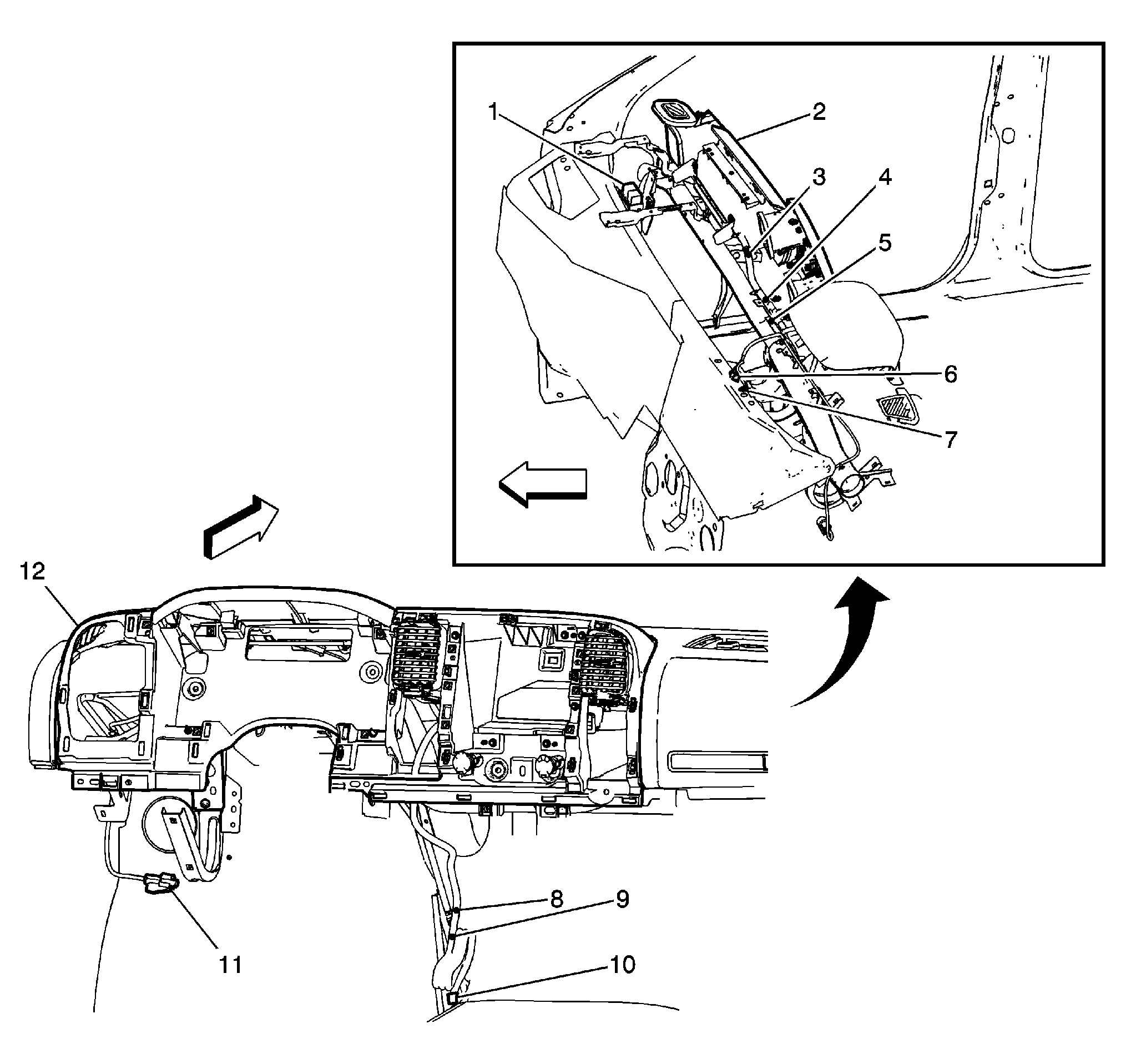

| Junction Block (Left I/P) | Lower left side of dash. See Figure. |

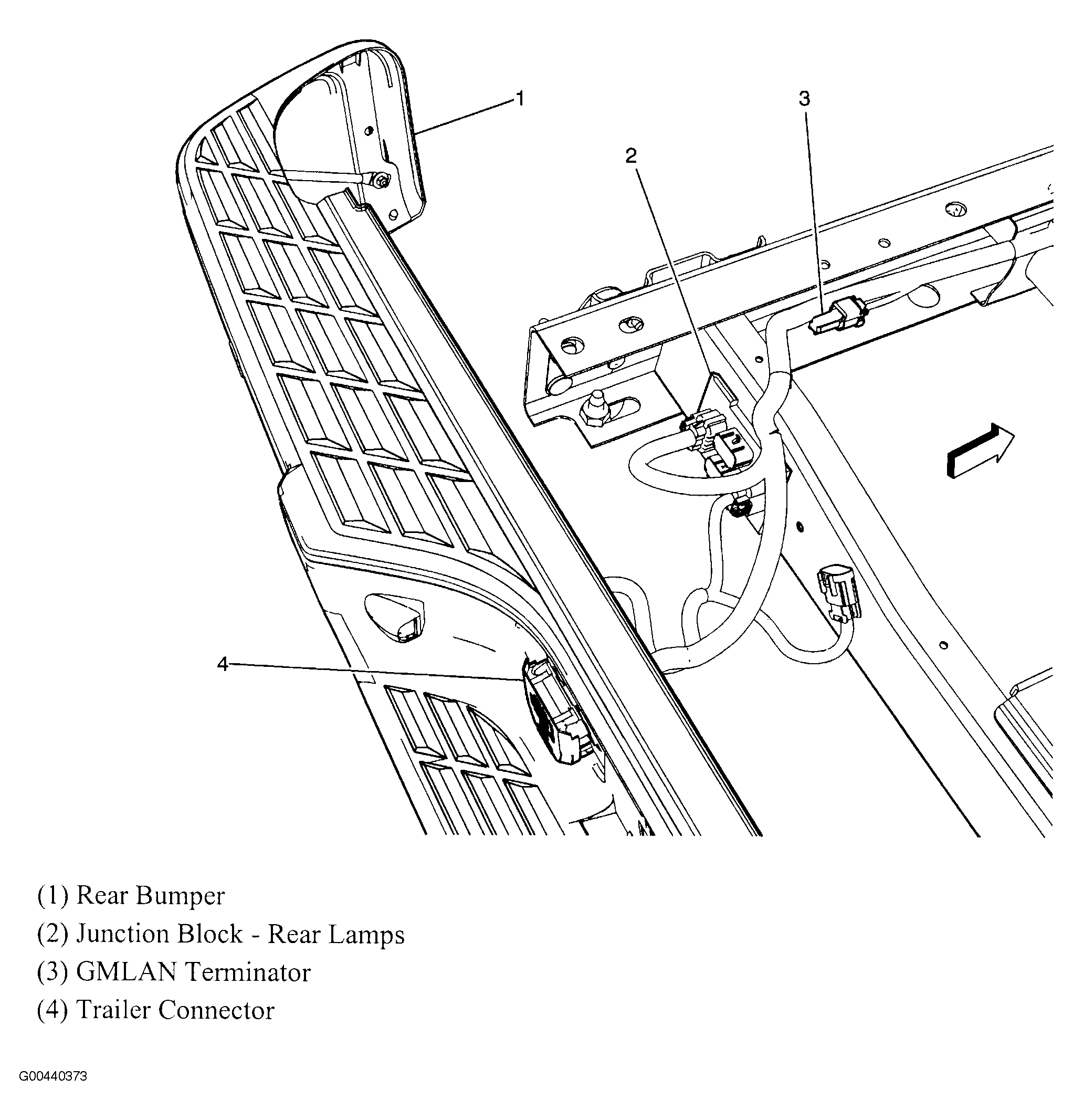

| Junction Block (Rear Lamps) | Inside of left rear frame rail. See Figure. |

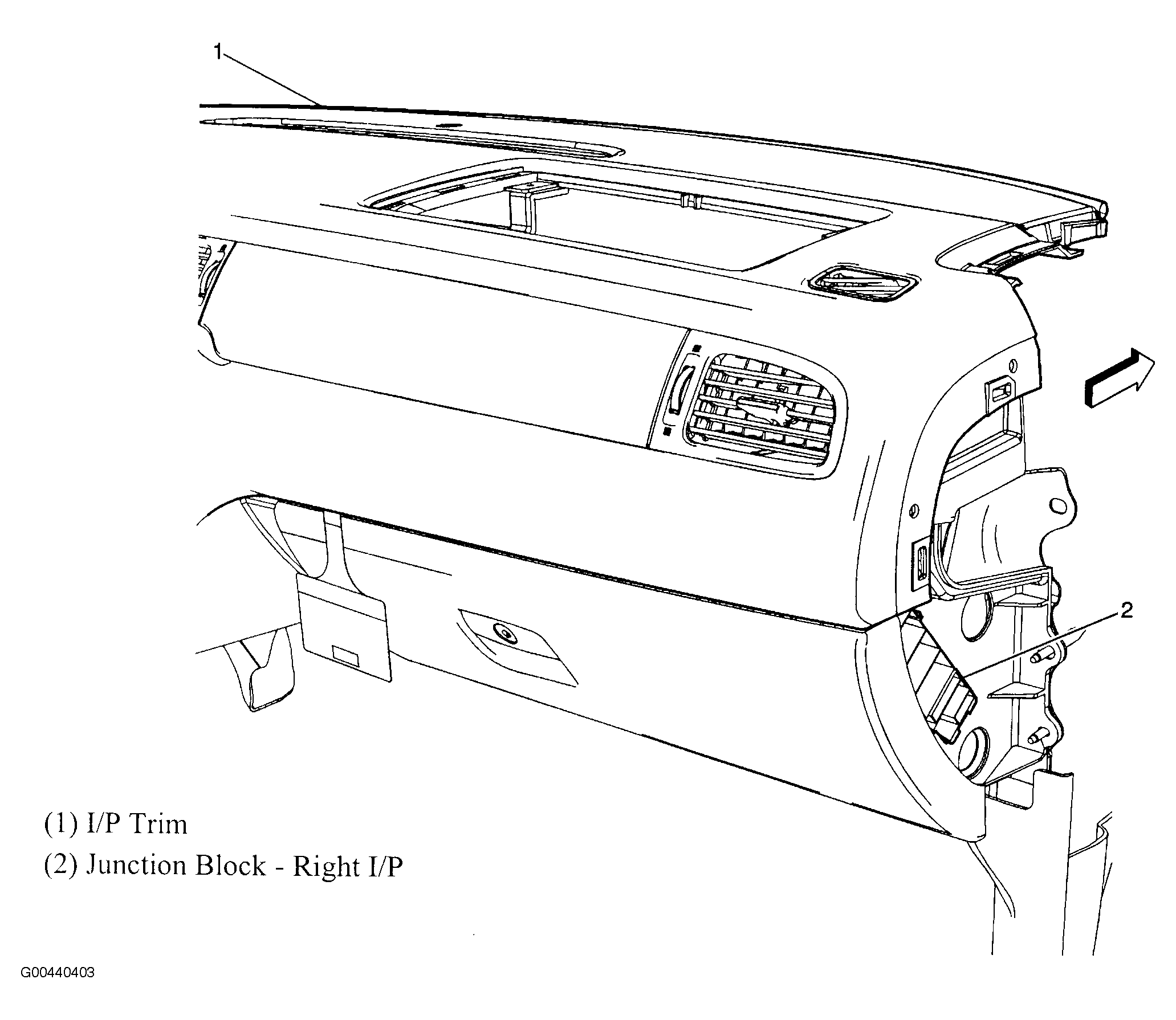

| Junction Block (Right I/P) | In right end of dash. See Figure. |
| Mega Fuse (2) | Right rear of engine compartment. See Figure. |
