Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Shock Absorber Lower Mounting Bolt
    GM731622Courtesy of GENERAL MOTORS CORP.
  1. Install the shock absorber to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the shock absorber lower mounting bolt.

    Tighten:  Tighten the shock absorber lower mounting bolt to 85 N.m (63 lb ft).

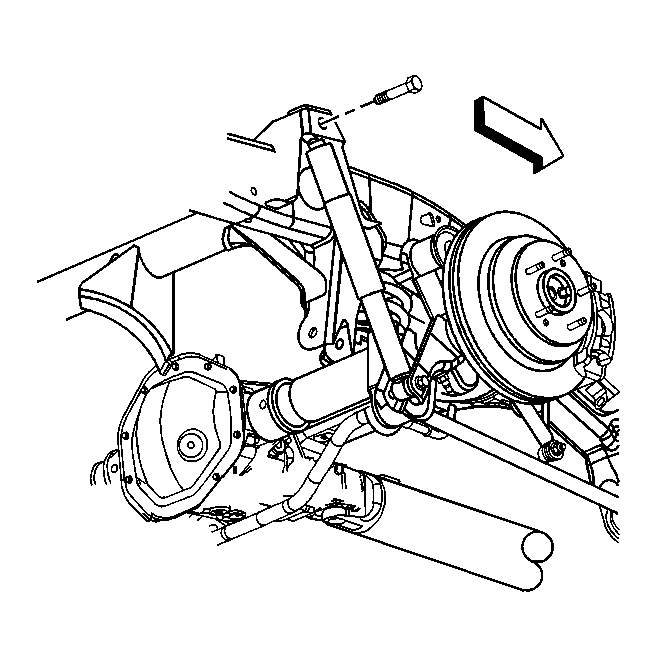

    3. Fig 2: View Of Shock Absorber Upper Mounting Bolt
    GM731620Courtesy of GENERAL MOTORS CORP.
  3. Install the shock absorber upper mounting bolt.

    Tighten:  Tighten the shock absorber upper mounting nut to 85 N.m (63 lb ft).

  4. Remove the support from the rear axle.
  5. Lower the vehicle.
