Door Component Views

Fig 1: Identifying Driver Door Components

GM1863144

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Memory Seat Switch (AG3)
3	Driver Door Module (DDM) (AXC/AXE)
4	Speaker - Left Front Door
5	Inflatable Restraint Side Impact Sensing Module (SISM) - Left Front
6	Door Latch Assembly - Driver
7	Window Motor - Driver
8	Turn Signal Lamp (Part of Outside Rearview Mirror) (DNP/DS3)

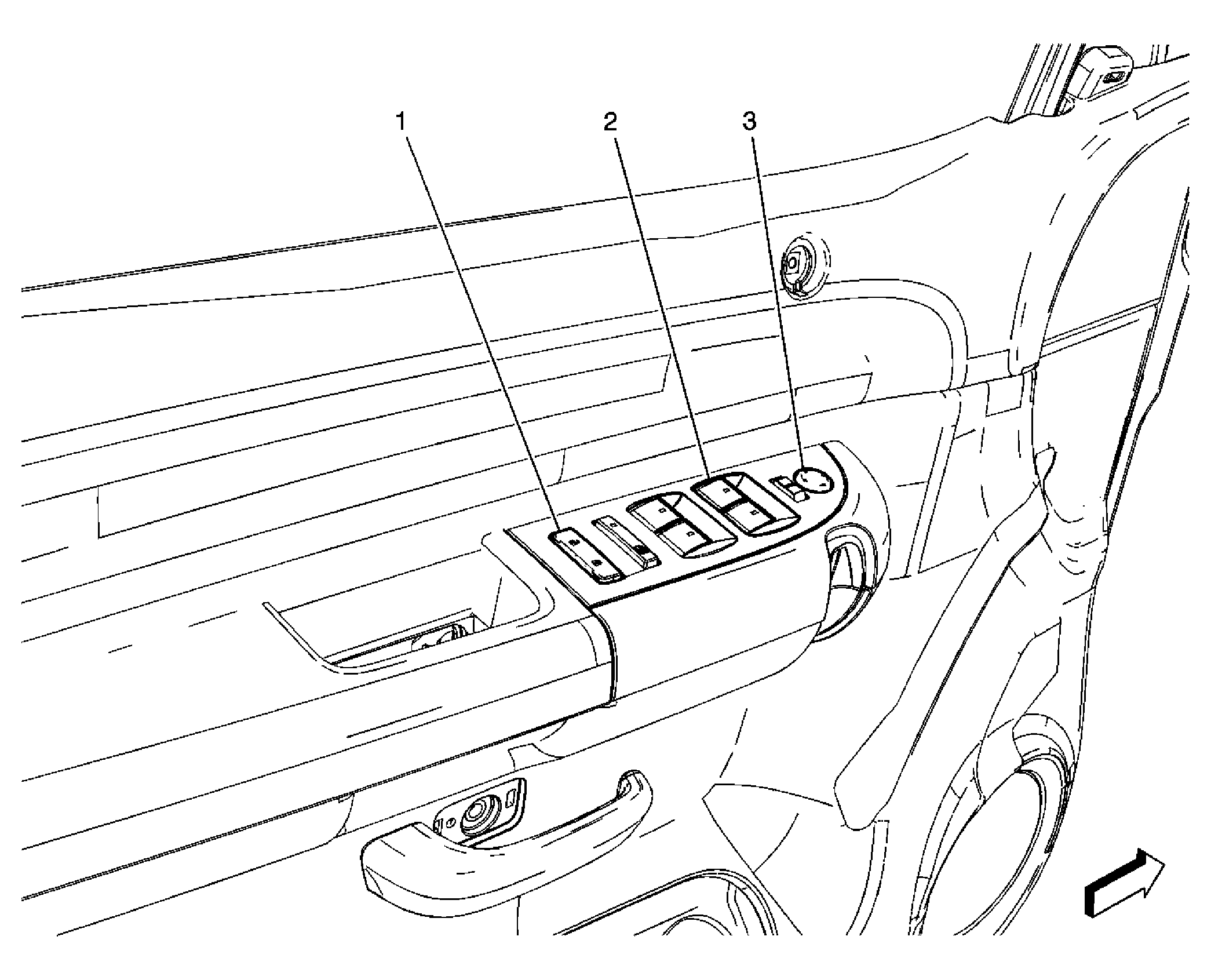

Fig 2: Identifying Driver Door Switches (AXA)

GM1867848

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver
2	Window Switch - Driver
3	Outside Rearview Mirror Switch

Fig 3: Identifying Passenger Door Components

GM1863143

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Turn Signal Lamp (Part of Outside Rearview Mirror) (DNP/DS3)
3	Window Motor - Passenger
4	Door Latch Assembly - Passenger
5	Inflatable Restraint Side Impact Sensing Module (SISM) - Right Front
6	Speaker - Right Front Door
7	Window Switch - Passenger and Door Lock Switch Passenger (-AXC/AXE)/Passenger Door Module (PDM) (AXC/AXE)

Fig 4: Locating LR Door Components

GM1863142

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch Assembly - Left Rear
3	Window Switch - Left Rear
4	Speaker - Left Rear Door
5	Window Motor - Left Rear
6	Inflatable Restraint Side Impact Sensing Module (SISM) - Left Rear

Fig 5: Locating RR Door Components

GM1863146

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Right Rear
2	Window Switch - Right Rear
3	Speaker - Right Rear Door
4	Inflatable Restraint Side Impact Sensing Module (SISM) - Right Rear
5	Window Motor - Right Rear
