Defogger Schematics

WARNING: This page is about a different car, the 2006 GMC Sierra and 2006 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

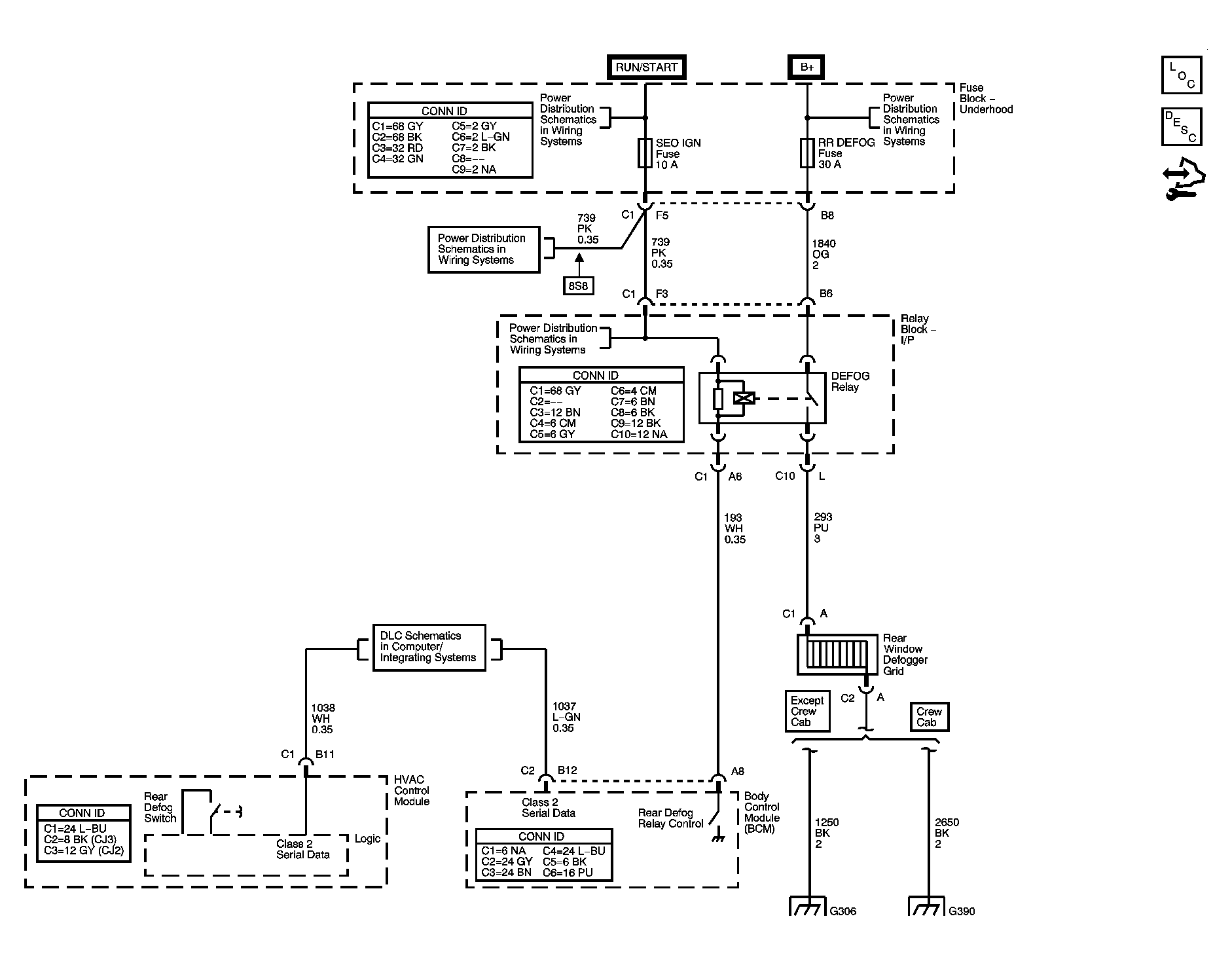

Fig 1: Rear Window Defogger Circuit
GM1570561Courtesy of GENERAL MOTORS CORP.
