Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

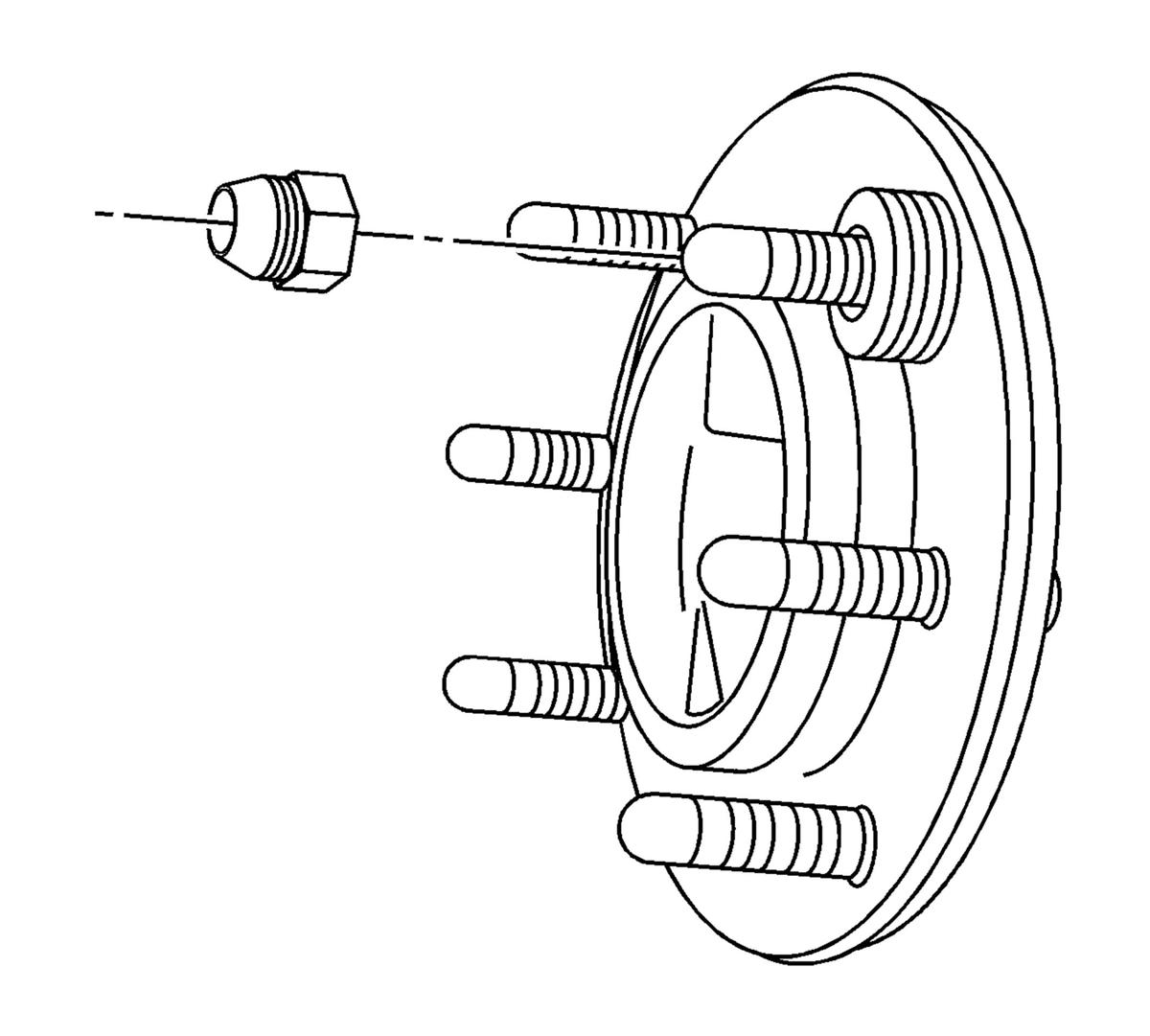

    Fig 1: Wheel Nut And Studs
    GM1688057Courtesy of GENERAL MOTORS CORP.
  1. Install a new stud. Use washers and a wheel nut and pull the new stud into the hub.
  2. Install the brake rotor. Refer to Front Brake Rotor Replacement (1500 Series) , Front Brake Rotor Replacement (2500 Series) .
  3. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  4. Lower the vehicle.
