Shift Lock Control Wiring Schematics

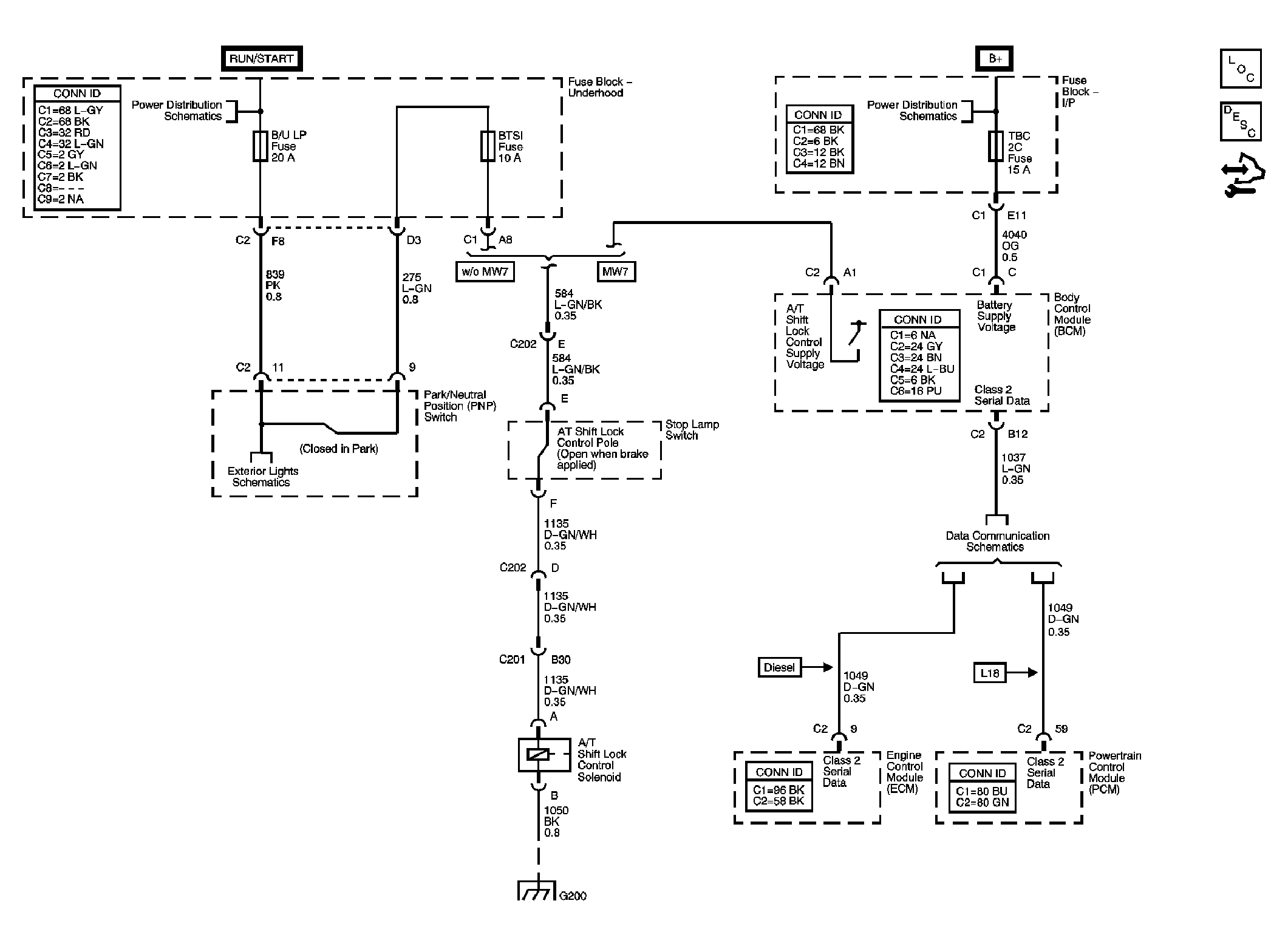

Fig 1: Shift Lock Control Wiring Schematic

GM1777174

Courtesy of GENERAL MOTORS CORP.
