Remote Function Component Views

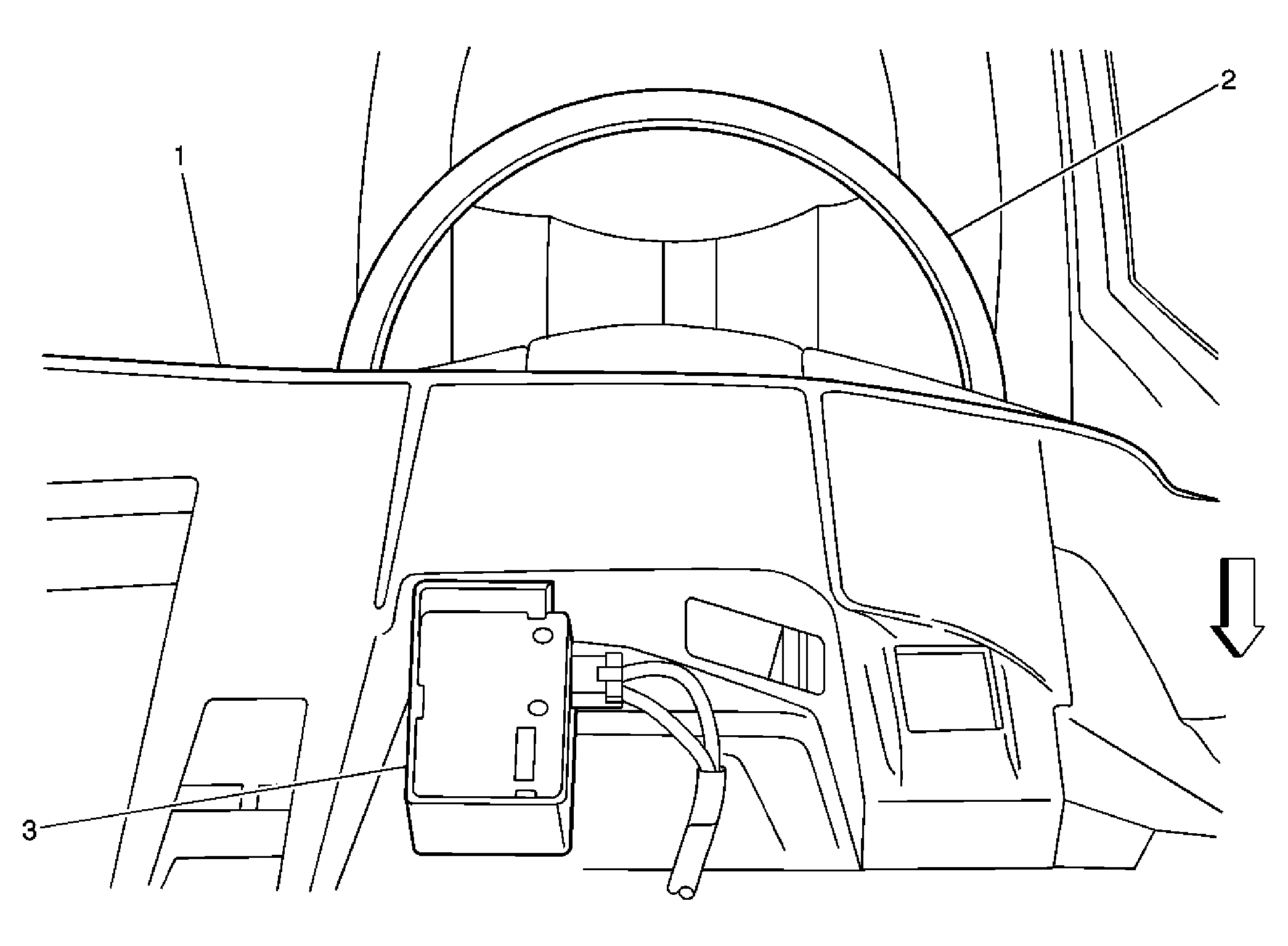

Fig 1: Component View - Upper Left of the I/P
GM1456905Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel (I/P) Carrier
2 Steering Wheel
3 Remote Control Door Lock Receiver (RCDLR)
