Lighting Systems Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 GMC Savana Special, 2006 GMC Savana Camper Special, 2006 GMC Savana, 2006 Chevrolet RV Cutaway, and 2006 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

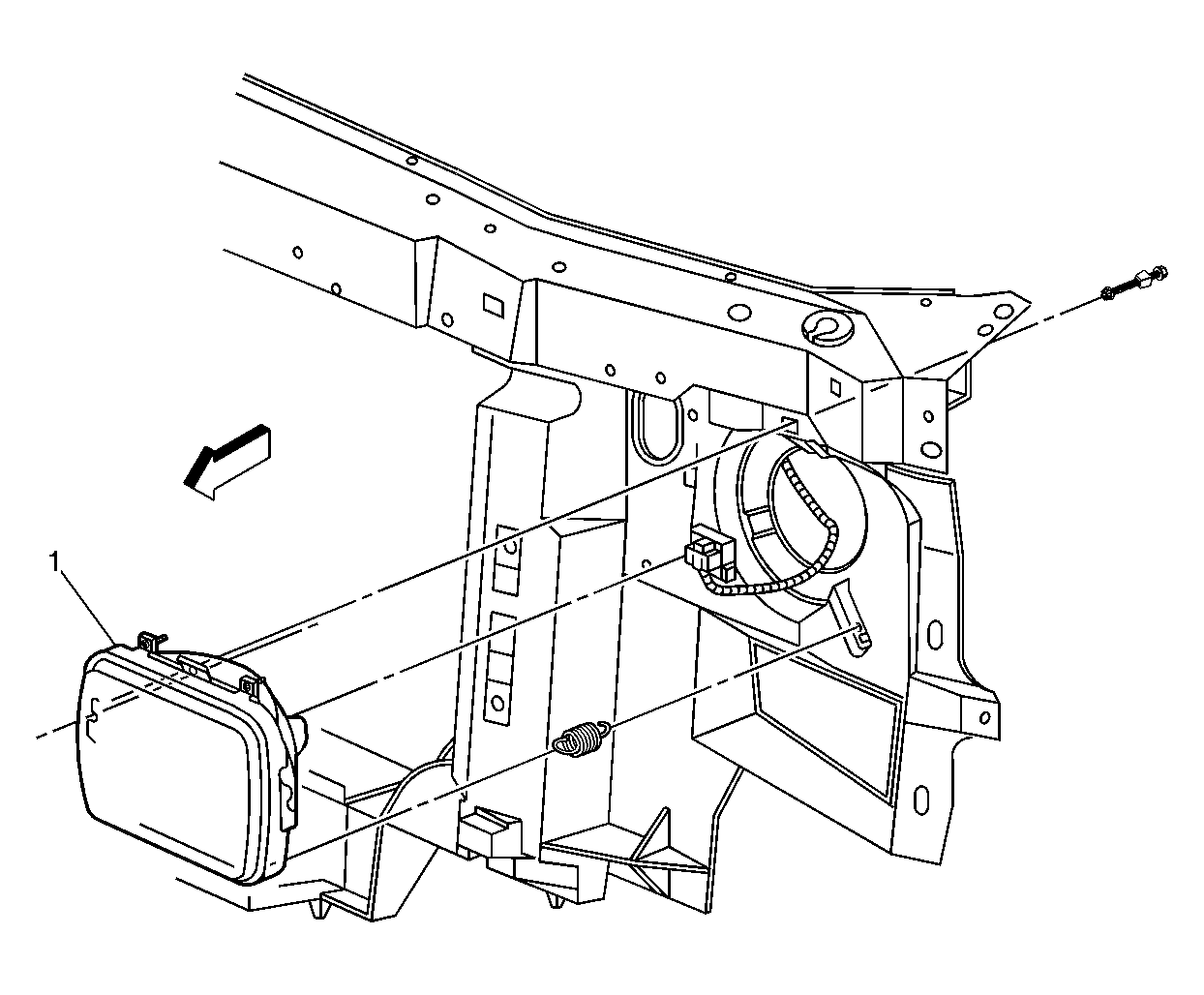

Fig 1: Component View - Left Front Of The Vehicle - Sealed Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left

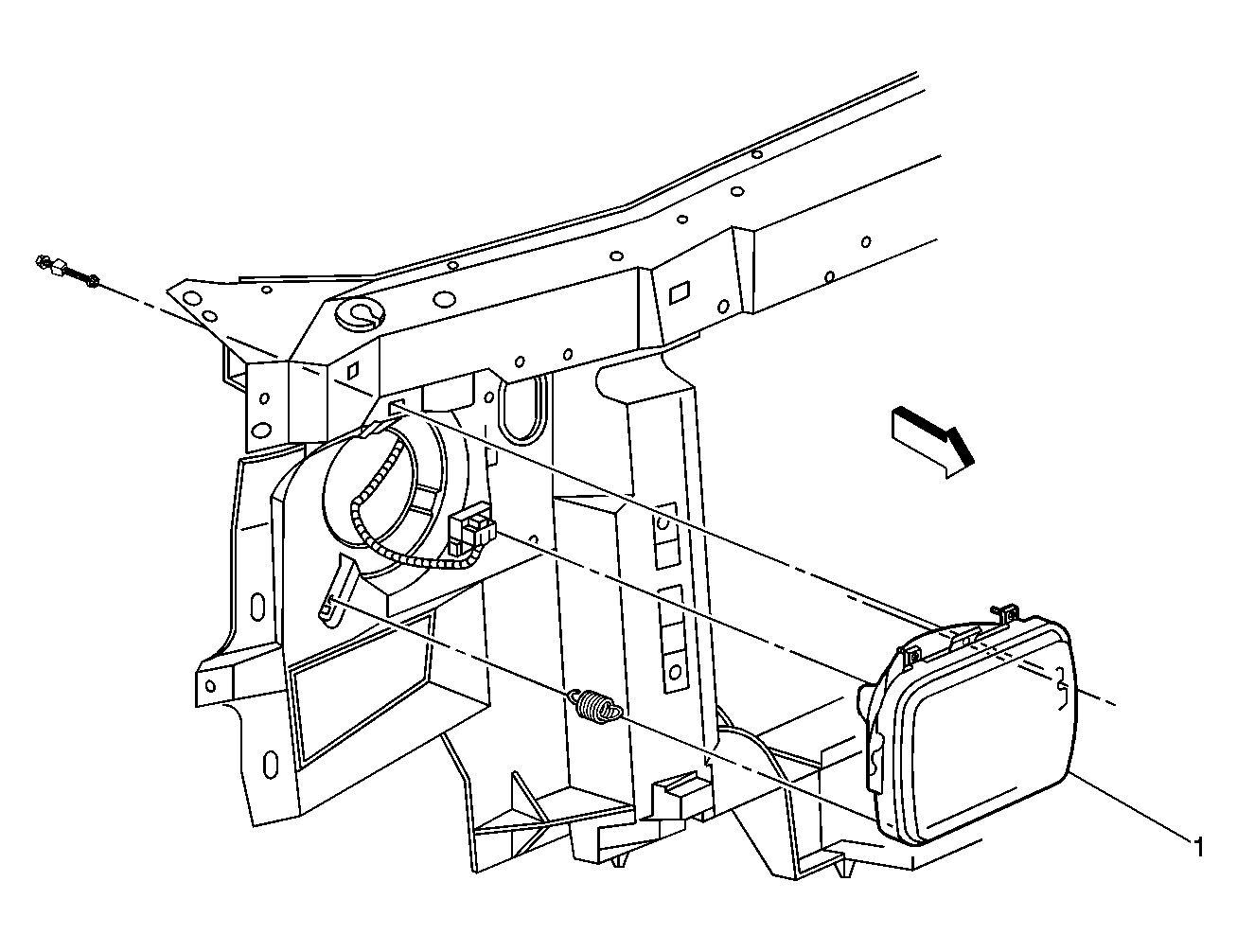

Fig 2: Component View - Right Front Of The Vehicle - Sealed Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Right

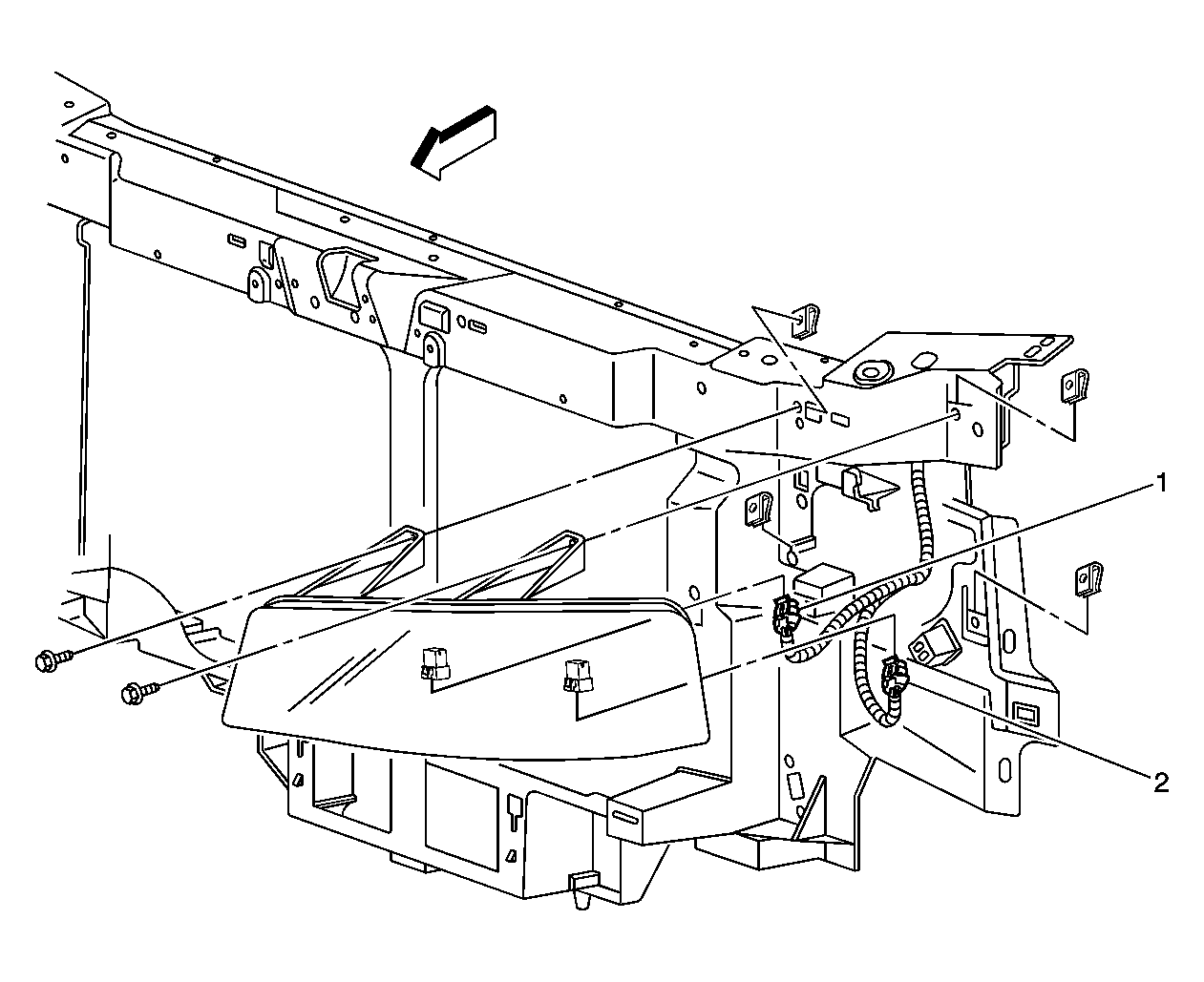

Fig 3: Component View - Left Front Of The Vehicle - Composite Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - High Beam Connector - Left
2	Headlamp - Low Beam Connector - Left

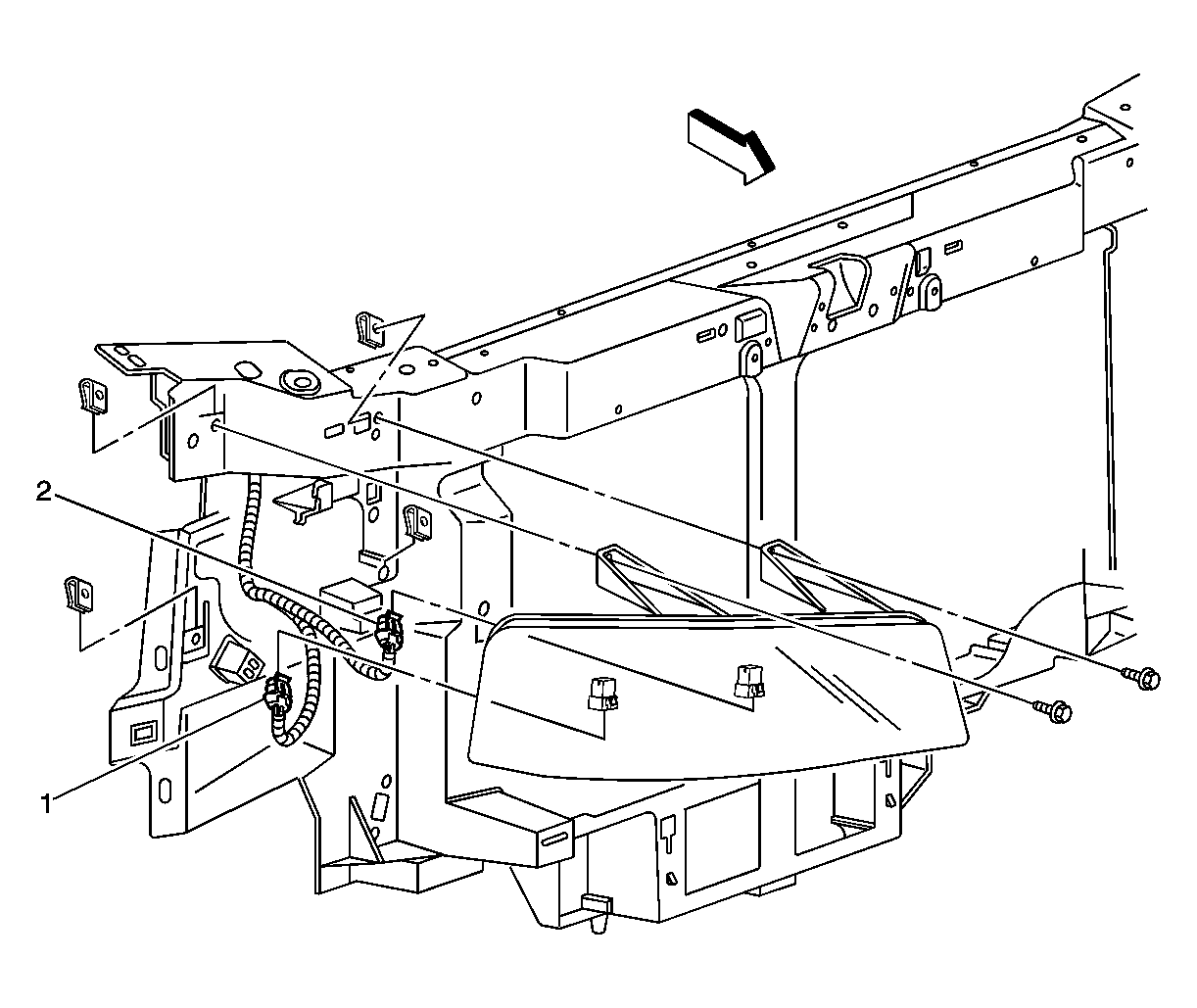

Fig 4: Component View - Right Front Of The Vehicle - Composite Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam Connector - Right
2	Headlamp - High Beam Connector - Right

Fig 5: Component View - Forward Lamps Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp Connector - LF
2	G100
3	Headlamp - Low Beam Connector - Left (Composite)
4	Headlamp - High Beam Connector - Left (Composite)
5	S110
6	S118
7	Park/Turn Signal Lamp Connector - RF
8	Marker Lamp Connector - RF
9	G101
10	Headlamp - Low Beam Connector - Right (Composite)
11	Headlamp - High Beam Connector - Right (Composite)
12	Park/Turn Signal Lamp Connector - LF
13	Fuse Block Underhood - C4

Fig 6: Component View - Underhood Lamp Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Underhood Lamp Connector
2	C109

Fig 7: Component View Of I/P Harness Routing - Left Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C221
2	Data Link Connector (DLC)
3	Stop Lamp Switch Connector

Fig 8: Component View - Left Side Of The I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp and Panel Dimmer Switch

Fig 9: Component Views - Upper Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passlock Sensor
2	Ignition Key Alarm Switch
3	Ignition Lock Cylinder Control Actuator
4	Ignition Switch
5	Ignition Key Cylinder
6	Horn Switch
7	Inflatable Restraint Steering Wheel Module
8	Turn Signal/Multifunction Switch
9	Hazard Switch

Fig 10: Component View - Center Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Carrier
2	Chime Module (UL5)
3	Turn Signal/Hazard Flasher Module

Fig 11: Component View Of Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Driver

Fig 12: Component View Of Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Passenger

Fig 13: Component View - Body Harness Routing - Left B-Pillar (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness Cover
2	S311 (w/o YF7)
3	S310 (w/o YF7)
4	S308 (w/o YF7)
5	C304 (w/o YF7)
6	C203 (YF7/DH6)
7	C303 (YF7/C69 w/Rear Auxiliary Controls)
8	Door Contact Plate Connector - Left Side (E26/AU3)
9	C407 (ENC)
10	C409 (ENC)
11	Fuse Block Body - C2
12	S310 (YF7)
13	S308 (YF7)
14	S311 (YF7)
15	Body Harness
16	Body Harness
17	Lower B-Pillar
18	Door Jamb Switch Connector - LR Side (E26)
19	SP347
20	G347

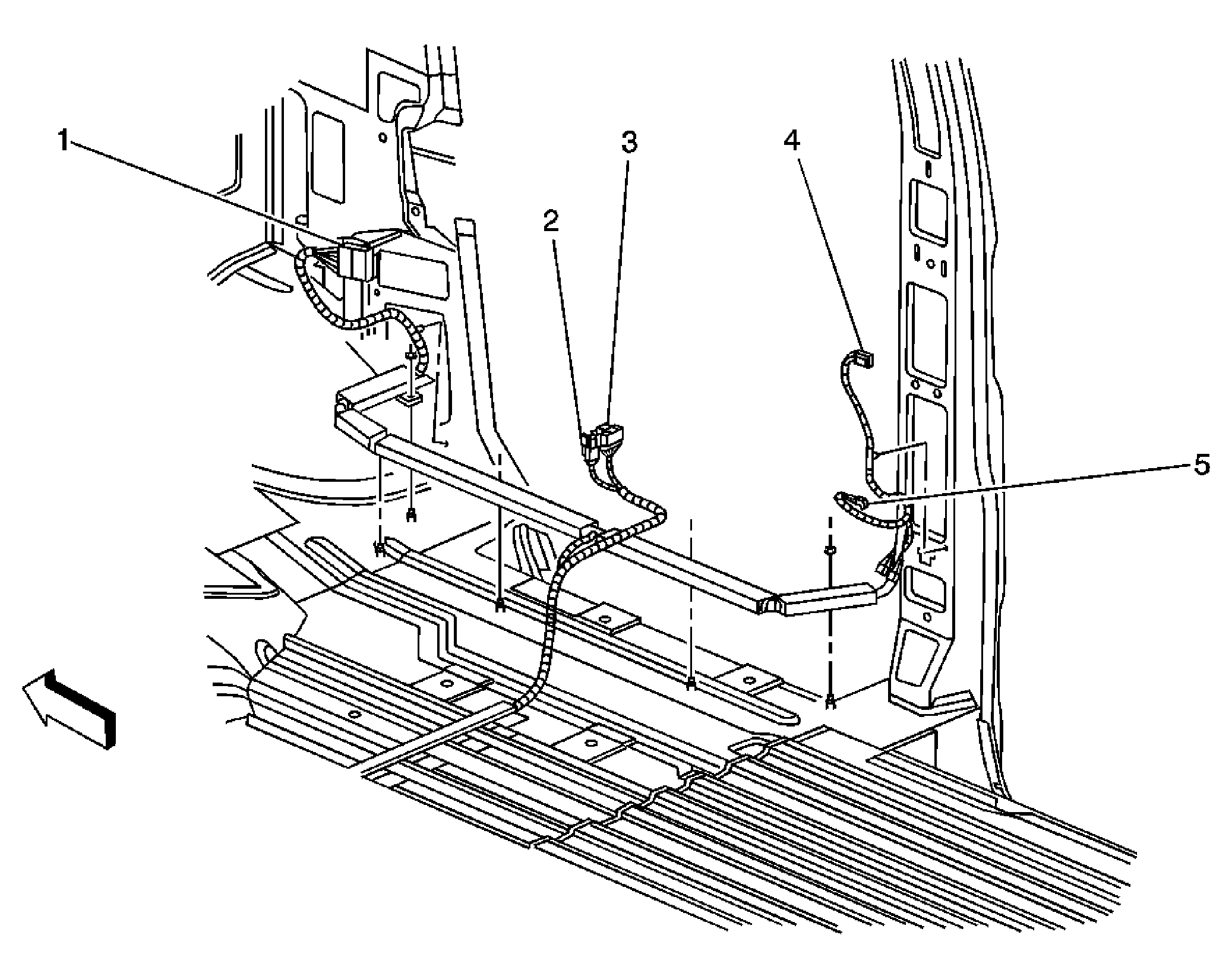

Fig 14: Component View - Body Harness Routing - Right B-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C312
2	Seat Belt Pretensioner Connector - RF (Light Duty)
3	C306
4	Door Contact Plate Connector - Right Side (Passenger/Cargo w/AU3)
5	Door Jamb Switch Connector - RR Side (Passenger/Cargo)

Fig 15: Component View - Chassis Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block Underhood - C3
2	Fuse Block Underhood - C7
3	Fuse Block Underhood - C8 (UY7)
4	Wheel Speed Sensor (WSS) Connector - RF
5	Brake Pressure Differential Switch Connector (Light Duty)
6	Evaporative Emission (EVAP) Canister Vent Solenoid Connector (Gas)
7	S301
8	Electronic Brake Control Module (EBCM) Connector (JL4)/Electronic Brake Control Module (EBCM) - C2 (w/o JL4)
9	Electronic Brake Control Module (EBCM) - C1 (w/o JL4)
10	Trailer Right Stop/Turn Relay (UY7)
11	Trailer Left Stop/Turn Relay (UY7)
12	S315 (JL4)
13	G300
14	Wheel Speed Sensor (WSS) Connector - LF
15	C101

Fig 16: Headliner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Assembly - Front Auxiliary (C69)
2	Courtesy/Reading Lamp - Front
3	HVAC Control Assembly - Rear Auxiliary (C69 w/Rear Auxiliary Controls)
4	Courtesy/Reading Lamp - Mid (Passenger)
5	Courtesy /Reading Lamp - Rear (Passenger)/Dome Lamp - Rear (Cargo)
6	Vanity Mirror - Right (DH6)
7	HVAC Control Processor - Auxiliary (C69 w/Rear Auxiliary Controls)
8	Vanity Mirror - Left (DH6)

Fig 17: Component View - Pro Harness & Components (PRP)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Fluorescent Work Lamp - LR (UF2)
2	Dome Fluorescent Work Lamp - LF (UF2)
3	S350 (UF2)
4	S348 (UF2)
5	Dome Fluorescent Work Lamp - 2 (UF2)
6	Dome Fluorescent Work Lamp - 1 (UF2)
7	Dome Fluorescent Work Lamp - RH (UF2)
8	Access Panel Actuator - Right Side Front
9	Access Panel Actuator - Right Side Rear
10	S409
11	Pro Wiring Harness
12	Body Control Module (BCM)
13	Fuse Block - Body
14	S302 (UF2)
15	S303
16	Dome Fluorescent Work Lamps Relay (UF2)
17	Fuse Block - Rear
18	S309
19	S300
20	S408
21	G403
22	Access Panel Actuator - Left Rear Side Rear
23	Access Panel Actuator - Left Rear Side Front
24	Access Panel Actuator - Left Front Side Rear
25	Access Panel Actuator - Left Front Side Front

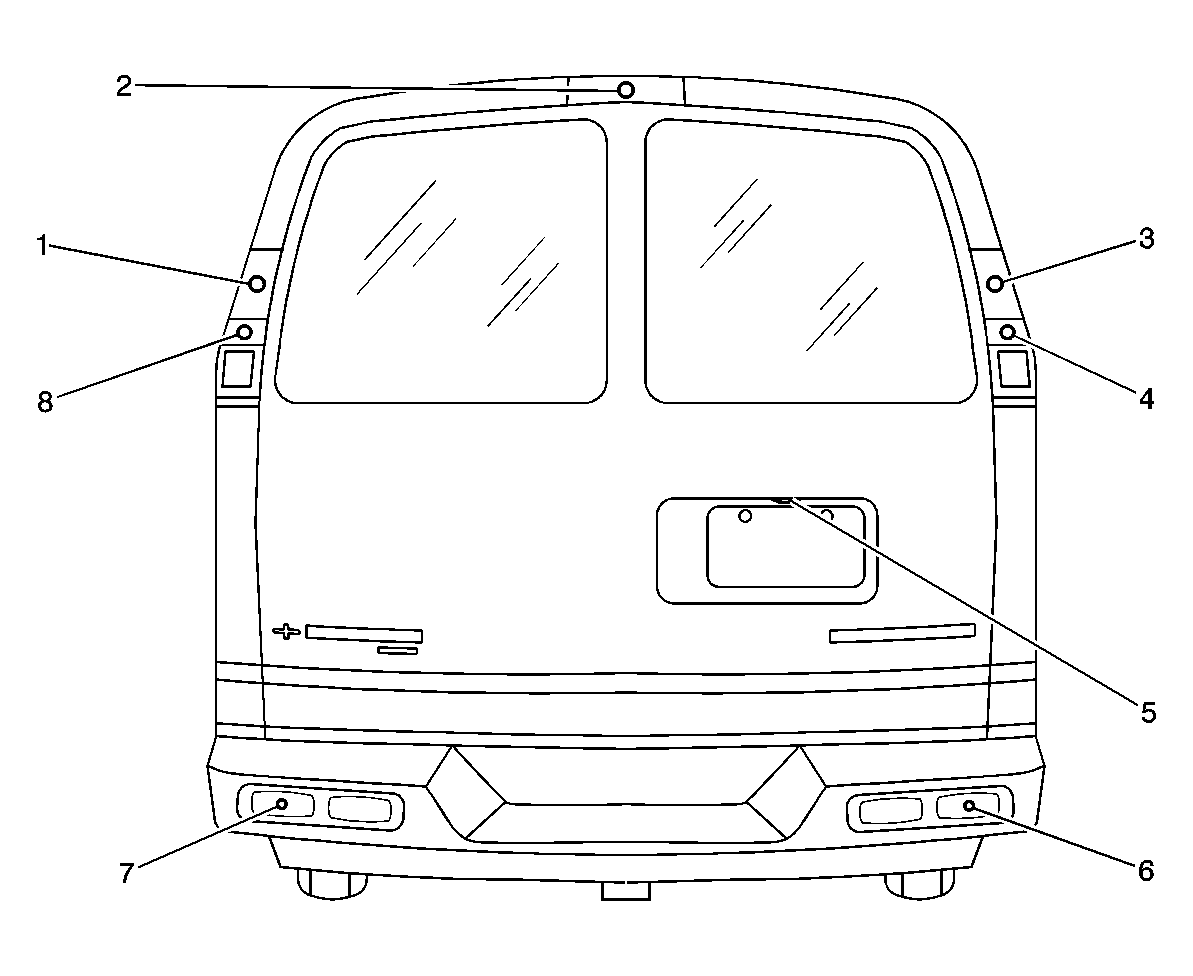

Fig 18: Rear of the Vehicle (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Left
2	Center High Mounted Stop Lamp (CHMSL)
3	Tail/Stop and Turn Signal Lamp - Right
4	Backup Lamp - Right
5	License Lamp
6	Backup Lamp - Left
7	Fog Lamp - RR (T79)
8	Fog Lamp - LR (T79)
