Quick Lookups
>>
Electrical Component Locations
>>
Electrical Component Locator
>>

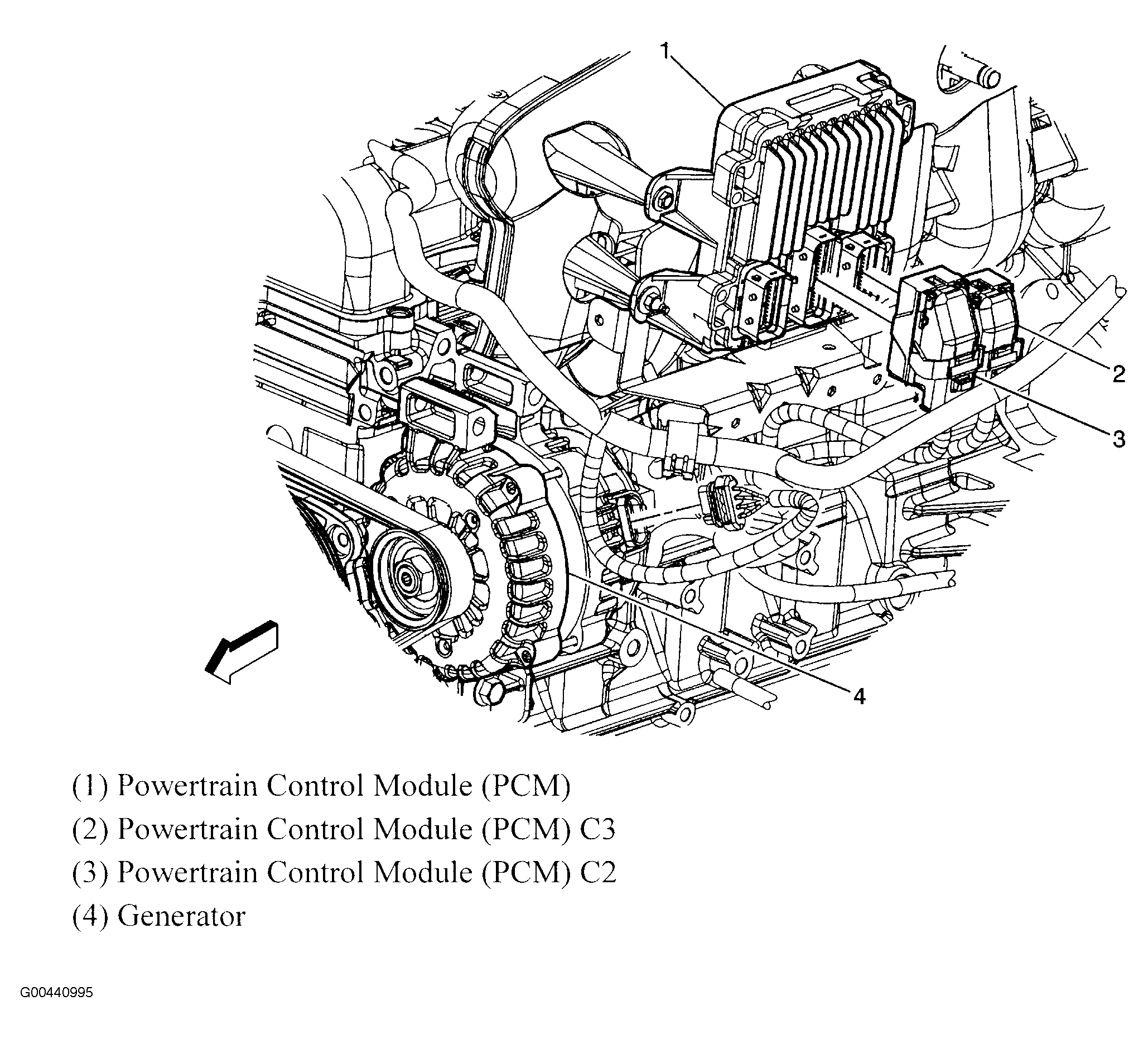

Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

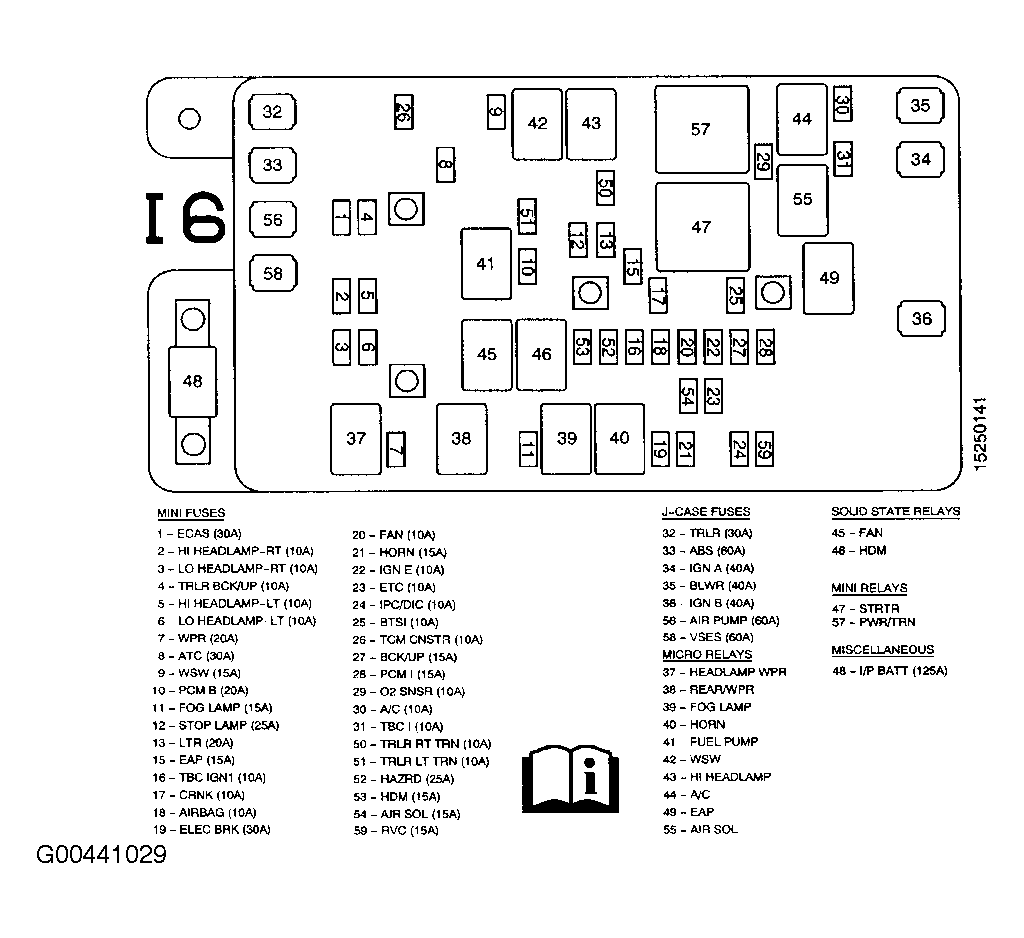

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

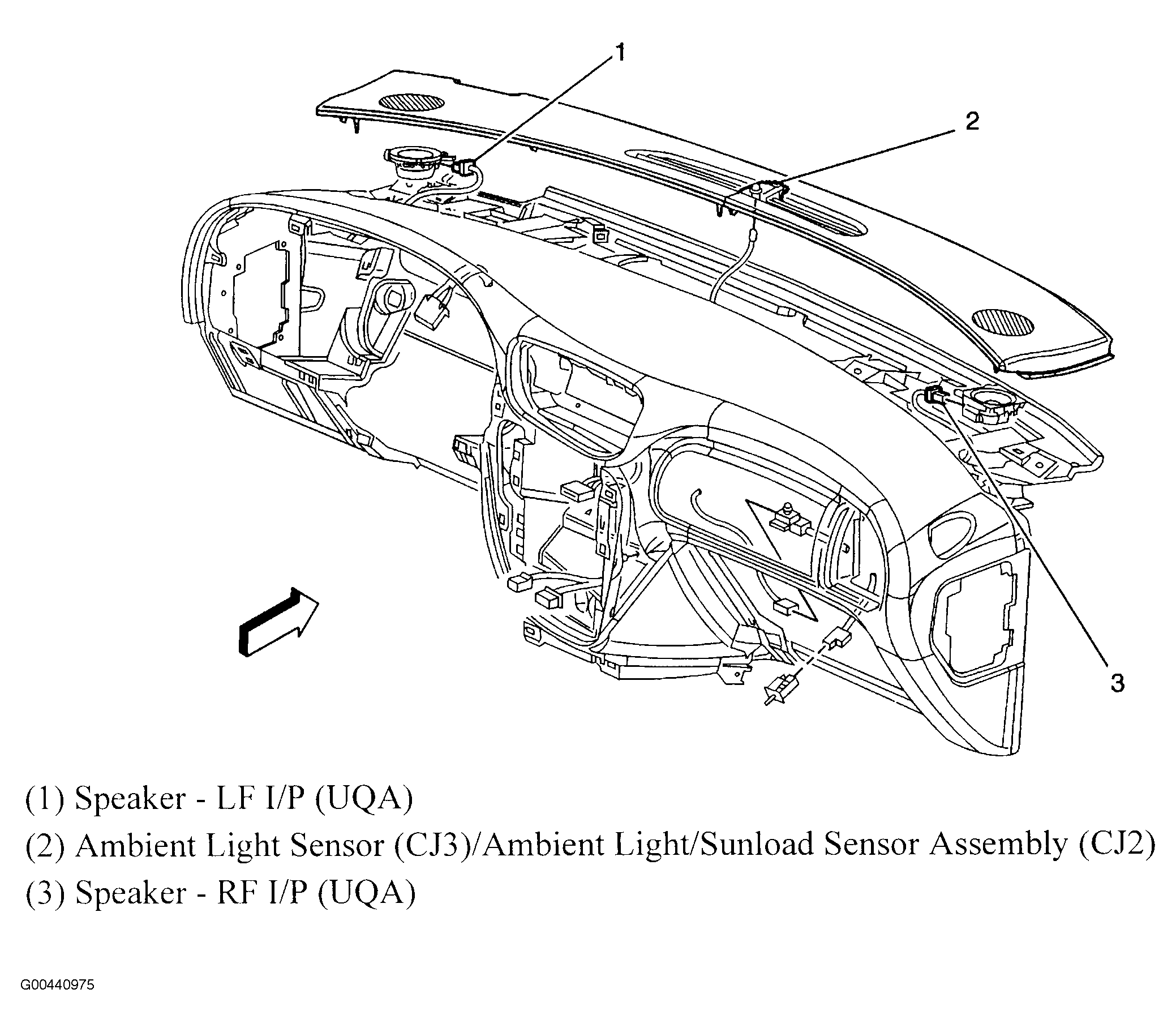

Fig 2: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

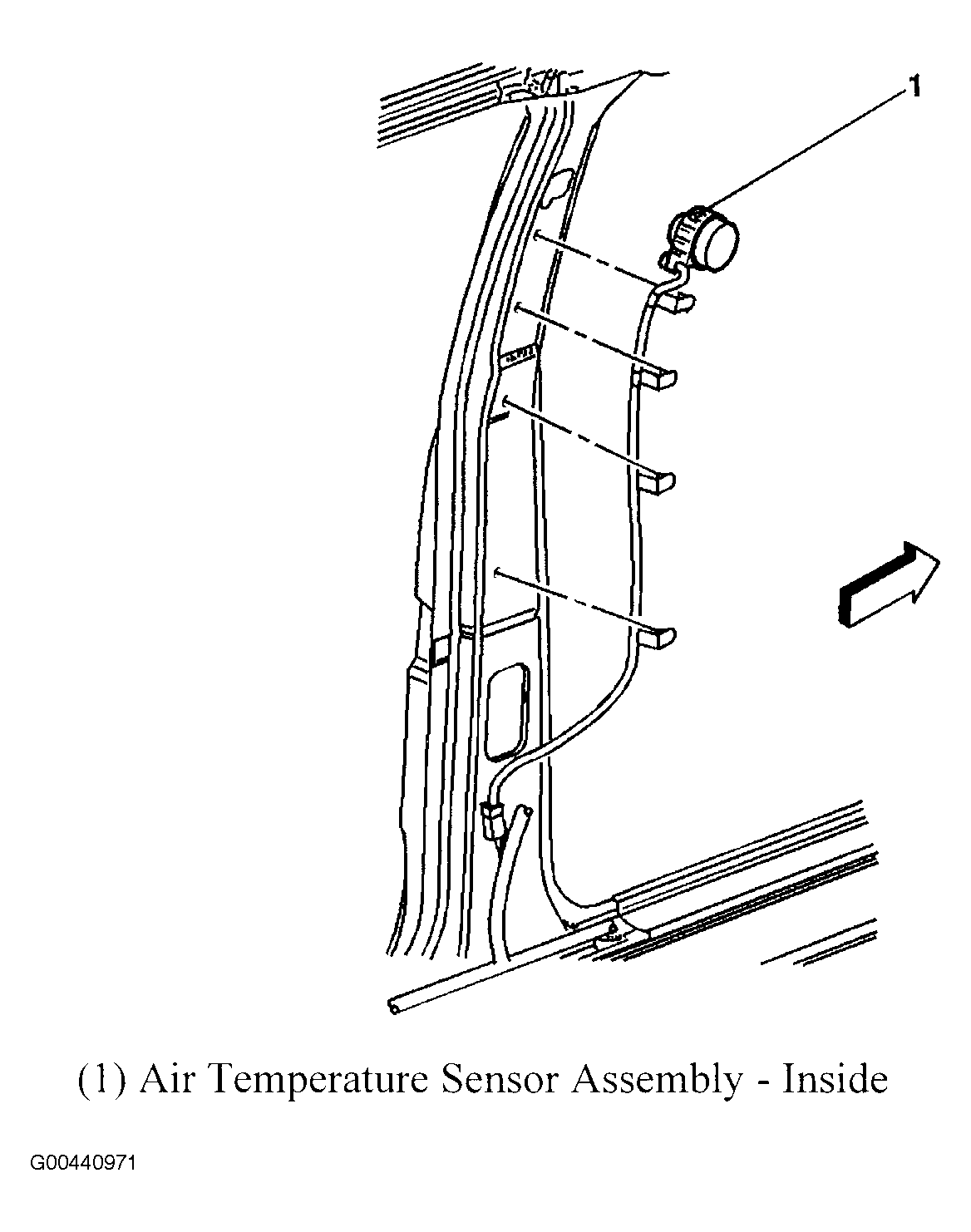

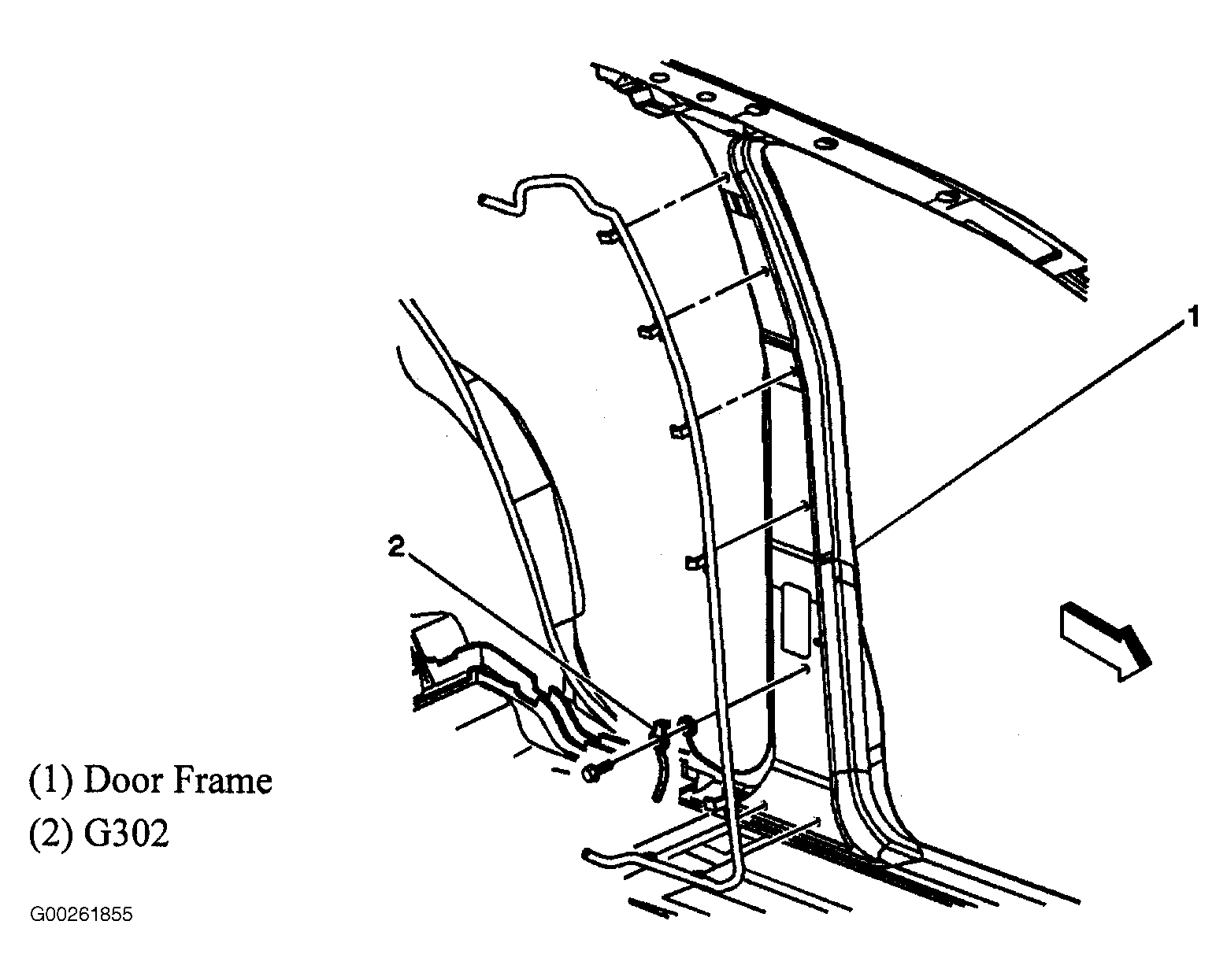

Fig 3: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

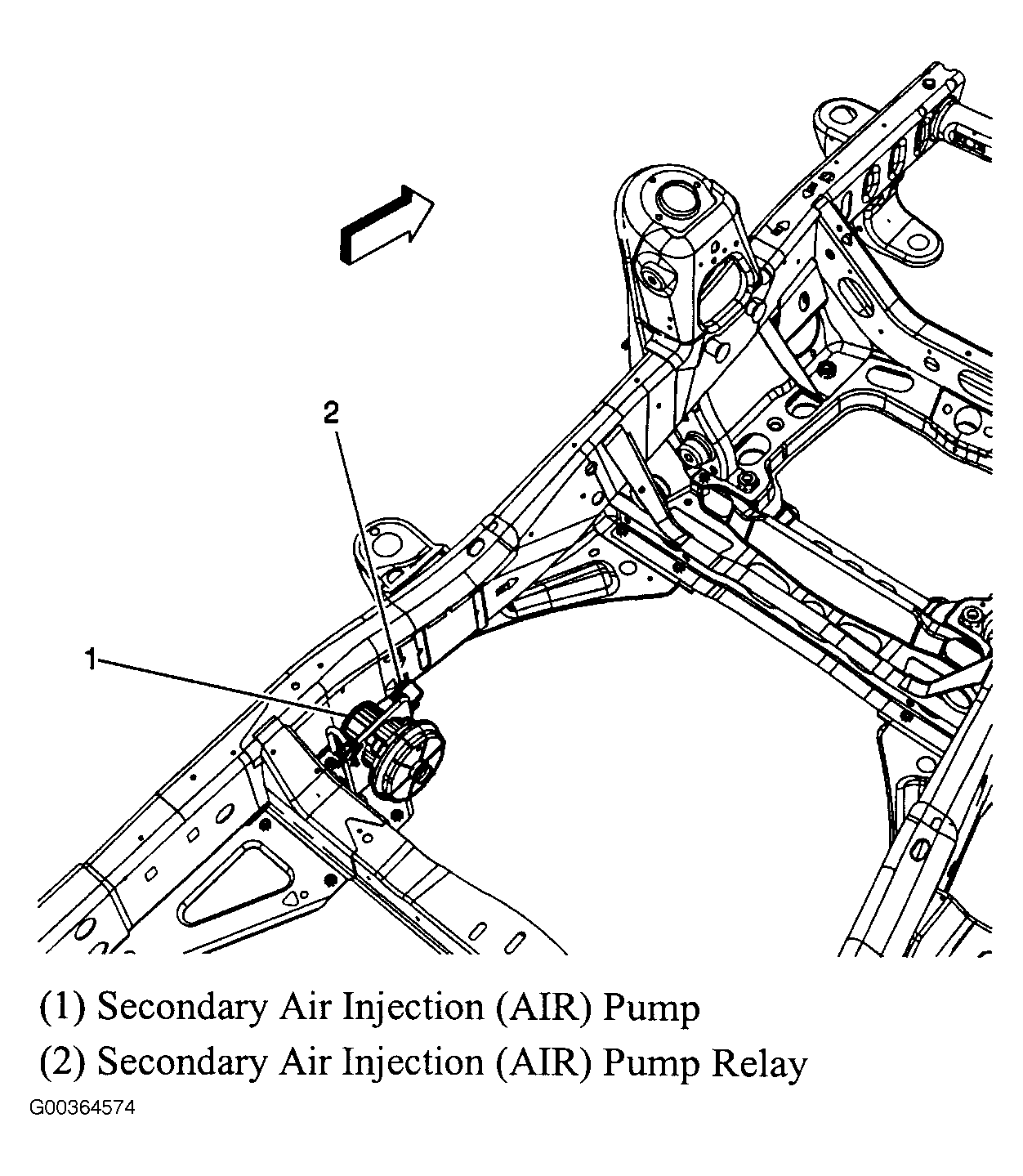

Fig 4: Left Frame Rail
Courtesy of GENERAL MOTORS CORP.

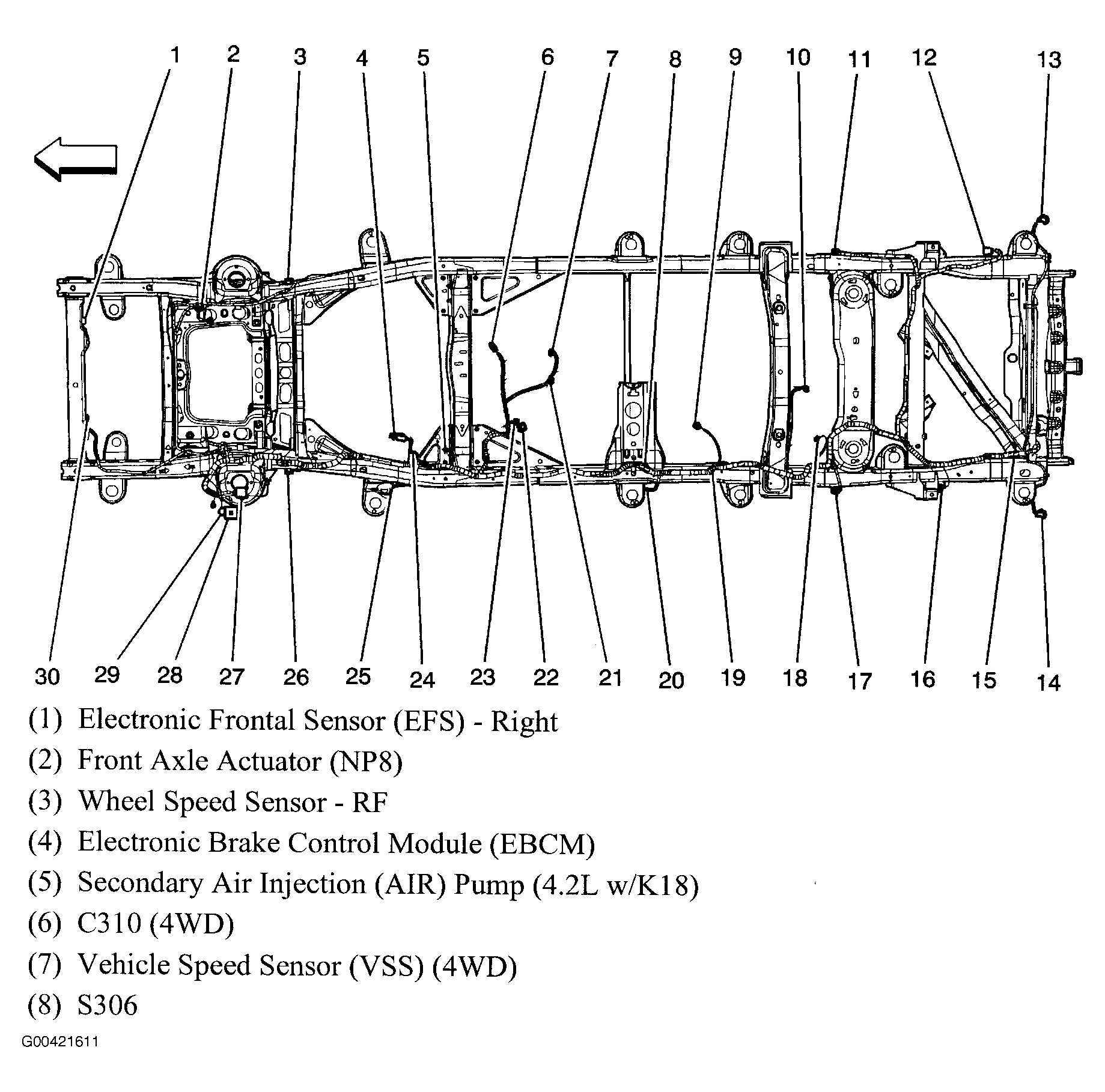

Fig 5: Vehicle Frame
Courtesy of GENERAL MOTORS CORP.

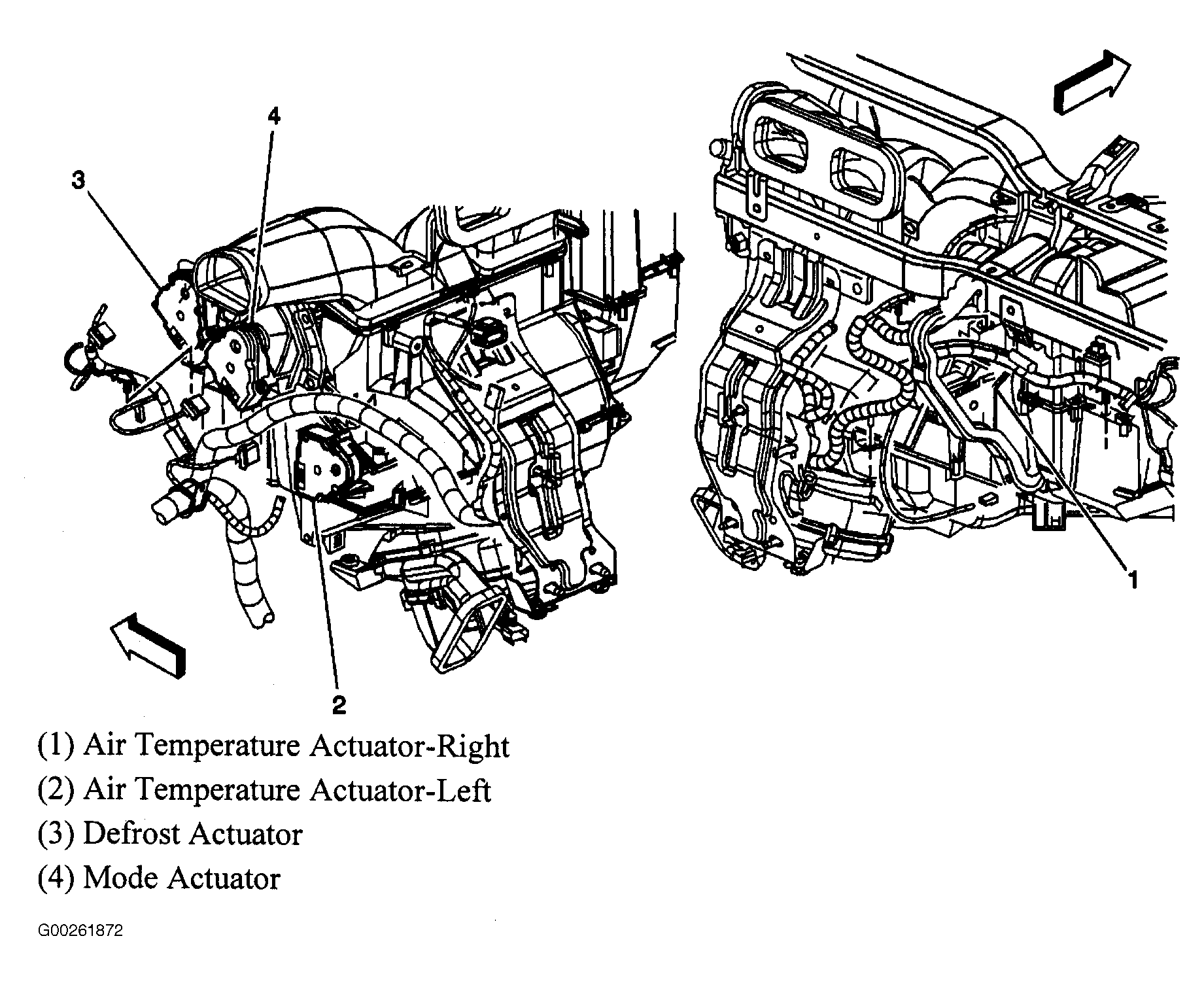

Fig 6: Left & Right Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 7: Dash Panel Carrier
Courtesy of GENERAL MOTORS CORP.

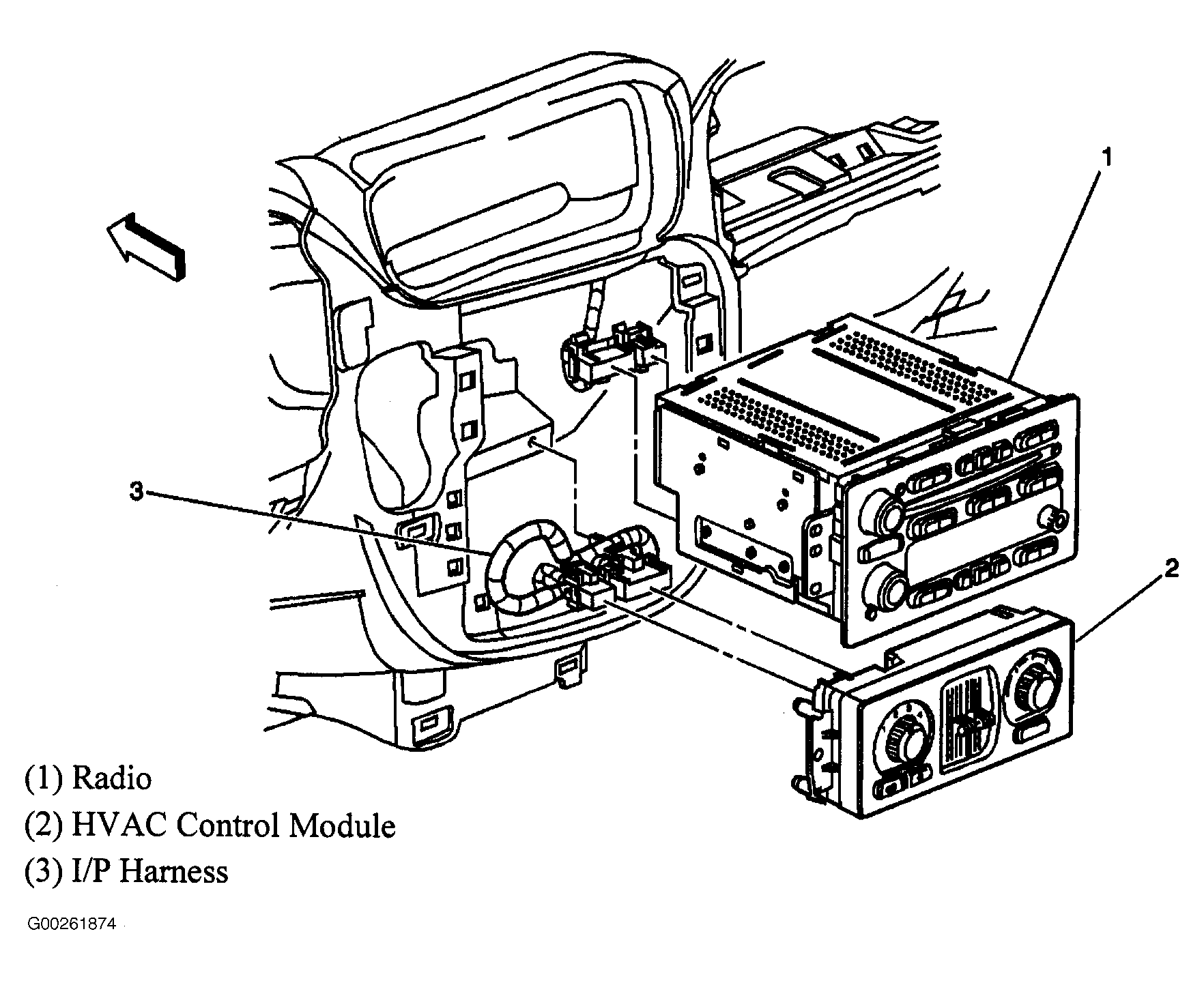

Fig 8: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 9: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 10: Rear Frame & Underbody
Courtesy of GENERAL MOTORS CORP.

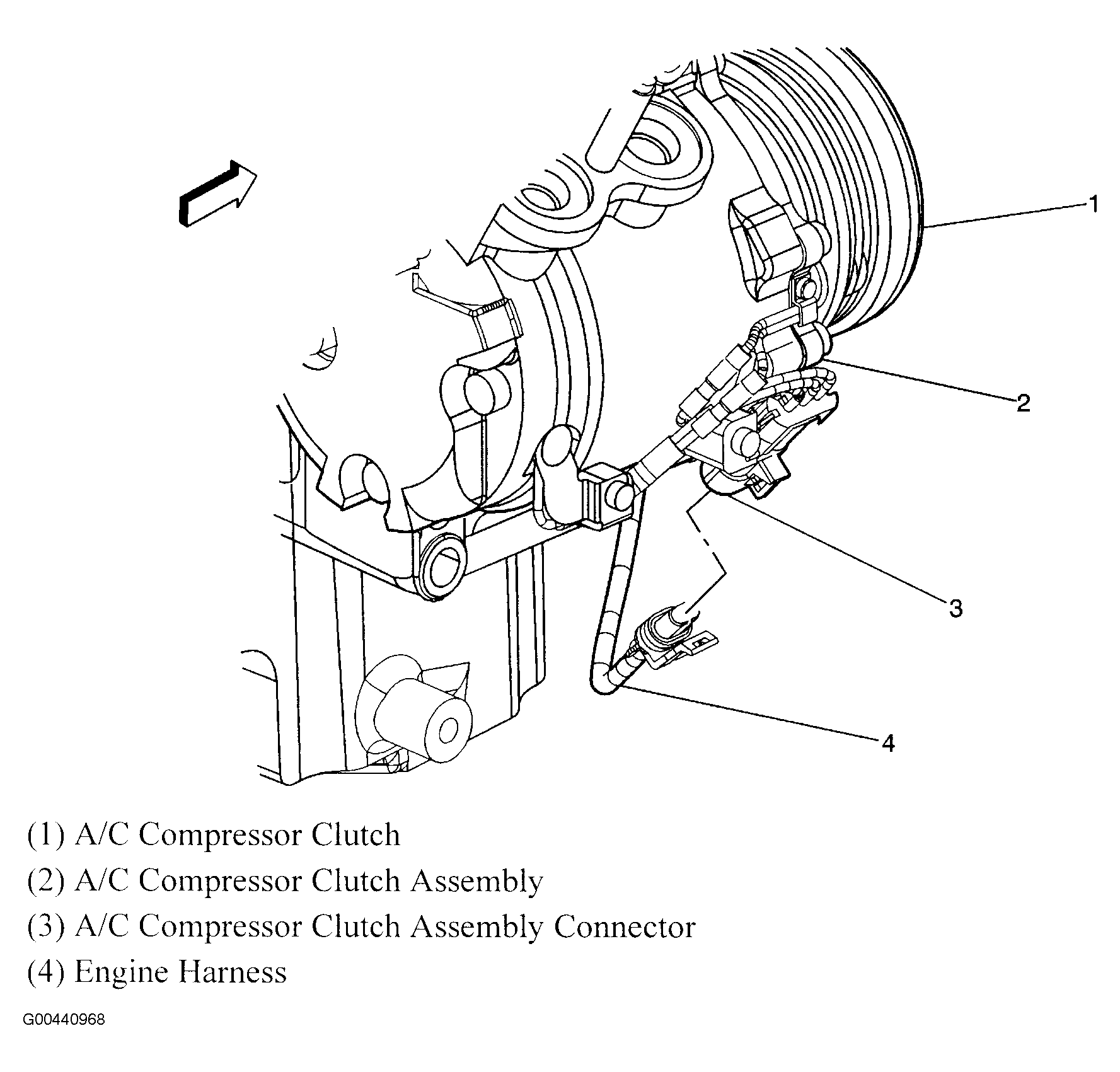

Fig 11: Right Front Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.

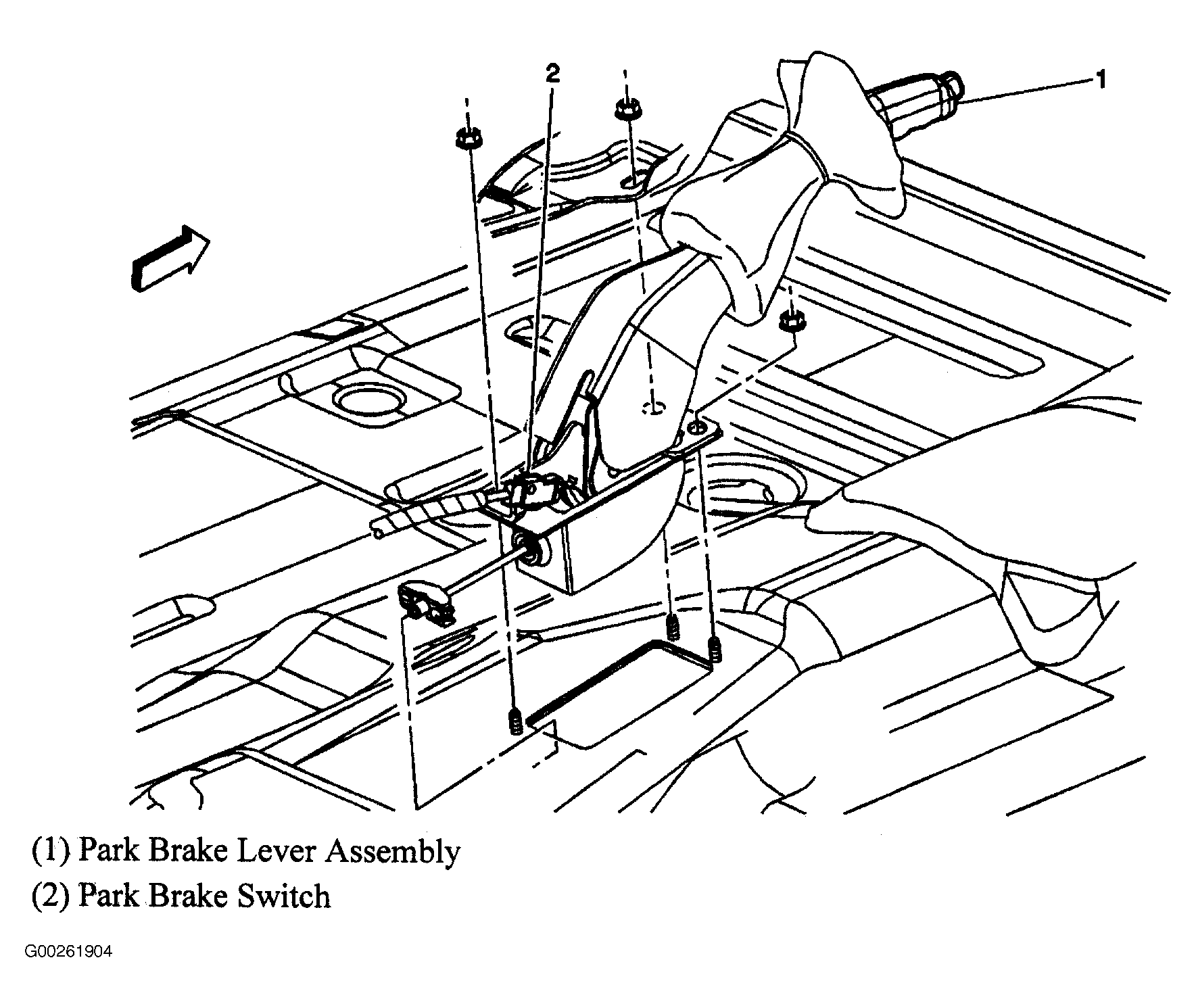

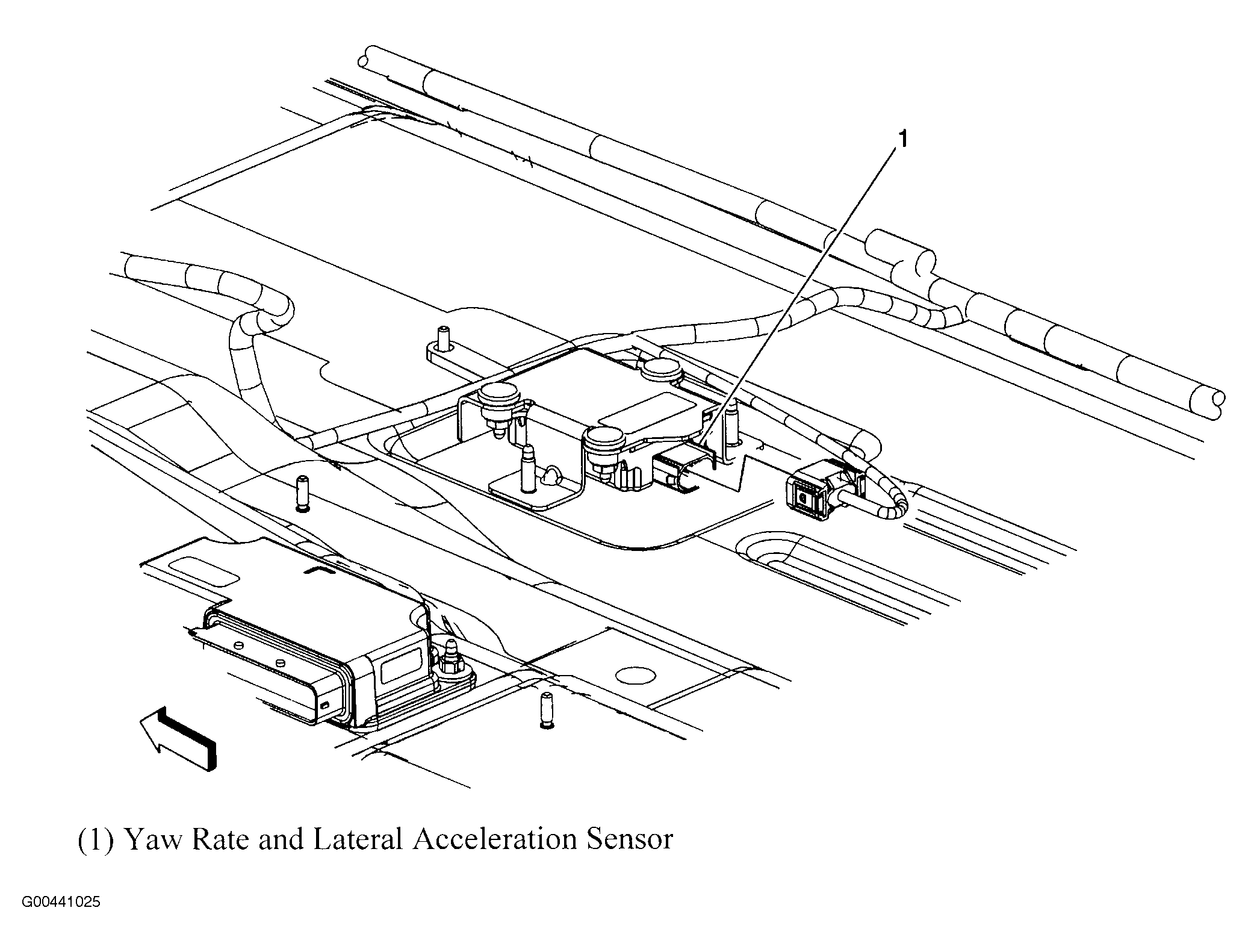

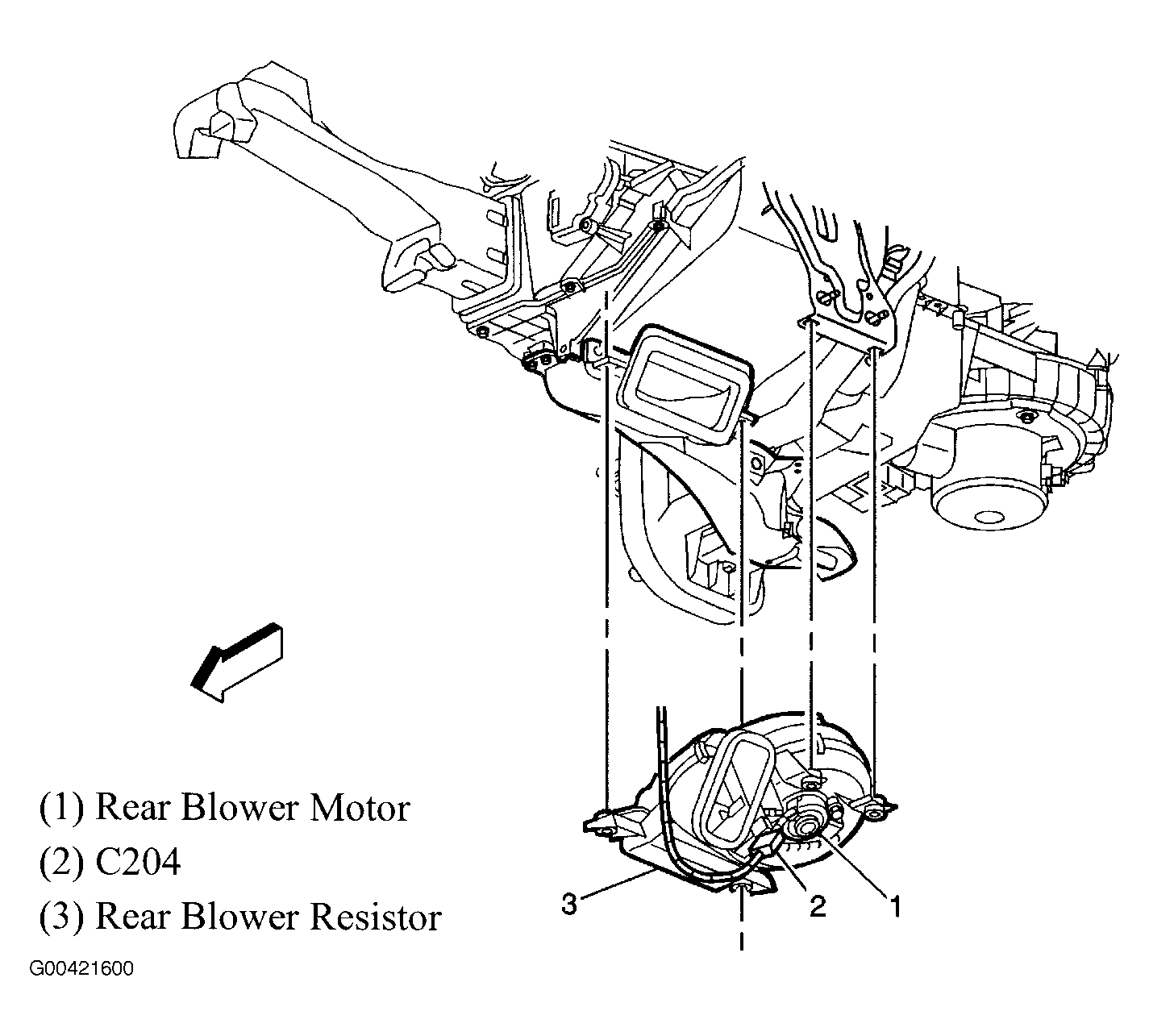

Fig 12: Center Floor Pan
Courtesy of GENERAL MOTORS CORP.

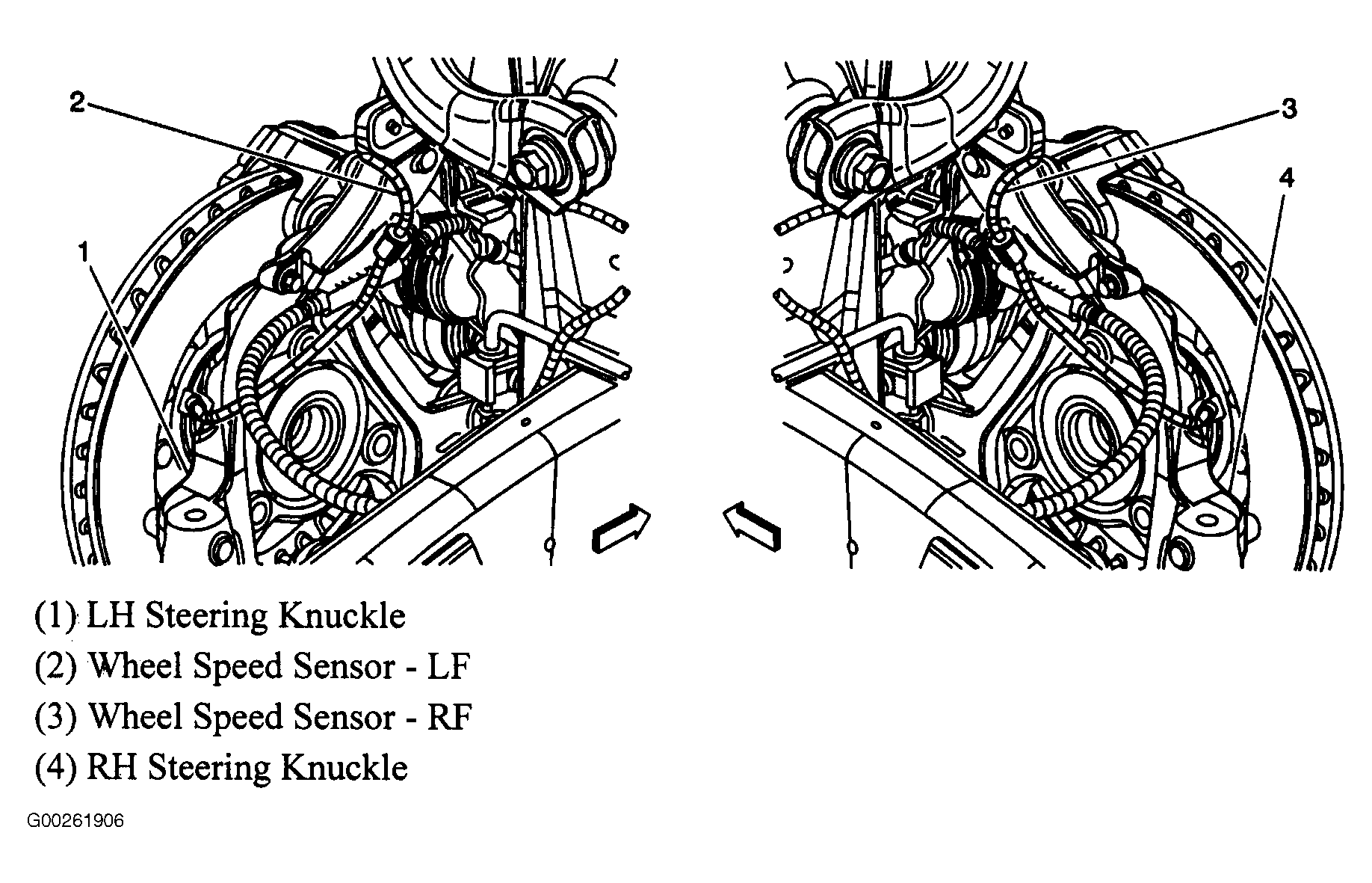

Fig 13: Front Hubs & Rotors
Courtesy of GENERAL MOTORS CORP.
Fig 14: Center Of Floor Pan
Courtesy of GENERAL MOTORS CORP.

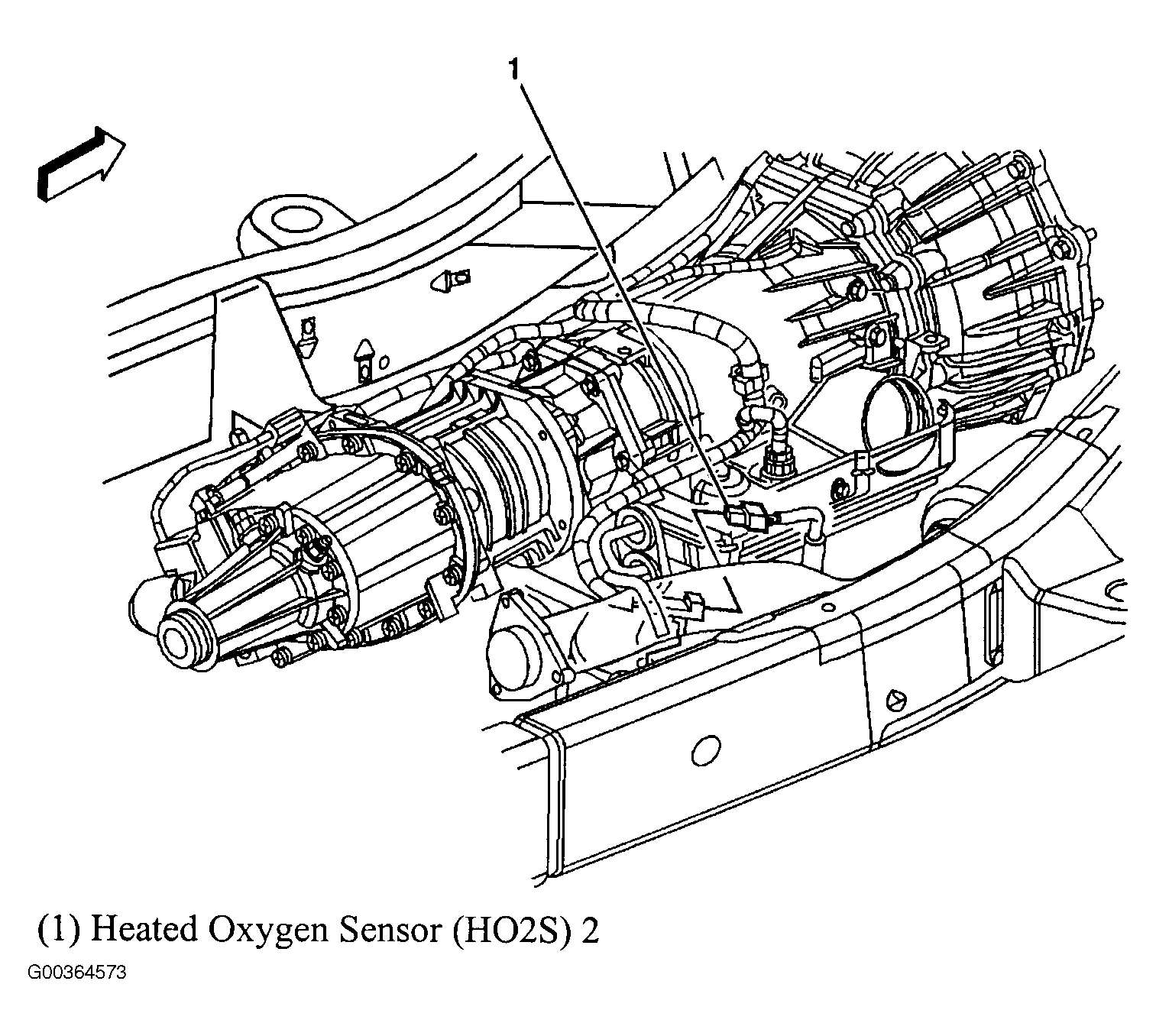

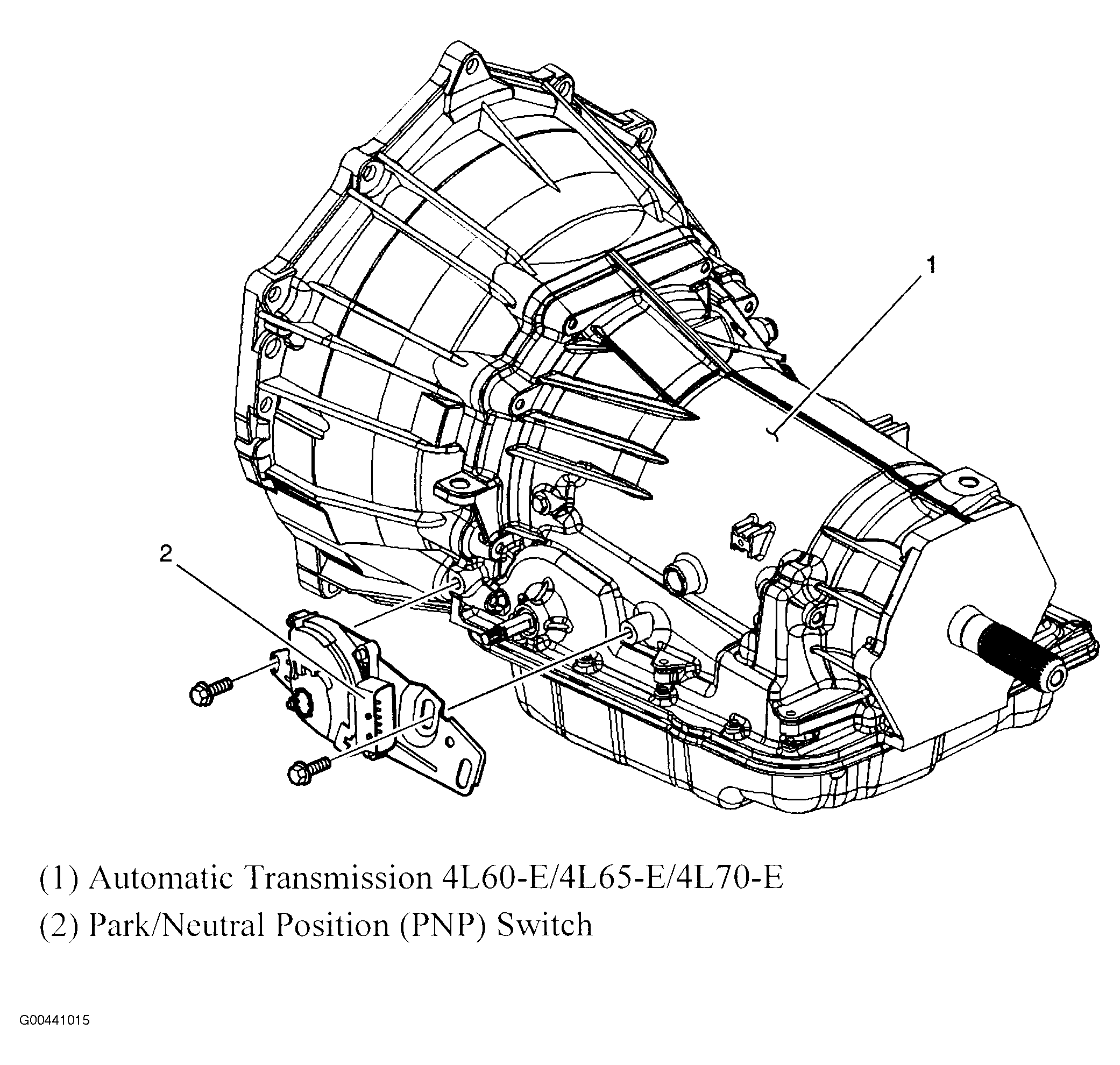

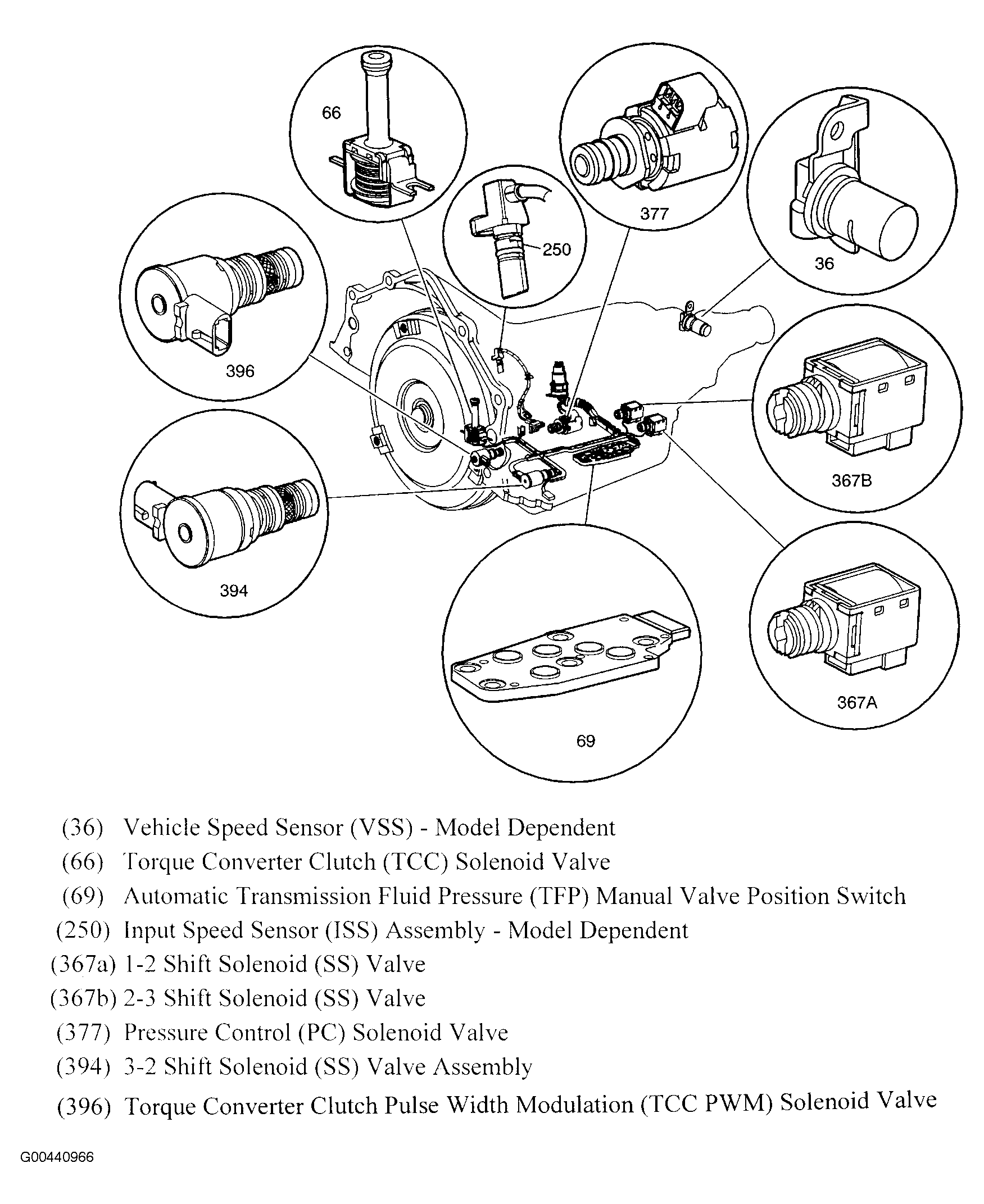

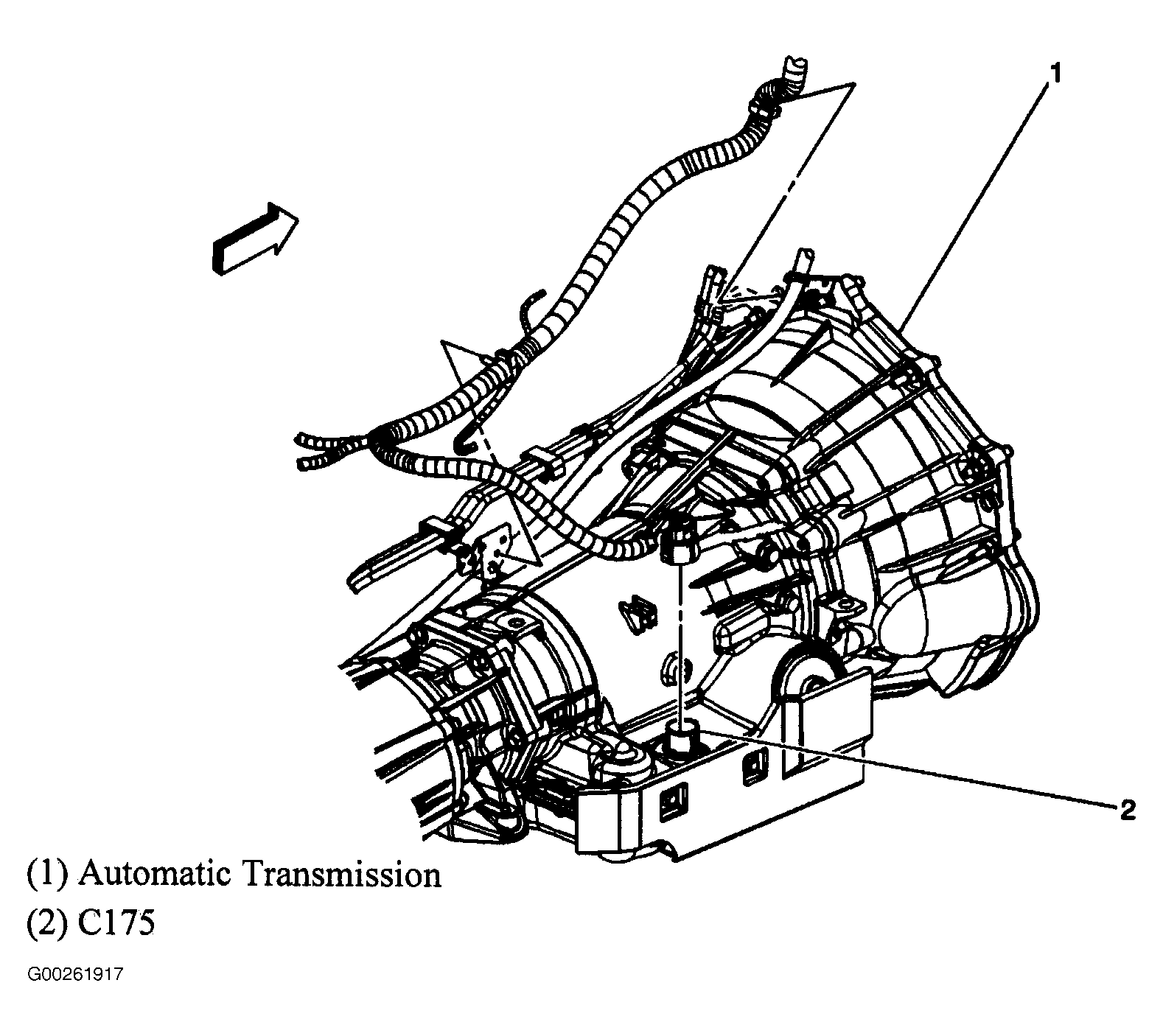

Fig 15: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

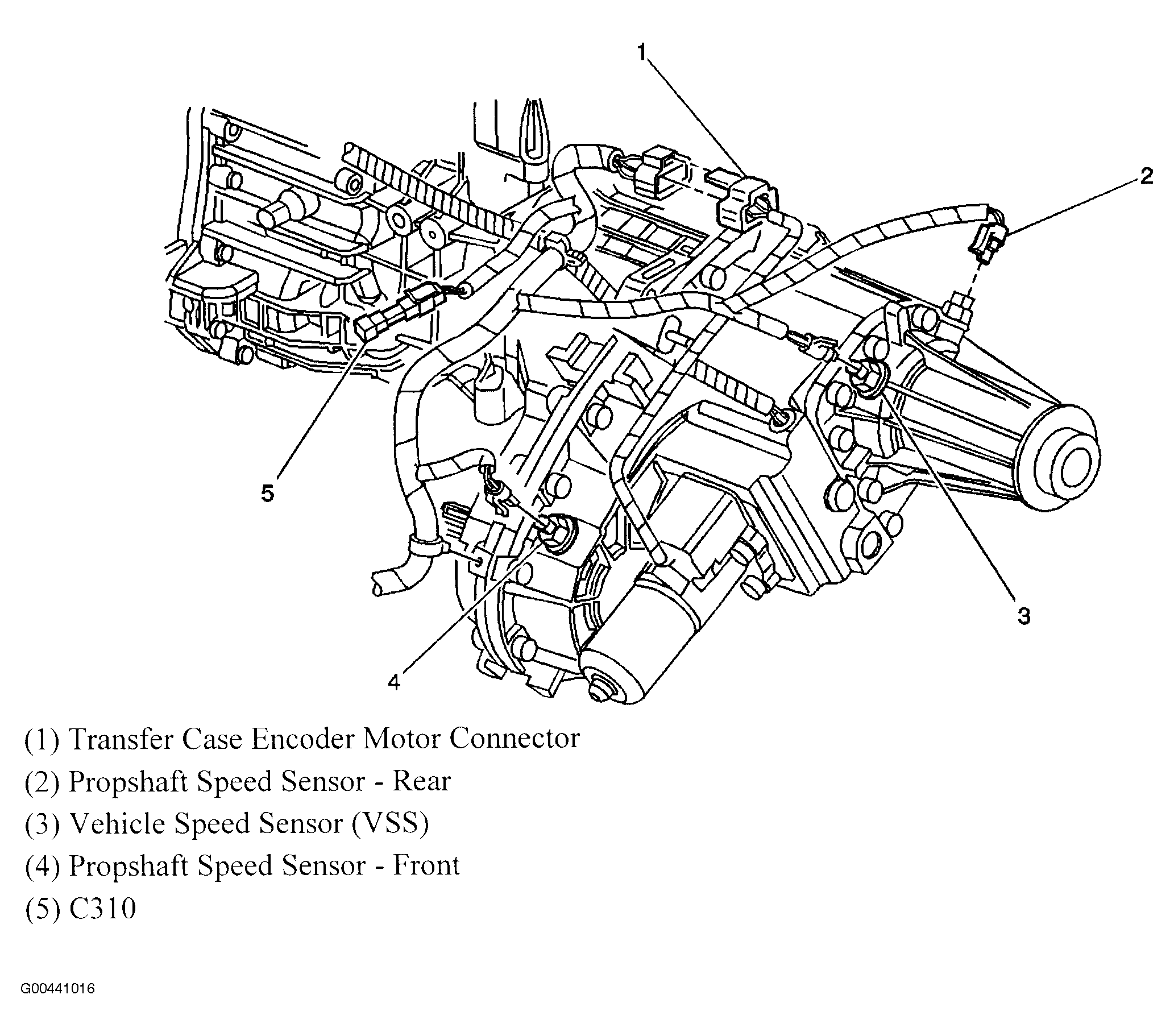

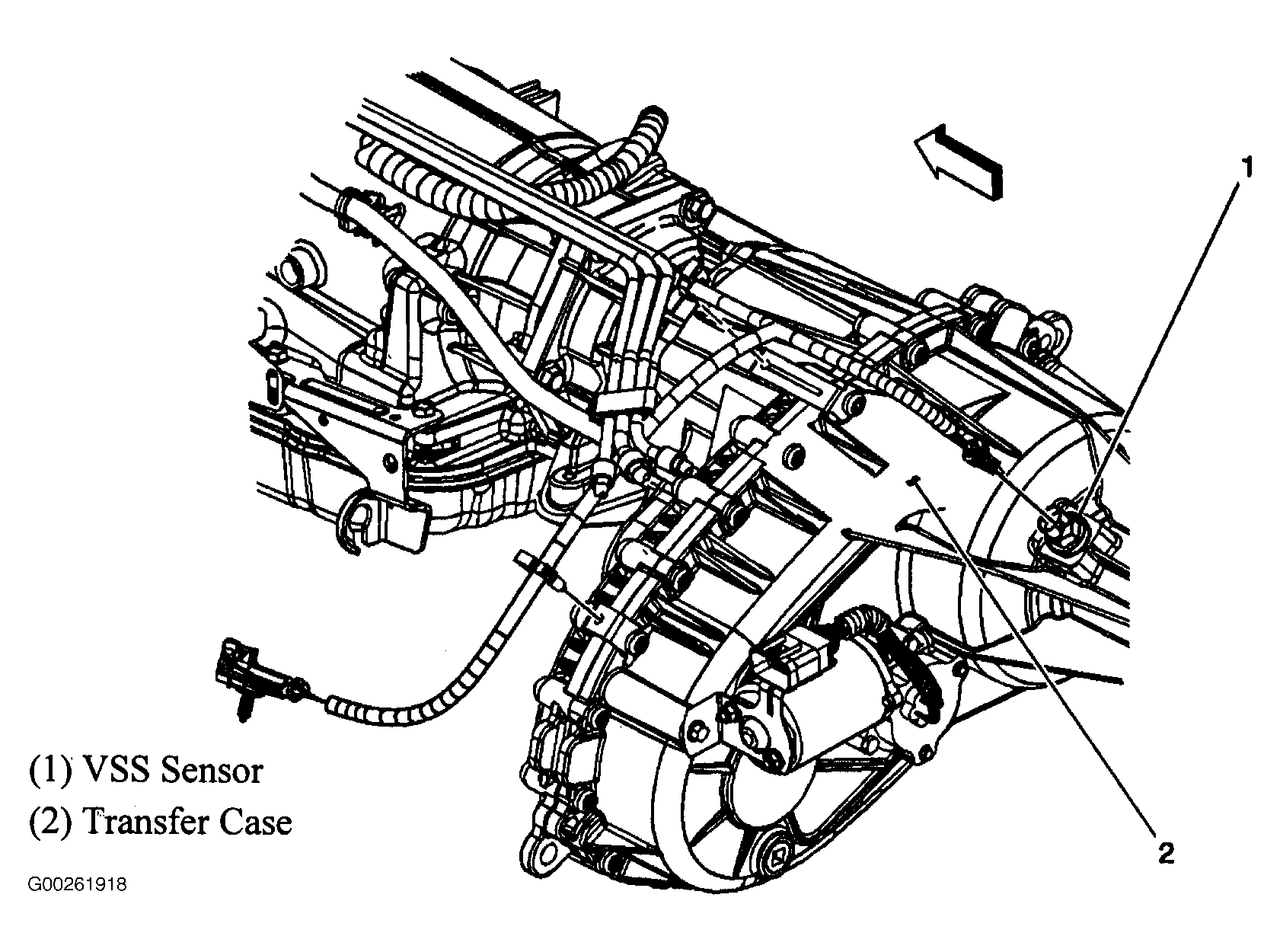

Fig 16: Transfer Case
Courtesy of GENERAL MOTORS CORP.

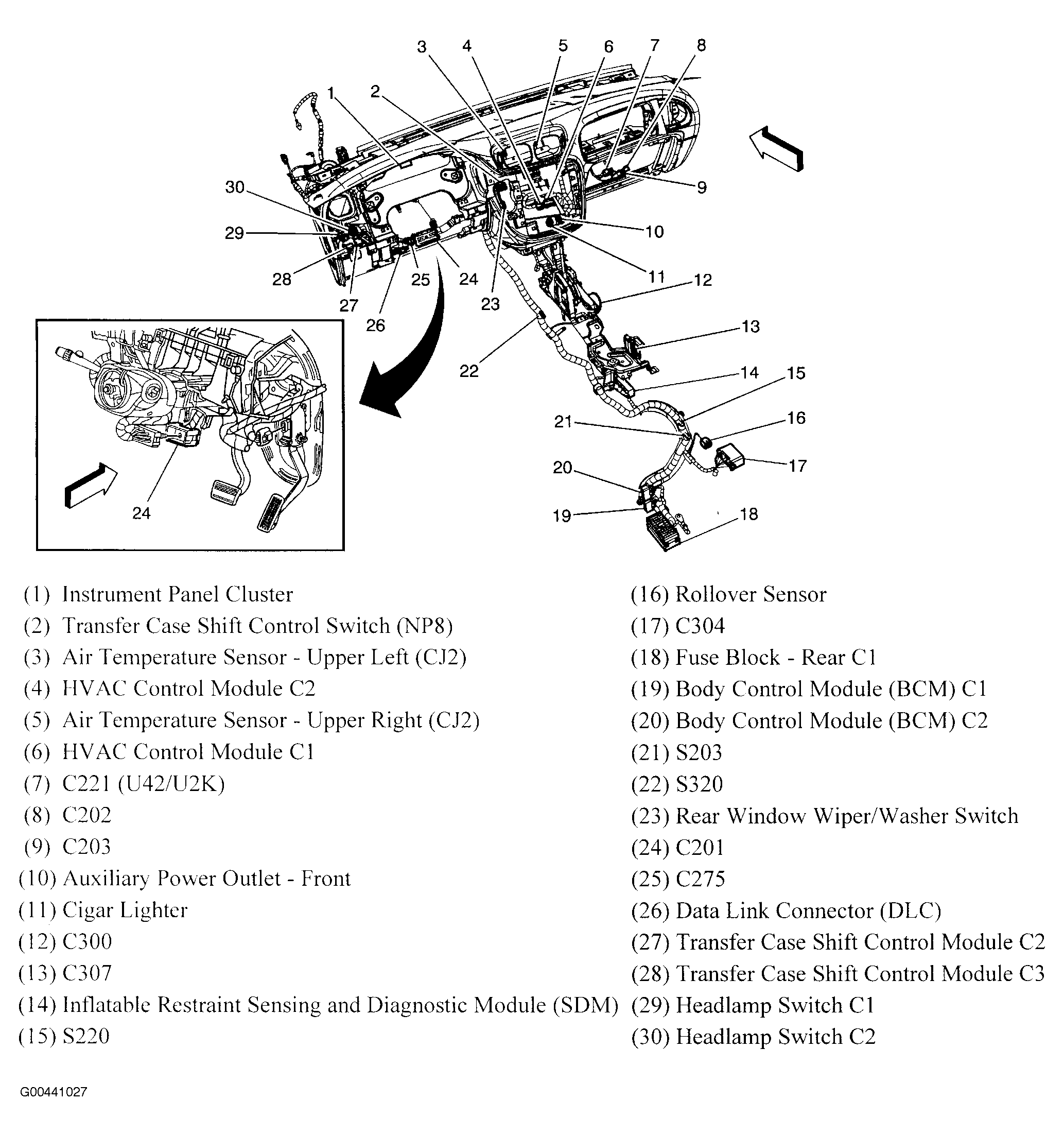

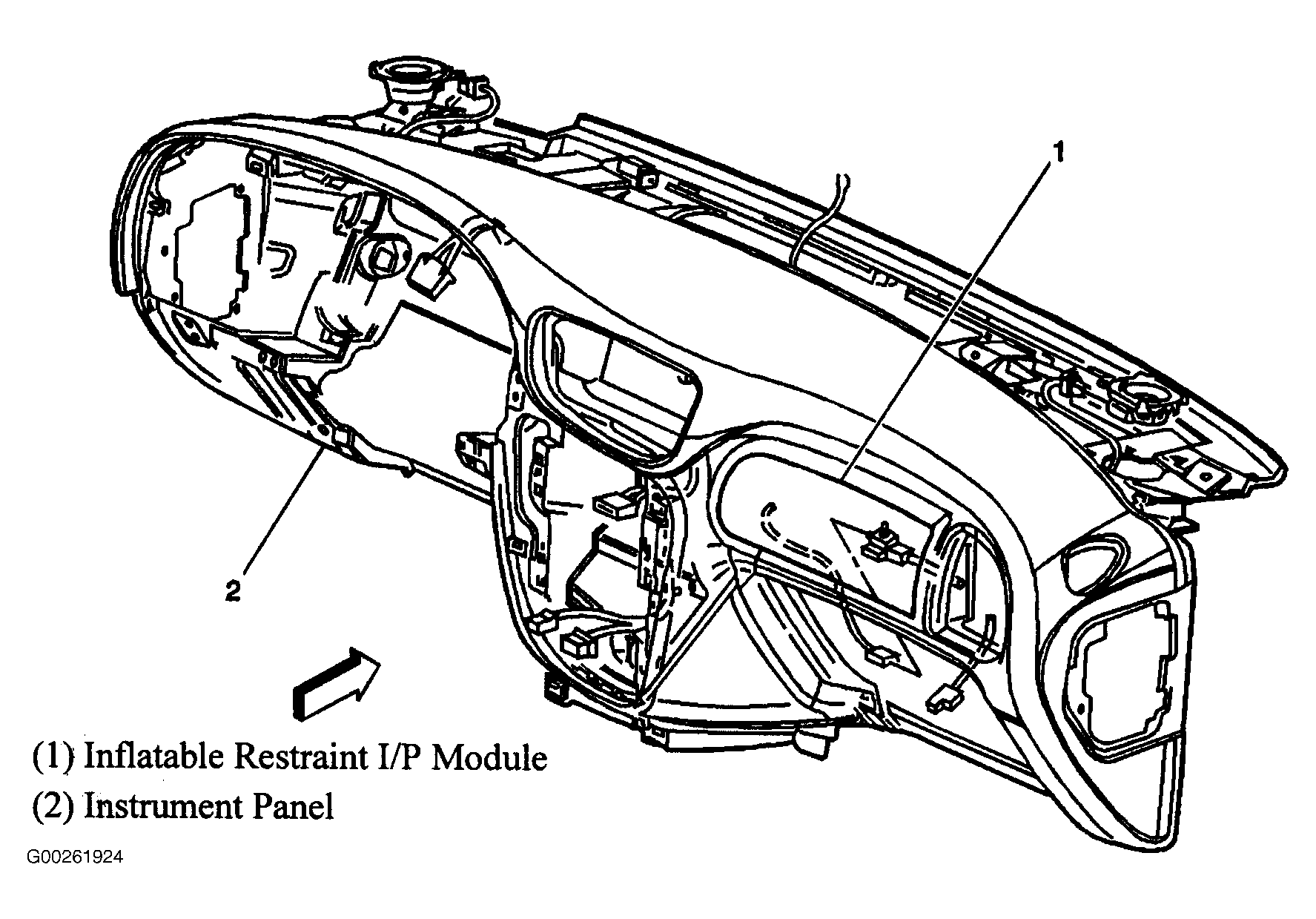

Fig 17: Dash Assembly
Courtesy of GENERAL MOTORS CORP.

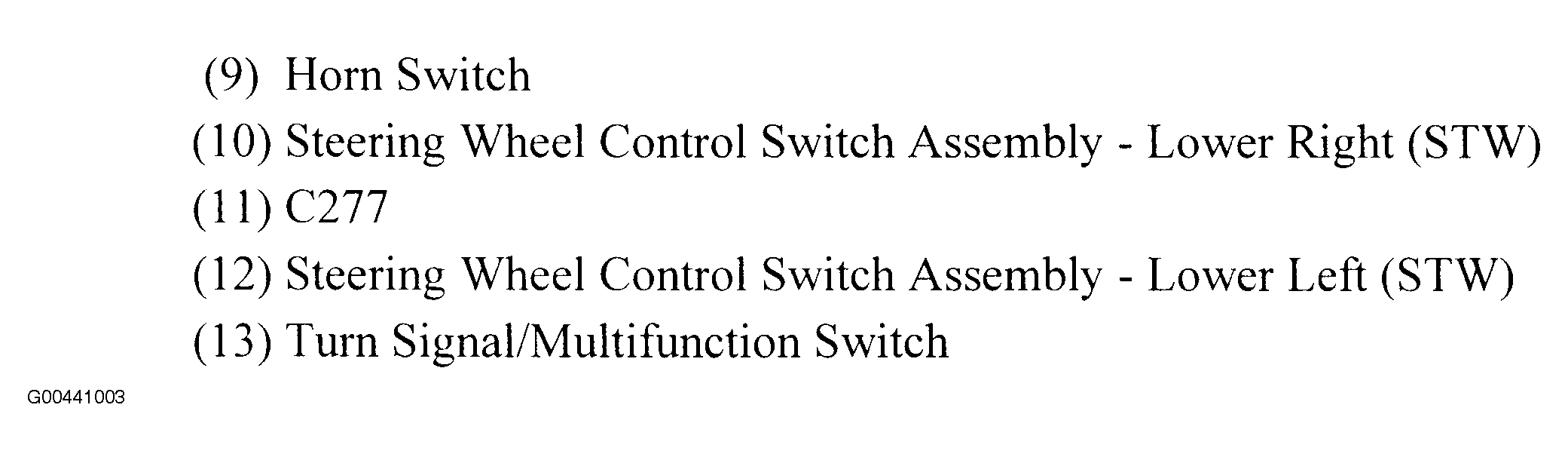

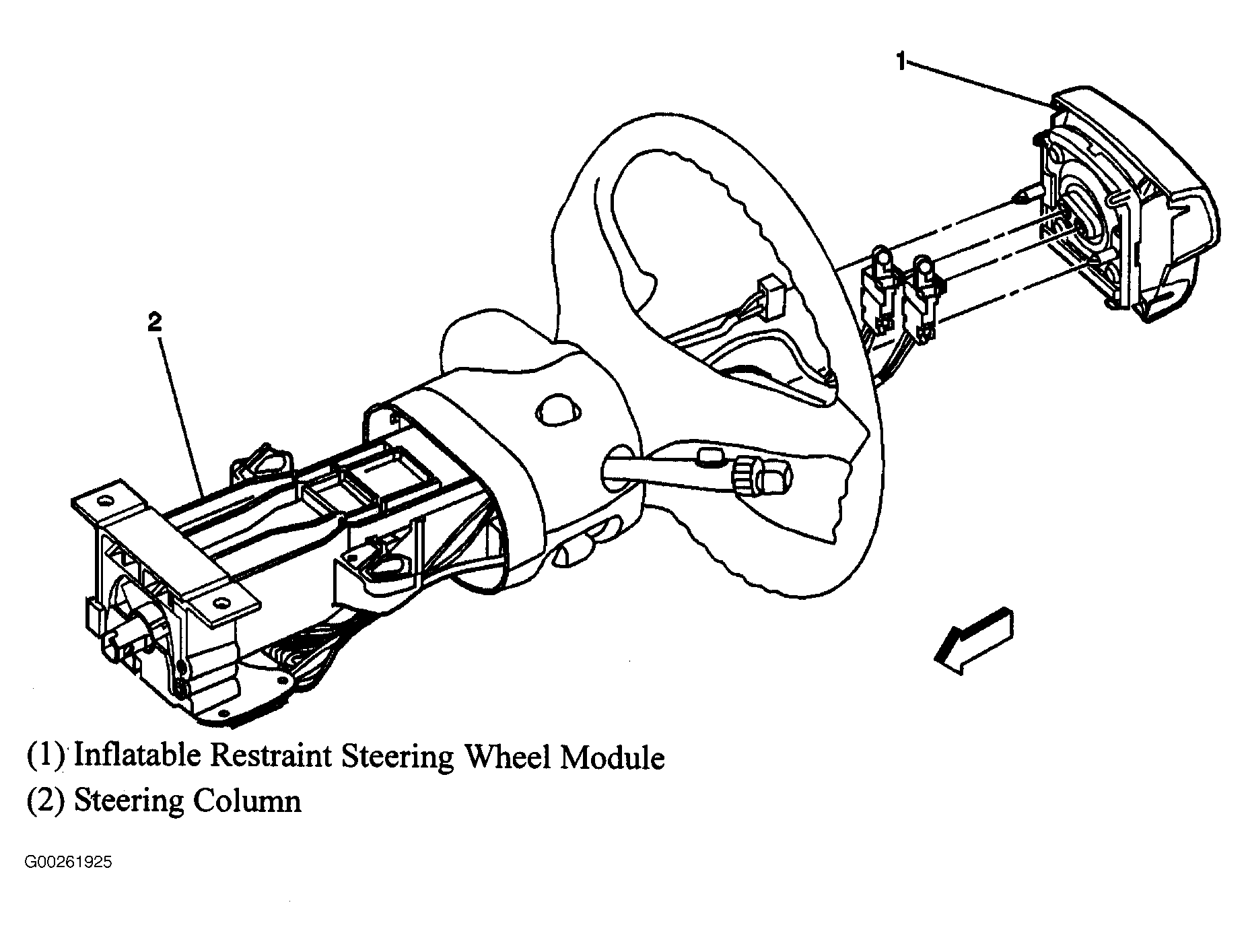

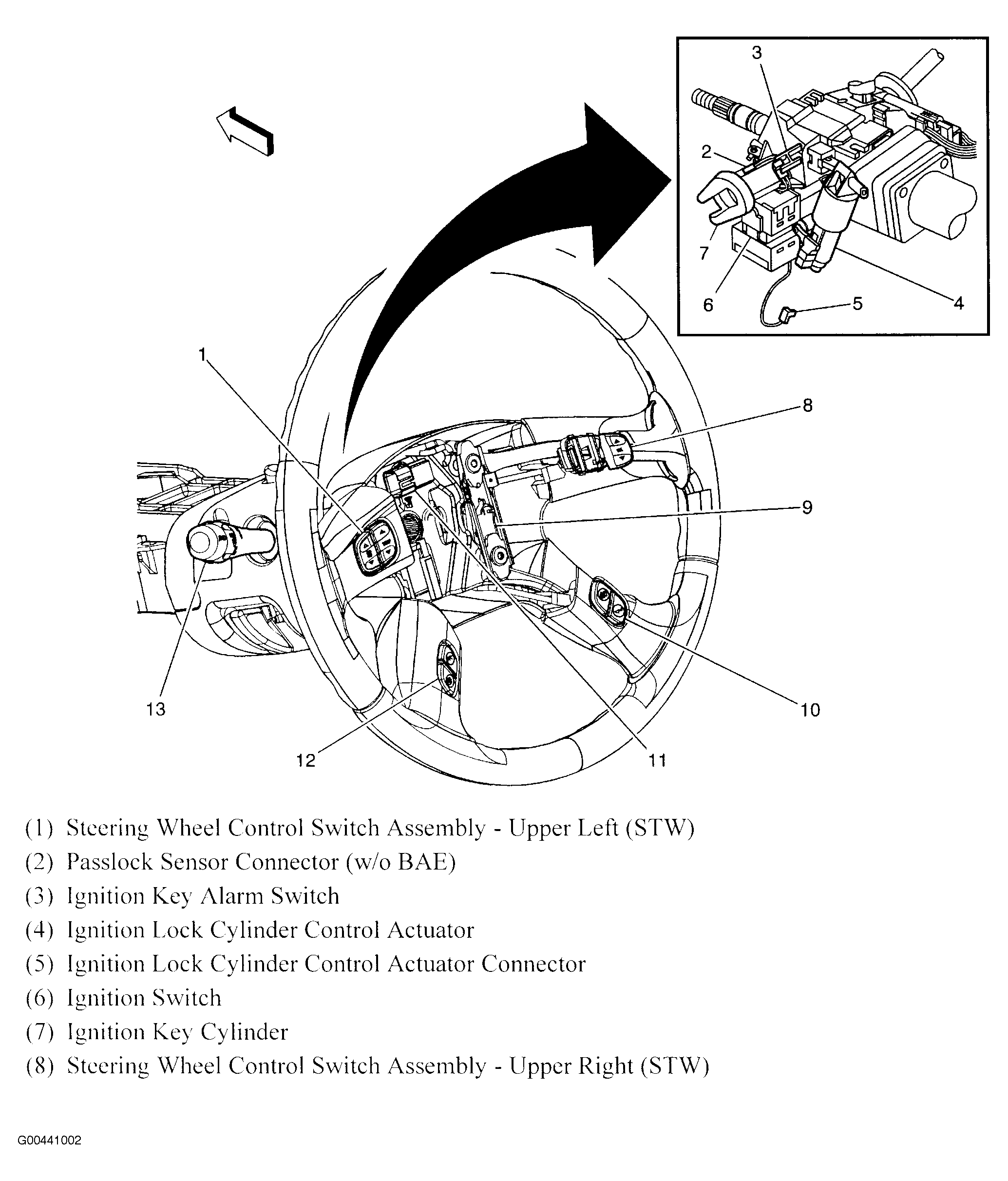

Fig 18: Steering Wheel Assembly
Courtesy of GENERAL MOTORS CORP.

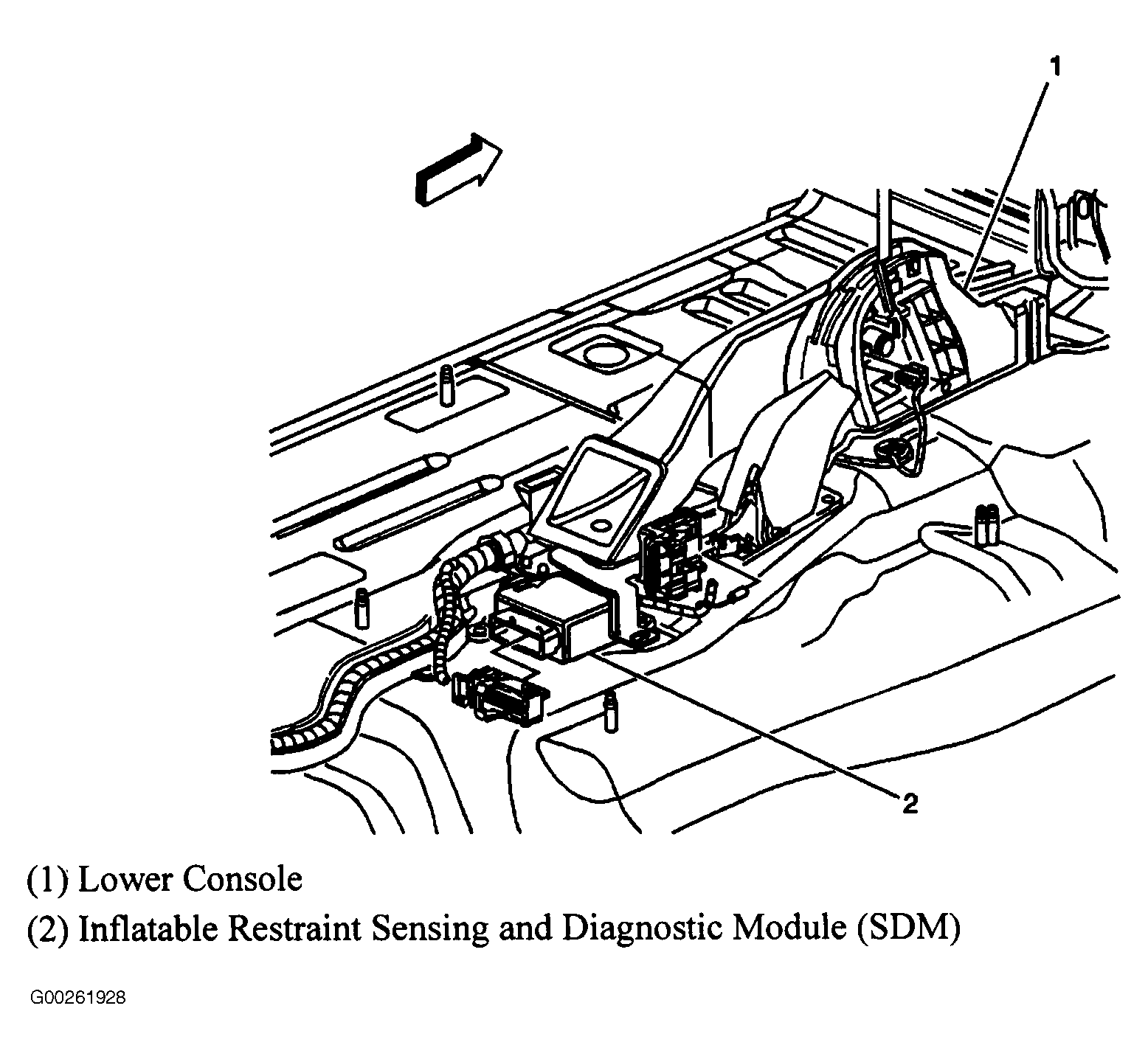

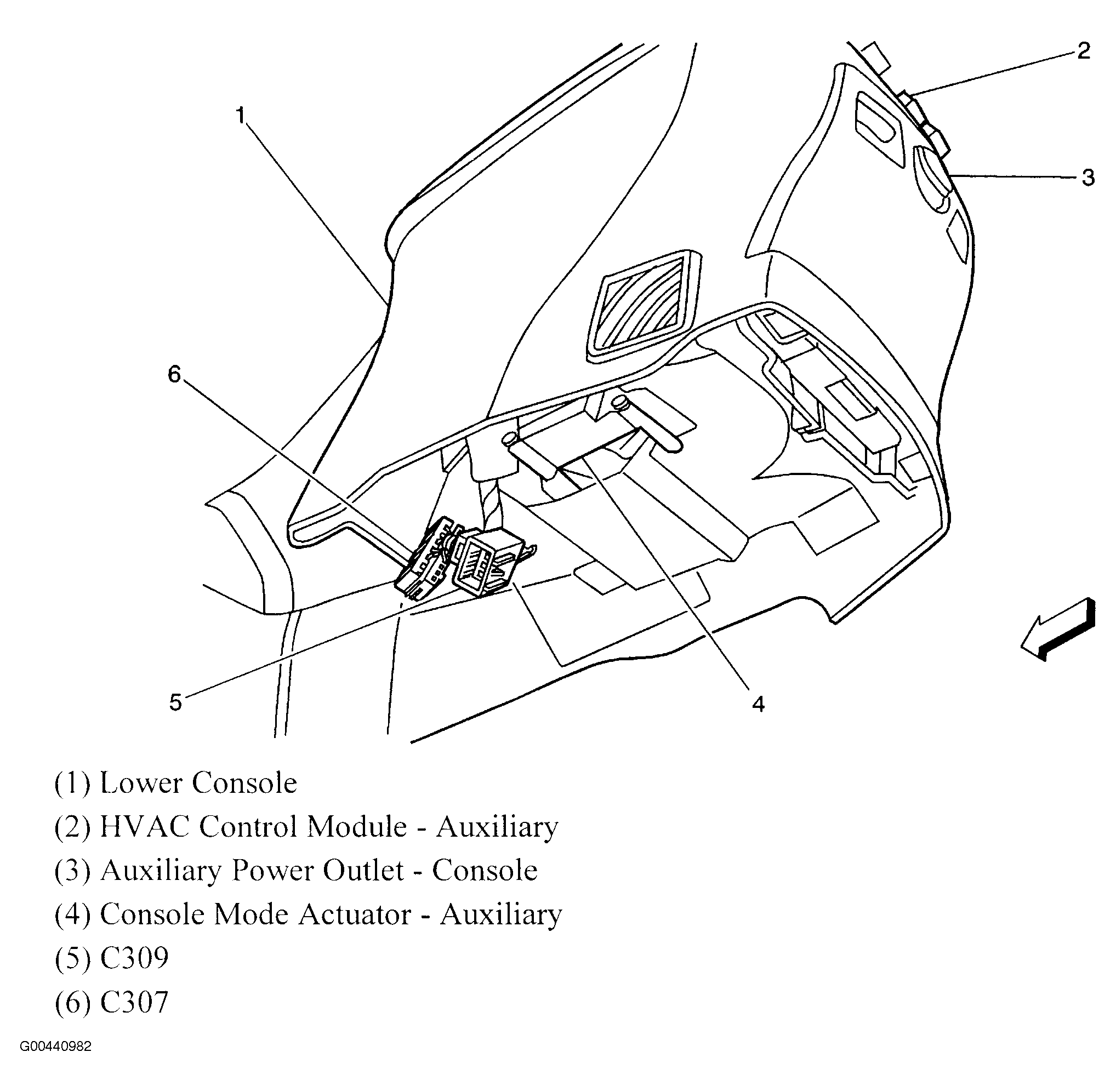

Fig 19: Lower Console
Courtesy of GENERAL MOTORS CORP.
Fig 20: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

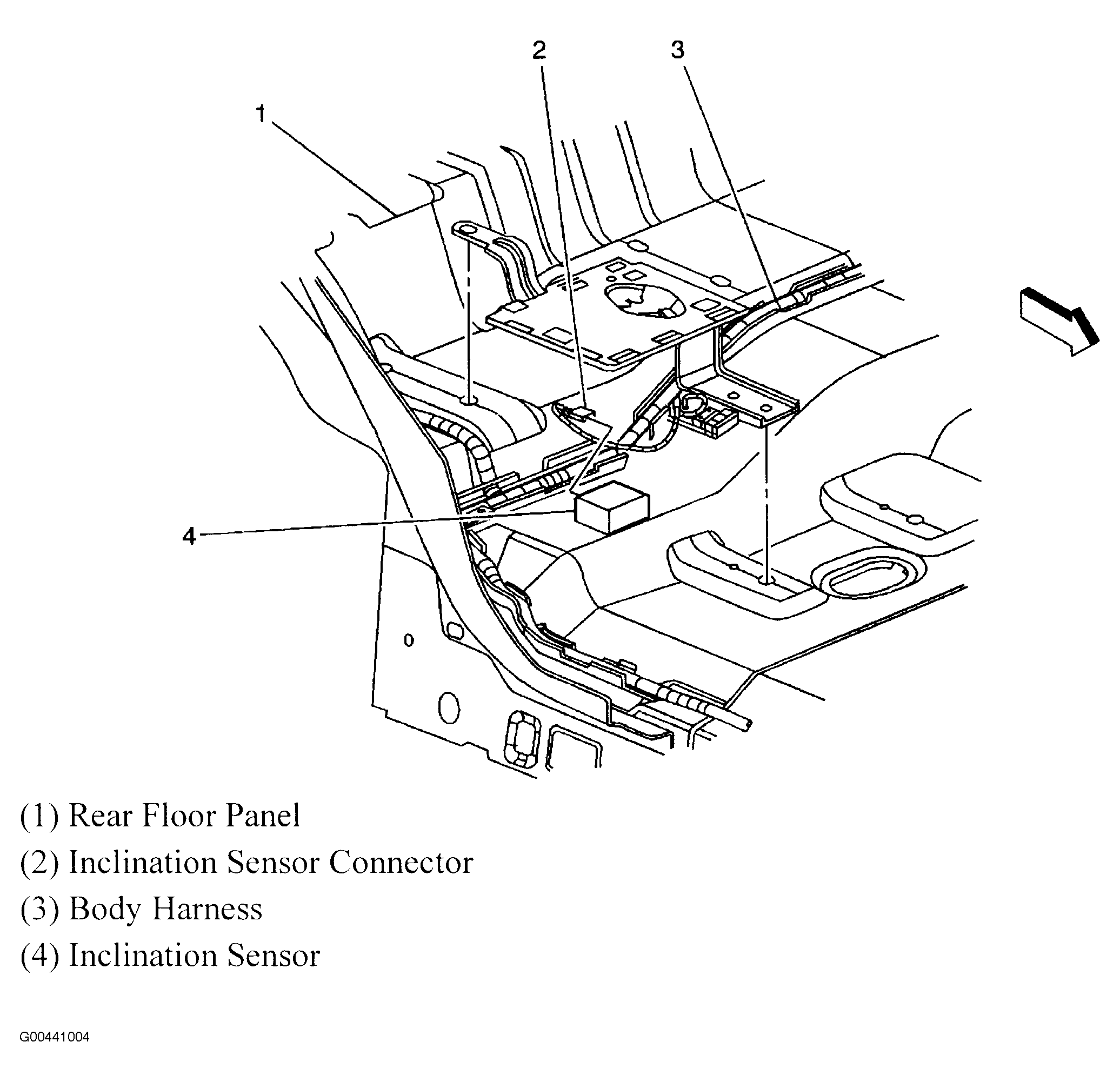

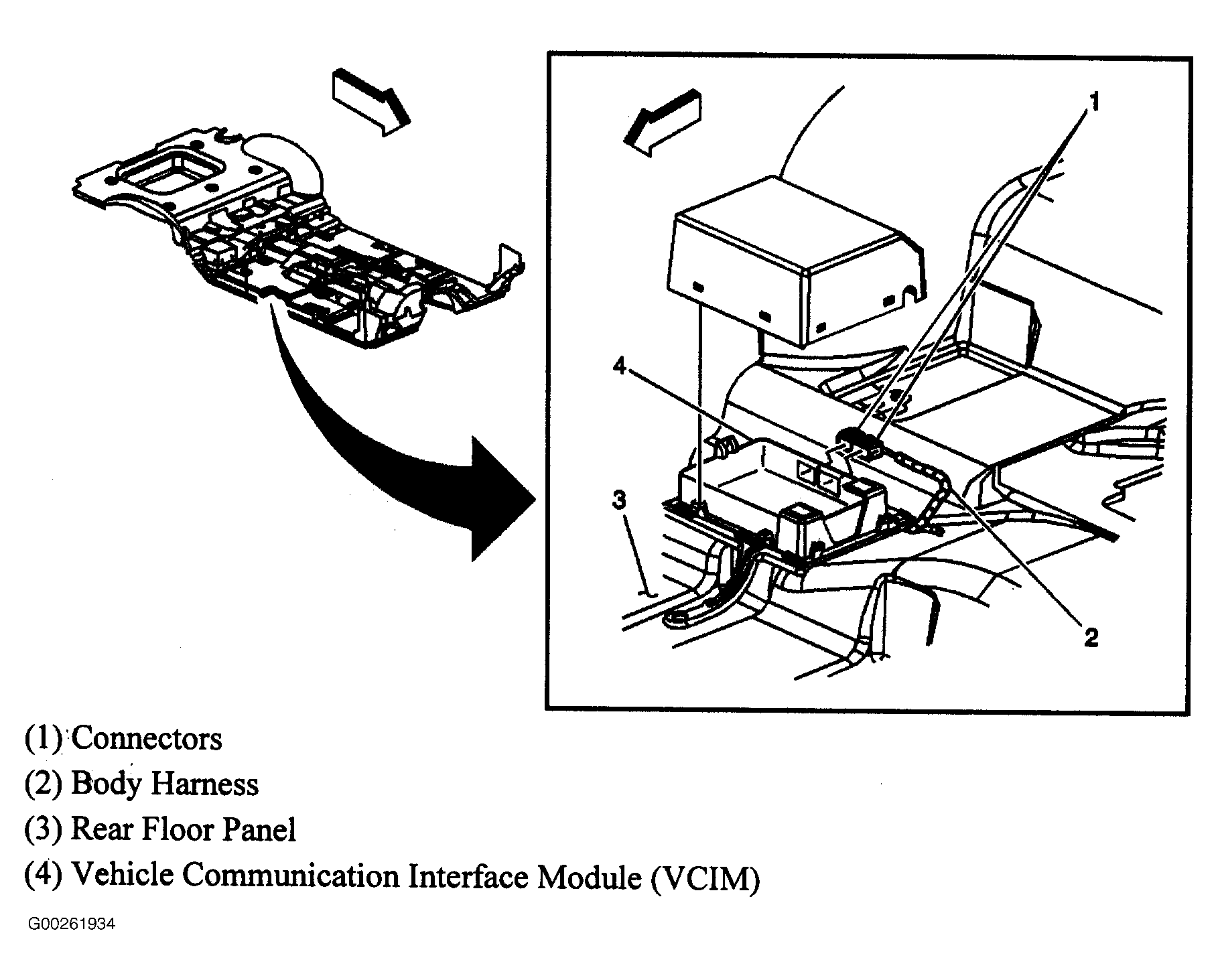

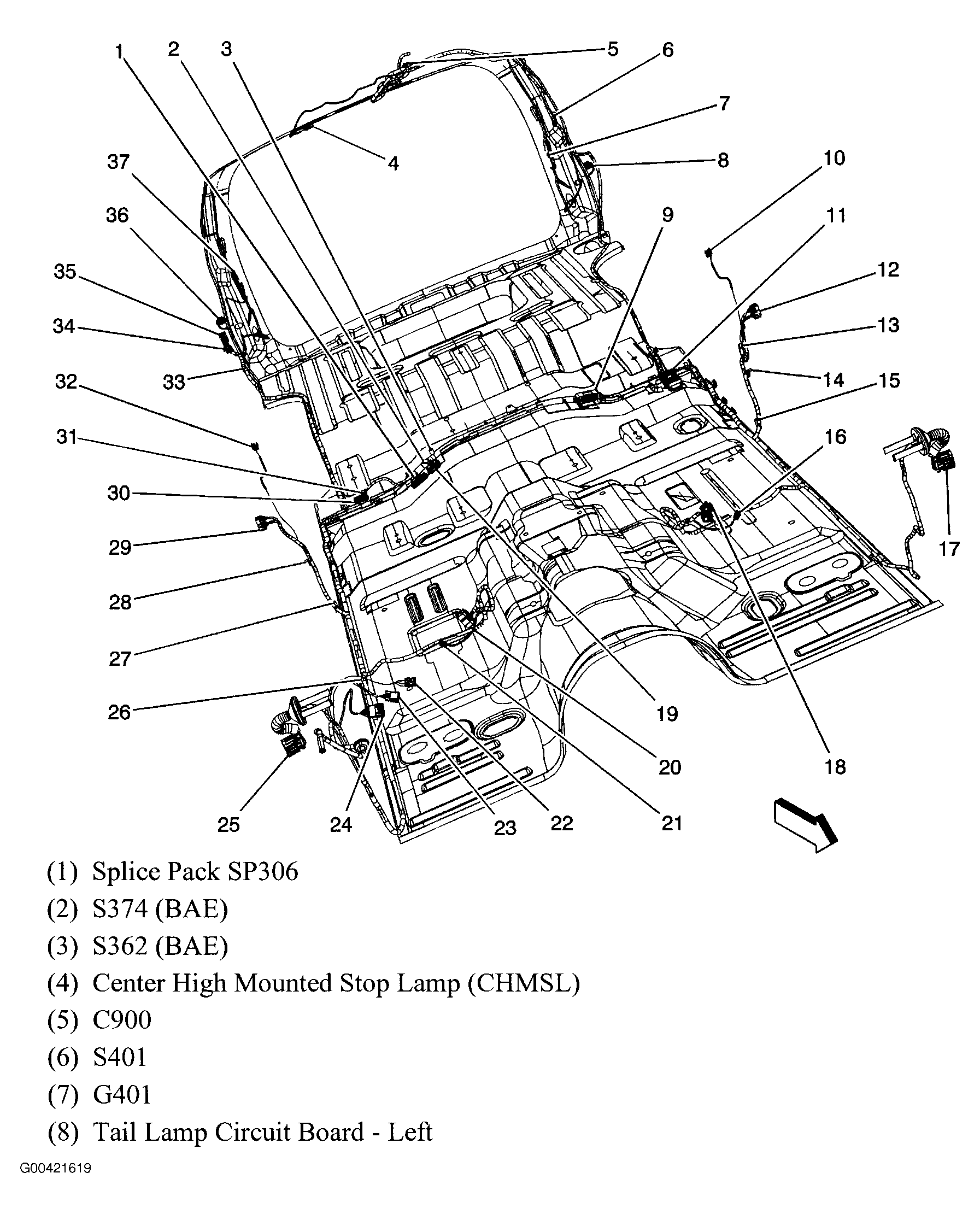

Fig 21: Rear Floor Panel
Courtesy of GENERAL MOTORS CORP.

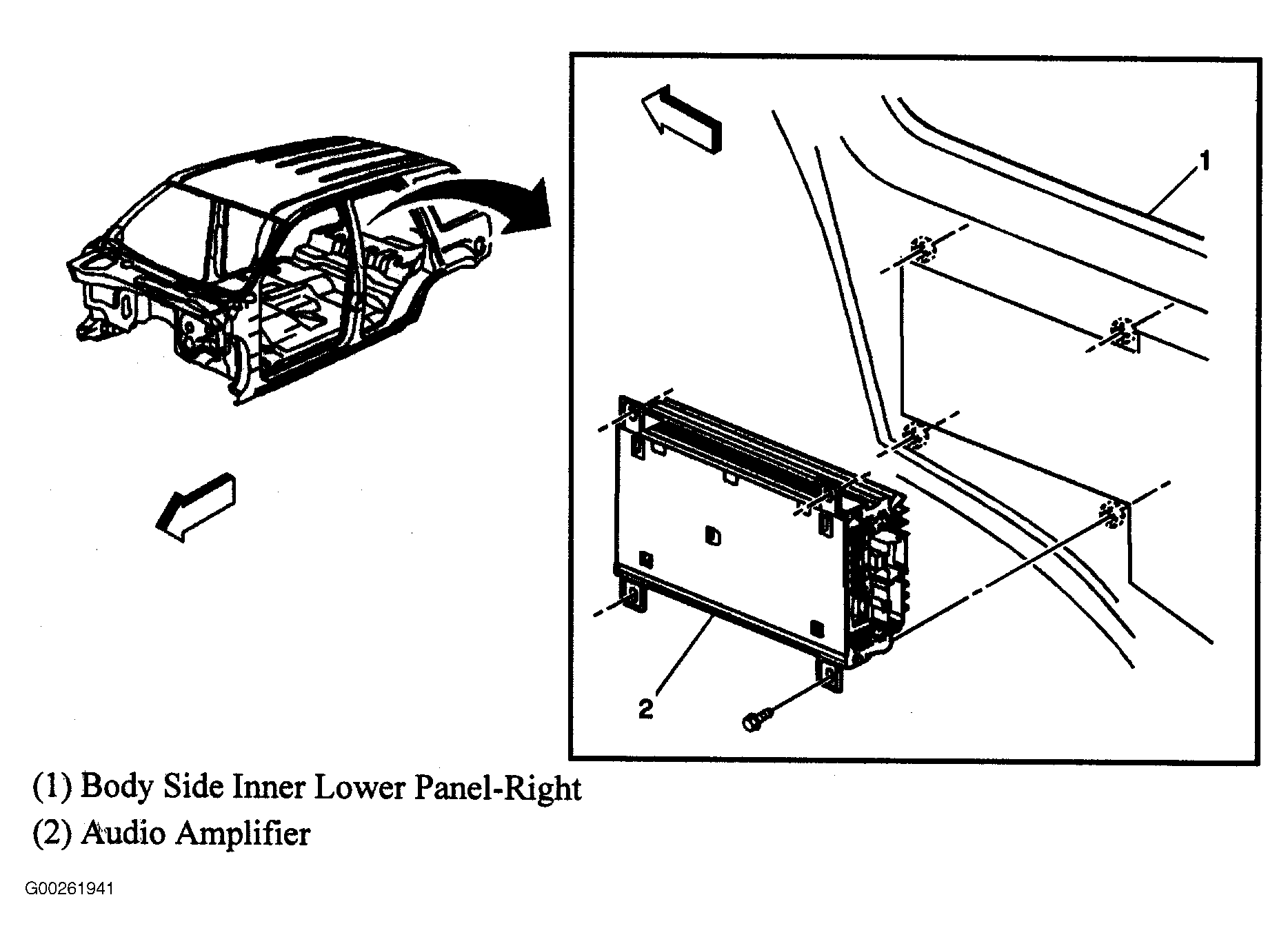

Fig 22: Right Body Side Inner Lower Panel
Courtesy of GENERAL MOTORS CORP.

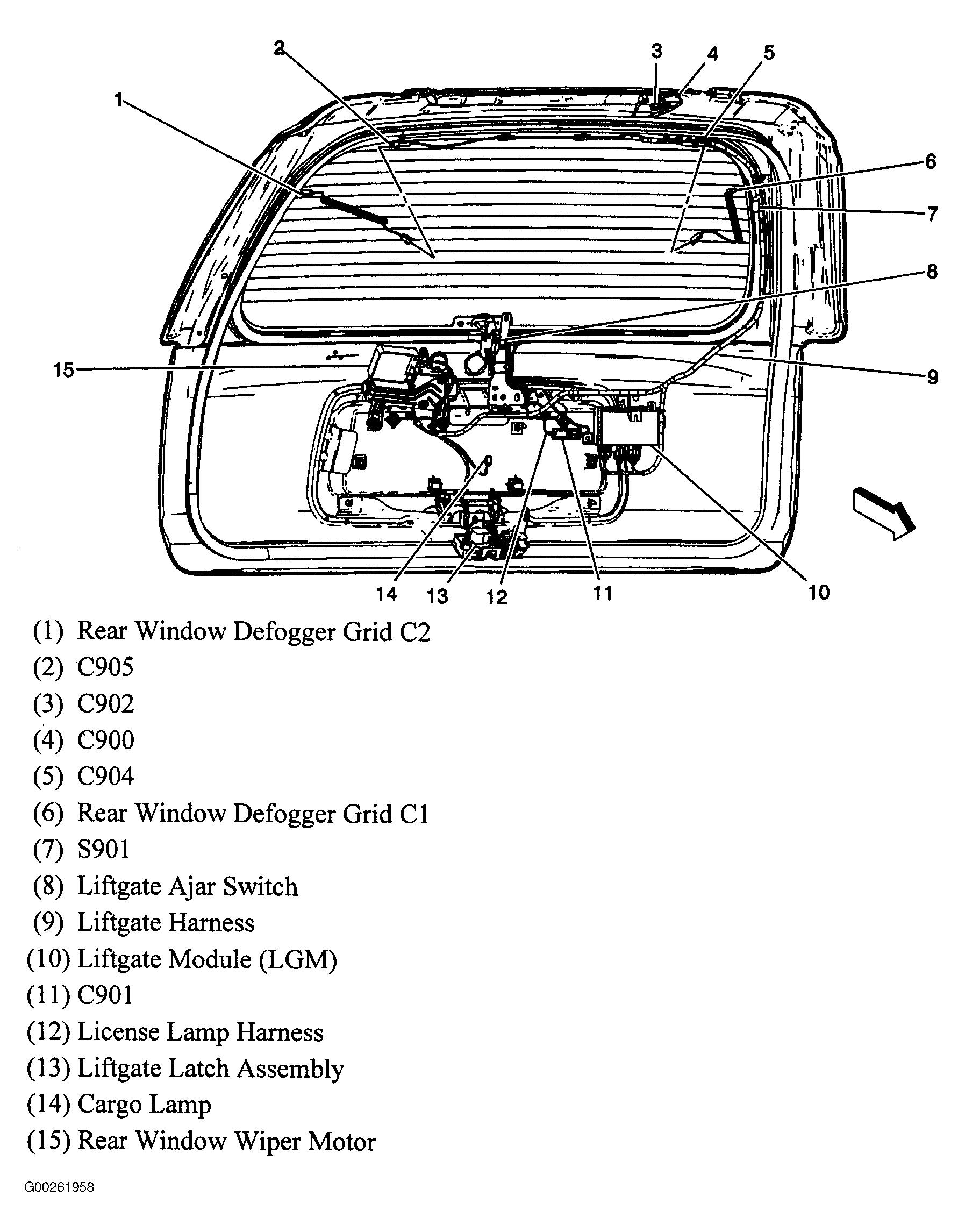

Fig 23: Liftgate
Courtesy of GENERAL MOTORS CORP.

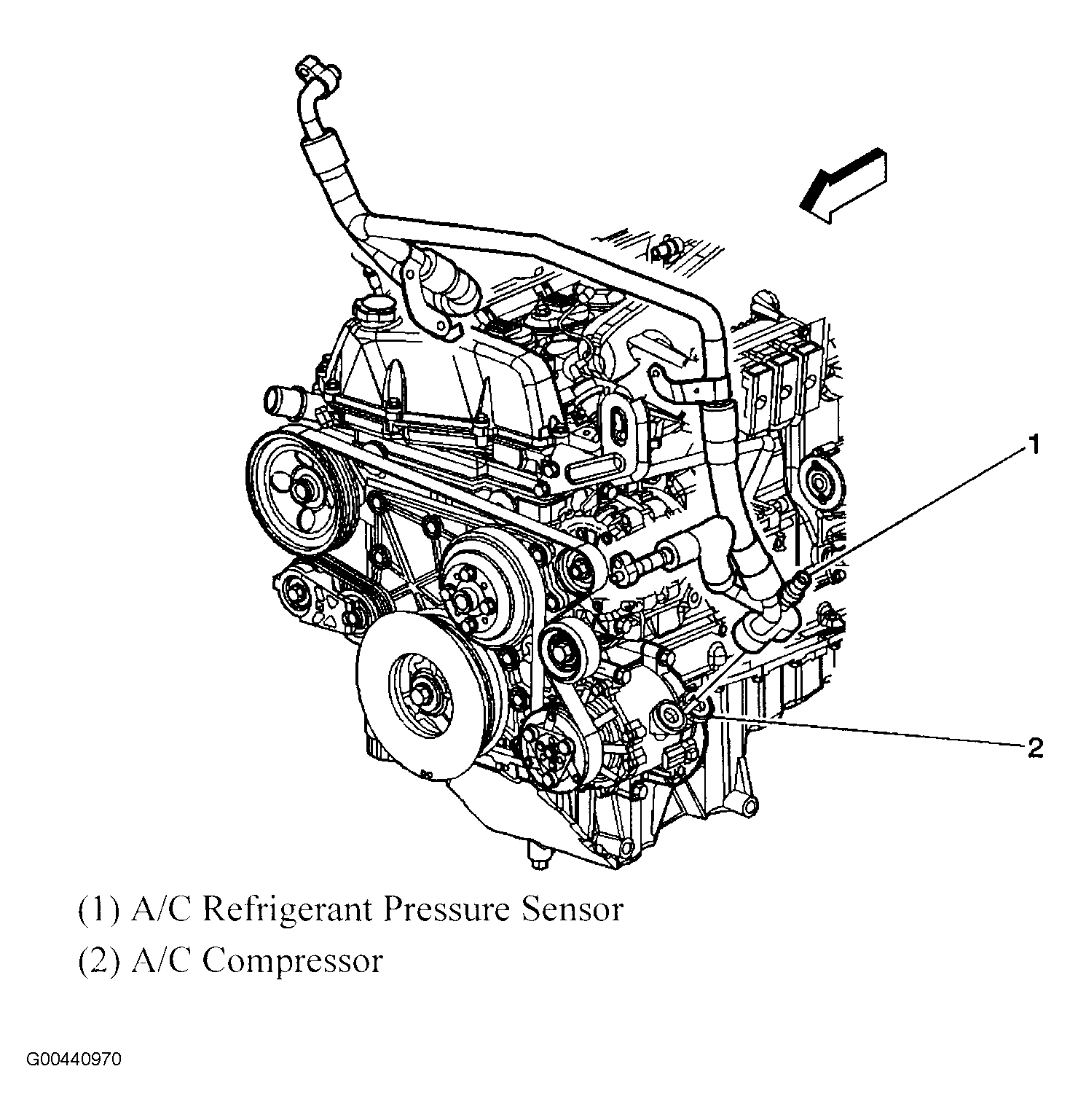

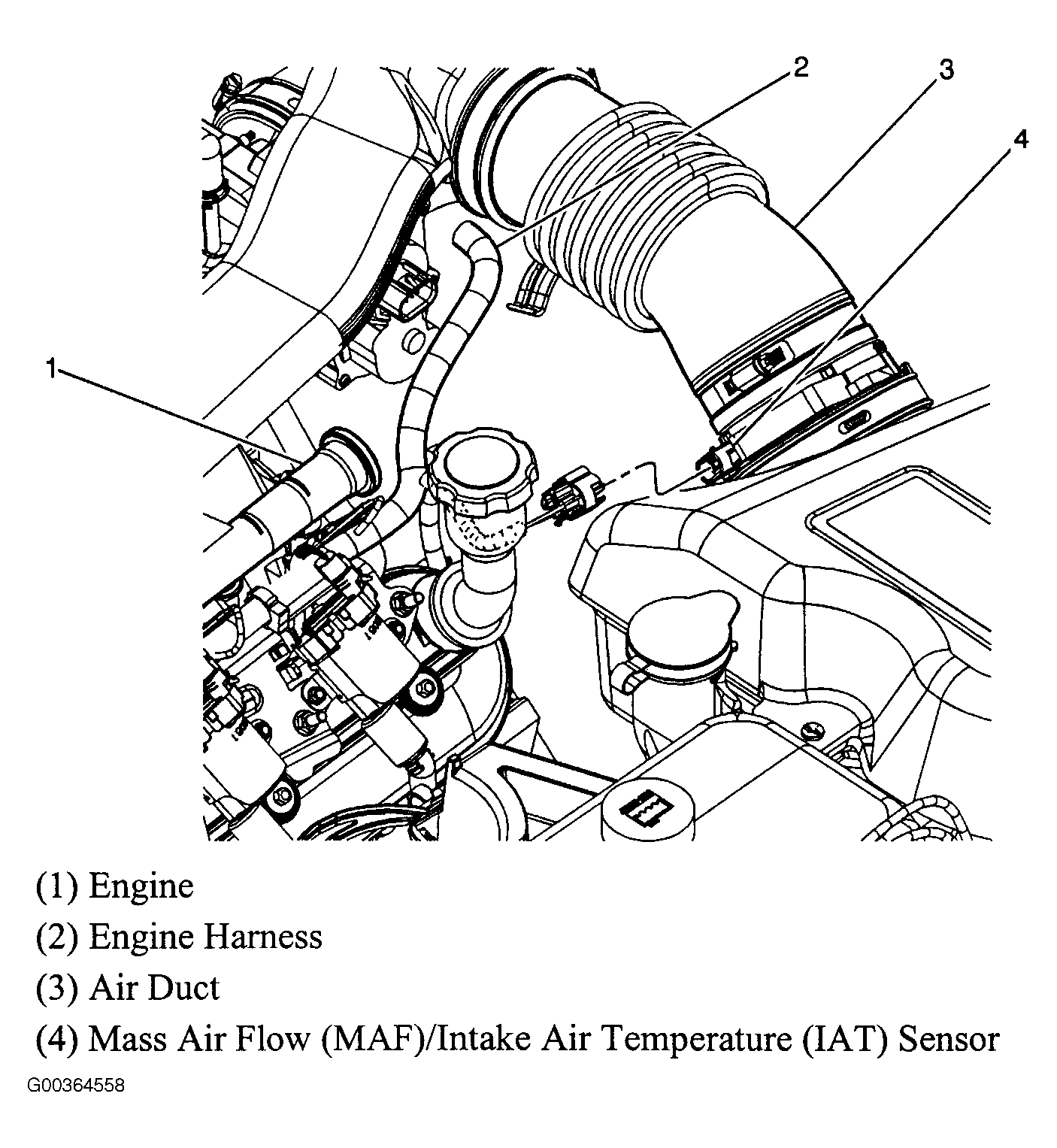

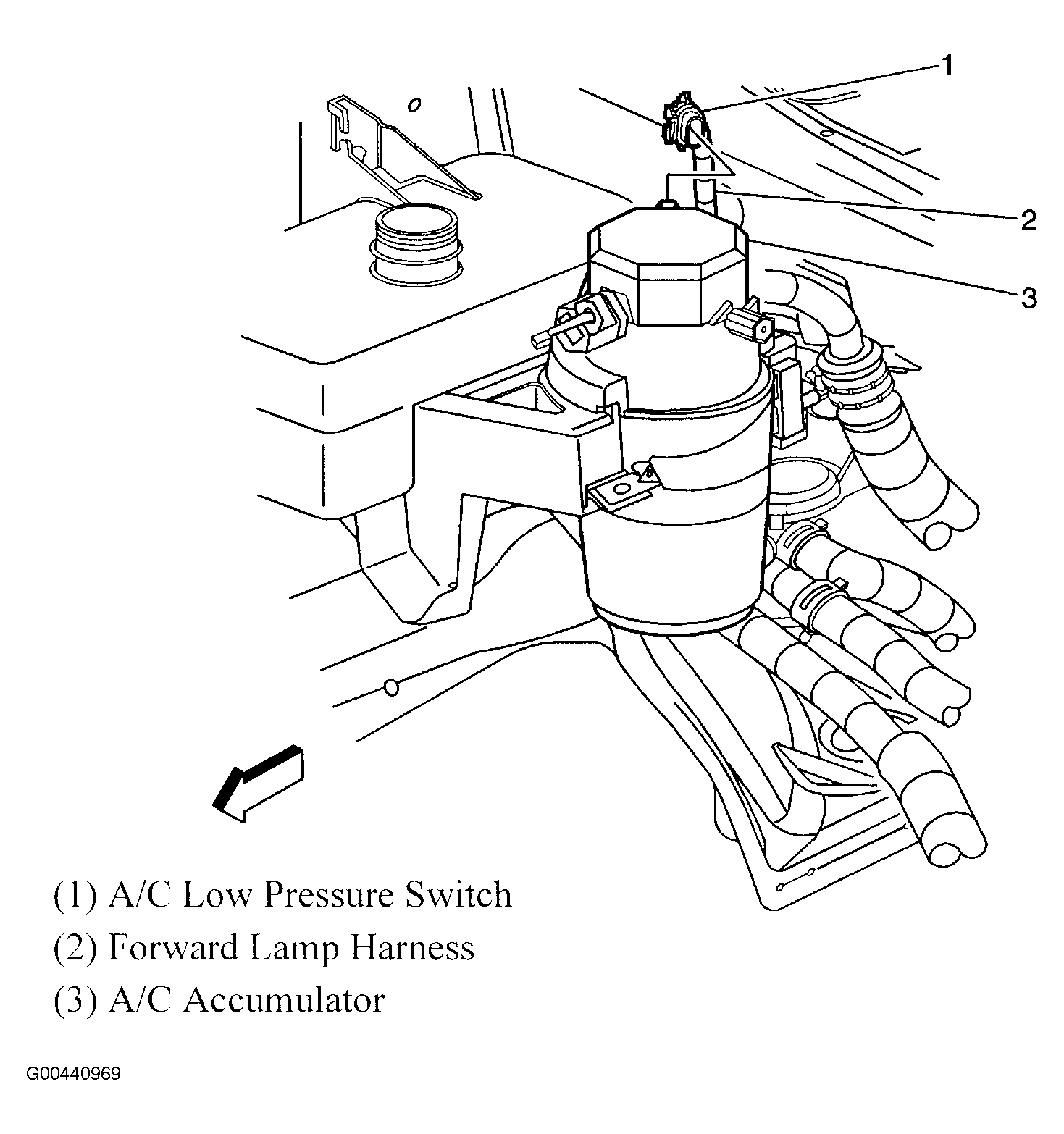

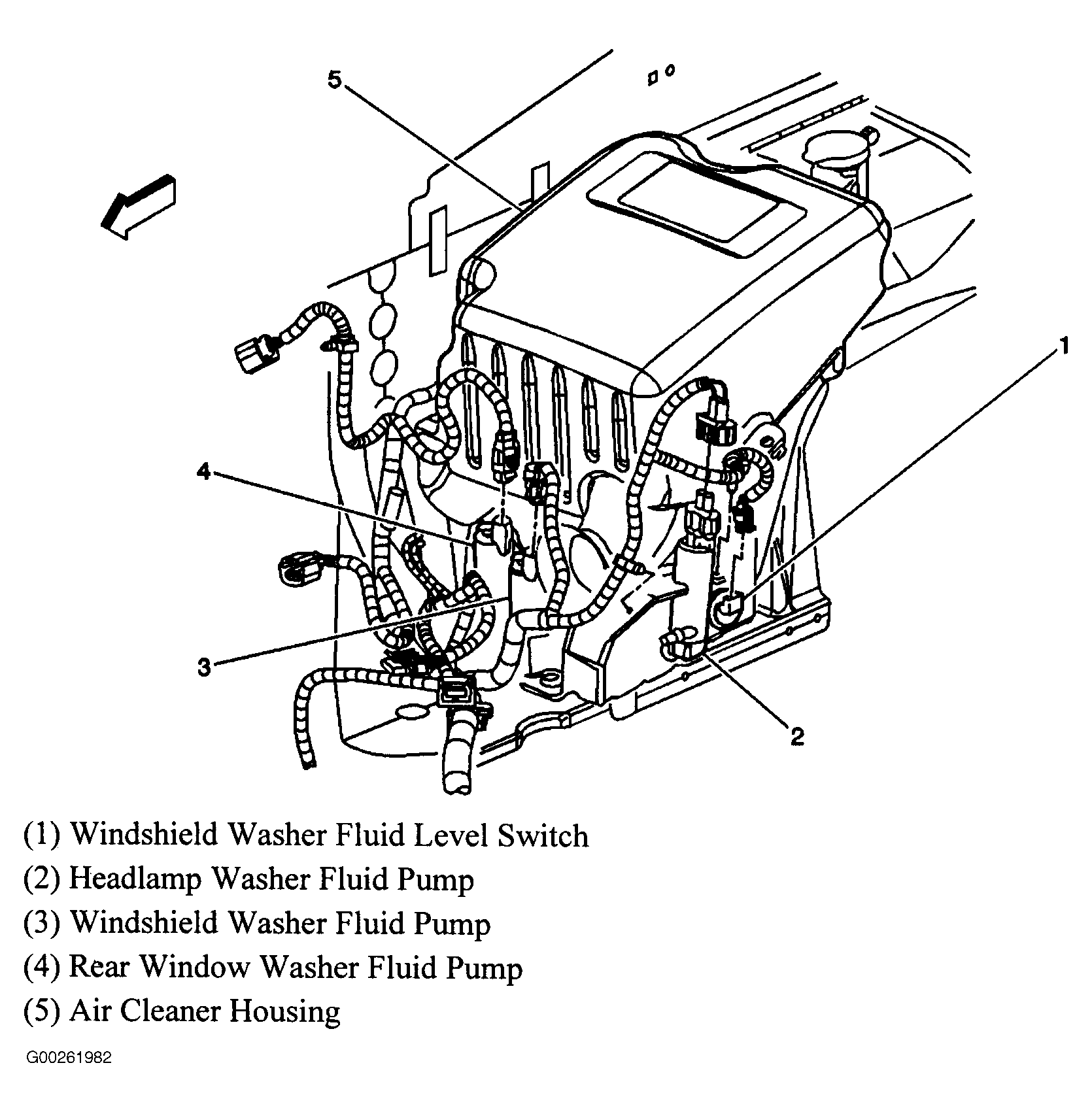

Fig 24: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 25: Center Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

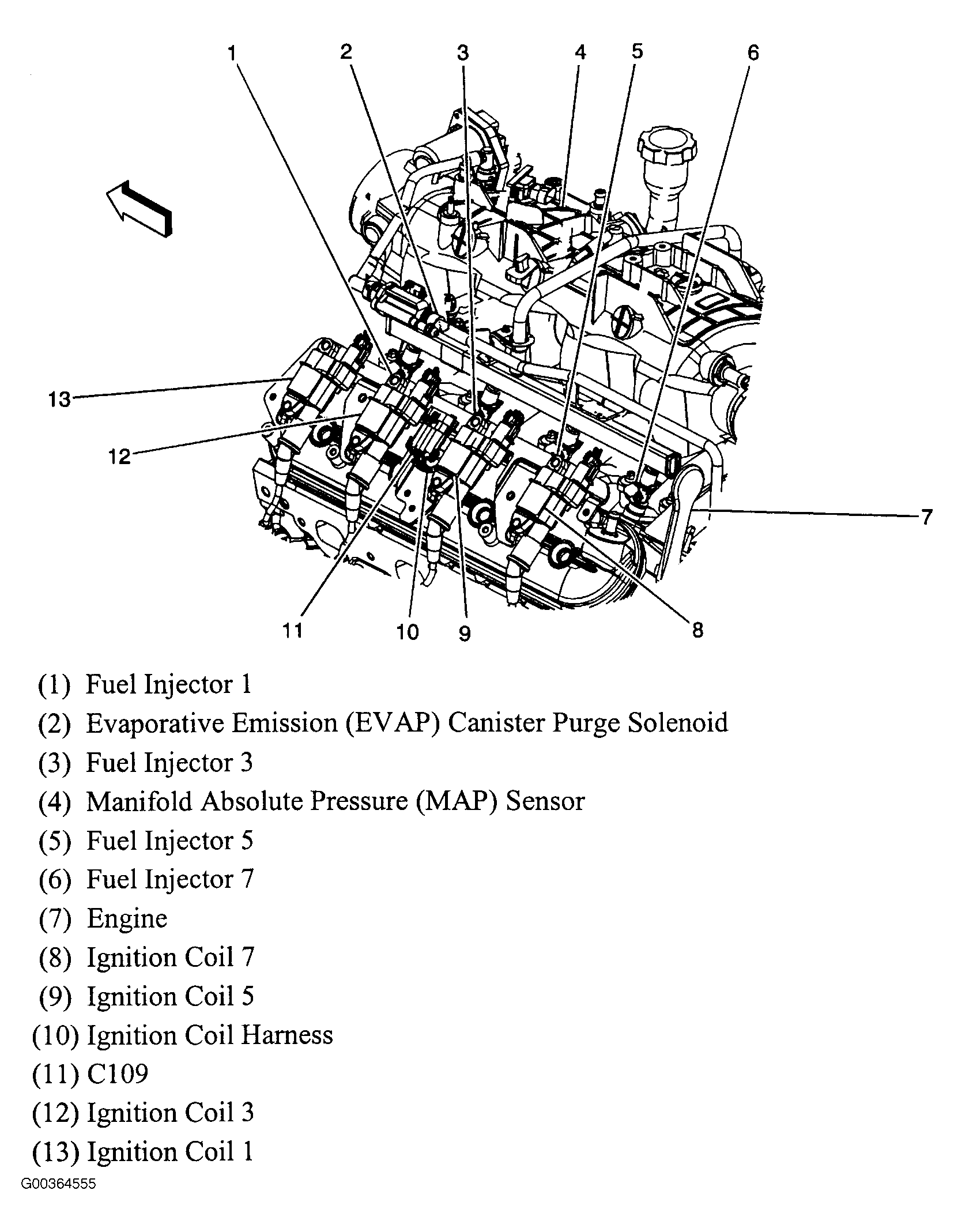

Fig 26: Upper Left Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

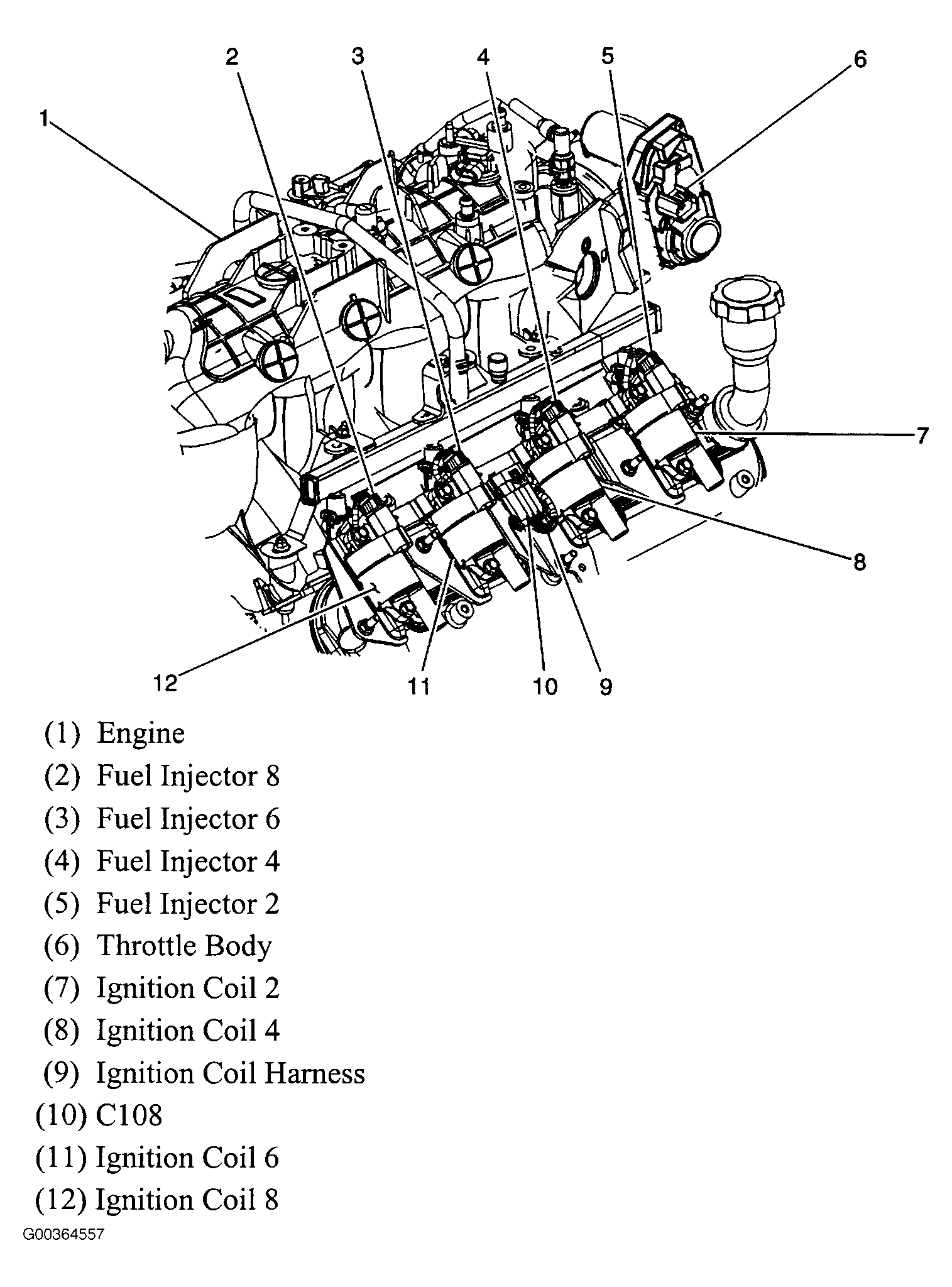

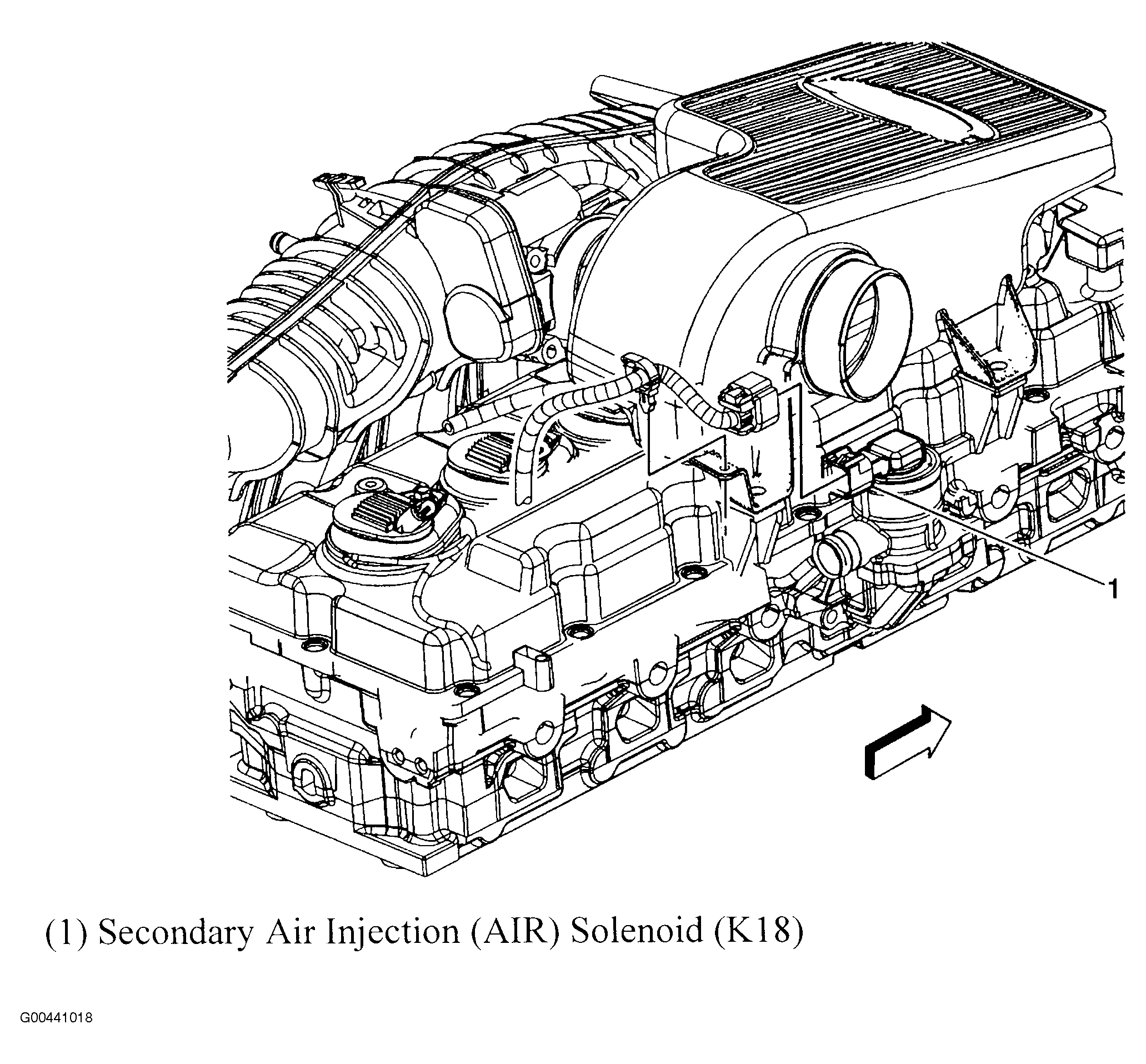

Fig 27: Upper Right Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Upper Right Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

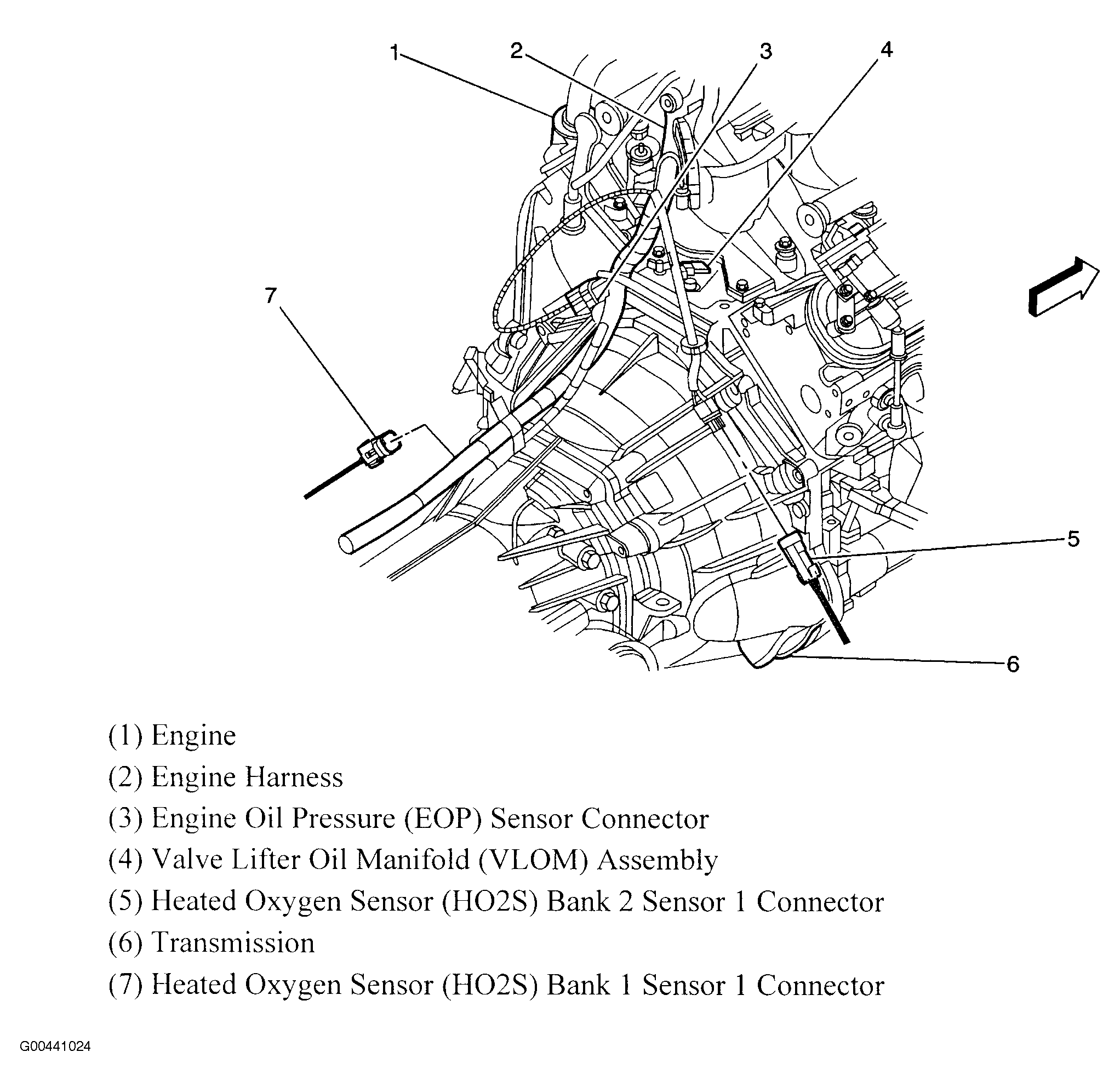

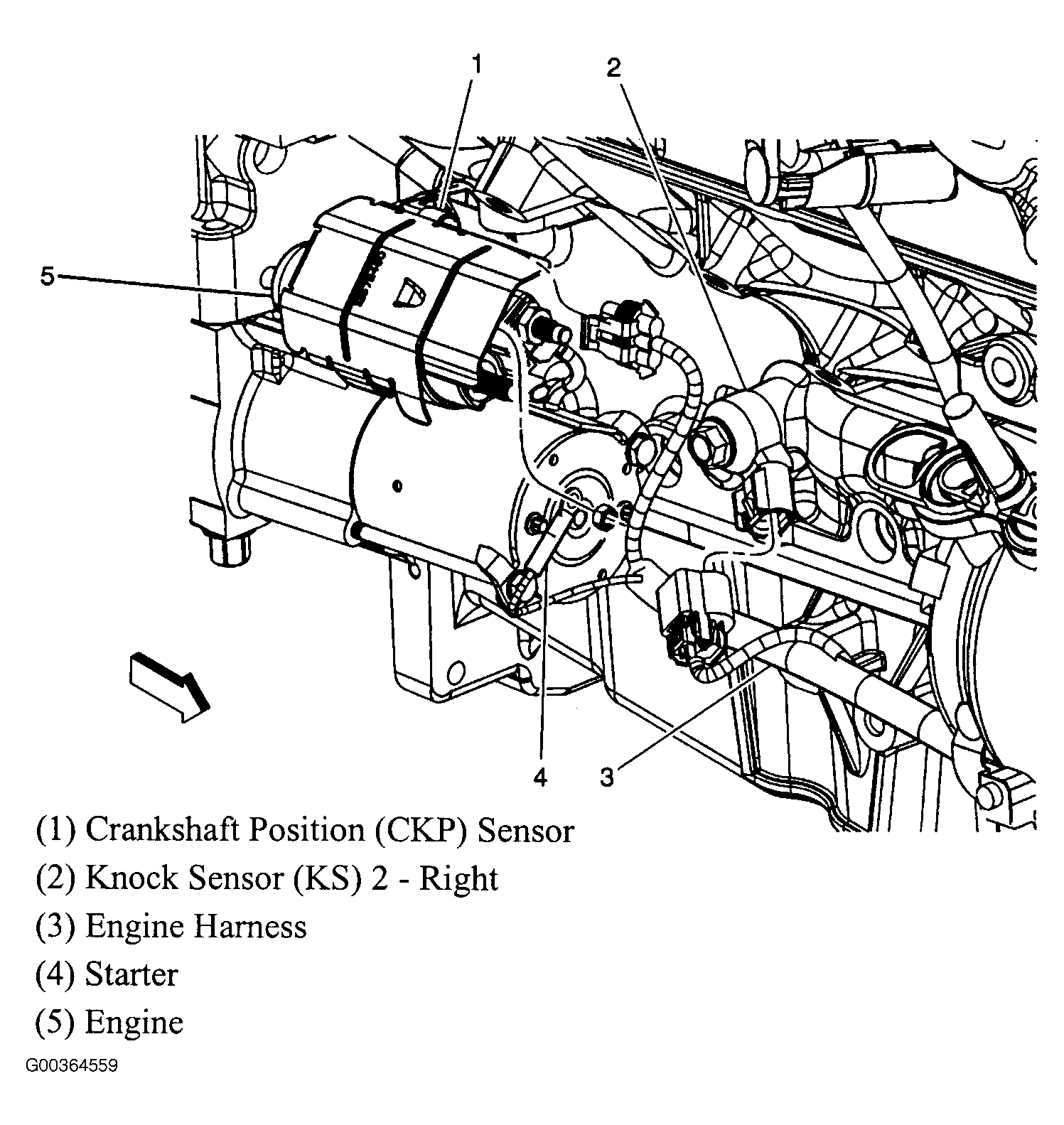

Fig 29: Lower Right Rear Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

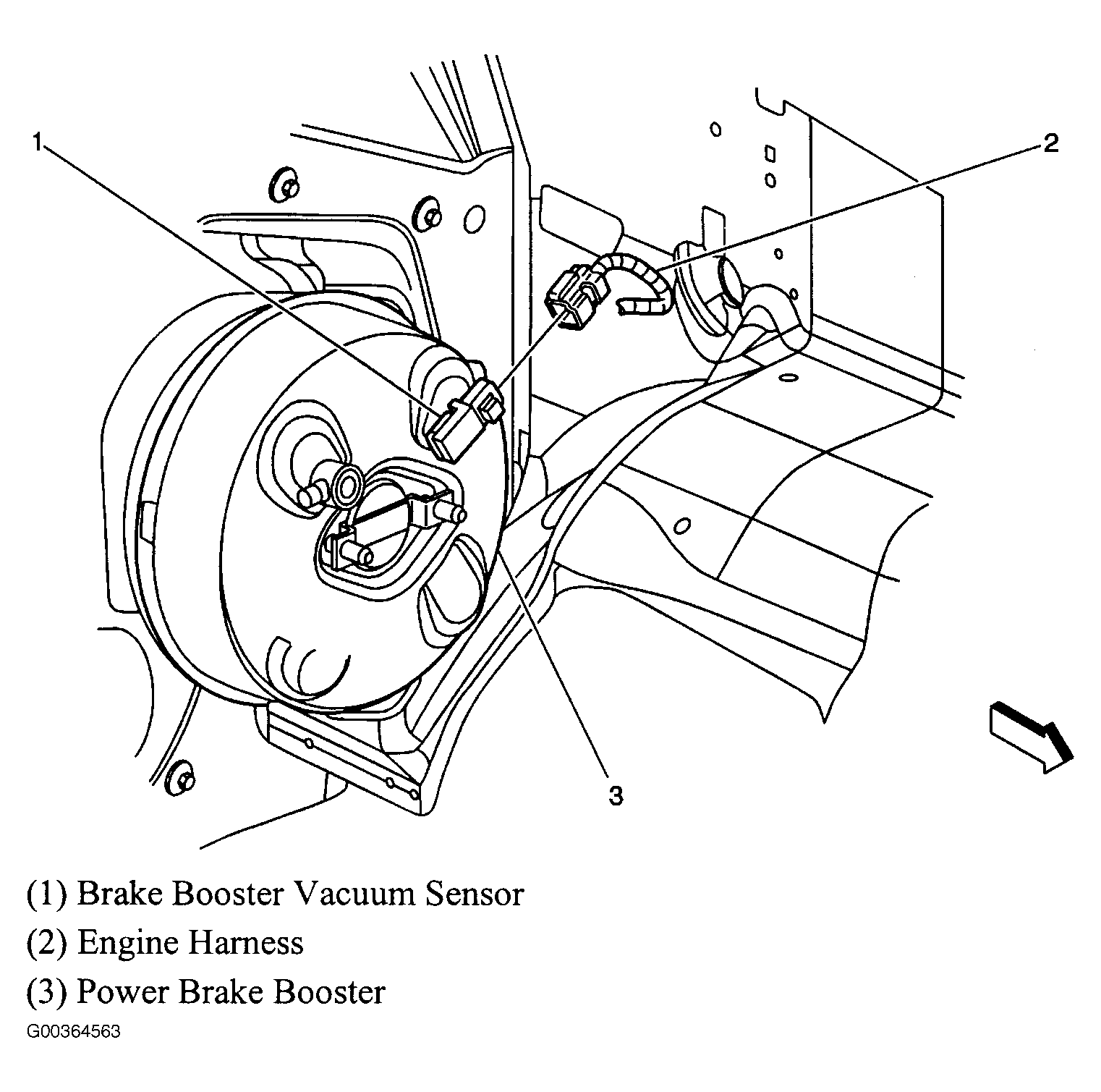

Fig 30: Power Brake Booster
Courtesy of GENERAL MOTORS CORP.

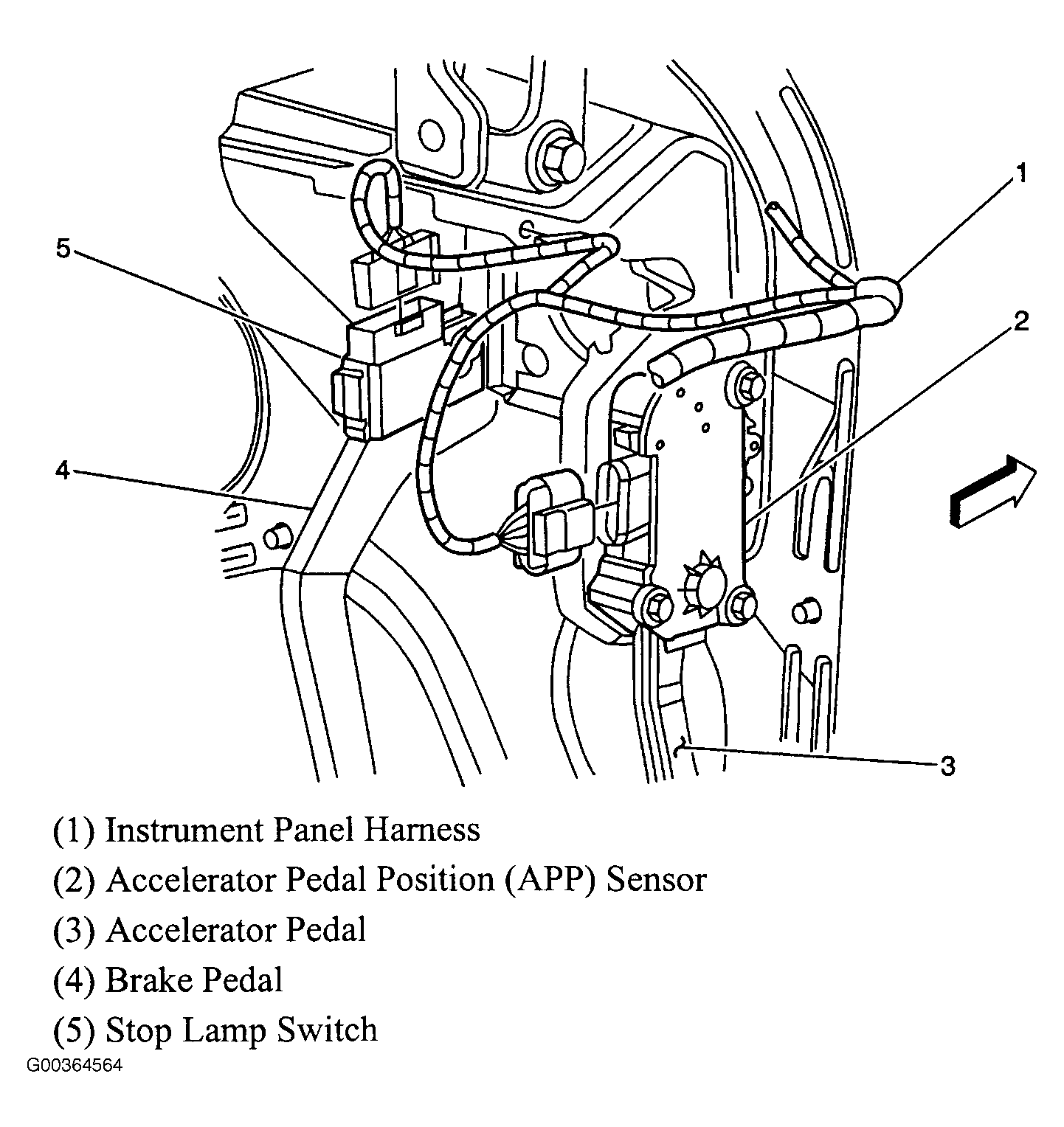

Fig 31: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

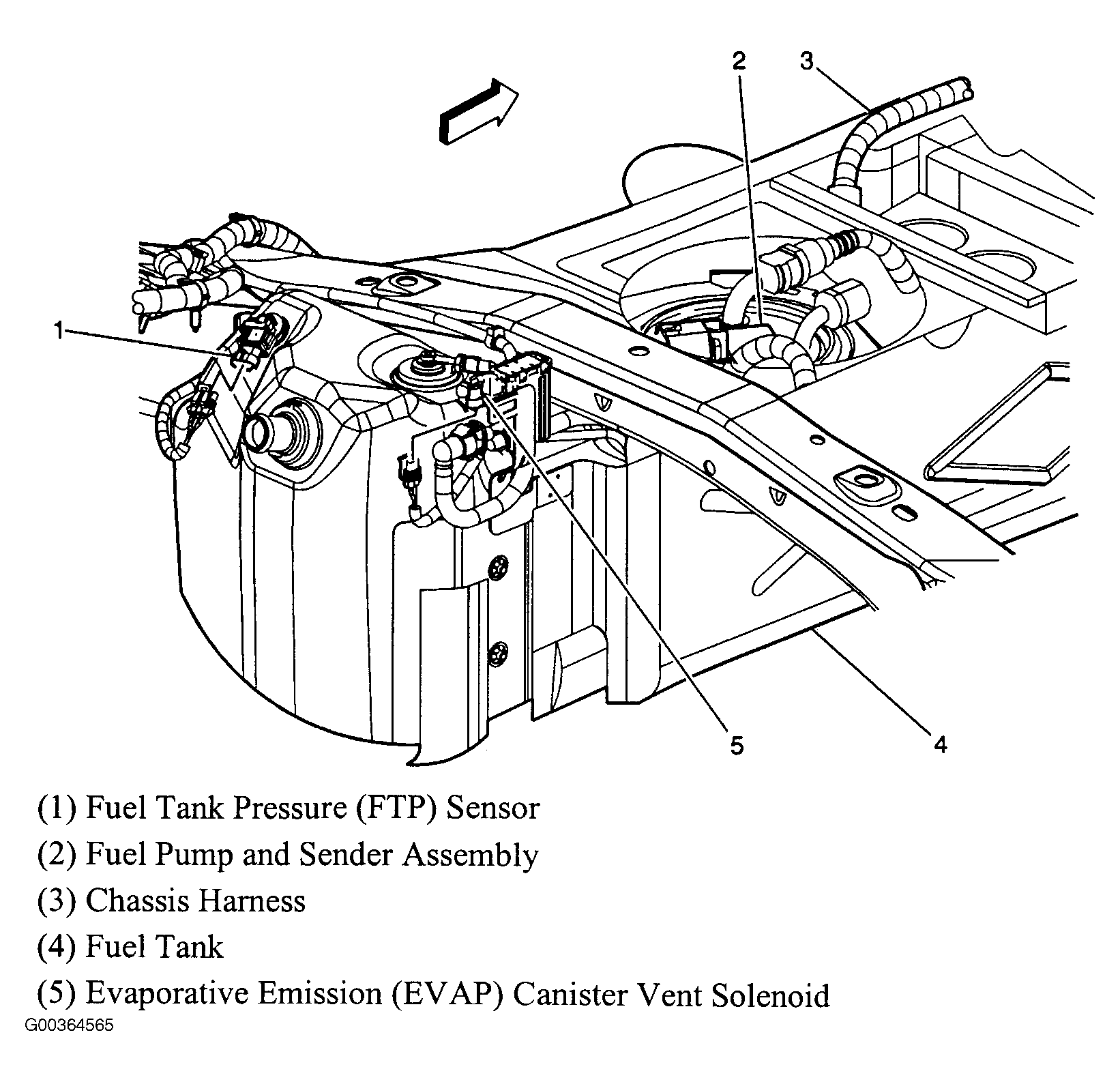

Fig 32: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 33: Lower Left Side Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.

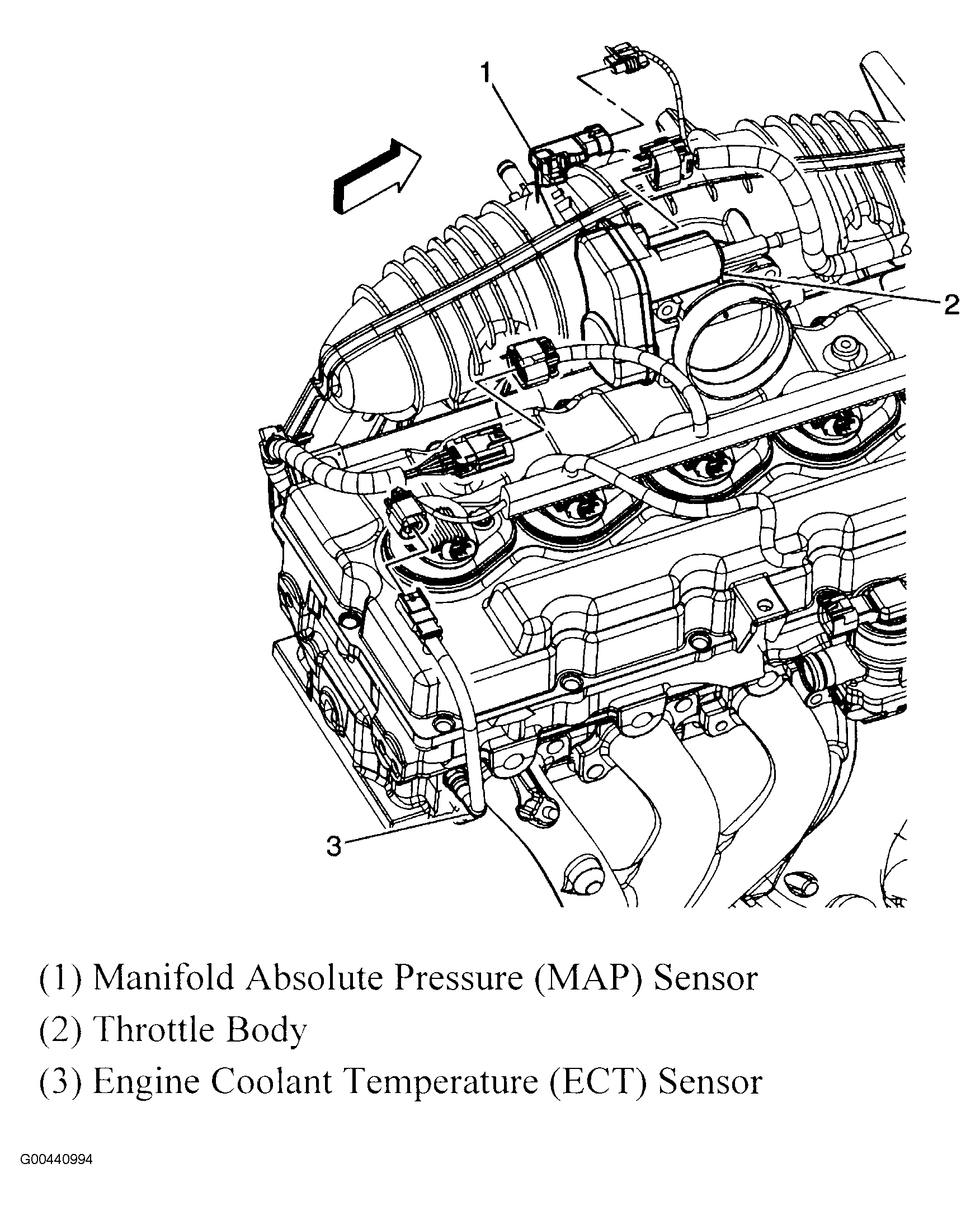

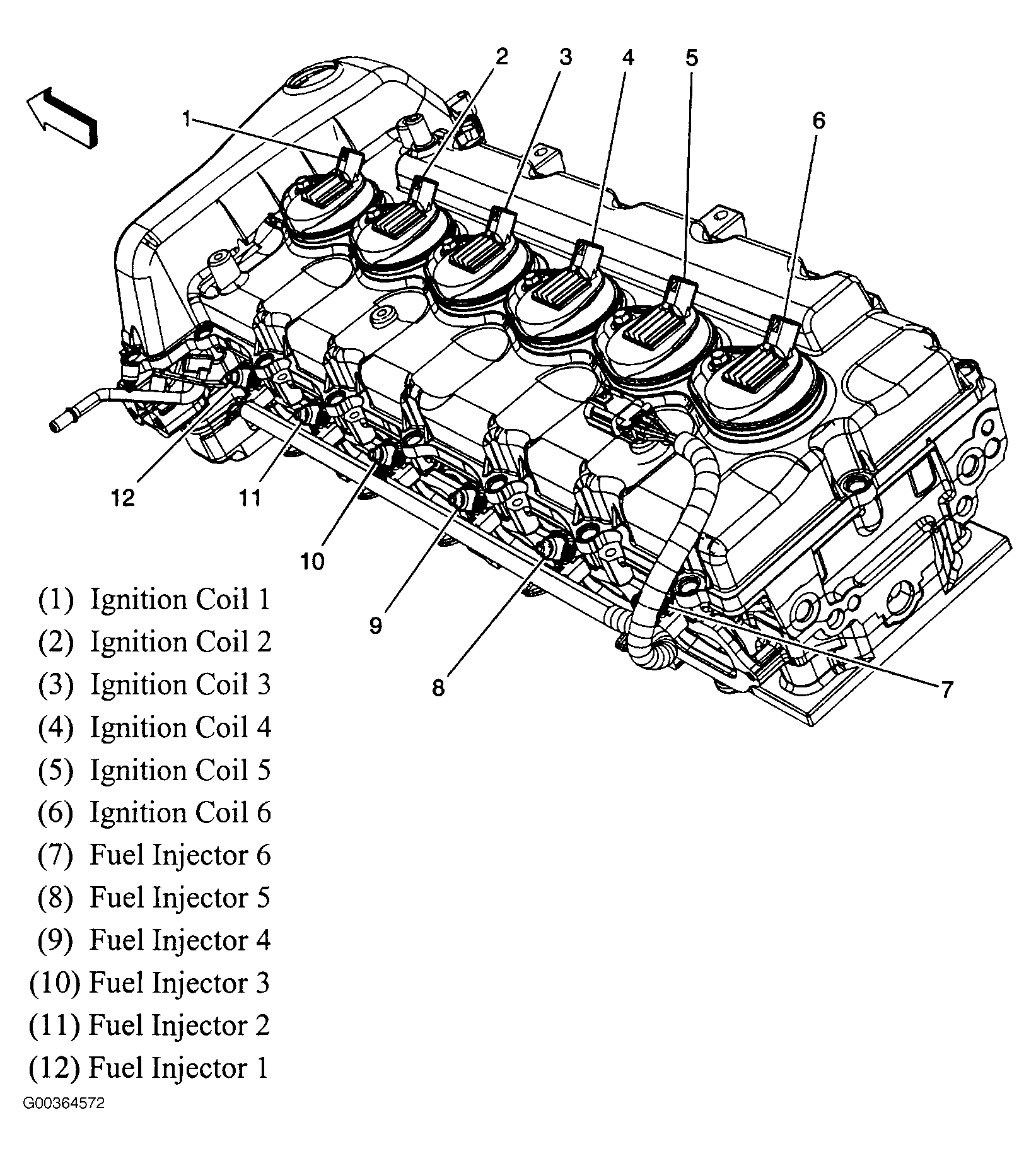

Fig 34: Top Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Right Side Of Transmission
Courtesy of GENERAL MOTORS CORP.

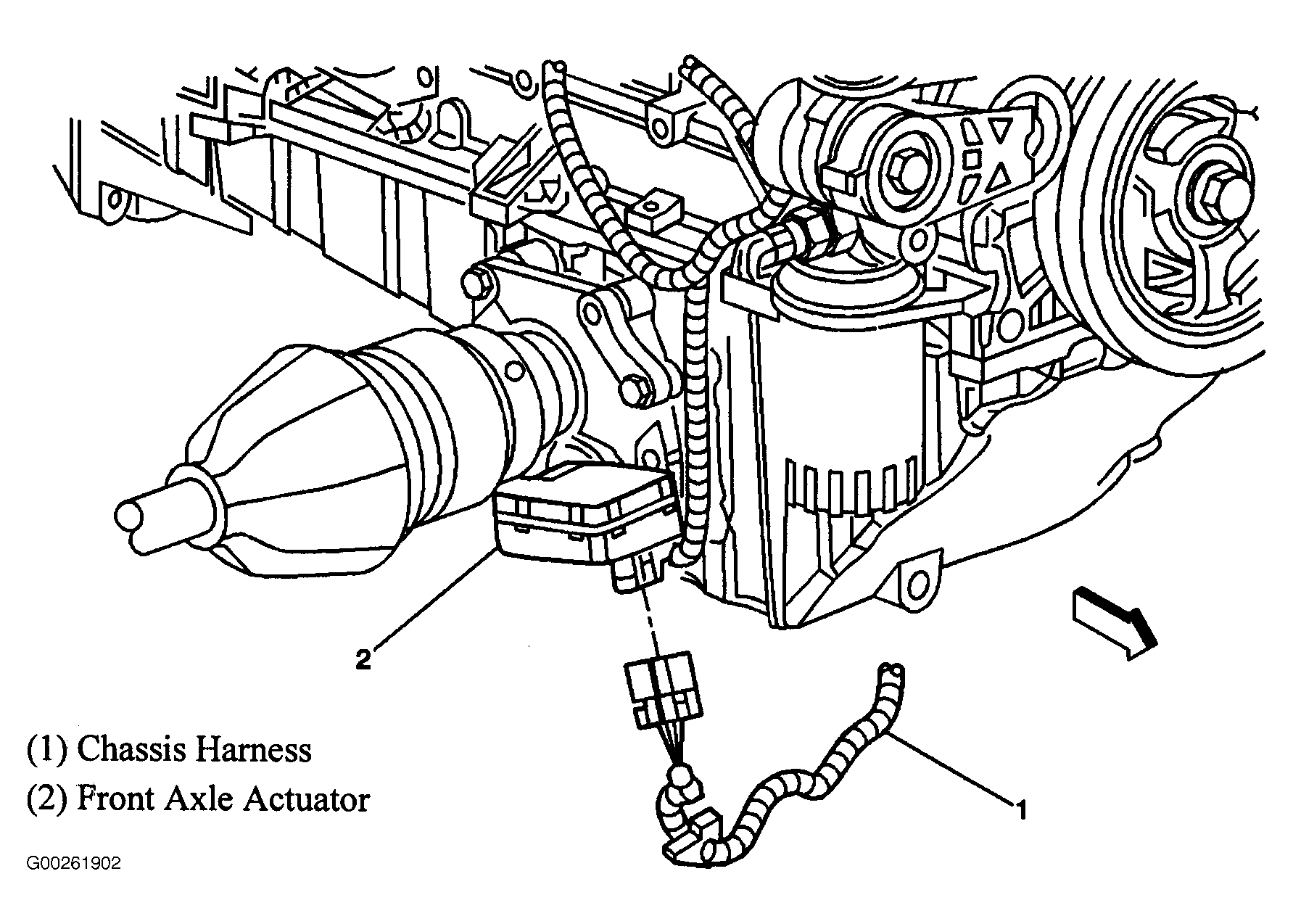

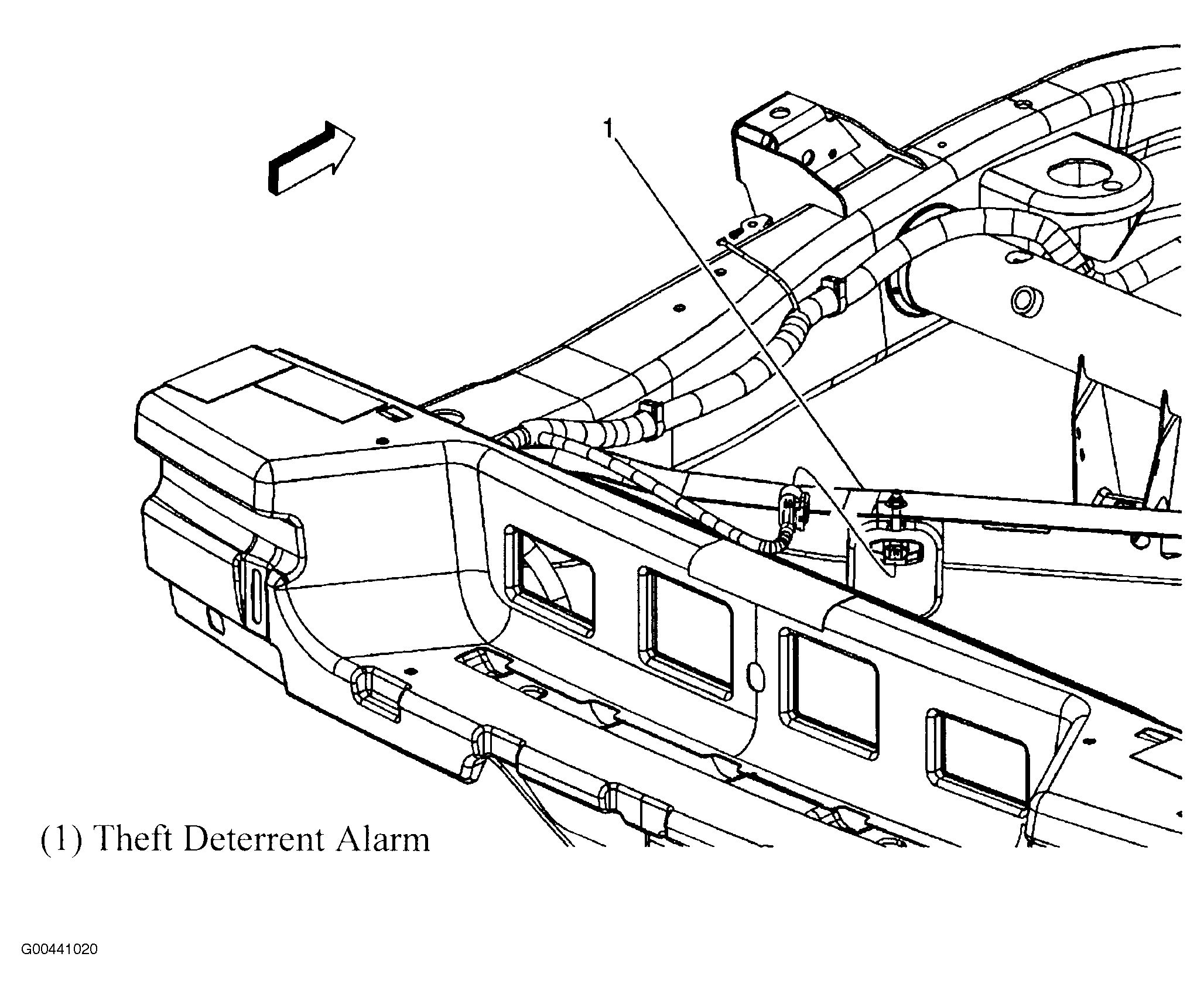

Fig 36: Left Front Of Chassis
Courtesy of GENERAL MOTORS CORP.

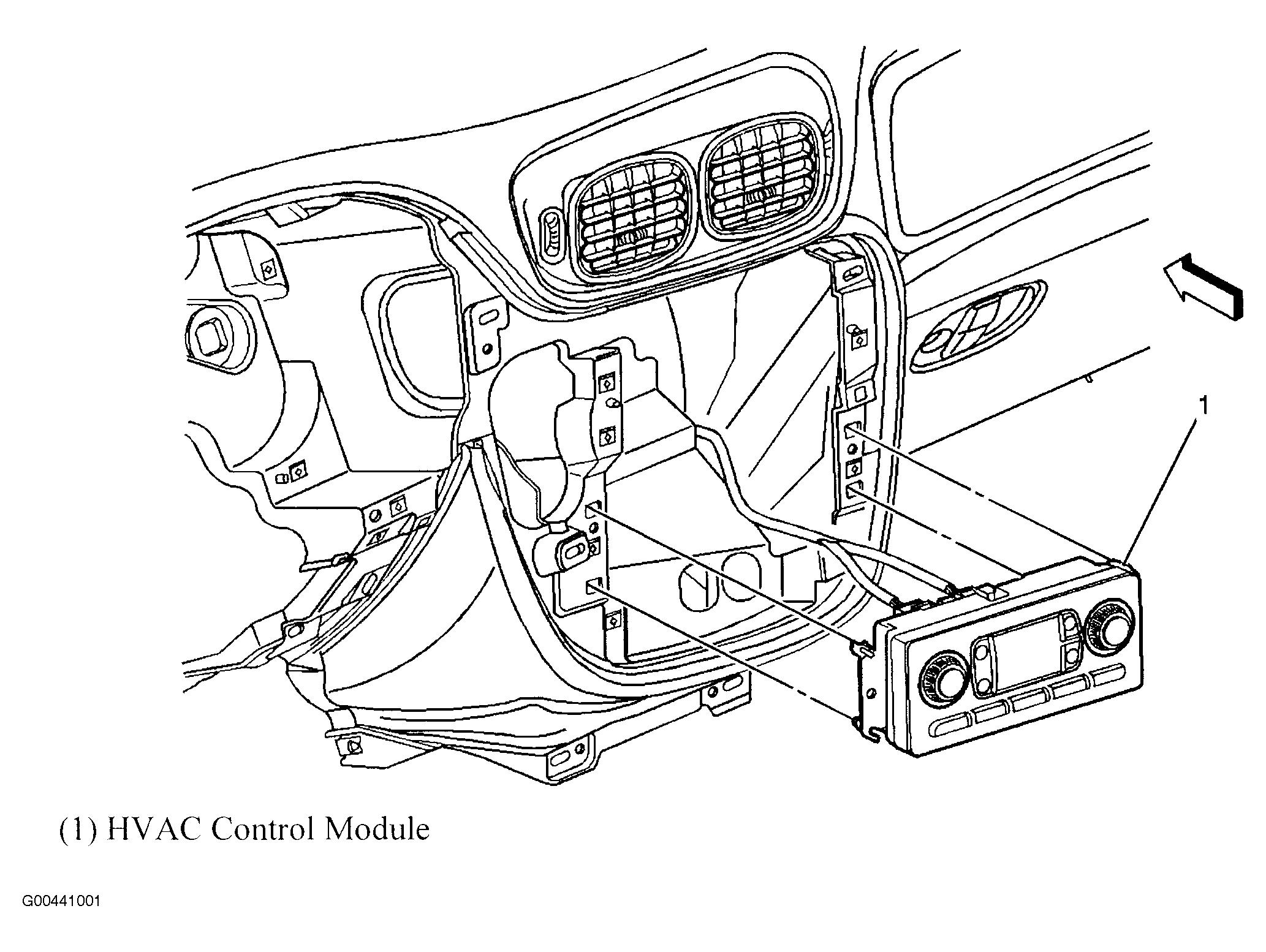

Fig 37: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

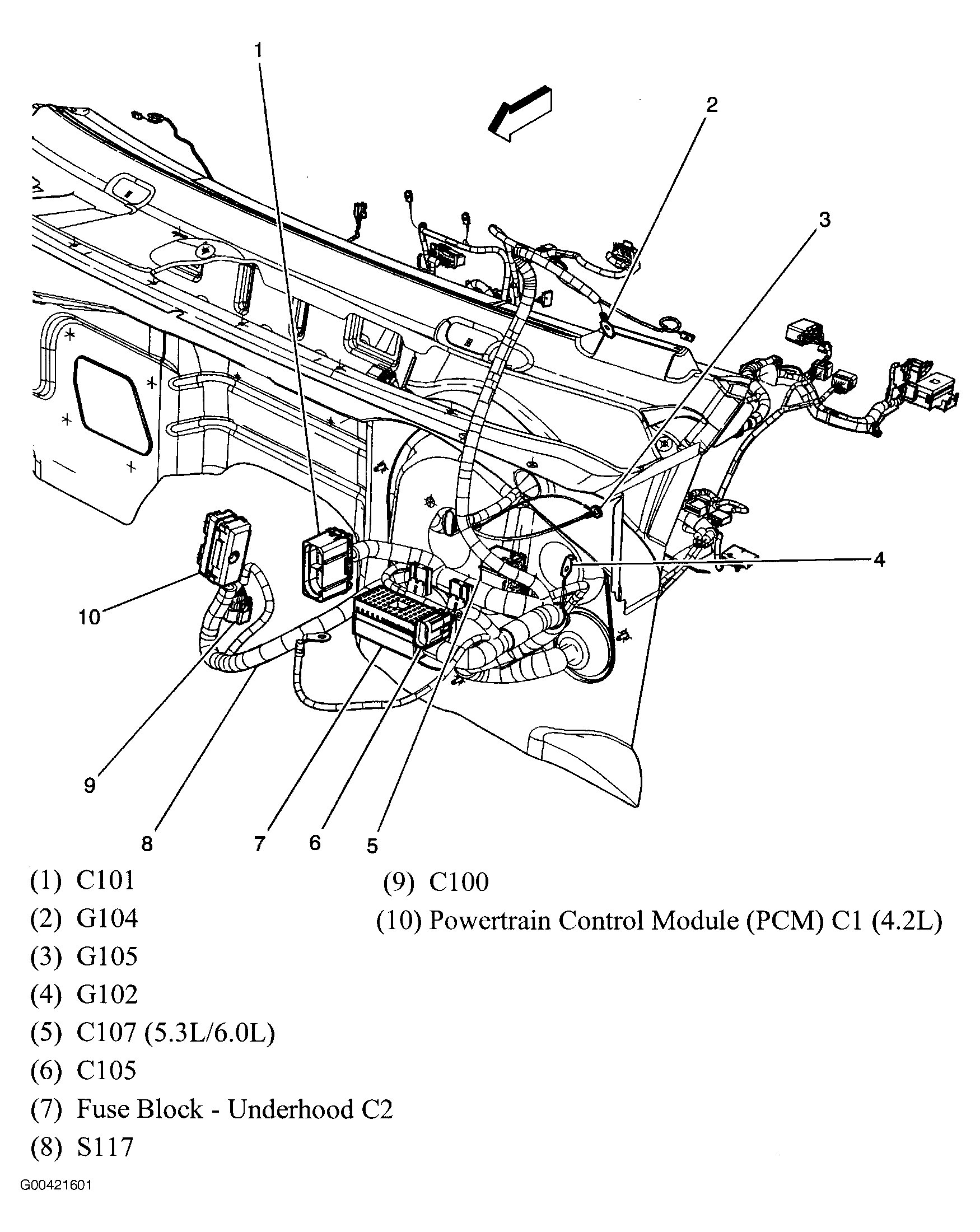

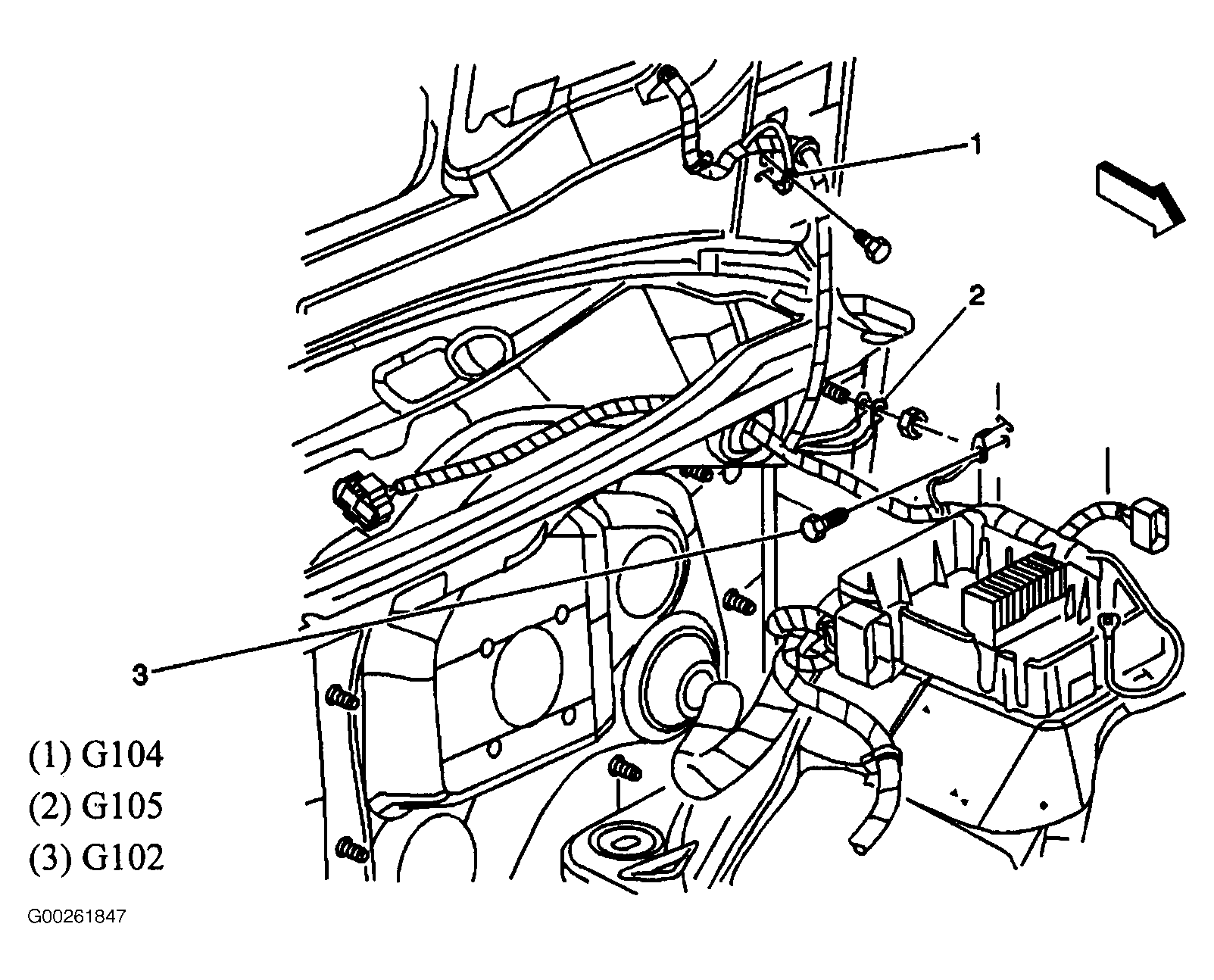

Fig 38: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

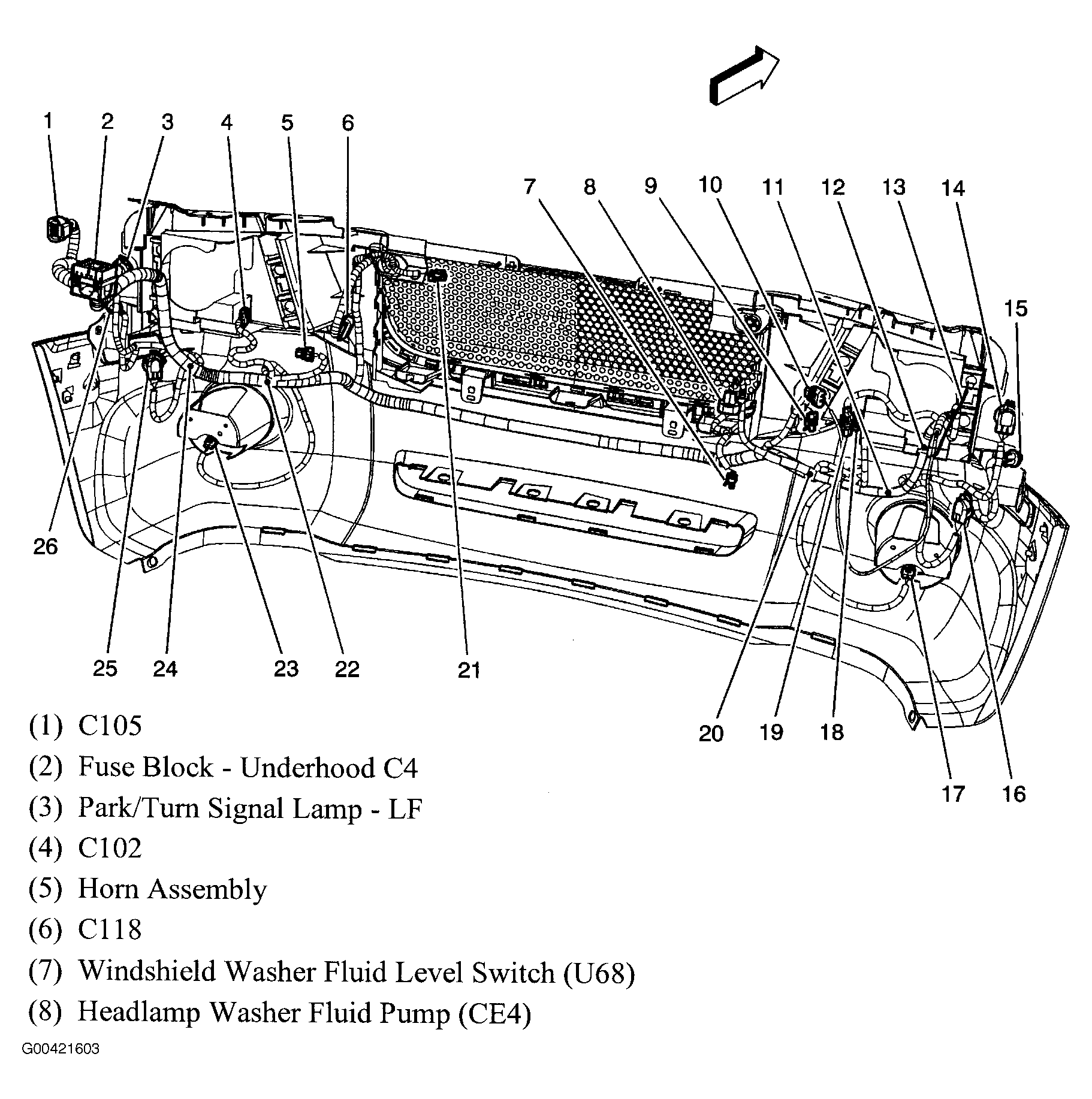

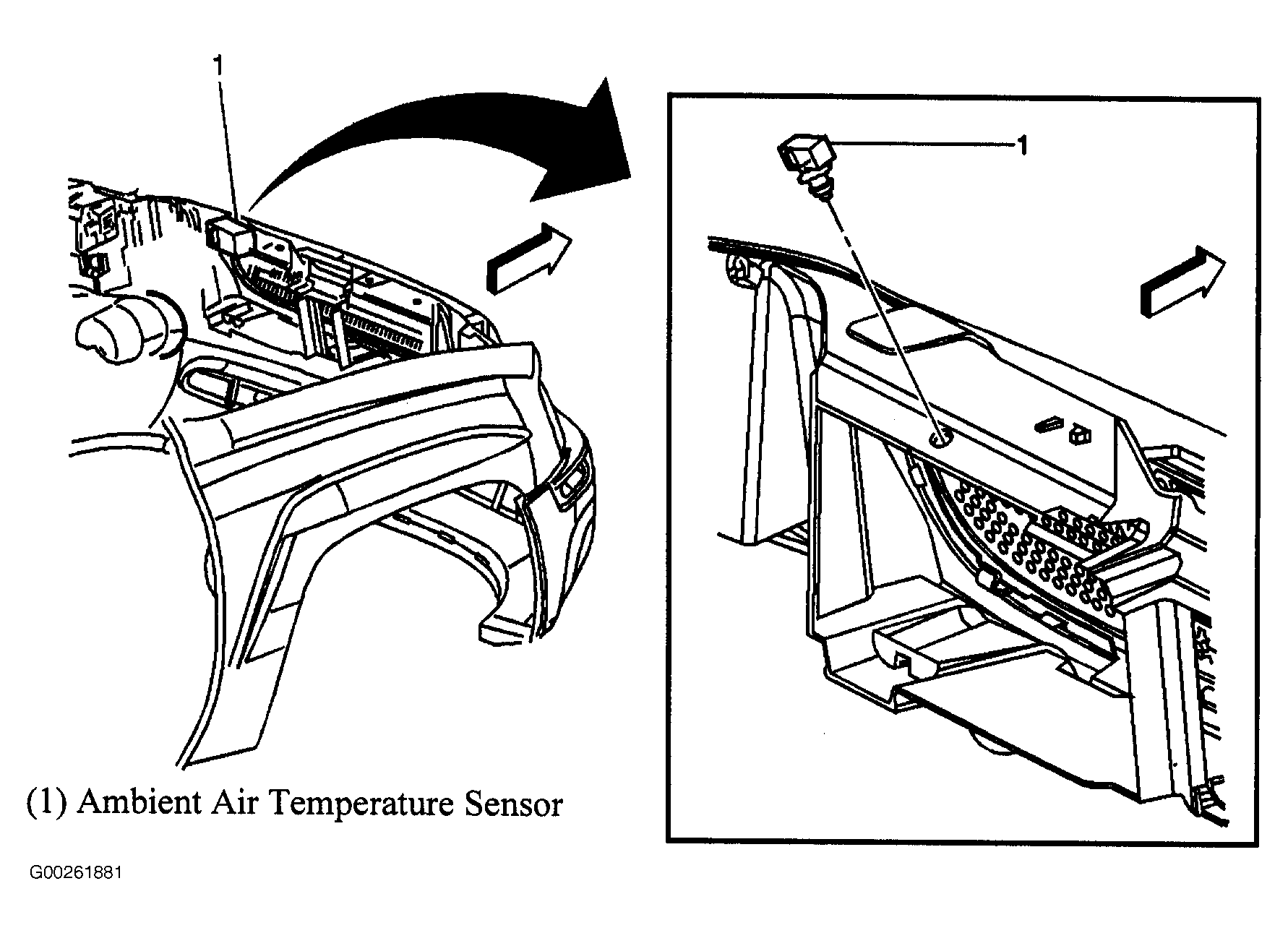

Fig 39: Rear Of Front Fascia (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

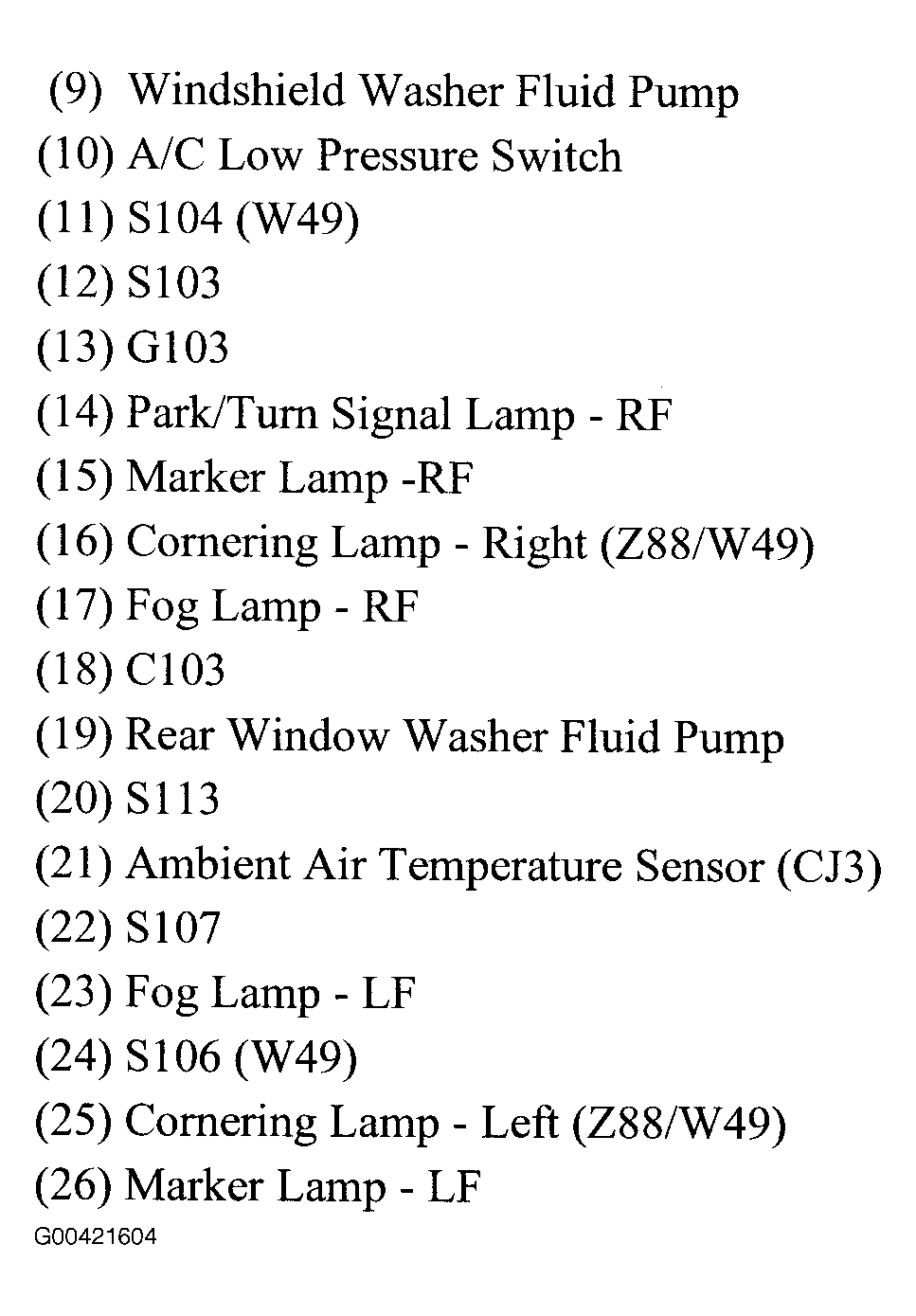

Fig 40: Rear Of Front Fascia (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

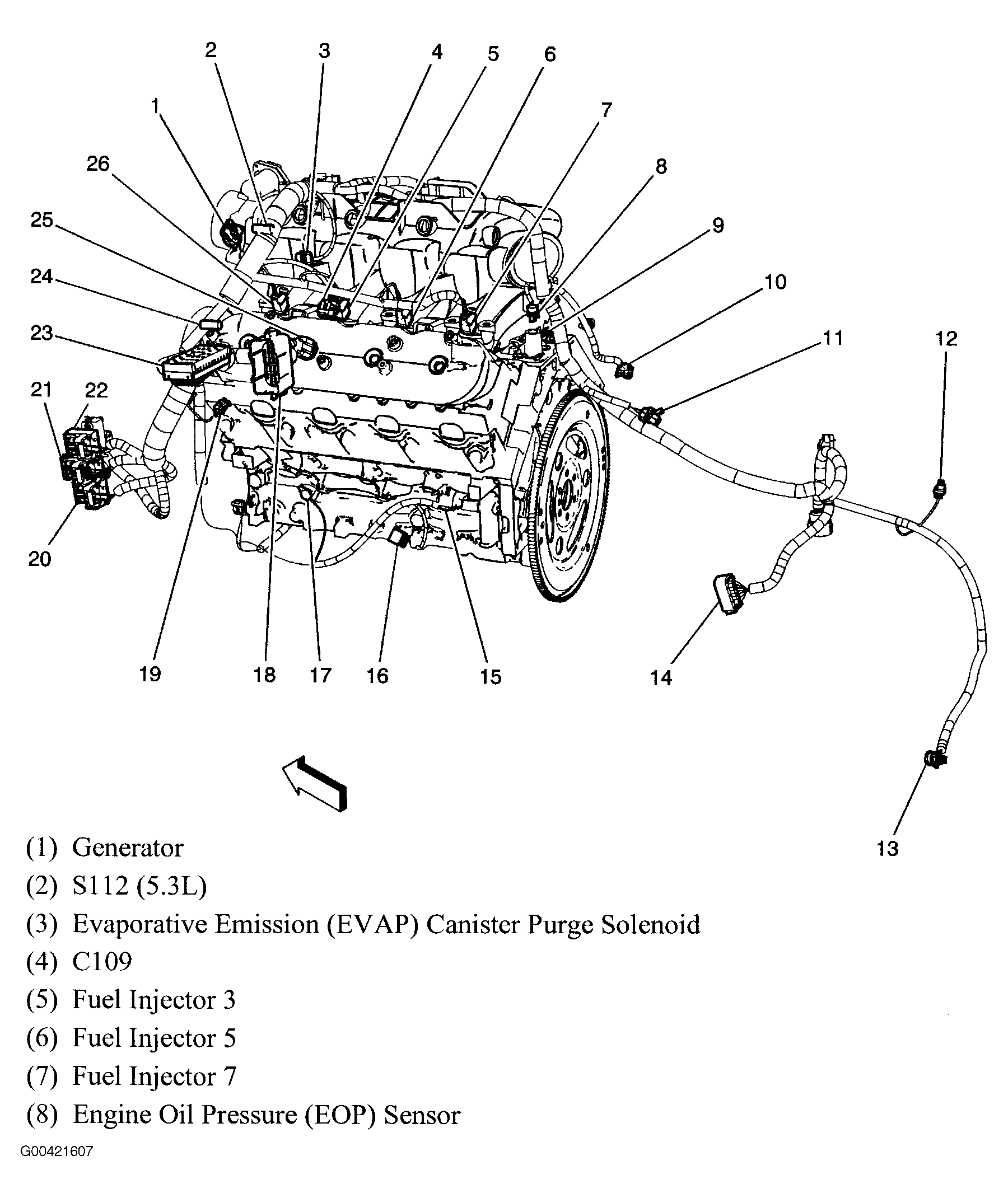

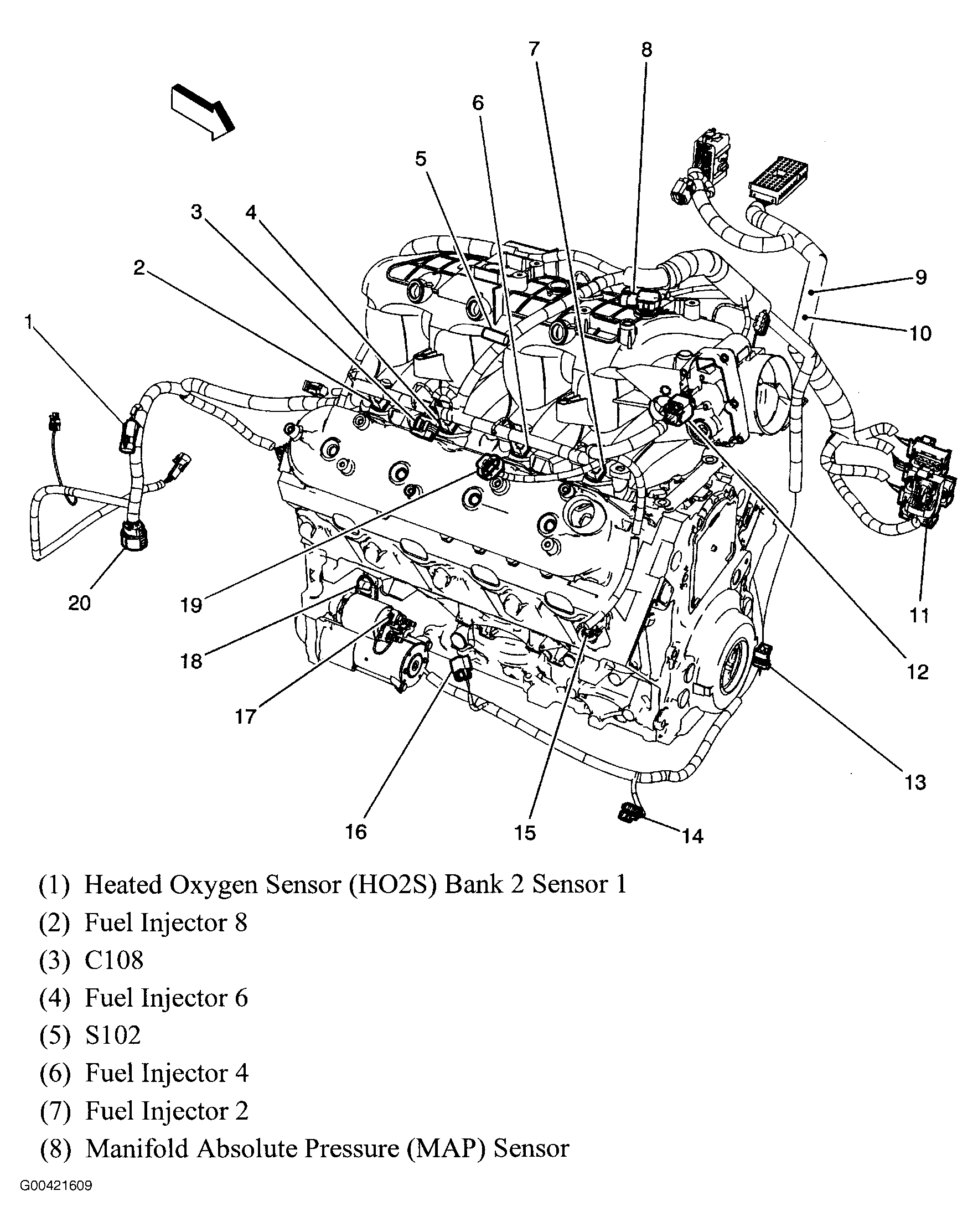

Fig 41: Left Side Of Engine (5.3L/6.0L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

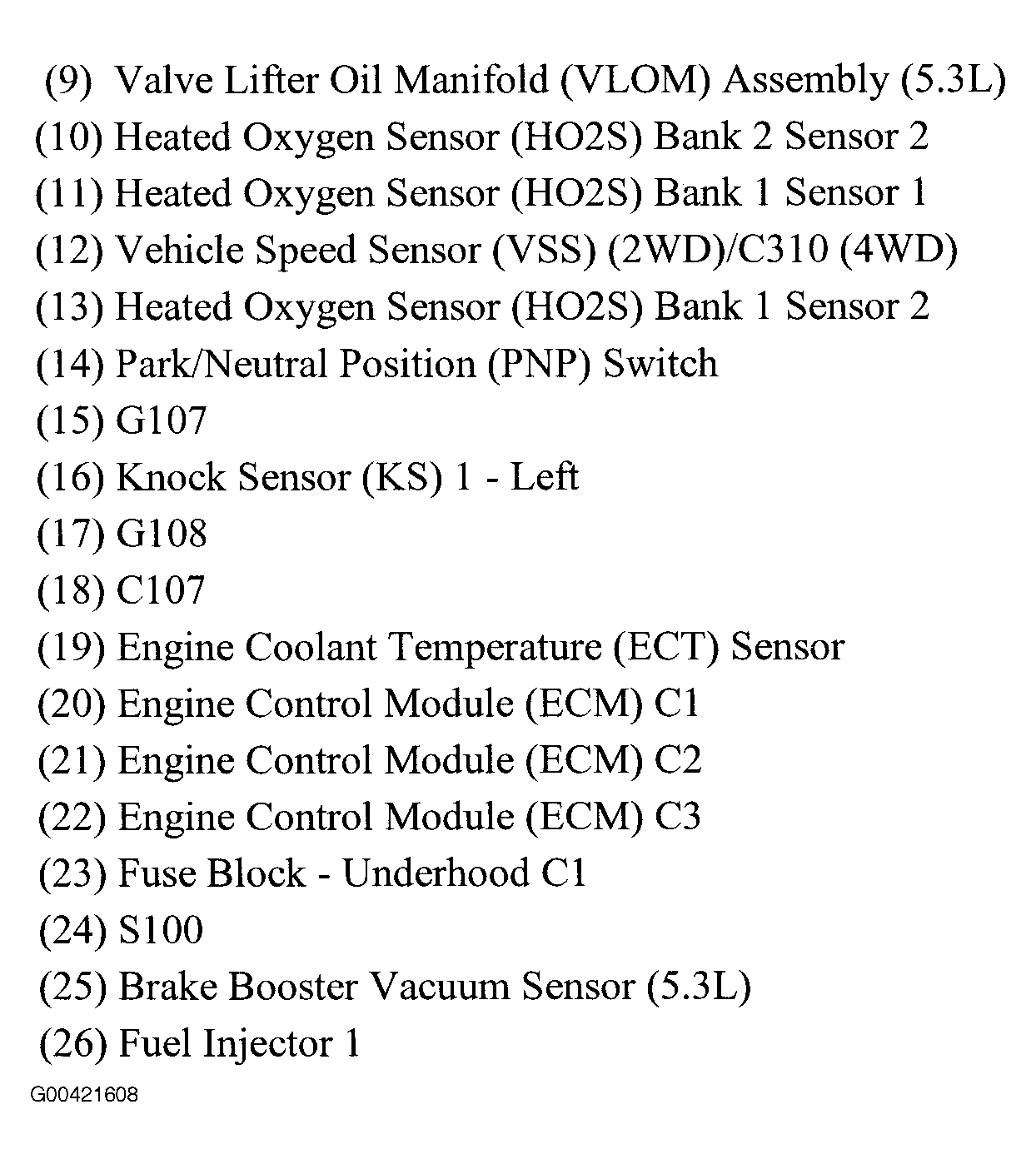

Fig 42: Left Side Of Engine (5.3L/6.0L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Right Side Of Engine (1 Of 2) (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Right Side Of Engine (2 Of 2) (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

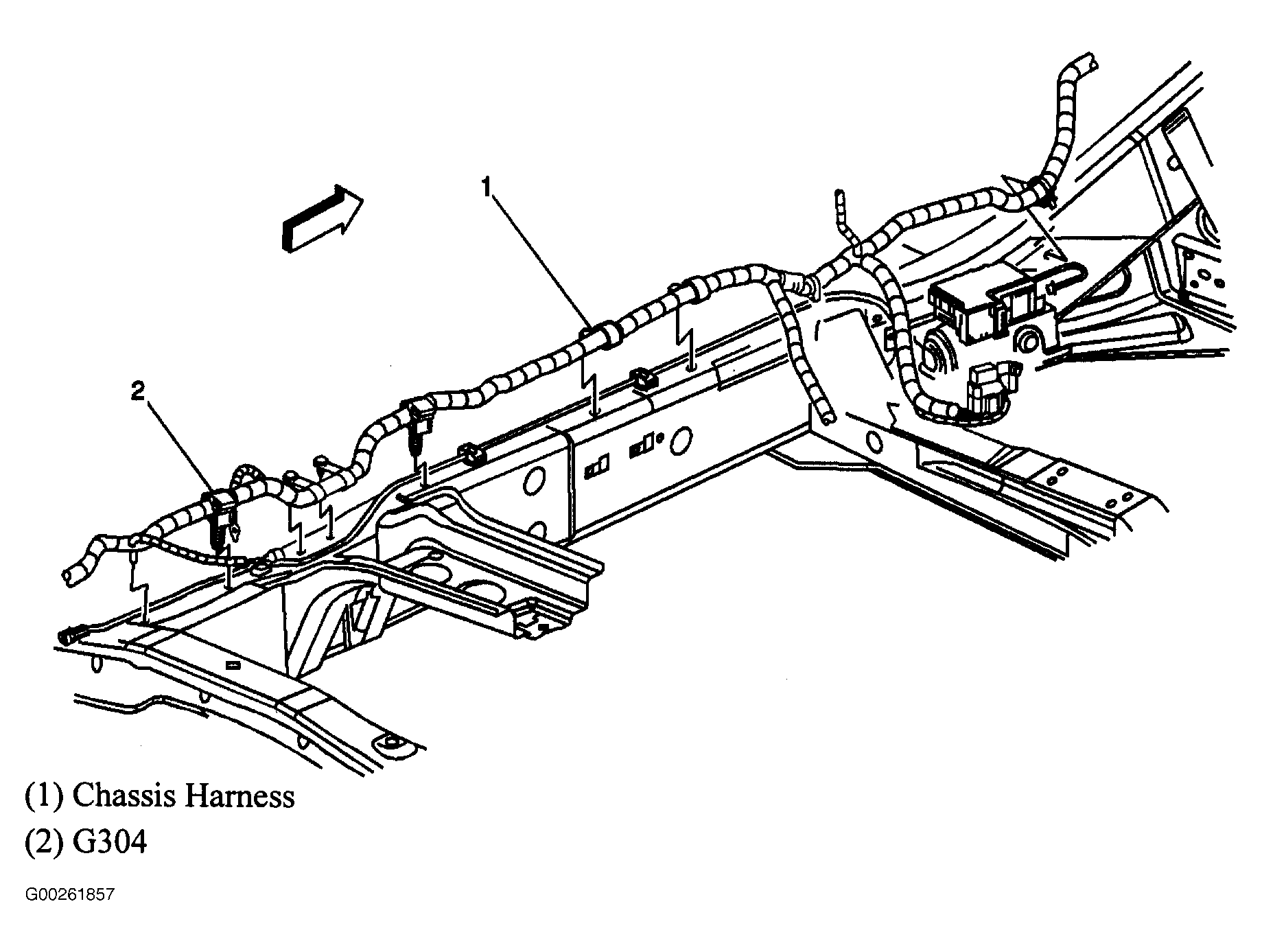

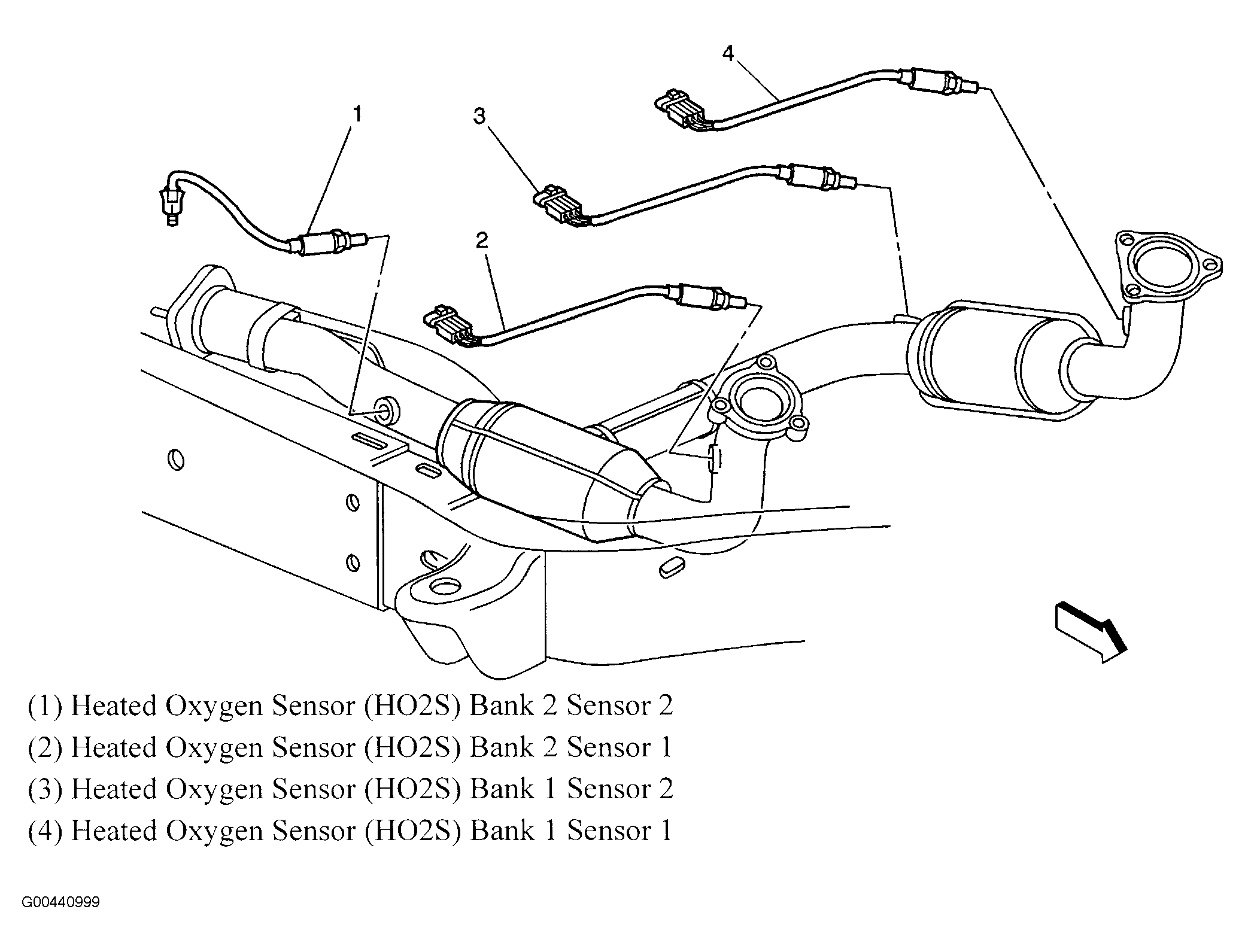

Fig 45: Chassis (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

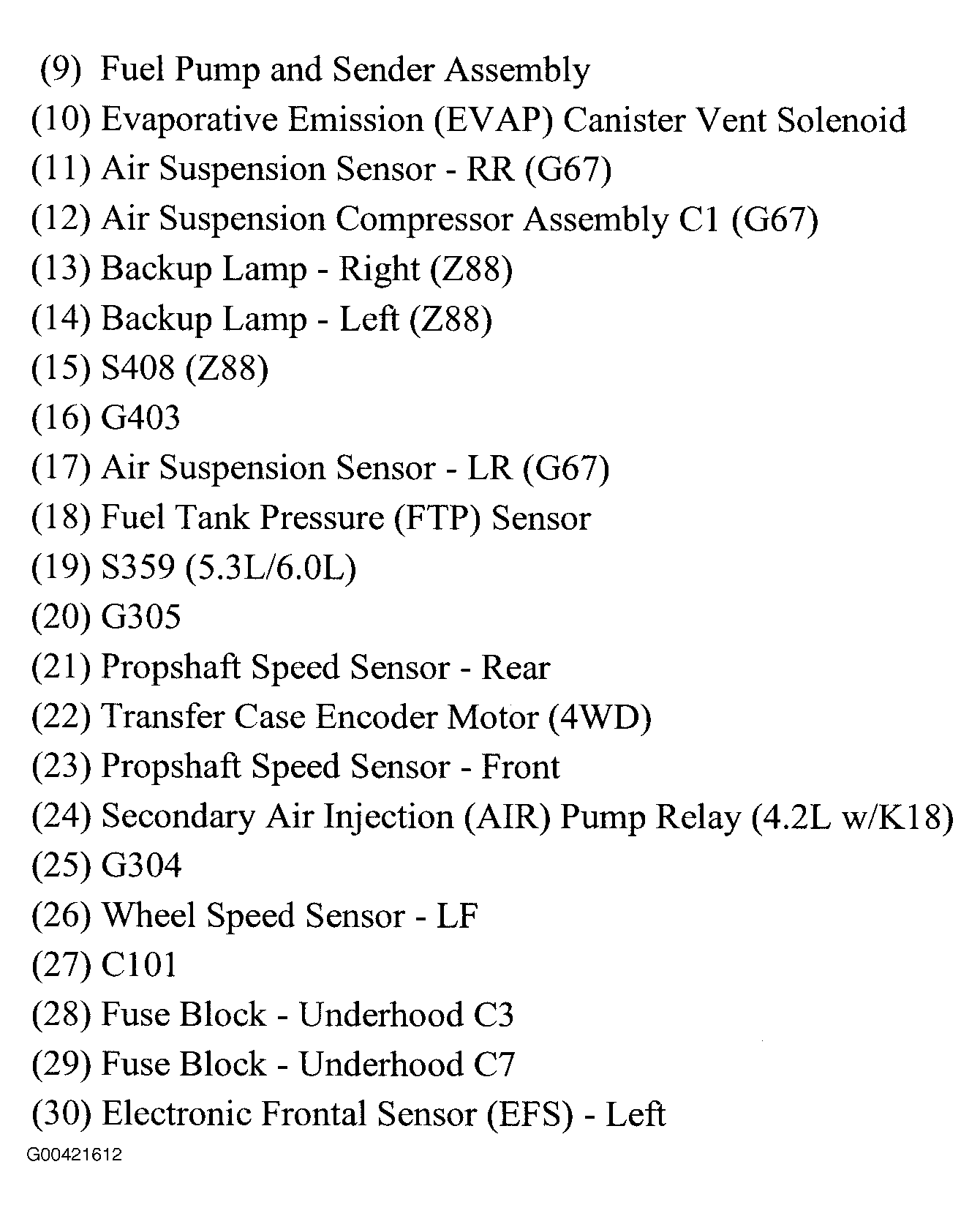

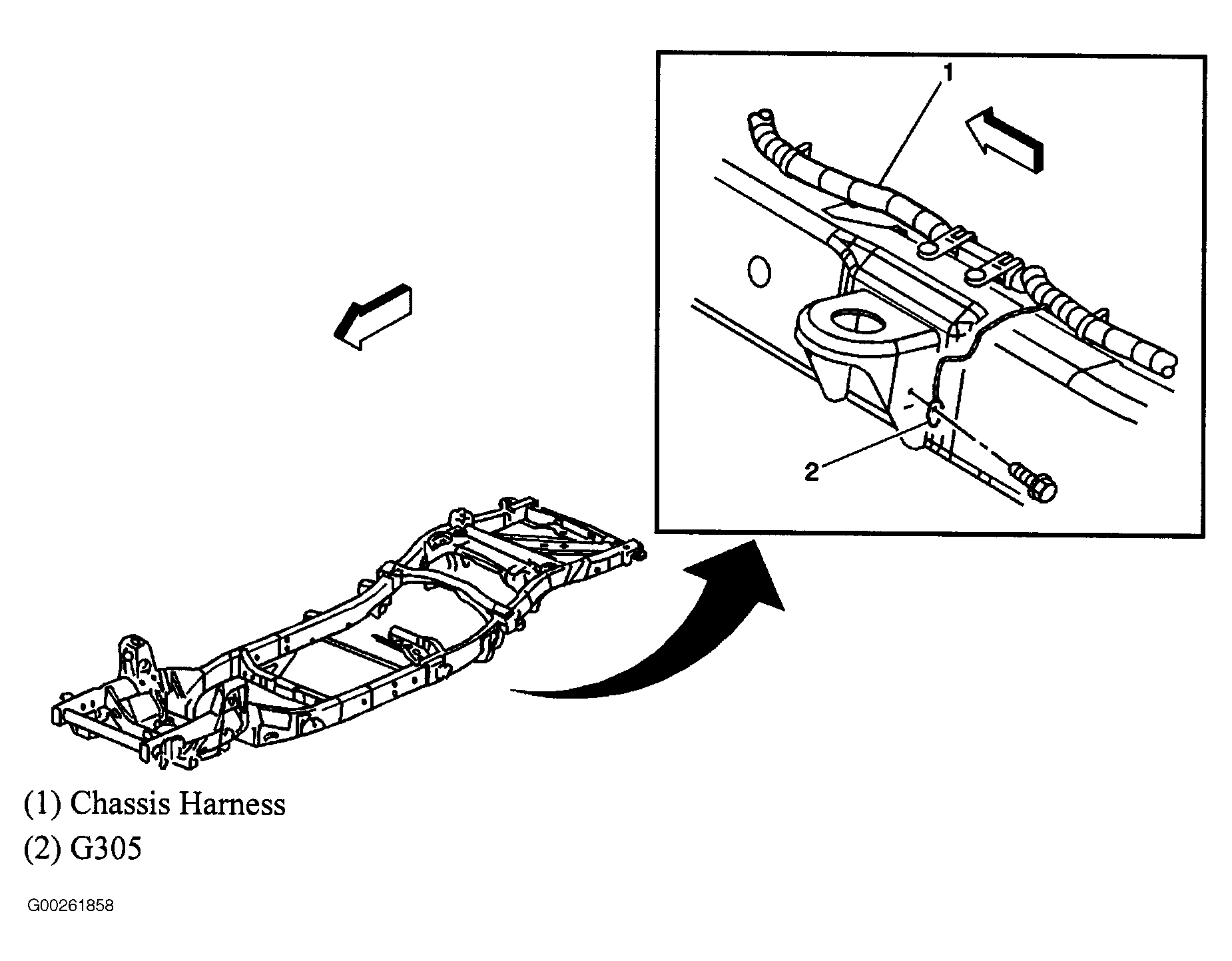

Fig 46: Chassis (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Rear Of Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

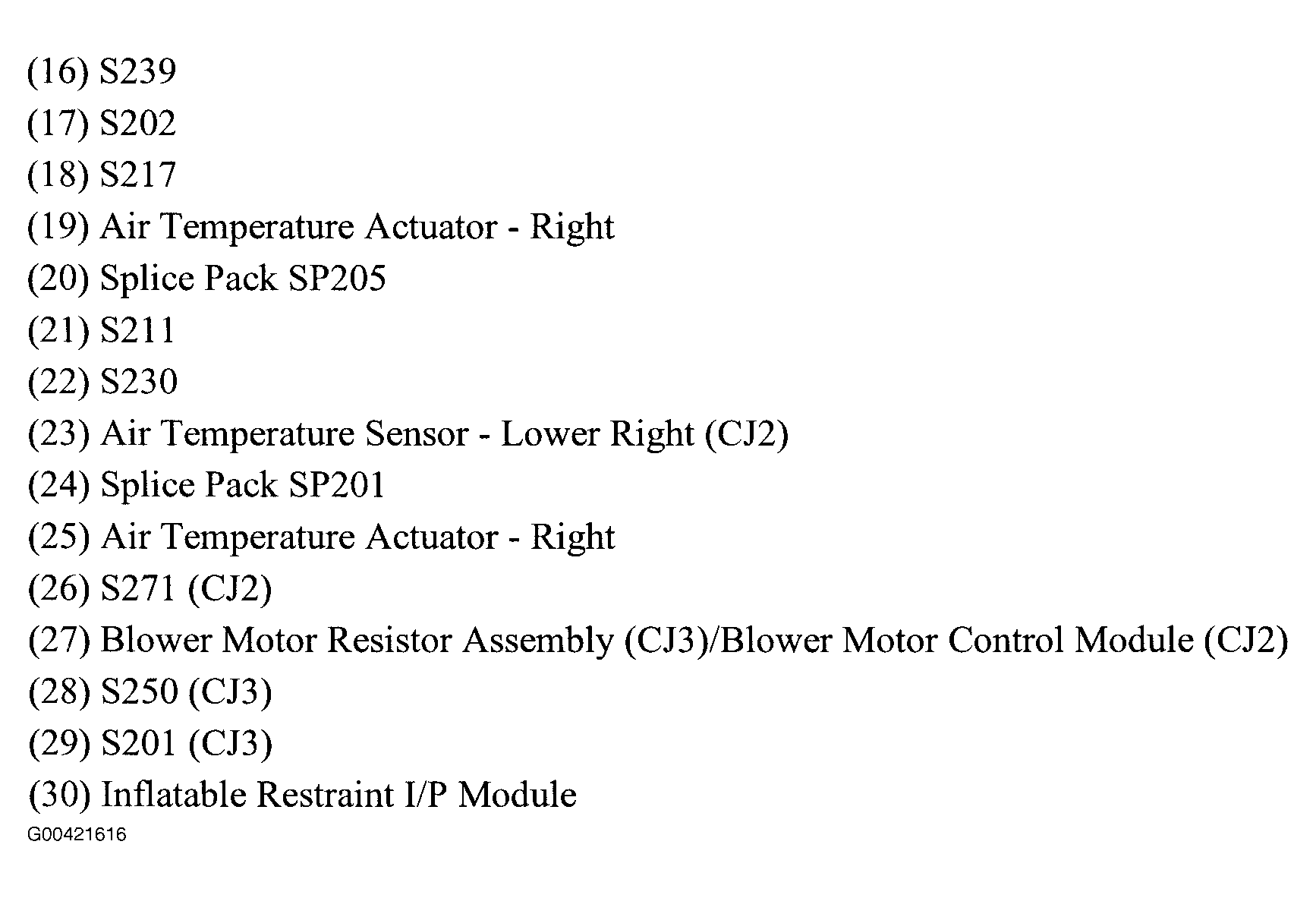

Fig 48: Rear Of Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Passenger Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

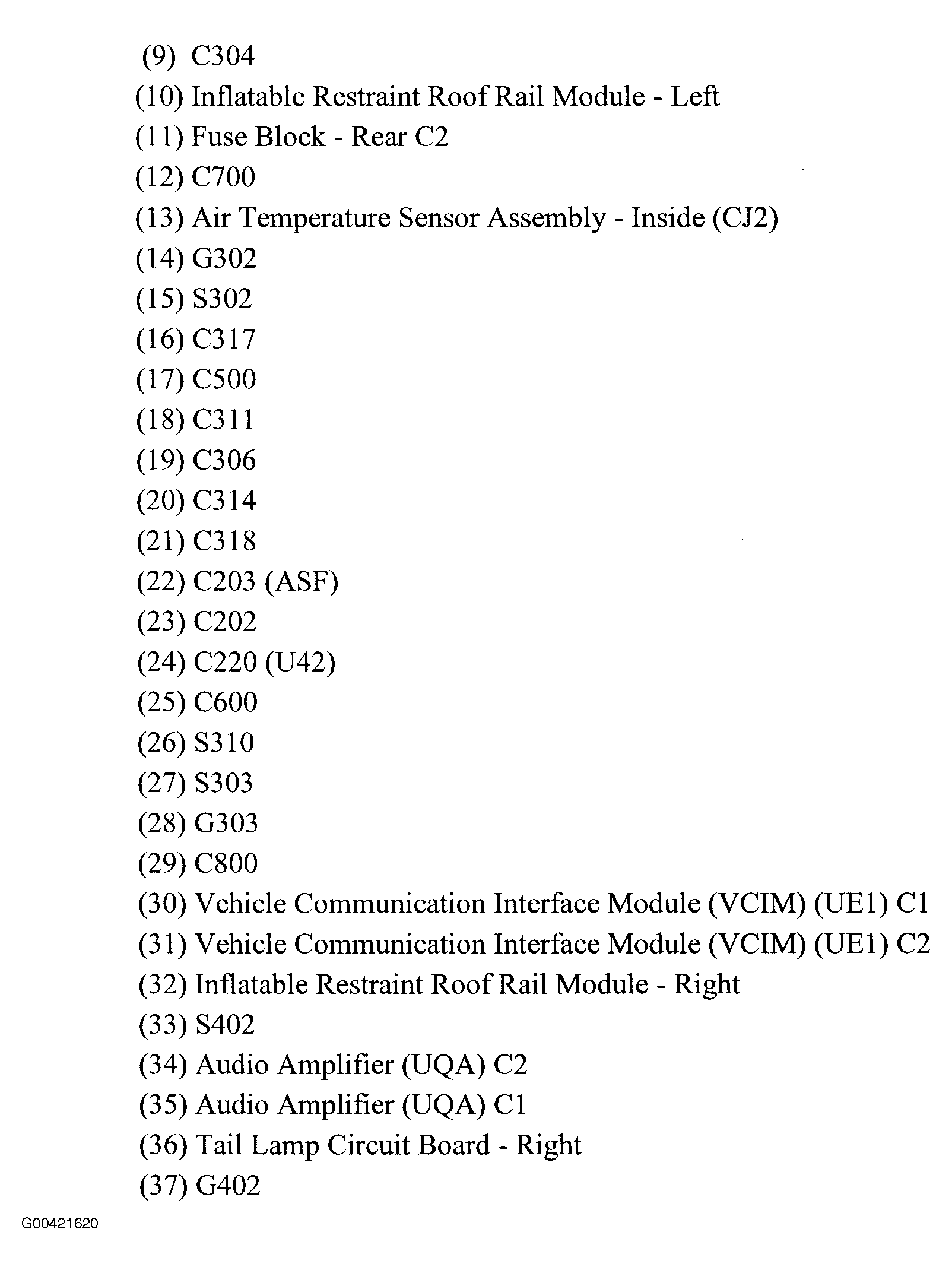

Fig 50: Passenger Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Under Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 52: Electronic Components
Courtesy of GENERAL MOTORS CORP.
Fig 53: Lower Left Side Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.

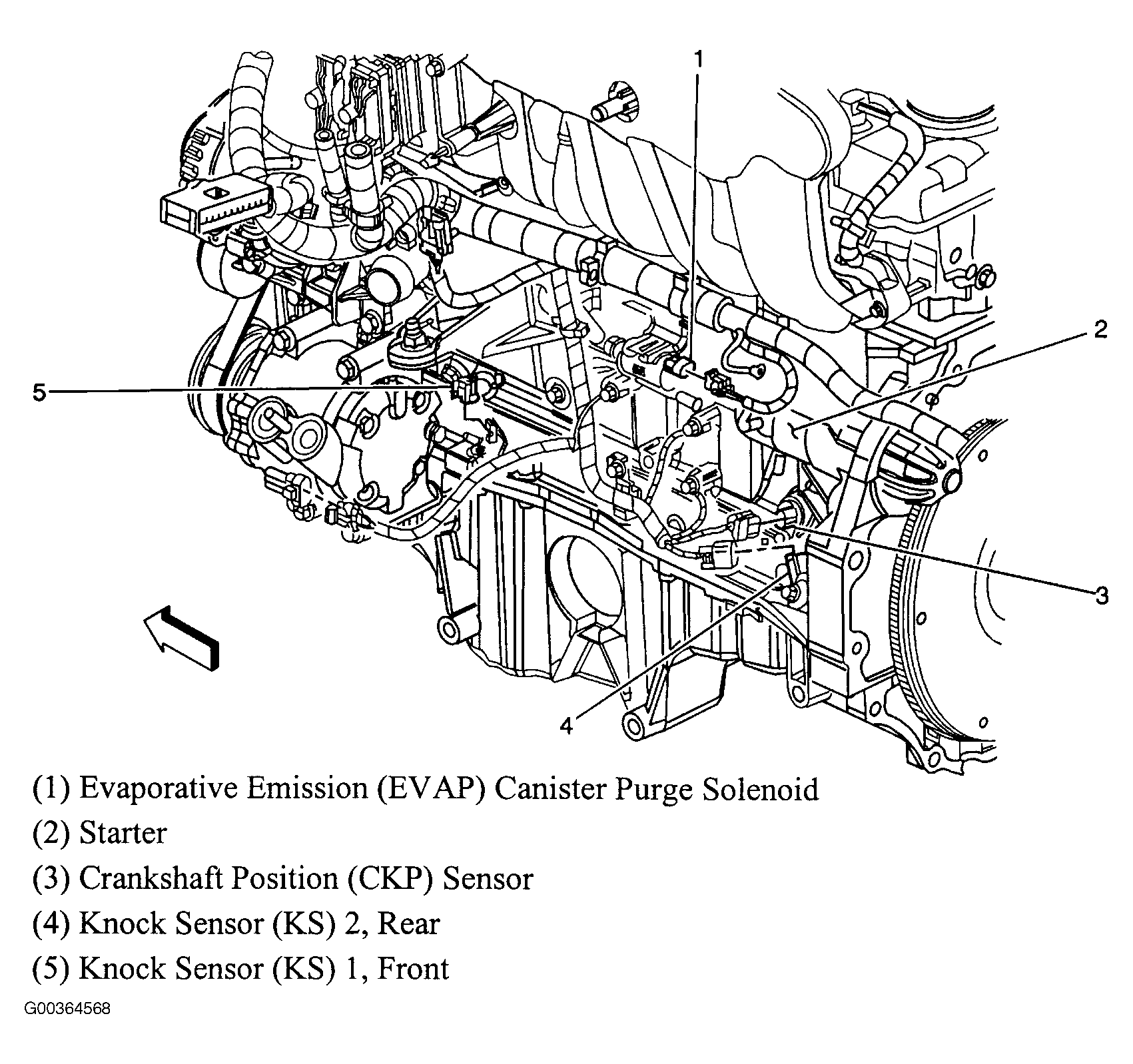

Fig 54: Lower Right Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Front Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

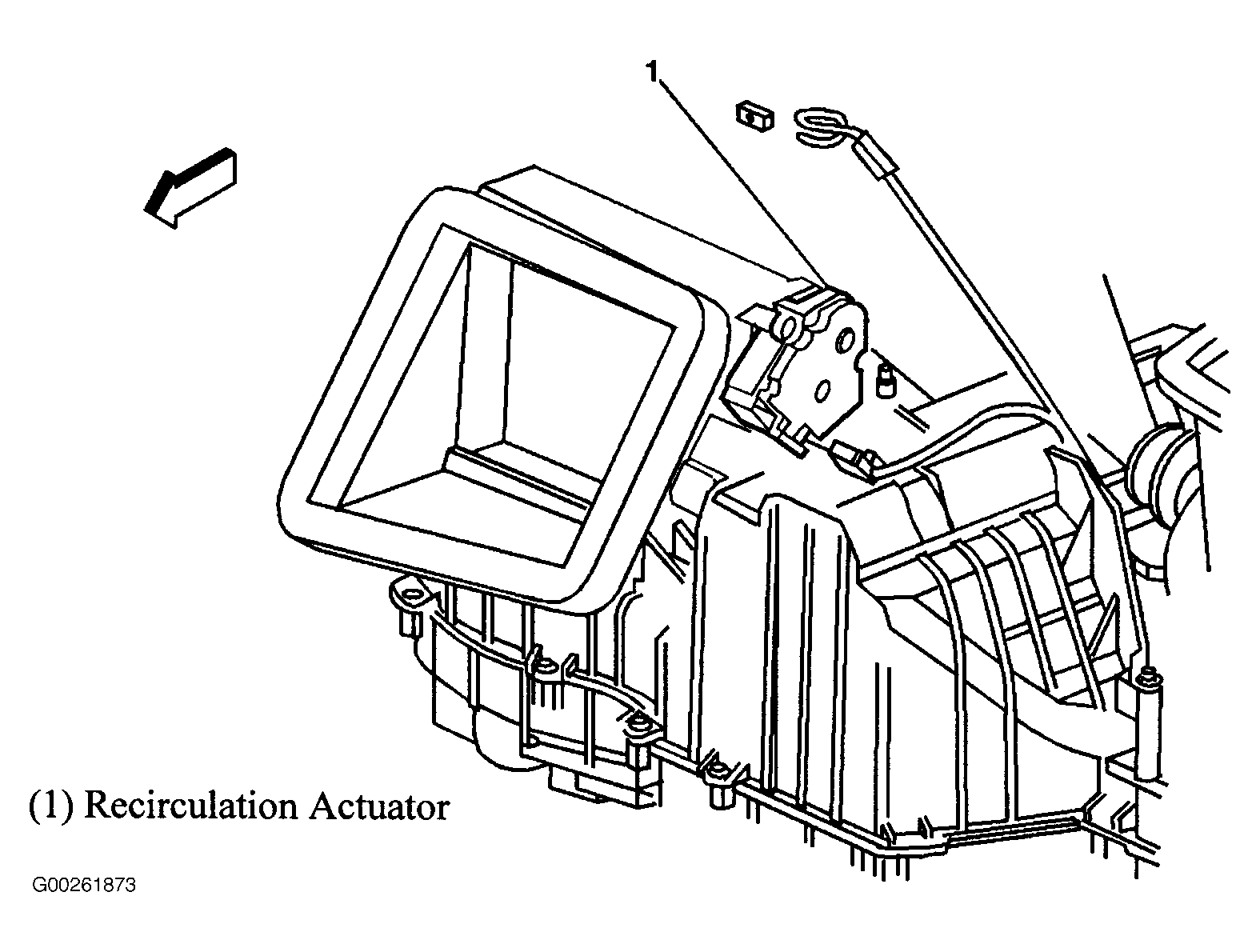

Fig 58: Right Side Of Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.

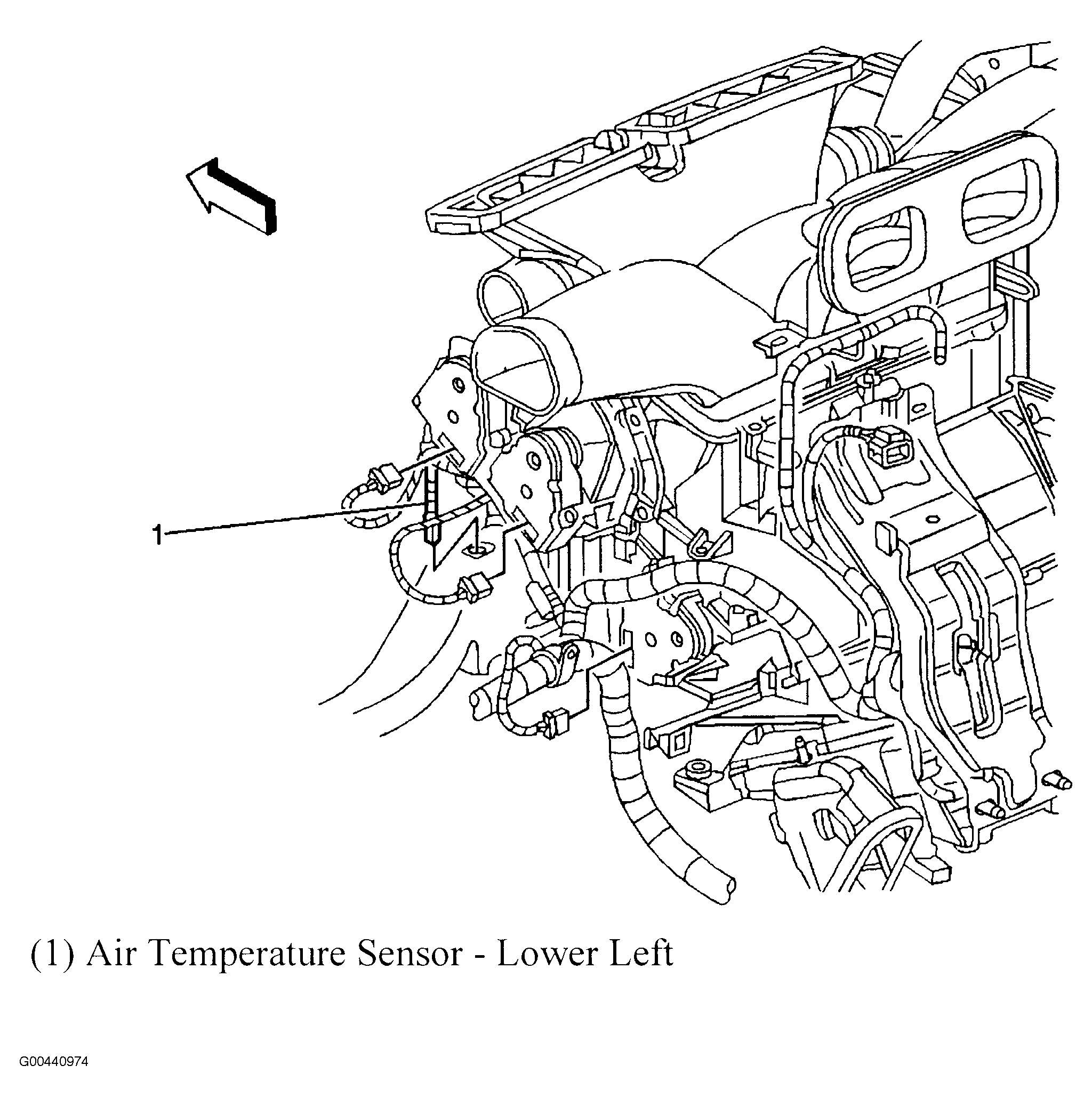

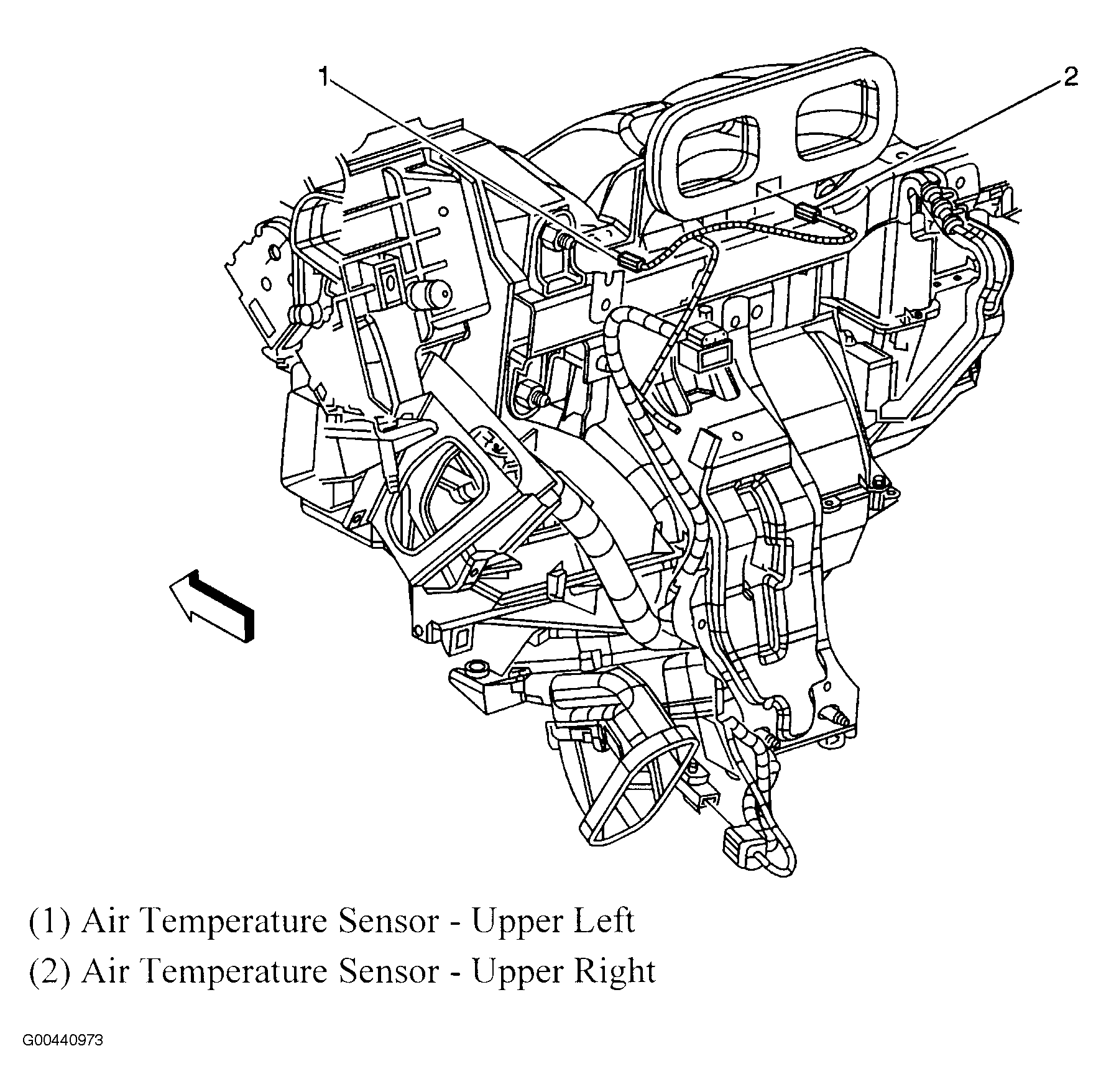

Fig 59: Air Duct In Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.

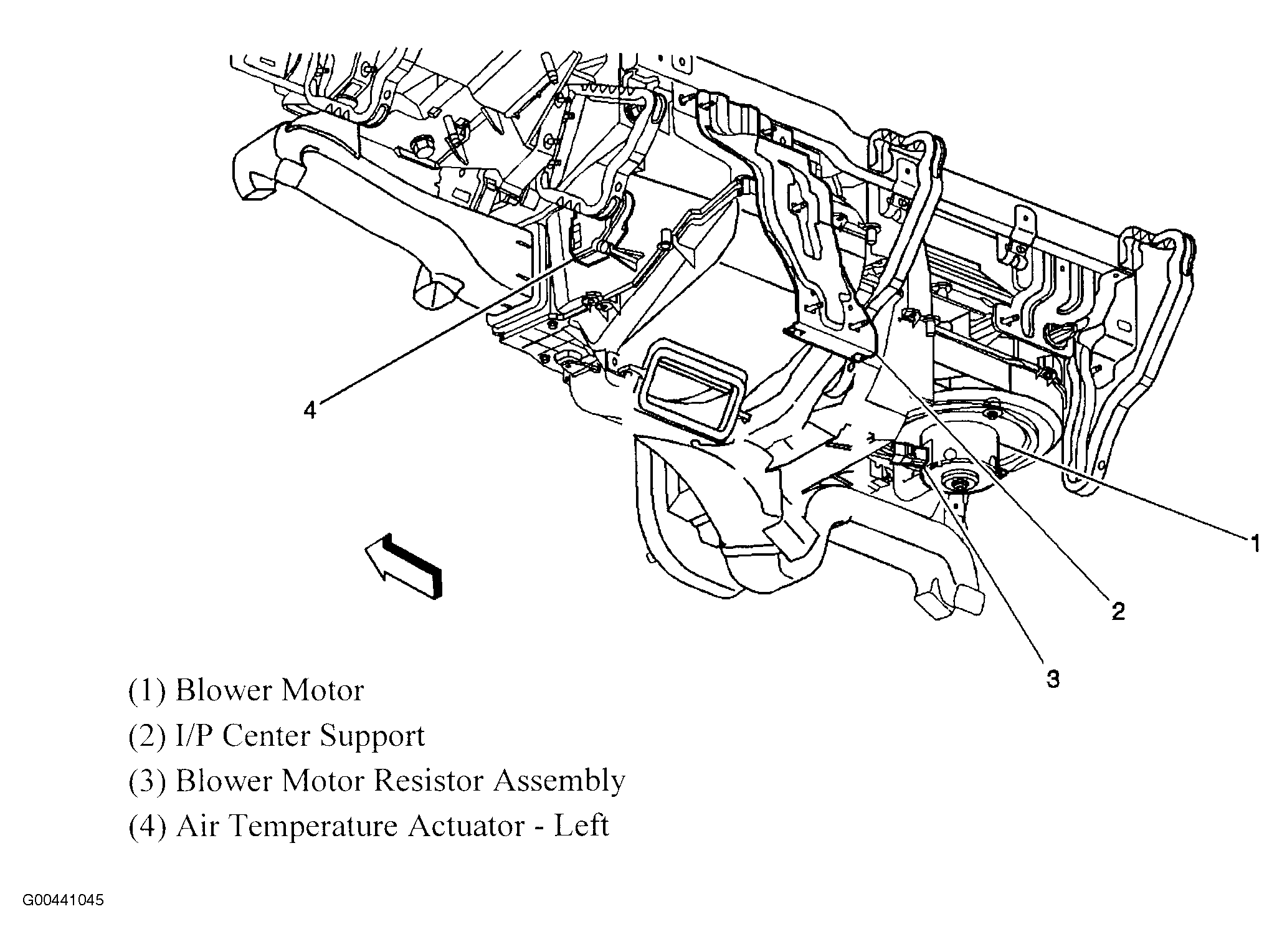

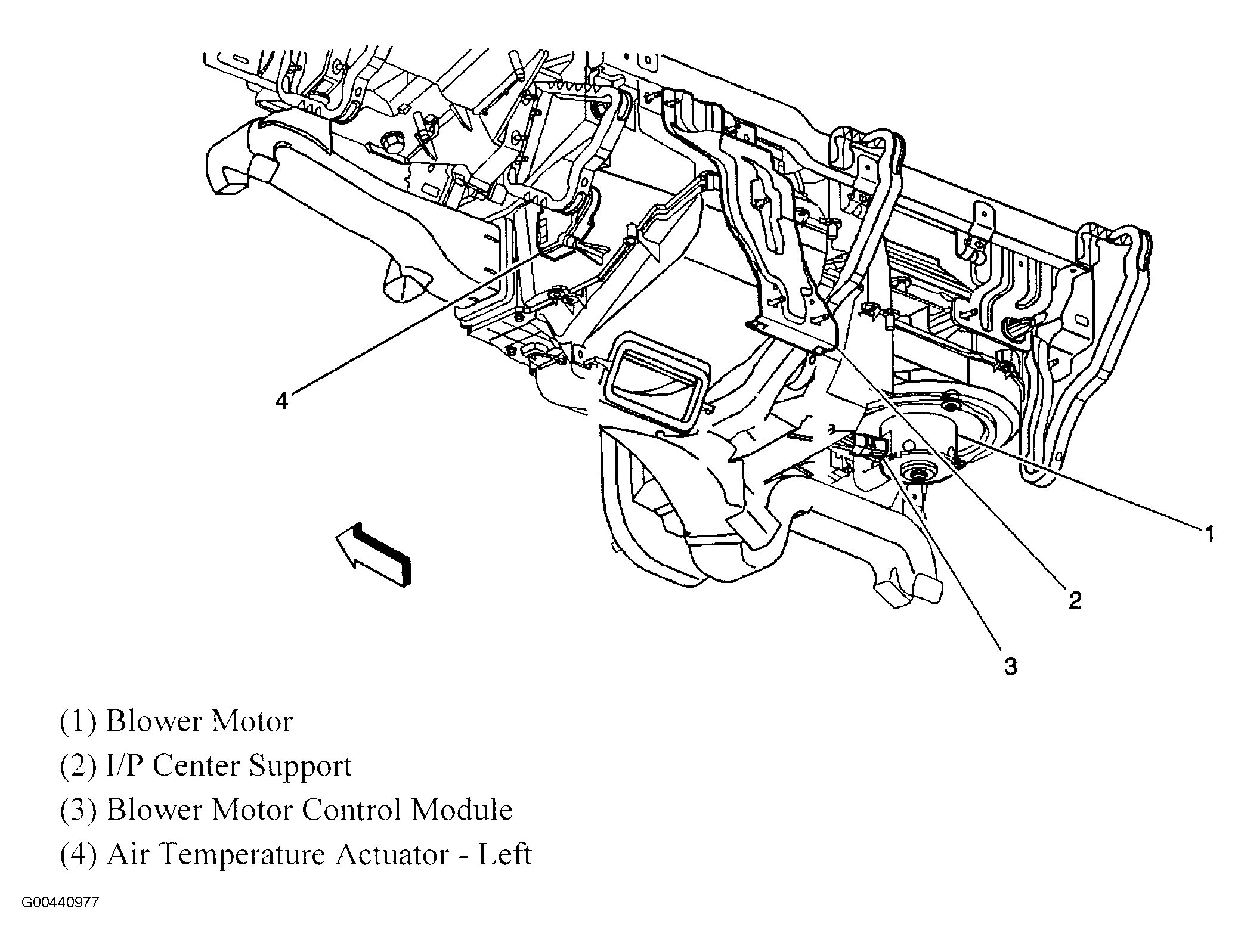

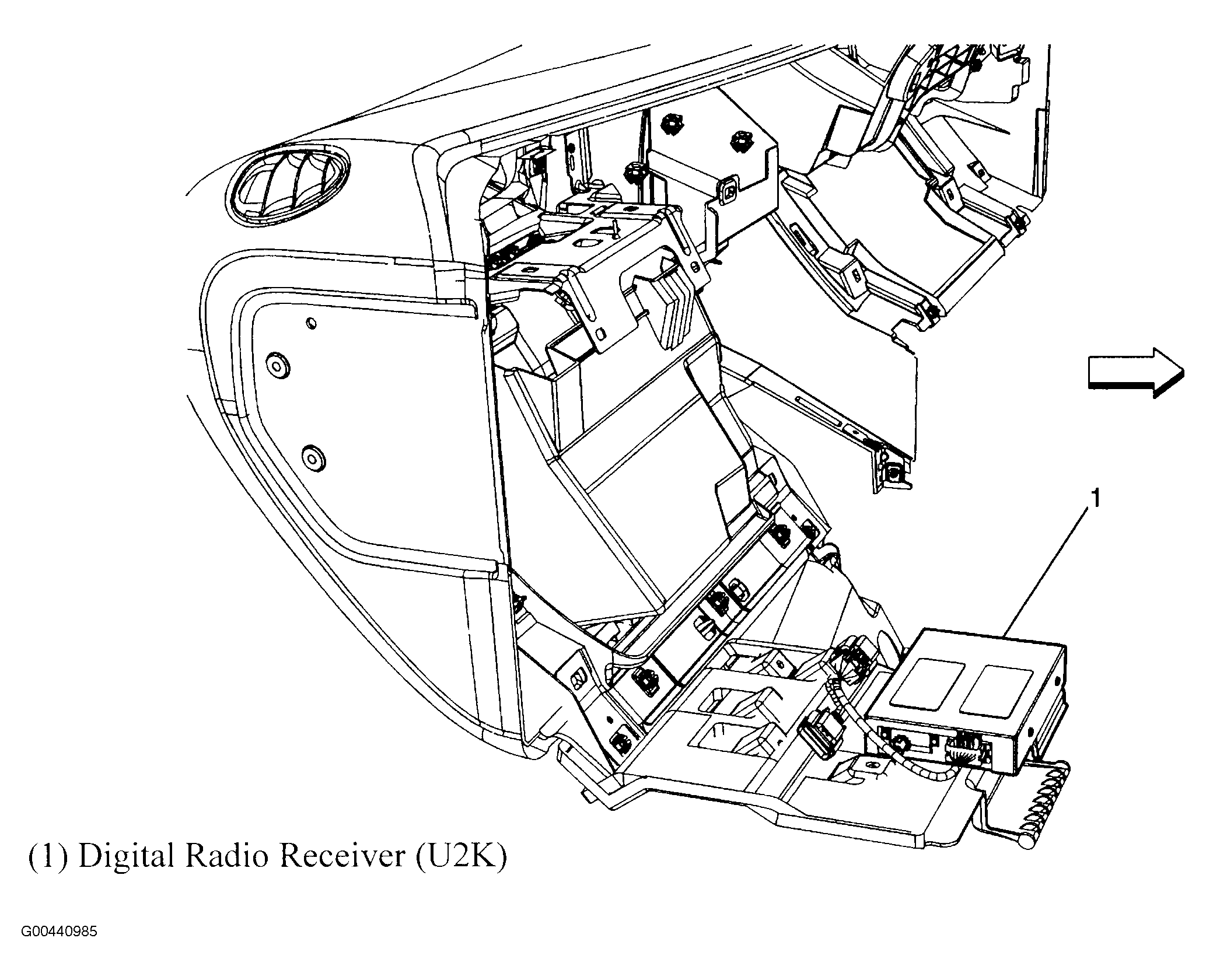

Fig 60: Center Section Of Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.

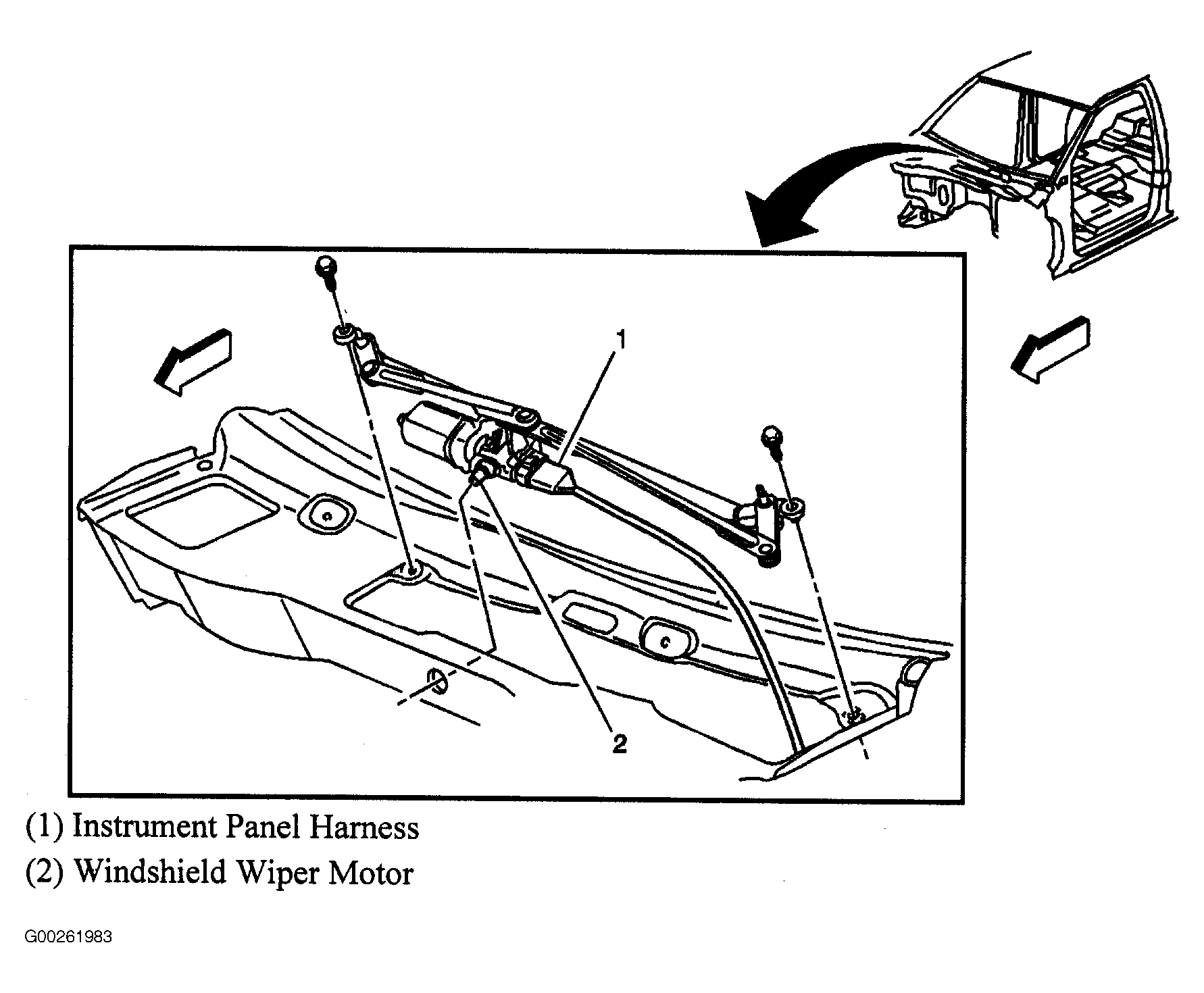

Fig 61: Dash Panel
Courtesy of GENERAL MOTORS CORP.

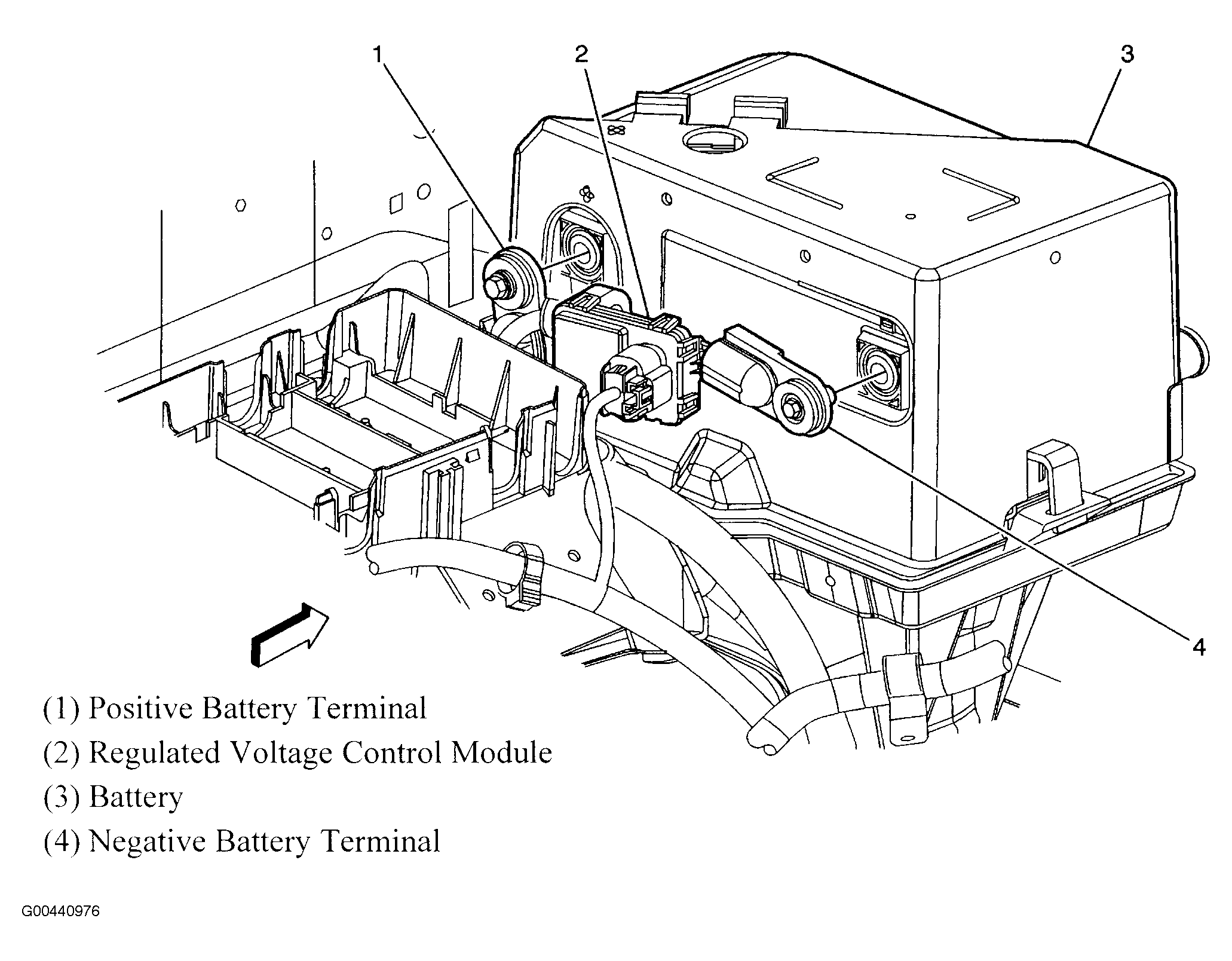

Fig 62: Battery (4.2L)
Courtesy of GENERAL MOTORS CORP.

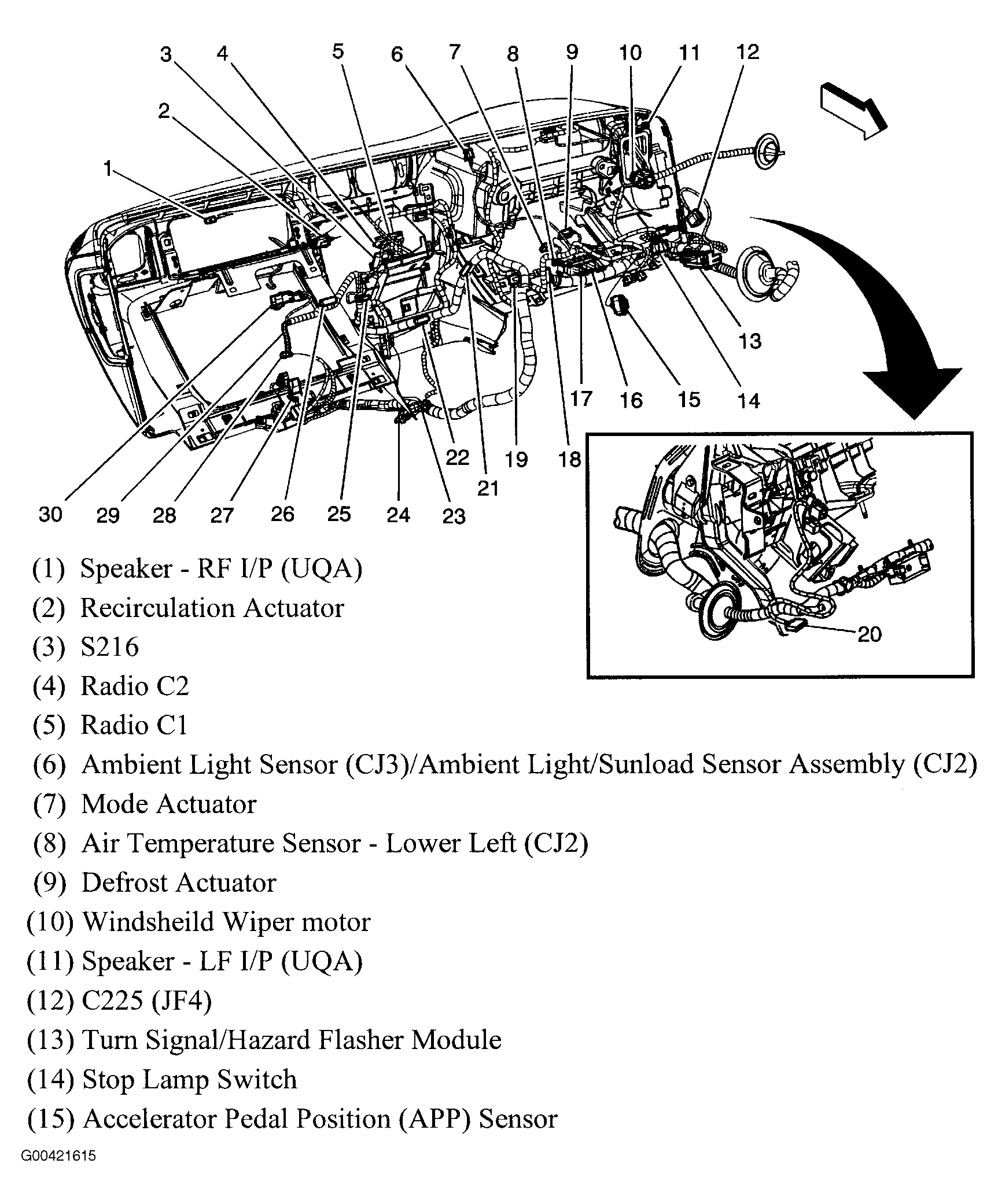

Fig 63: Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.

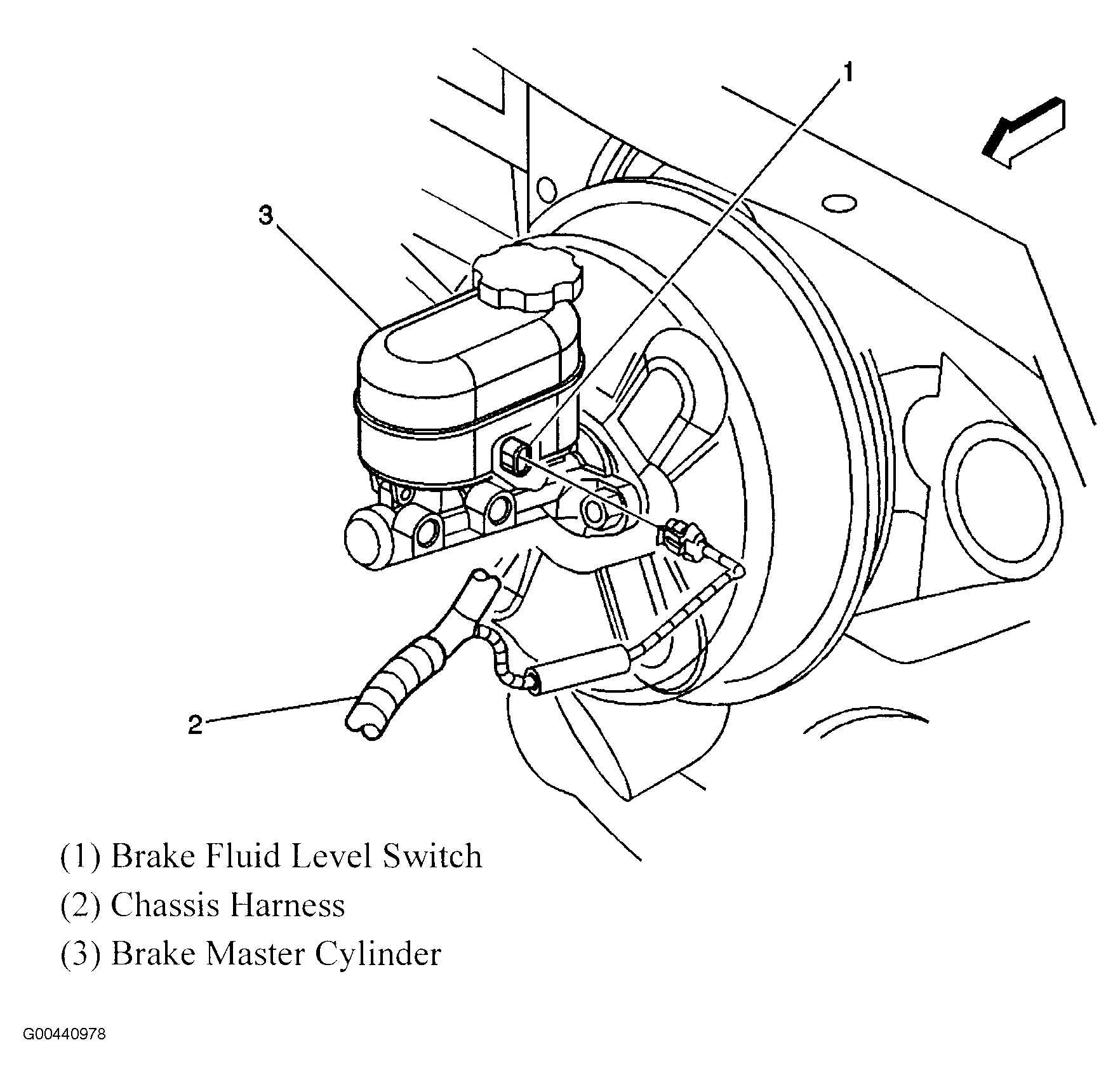

Fig 64: Brake Fluid Level Switch
Courtesy of GENERAL MOTORS CORP.

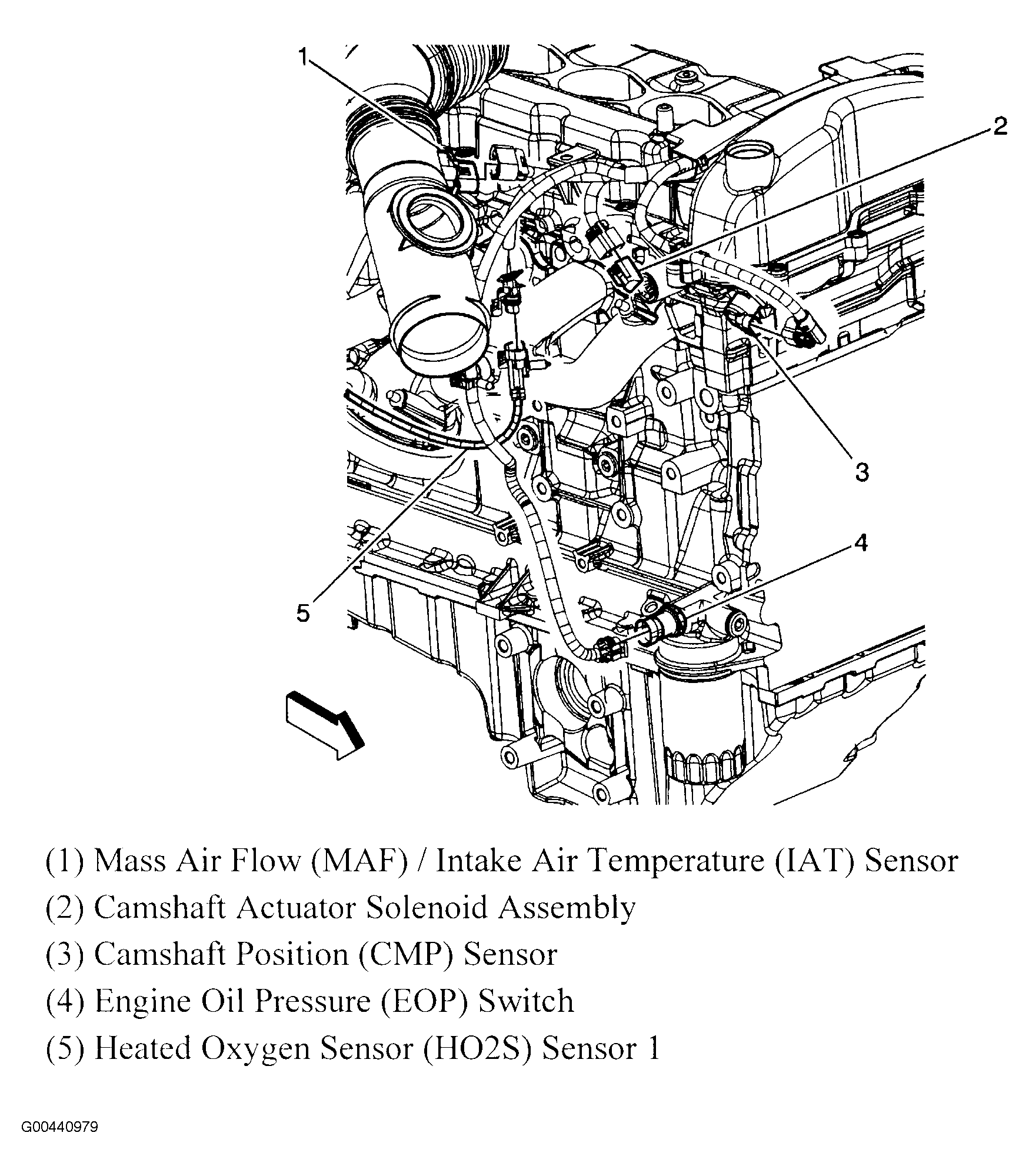

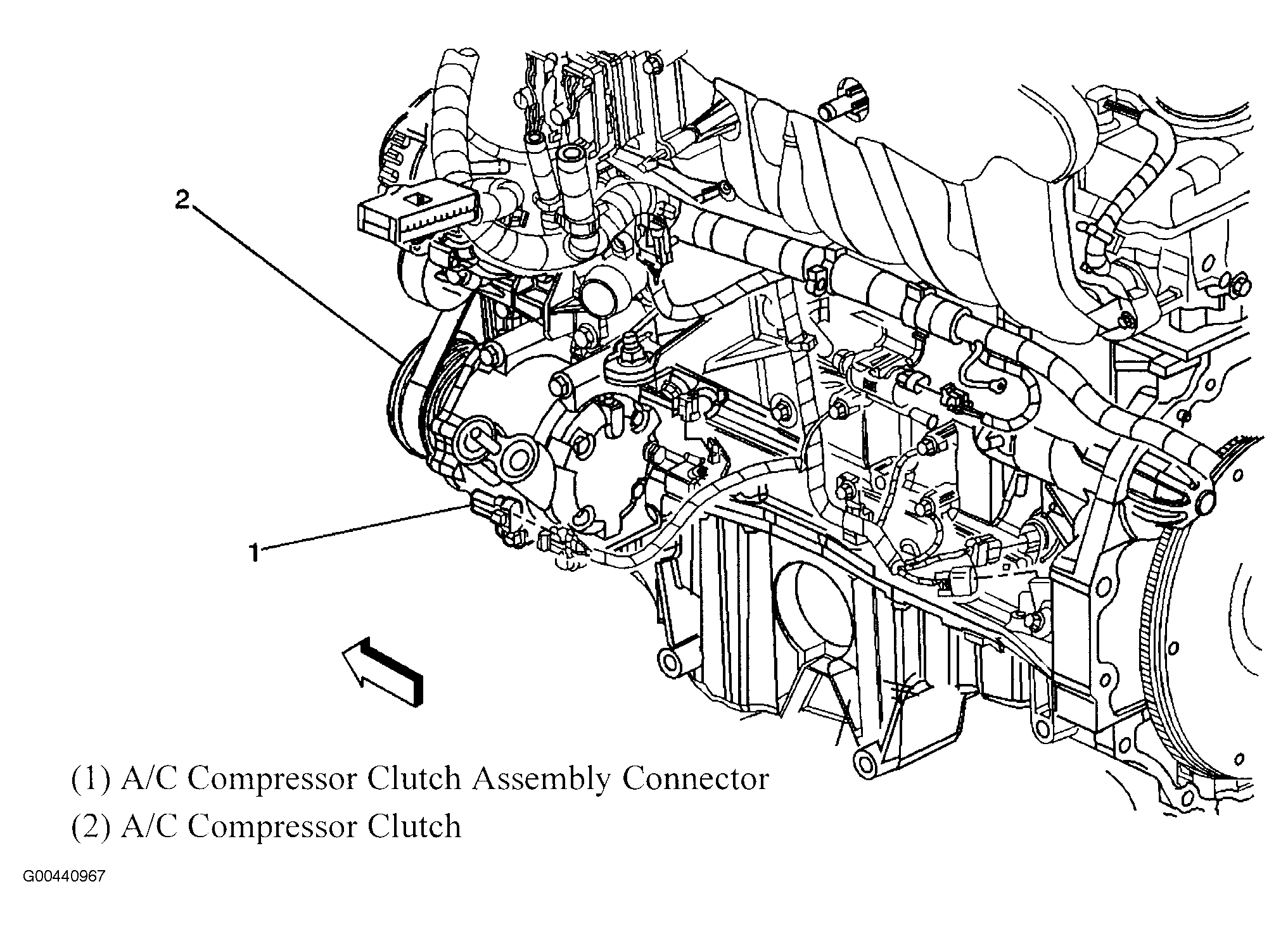

Fig 65: Right Front Side Of Engine
Courtesy of GENERAL MOTORS CORP.

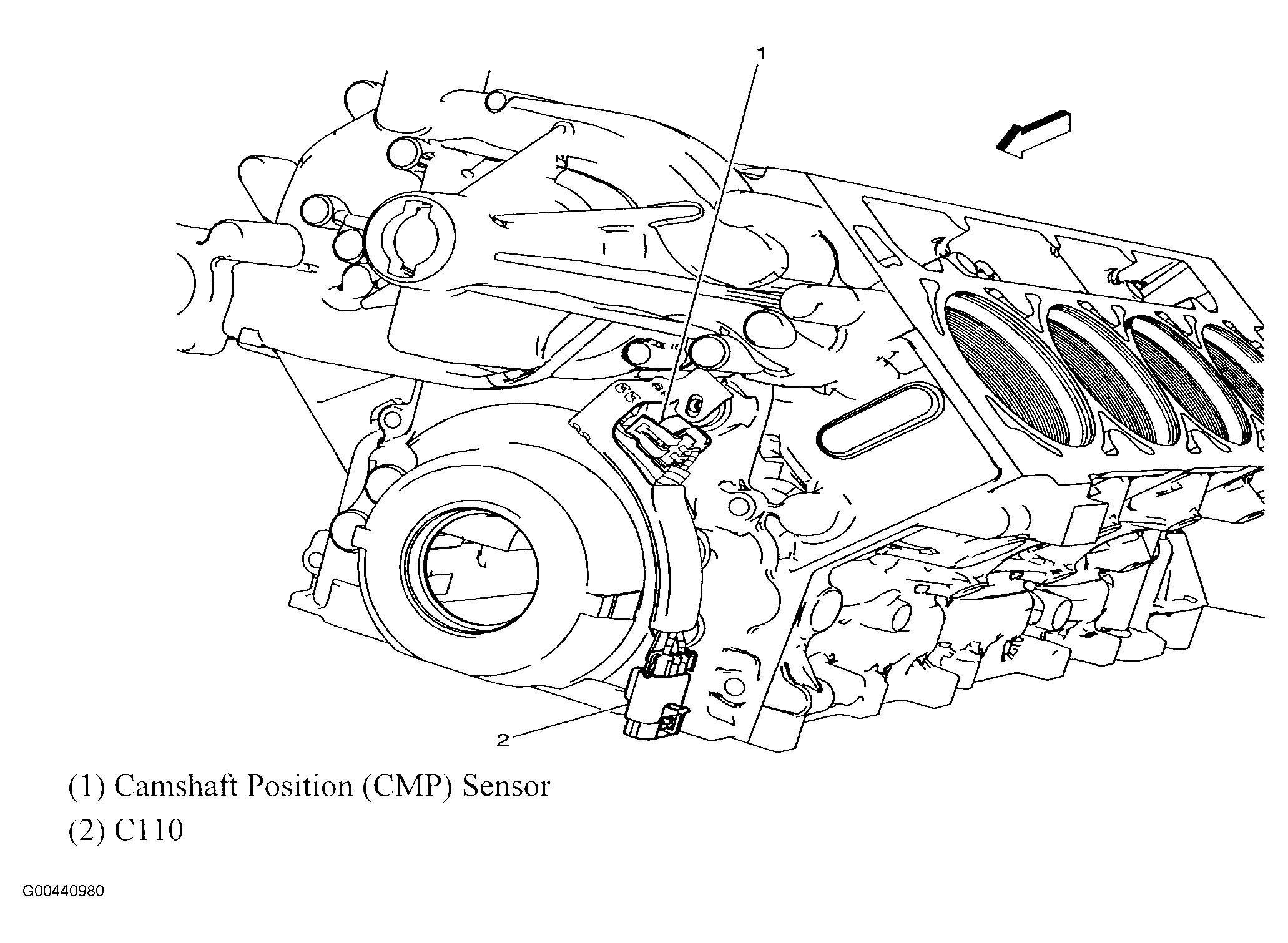

Fig 66: Camshaft Position (CMP) Sensor
Courtesy of GENERAL MOTORS CORP.

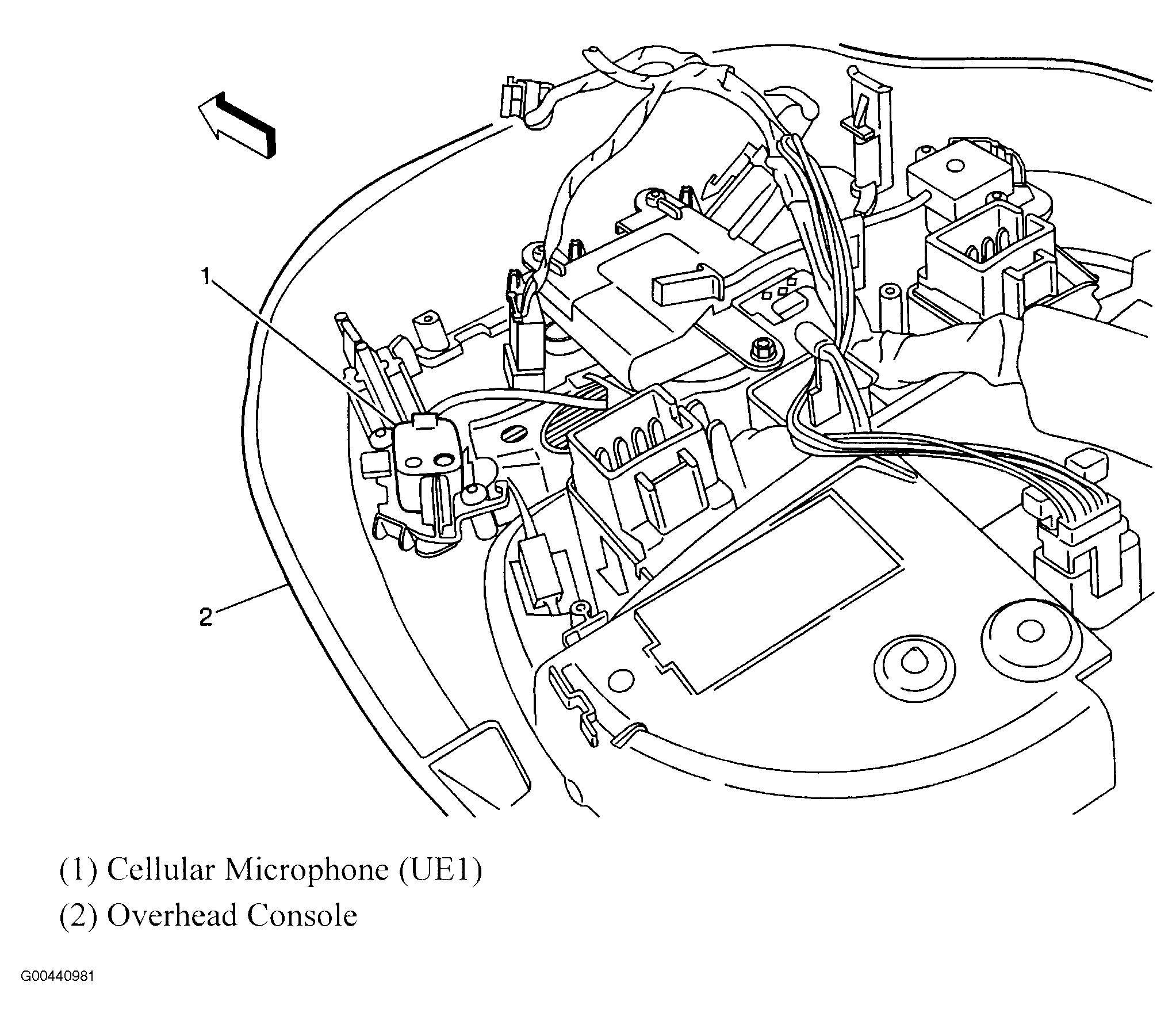

Fig 67: Overhead Console
Courtesy of GENERAL MOTORS CORP.

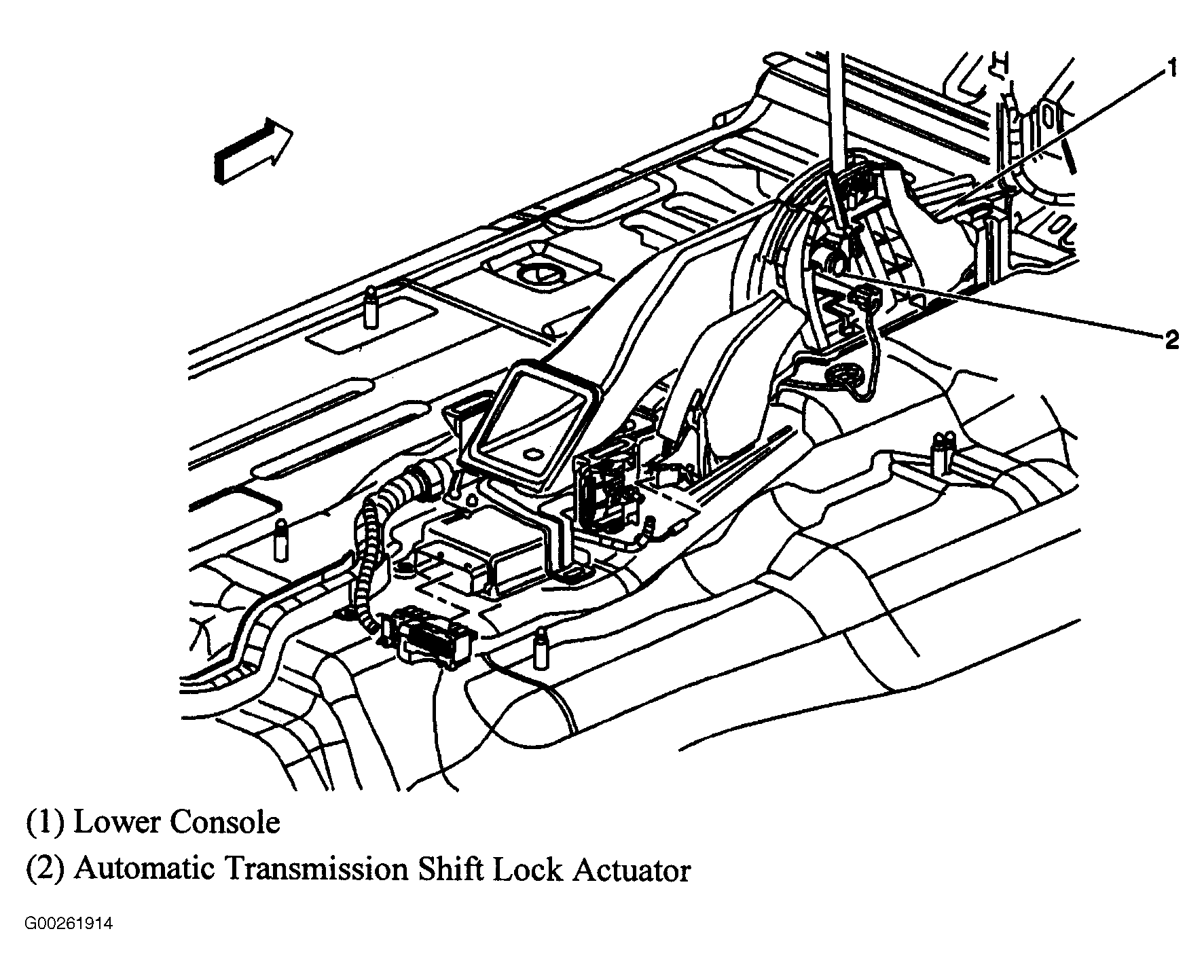

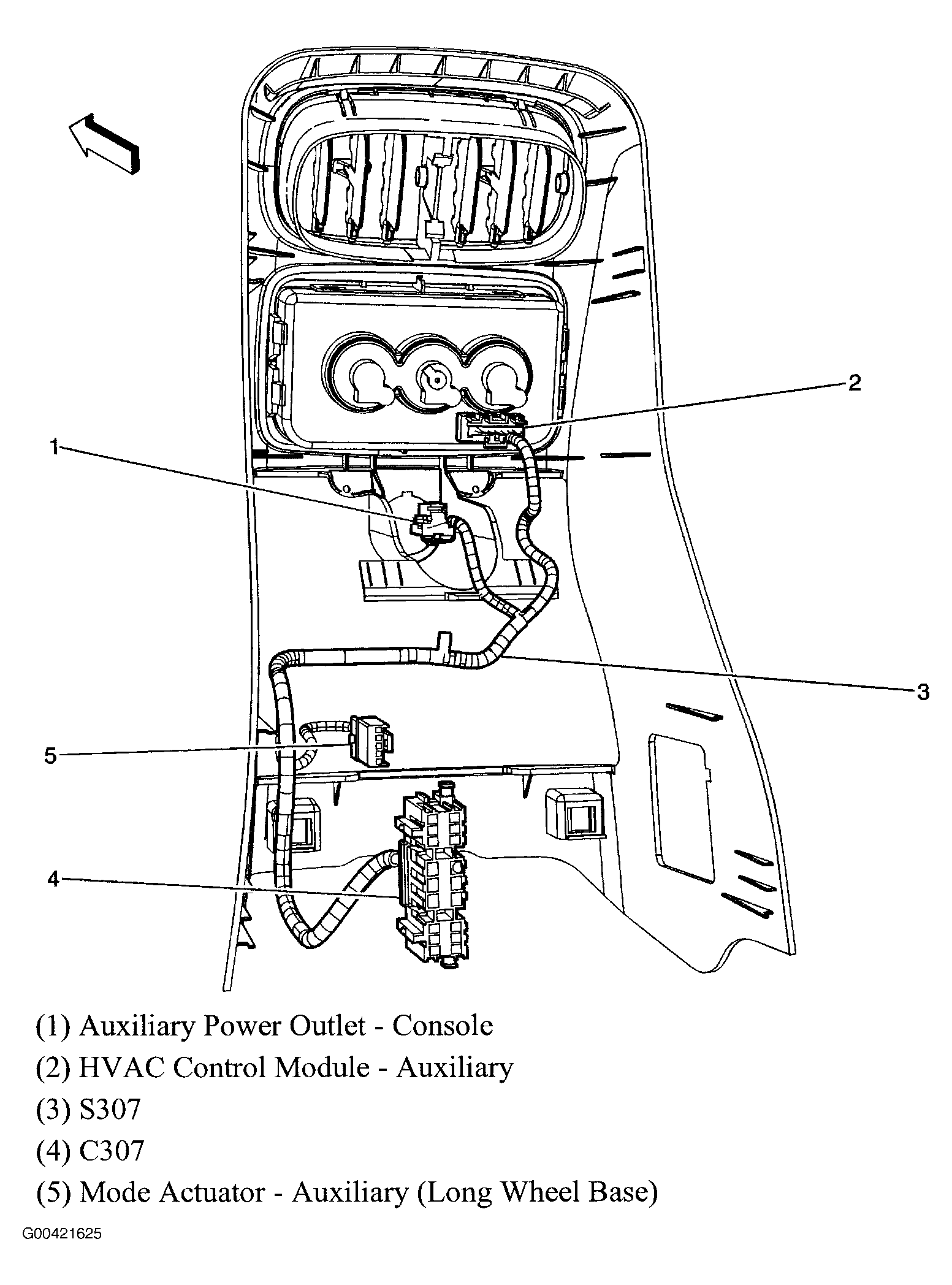

Fig 68: Lower Console
Courtesy of GENERAL MOTORS CORP.

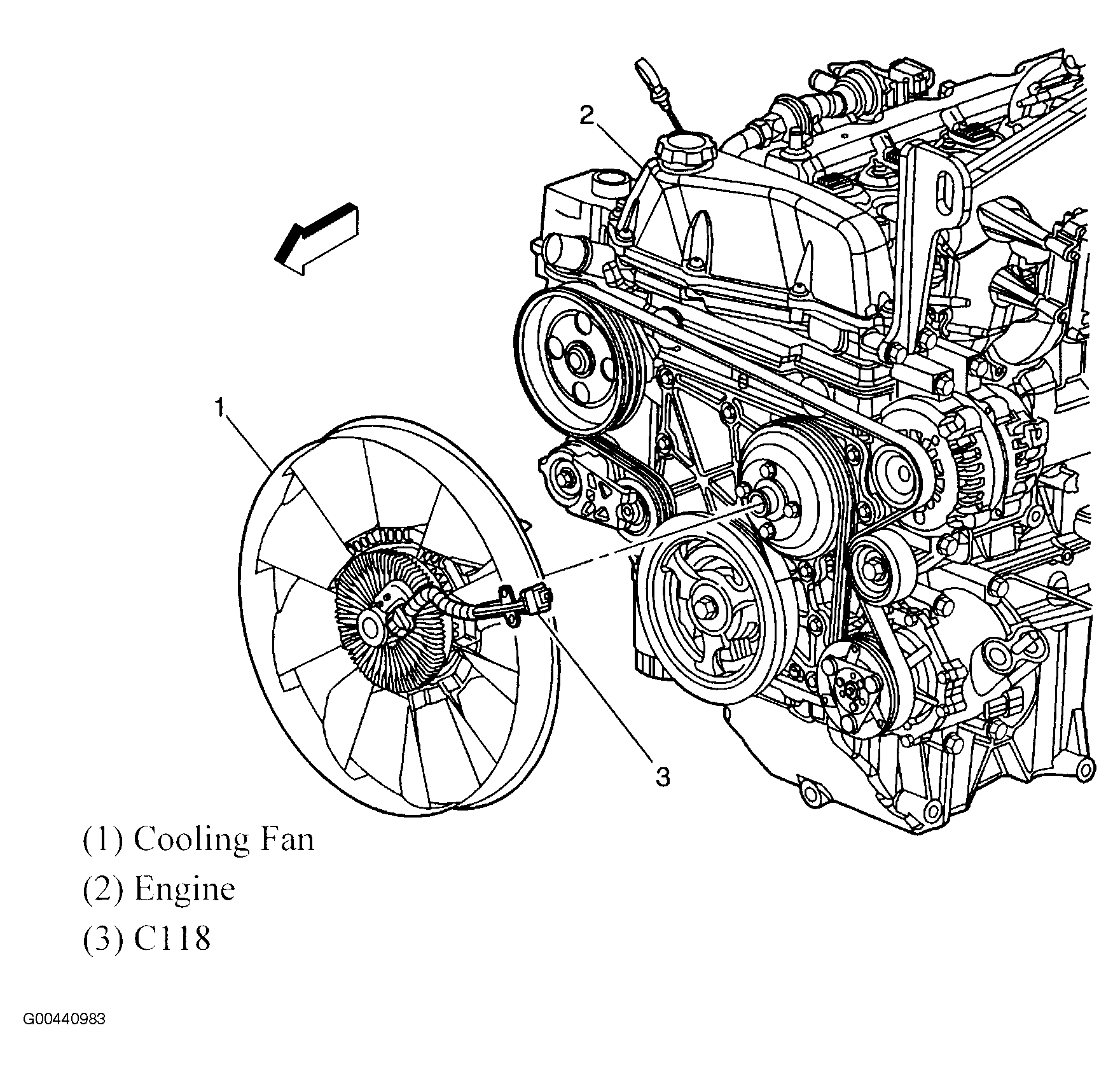

Fig 69: Engine Cooling Fan
Courtesy of GENERAL MOTORS CORP.

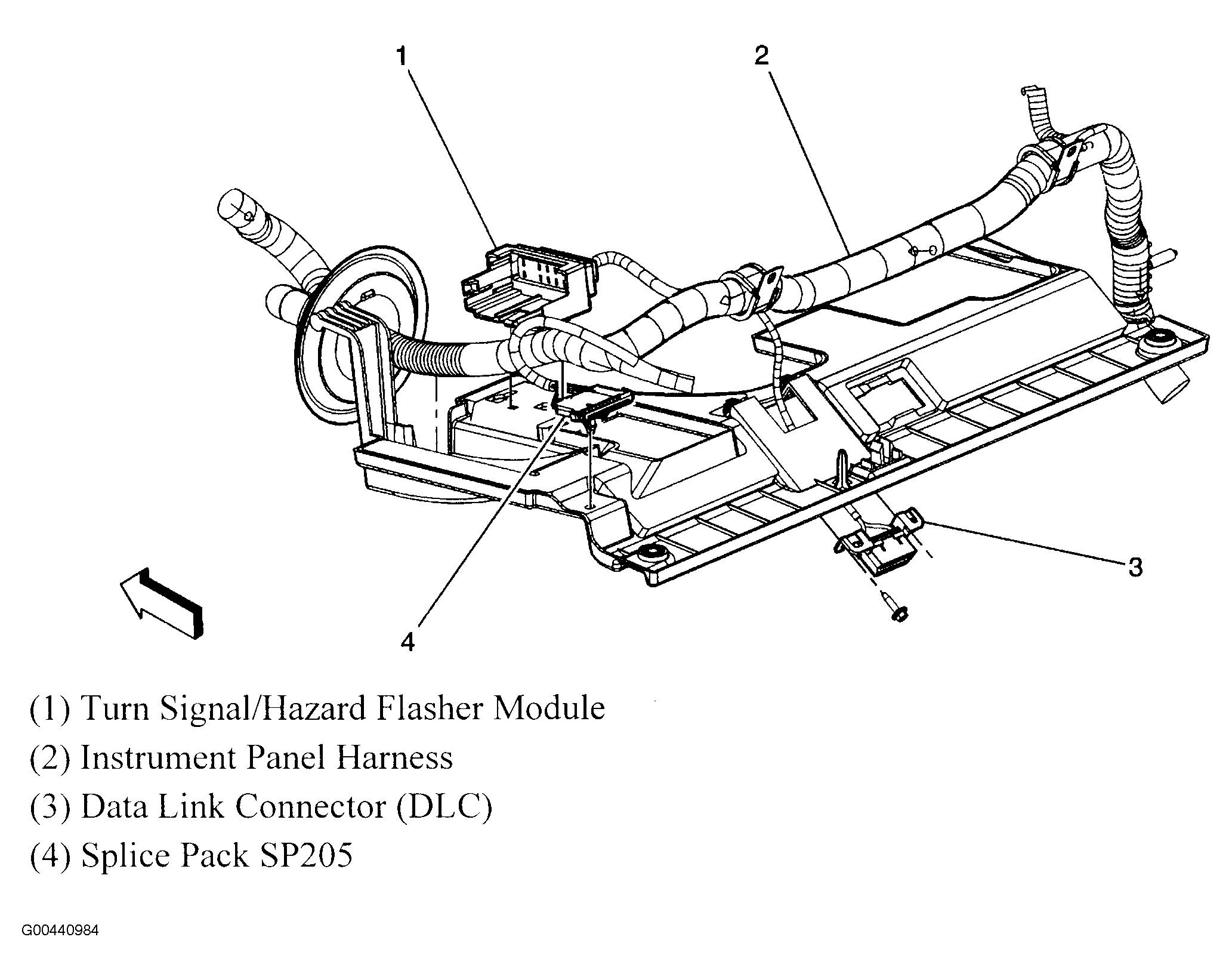

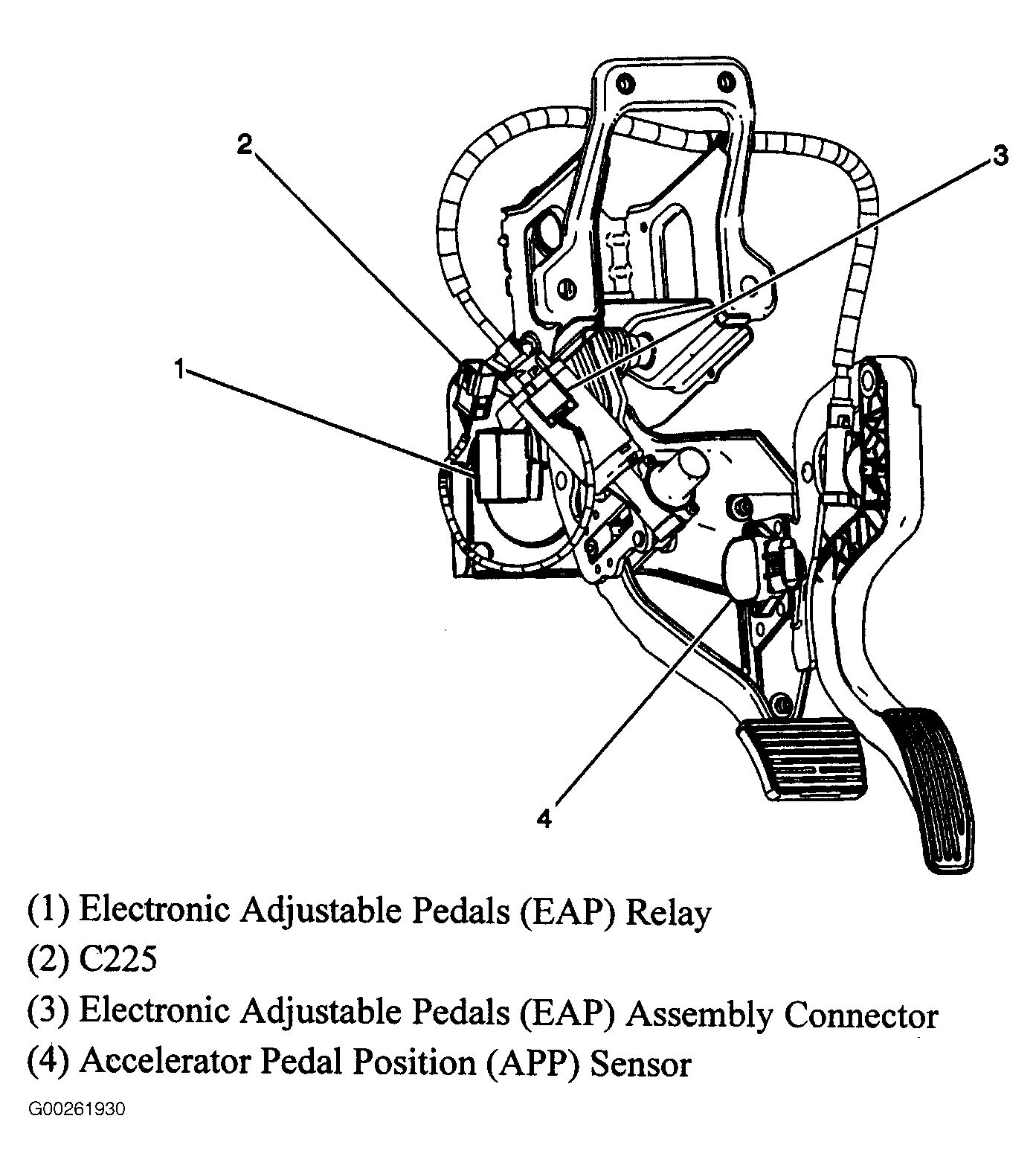

Fig 70: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

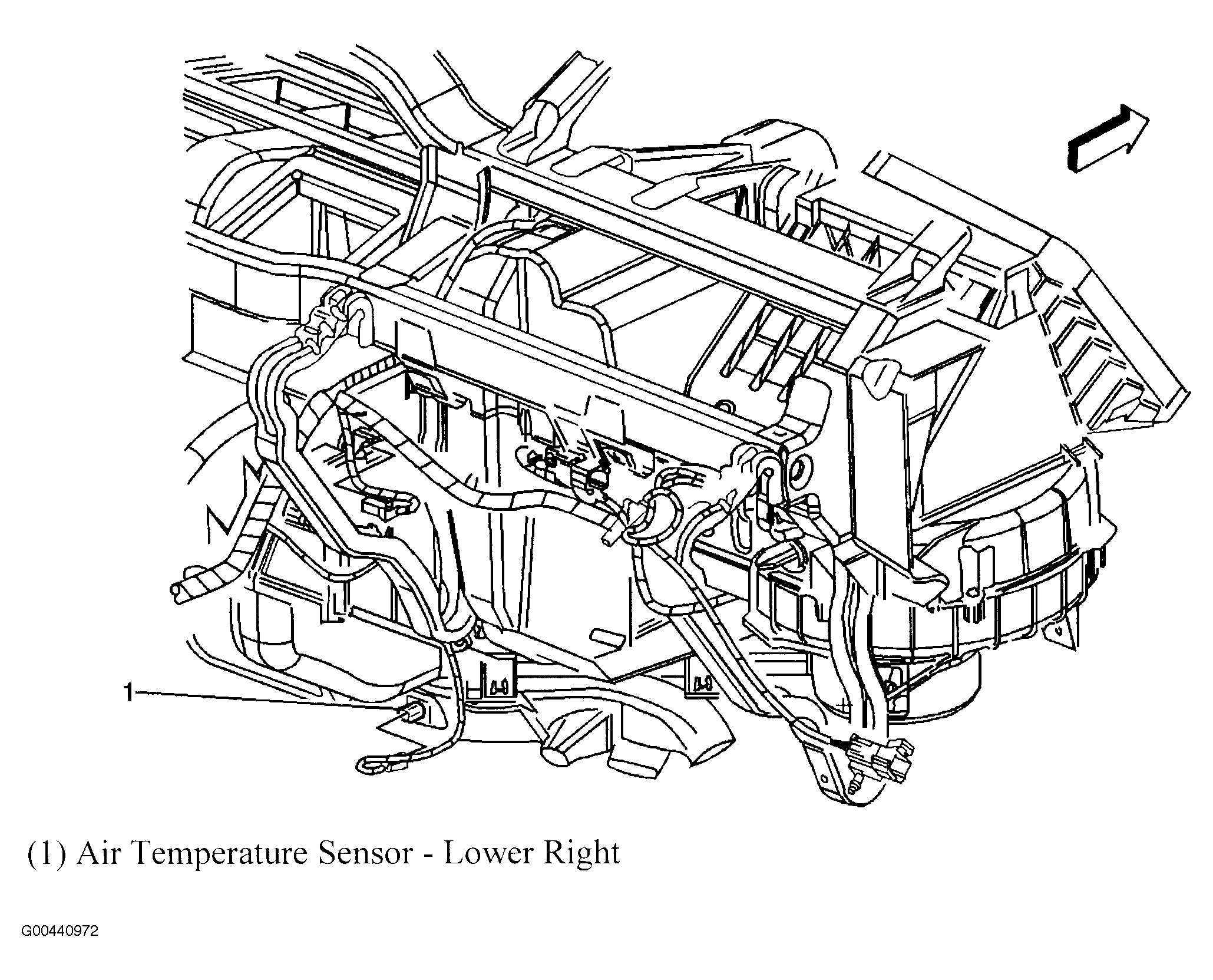

Fig 71: Behind Right Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

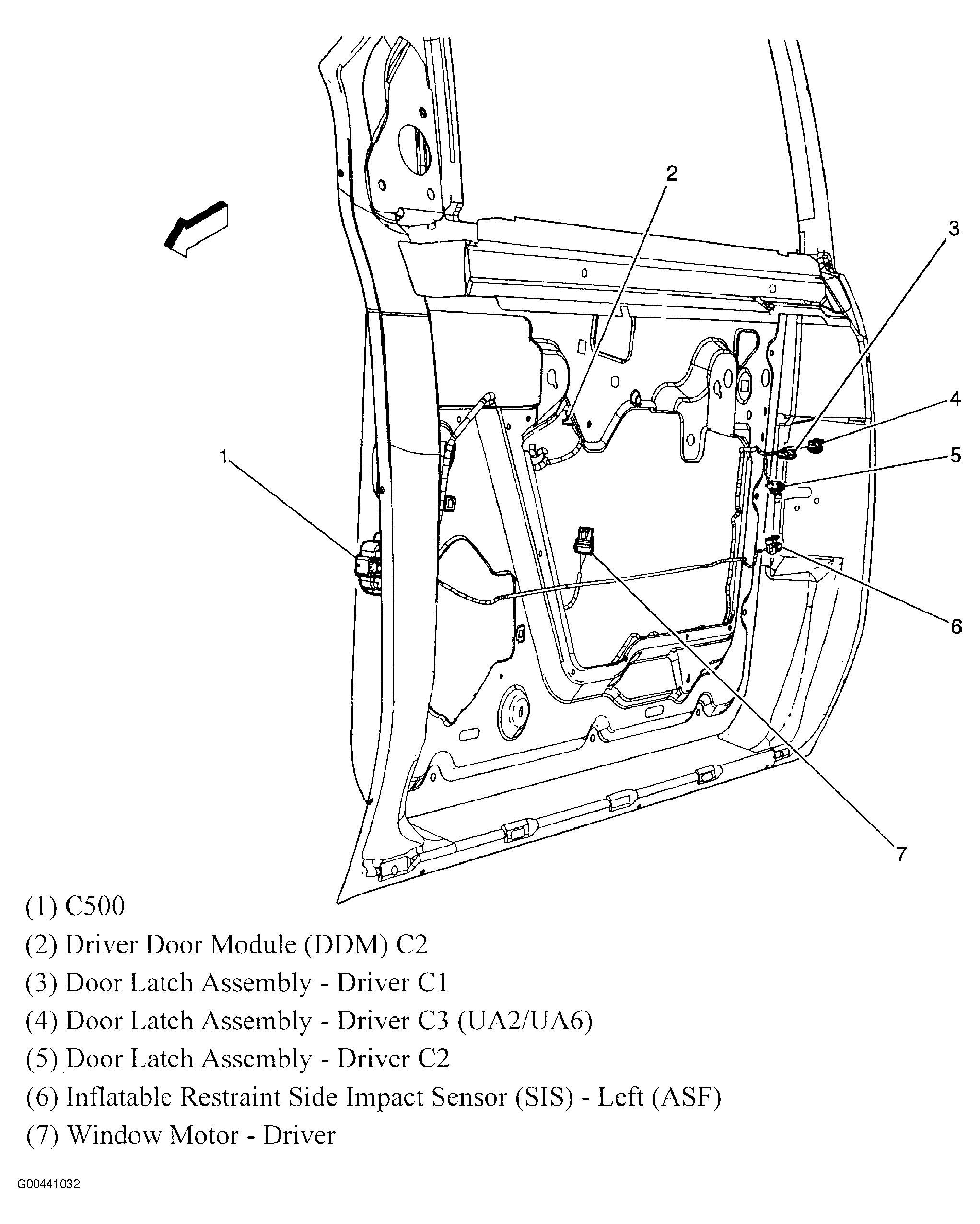

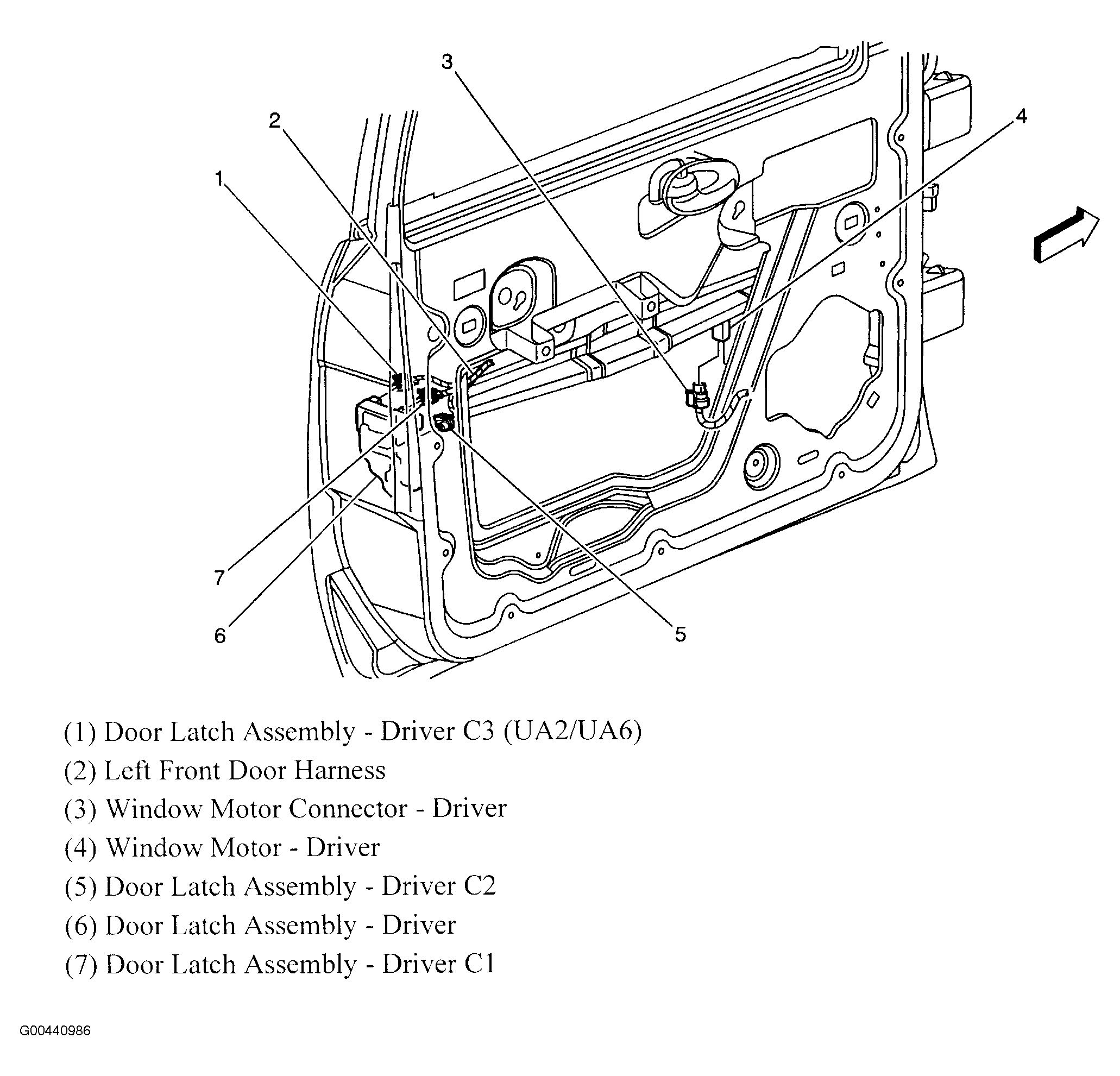

Fig 72: Driver Door
Courtesy of GENERAL MOTORS CORP.

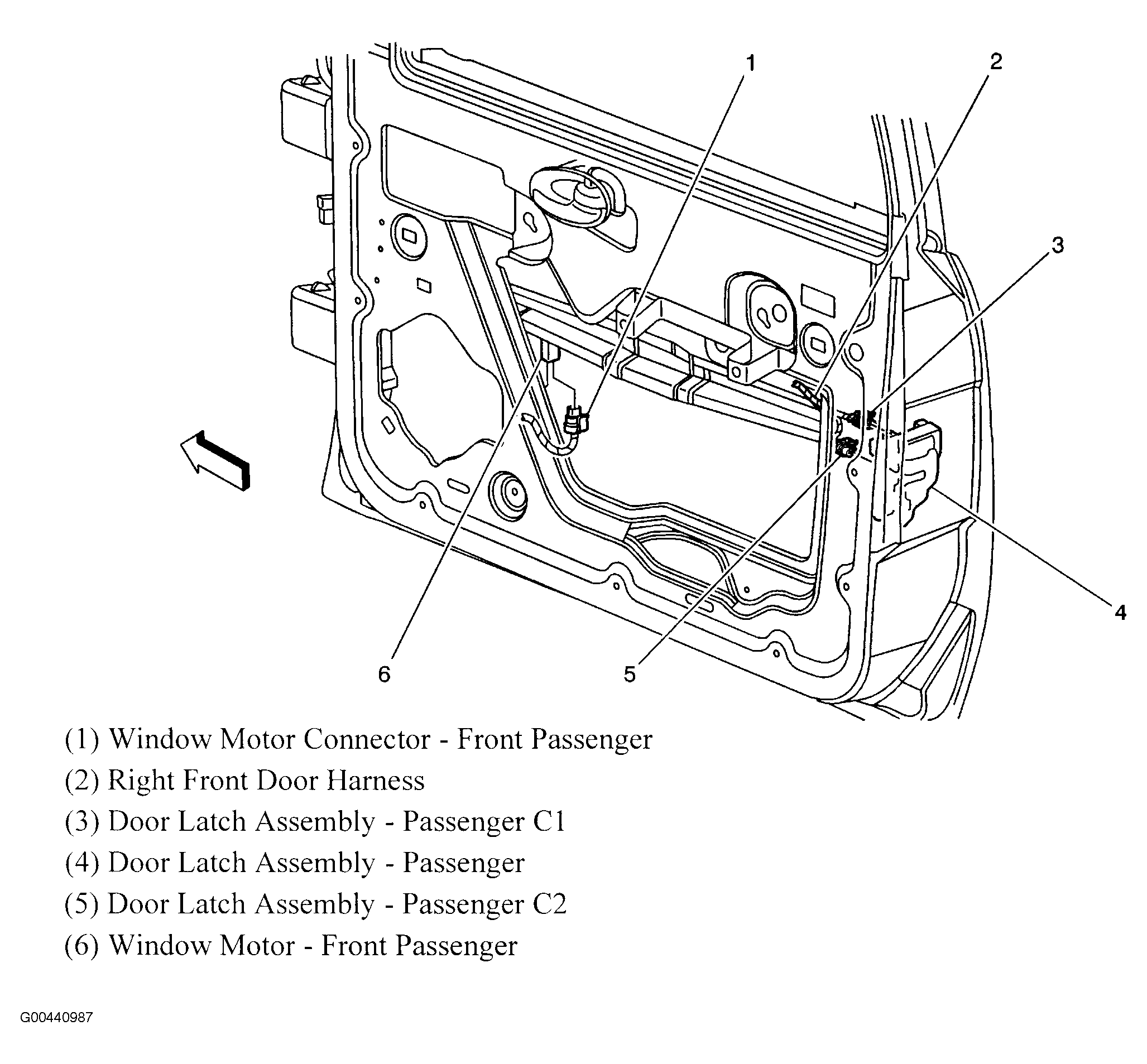

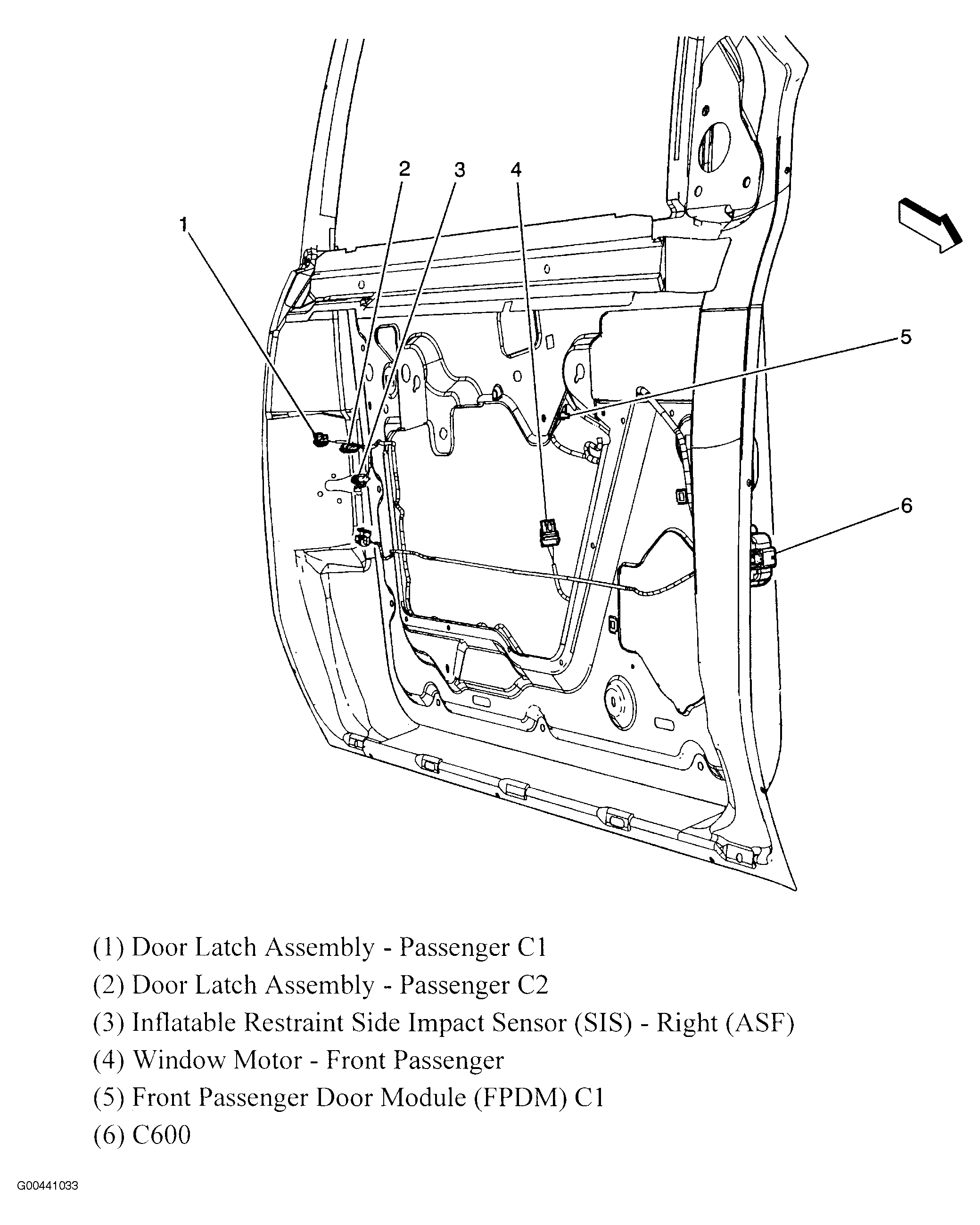

Fig 73: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.

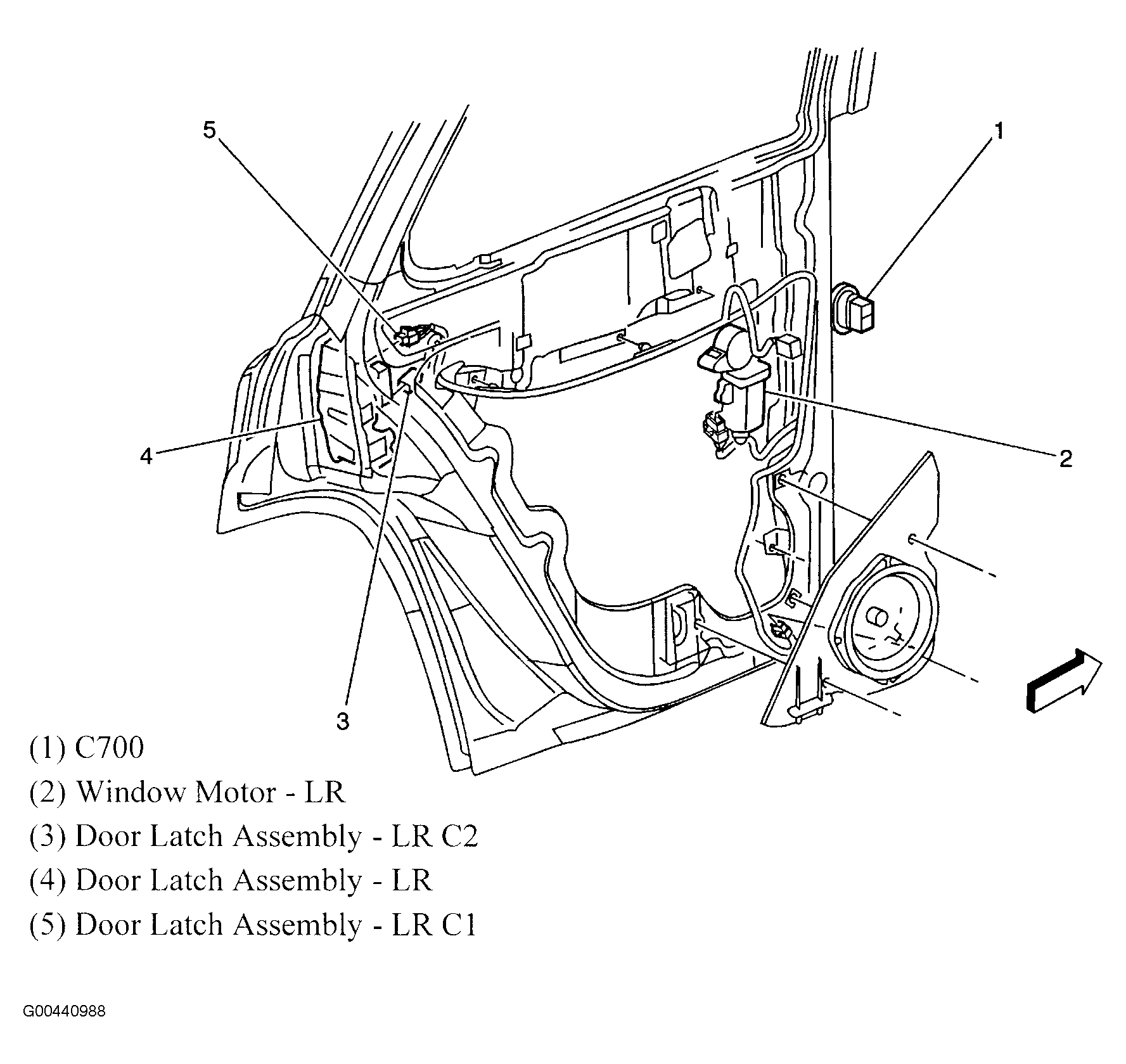

Fig 74: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

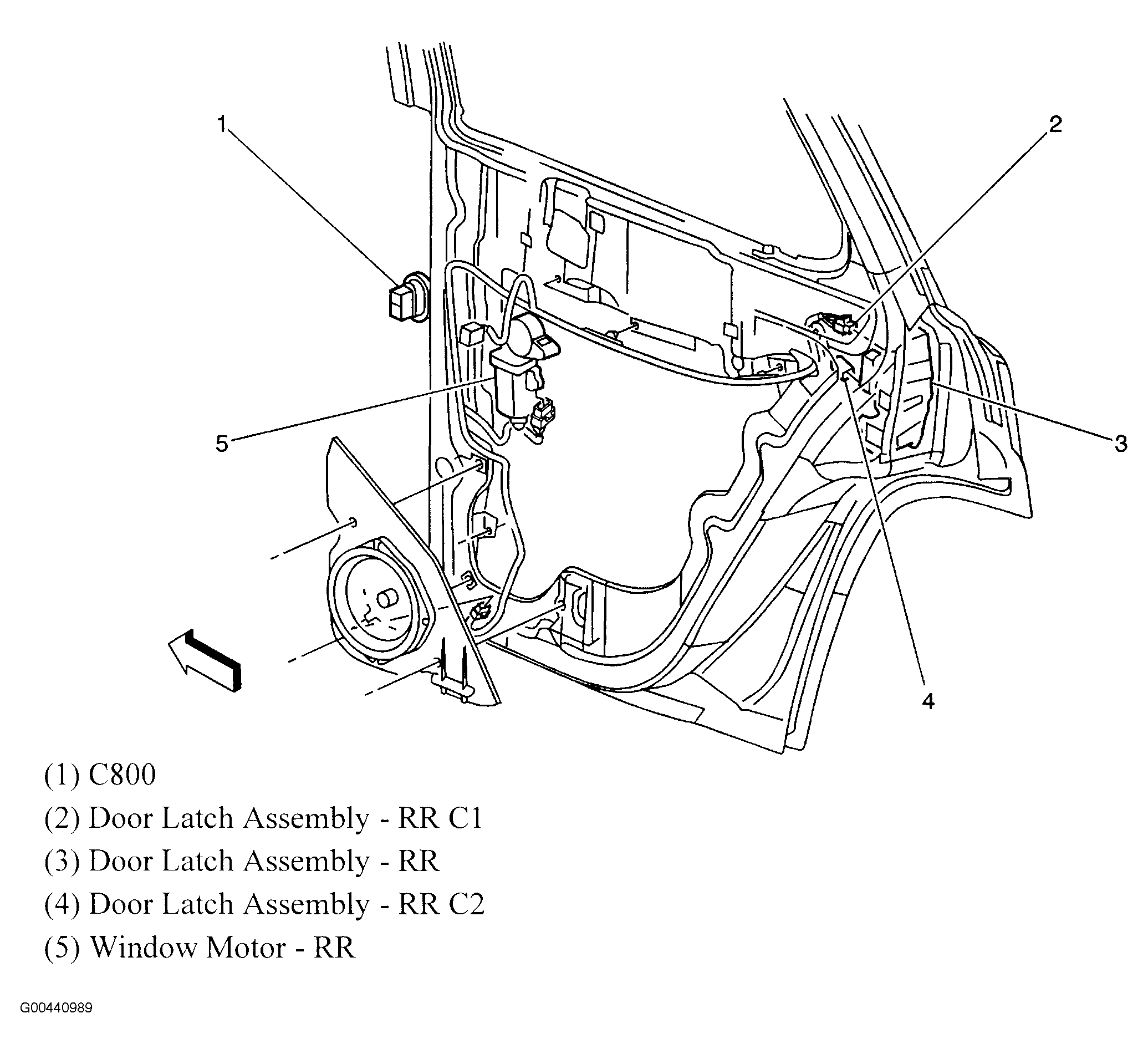

Fig 75: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

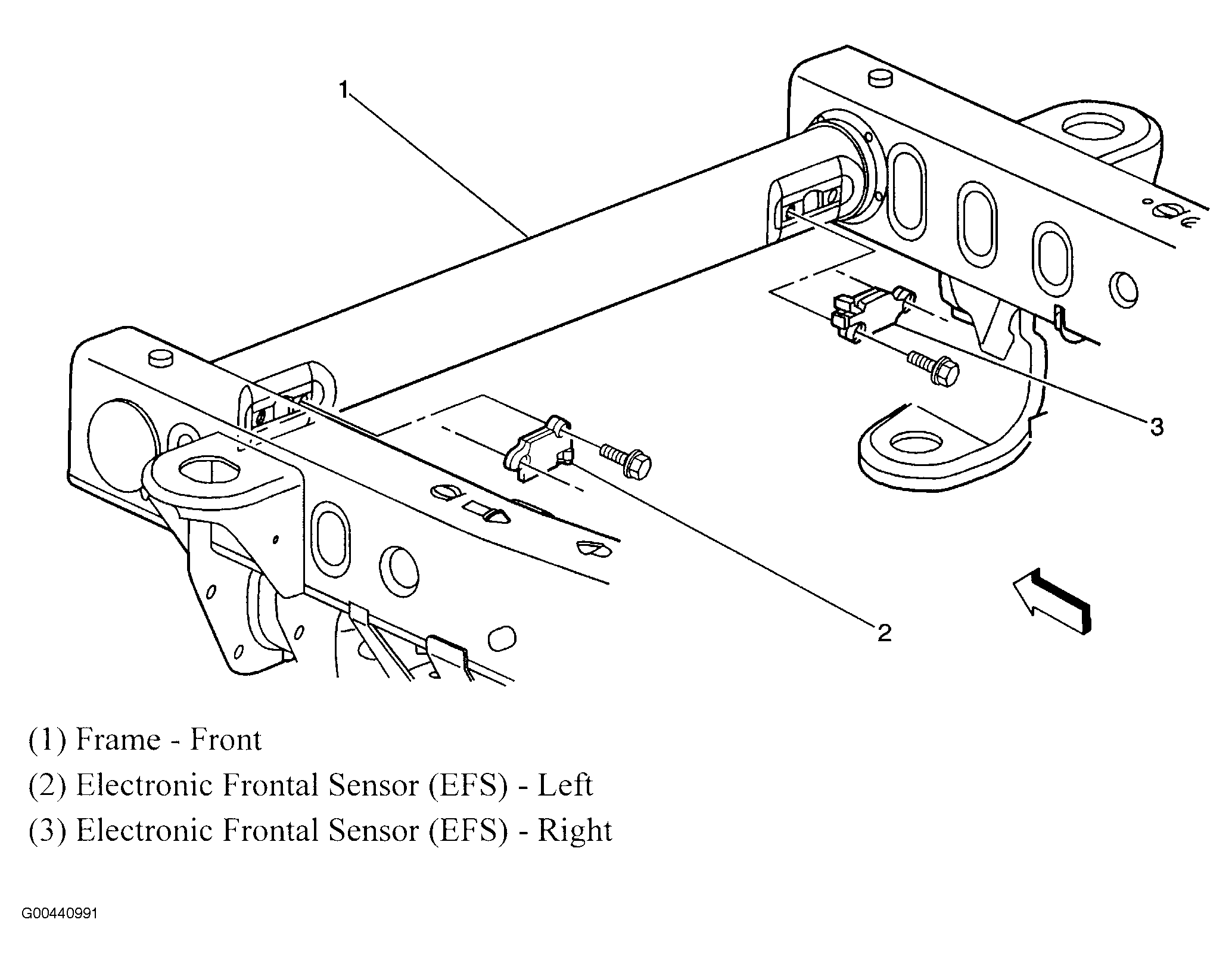

Fig 76: Electronic Frontal Sensors
Courtesy of GENERAL MOTORS CORP.

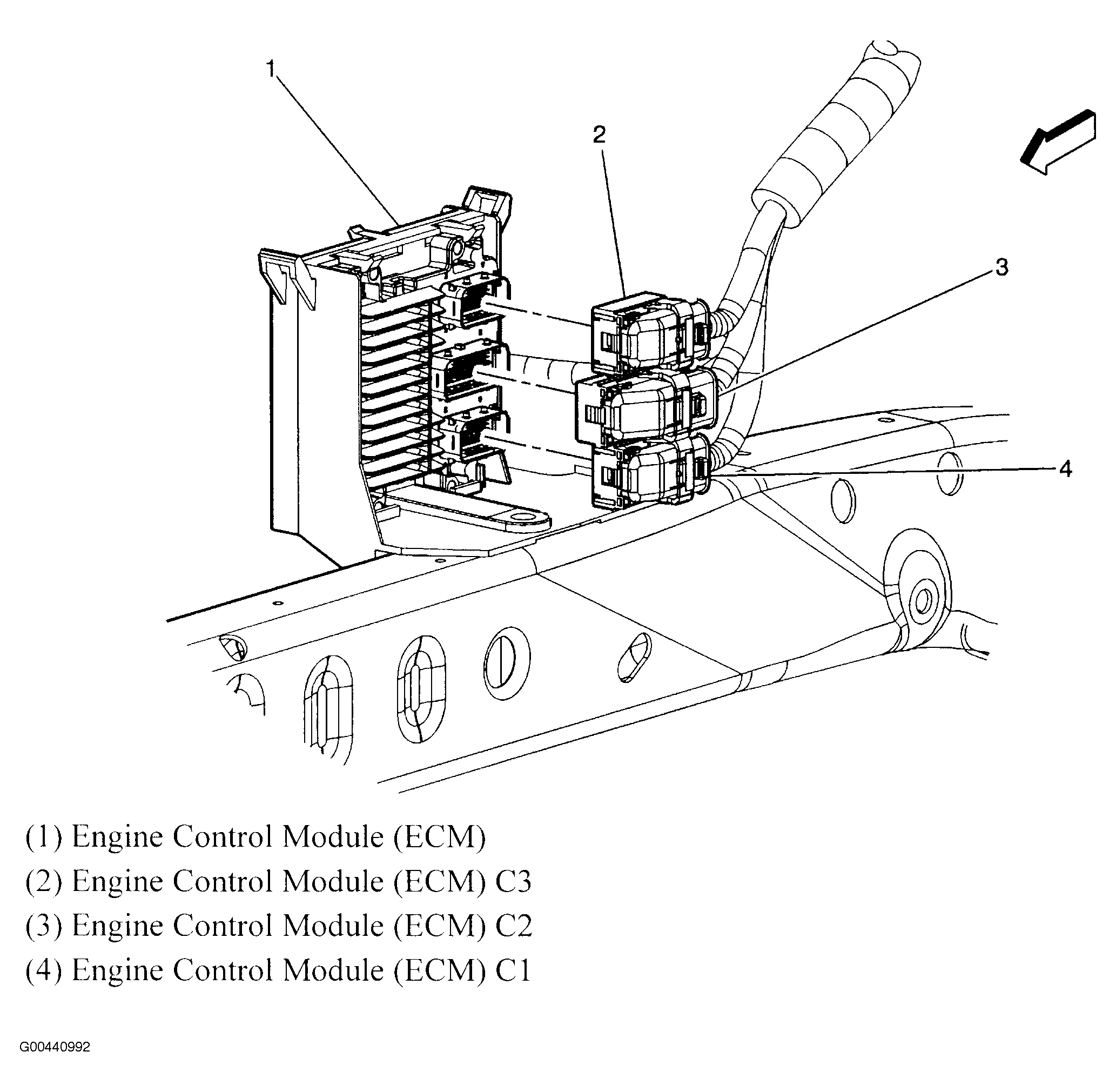

Fig 77: Engine Control Module (ECM)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Left Front Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 79: Upper Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

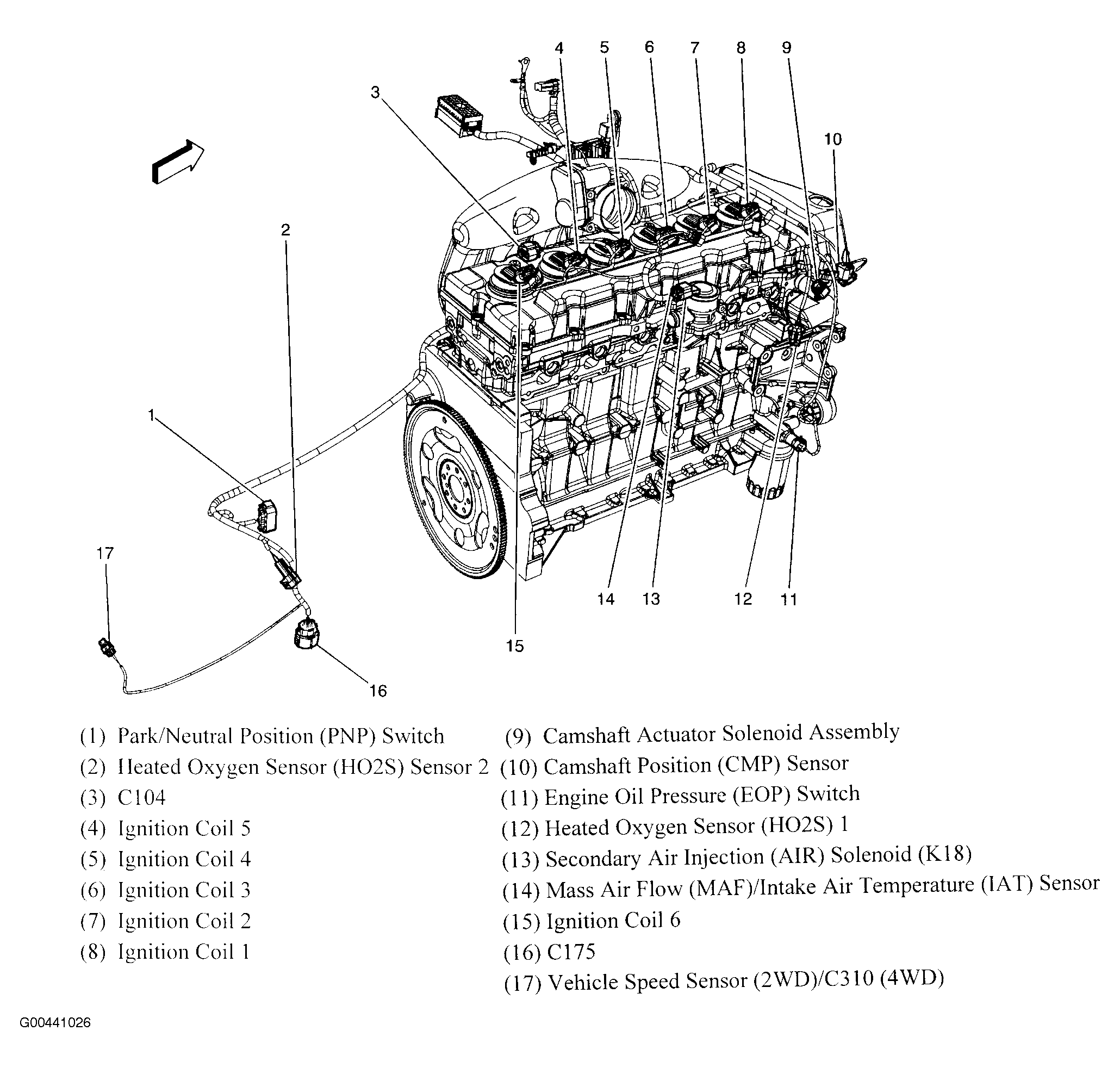

Fig 80: Upper Left Side Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.

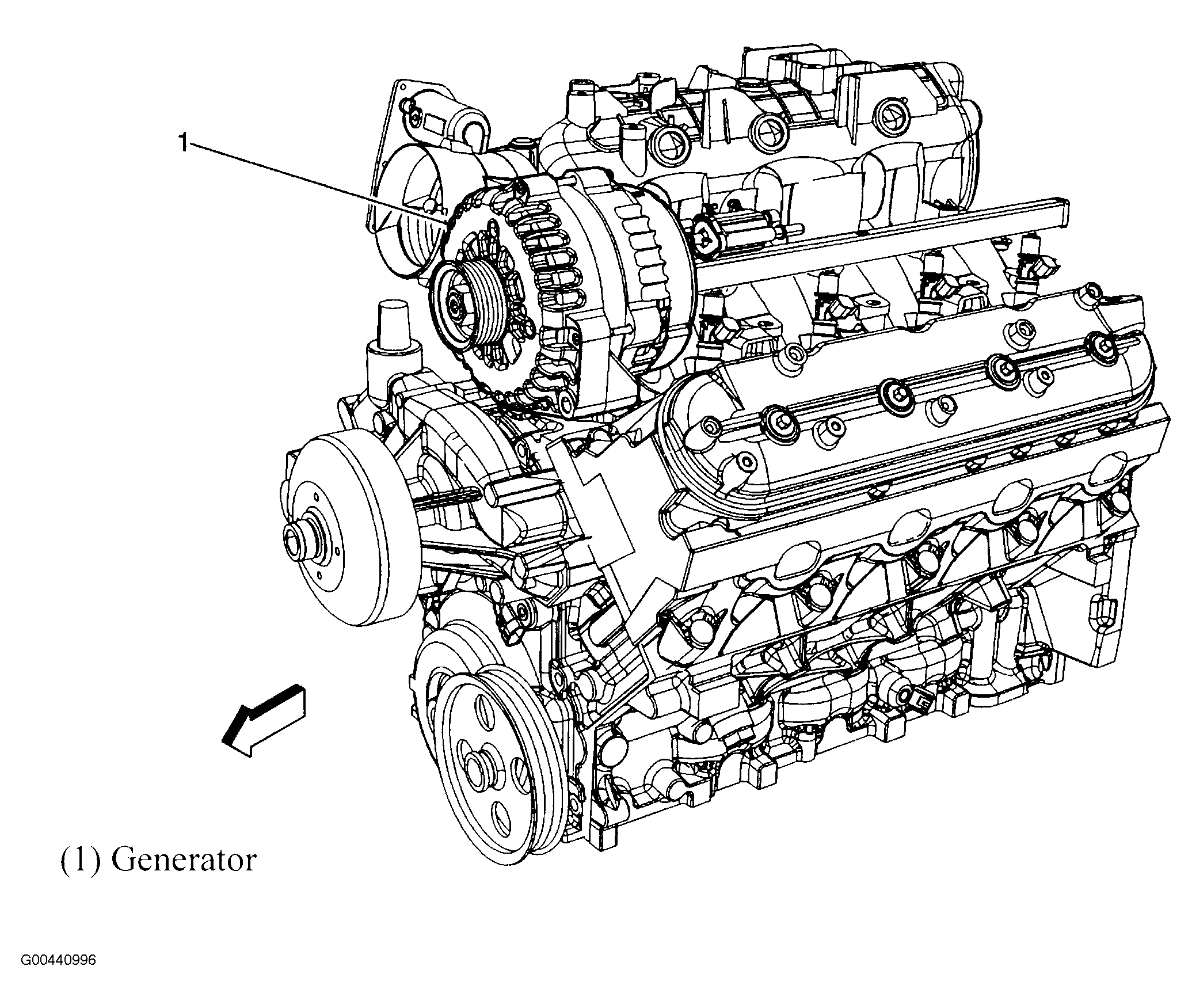

Fig 81: Left Front Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

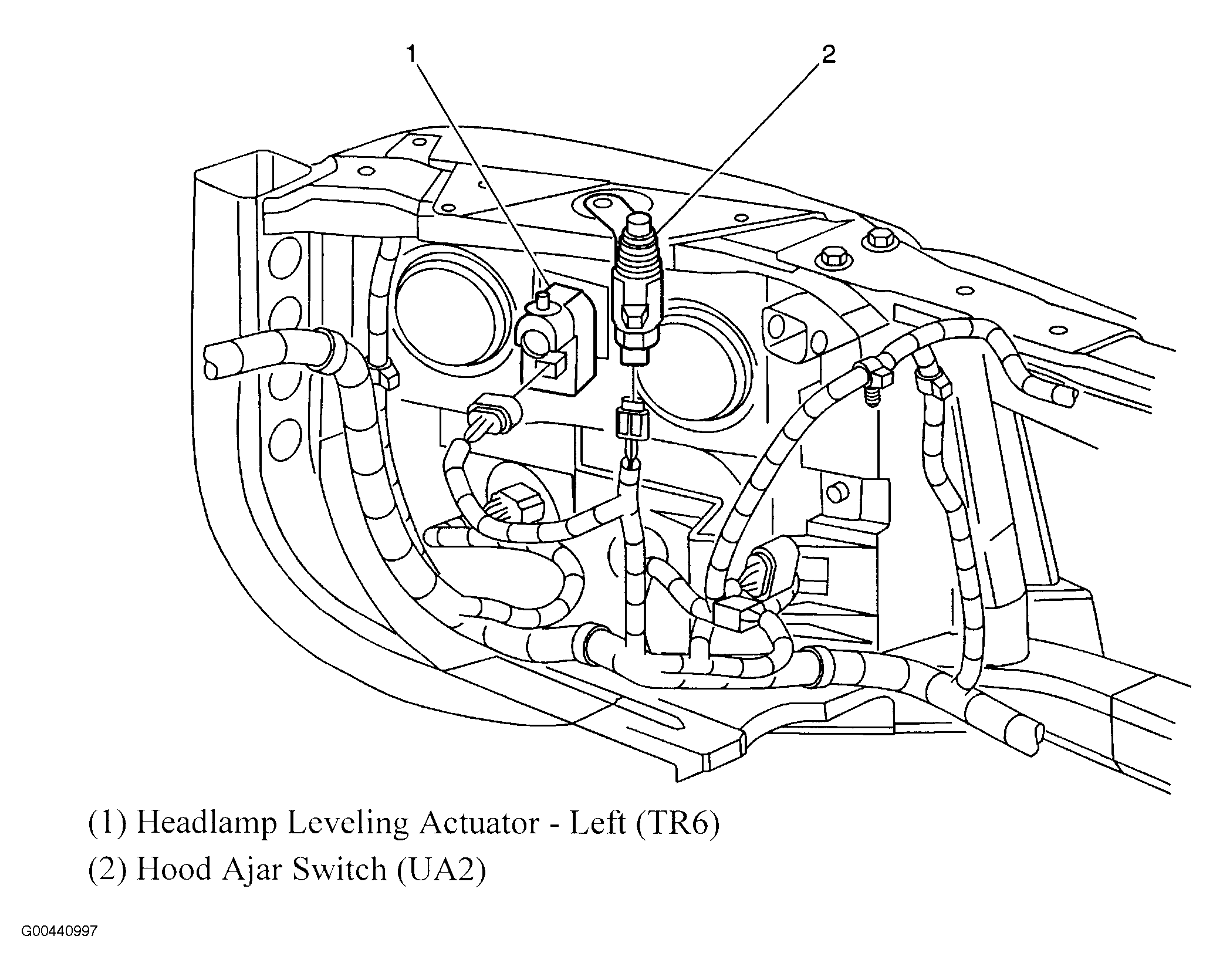

Fig 82: Behind Left Headlamp
Courtesy of GENERAL MOTORS CORP.

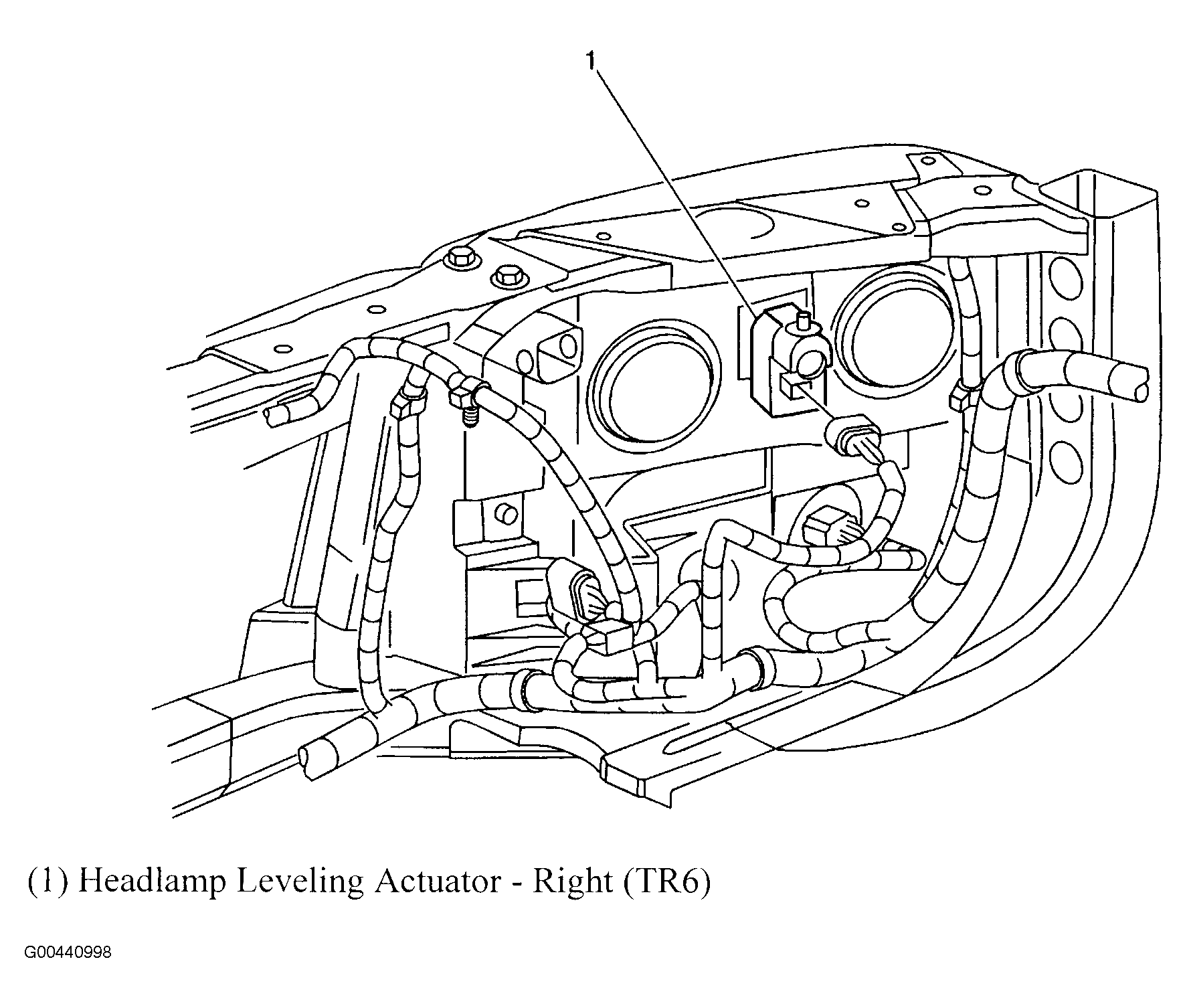

Fig 83: Behind Right Headlamp
Courtesy of GENERAL MOTORS CORP.
Fig 84: Below Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

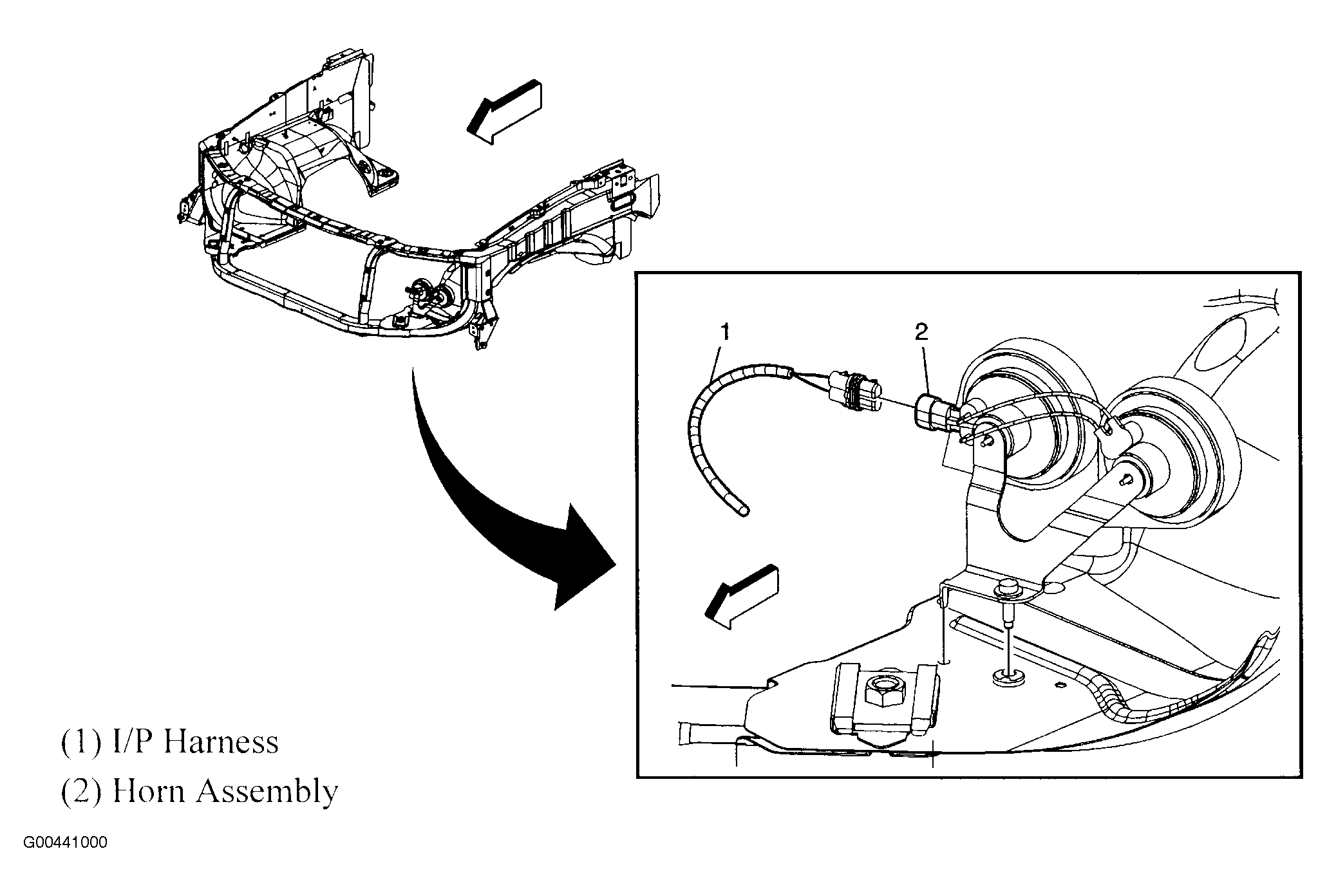

Fig 85: Horn Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 86: Center Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

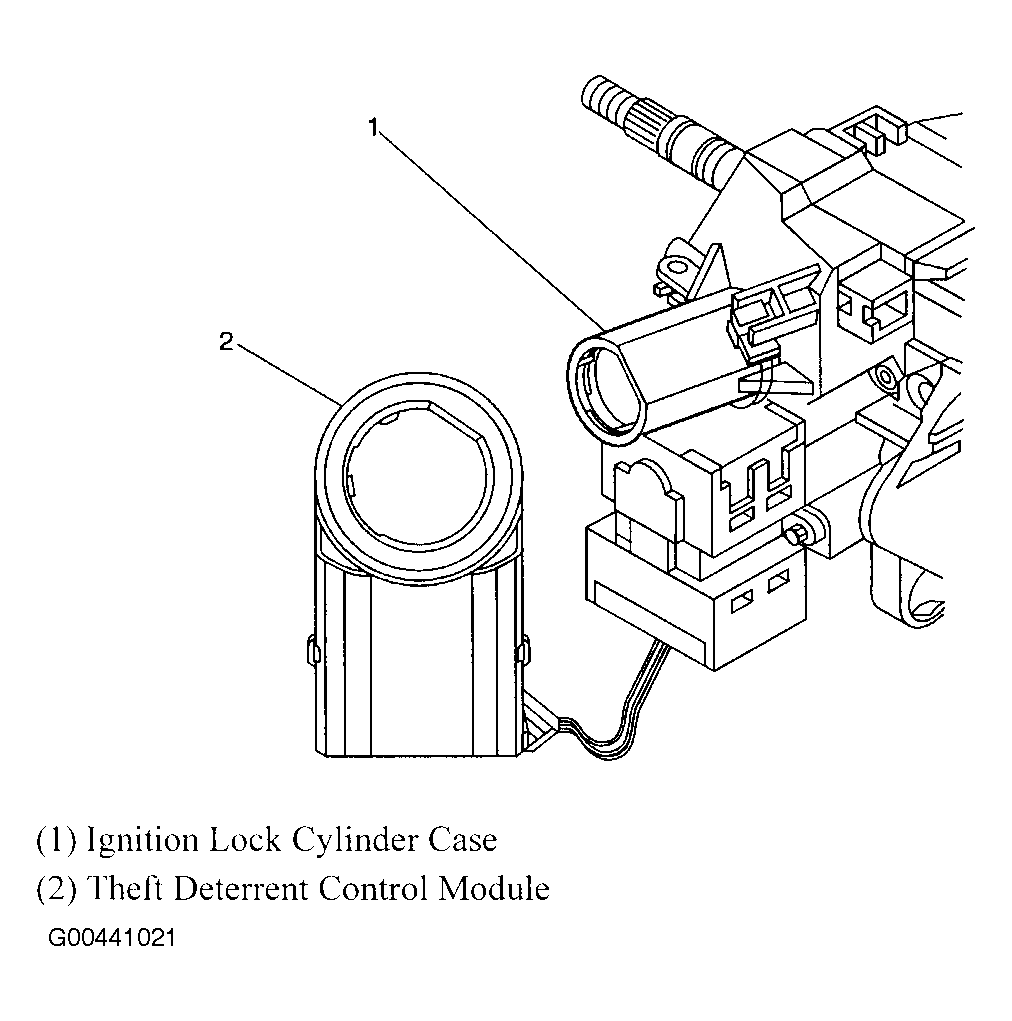

Fig 87: Steering Wheel Column (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 88: Steering Wheel Column (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 89: Rear Floor
Courtesy of GENERAL MOTORS CORP.

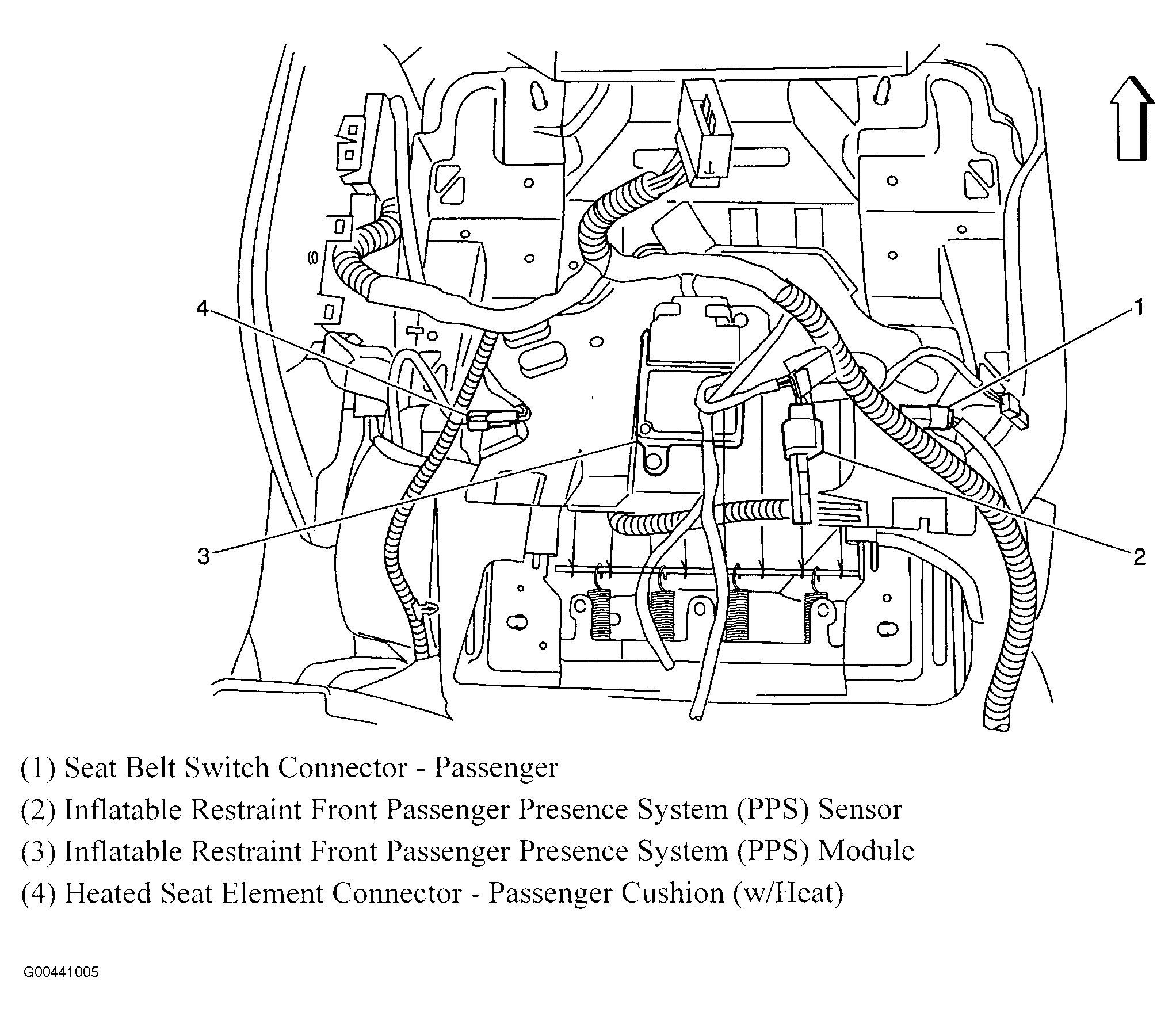

Fig 90: Beneath Passenger Seat Cushion
Courtesy of GENERAL MOTORS CORP.

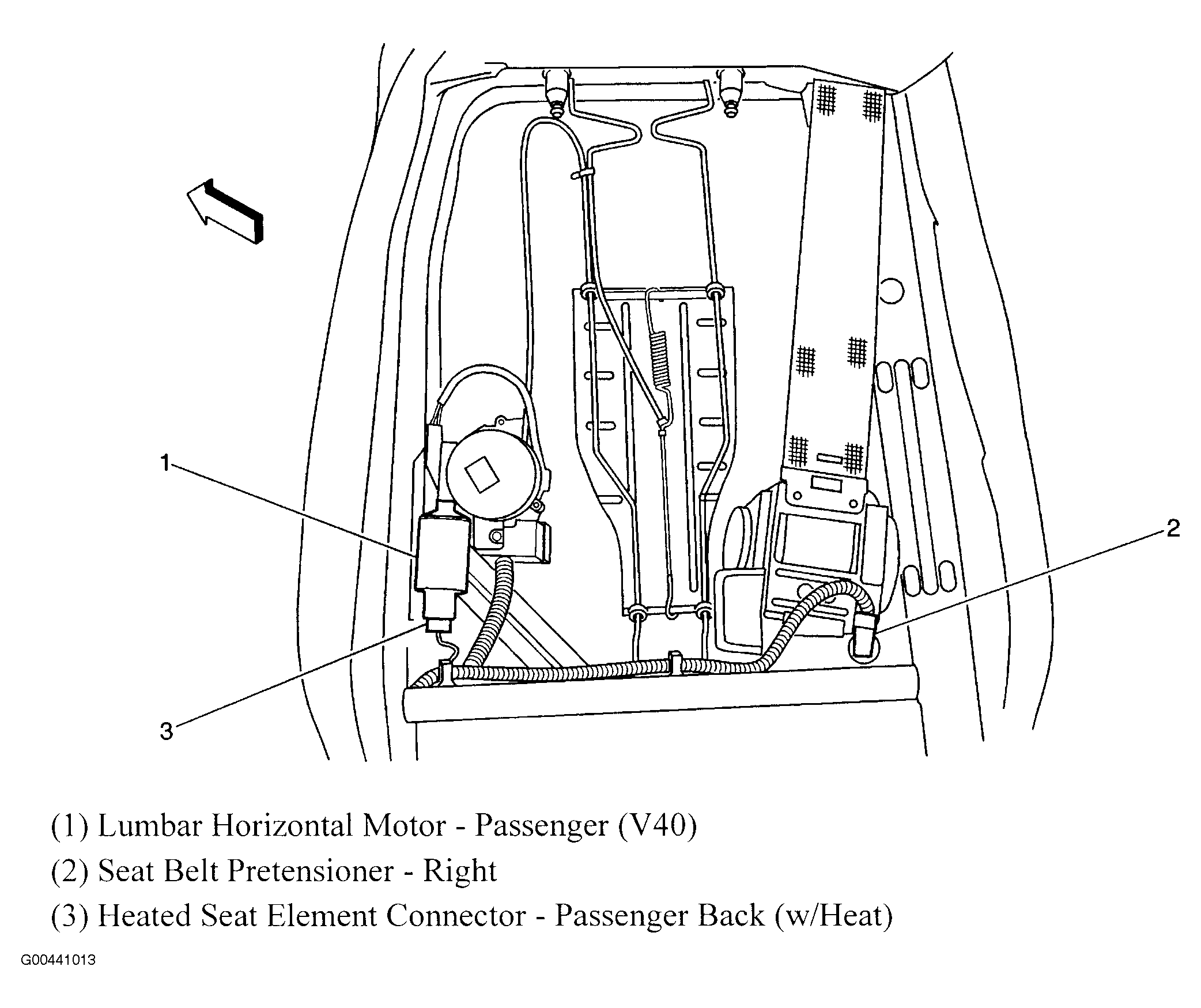

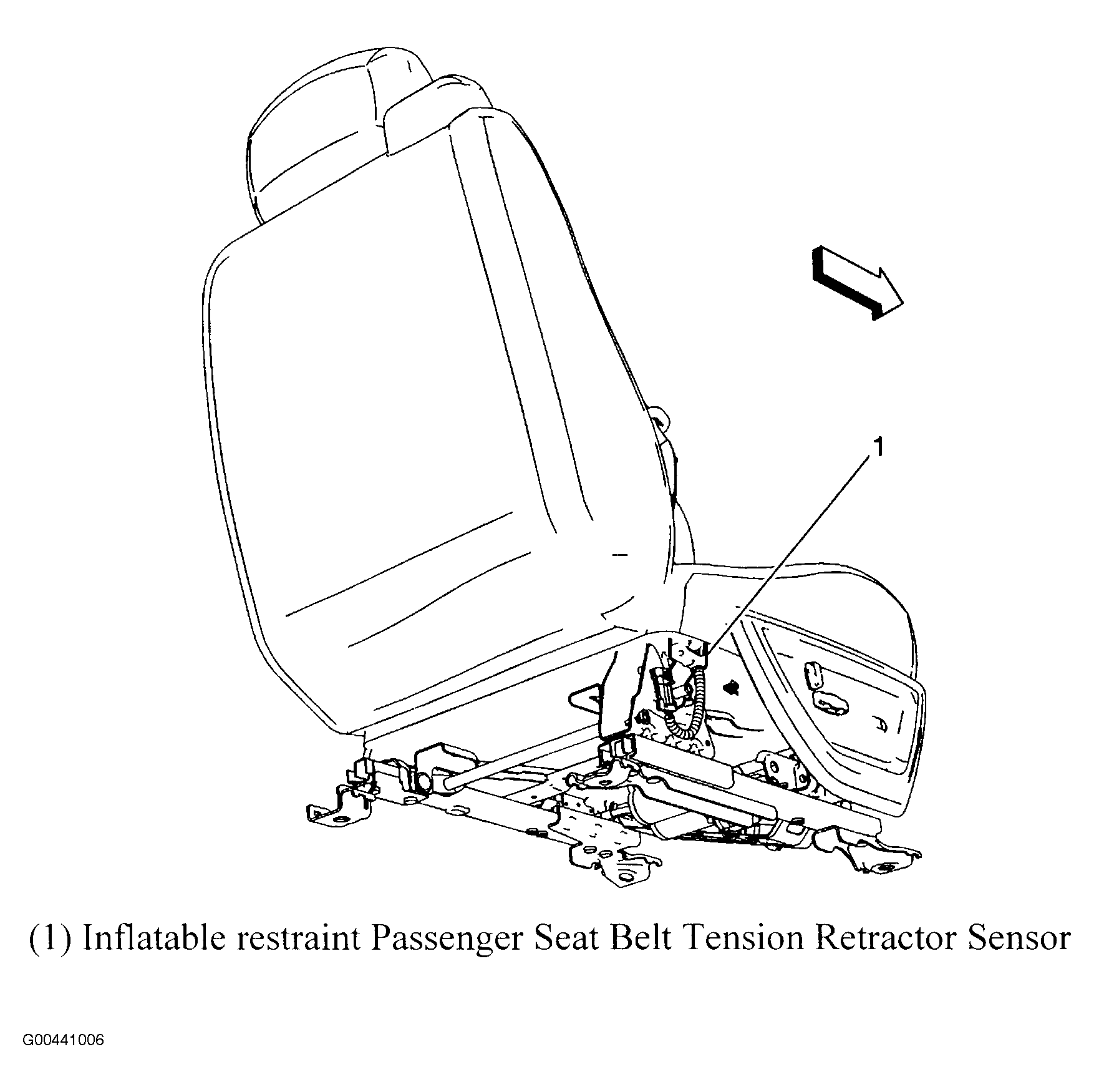

Fig 91: Right Rear Of Passenger Seat
Courtesy of GENERAL MOTORS CORP.

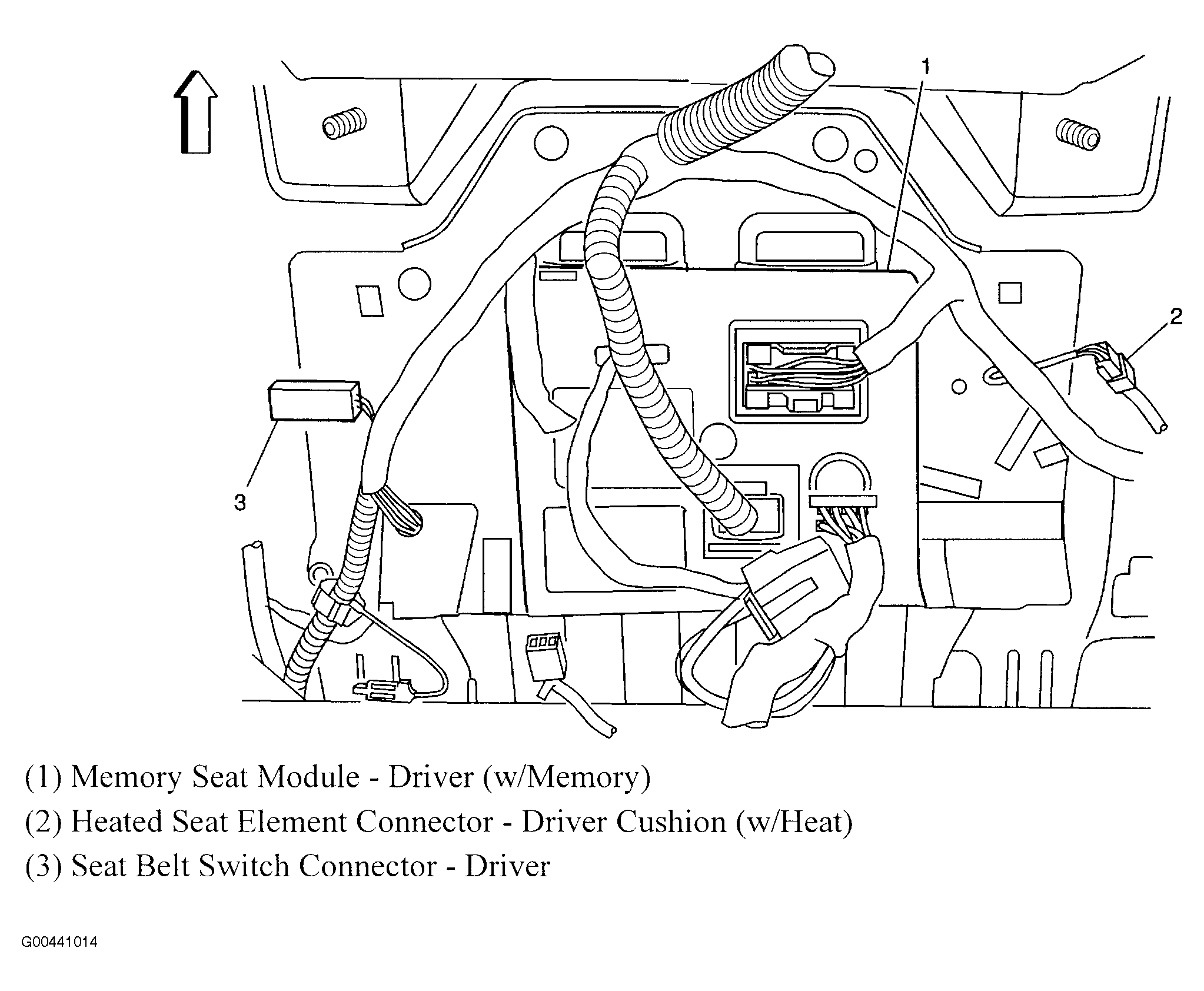

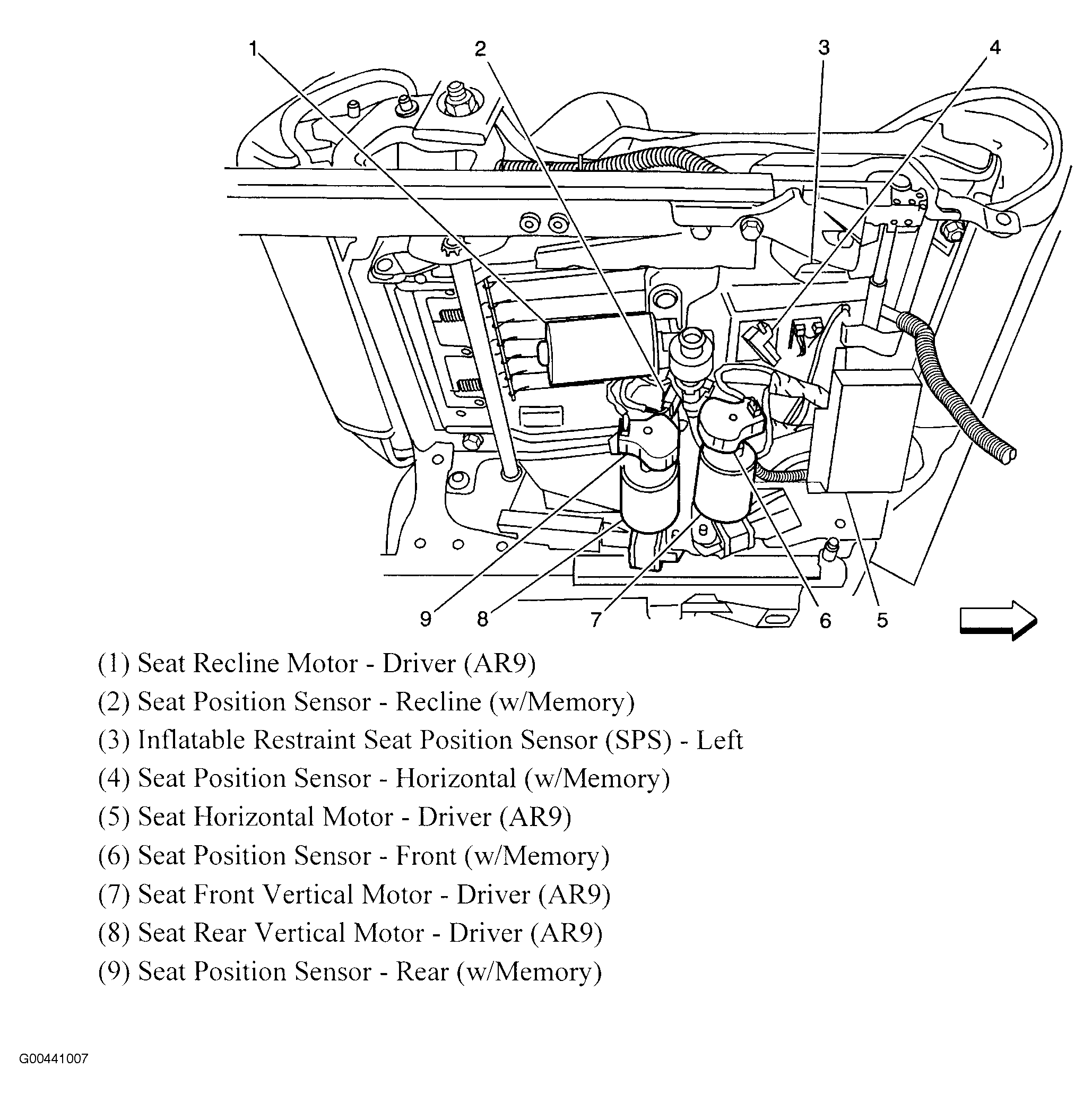

Fig 92: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.

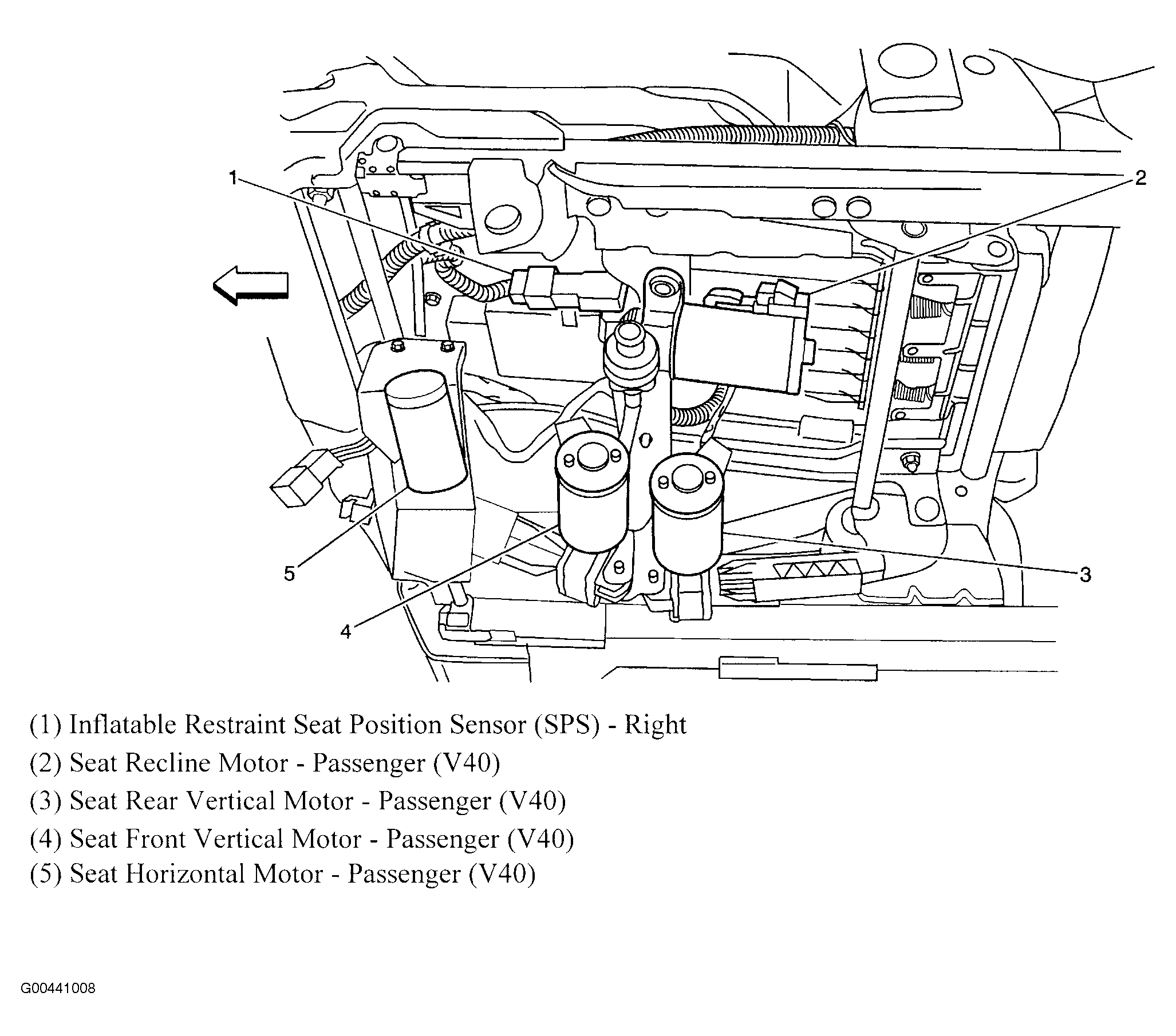

Fig 93: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.

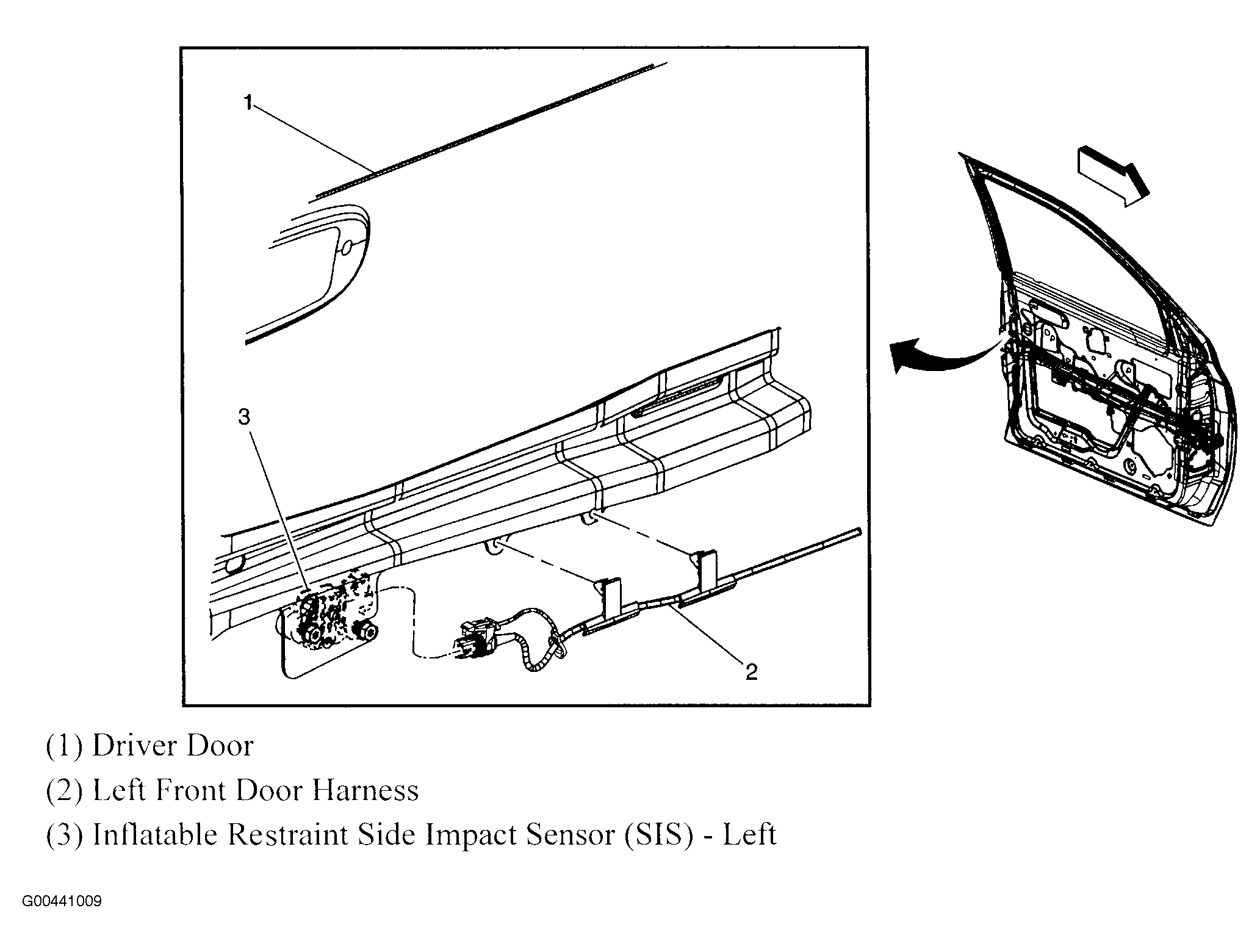

Fig 94: Left Inflatable Restraint Side Impact Sensor (SIS)
Courtesy of GENERAL MOTORS CORP.

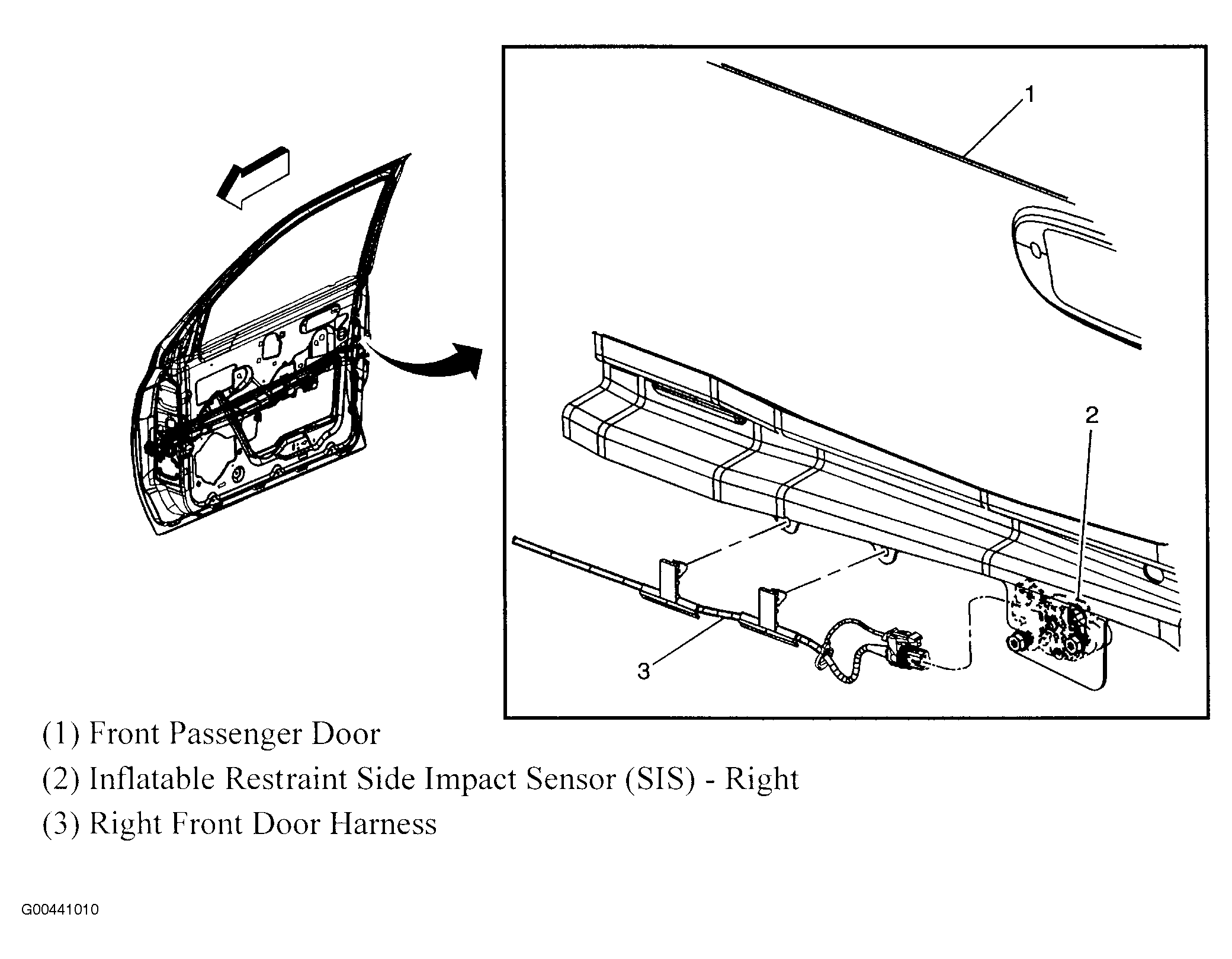

Fig 95: Right Inflatable Restraint Side Impact Sensor (SIS)
Courtesy of GENERAL MOTORS CORP.
Fig 96: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

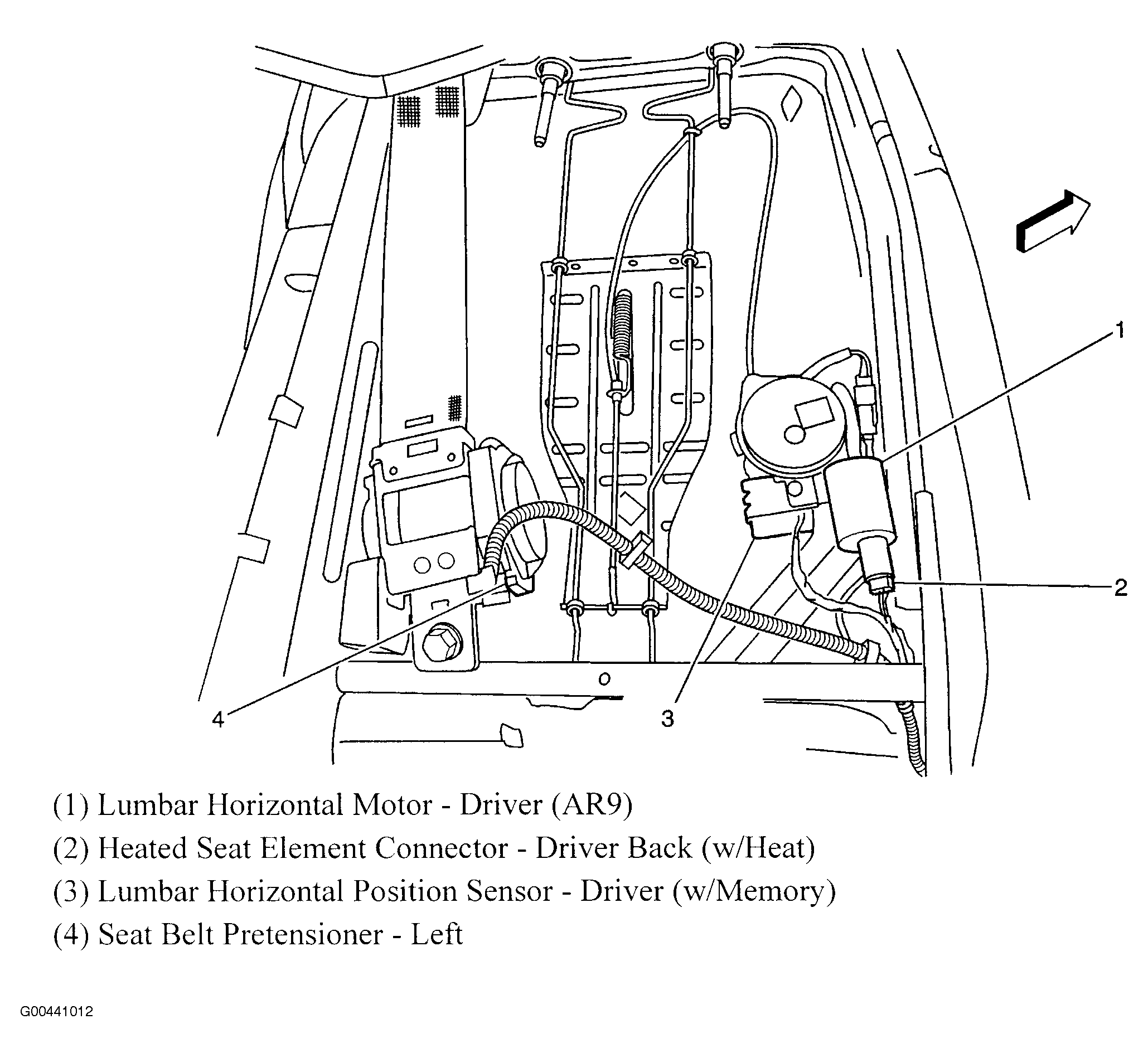

Fig 97: Behind Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 98: Behind Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 99: Beneath Driver Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Fig 100: Park Neutral Position (PNP) Switch
Courtesy of GENERAL MOTORS CORP.
Fig 101: Transfer Case
Courtesy of GENERAL MOTORS CORP.

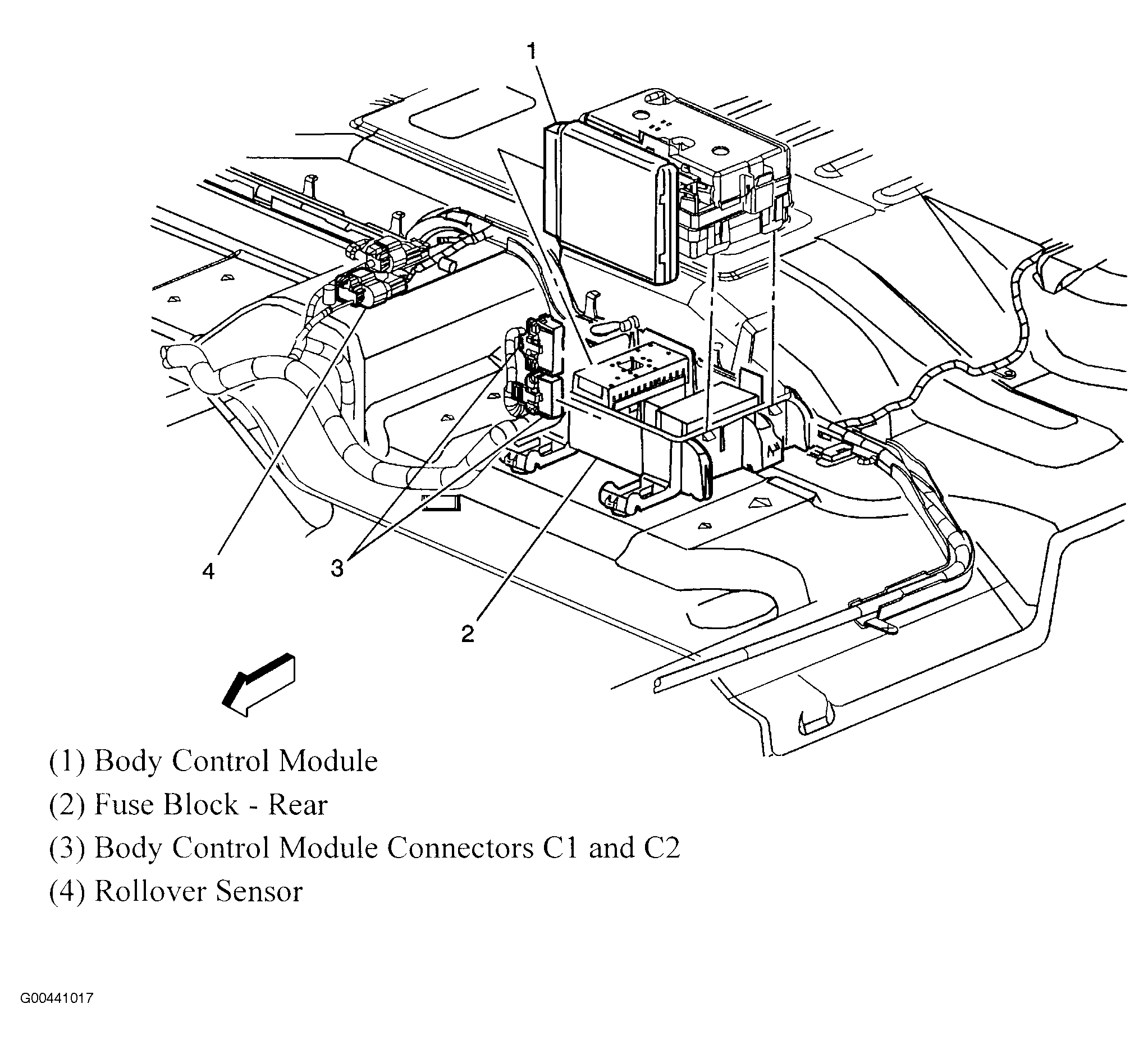

Fig 102: Rollover Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 103: Upper Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

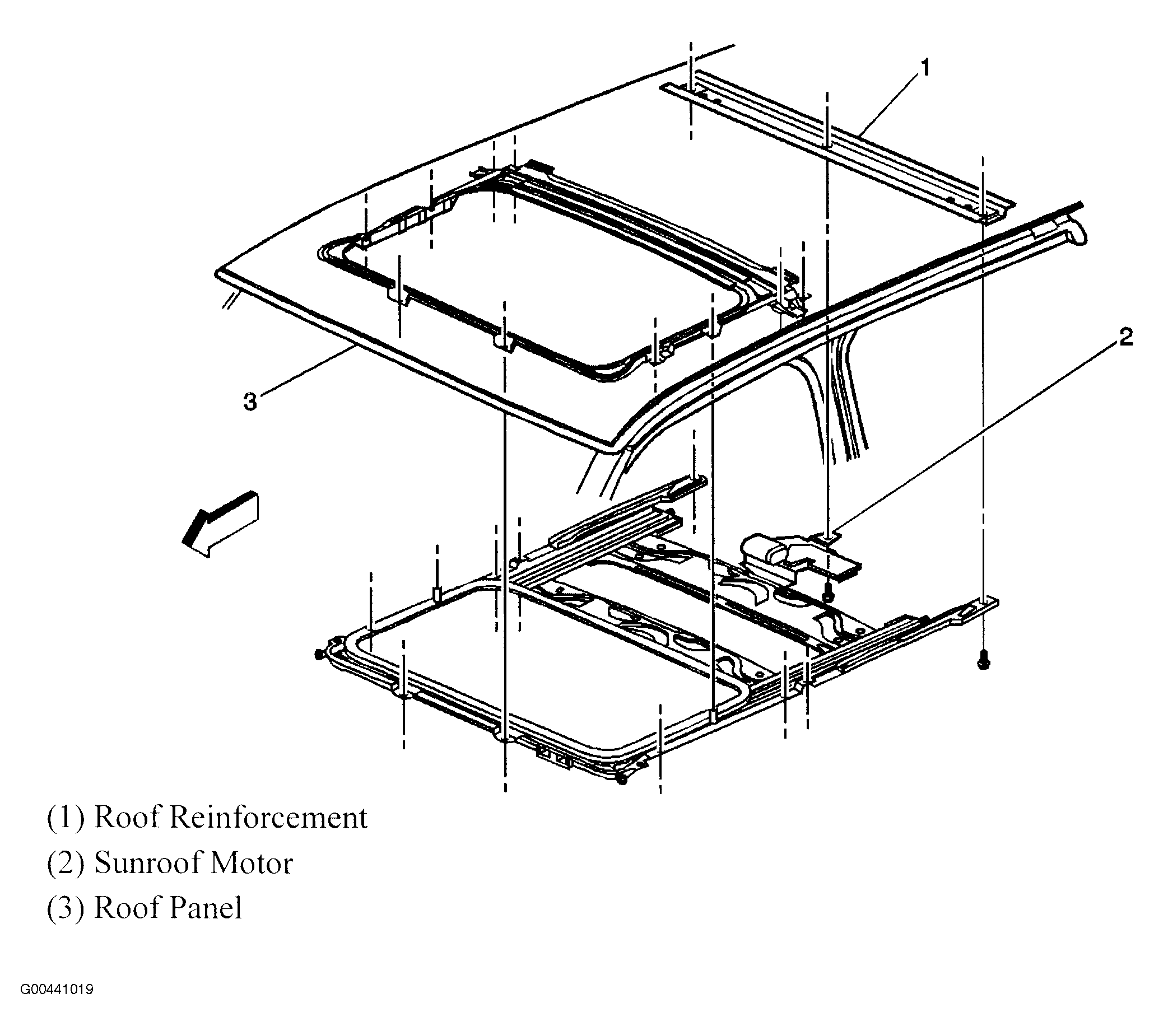

Fig 104: Sunroof Motor
Courtesy of GENERAL MOTORS CORP.

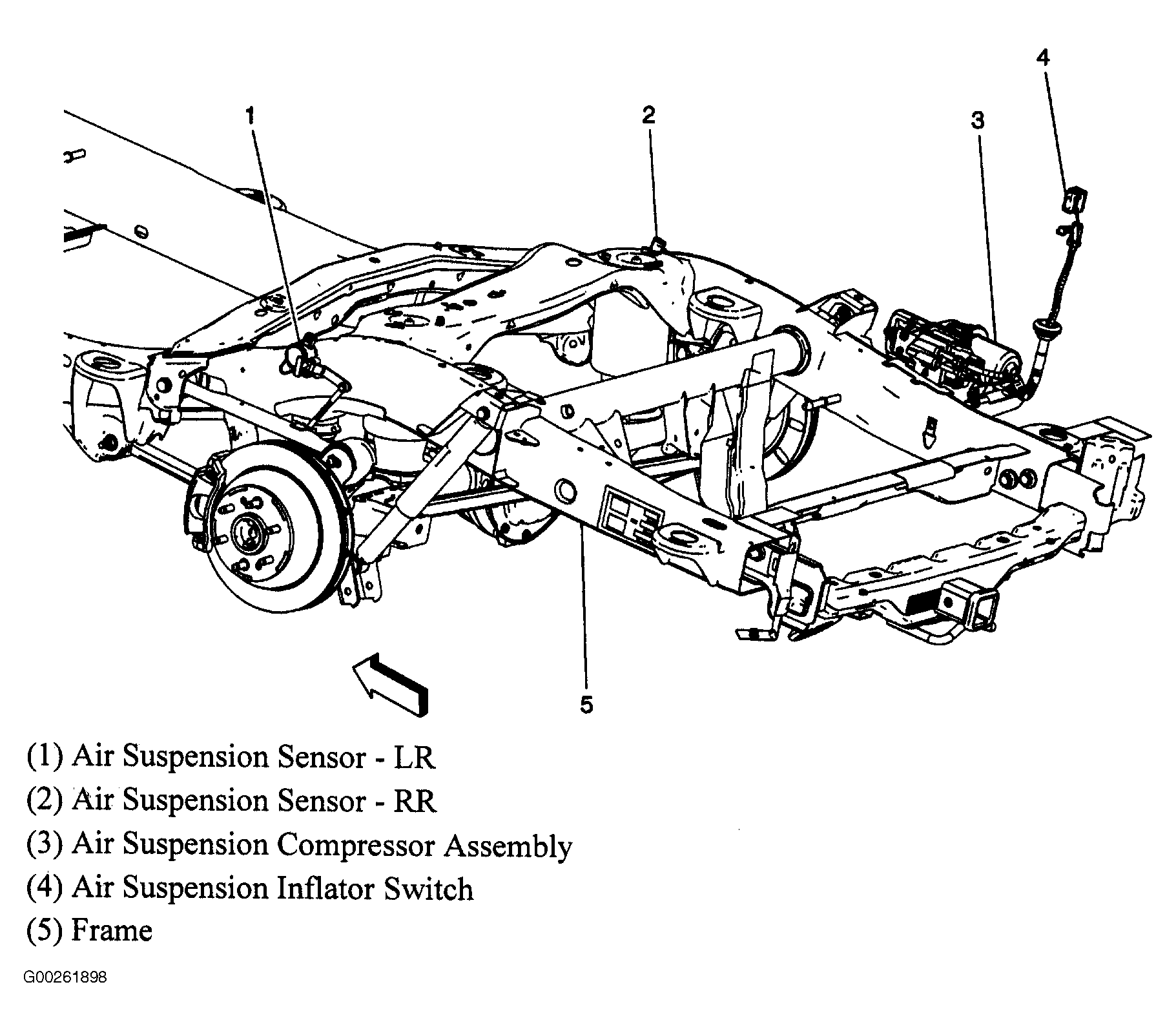

Fig 105: Rear Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 106: Steering Column
Courtesy of GENERAL MOTORS CORP.

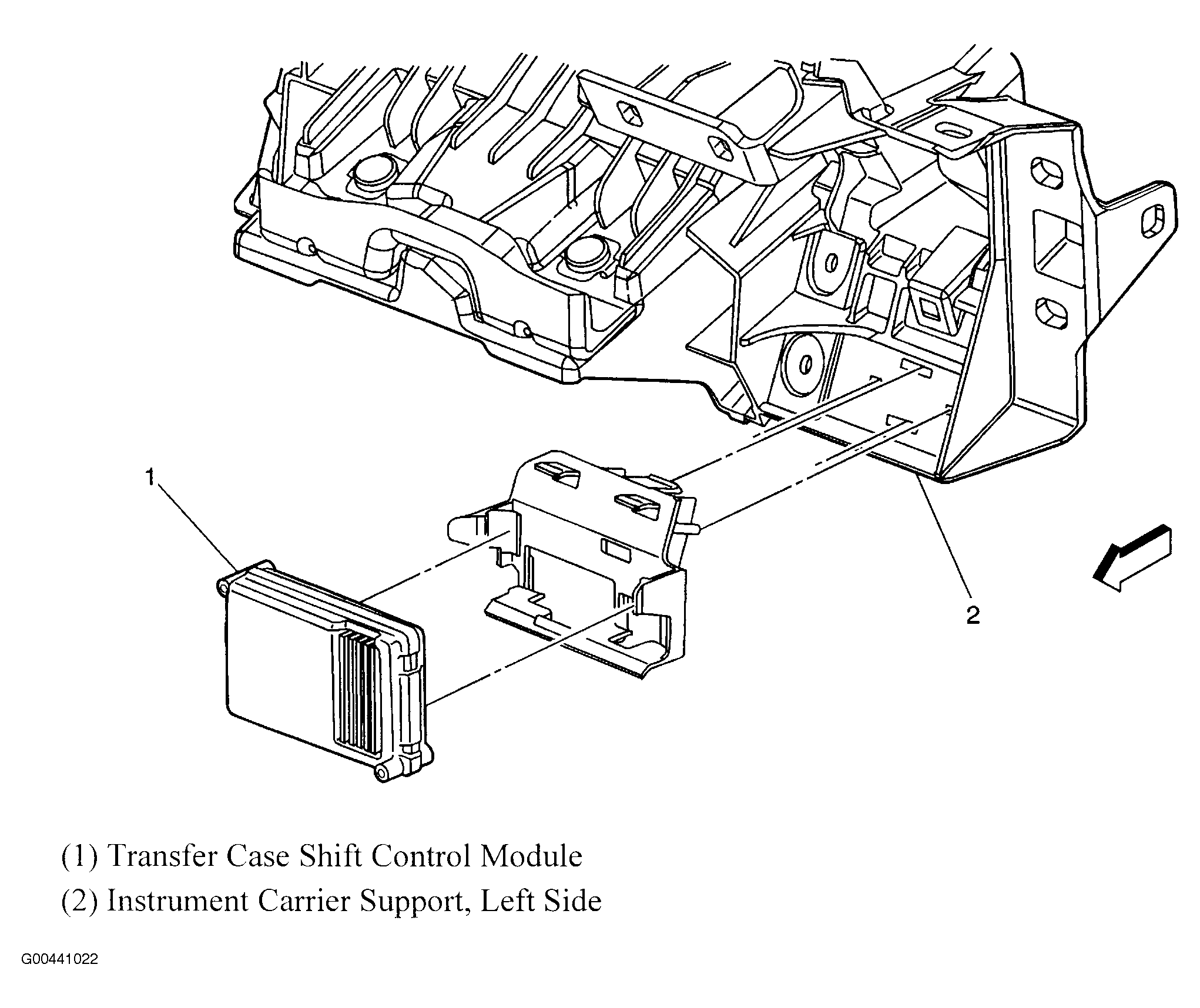

Fig 107: Lower Left Side Of Instrument Carrier Support
Courtesy of GENERAL MOTORS CORP.

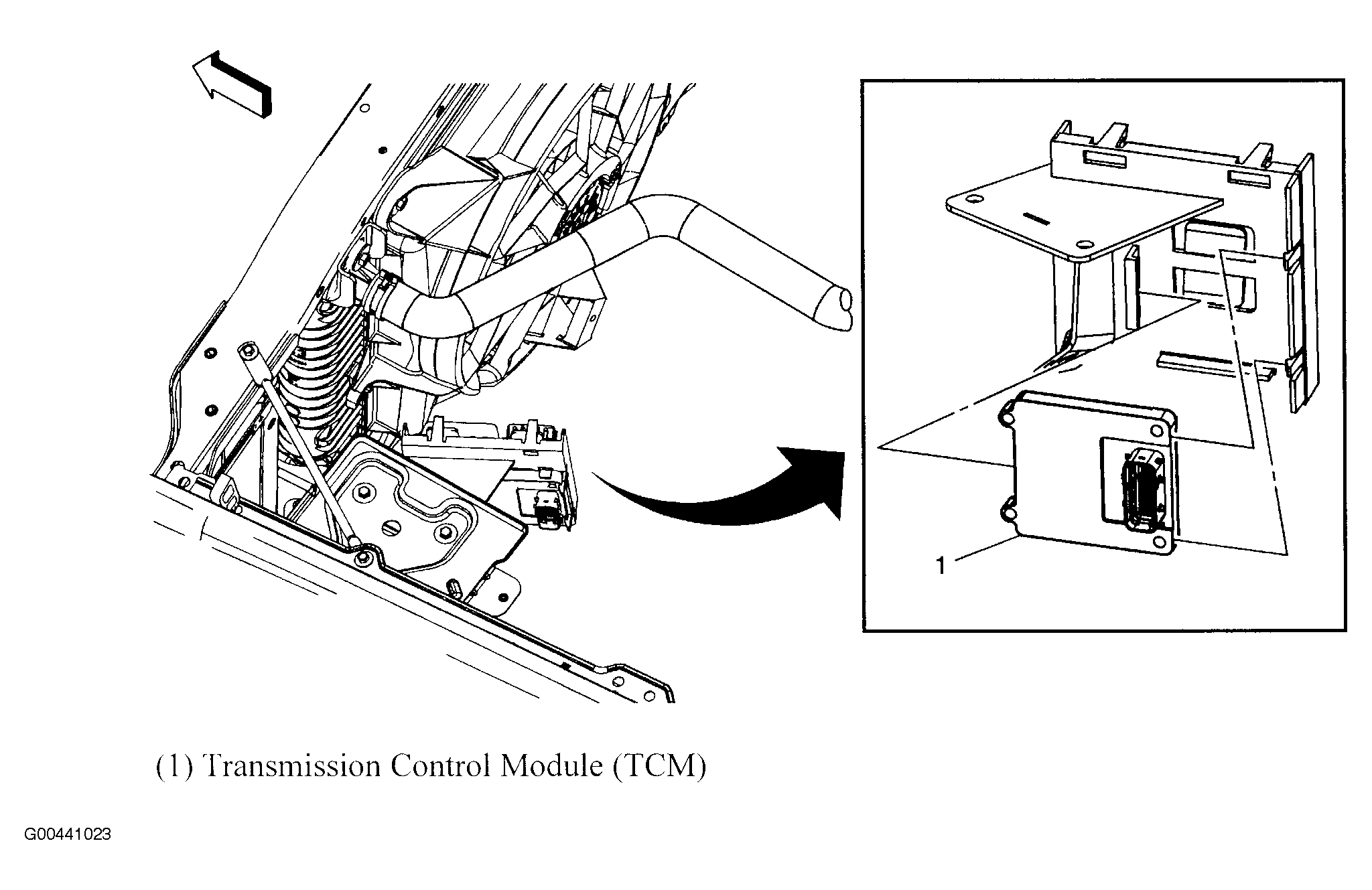

Fig 108: Transmission Control Module (TCM)
Courtesy of GENERAL MOTORS CORP.
Fig 109: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 110: Under Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 111: Right Rear Of Engine Harness (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 112: Front Of Dash
Courtesy of GENERAL MOTORS CORP.

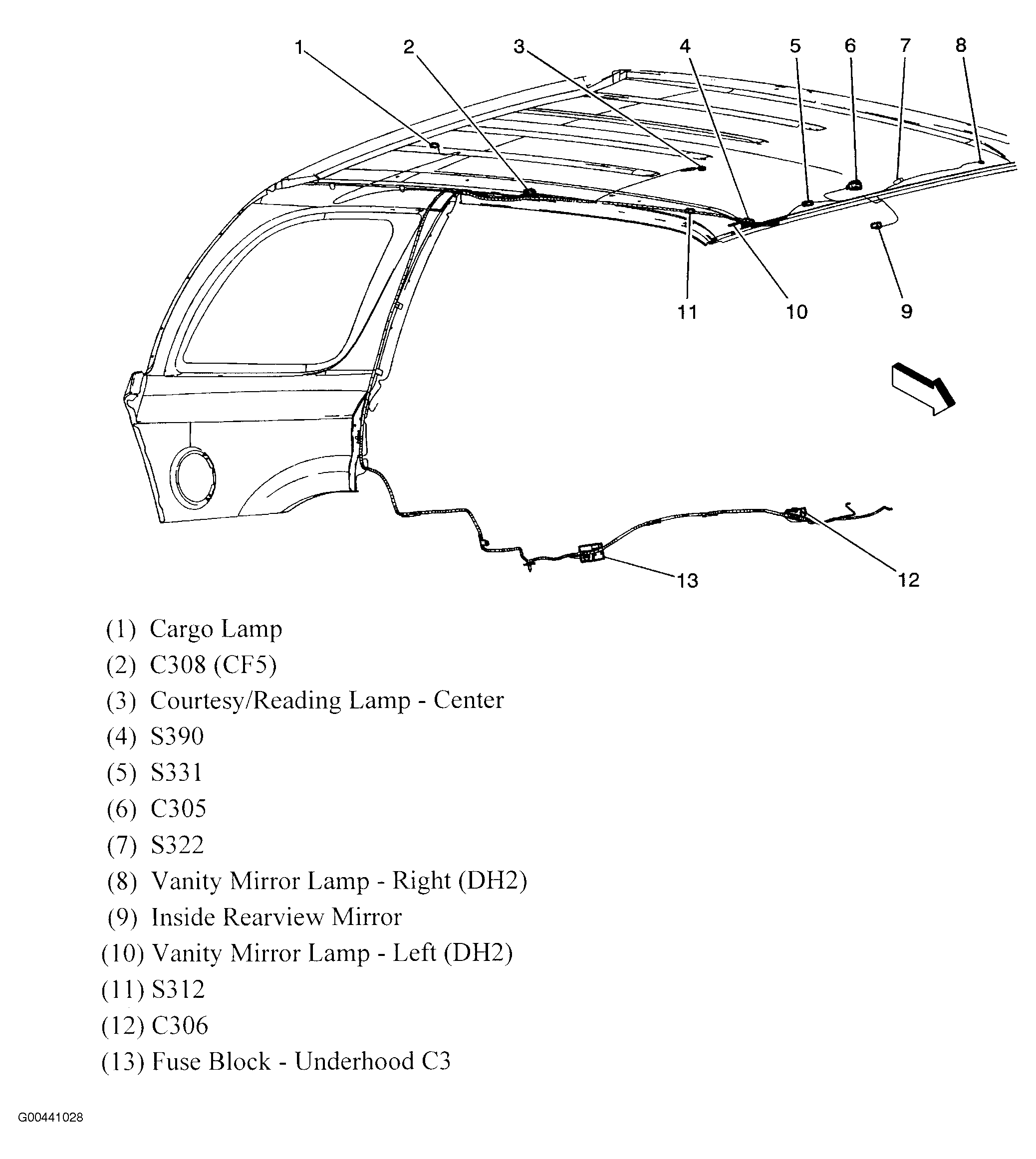

Fig 113: Headliner Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 114: Underhood Fuse Block (4.2L)
Courtesy of GENERAL MOTORS CORP.

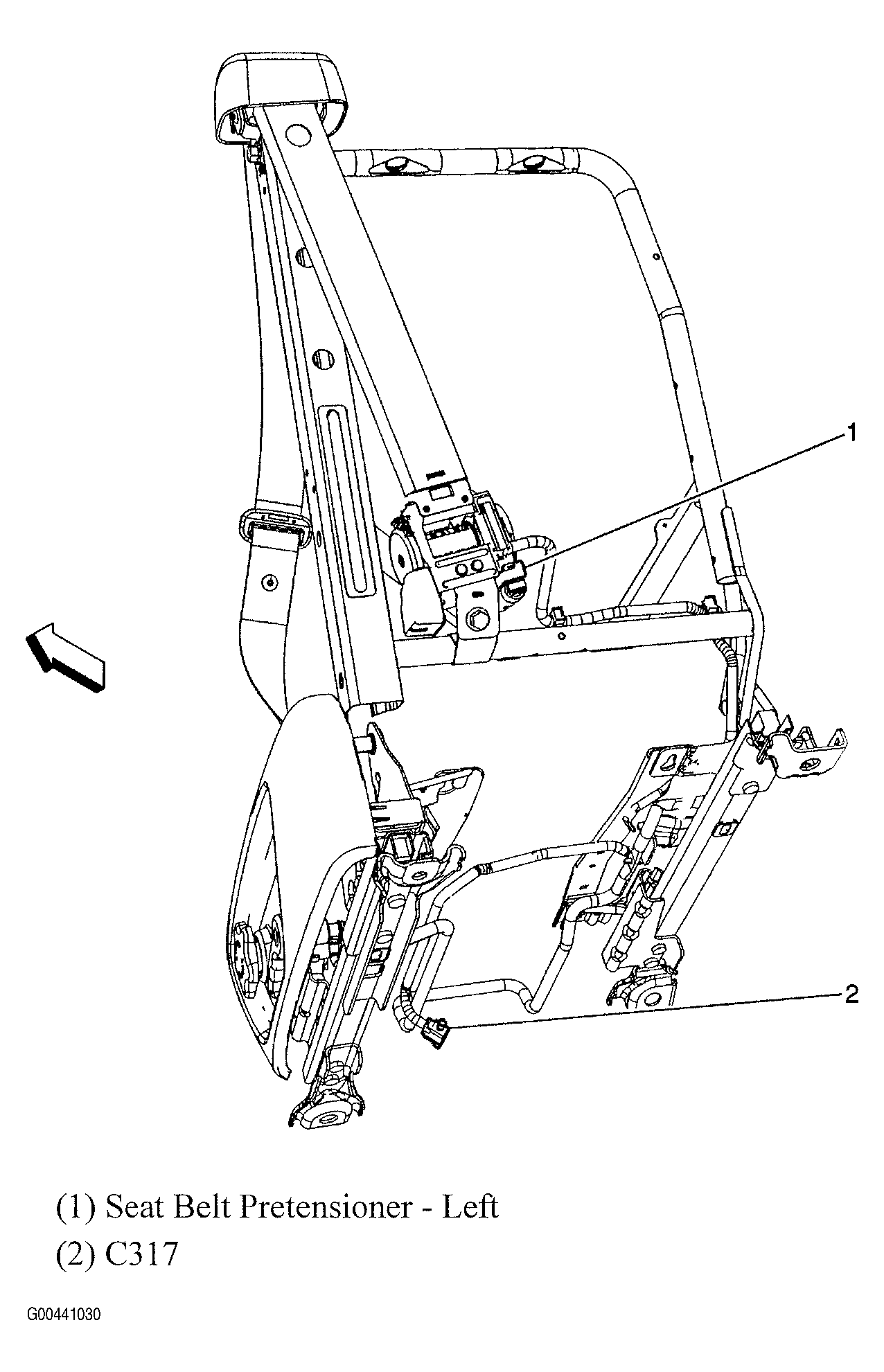

Fig 115: Left Seat Belt Pretensioner
Courtesy of GENERAL MOTORS CORP.

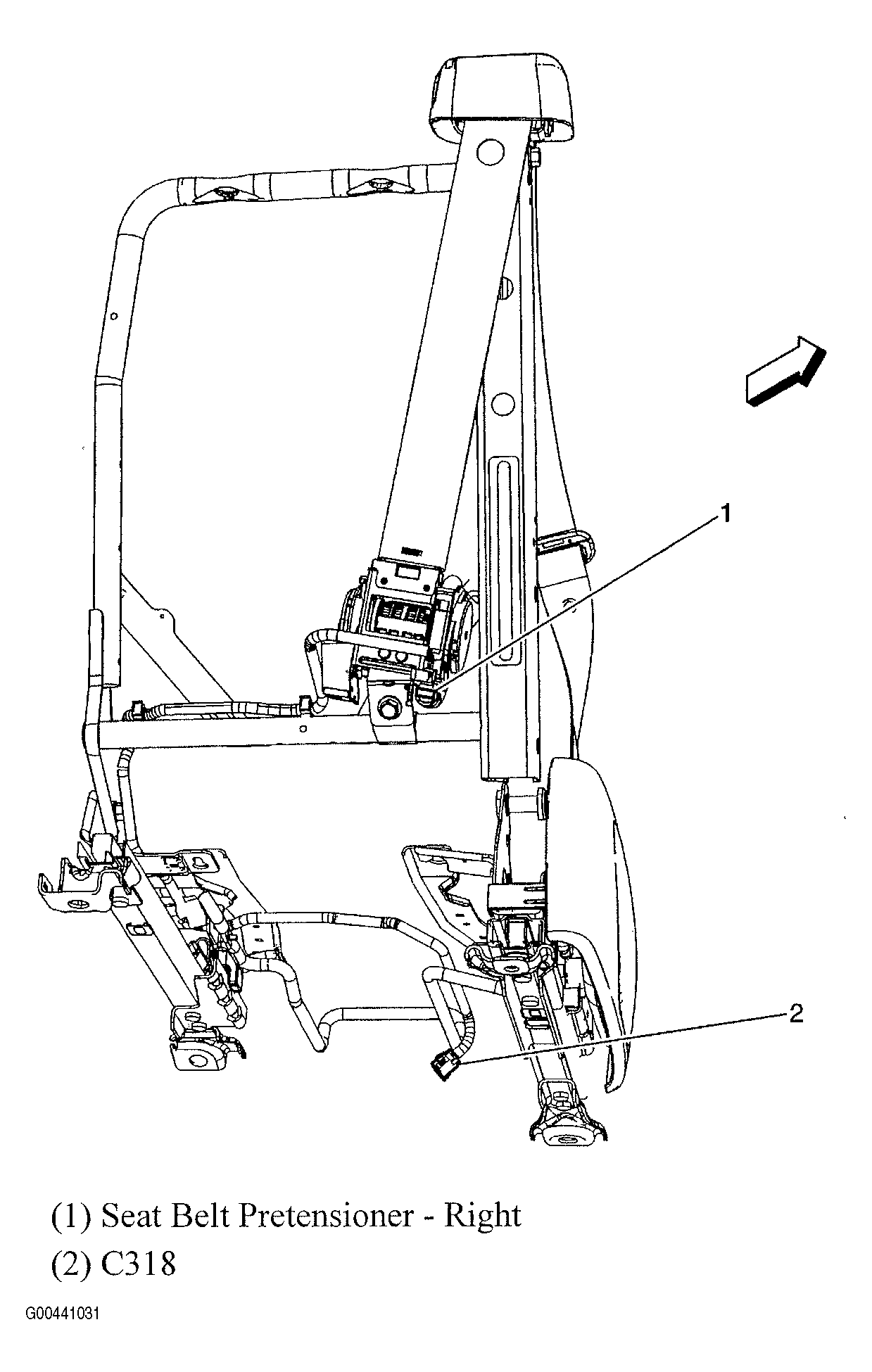

Fig 116: Right Seat Belt Pretensioner
Courtesy of GENERAL MOTORS CORP.
Fig 117: Front Door Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 118: Right Front Door Harness Routing
Courtesy of GENERAL MOTORS CORP.

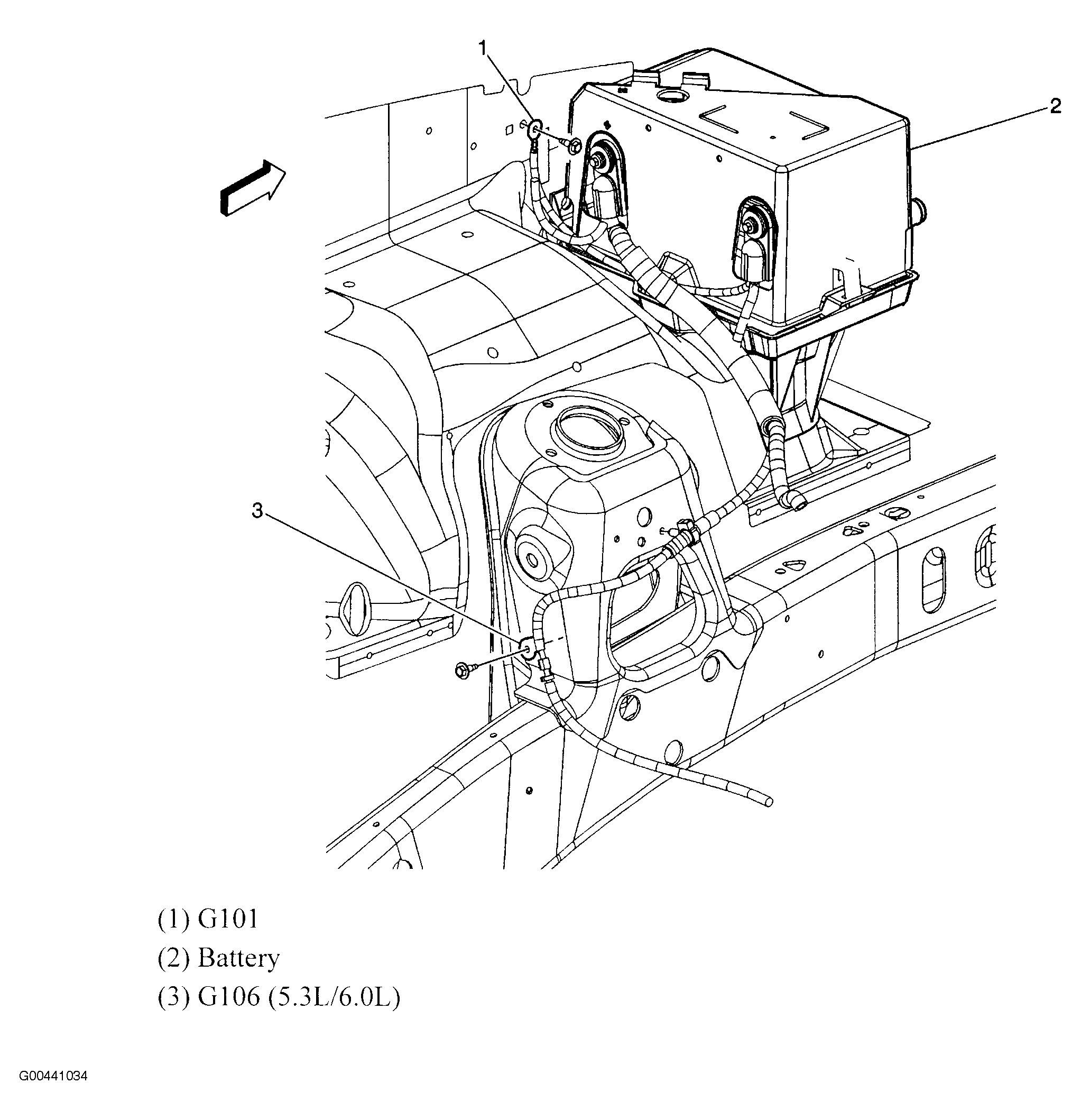

Fig 119: Grounds G101 & G106
Courtesy of GENERAL MOTORS CORP.

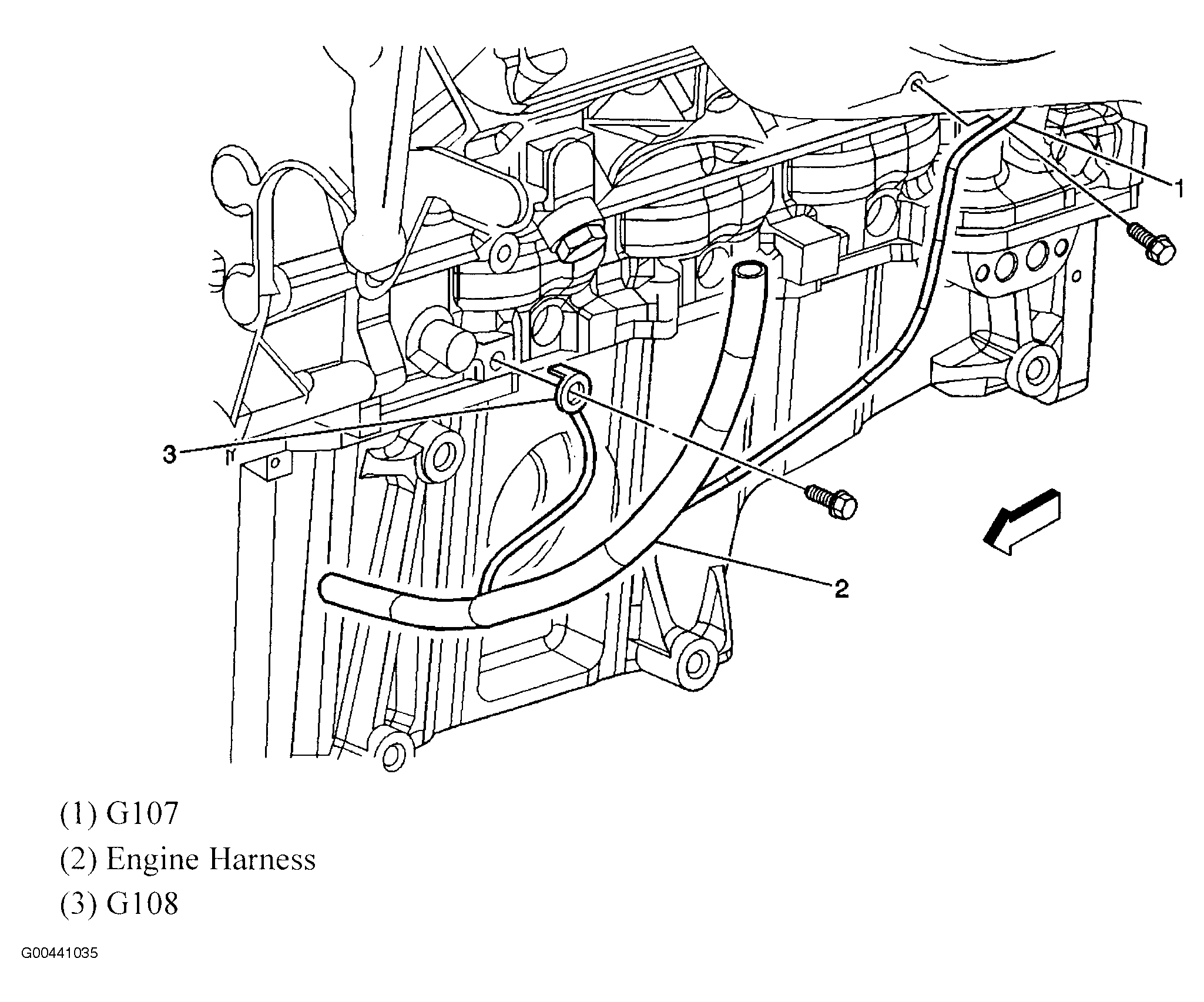

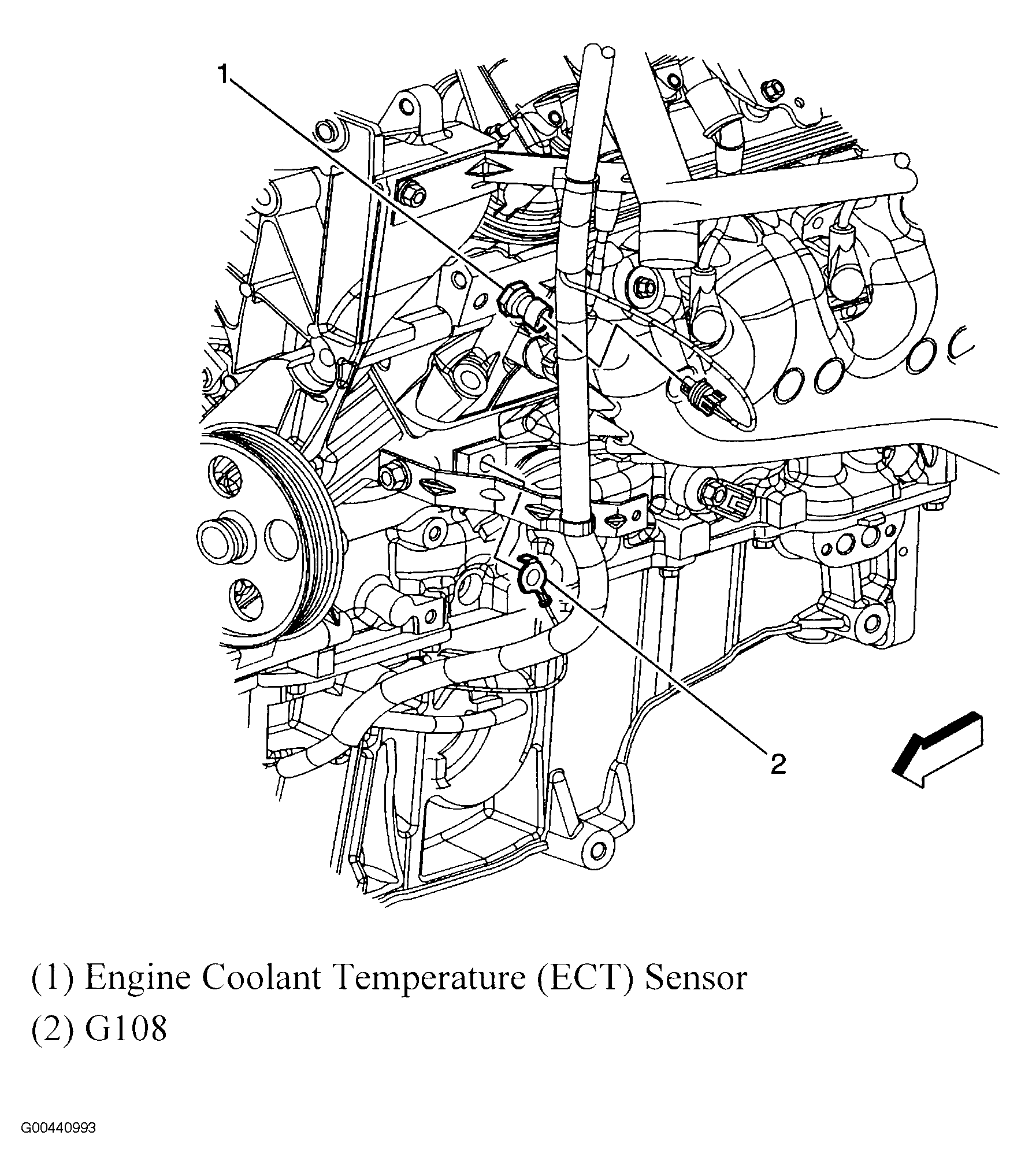

Fig 120: Engine Grounds G107 & G108 (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

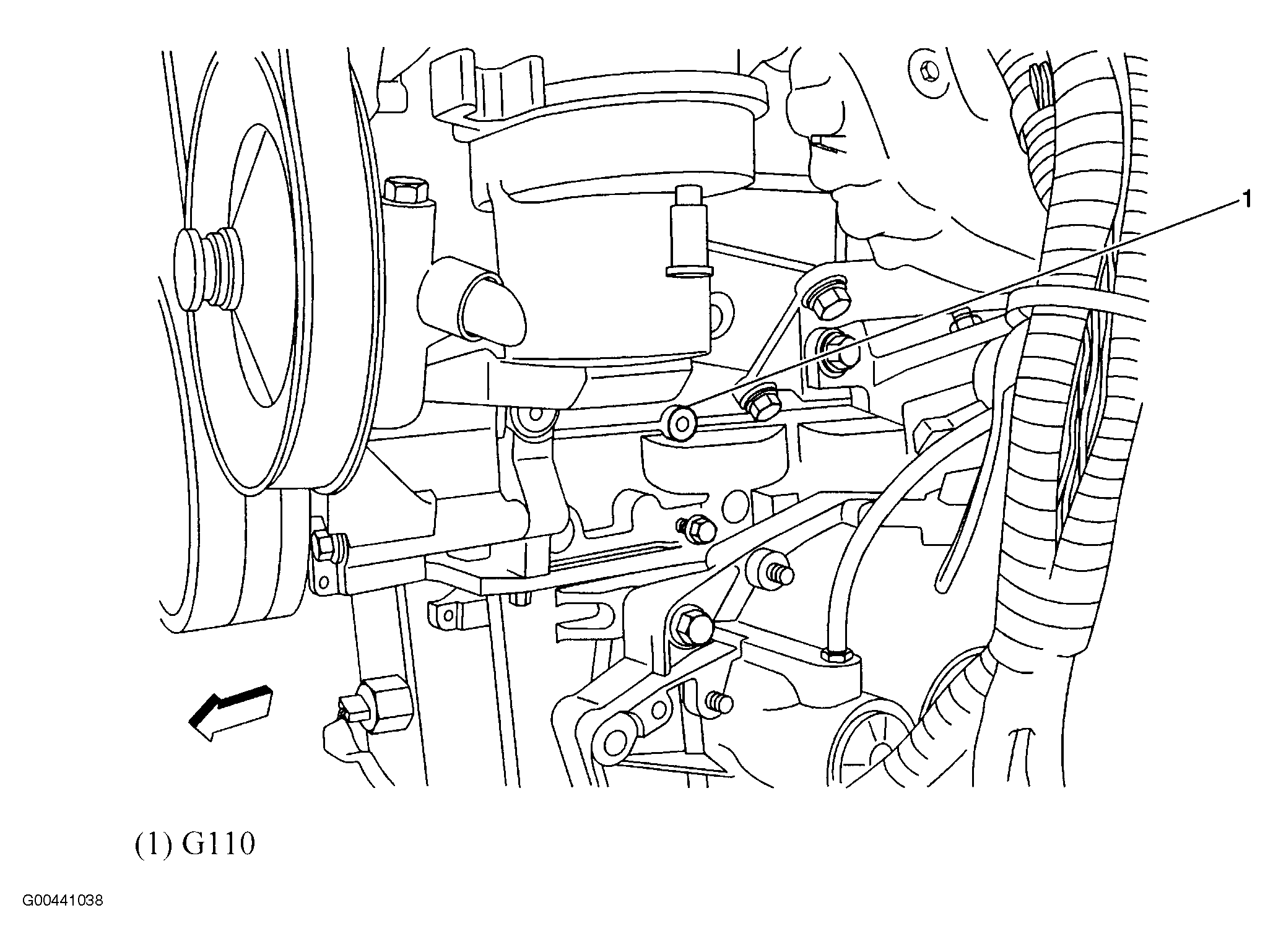

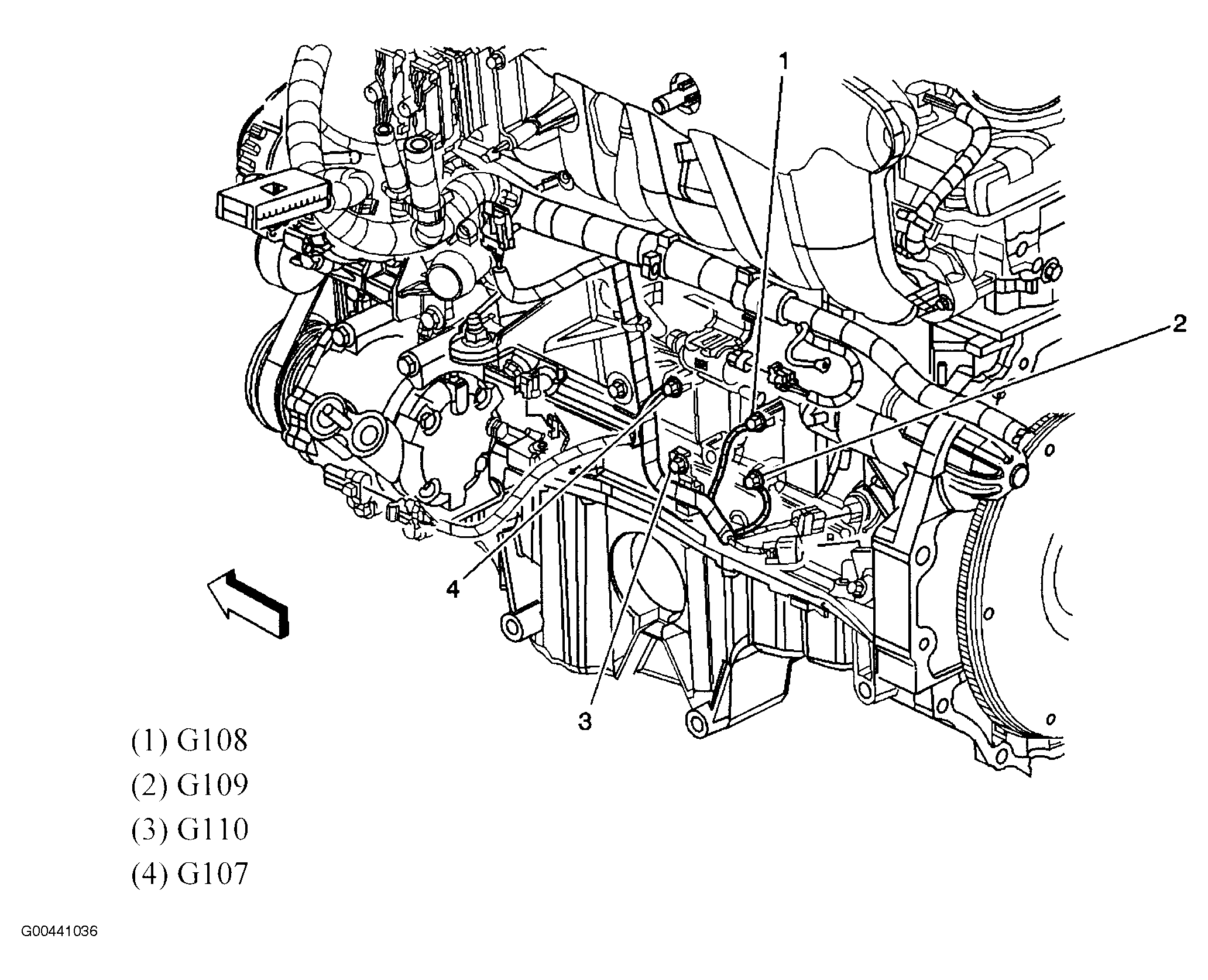

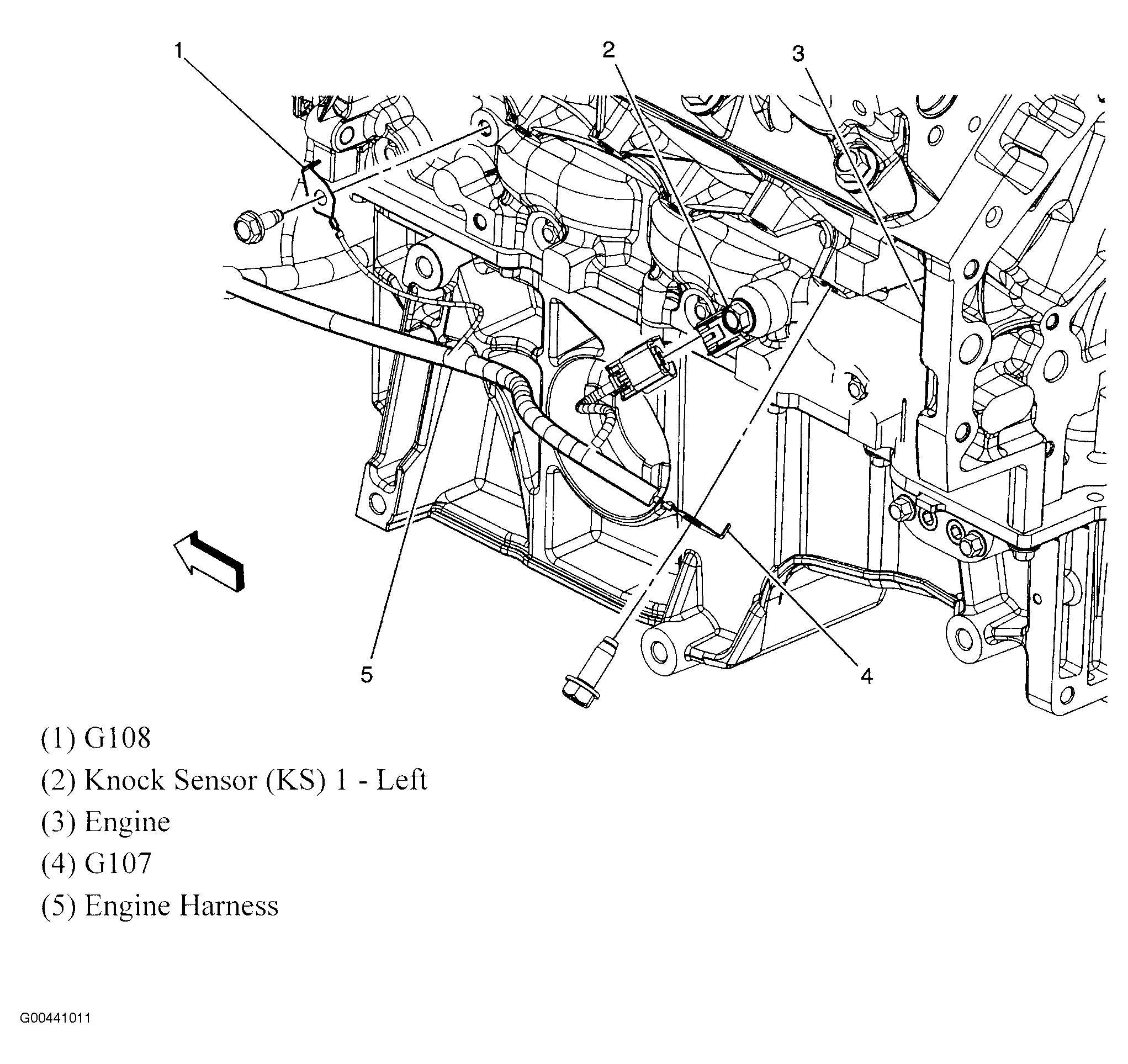

Fig 121: Engine Block Grounds G107, G108, G109 & G110 (4.2L)
Courtesy of GENERAL MOTORS CORP.

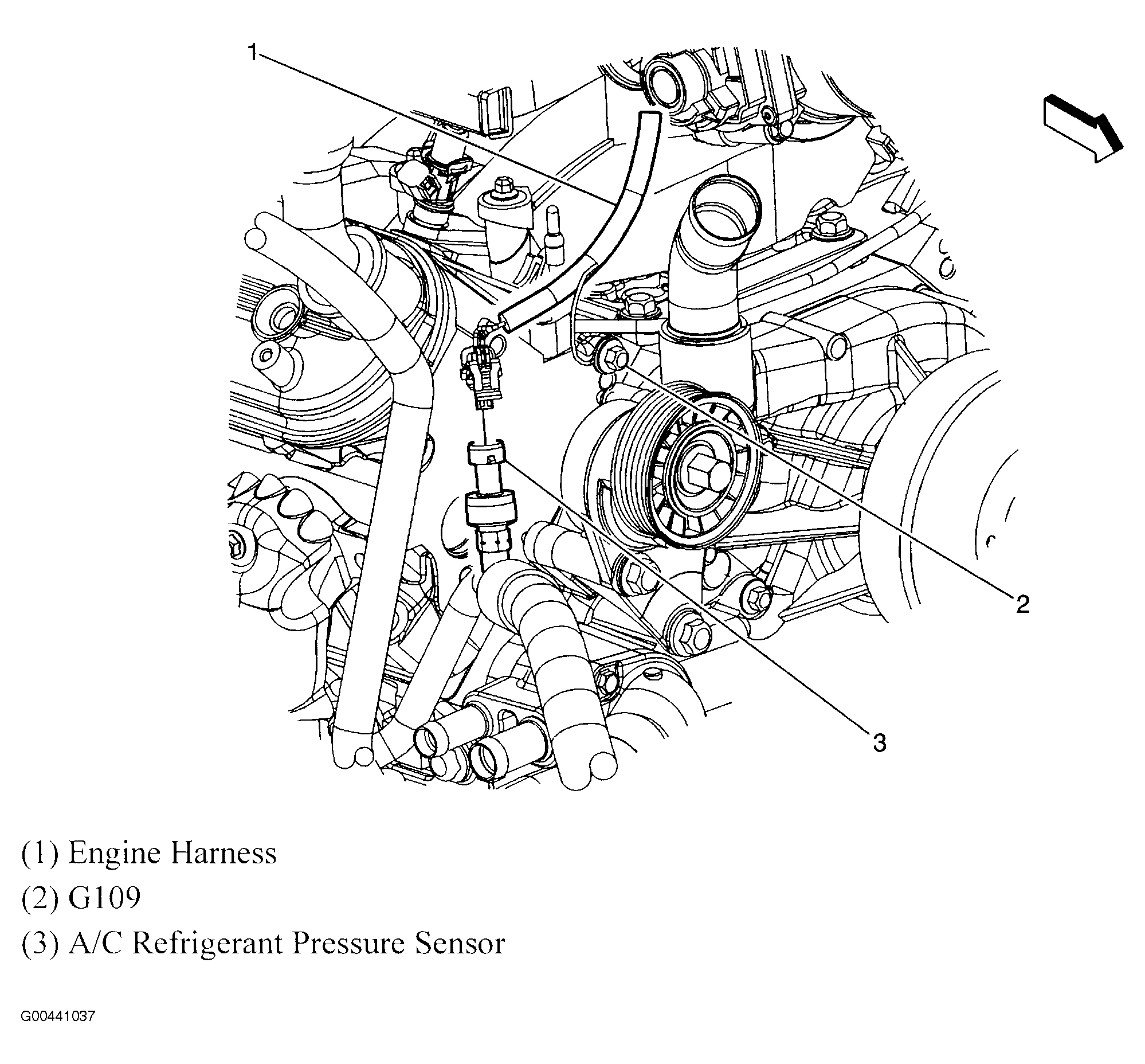

Fig 122: G109 (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 123: Left Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

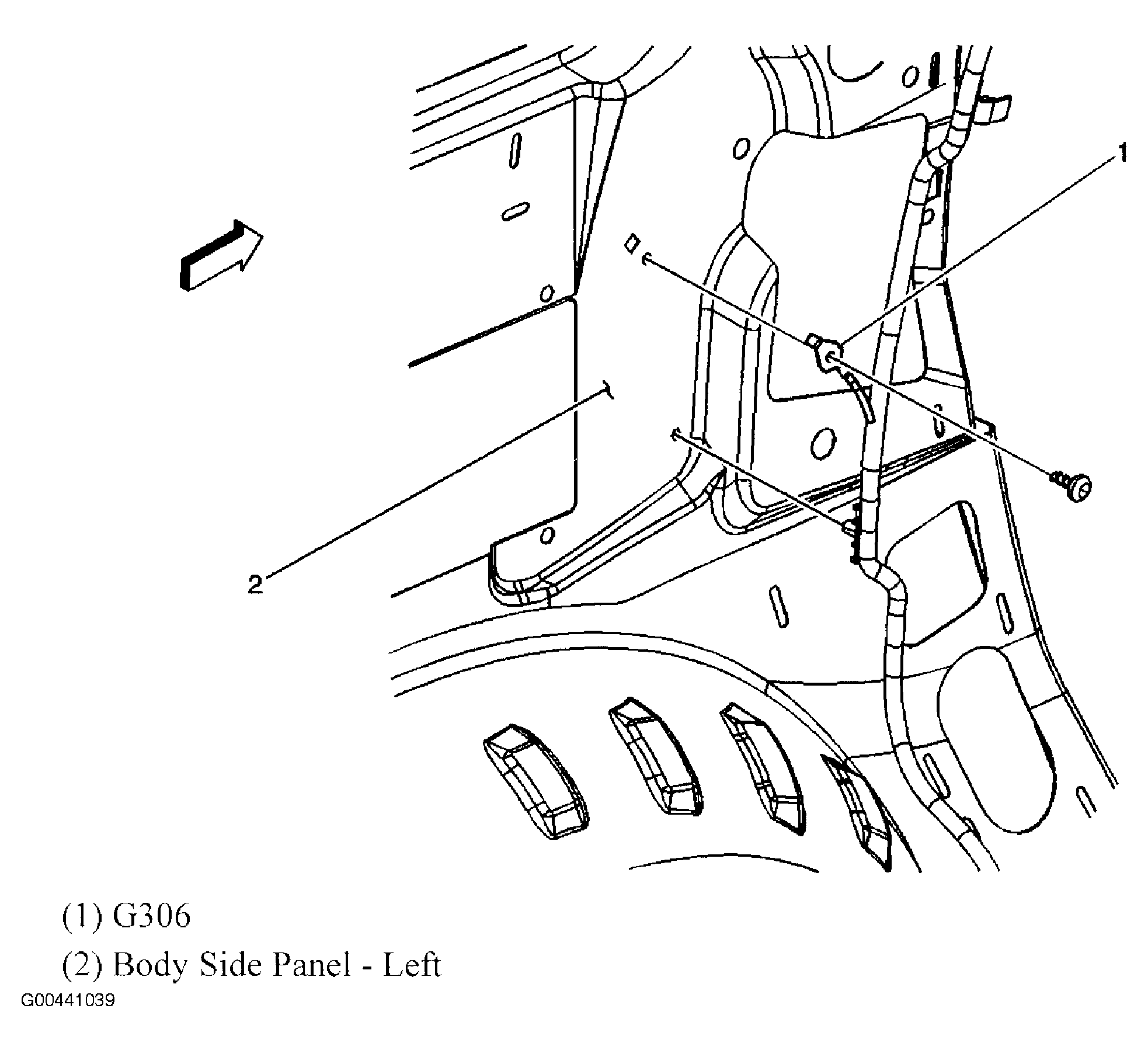

Fig 124: Ground G306
Courtesy of GENERAL MOTORS CORP.

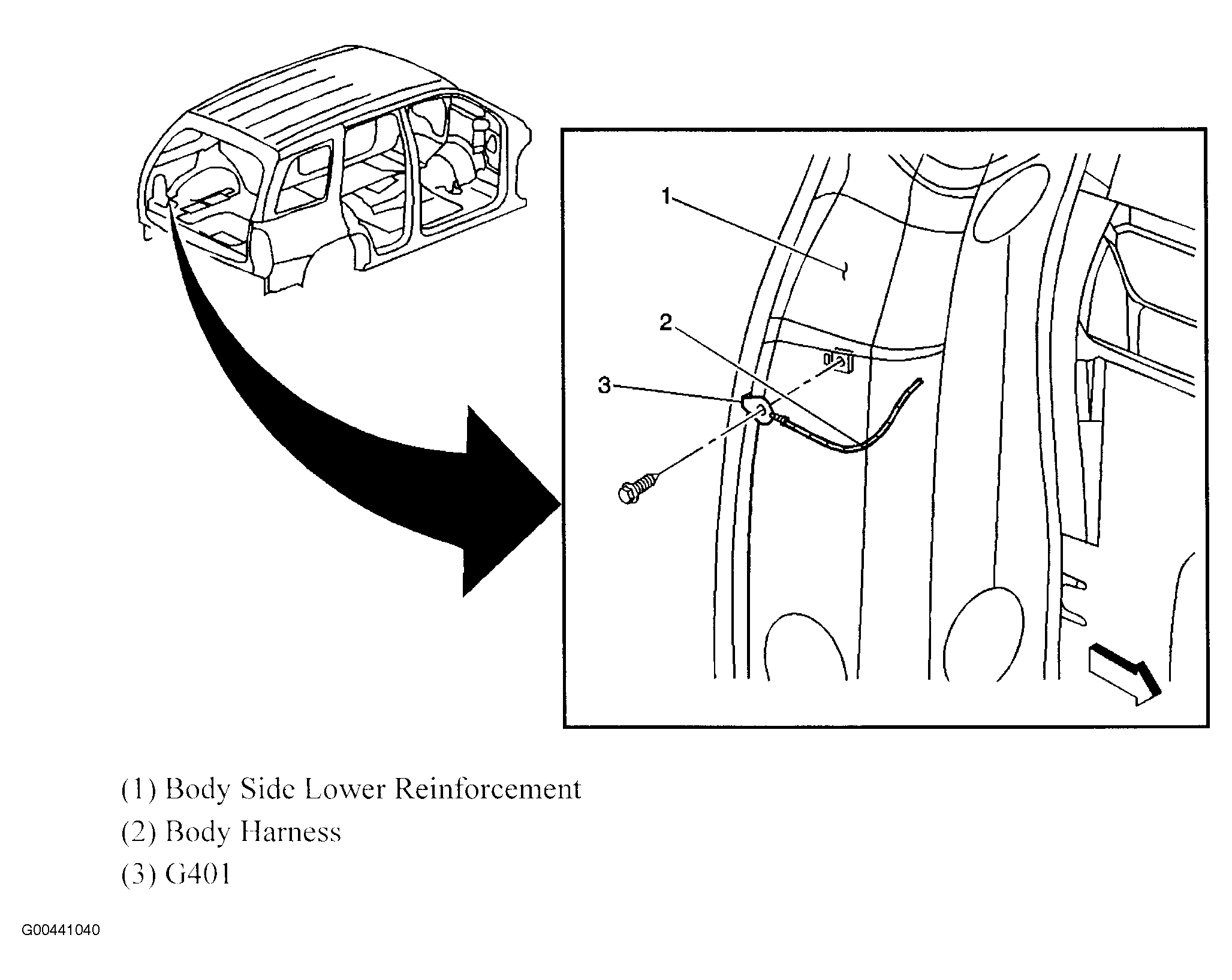

Fig 125: Ground G401
Courtesy of GENERAL MOTORS CORP.

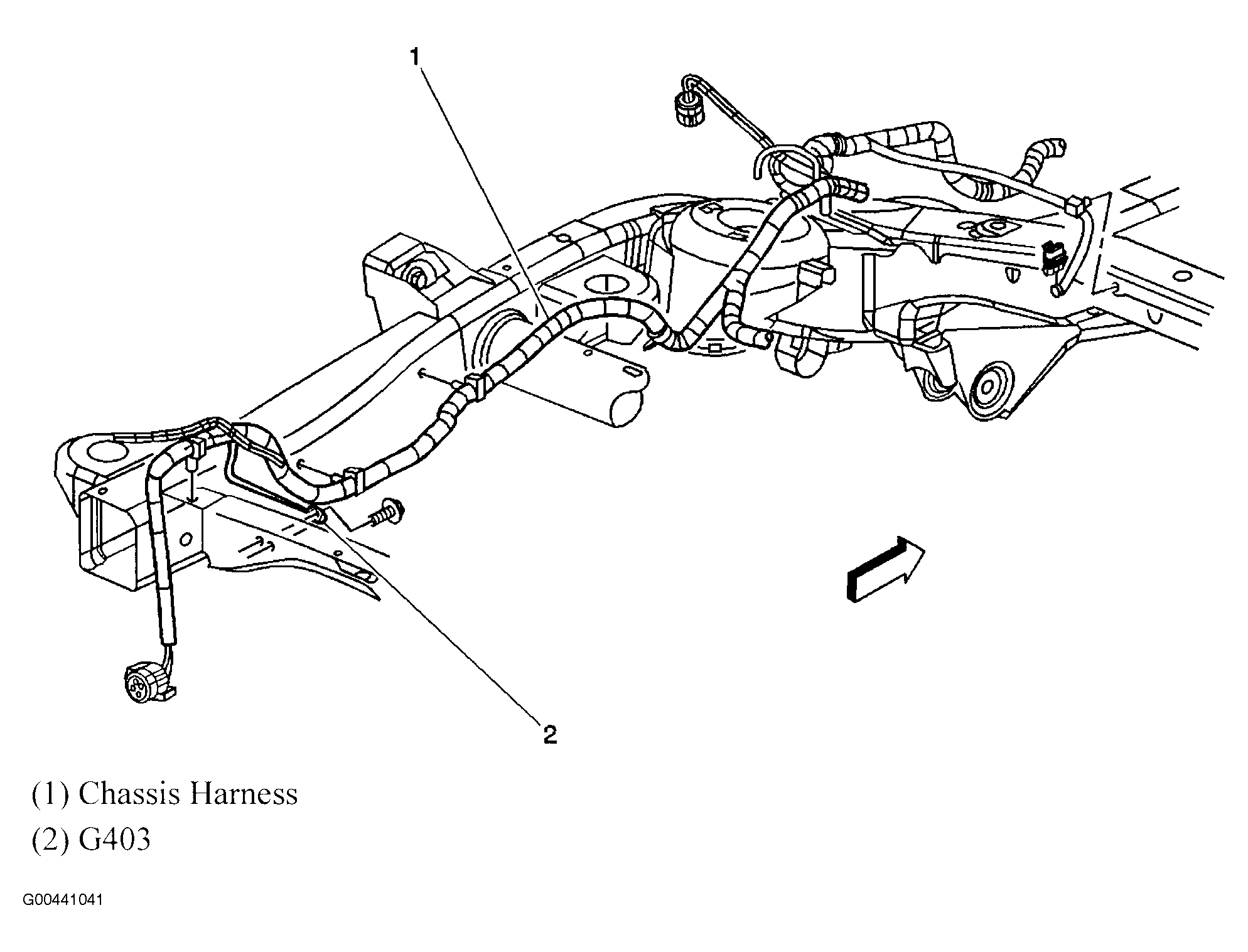

Fig 126: Ground G403
Courtesy of GENERAL MOTORS CORP.

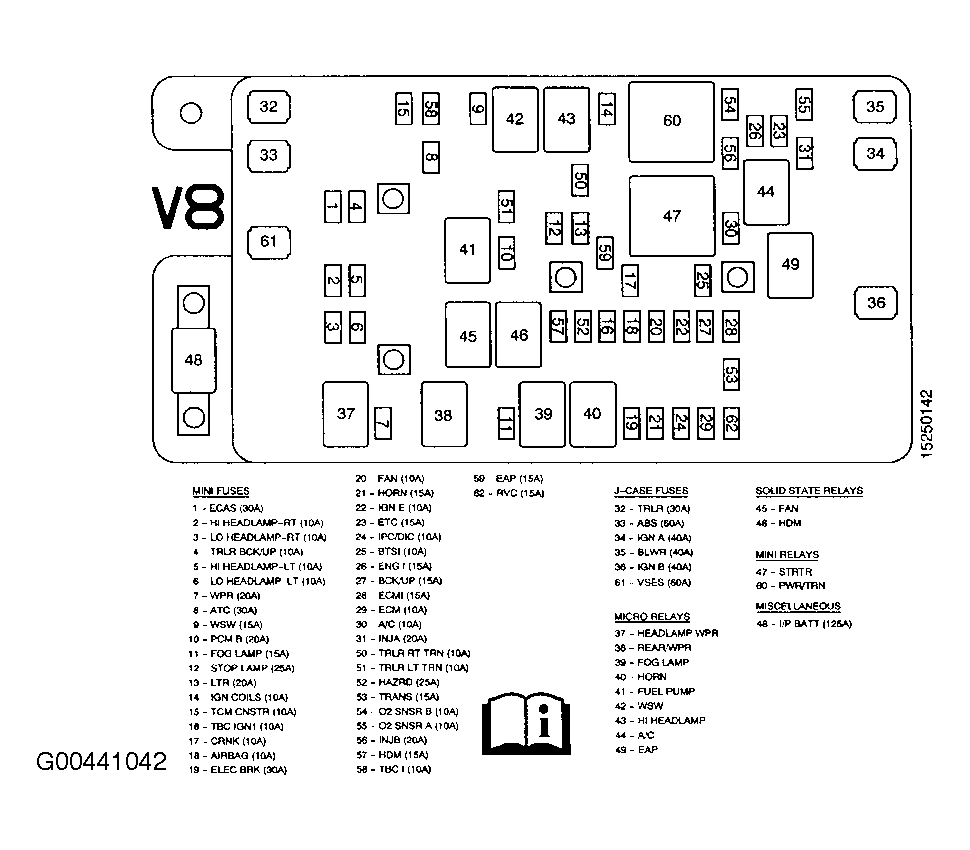

Fig 127: Underhood Fuse Block (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

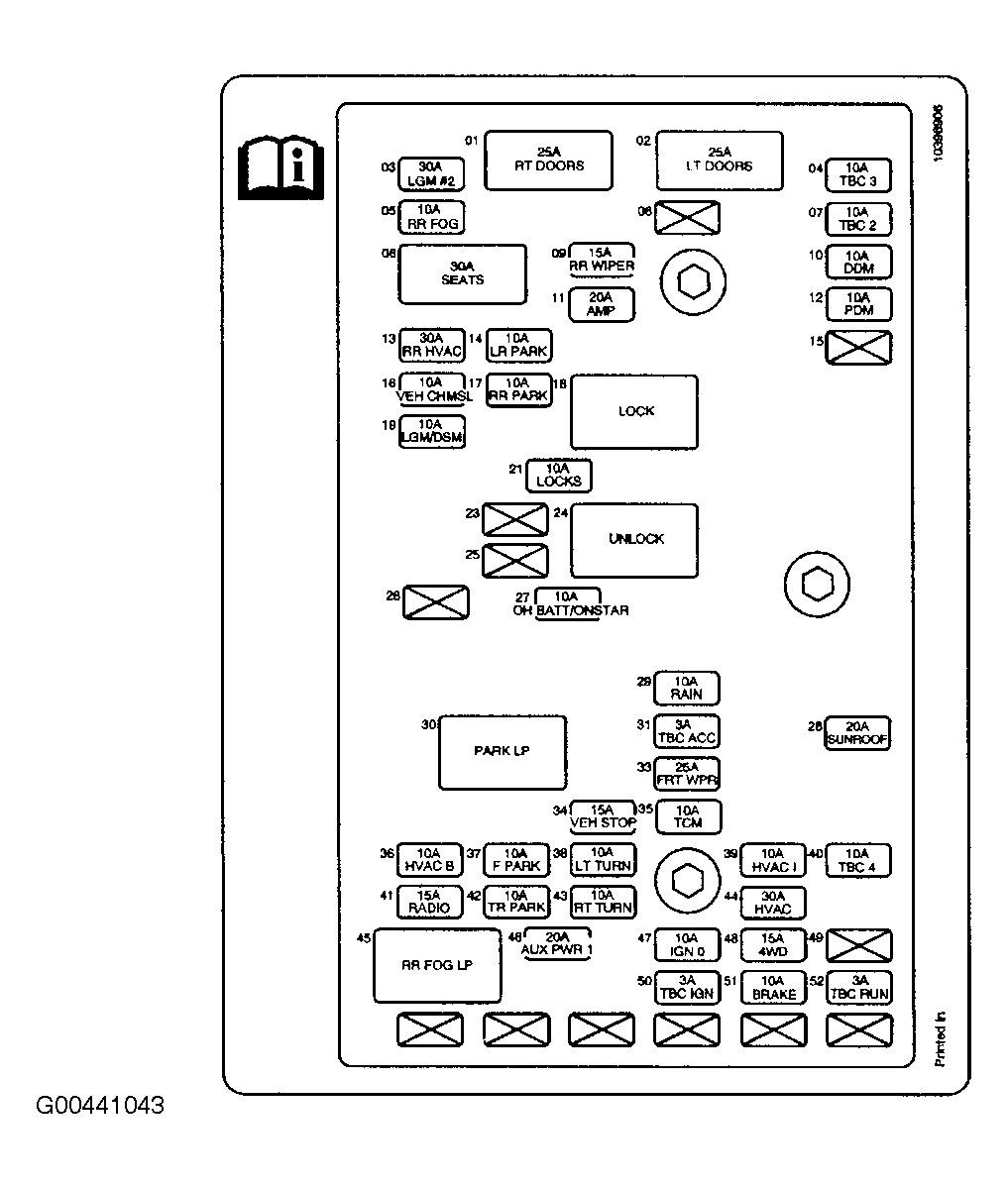

Fig 128: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

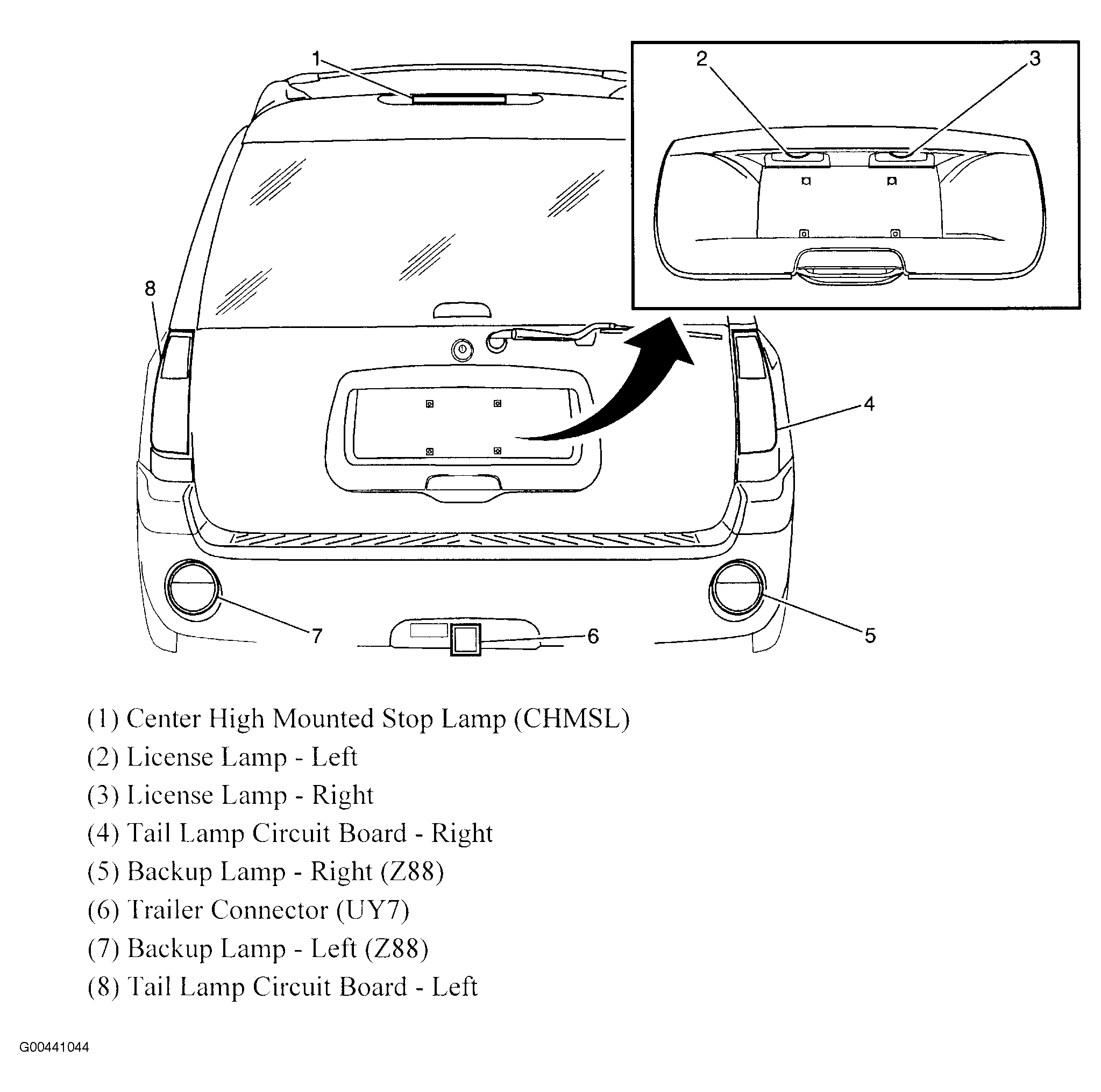

Fig 129: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 130: Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.

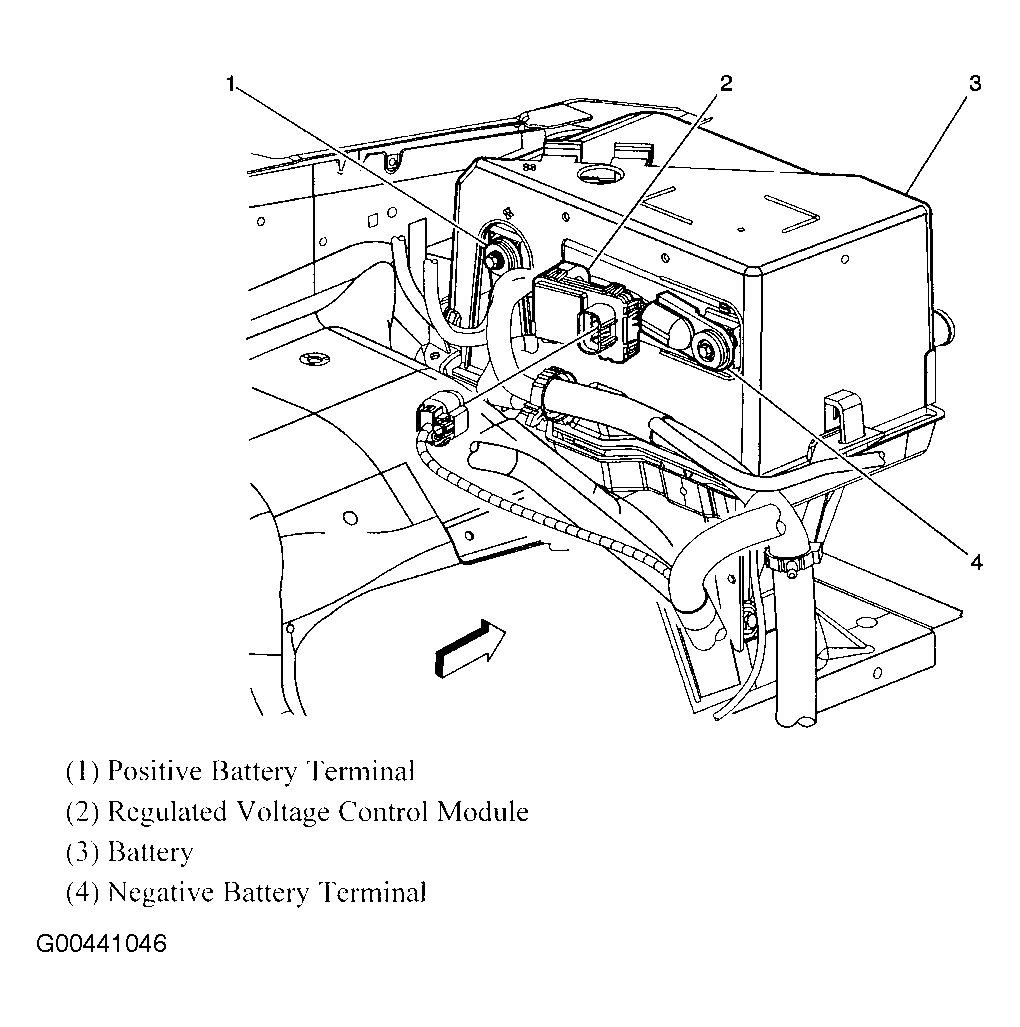

Fig 131: Battery (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

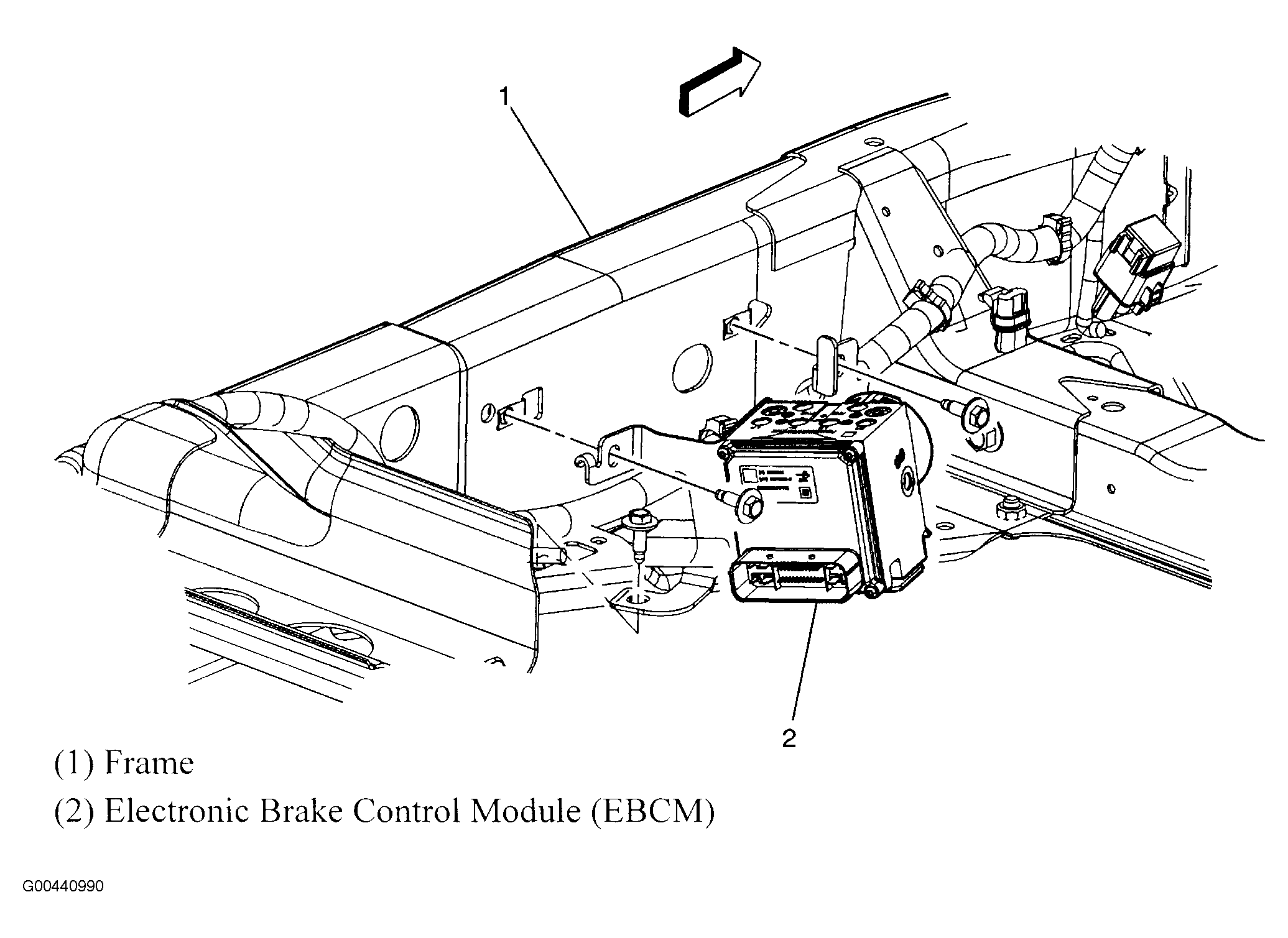

Fig 132: Electronic Brake Control Module
Courtesy of GENERAL MOTORS CORP.
