Antilock Brake System Component Views

Fig 1: Front Hubs & Rotors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LH Steering Knuckle
2	Wheel Speed Sensor - LF
3	Wheel Speed Sensor - RF
4	RH Steering Knuckle

Fig 2: View Of Floor Shift Control Knob

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch

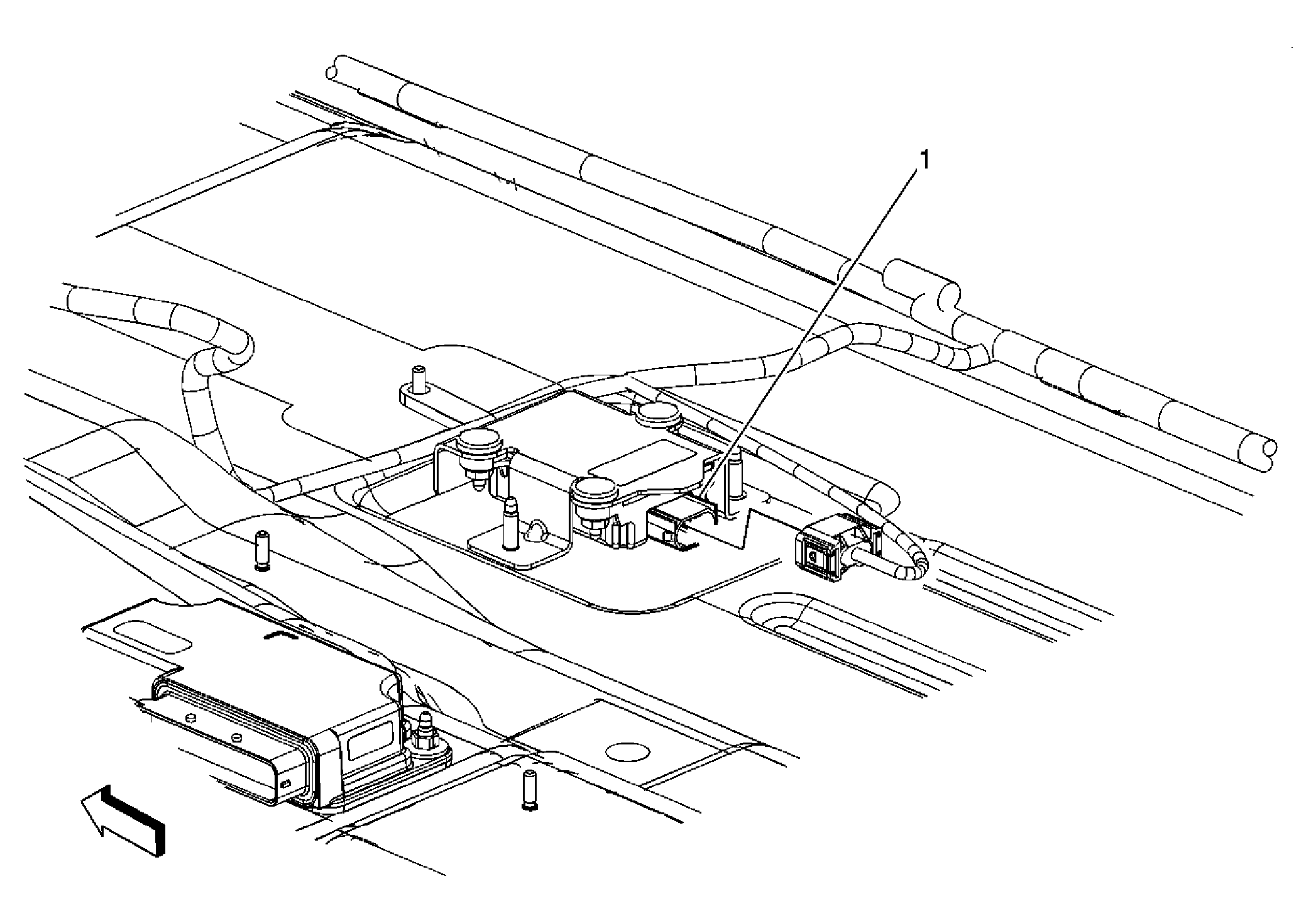

Fig 3: View Under Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Yaw Rate and Lateral Acceleration Sensor

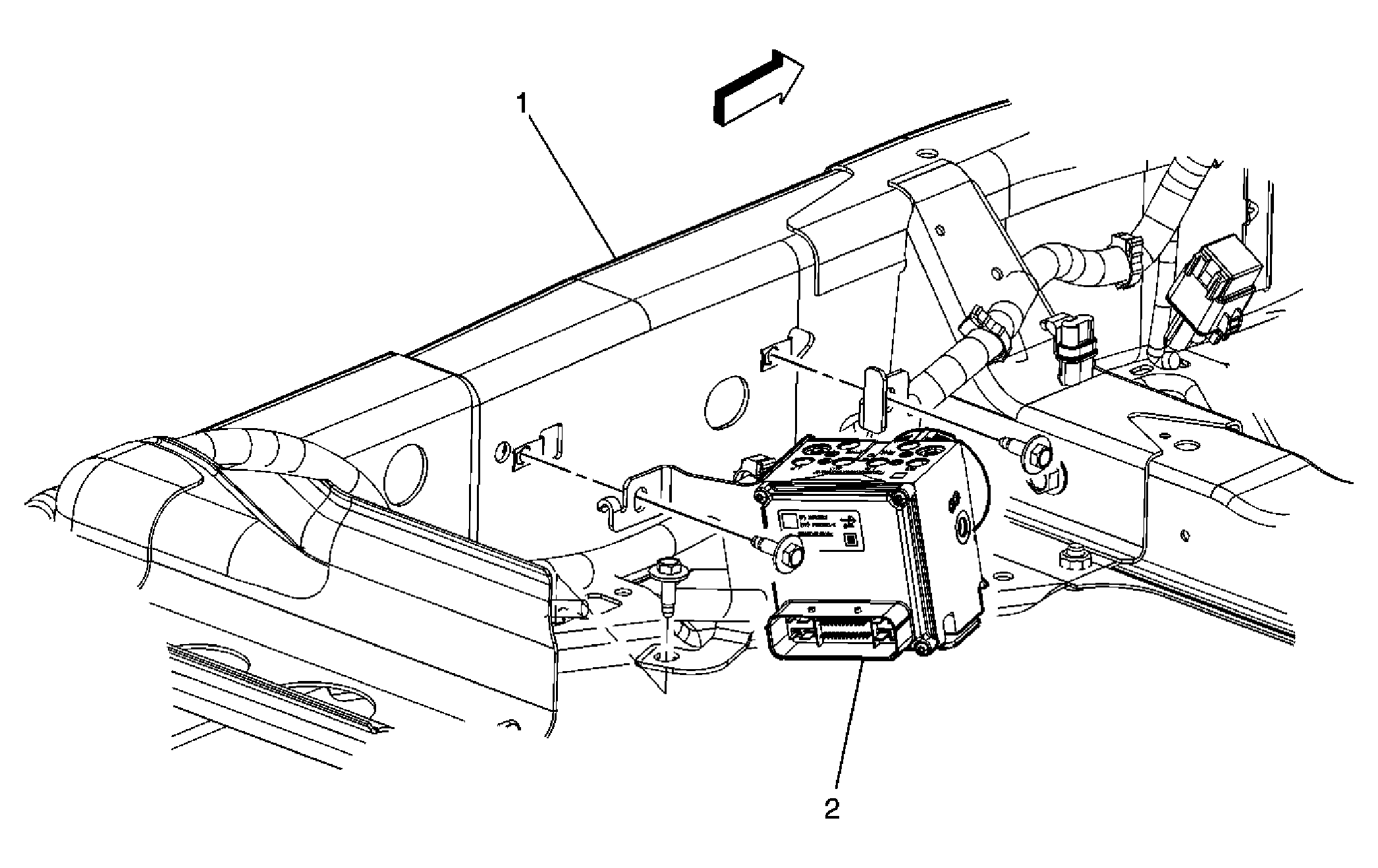

Fig 4: View Of Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Frame
2	Electronic Brake Control Module (EBCM)
