Data Communication Schematics

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

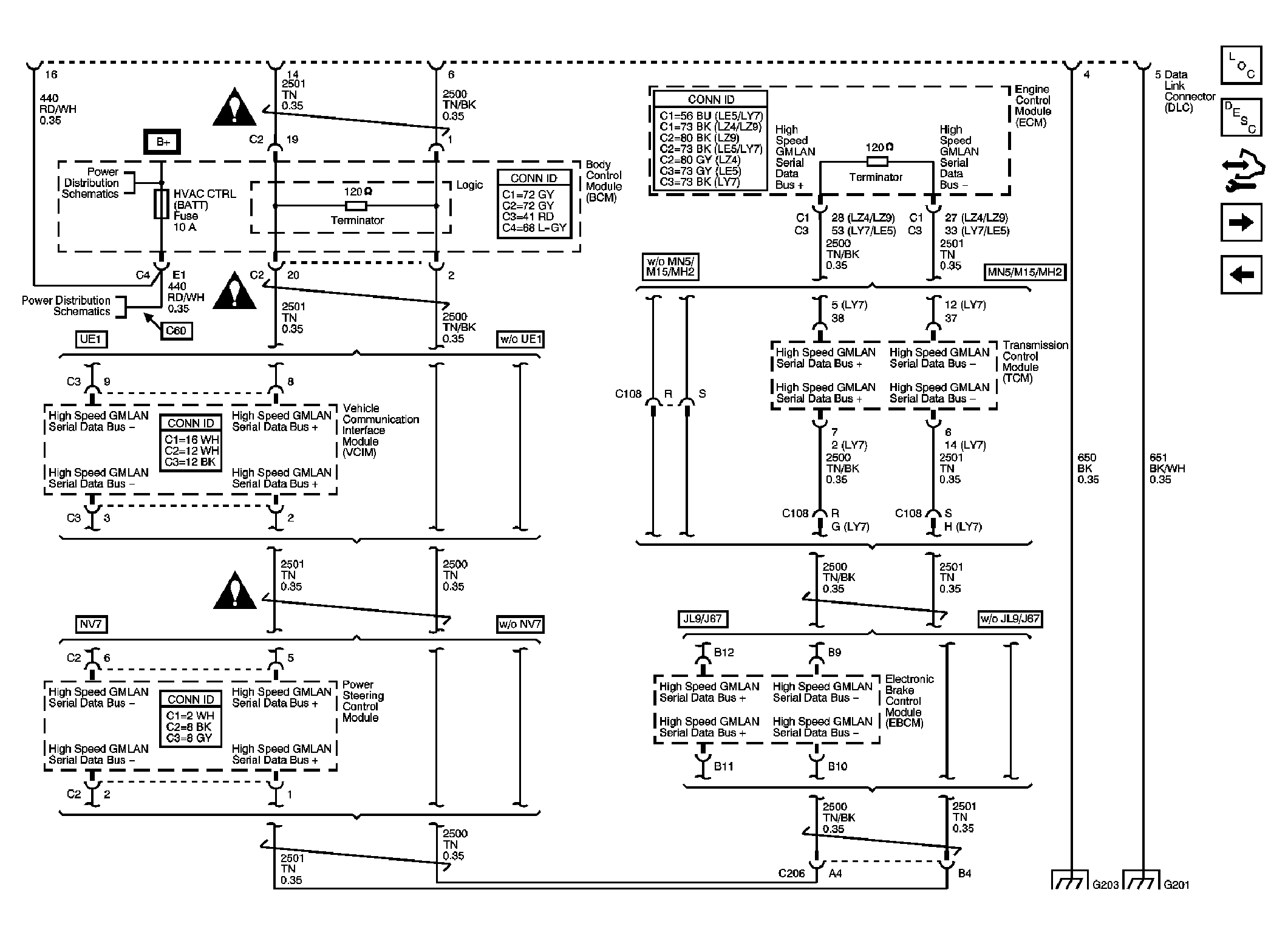

Fig 1: Power, Ground, High Speed GMLAN Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

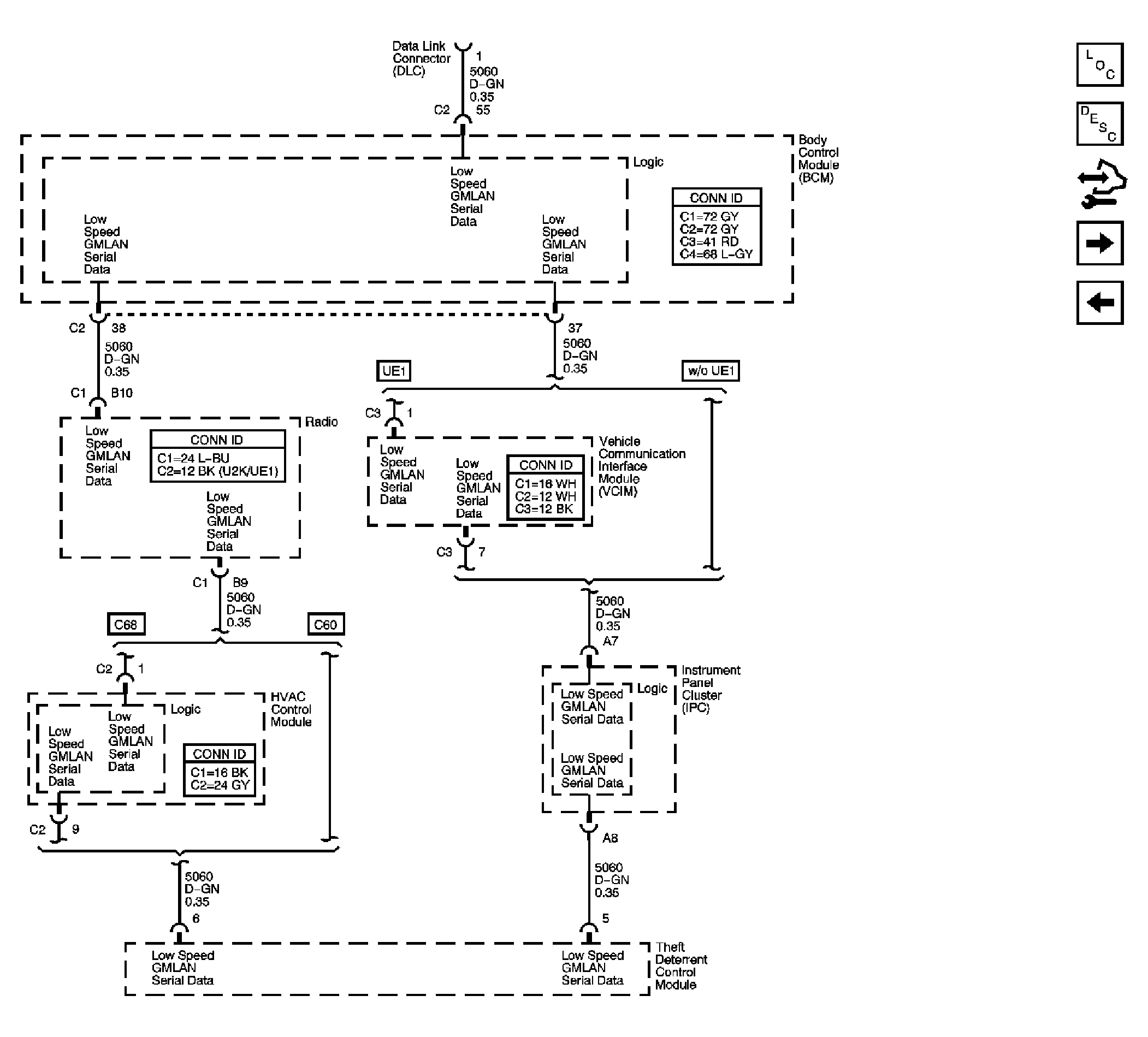

Fig 2: Low Speed GMLAN Serial Data Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

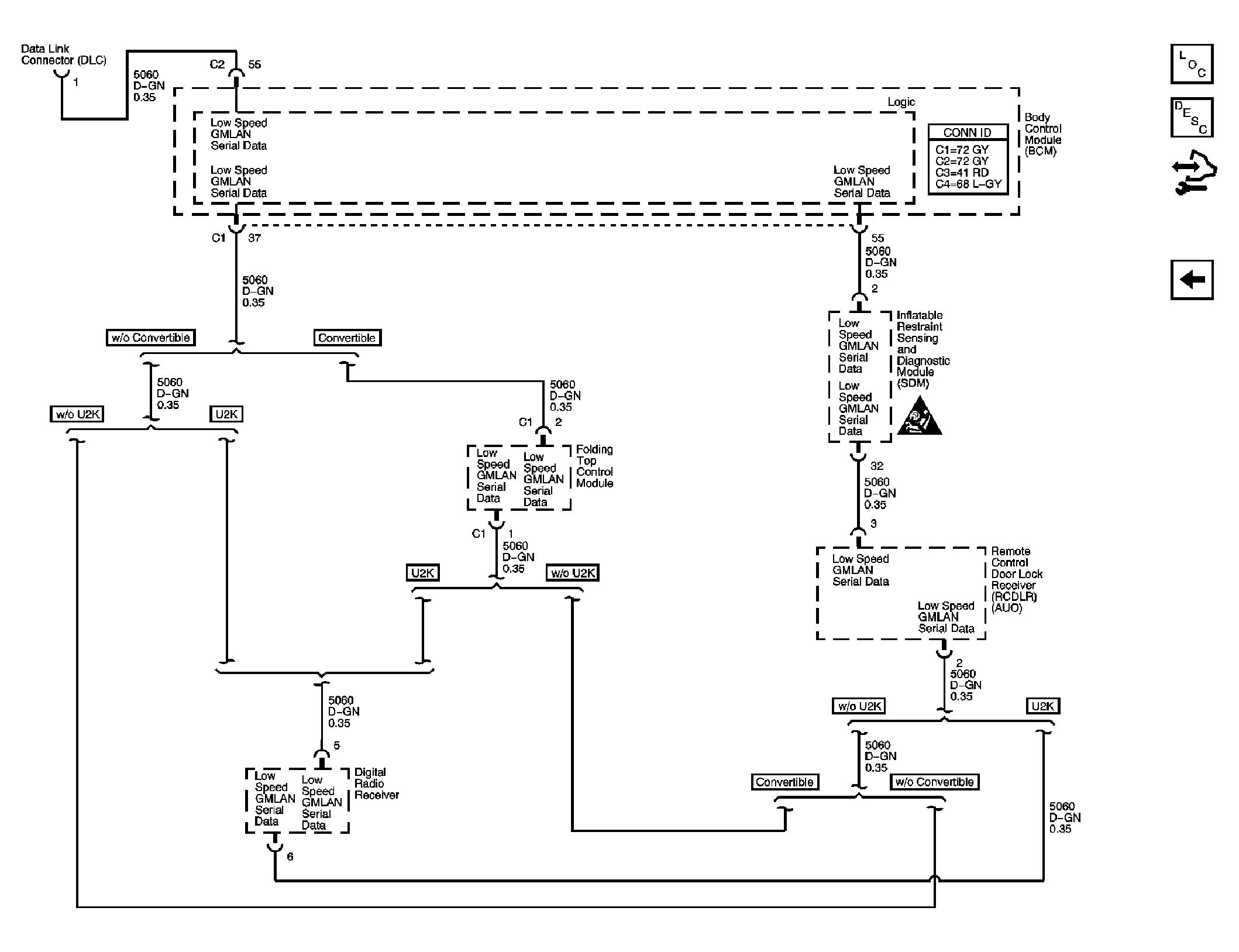

Fig 3: Low Speed GMLAN Serial Data Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.
