Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

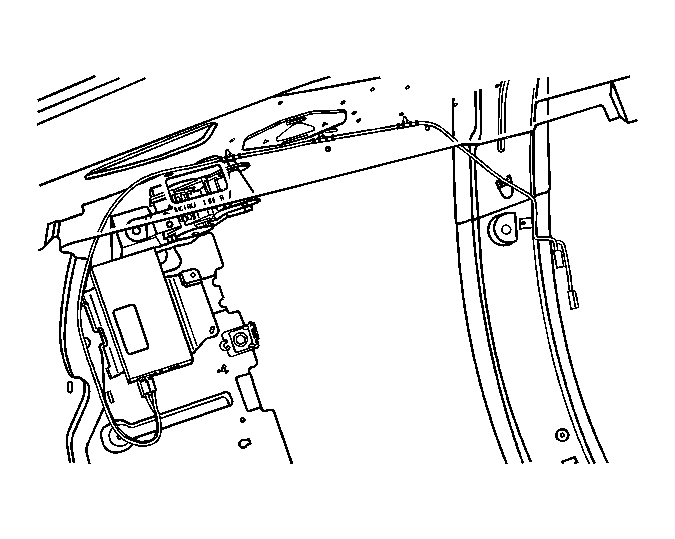

    Fig 1: Removing & Installing Receiver
    GM914897Courtesy of GENERAL MOTORS CORP.
  1. Install the receiver to the rear carrier.
    2. NOTE: Refer to Fastener Notice .
  2. Install the fasteners securing the receiver to the rear carrier.

    Tighten:  Tighten the fasteners to 2 N.m (17 lb in).

  3. Connect the electrical connectors.
  4. Install the rear self panel. Refer to Trim Panel Replacement - Rear Window Shelf .
  5. Perform the setup procedure for the digital radio receiver. Refer to Control Module References for programming and setup information.
