Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console rear panel. Refer to Center Console End Panel Replacement .

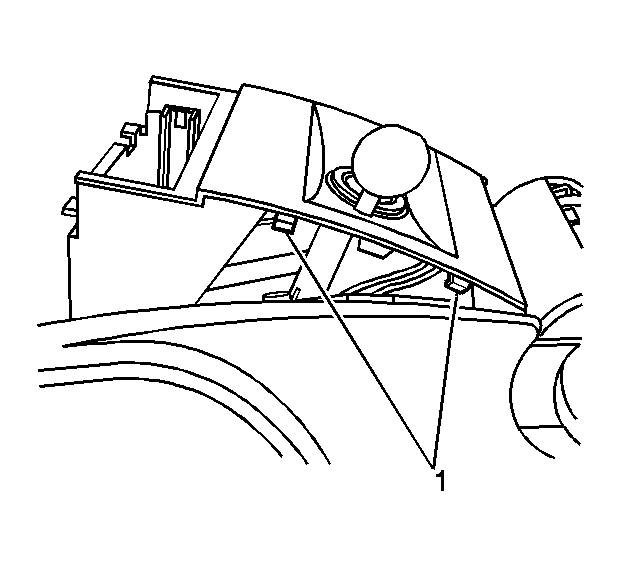

    2. Fig 1: Identifying Tabs Securing Video Jack To Console
    GM789875Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector.
  3. Release the tabs (1) securing the video jack to the console.
    4. Fig 2: Removing & Installing Auxiliary Video Jack
    GM789860Courtesy of GENERAL MOTORS CORP.
  4. Remove the video jack out of the front of the console.
