Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

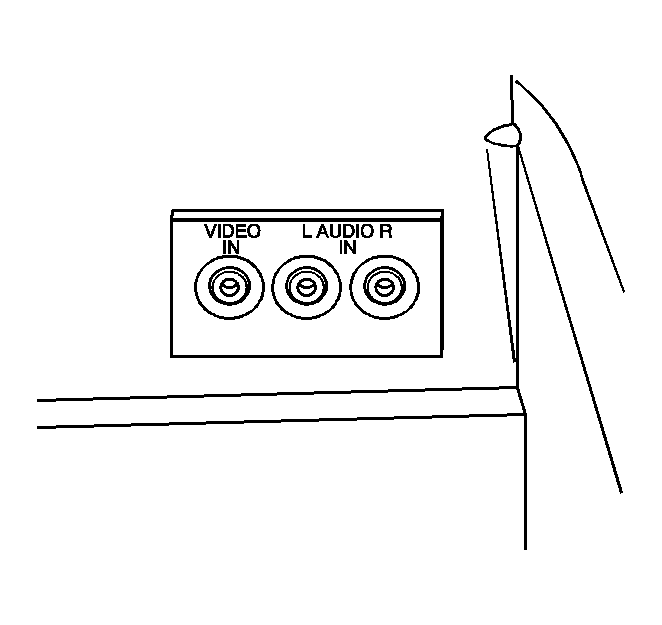

    Fig 1: Removing & Installing Auxiliary Video Jack
    GM789860Courtesy of GENERAL MOTORS CORP.
  1. Install the video jack.

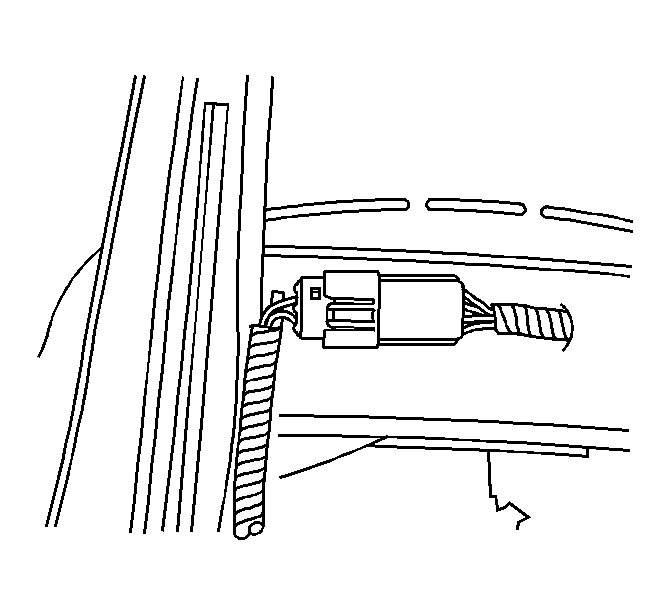

    2. Fig 2: Identifying Auxiliary Video Jack Electrical Connector
    GM789857Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector.
  3. Install the rear panel assembly. Refer to Center Console End Panel Replacement .
