Body Control System Schematics

WARNING: This page is about a different car, the 2008 Saturn Outlook, 2008 GMC Acadia, and 2008 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

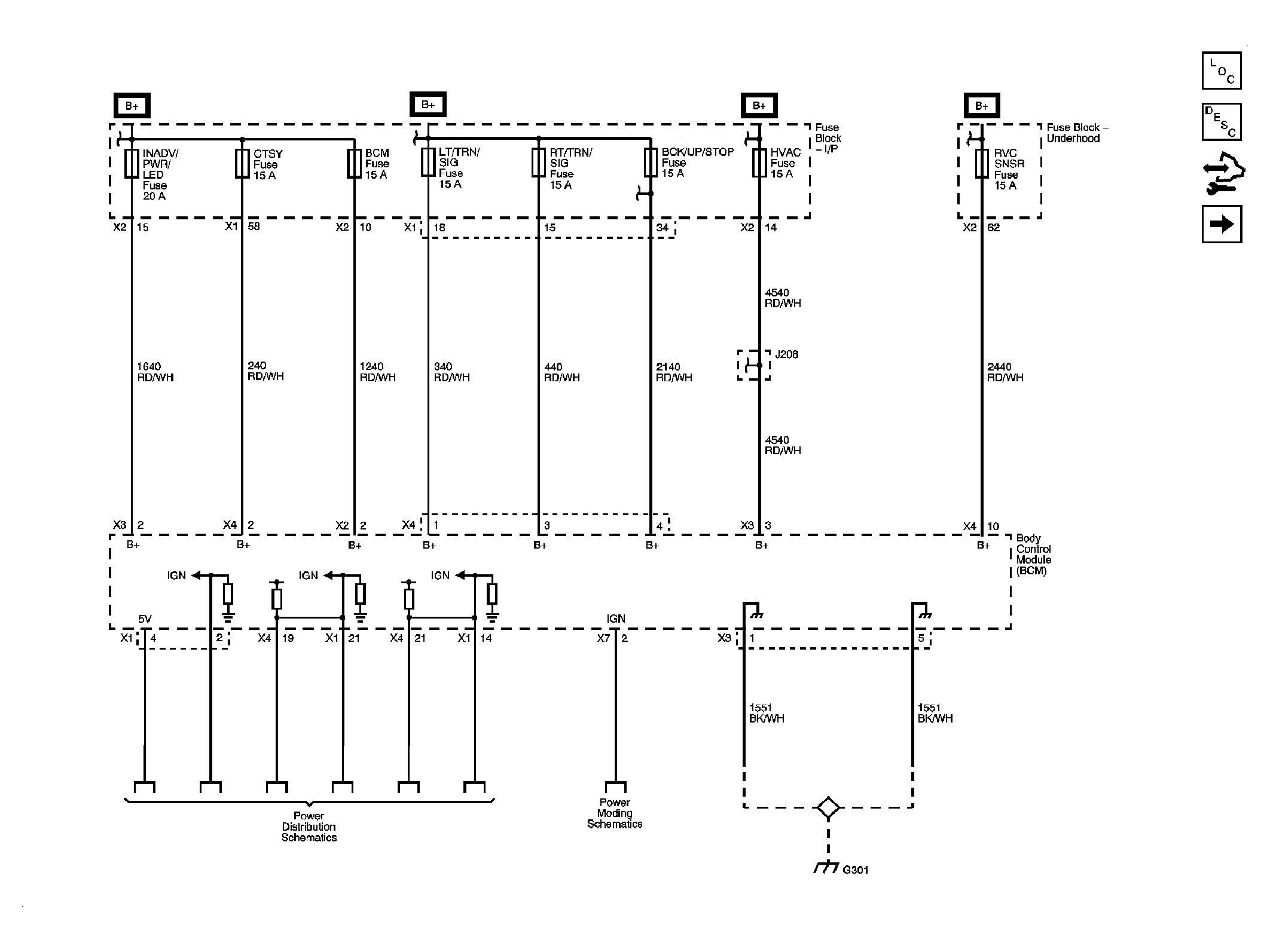

Fig 1: Module Power, Ground, and References to Power Distribution and Power Moding

Courtesy of GENERAL MOTORS CORP.

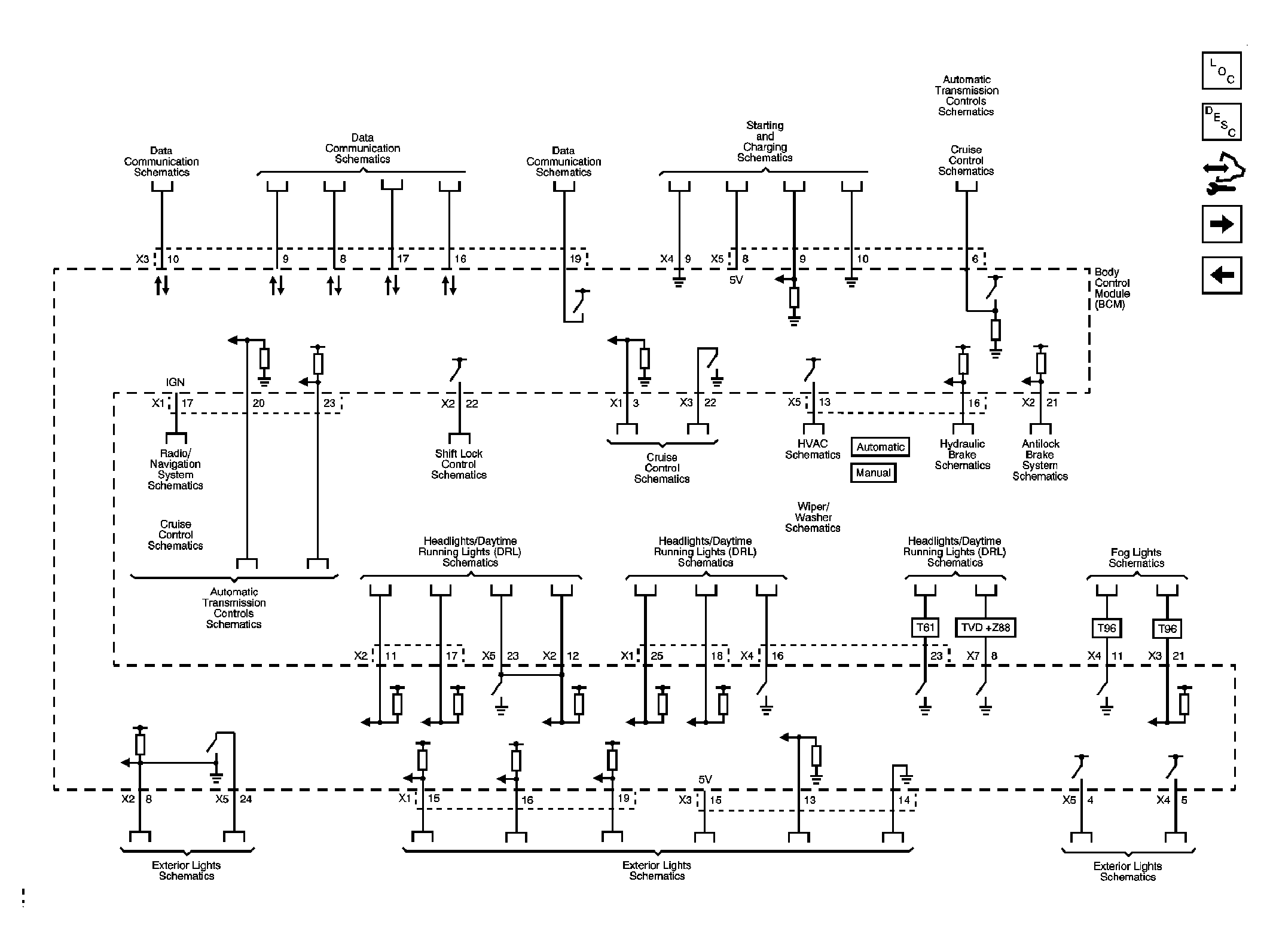

Fig 2: Subsystem References 1 of 3

Courtesy of GENERAL MOTORS CORP.

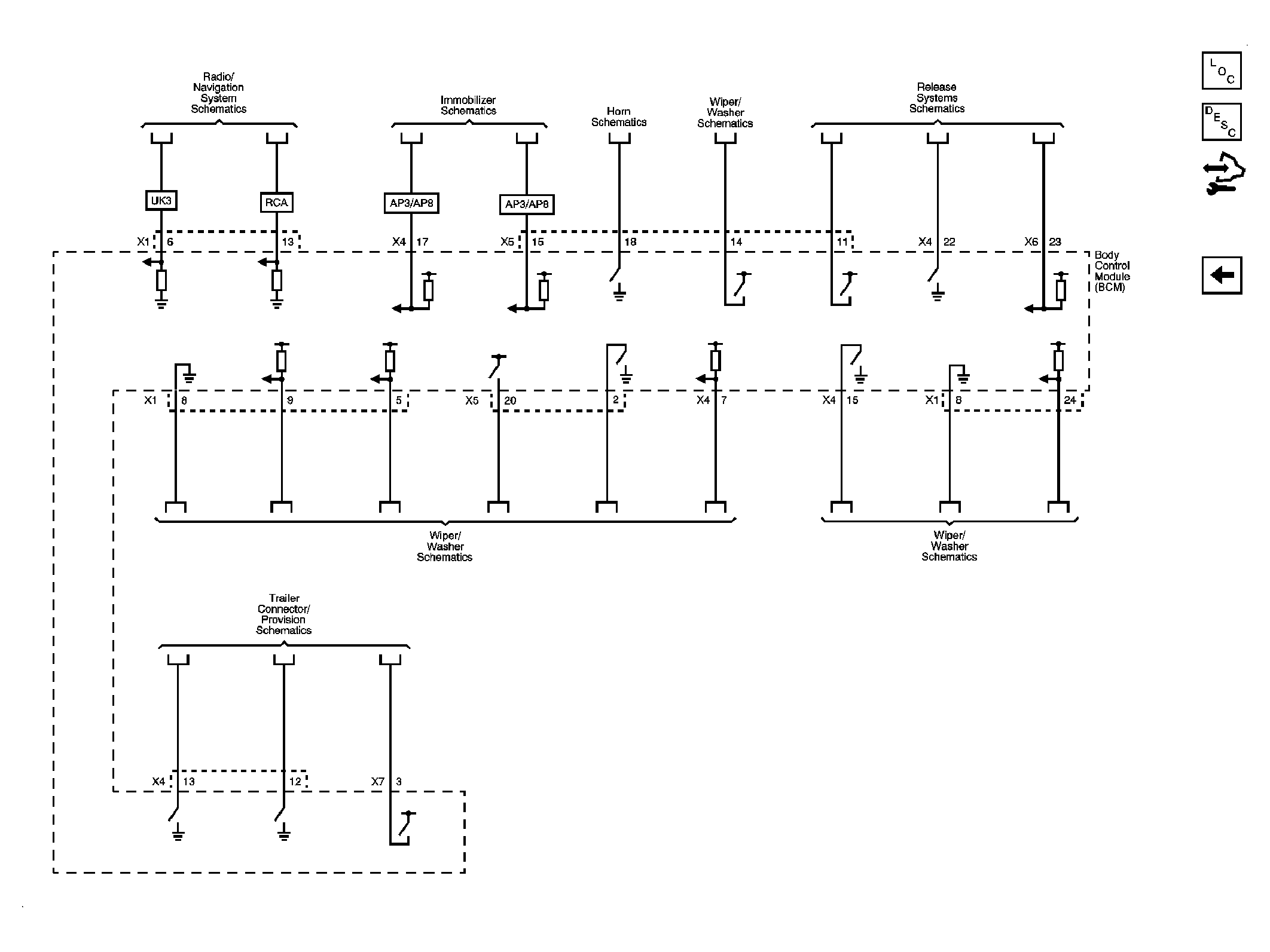

Fig 3: Subsystem References 2 of 3

Courtesy of GENERAL MOTORS CORP.

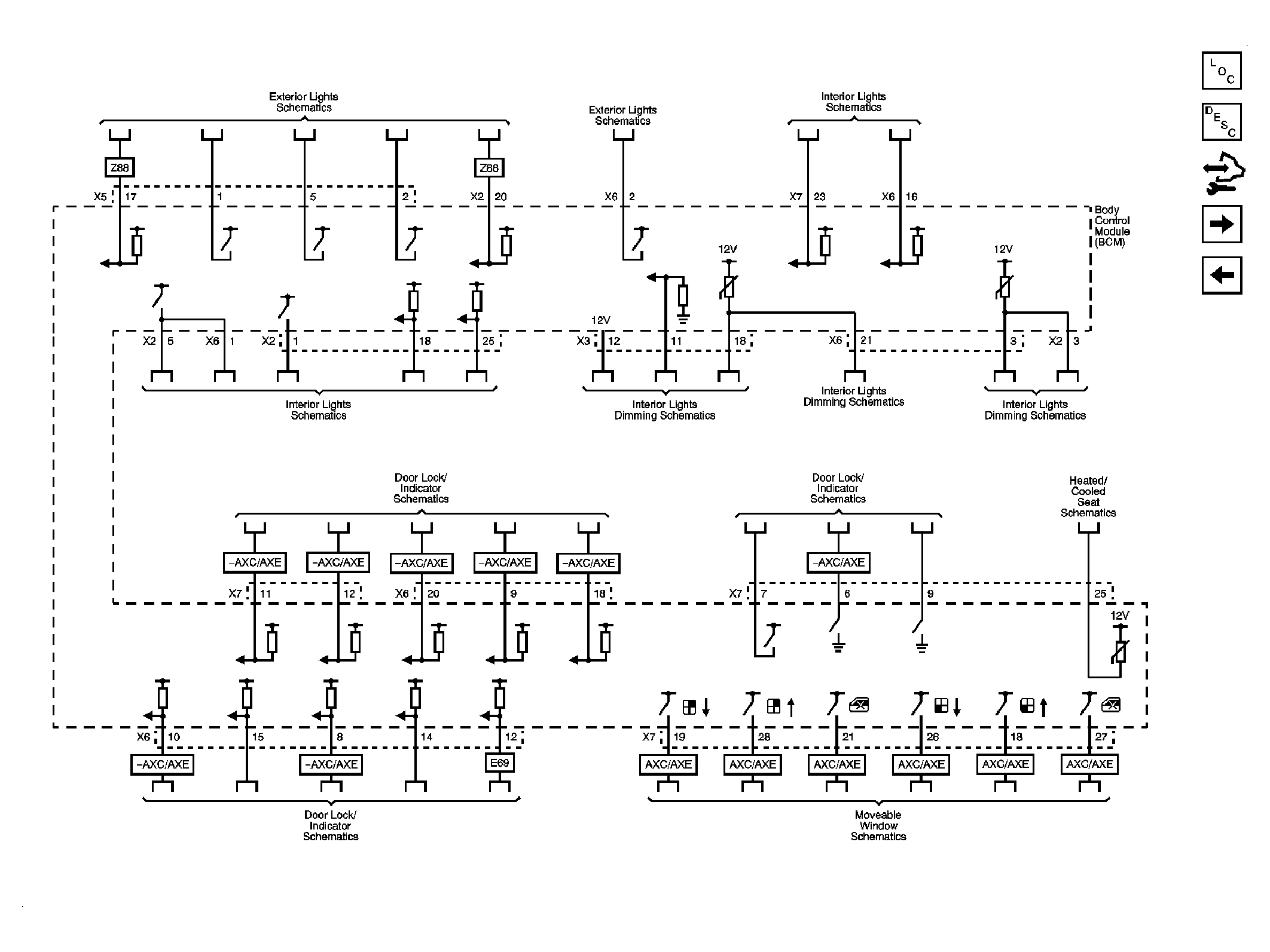

Fig 4: Subsystem References 3 of 3

Courtesy of GENERAL MOTORS CORP.
