Digital Radio Receiver Replacement (Convertible)

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

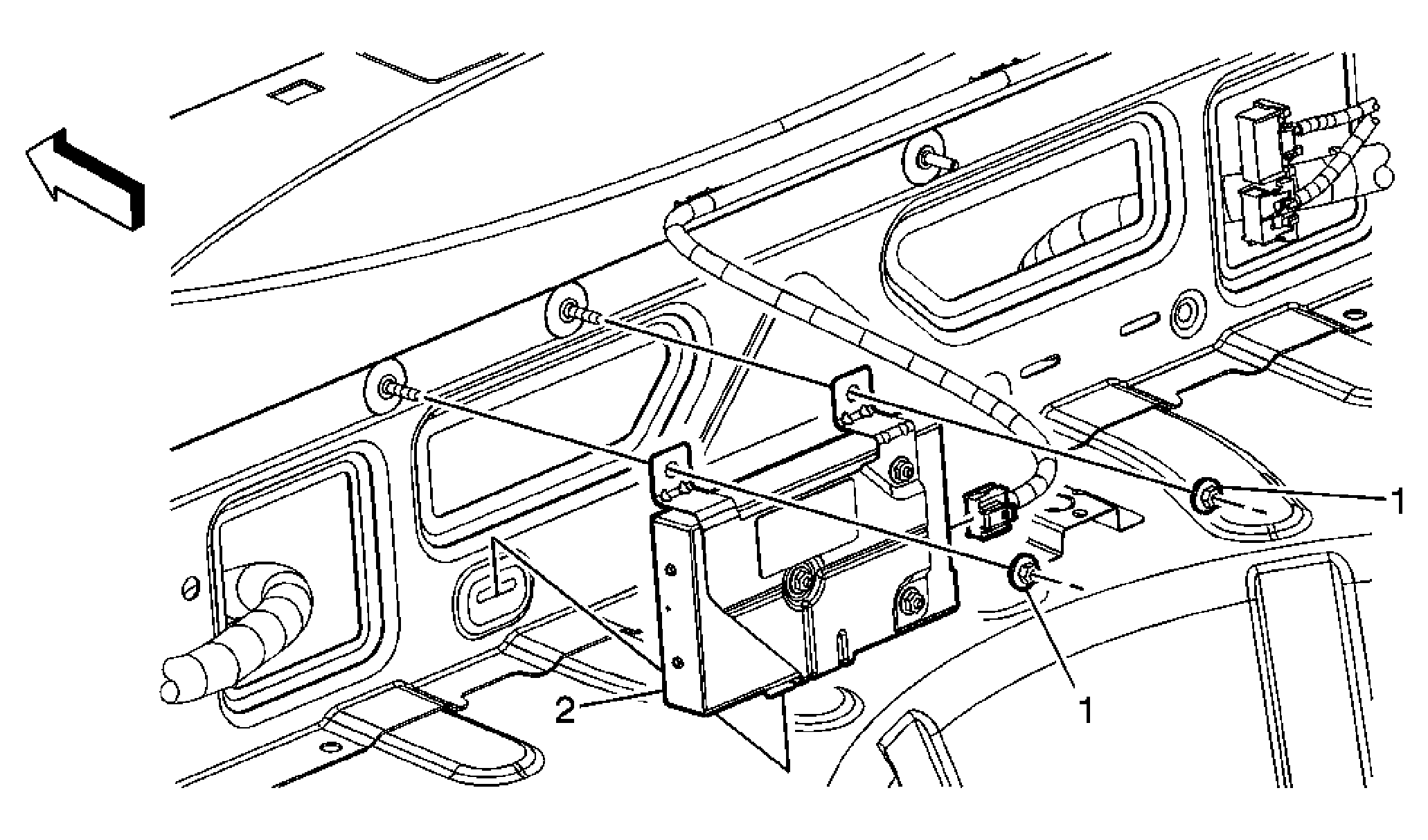

Fig 1: Replacing Digital Radio Receiver (Convertible)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear compartment front trim panel. Refer to Rear Compartment Front Trim Panel Replacement (Convertible) . Program the digital radio receiver after replacement. Refer to Control Module References .
1	Nut, Digital Radio Receiver Assembly (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Receiver Assembly, Digital Radio Tip: Do not interchange digital radio receivers between vehicles. Interchanging digital receivers between vehicles will activate the digital radio Theftlock, XM Theftlock will be displayed.

Callout

Component Name

Preliminary Procedure

Remove the rear compartment front trim panel. Refer to Rear Compartment Front Trim Panel Replacement (Convertible) .
Program the digital radio receiver after replacement. Refer to Control Module References .

Nut, Digital Radio Receiver Assembly (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Receiver Assembly, Digital Radio
Tip: Do not interchange digital radio receivers between vehicles. Interchanging digital receivers between vehicles will activate the digital radio Theftlock, XM Theftlock will be displayed.
