Cellular and Navigation Antenna Assembly Replacement
WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.
Cellular and Navigation Antenna Assembly Replacement

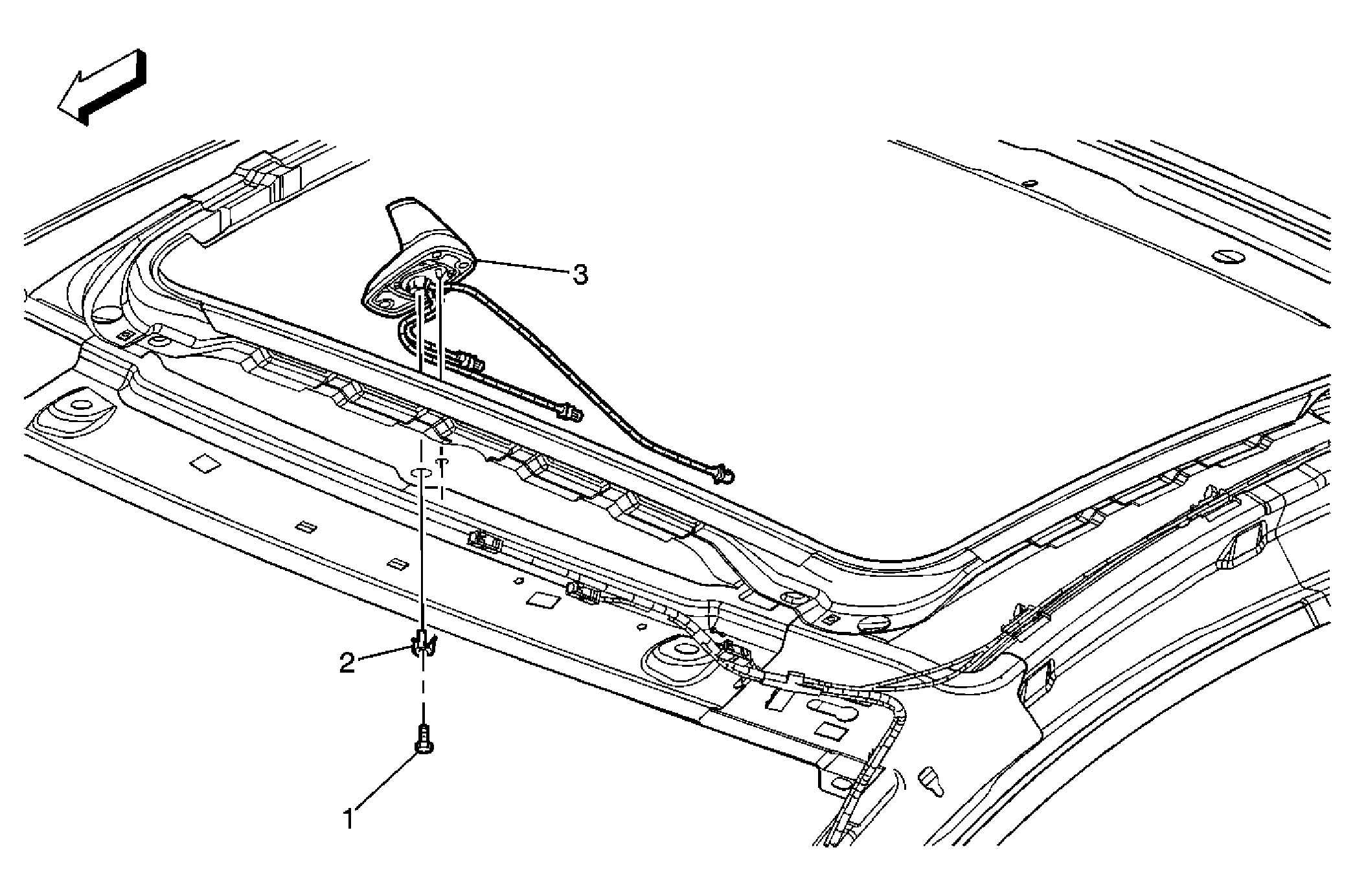

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the front of the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Bolt, Mobile Telephone and Vehicle Location Antenna
NOTE:
Refer to Fastener Notice
Tighten: 9 N.m (80 lb in) |
| 2 | Expansion Sleeve, Mobile Telephone and Vehicle Location Antenna |
| 3 | Antenna and Base Assembly, Mobile Telephone and Vehicle Location |
