Installation Procedure
WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.
- Install the coaxial antenna cables into the vehicle.
- Use electrical tape, or tie straps, to secure the antenna extension cable to the wiring harness.
Secure the cable to the harness at least every 150 mm (6 in).

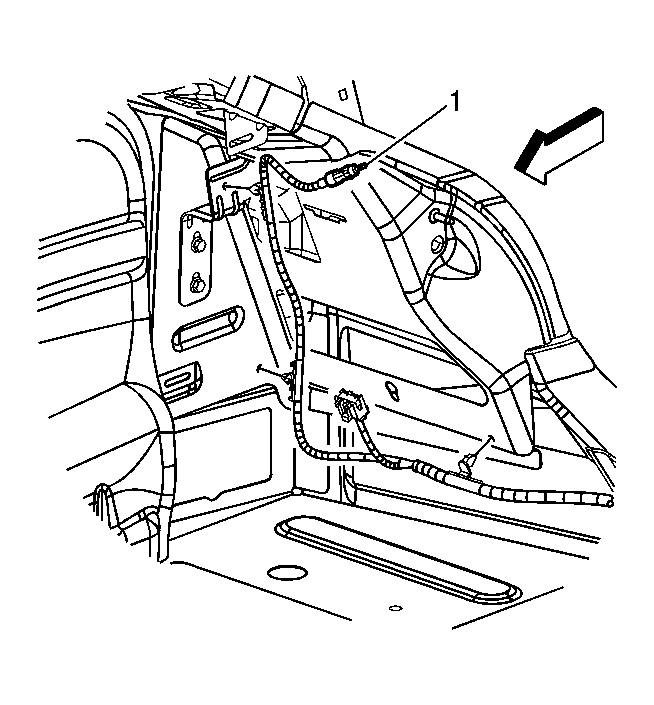

- Connect the antenna lead (1) to the I/P extension cable.

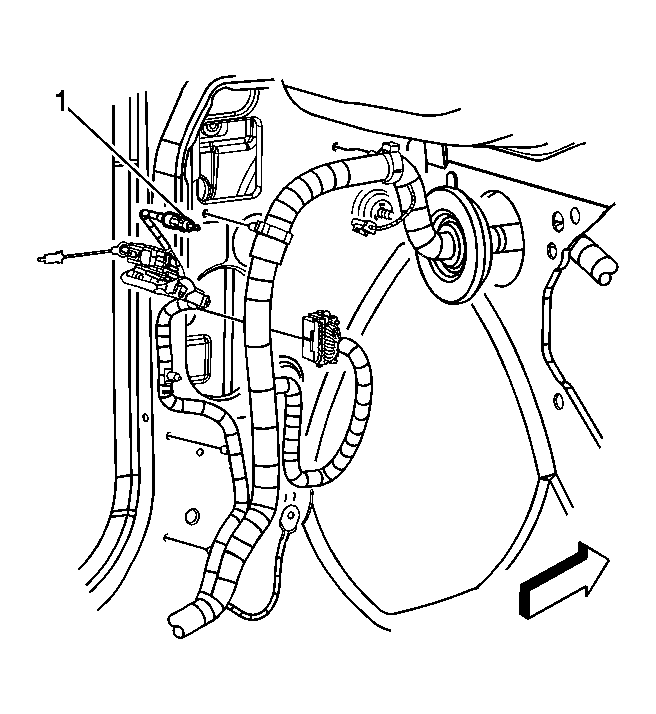

- Connect the antenna lead (1) to the antenna module/antenna base.
- Install the carpet. Refer to Front Floor Panel Carpet Replacement and Rear Floor Panel Carpet Replacement .
- Install the rear seat back. Refer to Rear Seat Back Replacement (Convertible) or Rear Seat Back Replacement (Sedan/Coupe) .
