Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

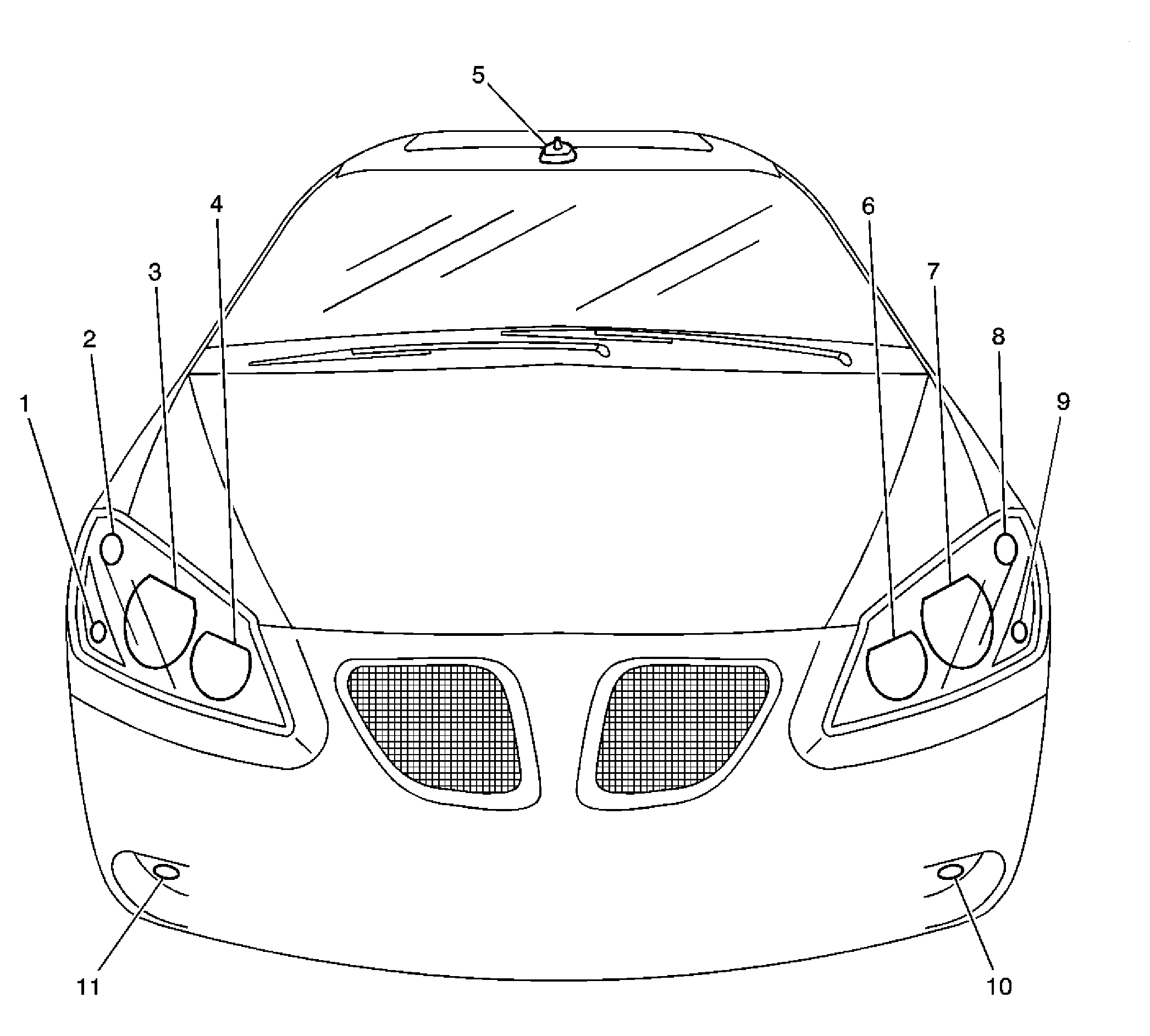

Fig 1: Locating Cellular/Navigation & Digital Radio Antenna (Front of the Vehicle)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - RF
2	Park/Turn Signal Lamp - RF
3	Headlamp - Low Beam - Right
4	Headlamp - High Beam - Right
5	Cellular/Navigation and Digital Radio Antenna (UE1/U2K)
6	Headlamp - High Beam - Left
7	Headlamp - Low Beam - Left
8	Park/Turn Signal Lamp - LF
9	Marker Lamp - LF
10	Fog Lamp - LF
11	Fog Lamp - RF

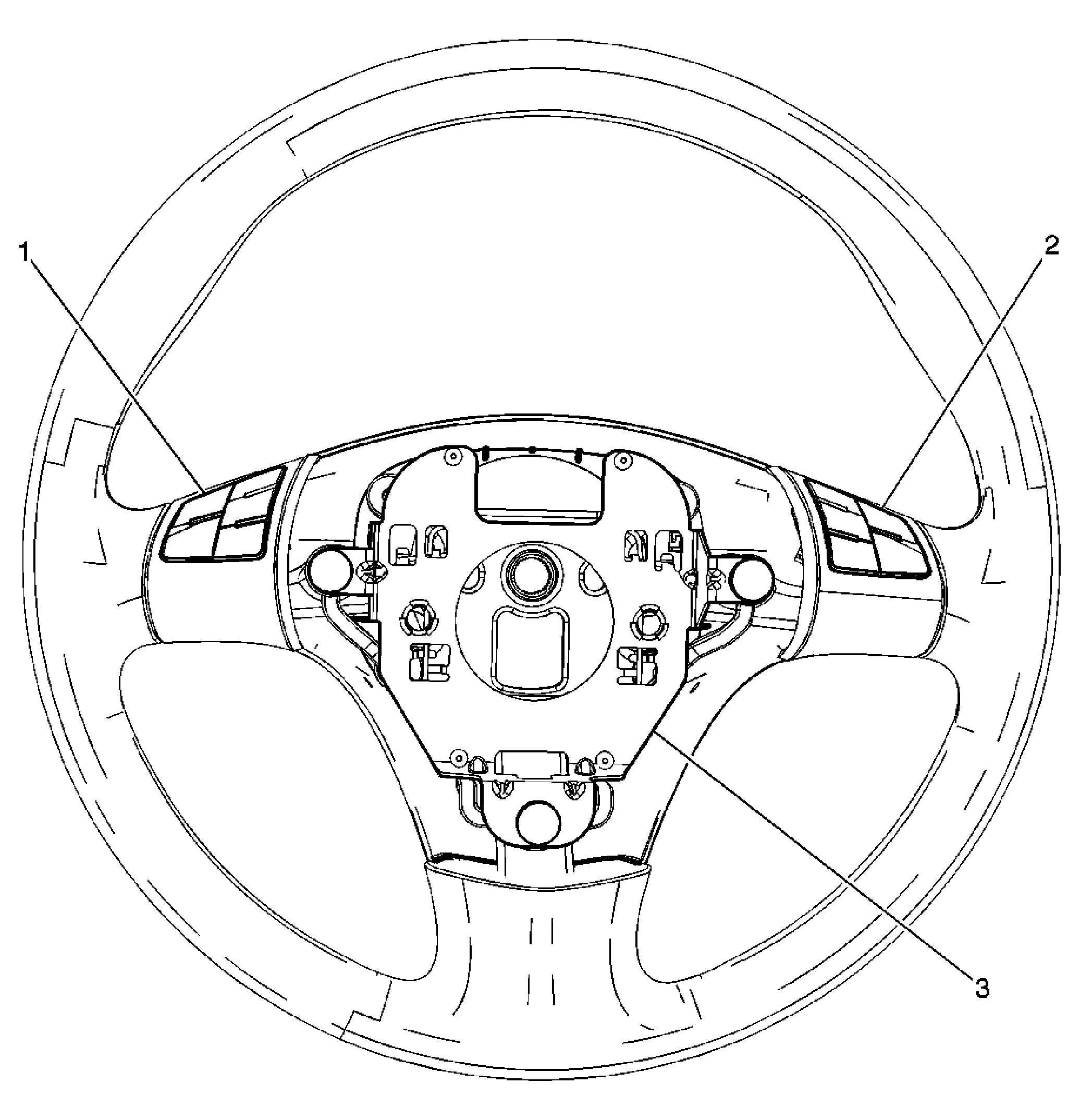

Fig 2: Locating Steering Wheel Components (3-Spoke)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Controls - Left
2	Steering Wheel Controls - Right
3	Horn Switch

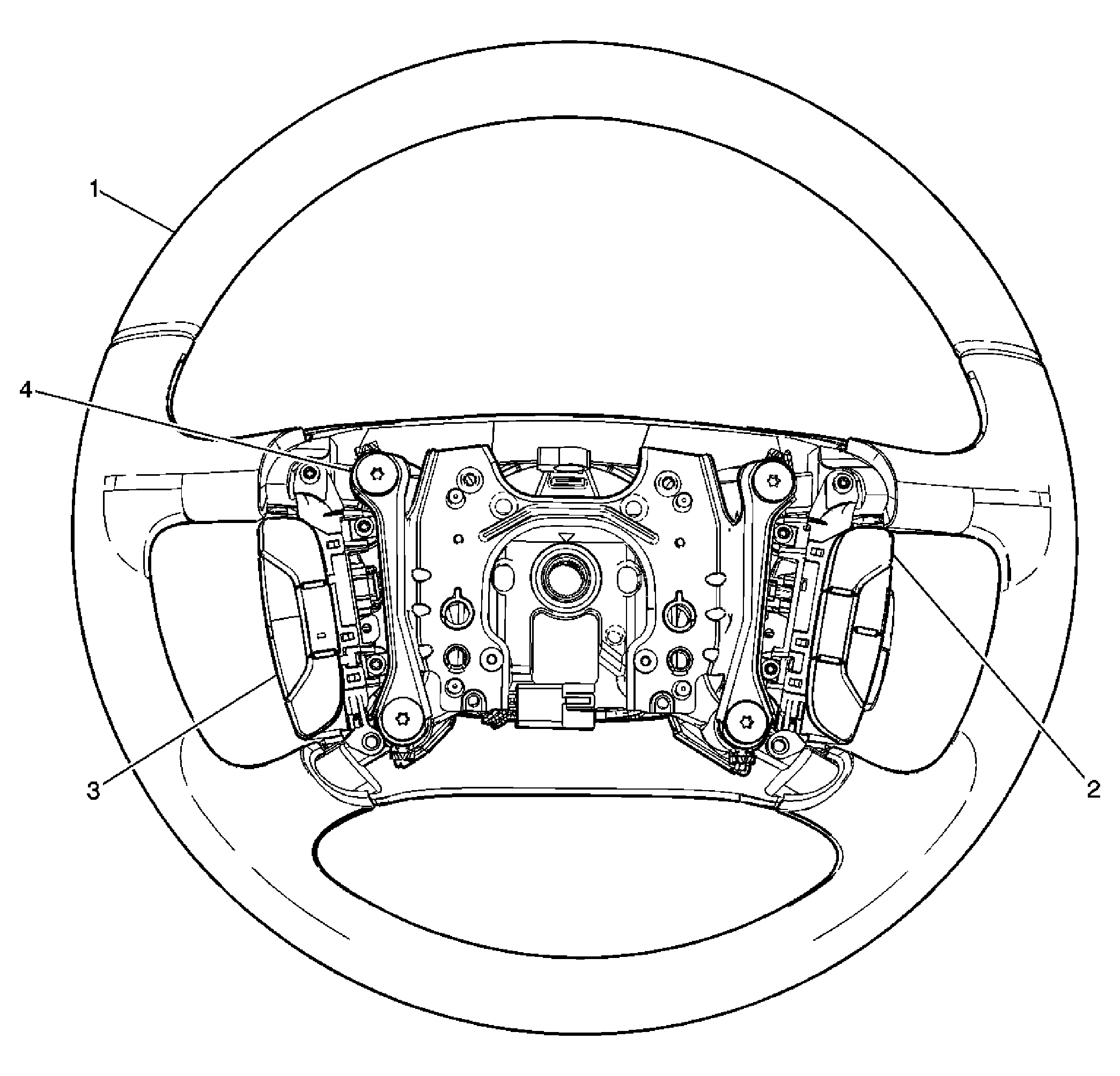

Fig 3: Locating Steering Wheel Components (4-Spoke)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Steering Wheel Controls - Right
3	Steering Wheel Controls - Left
4	Horn Switch

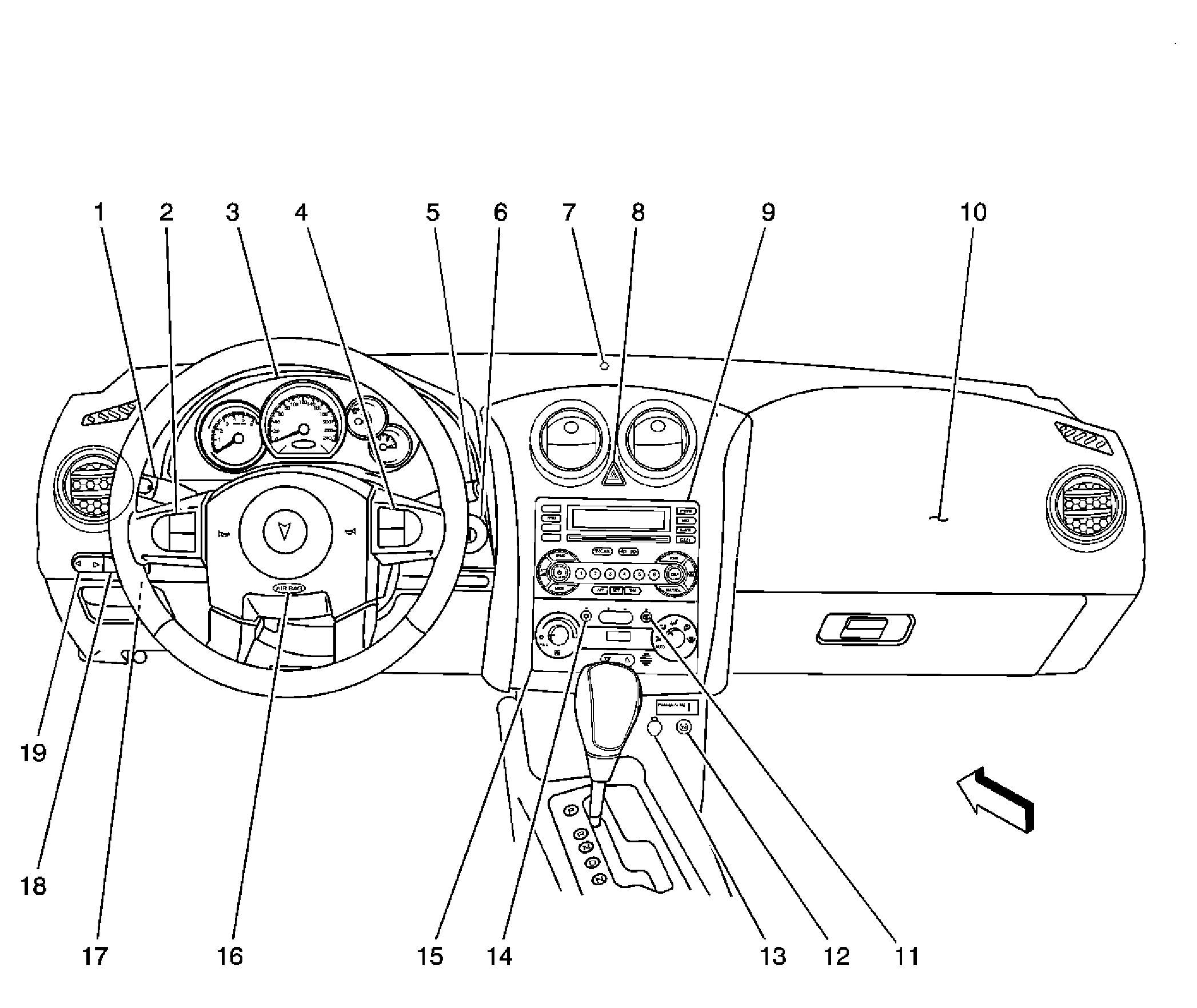

Fig 4: Locating Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Ambient Light Sensor
8	Hazard Switch
9	Radio
10	Inflatable Restraint I/P Module
11	Rear Window Defogger Switch
12	Traction Control Switch (NW7/NW9)
13	Cigar Lighter
14	A/C Request Switch
15	HVAC Control Module
16	Inflatable Restraint Steering Wheel Module
17	Fog Lamp Switch
18	I/P Dimmer Switch
19	Adjustable Pedals Position Switch

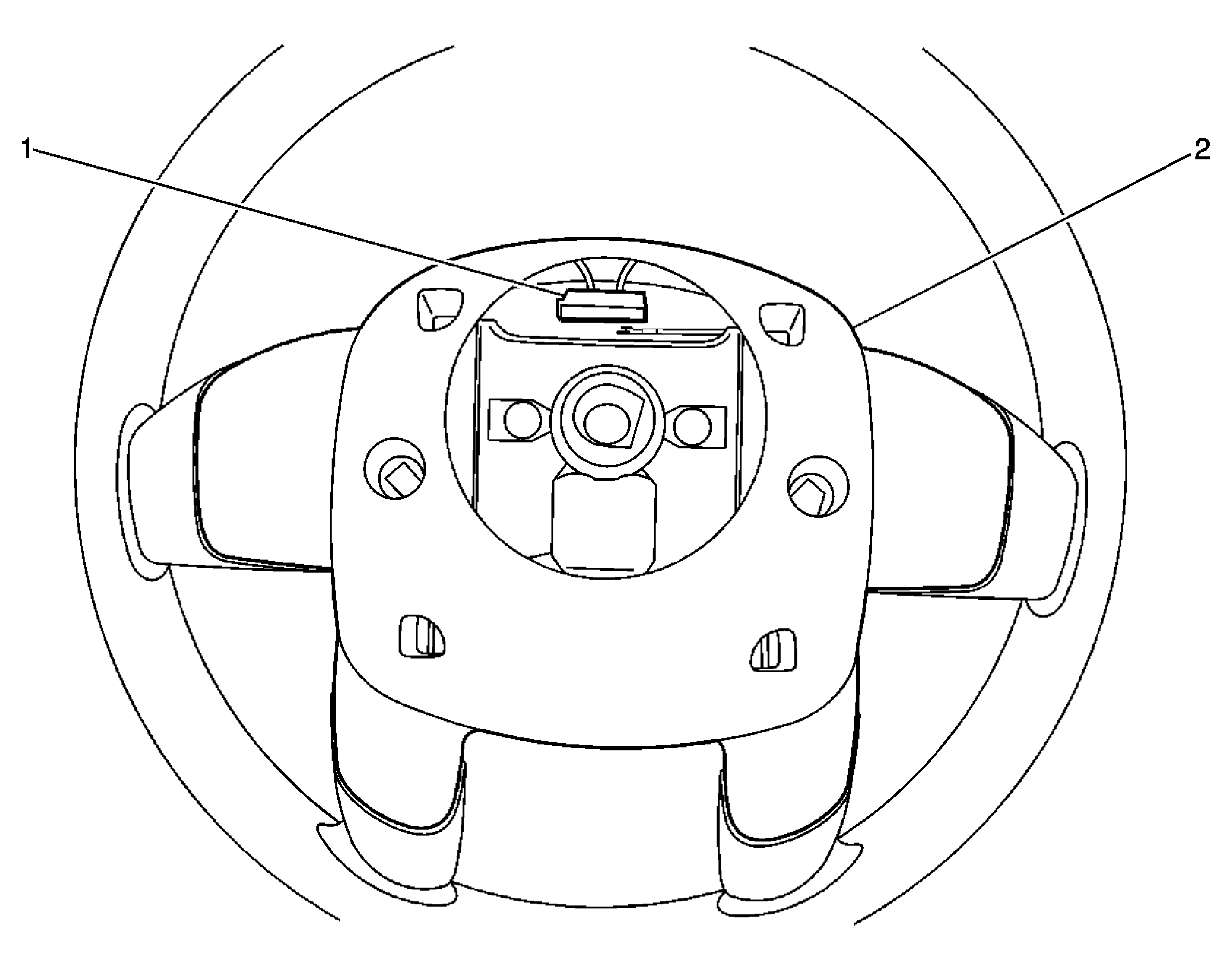

Fig 5: Rear View Of Steering Wheel (Typical)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil C3
2	Rear Shroud

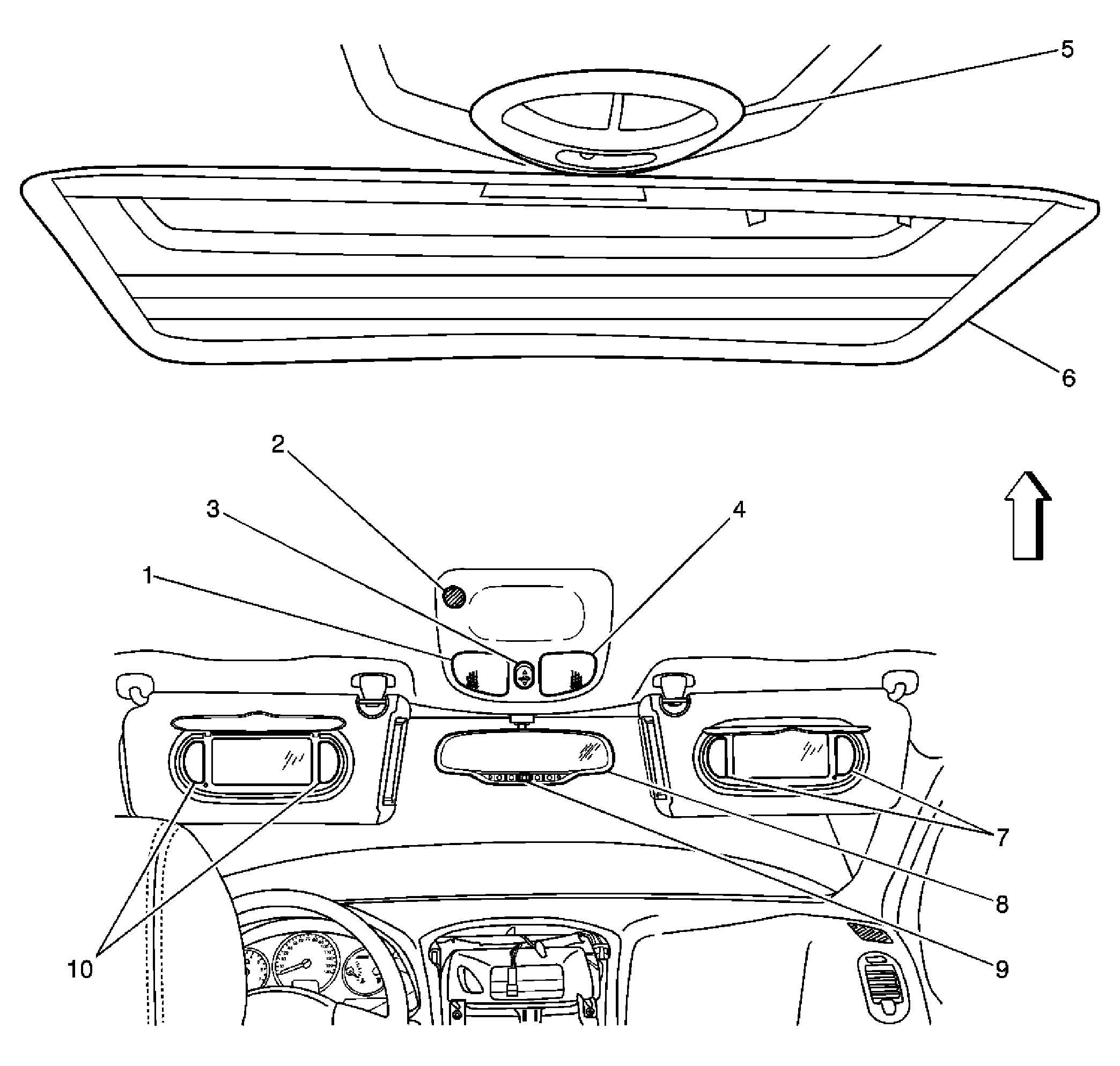

Fig 6: Locating Forward Cabin Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - LF
2	Cellular Microphone (UE1)
3	Sunroof Switch (CF5/C3Y)
4	Courtesy/Reading Lamp - RF
5	Dome/Reading Lamp (w/o C3Y)
6	Sunroof (CF5/C3Y)
7	Vanity Mirror Lamp - Right (DH6)
8	Inside Rearview Mirror
9	OnStar Keypad (UE1)
10	Vanity Mirror Lamp - Left (DH6)

Fig 7: Locating Left Front Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver
2	Outside Rearview Mirror - Driver
3	Outside Rearview Mirror - Switch
4	Speaker - LF Door Tweeter
5	Window Switch - Driver
6	Speaker - LF Door
7	Rear Compartment Lid Release Switch - Interior
8	Window Motor - Driver
9	Door Latch Assembly - Driver

Fig 8: Locating Right Front Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door Tweeter
2	Outside Rearview Mirror - Front Passenger
3	Door Lock Switch - Passenger
4	Window Switch - Passenger
5	Door Latch Assembly - Passenger
6	Window Motor - Passenger
7	Speaker - RF Door

Fig 9: Locating Vehicle Communication Interface Module (Behind Right Side of I/P)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)(UE1)

Fig 10: Locating Rear Roof Rail Antenna Components (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna Amplifier Module
2	Radio Rear Window Antenna

Fig 11: Locating Rear Speakers (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR
2	Speaker - LR

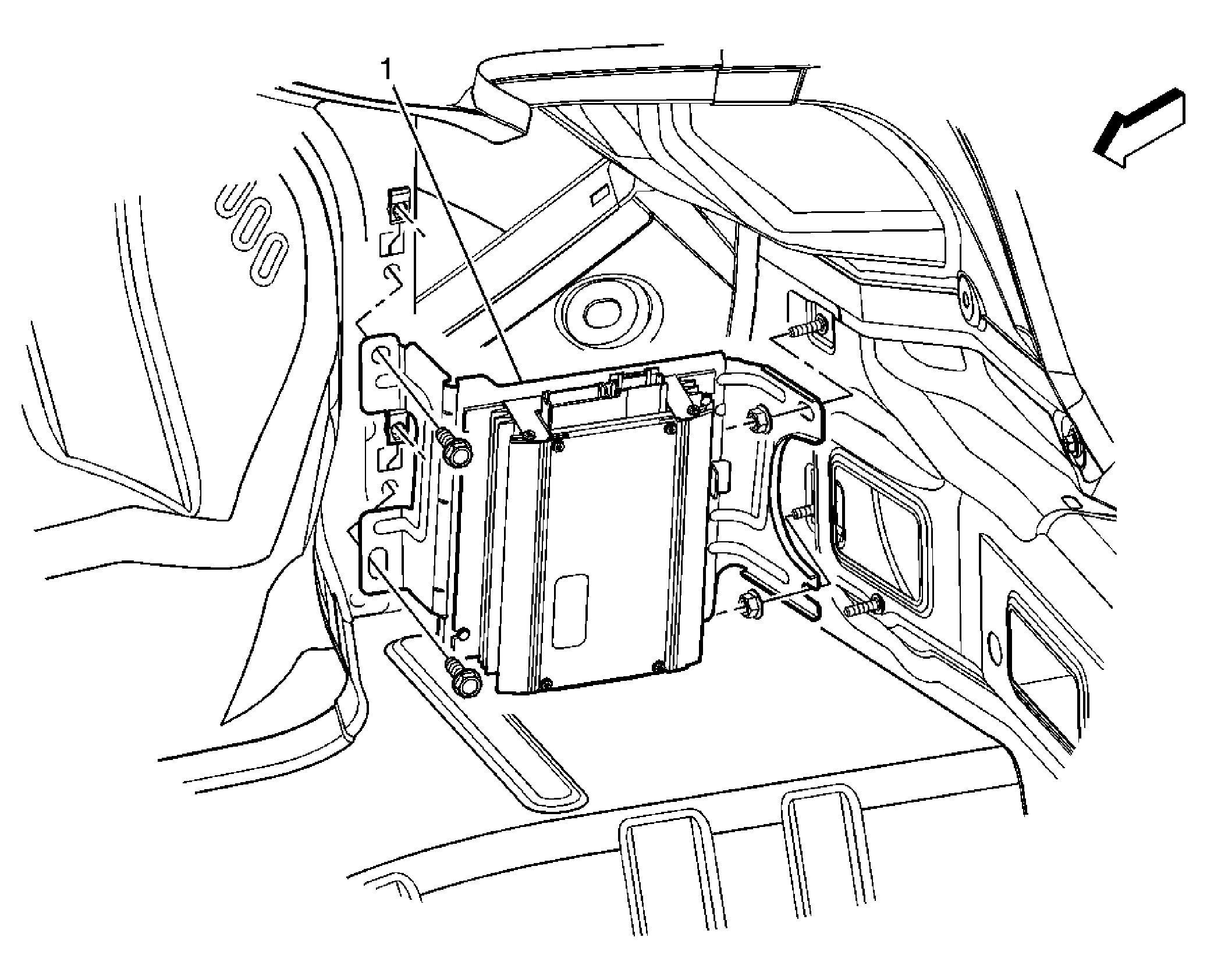

Fig 12: Locating Audio Amplifier (In the Rear Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (U85)

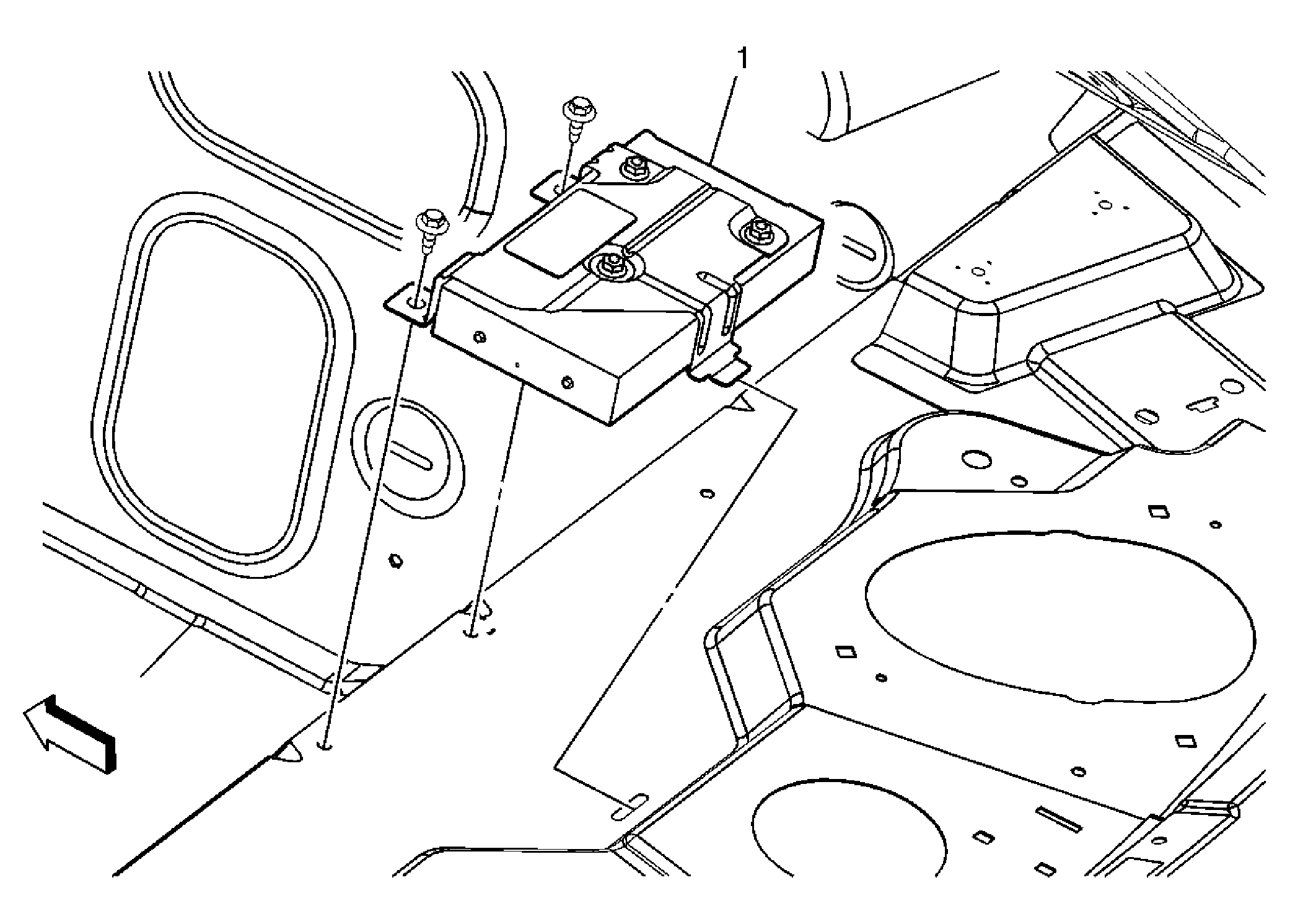

Fig 13: Locating Digital Radio Receiver (Under Rear Package Shelf - Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)

Fig 14: Locating Digital Radio Receiver (In the Rear Compartment - Convertible)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)

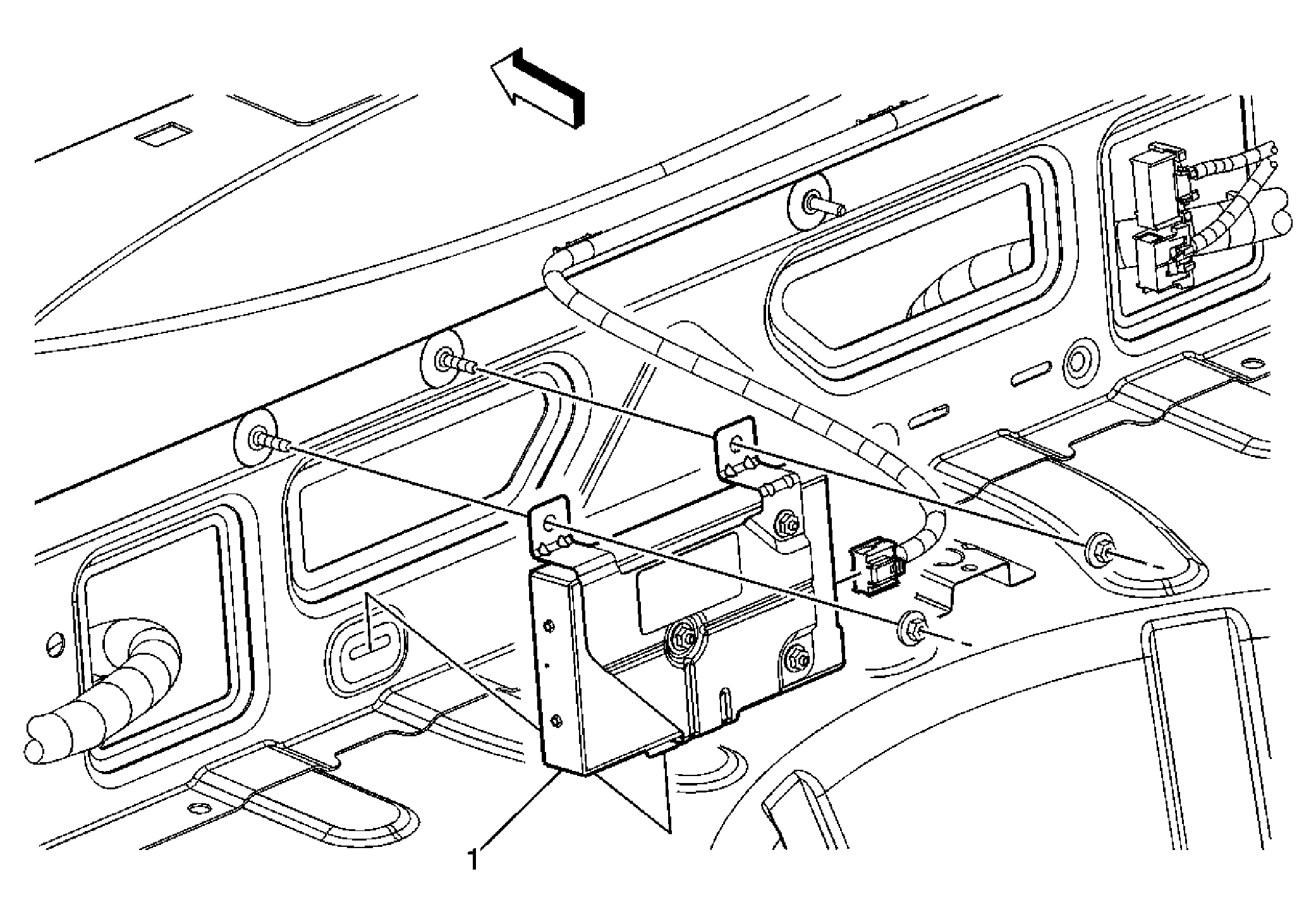

Fig 15: Locating Digital Radio Receiver (Right Side of Rear Compartment - Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
