Windshield Frame Applique Replacement

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

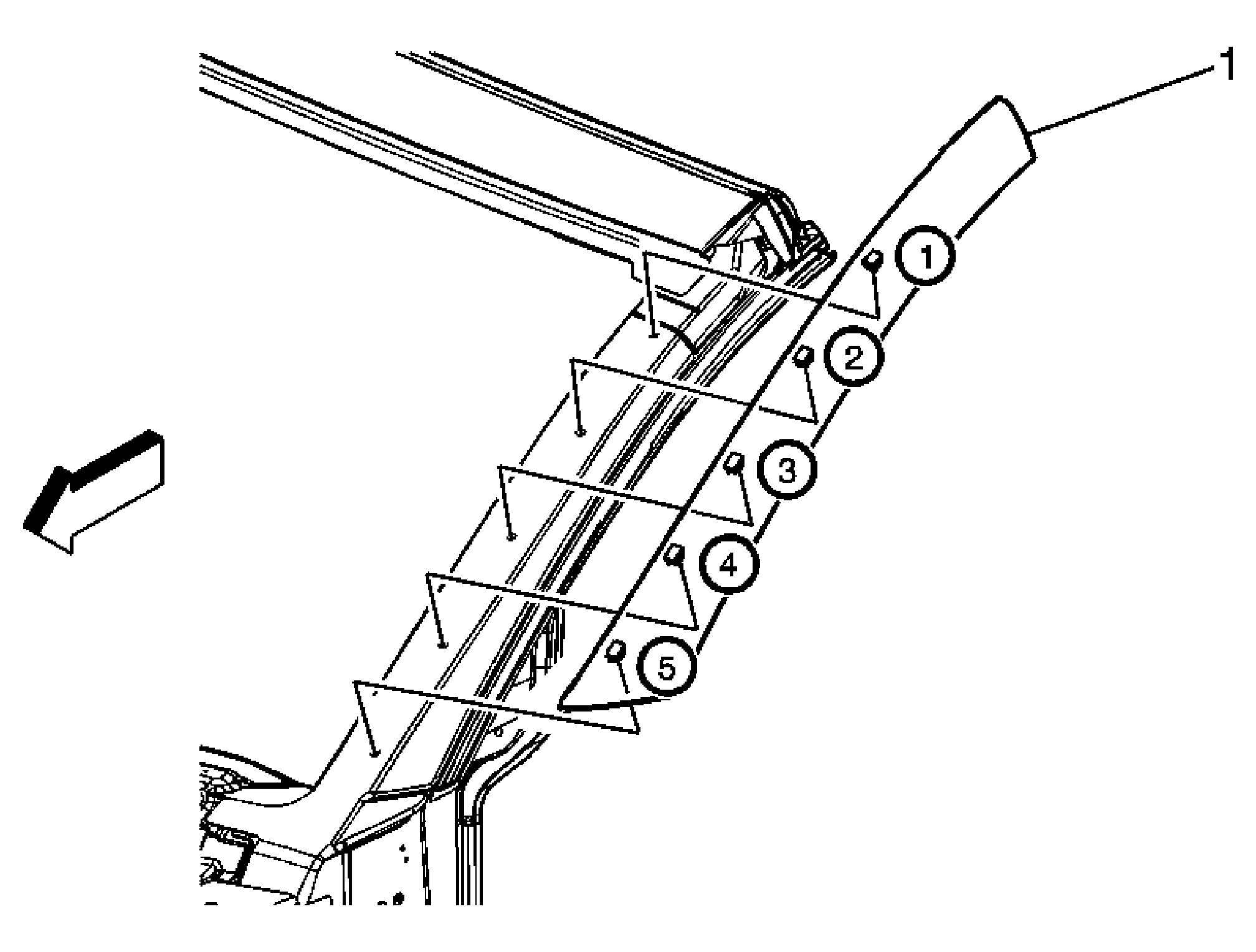

Fig 1: View Of Windshield Frame Applique

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Applique Assembly, Body Side Upper Front Tip: When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Clean the surface where the applique will contact the A-pillar. Install the applique, working from the top retainer downward. Remove protective liner from the adhesive tape after the applique retainers are secure. Apply equal pressure starting at the top and working downward on the applique retainers to achieve a good bond between the applique and the body.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Applique Assembly, Body Side Upper Front
Tip:

When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Clean the surface where the applique will contact the A-pillar.
Install the applique, working from the top retainer downward.
Remove protective liner from the adhesive tape after the applique retainers are secure.
Apply equal pressure starting at the top and working downward on the applique retainers to achieve a good bond between the applique and the body.
