Instrument Panel Inflatable Restraint Module Indicator Replacement

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

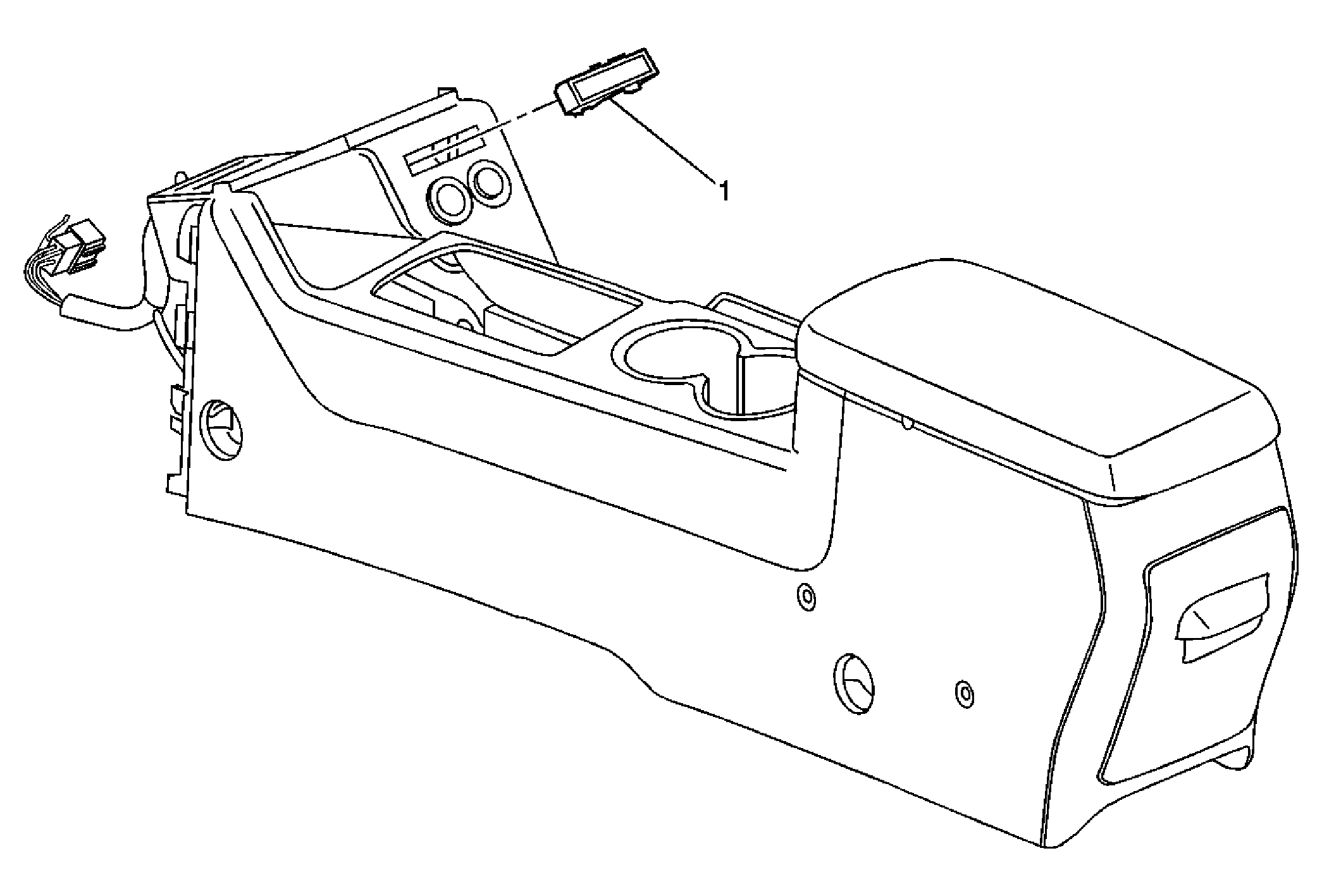

Fig 1: Identifying SIR Instrument Panel Module Indicator
GM1573241Courtesy of GENERAL MOTORS CORP.
Instrument Panel Inflatable Restraint Module Indicator Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the center console. Refer to Console Replacement .
1 Indicator Assembly, Inflatable Restraint Instrument Panel Module
