Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

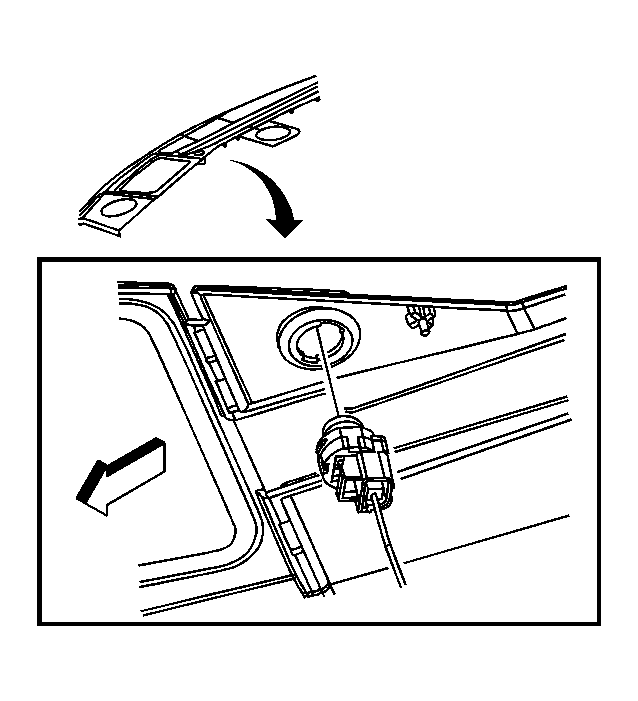

    Fig 1: View Of Sunload & Twilight Sentinel Sensor
    GM1224692Courtesy of GENERAL MOTORS CORP.
  1. Remove the I/P trim pad. Refer to Instrument Panel Trim Pad Replacement .
  2. Pull the wire lead outward from the I/P carrier and disconnect the sensor.
