Courtesy Lamp - Left Door

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

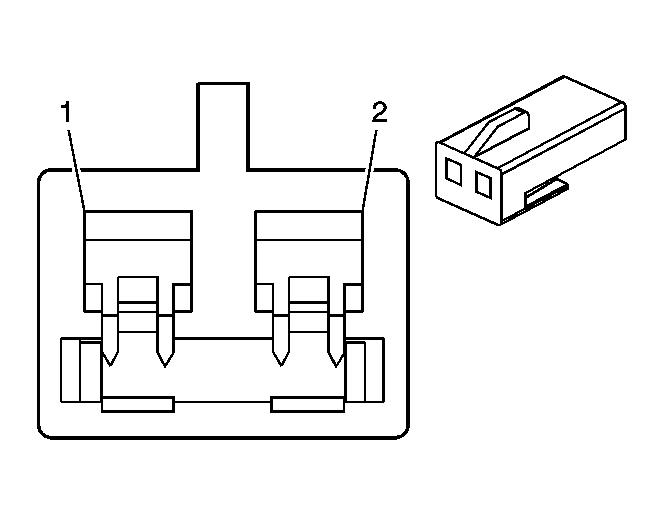

Fig 1: Courtesy Lamp - Left Door Connector End View

Courtesy of GENERAL MOTORS CORP.

Courtesy Lamp - Left Door Connector Parts Information

Connector Part Information

OEM: 12124891
Service: 89046632
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Courtesy Lamp - Left Door Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	L-GN	5116	Courtesy Lamps Supply Voltage
2	BK	1450	Ground
