Rear Door Lock Replacement

WARNING: This page is about a different car, the 2007 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

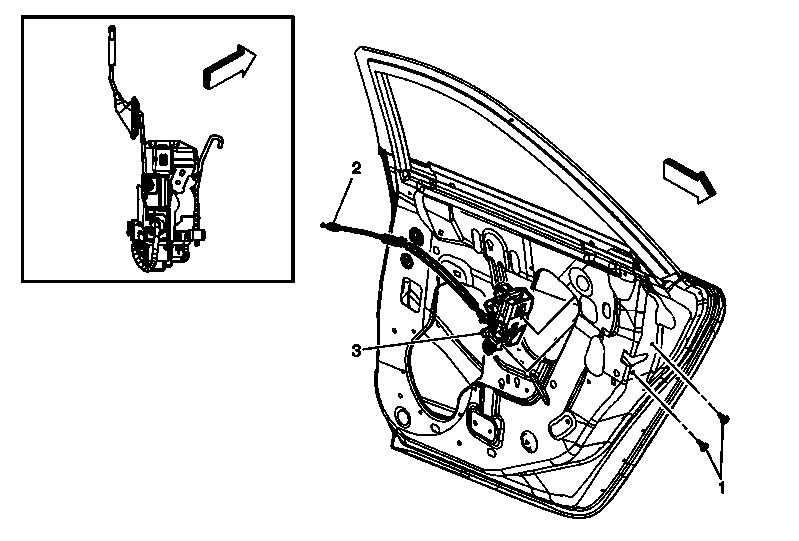

Fig 1: View Of Rear Side Door Lock Bolt, Rear Inside Door Handle Cable & Rear Side Door Lock Assembly
GM1914834Courtesy of GENERAL MOTORS CORP.
Callout  Component Name
Preliminary Procedures

1. Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
2. Remove the door outside handle housing. Refer to Rear Side Door Outside Handle Housing Replacement  .
1 Rear Side Door Lock Bolt (Qty: 2)

Notice: Refer to Fastener Notice in the Preface section.

Procedure

1. Release the inside handle cable retainers before removing the door lock.
2. Disconnect the door lock electrical connector.

Tighten
10 N.m (89 lb in)
2 Rear Inside Door Handle Cable
3 Rear Side Door Lock Assembly

Procedure

Transfer the lock rods.
