Rear Compartment Lid Latch Replacement

WARNING: This page is about a different car, the 2007 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

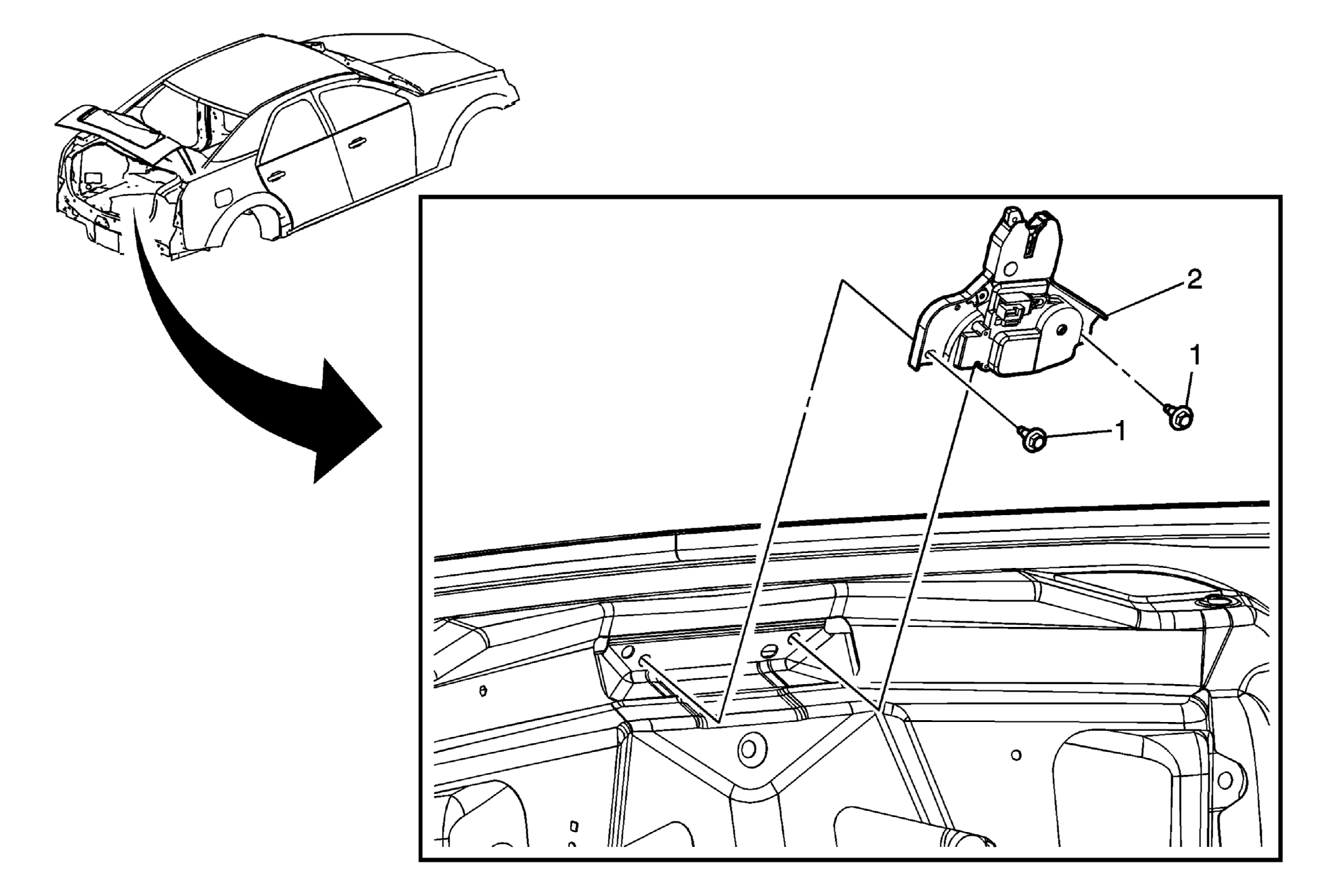

Fig 1: Rear Compartment Lid Latch Replacement
GM1729666Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1 Rear Compartment Lid Latch Bolt (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  25 N.m (18 lb ft)
2 Rear Compartment Lid Latch
Tip:  Disconnect any electrical connectors and cables.
