Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

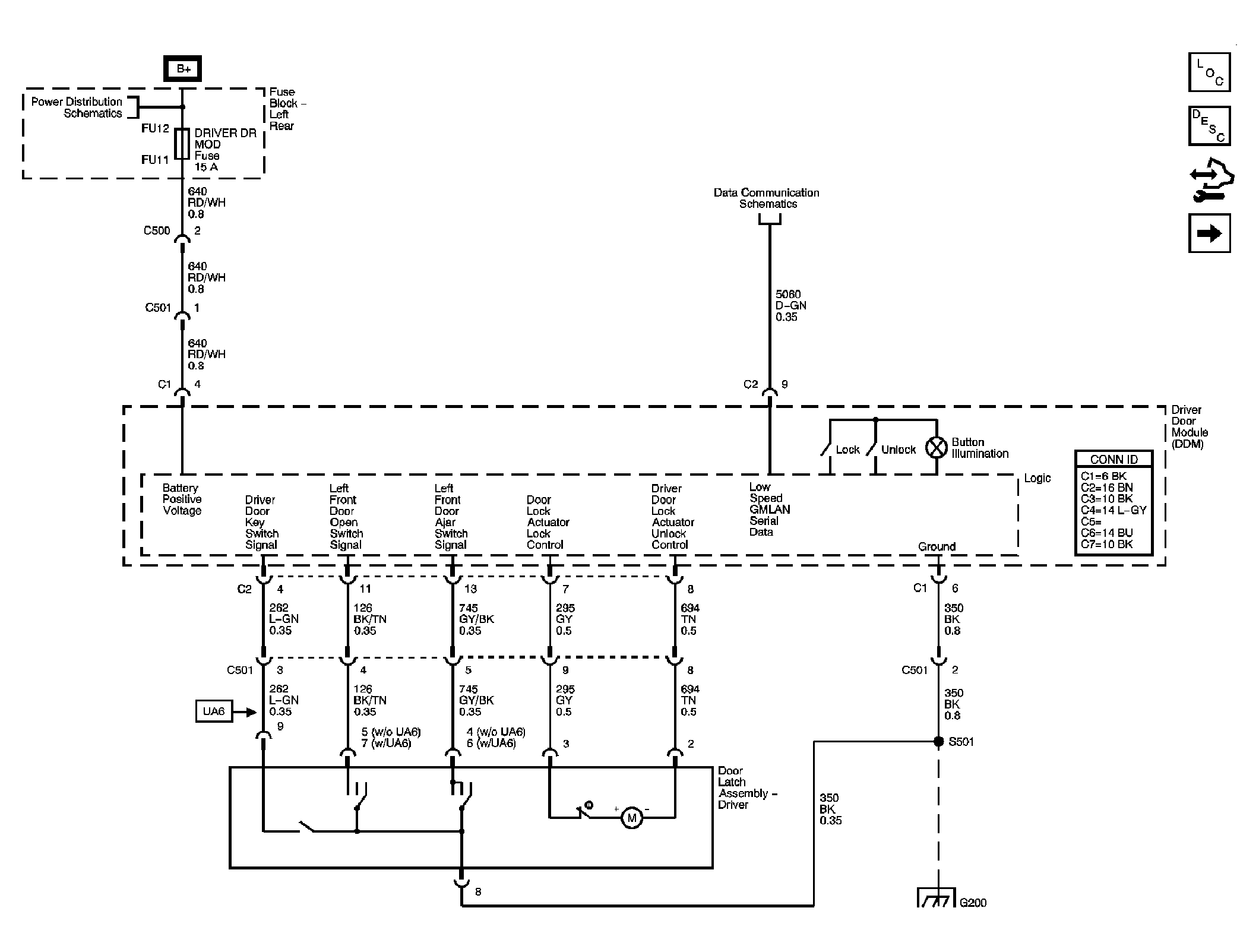

Fig 1: Driver Door Lock Schematic (LHD)

Courtesy of GENERAL MOTORS CORP.

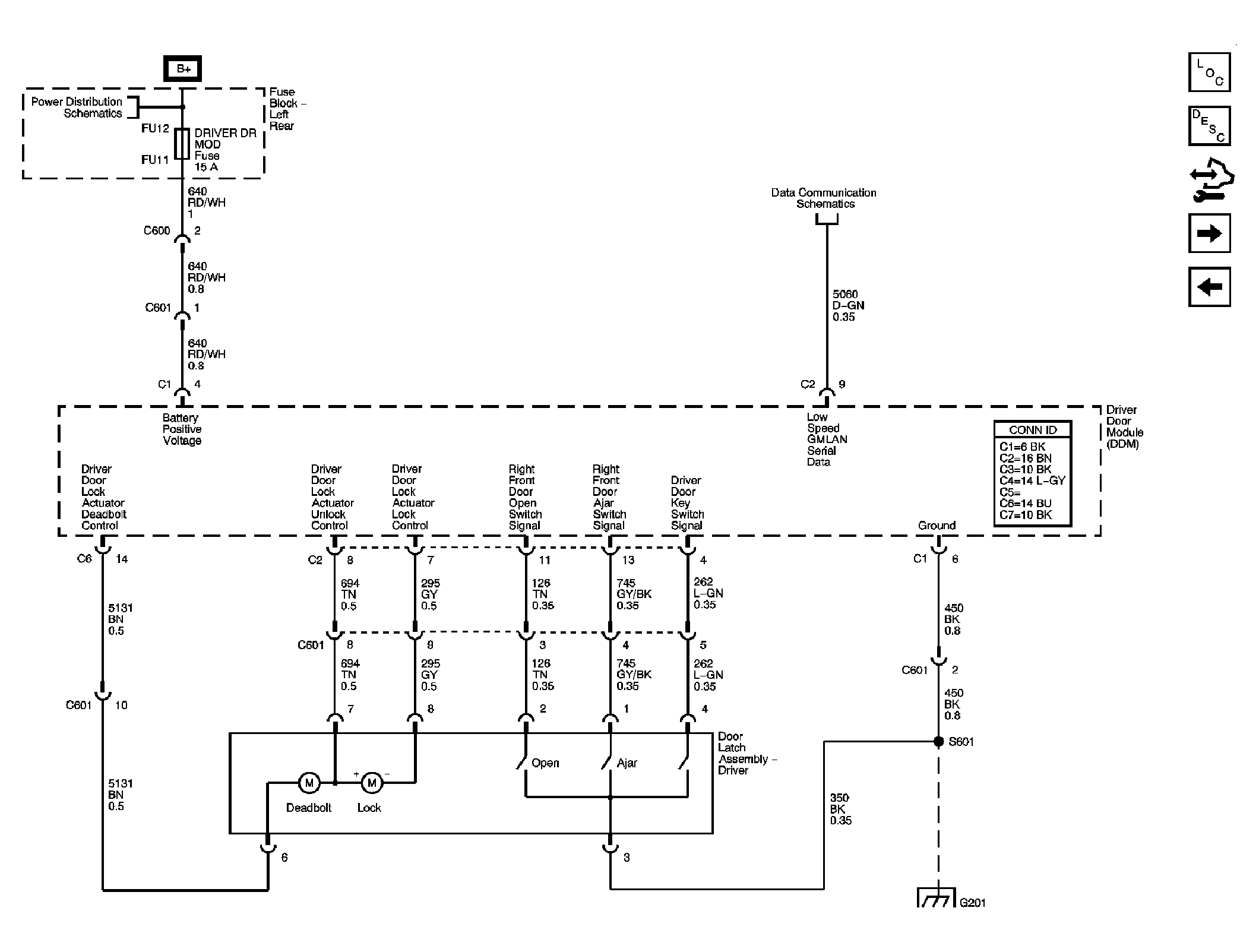

Fig 2: Driver Door Lock Schematic (RHD)

Courtesy of GENERAL MOTORS CORP.

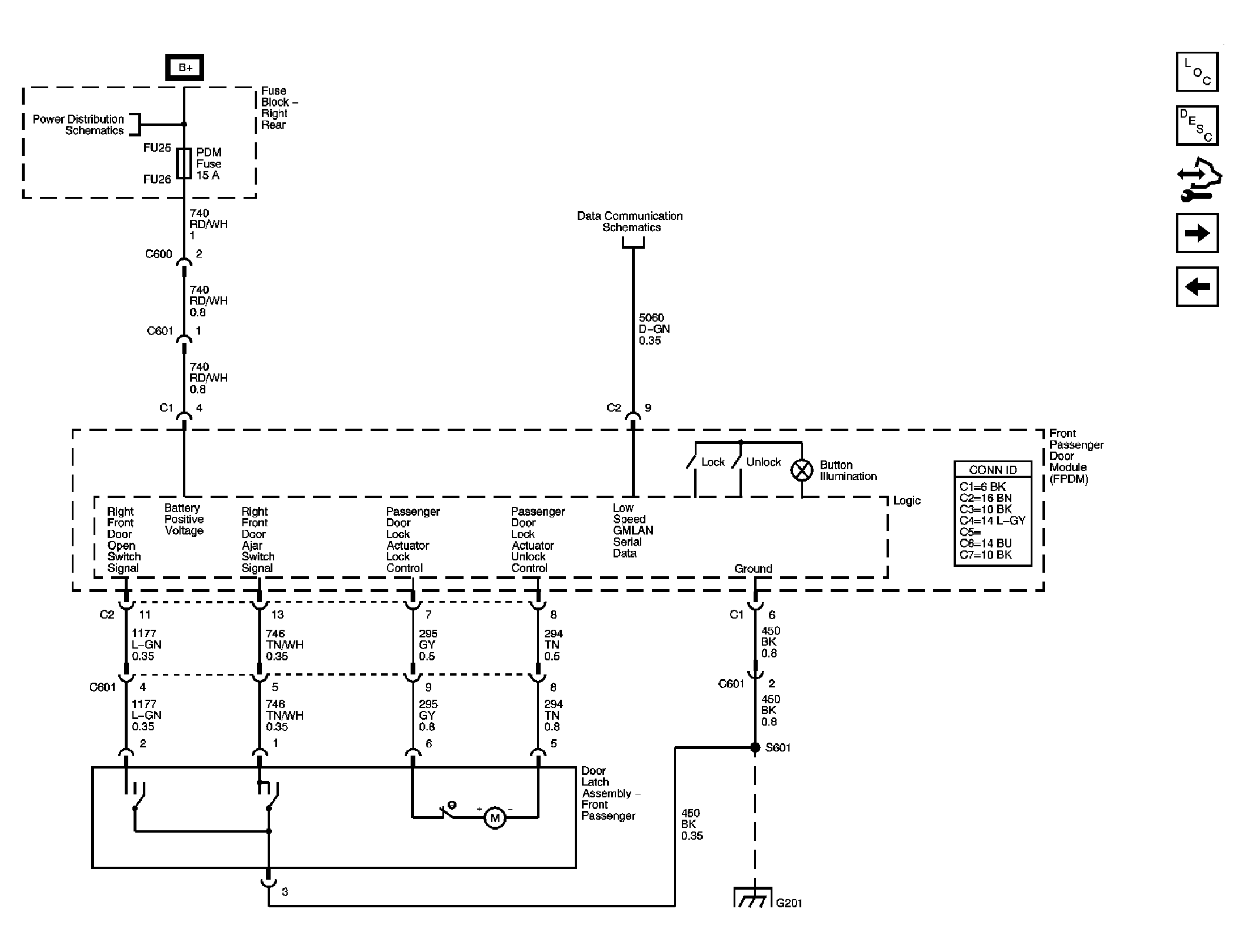

Fig 3: Front Passenger Door Lock Schematic (LHD)

Courtesy of GENERAL MOTORS CORP.

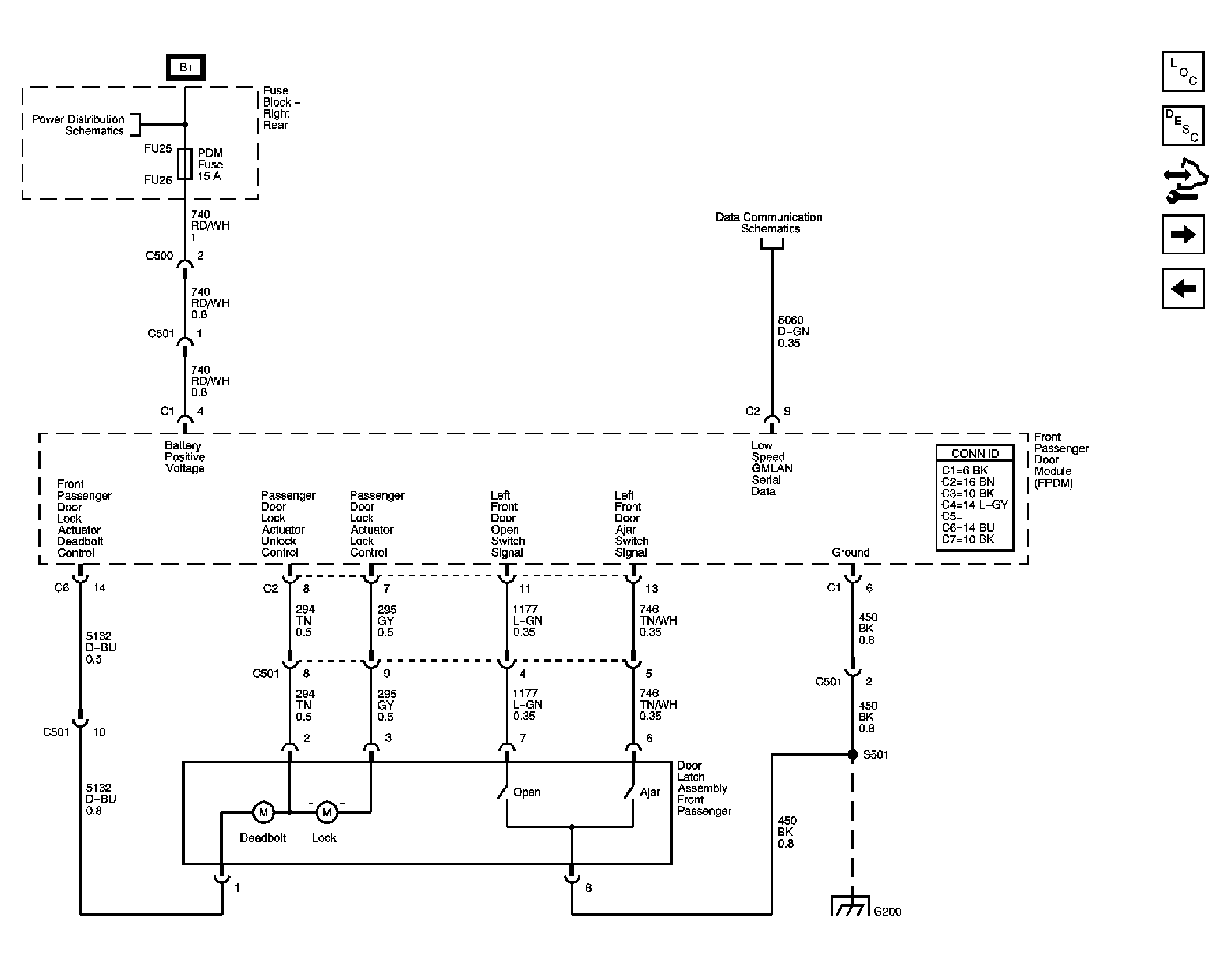

Fig 4: Front Passenger Door Lock Schematic (RHD)

Courtesy of GENERAL MOTORS CORP.

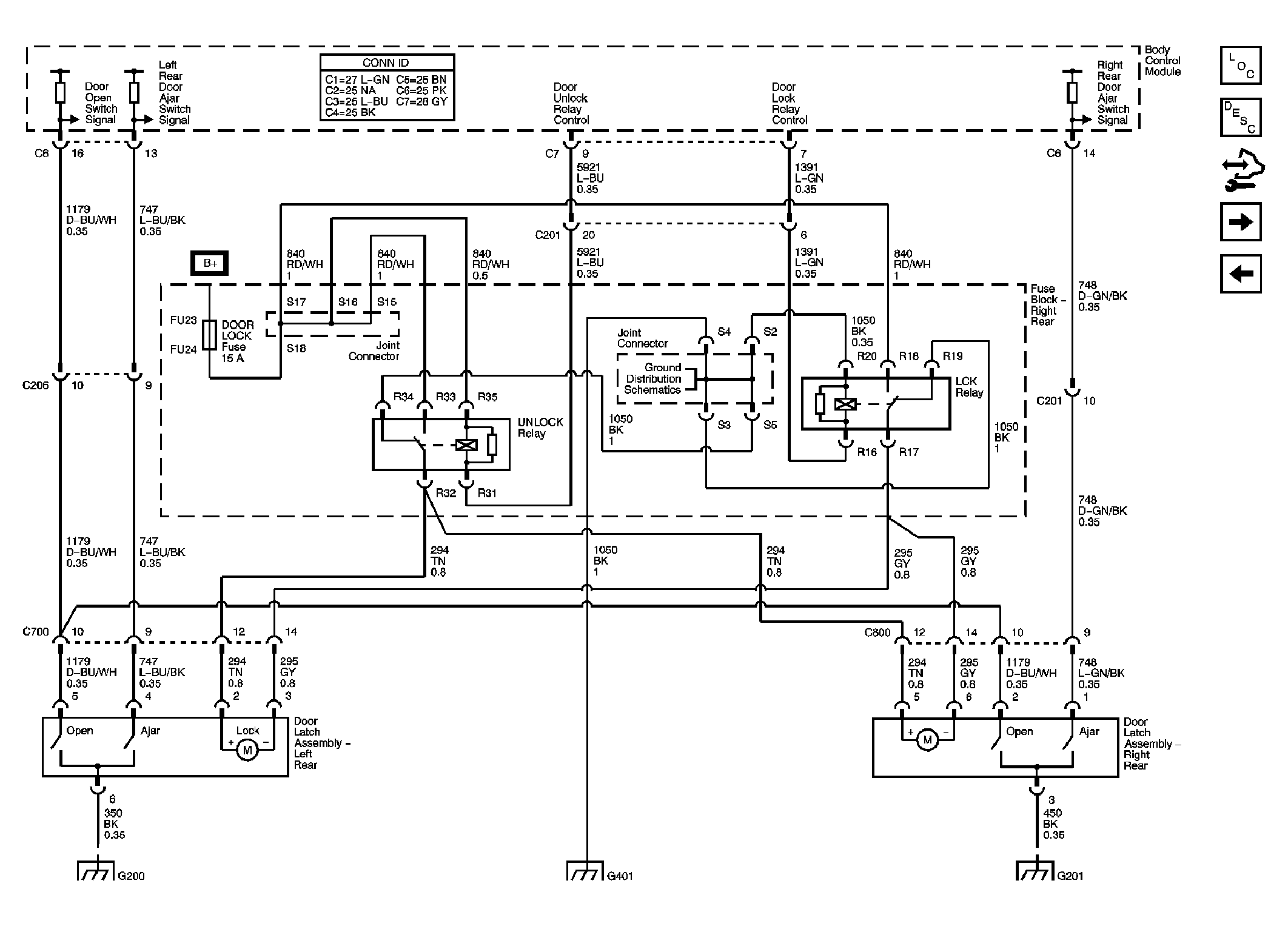

Fig 5: Rear Door Locks Schematic (Domestic)

Courtesy of GENERAL MOTORS CORP.

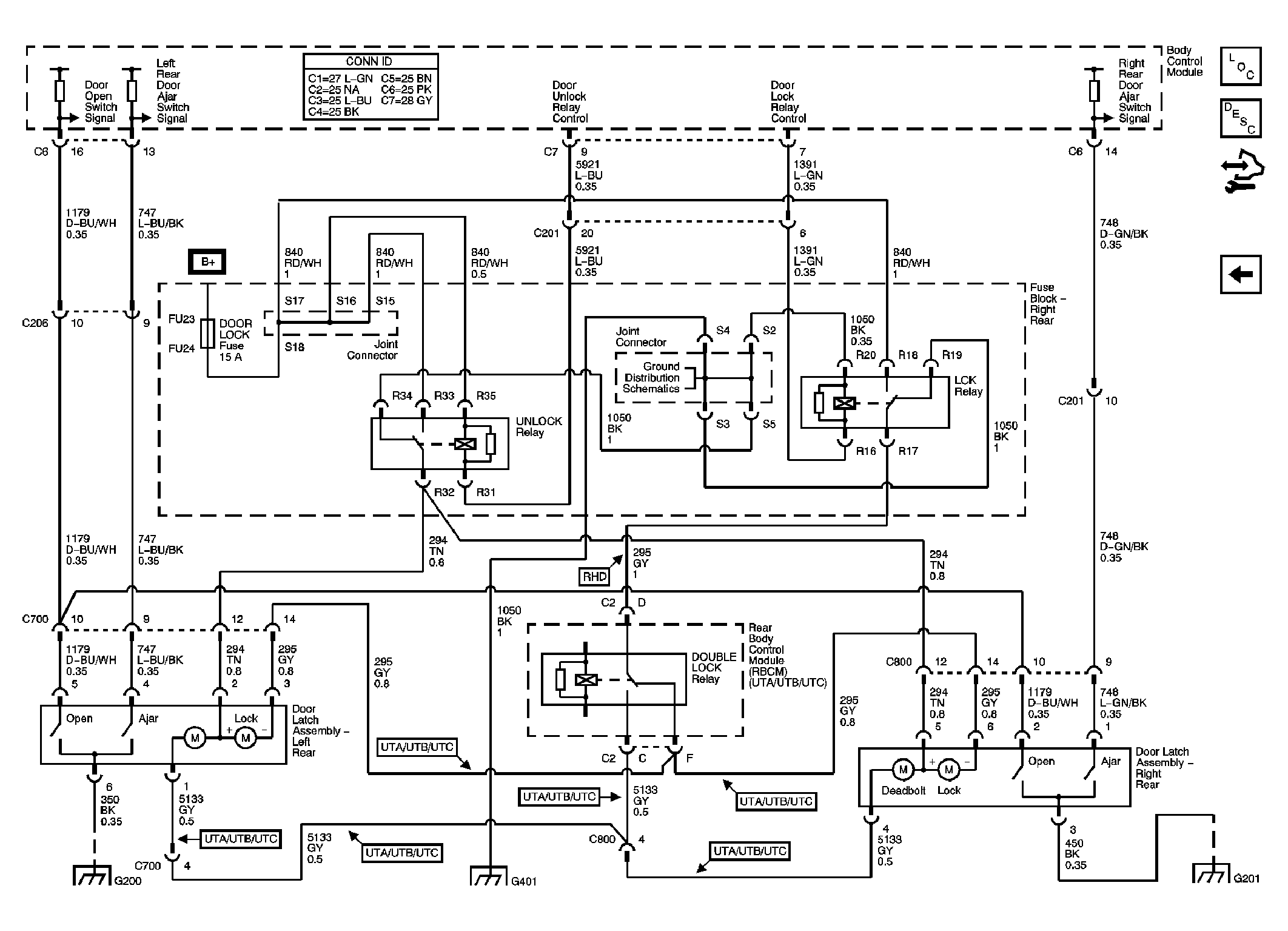

Fig 6: Rear Door Locks Schematic (Export)

Courtesy of GENERAL MOTORS CORP.
