Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

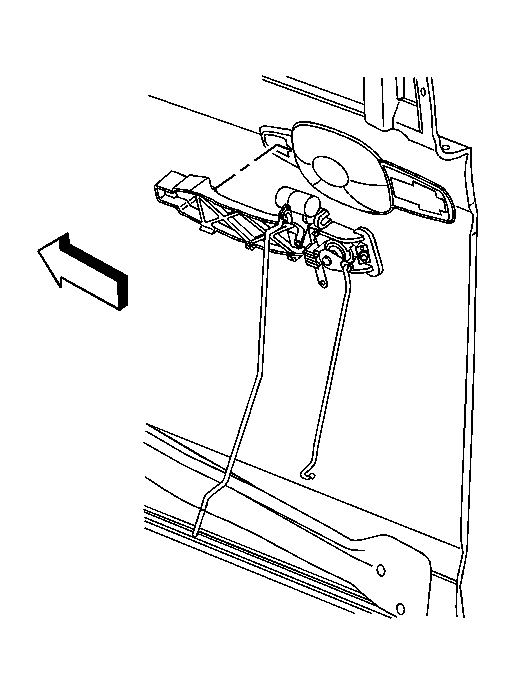

    Fig 1: View Of Outside Door Handle Bracket
    GM1202896Courtesy of GENERAL MOTORS CORP.
  1. Install the handle rod to the outside door handle bracket.
  2. Install the outside door handle bracket by inserting into opening and sliding forward.

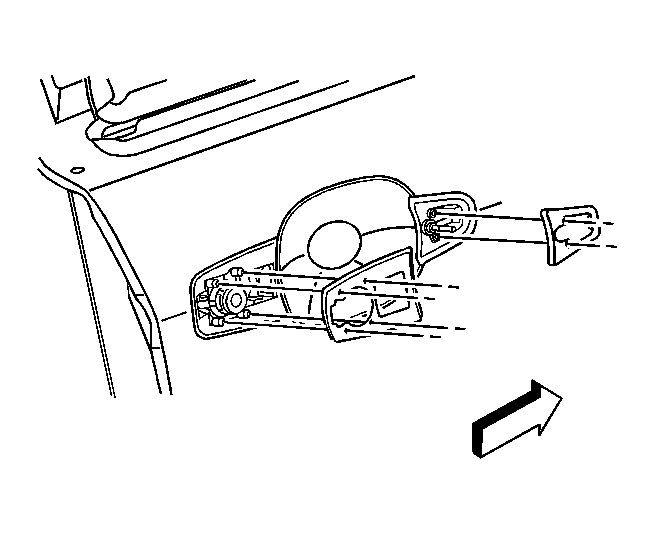

    3. Fig 2: View Of Outside Door Handle Gaskets
    GM1202905Courtesy of GENERAL MOTORS CORP.
  3. Install the gaskets.

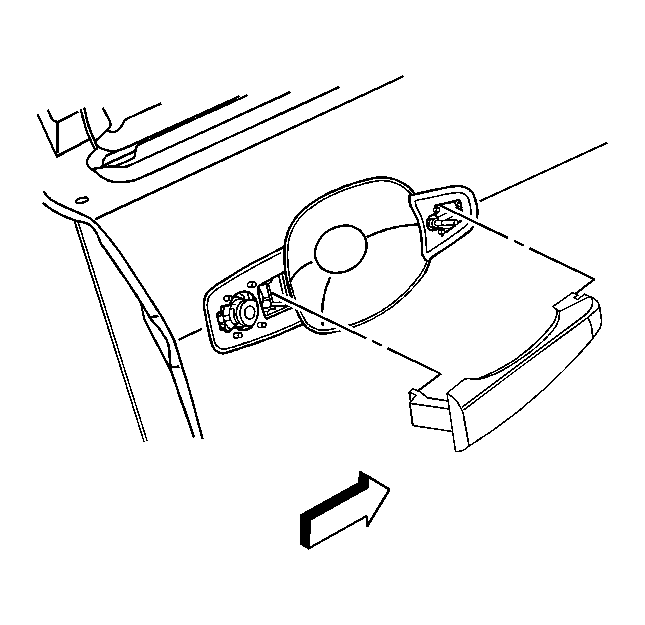

    4. Fig 3: View Of Outside Door Handle
    GM1202909Courtesy of GENERAL MOTORS CORP.
  4. Raise the outside door handle counterbalance weight and install the outside door handle by rocking outboard and inserting into bracket then sliding rearward.

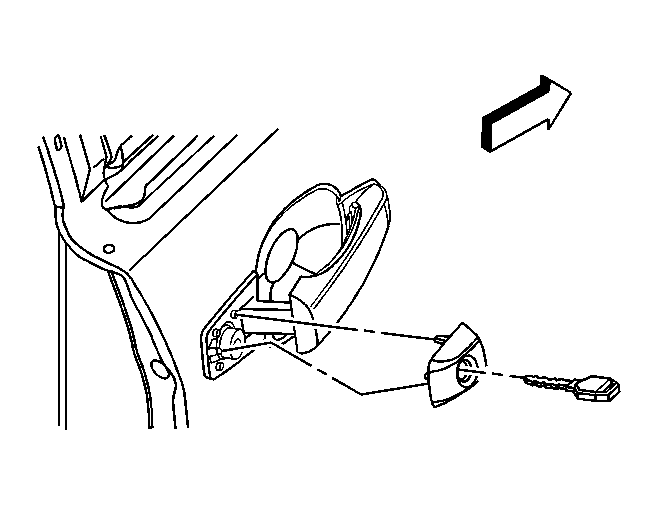

    5. Fig 4: View Of Outside Door Handle Cap
    GM1202912Courtesy of GENERAL MOTORS CORP.
  5. Open the door handle slightly then install the cap.
  6. Install the screw securing the outside door handle cap.
  7. Install the outside door handle cap screw access plug to the door.

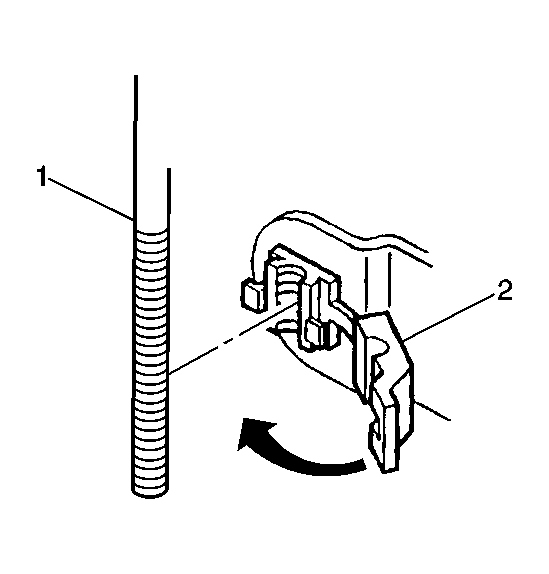

    8. Fig 5: Installing Rod Retainer Clip
    GM105412Courtesy of GENERAL MOTORS CORP.
  8. Connect the door handle rod to the latch.
    1. Insert the rod (1) into the clip (2) on the door latch assembly.
    2. Close the clip.
    9. IMPORTANT: Inspect for the proper operation of the door handle and lock cylinder before installing the water deflector and the door trim panel.
  9. Install the water deflector. Refer to Front Side Door Water Deflector Replacement .
  10. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
