Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

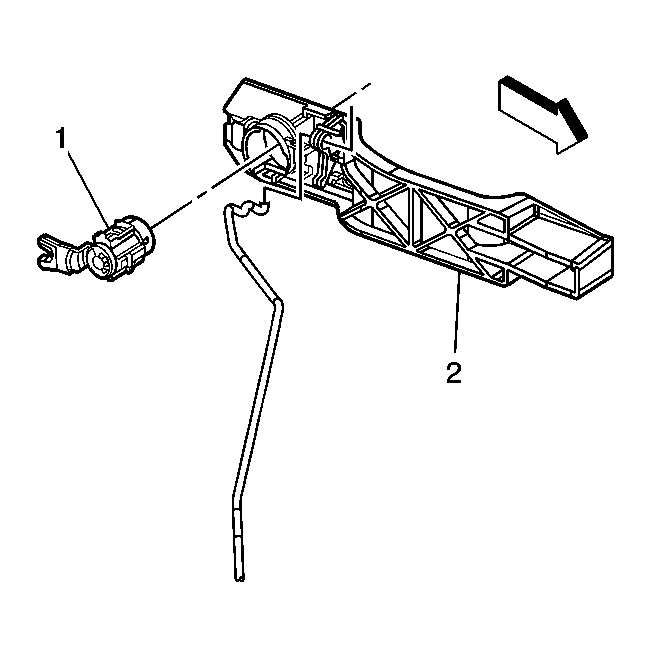

    Fig 1: View Of Lock Cylinder Retainer Clip & Outside Door Handle Housing
    GM1215512Courtesy of GENERAL MOTORS CORP.
  1. Install the lock cylinder to the outside door handle housing (2).
  2. Install the lock cylinder retainer clip (1).
  3. Install the front door outside door handle. Refer to Front Side Door Outside Handle Replacement .
