B17 Barometric Pressure Sensor (LSA)
WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

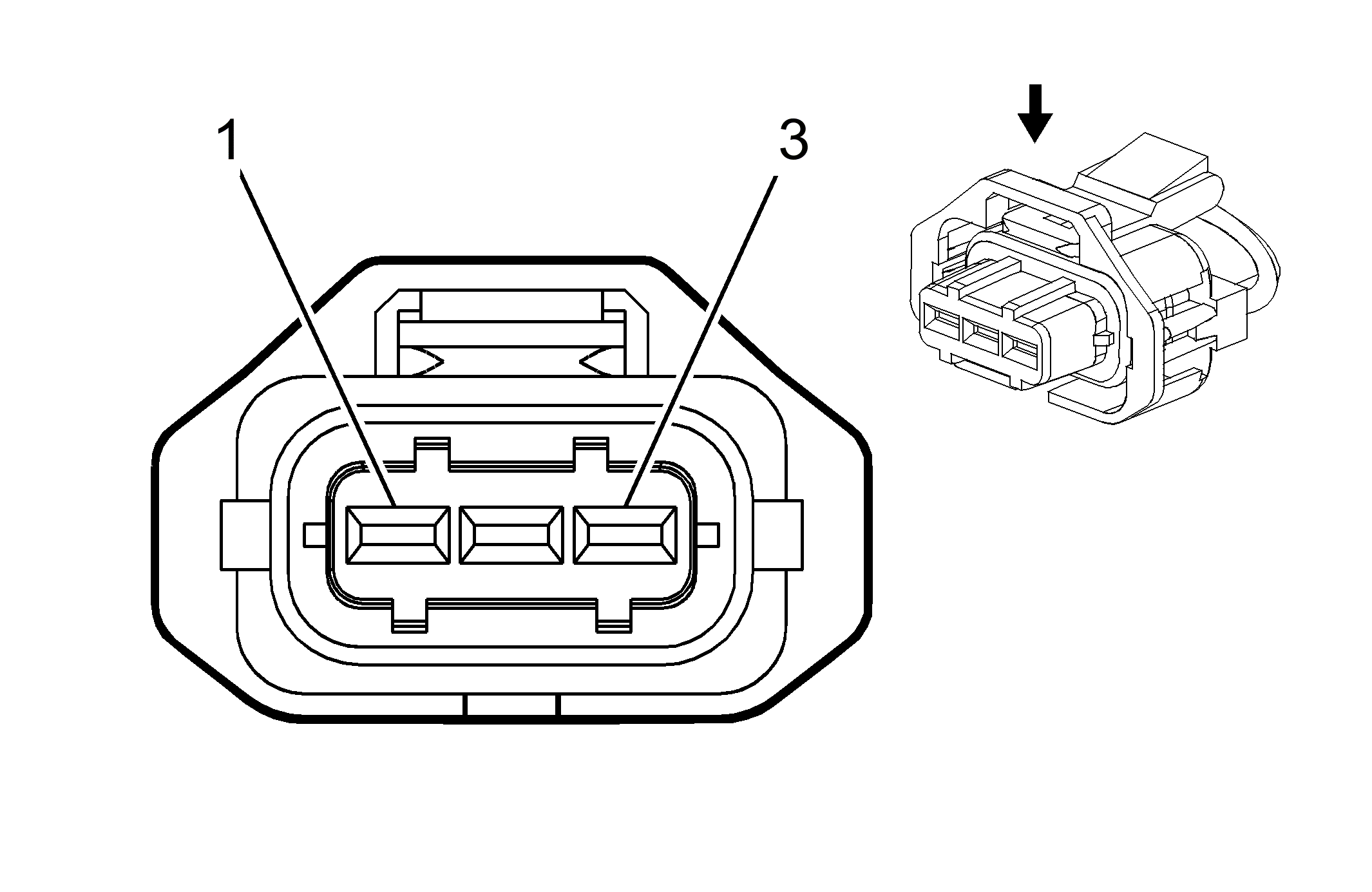

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Pending | J-35616-35 (VT) | J-38125-561 | 1928498056 | 8 | E | 1 |
B17 Barometric Pressure Sensor (LSA)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.8 | WH/BK | 2932 | 5 Volt Reference | I | - |
| 2 | 0.8 | OG/BK | 6014 | Low Reference | I | - |
| 3 | 0.8 | GY/BK | 433 | BARO Sensor Signal | I | - |
