Installation Procedure

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

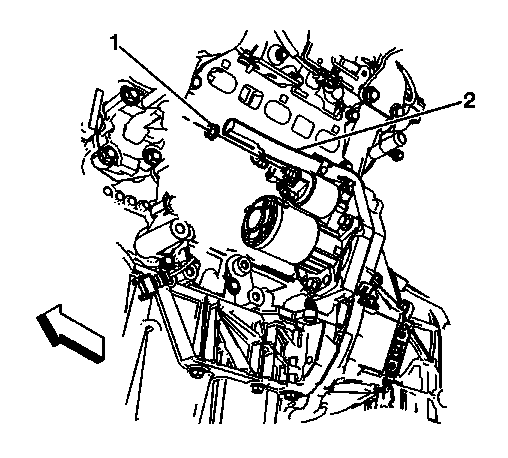

Fig 1: View Of Starter Motor - LY7

Courtesy of GENERAL MOTORS COMPANY

Install the starter motor.

CAUTION:

Refer to Fastener Caution .

Install the starter motor mounting bolts and tighten to 50 N.m (37 lb ft).

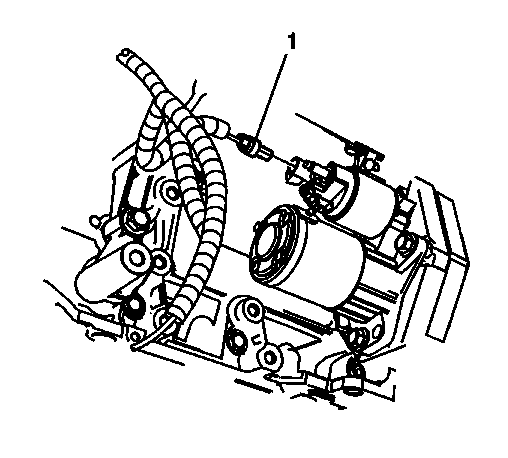

Fig 2: Identifying Starter Terminal Nut And Engine Harness

Courtesy of GENERAL MOTORS COMPANY

Install the battery positive cable (2) to the starter and install the starter terminal nut (1). Tighten the battery positive cable nut to 13 N.m (10 lb ft).

Fig 3: Starter Solenoid Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Install the electrical connector (1) to the starter solenoid.
Install the starter heat shield. Refer to Starter Shield Replacement (LF1/LLT) .
