Installation Procedure

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

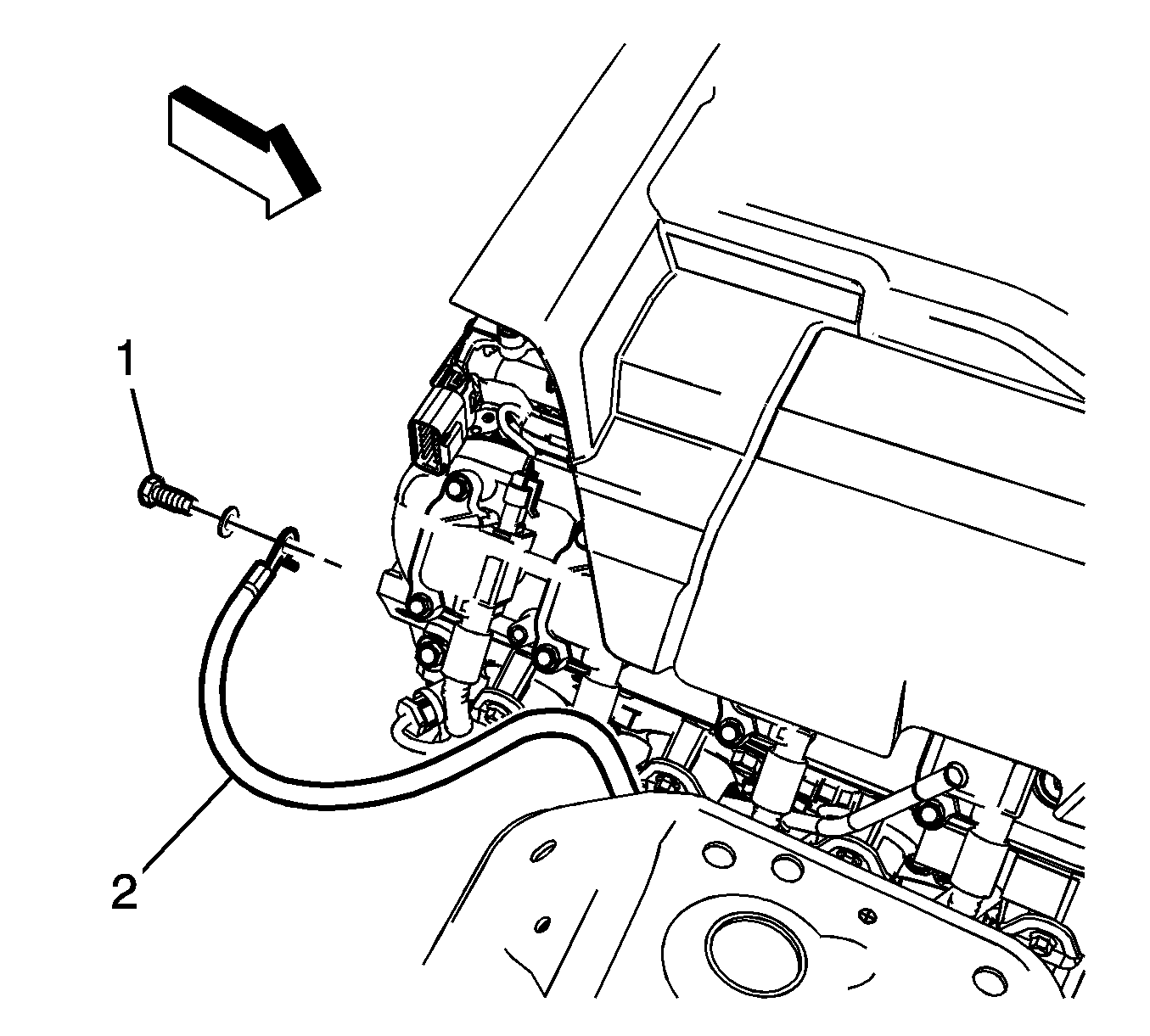

    Fig 1: Battery Negative Extension Cable And Engine Ground Bolt
    GM2359618Courtesy of GENERAL MOTORS COMPANY
  1. Position the battery negative extension cable (2) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the battery negative extension cable engine ground bolt (1).

    Tighten

    Tighten the bolt to 35 N.m (26 lb ft).

    3. Fig 2: Identifying Battery Negative Cable Ground Bolt
    GM2008902Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery negative extension cable ground bolt (1).

    Tighten

    20 N.m (15 lb ft).

  4. Install the front compartment side sight shield. Refer to Front Compartment Side Sight Shield Replacement .
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Coupe) , Battery Negative Cable Disconnection and Connection (Sedan, Wagon) .
