Dual DVD Headrest System
Dual DVD Headrest System
WARNING:
This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

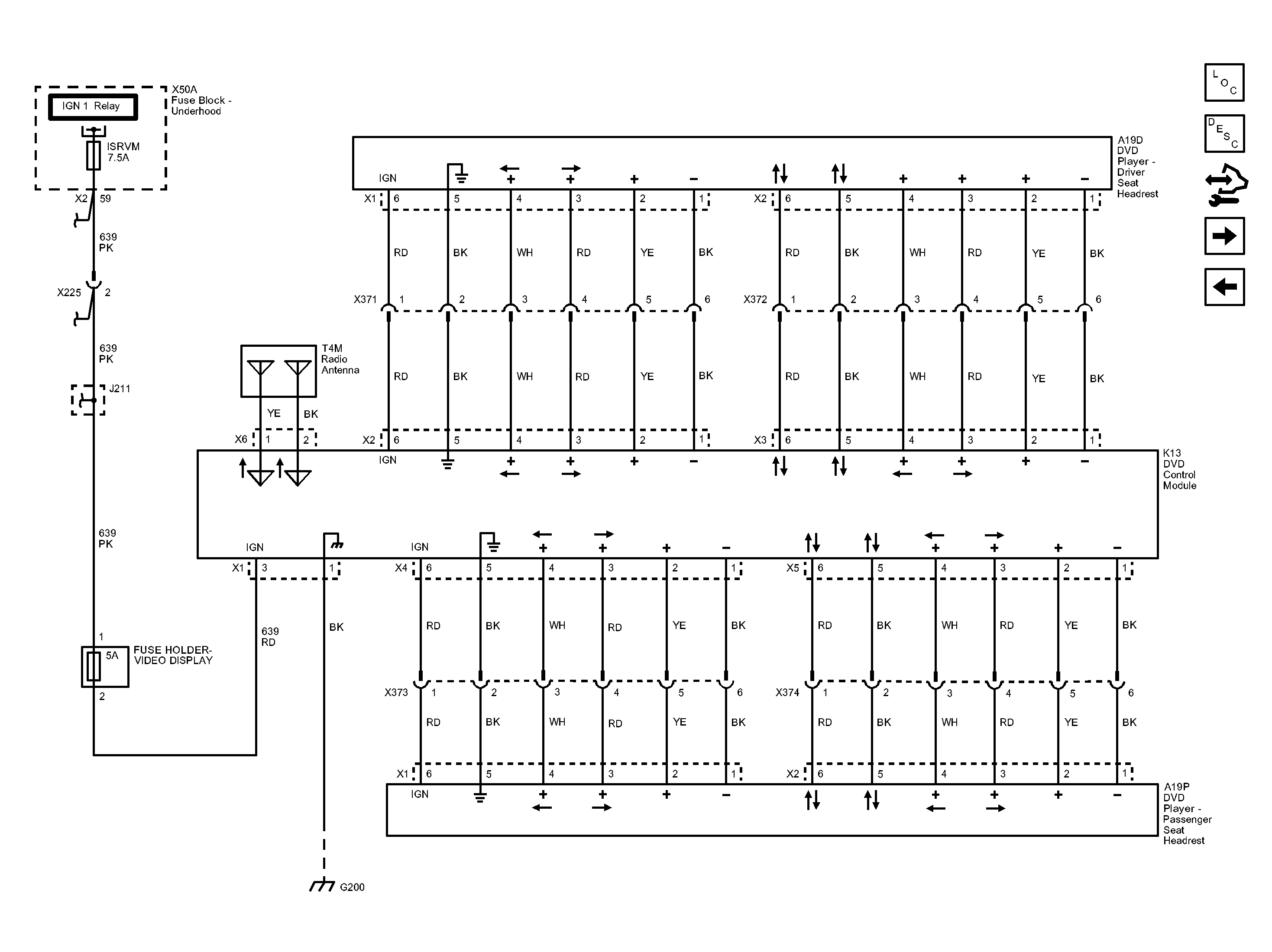

Fig 1: Dual DVD Headrest System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
