Radio/HVAC Display (UAV, U2X, U2Y)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

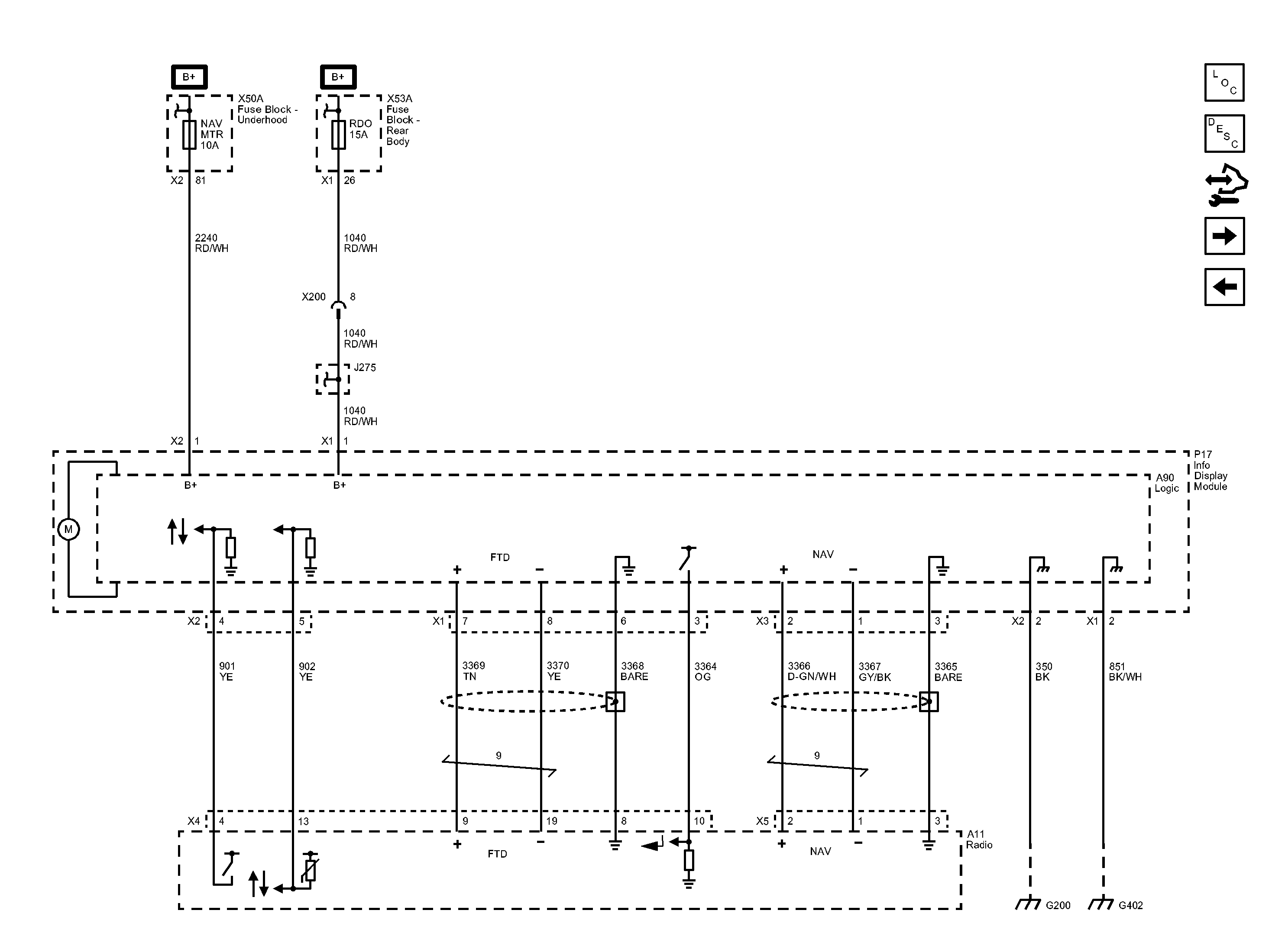

Fig 1: Radio/HVAC Display Wiring Schematic (UAV, U2X, U2Y)
GM2779016Courtesy of GENERAL MOTORS COMPANY
