Section 1189 (Cellular System, Entertainment System, And Navigation System)
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Auxiliary Audio Jack, Microphones, Navigation Audio Signals
Auxiliary Audio Jack, Microphones, Navigation Audio Signals
WARNING:
This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

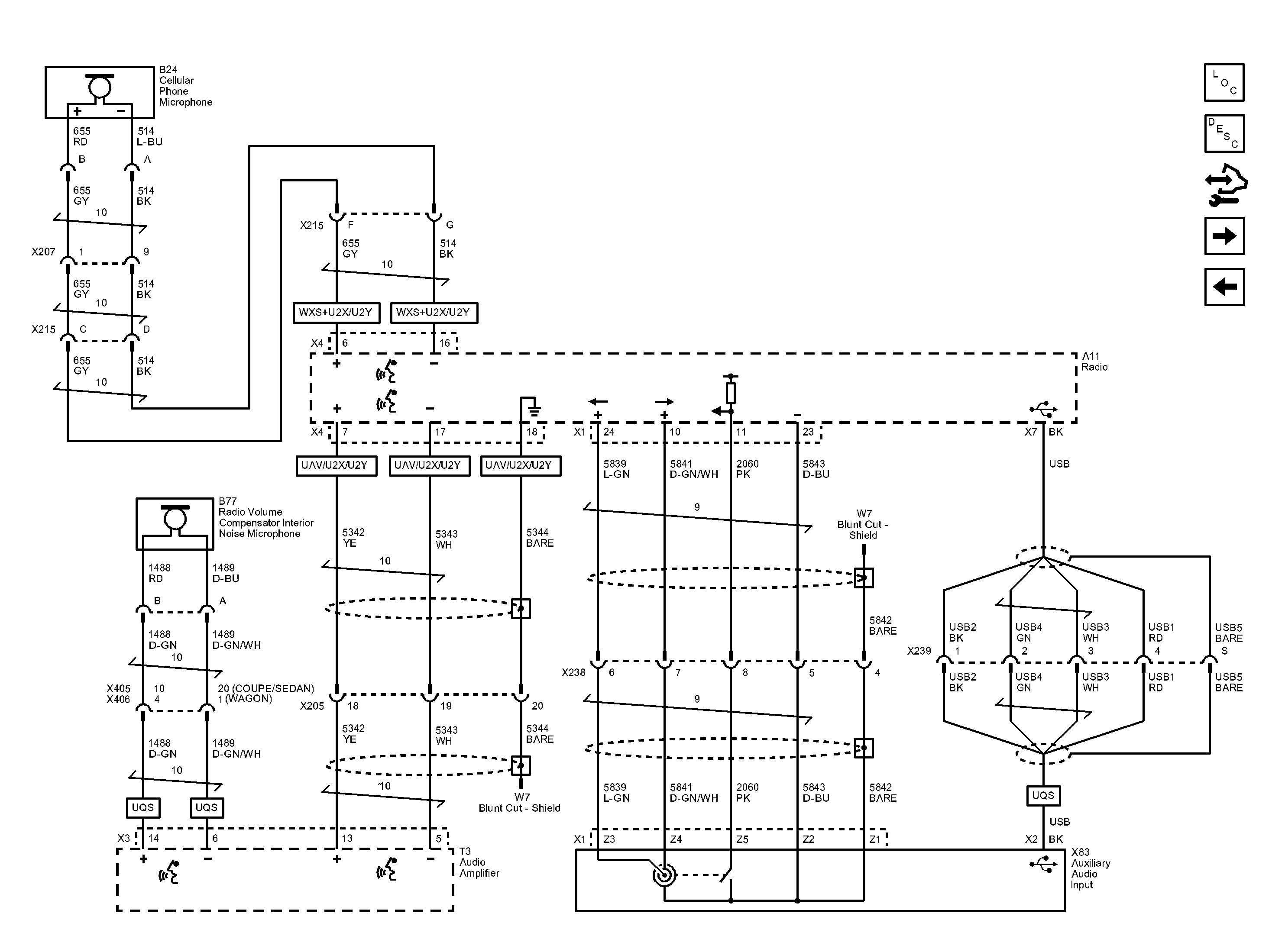

Fig 1: Auxiliary Audio Jack, Microphones, Navigation Audio Signals Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
