Brake Booster Vacuum Sensor Connector

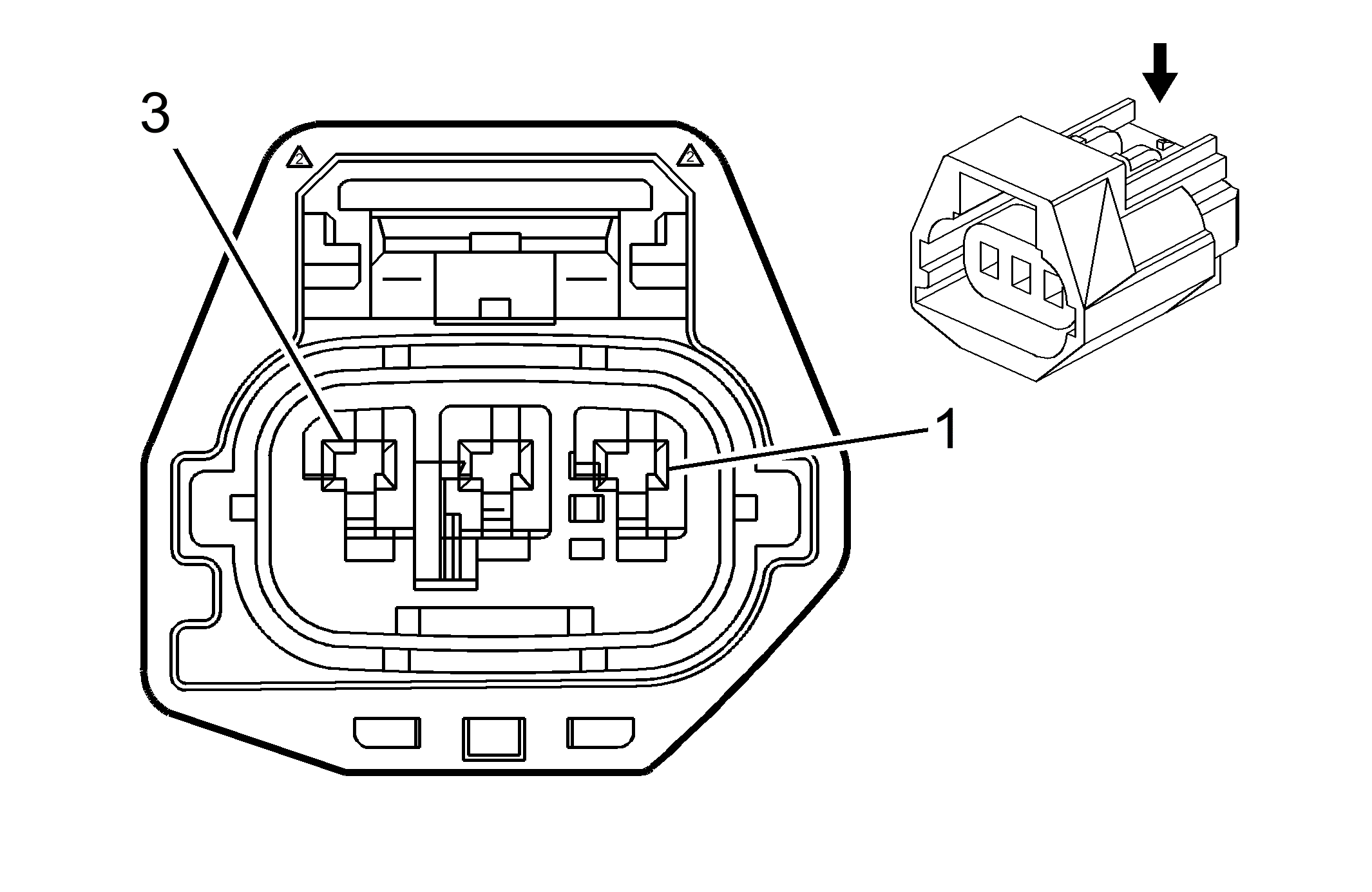

Fig 1: Brake Booster Vacuum Sensor Connector End View
GM1856791Courtesy of GENERAL MOTORS CORP.
Brake Booster Vacuum Sensor Connector Parts Information

Connector Part Information
  • OEM: 7283569110
  • Service: See Catalog
  • Description: 3-Way F 1.5 Sealed (D-GY)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
Brake Booster Vacuum Sensor Connector Terminal Identification

Pin Wire Circuit No. Function
1 0.5 OG 6030 Brake Vacuum Sensor Signal
2 0.5 YE/BK 6032 Battery Positive Voltage
3 0.5 GY 6031 5-Volt Reference
