Moveable Window Schematics (except AXC/AXE)

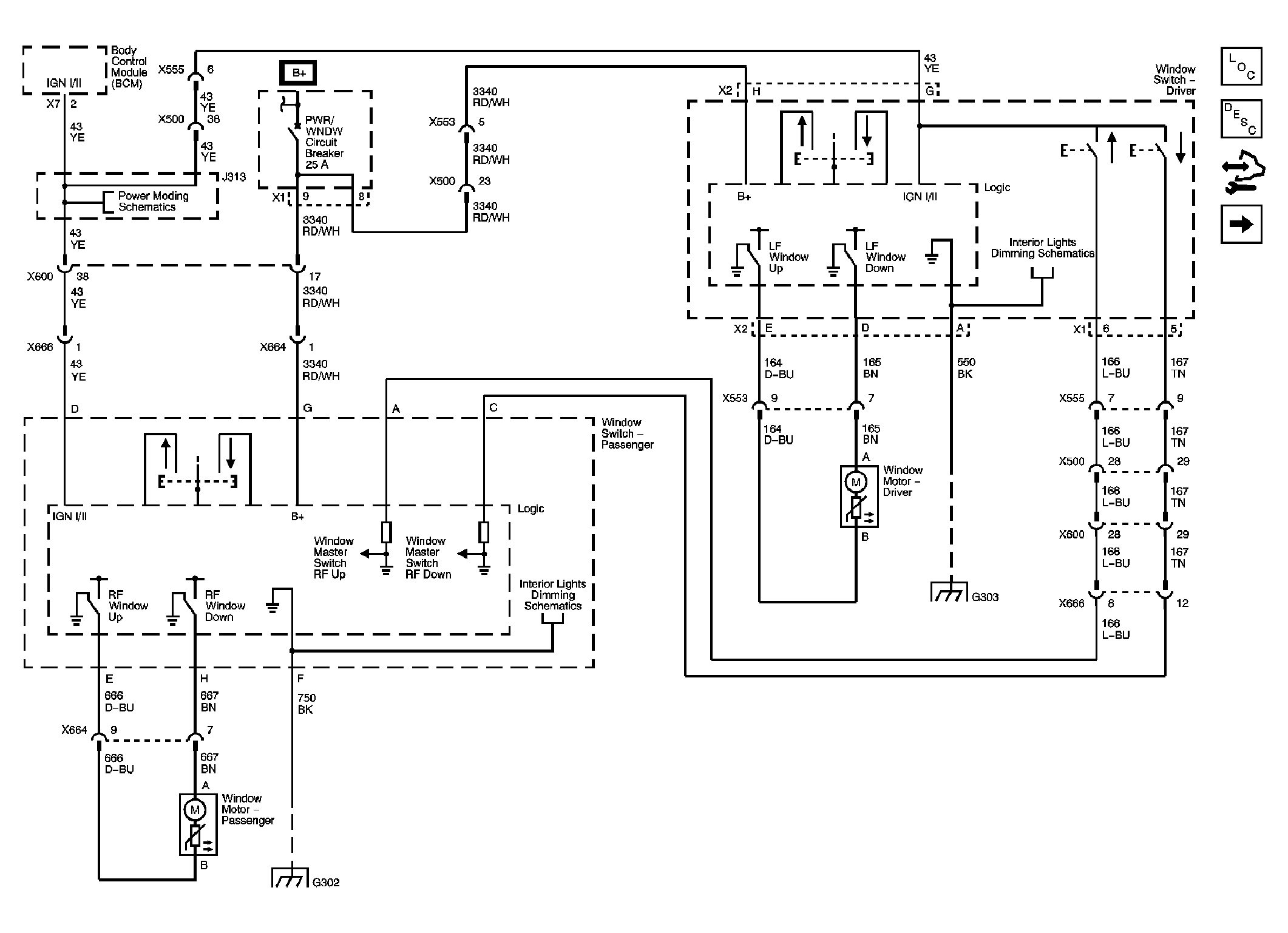

Fig 1: Front - Schematic (Except AXC/AXE)

GM1844185

Courtesy of GENERAL MOTORS CORP.

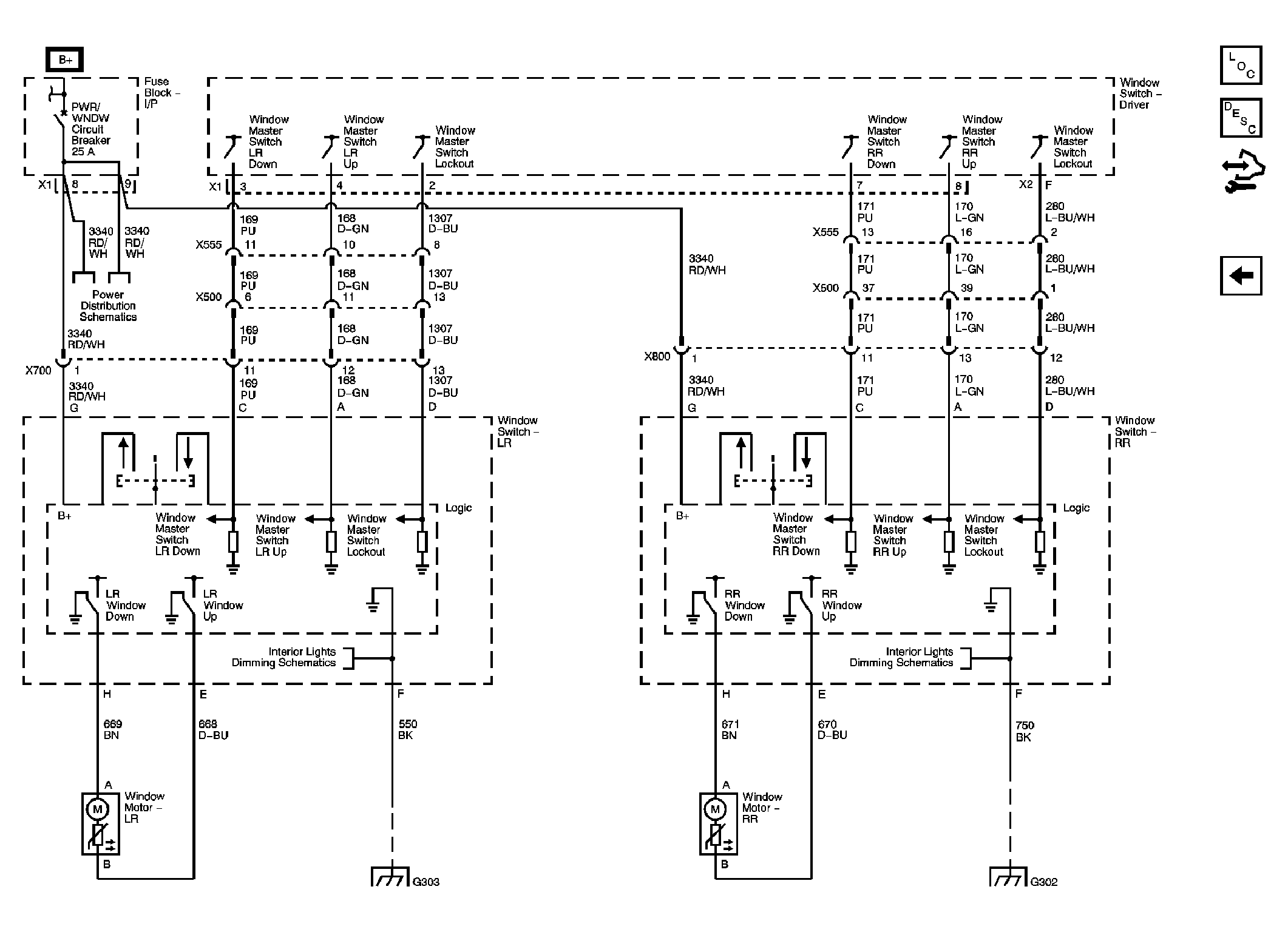

Fig 2: Rear - Schematic (Except AXC/AXE)

GM1844186

Courtesy of GENERAL MOTORS CORP.
