Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

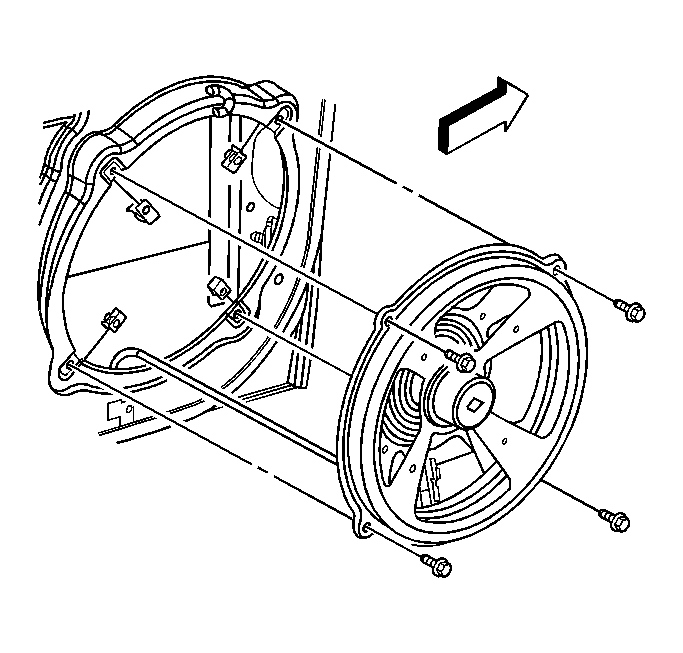

    Fig 1: View Of Front Door Speaker Assembly & Screws
    GM1237200Courtesy of GENERAL MOTORS CORP.
  1. Install the front door speaker assembly into position in the door.
  2. Connect the electrical/audio connector to the front door speaker.
    3. NOTE: Refer to Fastener Notice.
    IMPORTANT: The tightening sequence MUST be followed.
  3. Install the front door speaker assembly retaining screws in the following sequence:
    1. The uppermost screw
    2. The lowermost screw
    3. The remaining screws in a criss-cross pattern

      Tighten:  Tighten the screws in sequence to 2.5 N.m (22 lb in).

  4. Install the door trim panel. Refer to Door Trim Panel Replacement .
