Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

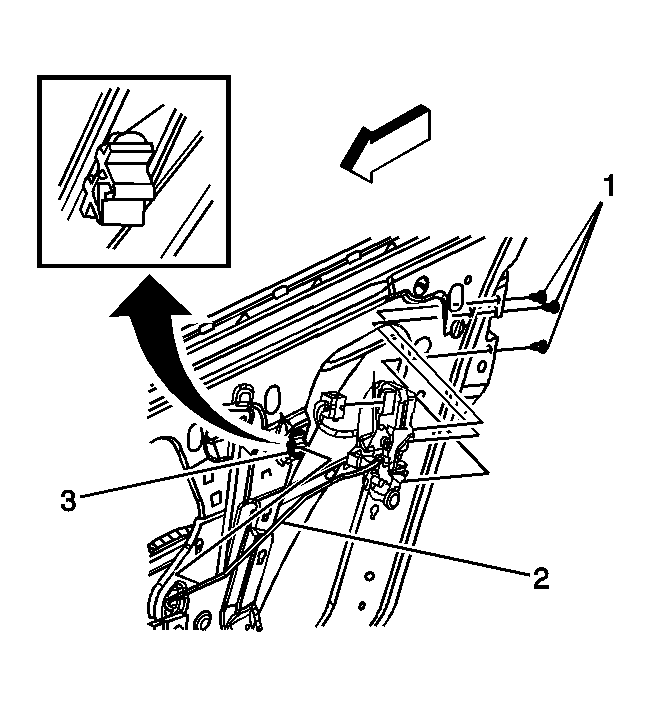

    Fig 1: View Of Door Latch Screws, Inside Handle Rod & Rod Guide
    GM758976Courtesy of GENERAL MOTORS CORP.
  1. Install the inside door handle rod and lock rod to the door latch.
  2. Connect the electrical connector.
  3. Install the door latch into the door.
    4. NOTE: Refer to Fastener Notice .
  4. Install the door latch screws (1).

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

    5. Fig 2: Installing Rod Retainer Clip
    GM105412Courtesy of GENERAL MOTORS CORP.
  5. Connect the outside door handle rod to the door latch.
    1. Insert the rod (1) into the clip (2) on the door latch assembly.
    2. Close the clip.
  6. Inspect for proper operation of the outside door handle.
  7. Install the inside handle rod (2) to the rod guide (3).
  8. Install the water deflector. Refer to Rear Side Door Water Deflector Replacement .
  9. Install the inside door handle. Refer to Door Handle Replacement - Rear Inside .
  10. Install the door module. Refer to Door Control Module Replacement .
  11. Install the door trim panel. Refer to Rear Side Door Trim Panel Replacement .
