Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the window in the full up position.
  2. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement .
  3. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
  4. Disconnect the lock cylinder rod from the door latch, if equipped.
    5. Fig 1: View Of Door Handle Rod & Latch
    GM507065Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the outside door handle rod (1) from the door latch by opening the clip (2).

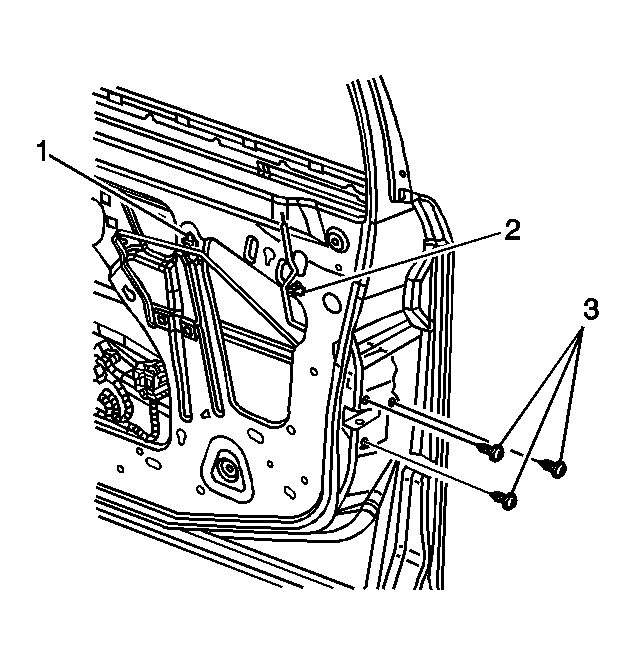

    6. Fig 2: View Of Rod Guide, Lock Knob Rod, & Door Latch Screws
    GM788020Courtesy of GENERAL MOTORS CORP.
  6. Remove the lock knob rod from the rod guide (2).
  7. Remove the inside handle rod from the rod guide (1).
  8. Remove the door latch screws (3).
  9. Remove the door latch from the door with the inside door handle rod and lock rod attached.

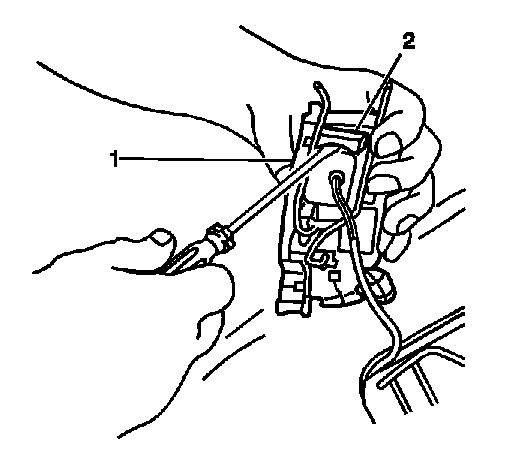

    10. Fig 3: Disconnecting Front Door Latch Electrical Connector
    GM787979Courtesy of GENERAL MOTORS CORP.
  10. Use a small flat bladed tool to lift the electrical connector lock (2) and disconnect the electrical connector.
  11. Remove the handle rod and lock rod from the door latch.
