Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

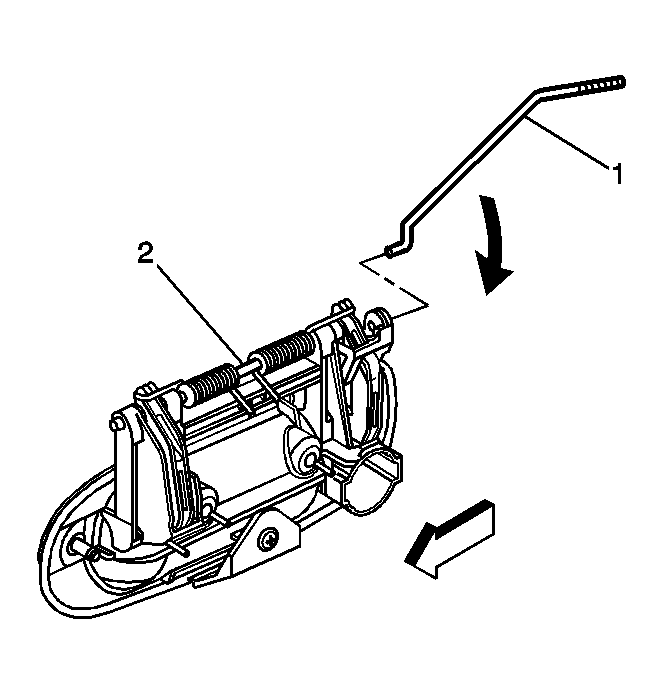

Fig 1: Identifying Handle Rod & Lock Cylinder Rod

Courtesy of GENERAL MOTORS CORP.

Install the handle rod and lock cylinder rod to the outside door handle.

Fig 2: Removing & Installing Front Outside Door Handle

Courtesy of GENERAL MOTORS CORP.

Install the door handle, with rods attached, to the door.
1. Insert the rods through cut out.
2. Rotate the handle into position.

NOTE: Refer to Fastener Notice .

Install the outside door handle nuts.
Tighten: Tighten the nuts to 7 N.m (62 lb in).
Connect the lock cylinder rod to the door latch.

Fig 3: Installing Rod Retainer Clip

Courtesy of GENERAL MOTORS CORP.

Connect the door handle rod to the latch.
1. Insert the rod (1) into the clip (2) on the door latch assembly.
2. Close the clip.

Fig 4: Removing & Installing Theft Shield Push-In Retainer

Courtesy of GENERAL MOTORS CORP.

Inspect for proper operation of the door handle and lock cylinder.
Install the theft shield into the door, if equipped.
Install the theft shield retainer (1) into the hole in the door handle.

Fig 5: Removing & Installing Theft Shield Screws

Courtesy of GENERAL MOTORS CORP.

Install the theft shield screws (2).
Tighten: Tighten the screws (2) to 7 N.m (62 lb in).
Install the water deflector. Refer to Front Side Door Water Deflector Replacement .
Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
