Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

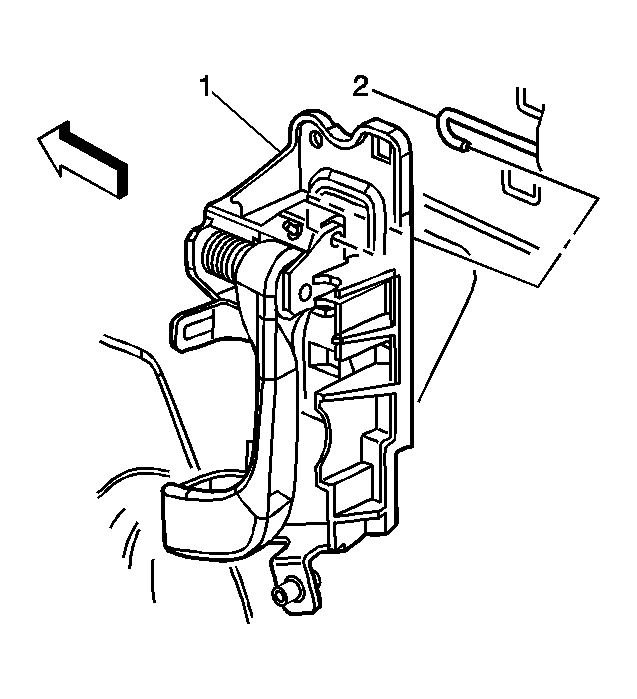

    Fig 1: View Of Inside Door Handle Rod & Door Handle Assembly
    GM754047Courtesy of GENERAL MOTORS CORP.
  1. Insert the inside door handle rod (1) into the hole in the door handle assembly (2).
  2. Rotate the assembly up towards the front of the vehicle.
  3. Slide the assembly (2) towards the rear of the vehicle to engage the three tabs.
    4. NOTE: Refer to Fastener Notice .
  4. Install the door handle fastener.

    Tighten:  Tighten the fastener to 2 N.m (18 lb in).

  5. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
