Vehicle Access Component Views

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Doors Sub-System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C600 (LHD) (RHD and C500 Similar)
2	Front Passenger Door (LHD) (RHD Similar)
3	P600 (LHD) (RHD Similar)
4	Door Latch Assembly - Left Rear Connector (Right Rear Similar)
5	Door Latch Assembly - Left Rear (Right Rear Similar)
6	Left Rear Door
7	Door Latch Assembly - Driver (LHD) (RHD and Passenger Similar)
8	Door Latch Assembly - Driver Connector (LHD) (RHD and Passenger Similar)
9	Driver Door (LHD) (RHD Similar)
10	Passenger Door Trim Panel (LHD) (RHD and Driver Similar)
11	Left Front Door Window Switch/Mirror Switch/Heater Switch (LHD) (RHD and Driver Similar)

Fig 2: Door Control Module Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door - Right Rear
2	C801 (C701 similar)
3	Splice S801
4	Right Rear Door Module (RRDM) Connectors (LRDM similar)
5	Right Rear Door Module (RRDM) (LRDM similar)
6	C800 (C700 similar)
7	Door - Right Front
8	C601 (C501 similar)
9	Front Passenger Door Module (FPDM) Connectors (DDM similar)
10	Front Passenger Door Module (FPDM) (DDM similar)
11	C600 (C500 similar)

Fig 3: Driver Door Switches Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Lock Switch
2	Seat Memory Switch
3	Power Mirror Switch
4	Master Power Window Switch

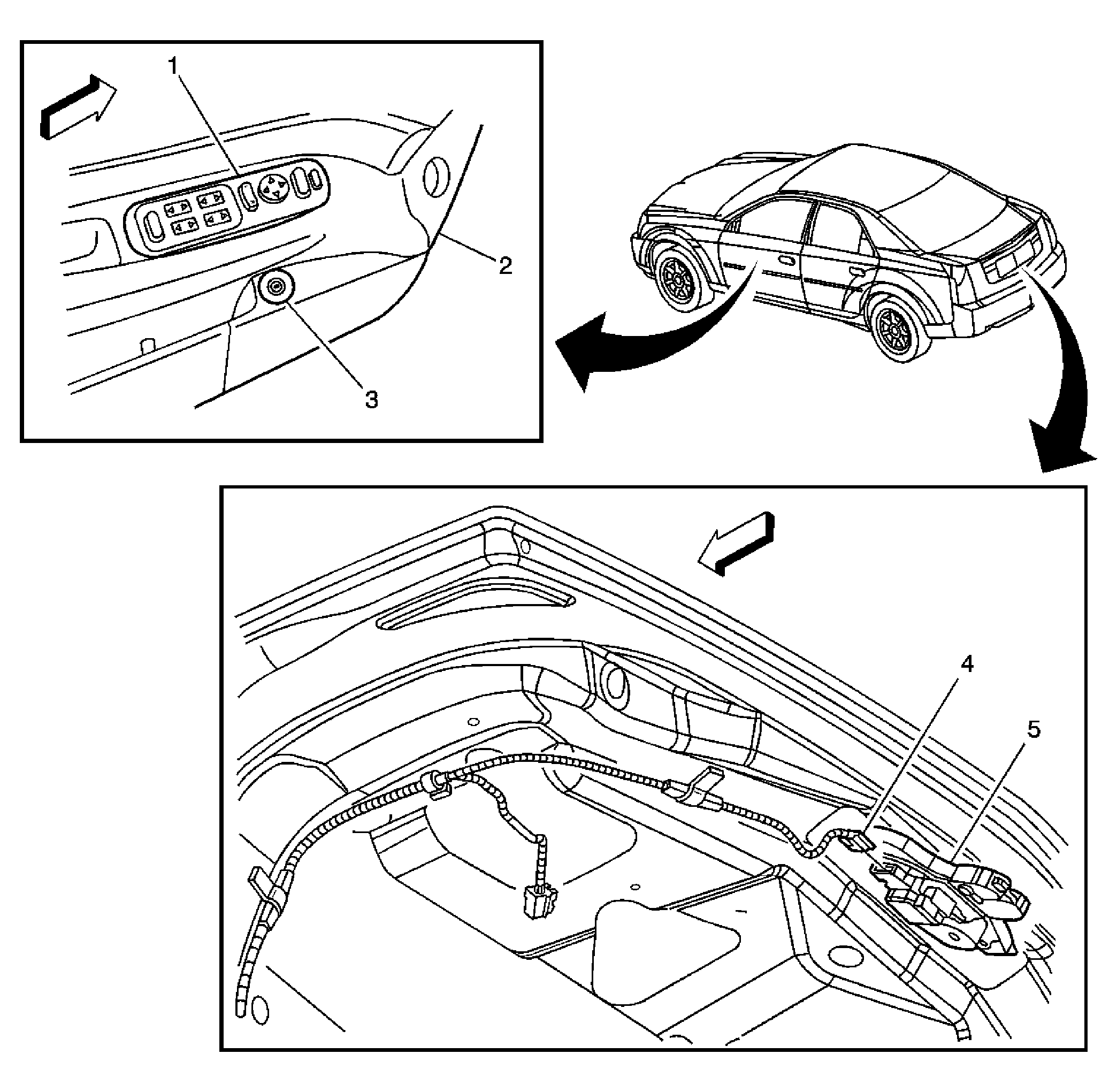

Fig 4: Release System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door Switch Assembly (DDSA) (LHD shown, RHD similar)
2	Driver Door Trim Panel (LHD shown, RHD similar)
3	Rear Compartment Lid Release Switch (LHD shown, RHD similar)
4	Rear Compartment Lid Release Connector
5	Rear Compartment Lid Release Latch

Fig 5: Window Switch - LR (RR - Similar) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door - LR
2	Window Switch - LR

Fig 6: Left Rear Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Rear Power Window Motor - Left Rear Similar

Fig 7: Right Rear Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Rear Latch Connector - Left Rear Similar
2	Right Rear Latch Assembly - Left Rear Similar

Fig 8: Front Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door Outside Mirror
2	Passenger Door Window Motor
3	Passenger Door Latch Assembly

Fig 9: Front Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Outside Mirror
2	Left Front Power Mirror
3	Left Front Door Latch
