AC/DC Power Outlet Control Module Replacement

WARNING: This page is about a different car, the 2008 Saturn Outlook, 2008 GMC Acadia, and 2008 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

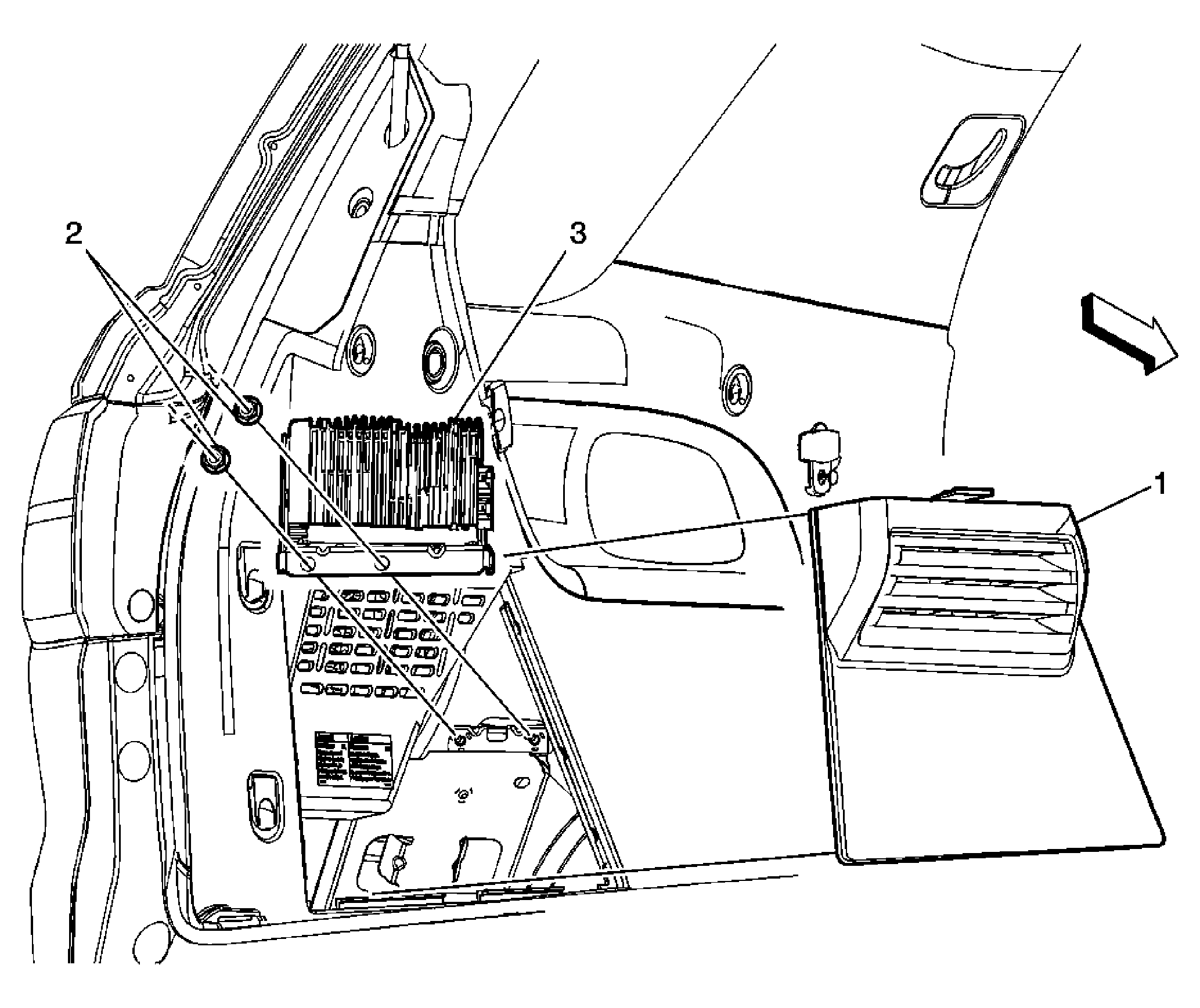

Fig 1: View Of AC/DC Power Outlet Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Trim Panel Stow Compartment Door Assembly
2	Accessory AC/DC Power Control Module Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
3	Accessory AC/DC Power Control Module Assembly Procedure Disconnect the electrical connections. Remove the jack assembly.

Callout

Component Name

Body Side Trim Panel Stow Compartment Door Assembly

Accessory AC/DC Power Control Module Nut (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Accessory AC/DC Power Control Module Assembly

Procedure

Disconnect the electrical connections.
Remove the jack assembly.
