Engine Controls Schematics

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

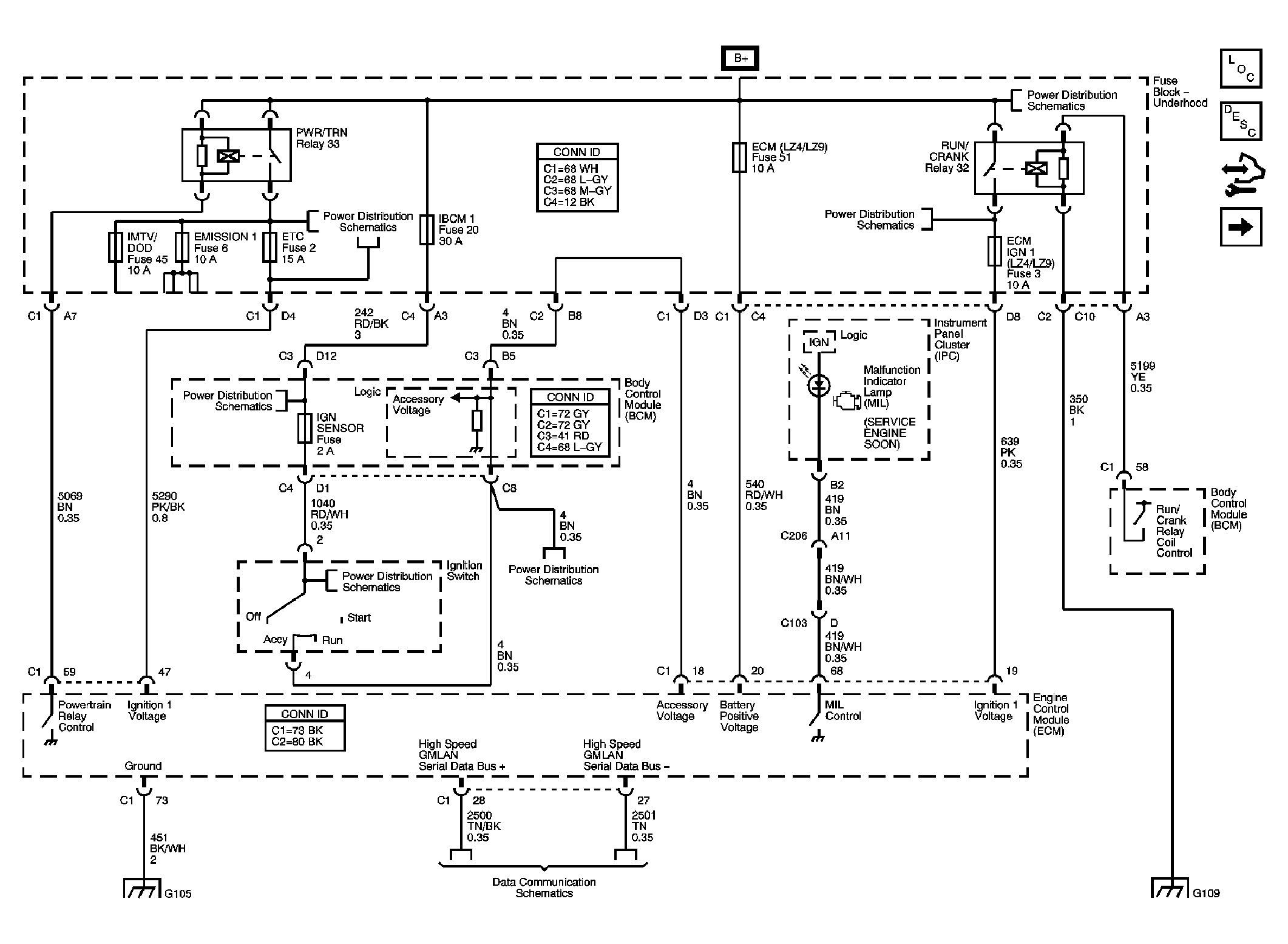

Fig 1: Power, MIL, DLC, Ignition Switch and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

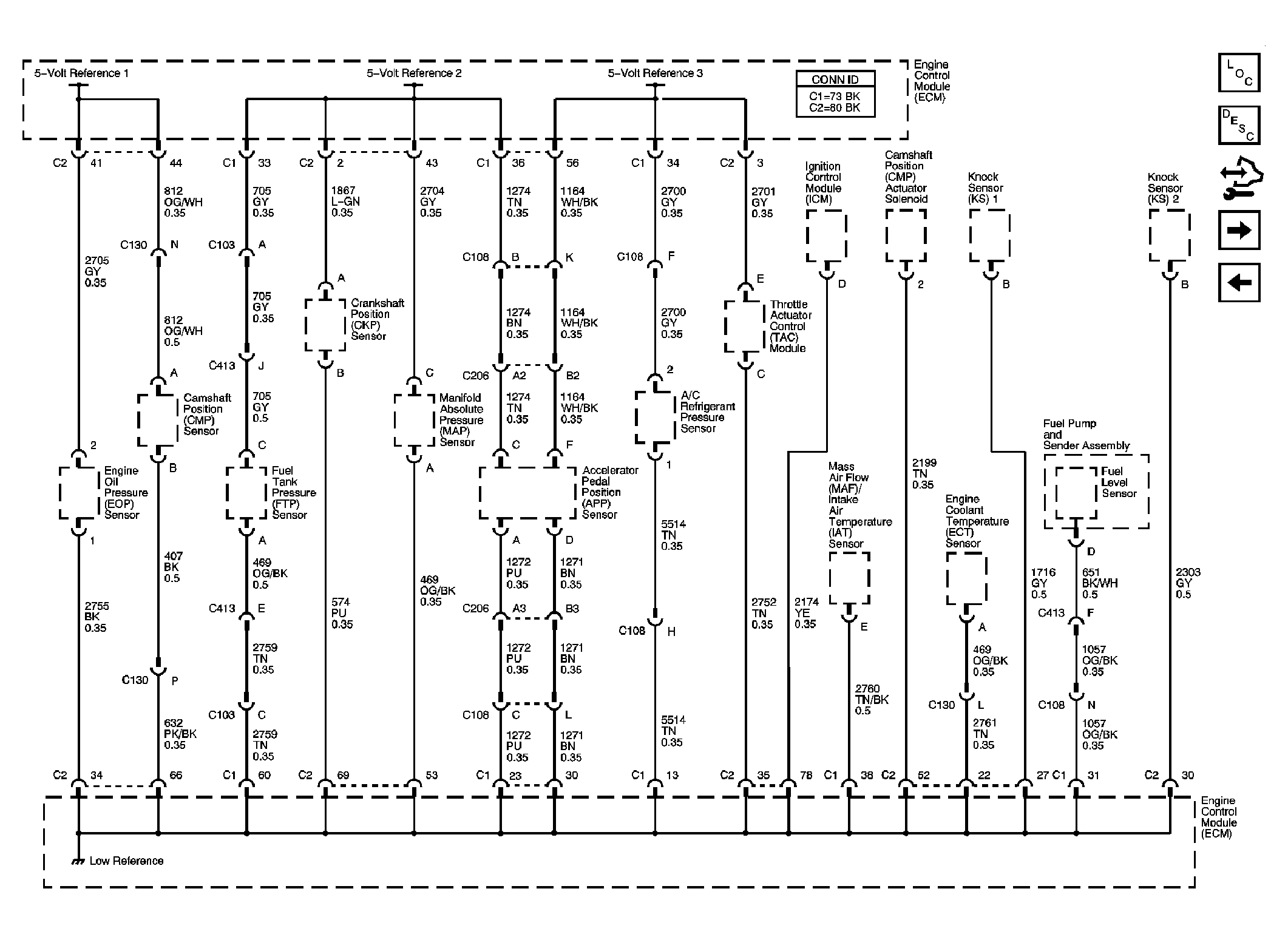

Fig 2: 5-Volt and Low References Schematic

Courtesy of GENERAL MOTORS CORP.

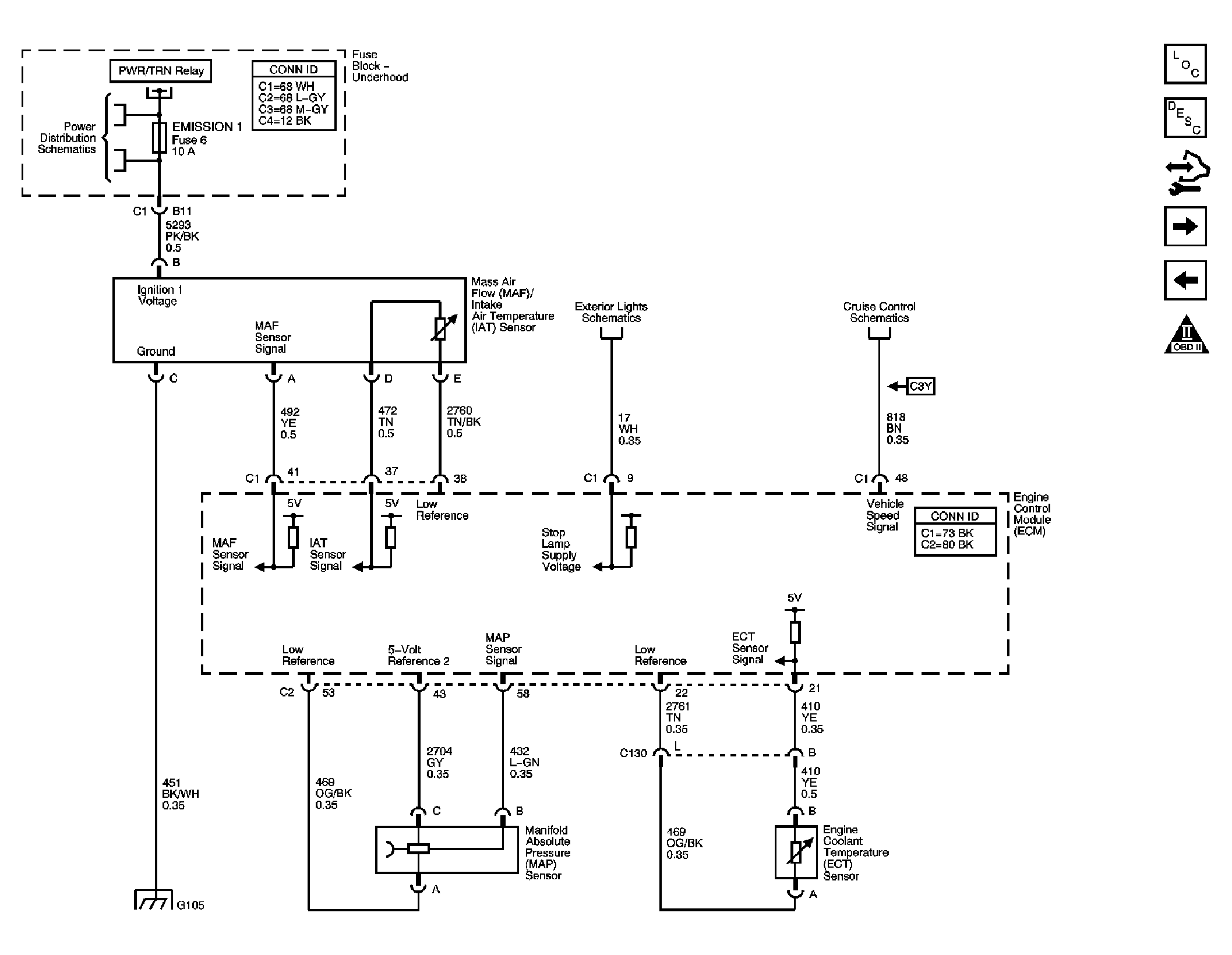

Fig 3: MAF/IAT, MAP, ECT Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

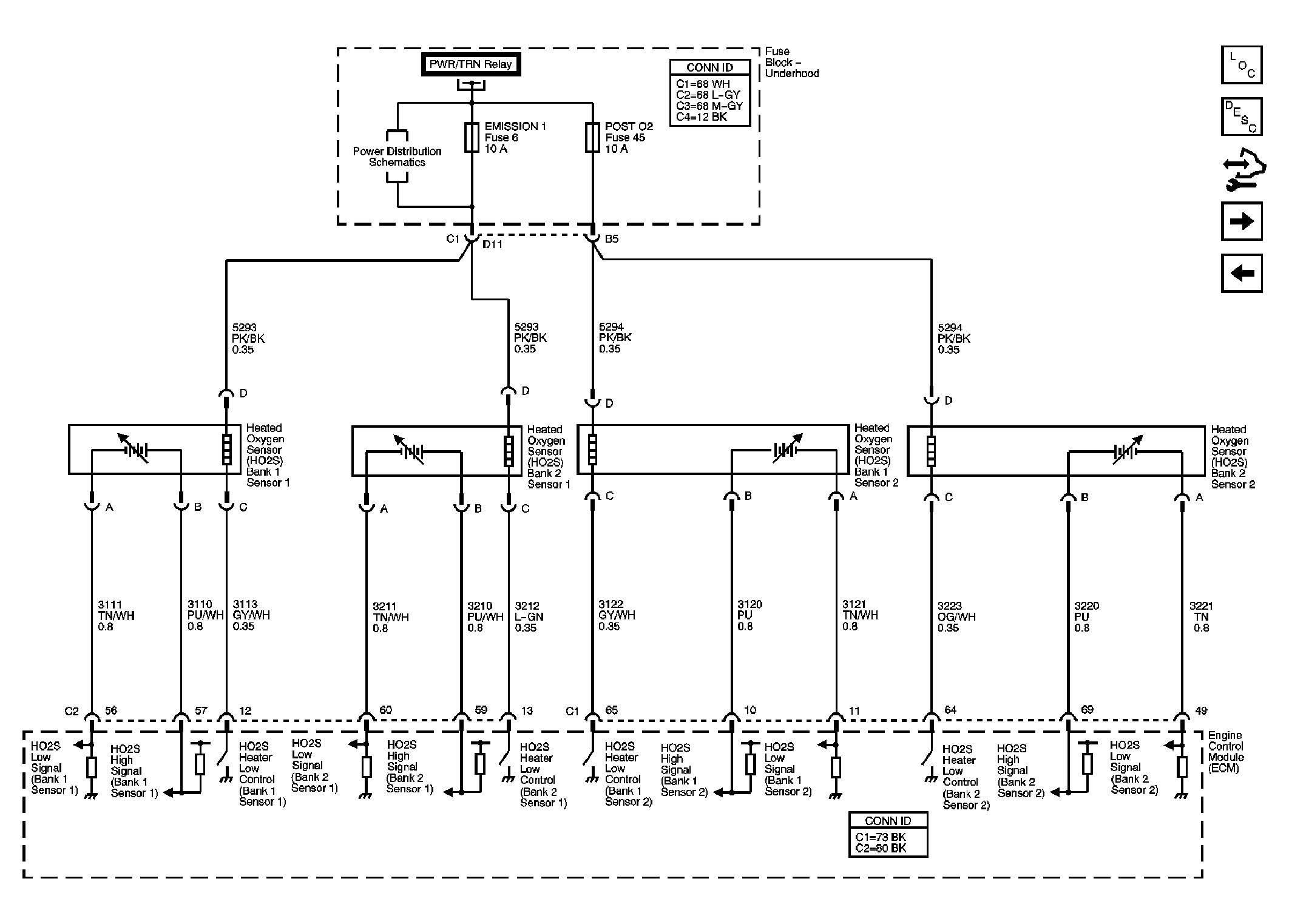

Fig 4: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

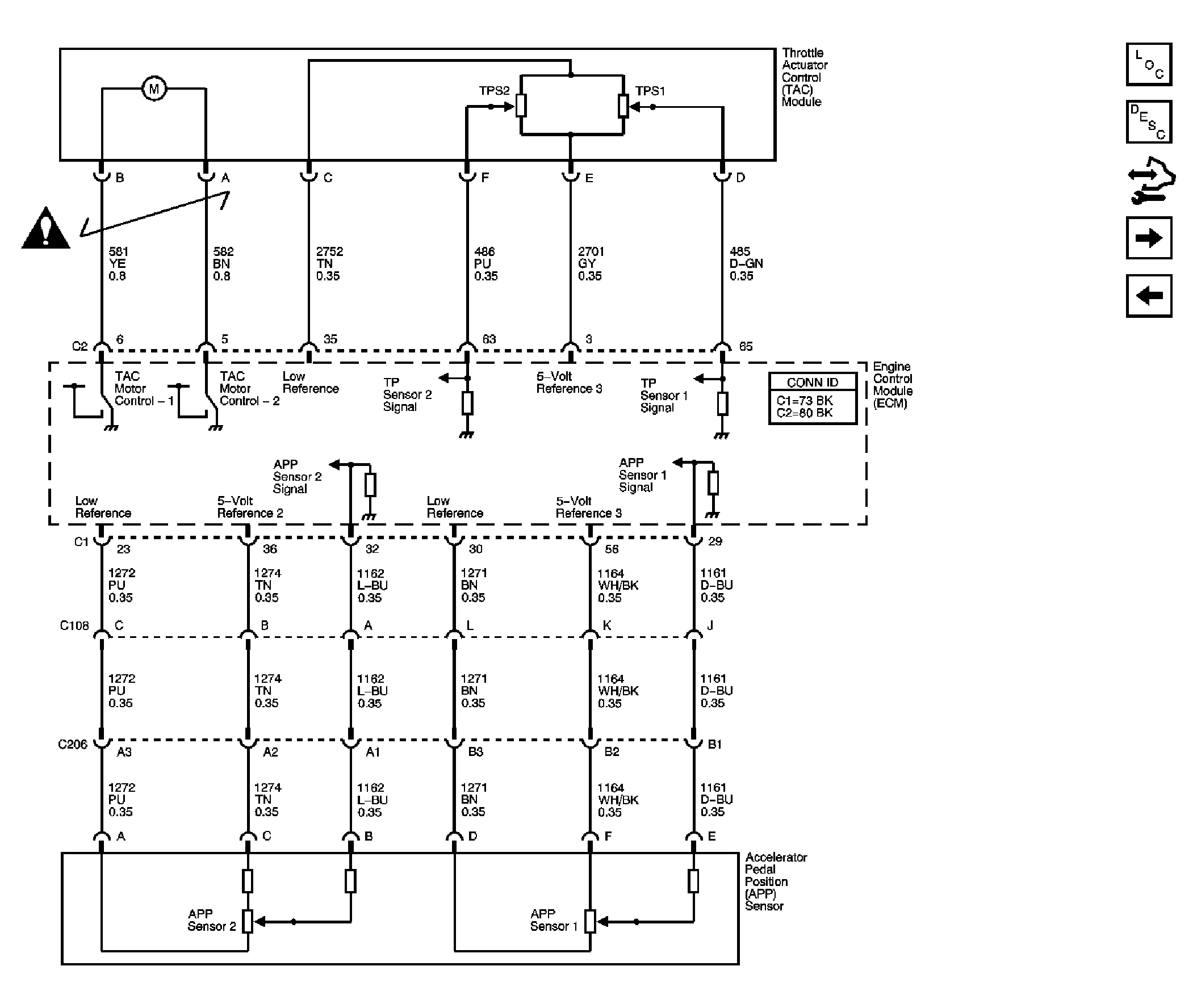

Fig 5: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

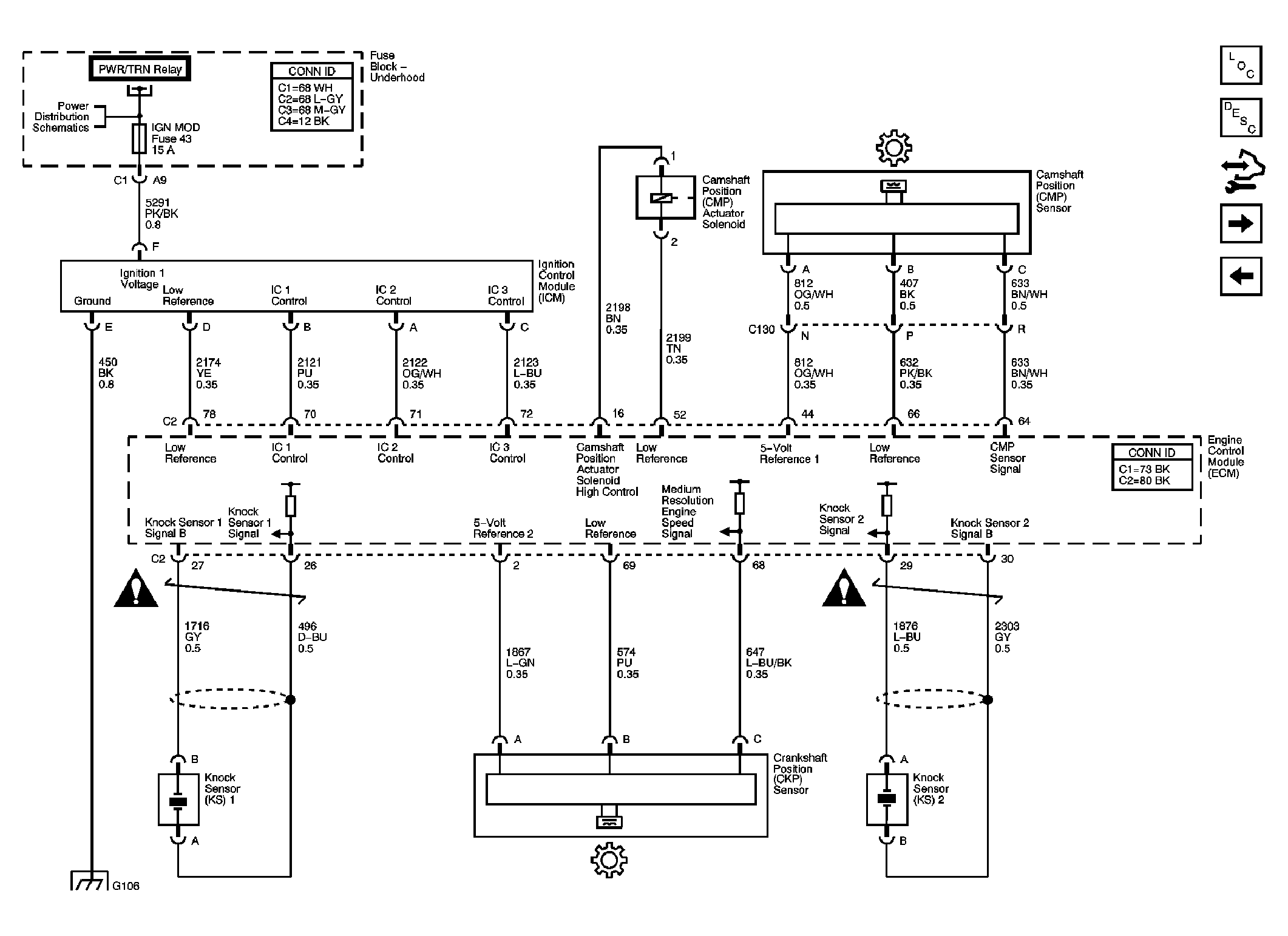

Fig 6: Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

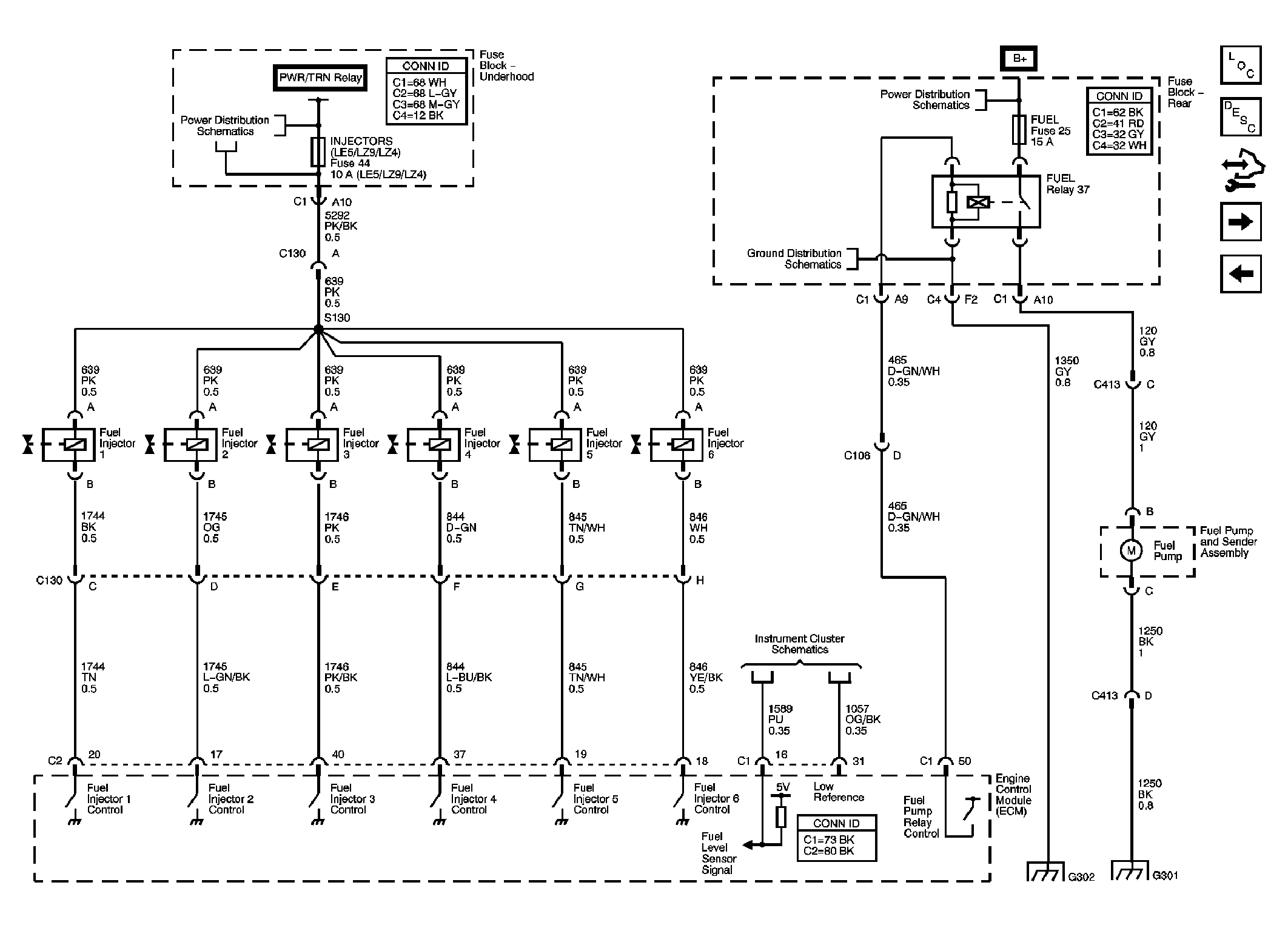

Fig 7: Fuel Injectors and Fuel Pump Schematic

Courtesy of GENERAL MOTORS CORP.

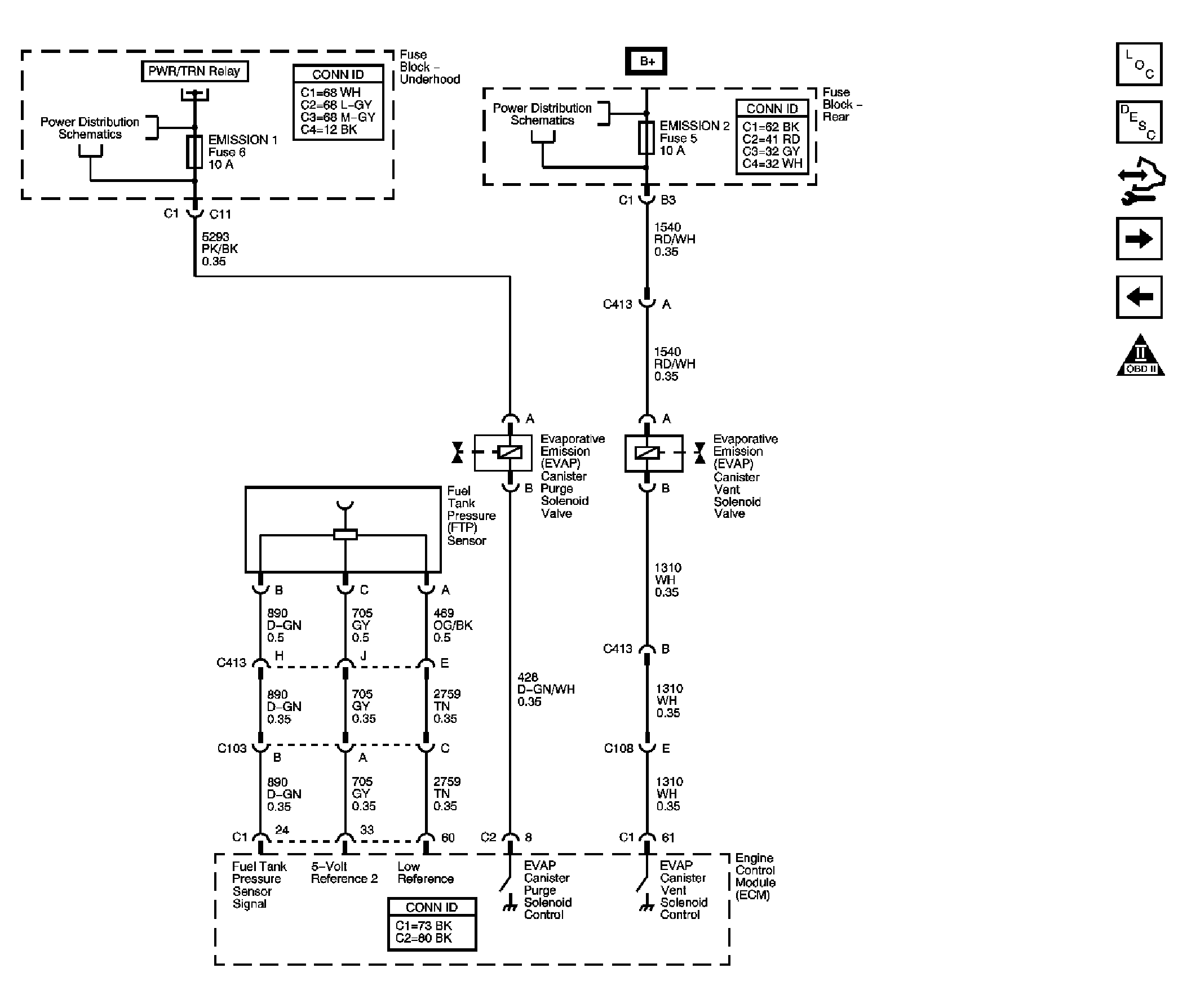

Fig 8: EVAP Controls and FTP Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

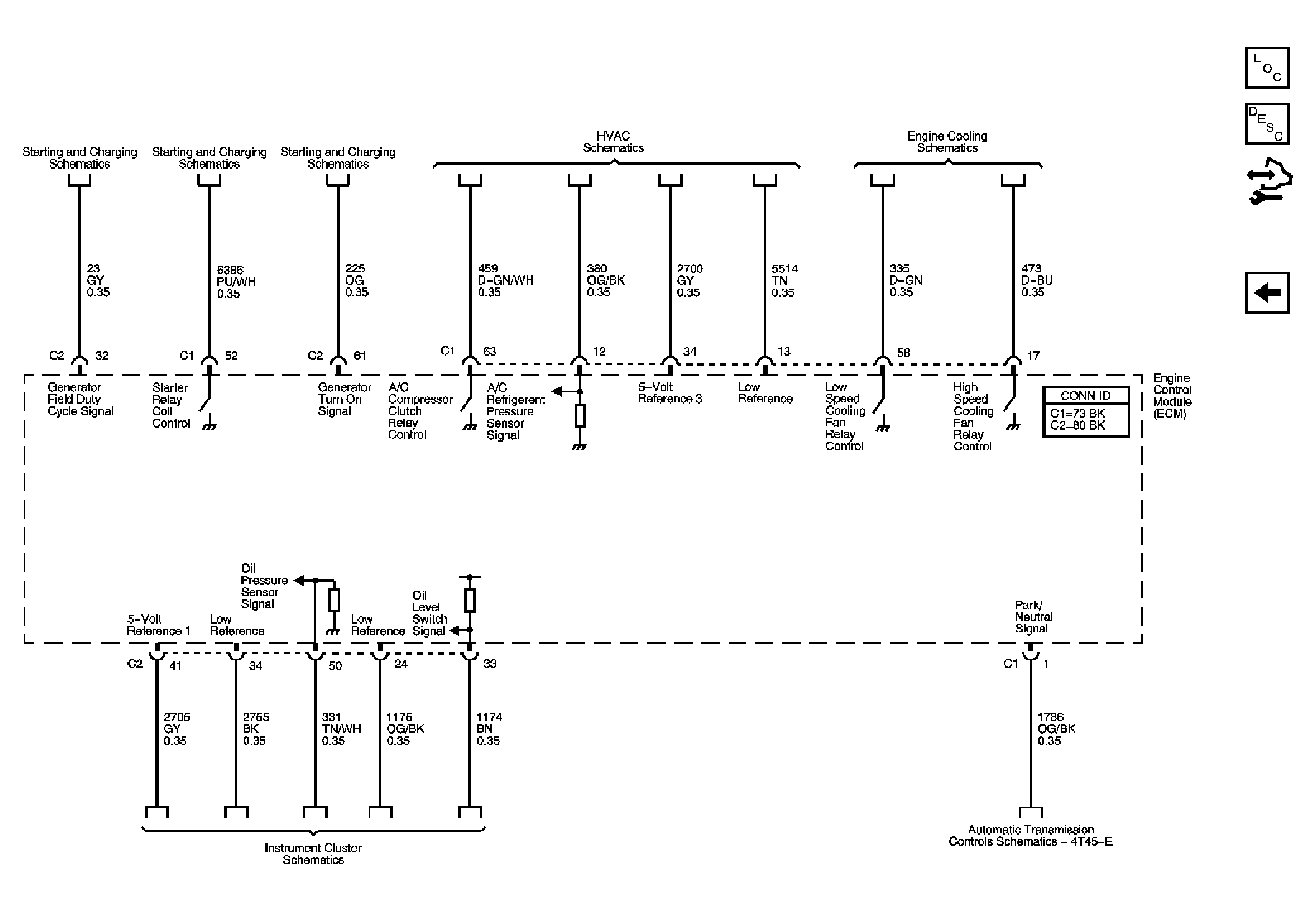

Fig 9: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
