Antilock Brake System Schematics

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

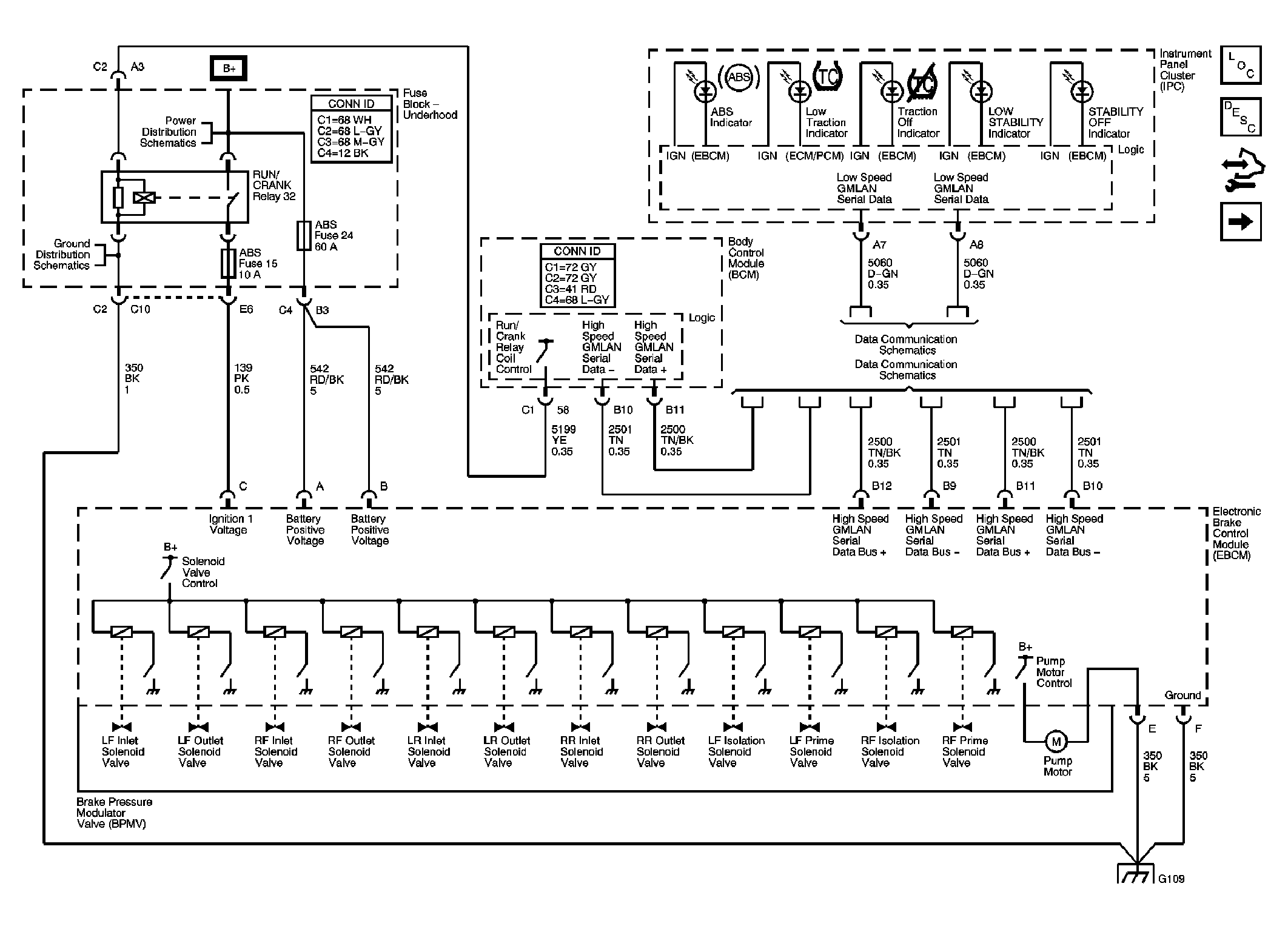

Fig 1: ABS - DLC, Ground, Indicators and Power Schematic

Courtesy of GENERAL MOTORS CORP.

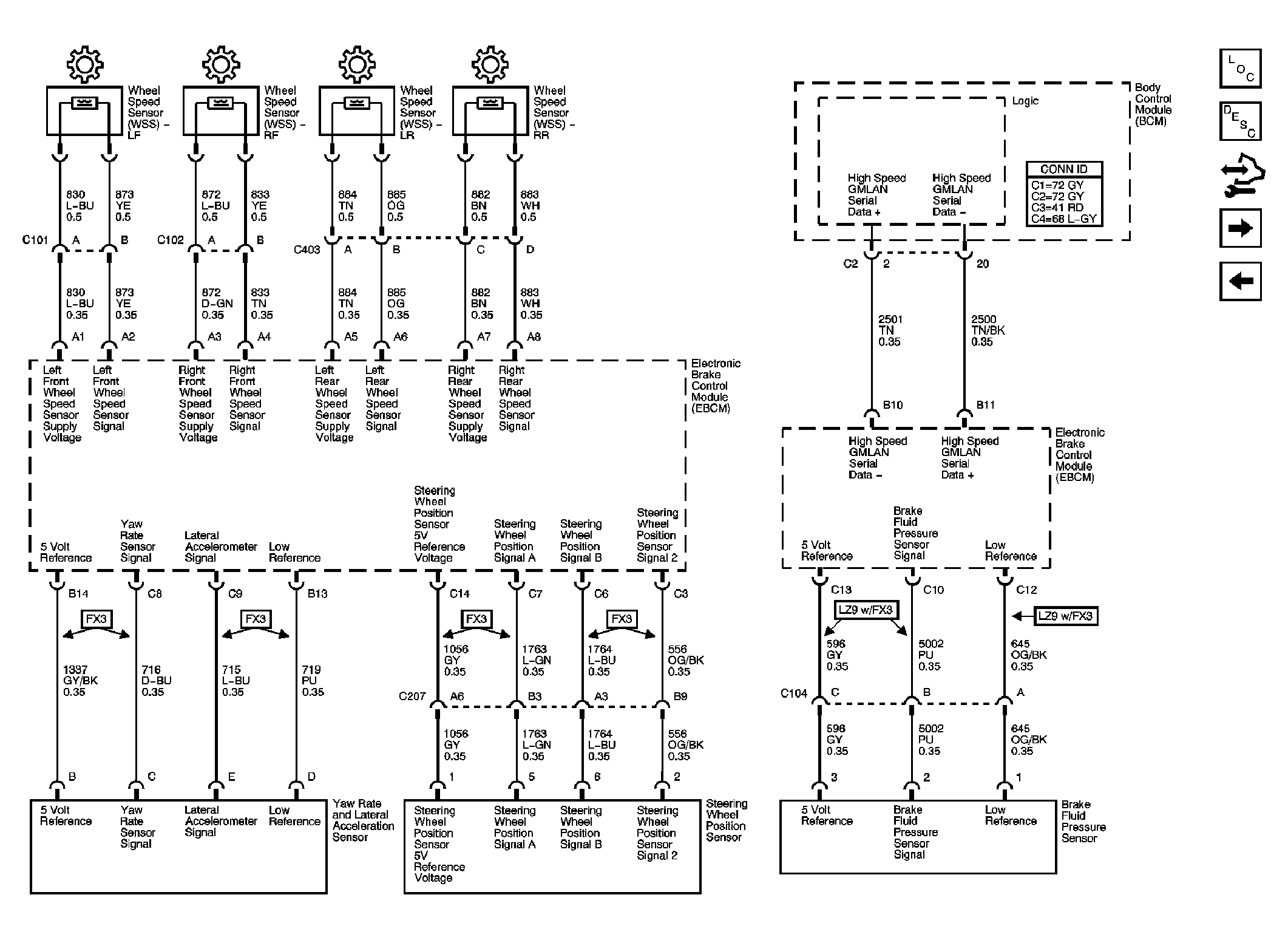

Fig 2: ABS - Sensors & Traction Control Schematic

Courtesy of GENERAL MOTORS CORP.

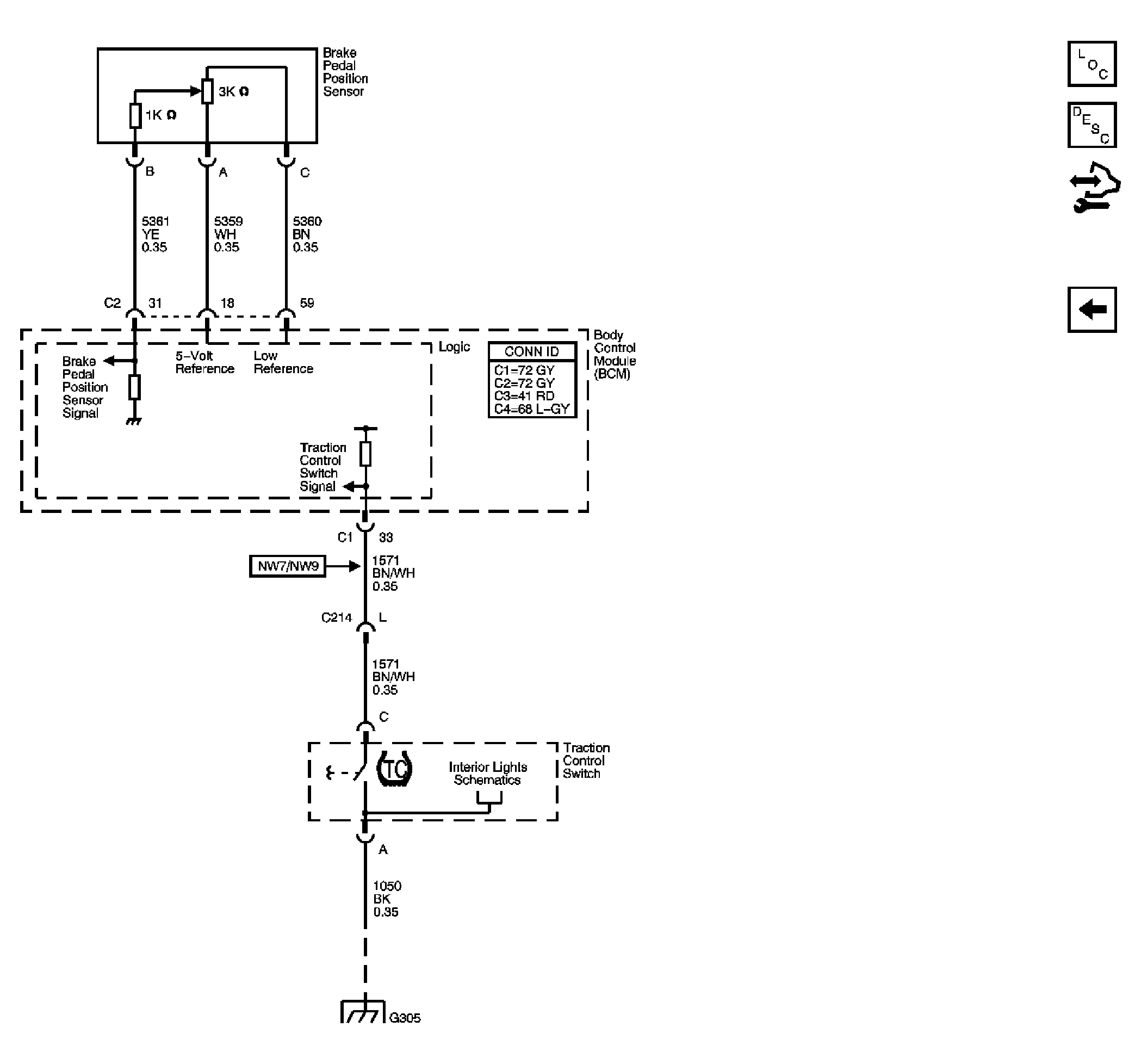

Fig 3: ABS - Brake Pedal Position Sensor & Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.
