Digital Radio Receiver Replacement (Sedan)

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

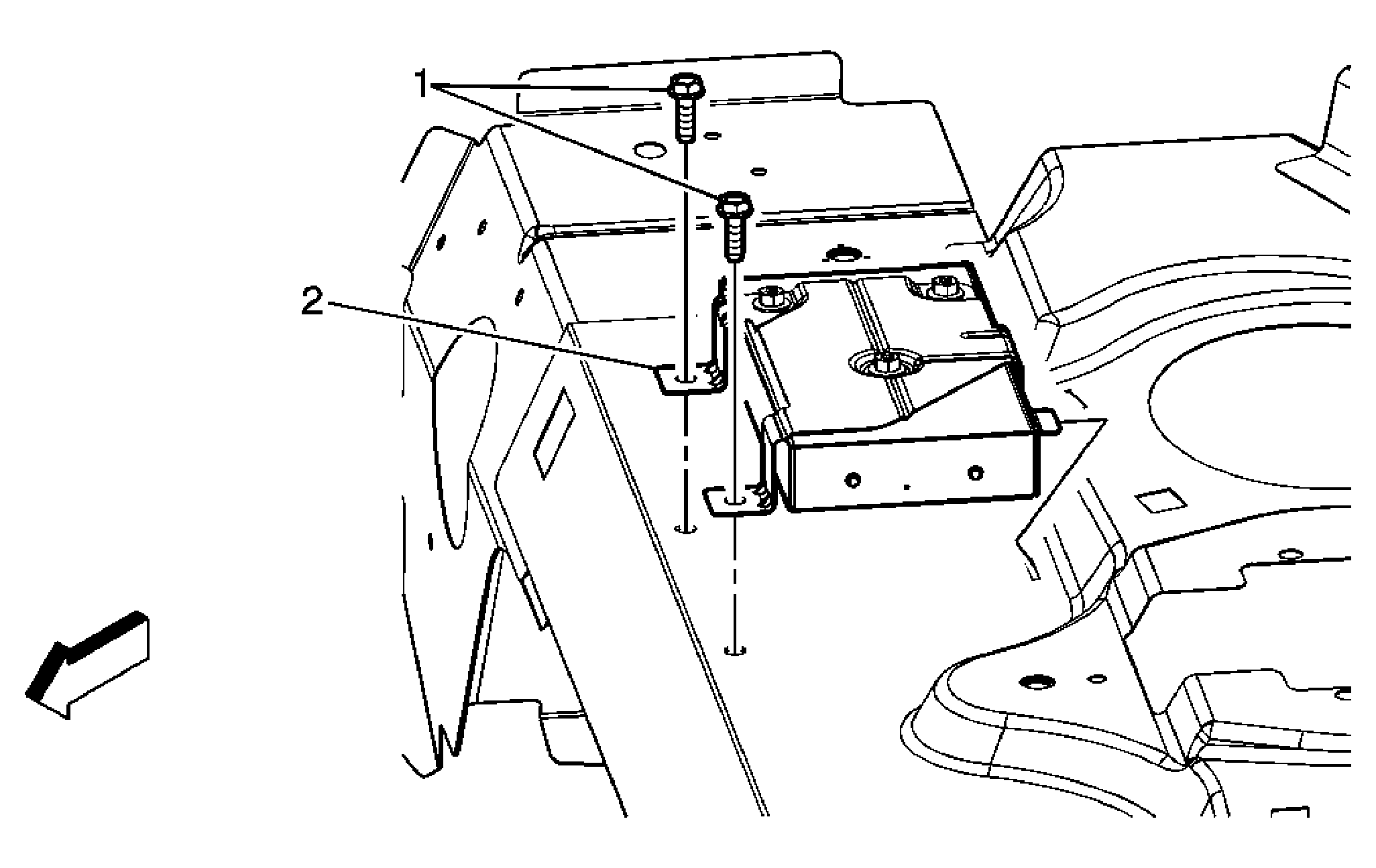

Fig 1: Replacing Digital Radio Receiver (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement . Program the digital radio receiver after replacement. Refer to Control Module References .
1	Digital Radio Receiver Assembly Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Digital Radio Receiver Assembly Tip: Do not interchange digital radio receivers between vehicles. Interchanging digital receivers between vehicles will activate the digital radio Theftlock, XM Theftlock will be displayed.

Callout

Component Name

Preliminary Procedures

Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
Program the digital radio receiver after replacement. Refer to Control Module References .

Digital Radio Receiver Assembly Bolt (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Digital Radio Receiver Assembly
Tip: Do not interchange digital radio receivers between vehicles. Interchanging digital receivers between vehicles will activate the digital radio Theftlock, XM Theftlock will be displayed.
